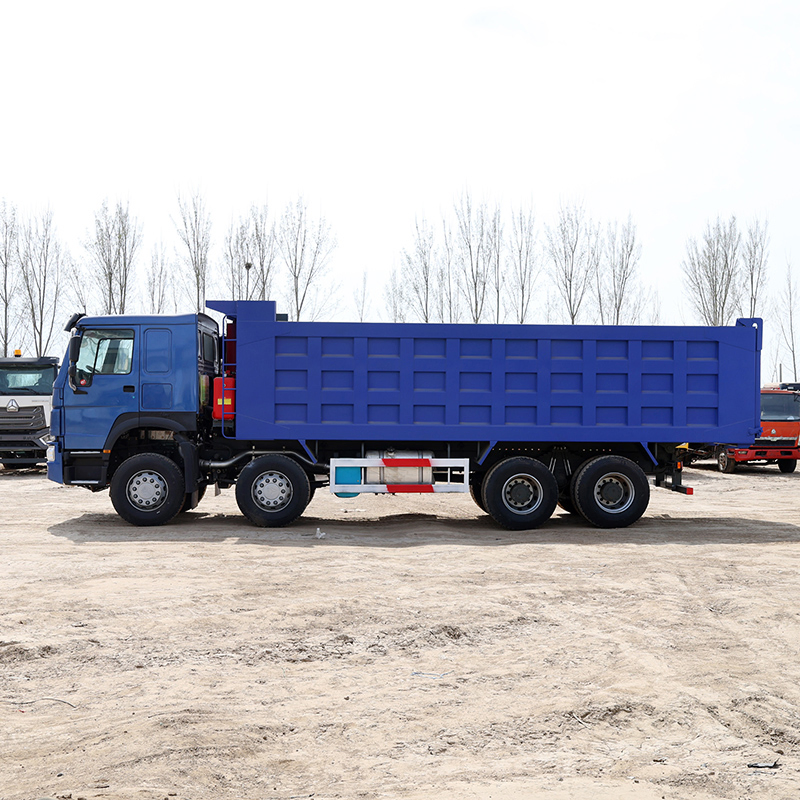

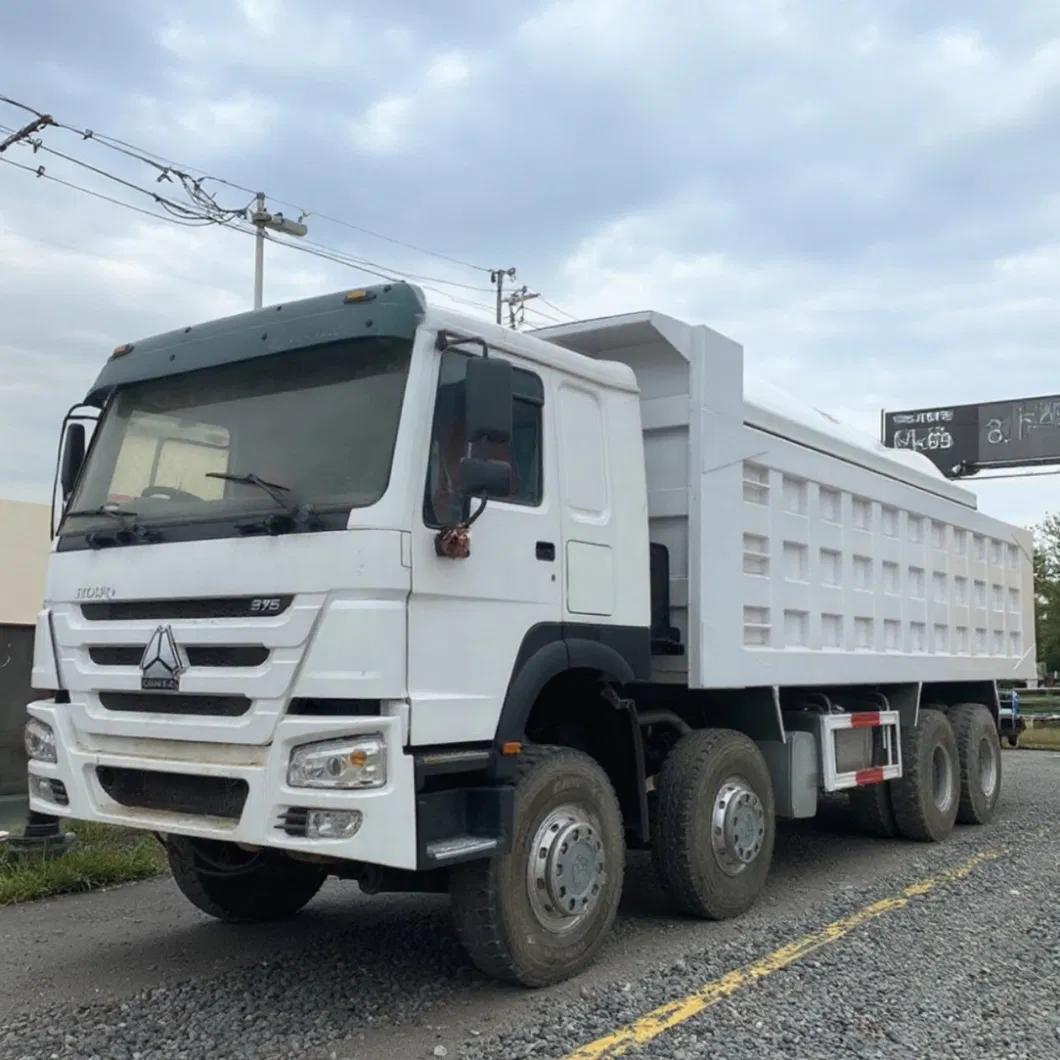

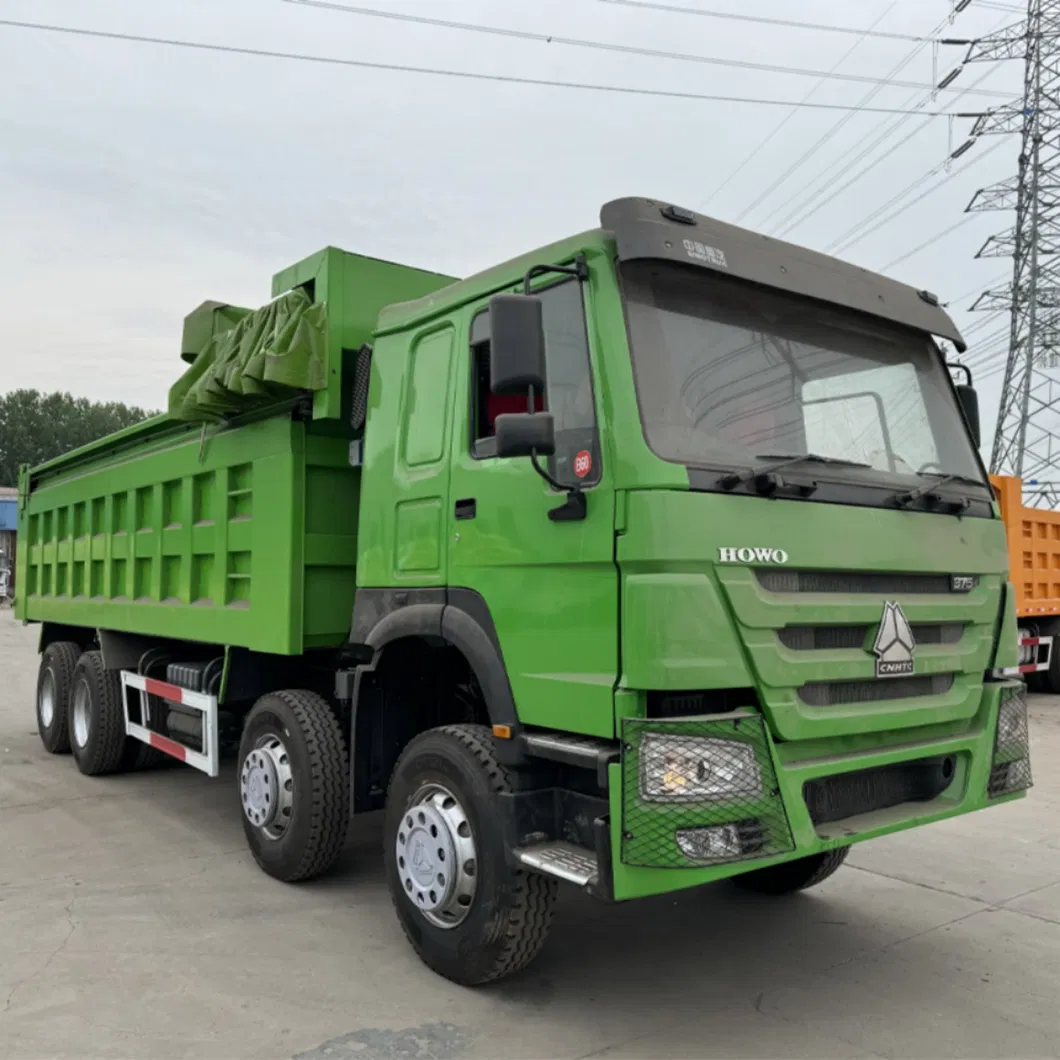

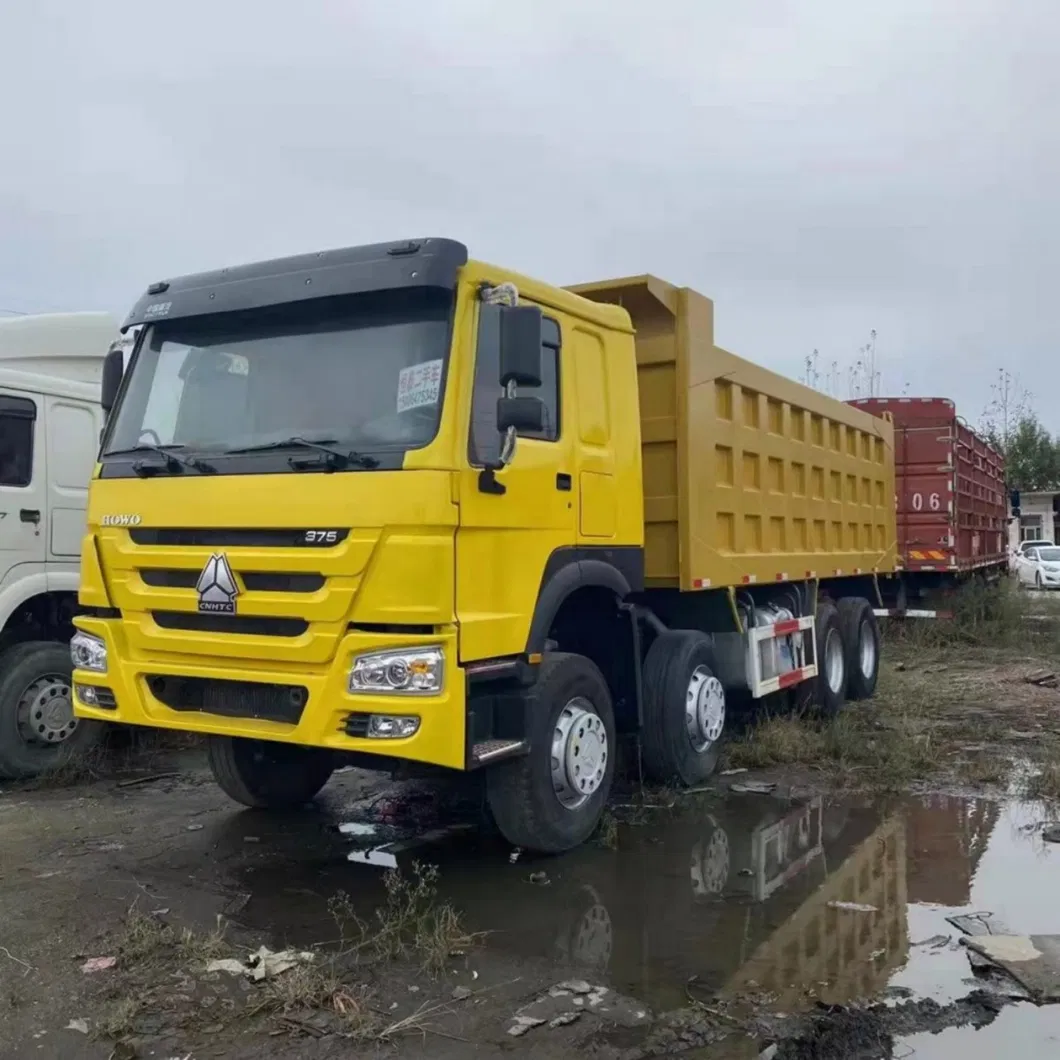

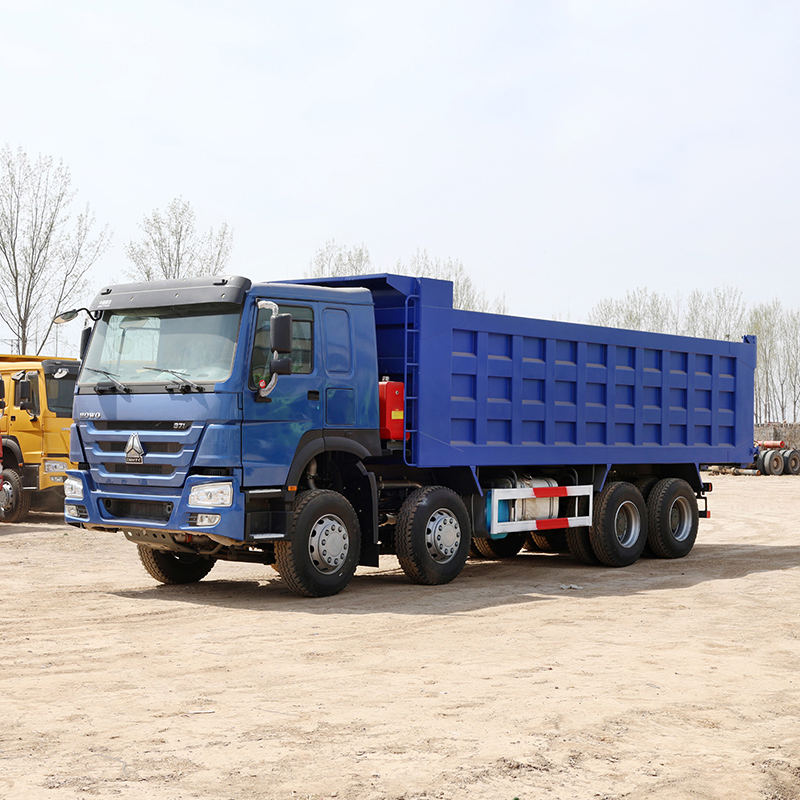

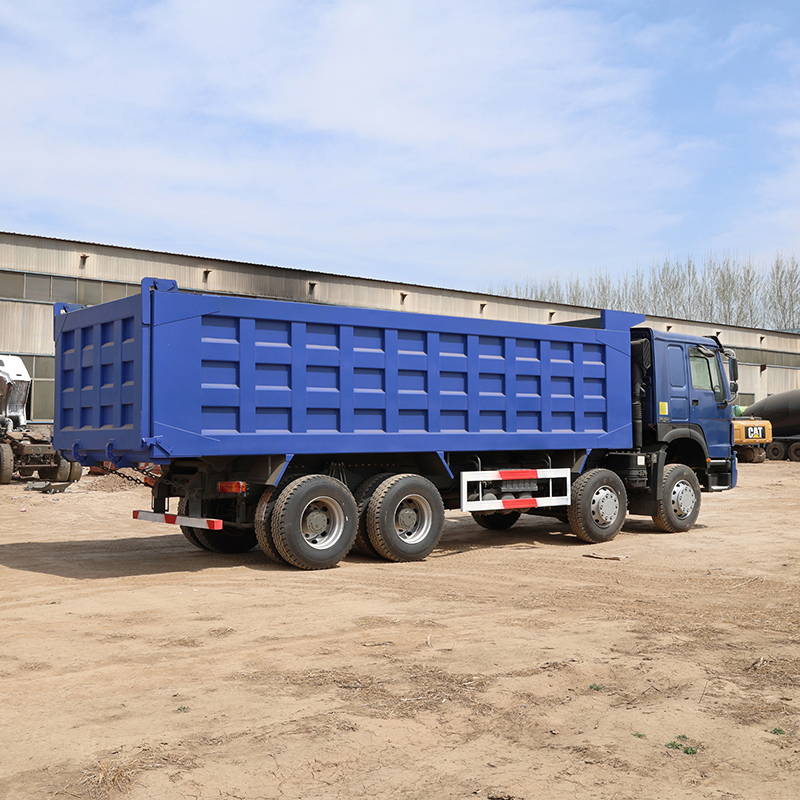

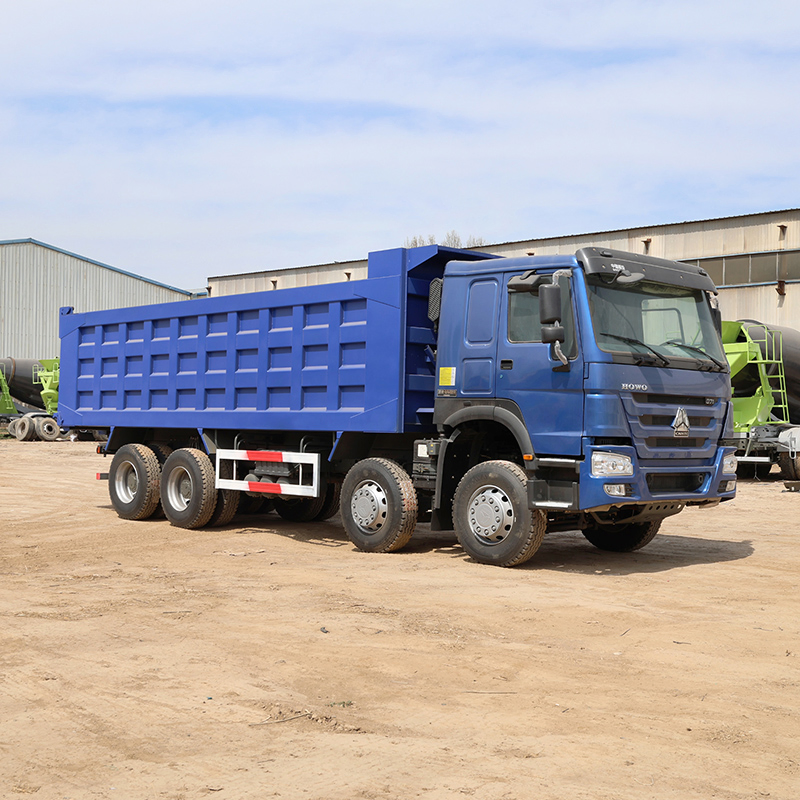

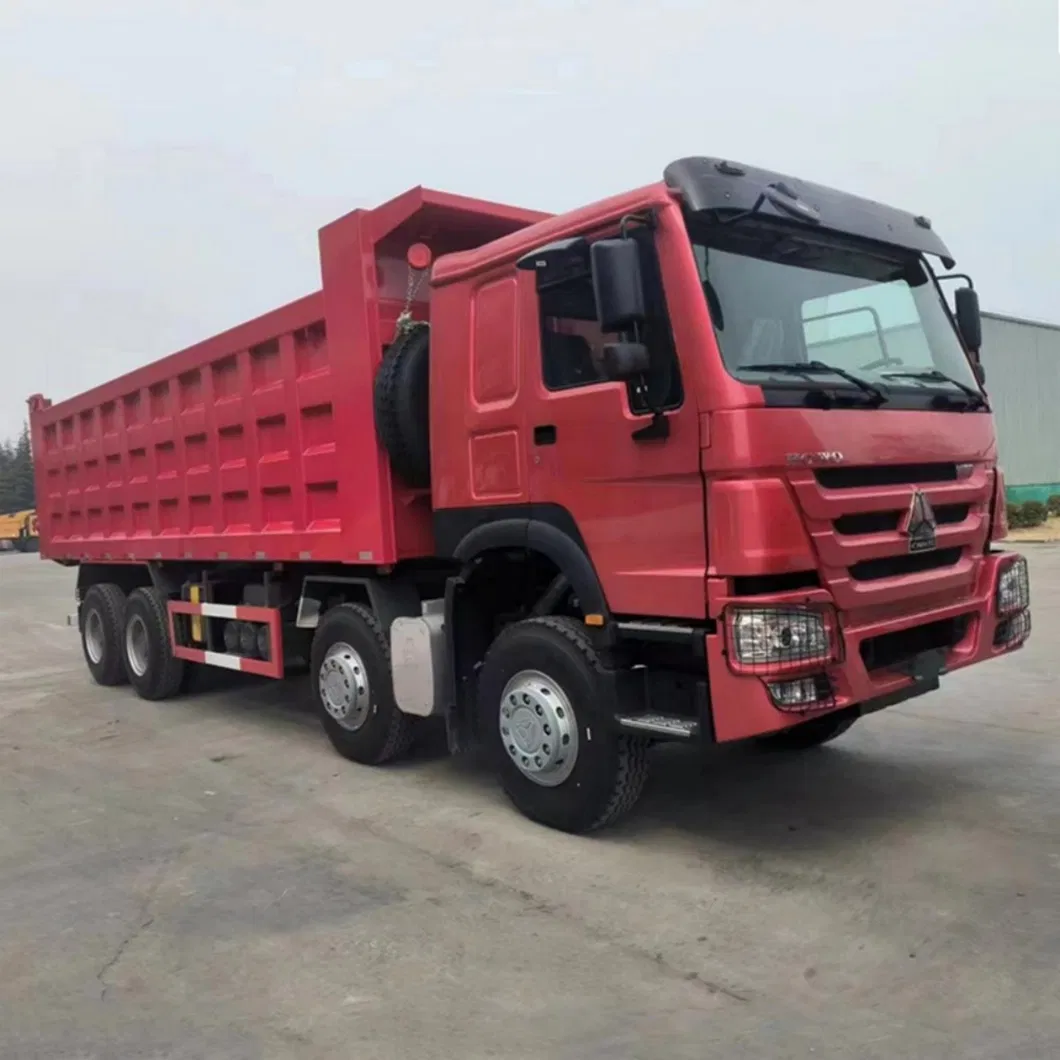

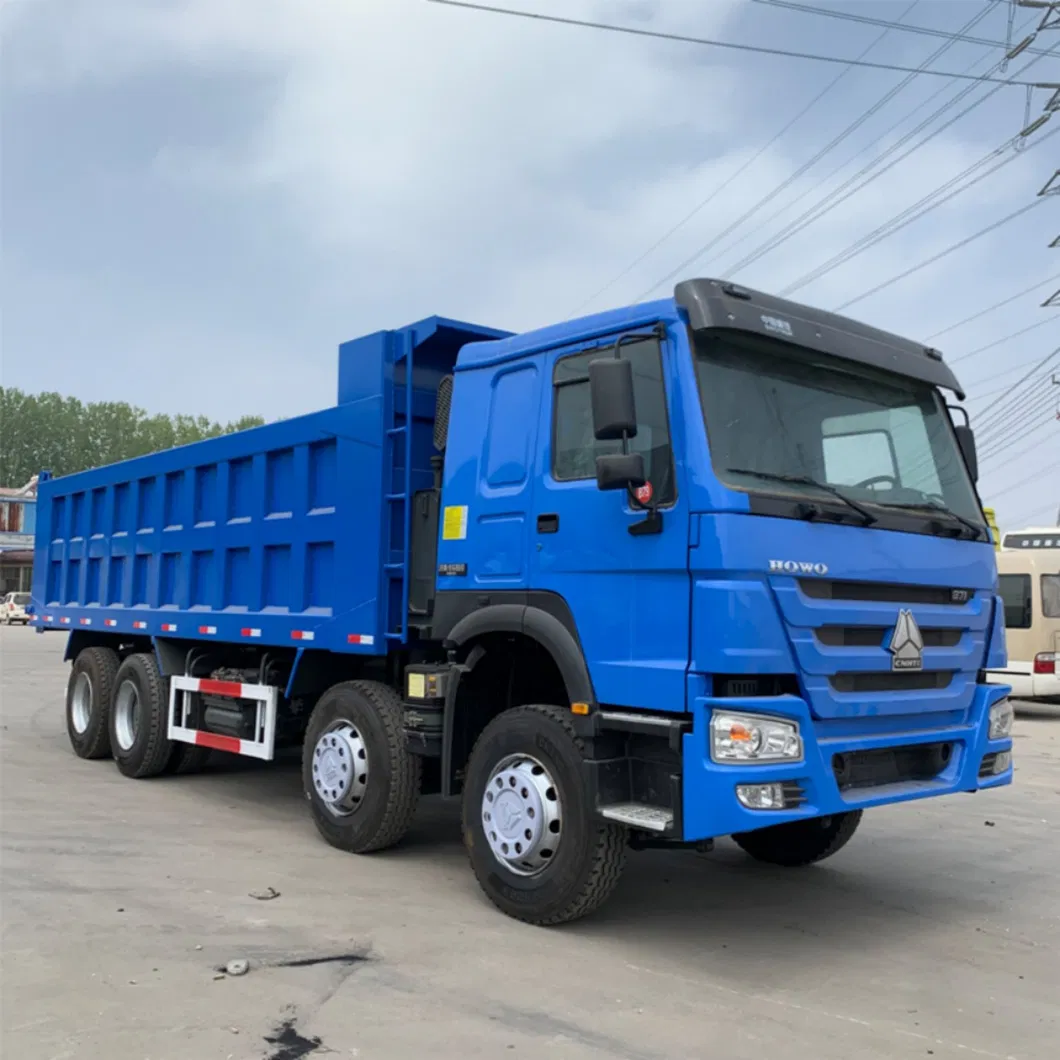

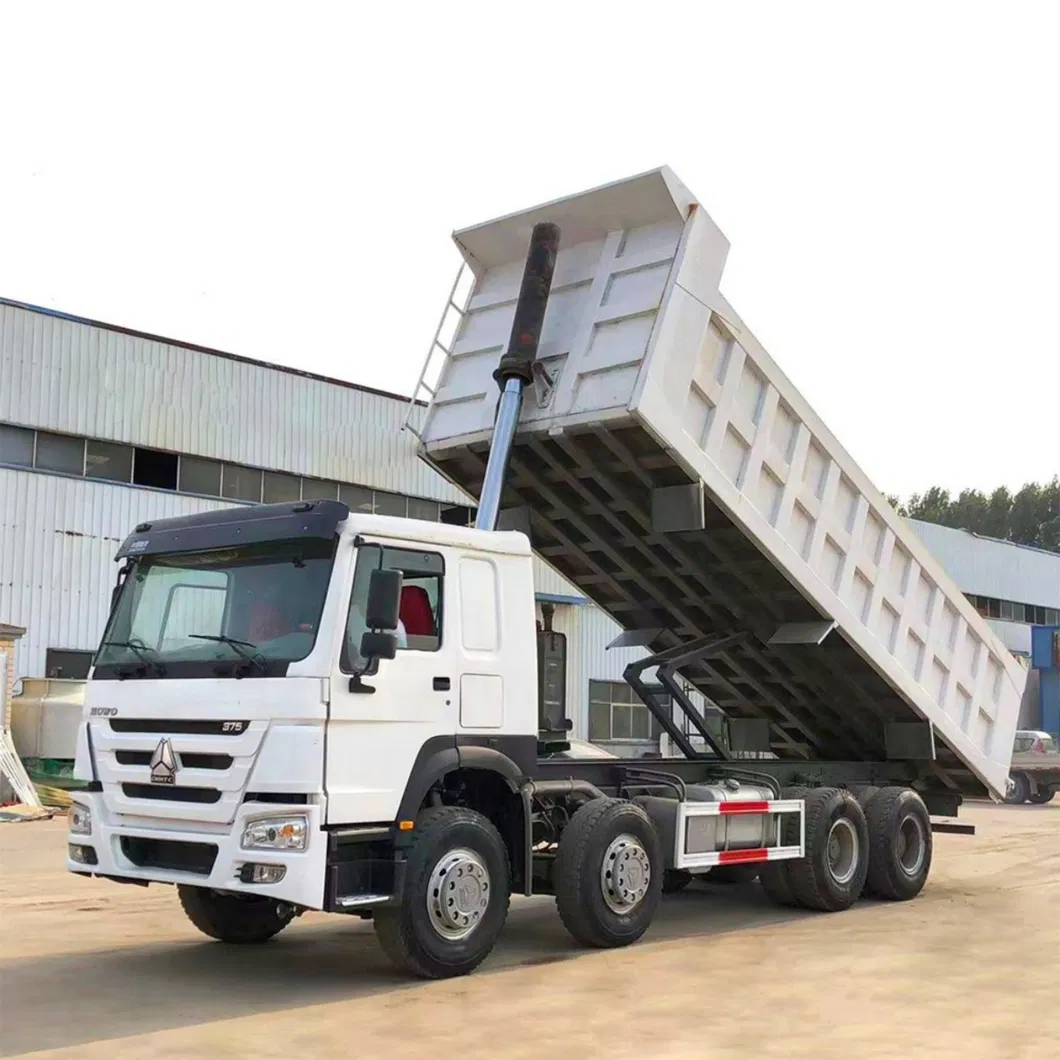

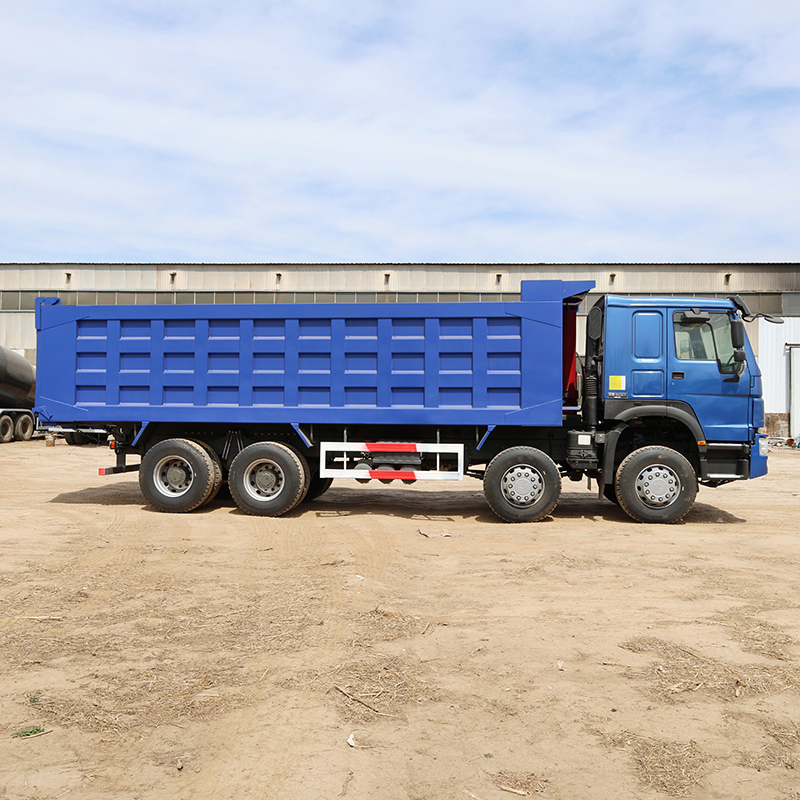

Sinotruck HOWO used dump truck is a well-known heavy-duty transportation vehicle in both domestic and international markets. This model not only holds an important position in the domestic Chinese market, but is also widely popular in overseas markets, especially in Africa, Southeast Asia, and the Middle East.
| MAIN DESCRIPTION | |
| Overall Dimension | 11470mm*2500mm*3450mm (L*W*H) |
| Payload / Curb Weight | 30-45ton / 13460kg |
| Wheelbase | 1800mm +4800mm+1350mm |
| CHASSIS SPECIFICATIONS | |
| Chassis Brand | SINOTRUK HOWO |
| Driving Type | 8x4 |
| Engine Power | Brand: SINOTRUK, diesel engine, 375HP /371HP, Euro II |
| Transmission | HW19710, 10 forward speeds and 2 reverse |
| Axle Load | Front: HF9 (9 ton) / Rear: HC16 (13 ton x2) |
| CARGO BODY | |
| Inside Dimension | 7600mm*2300mm*1500mm |
| Steel Thickness | Floor 8mm, side wall 6mm |
| Transport Medium | Floor (mm) | Side (mm) |
| Soil or Stone | 8 | 4 |
| Construction Waste | 10 | 6 |
| Big Ore | 12 | 8 |
| Coal / Clay | 6-8 | 4 |
