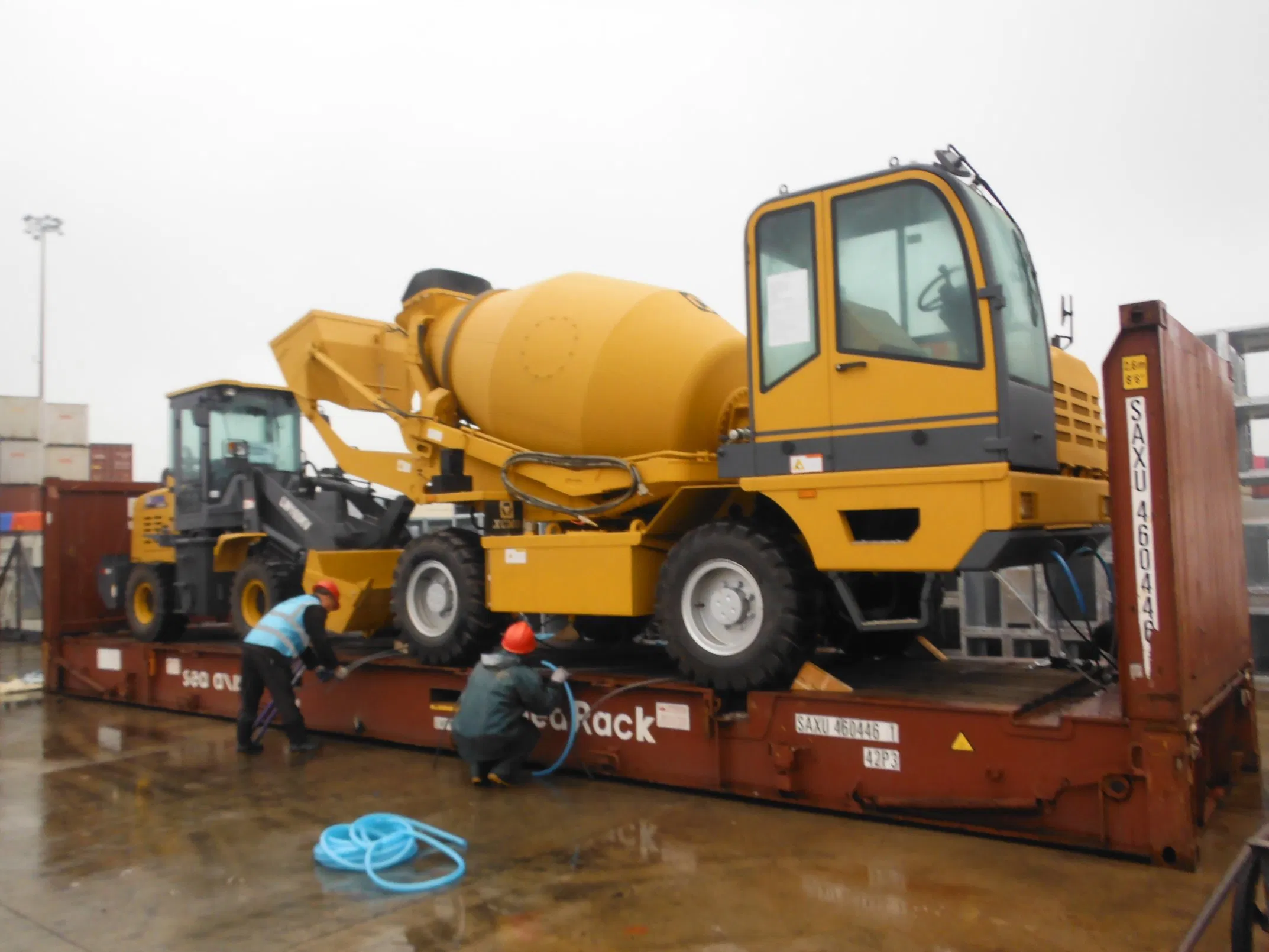

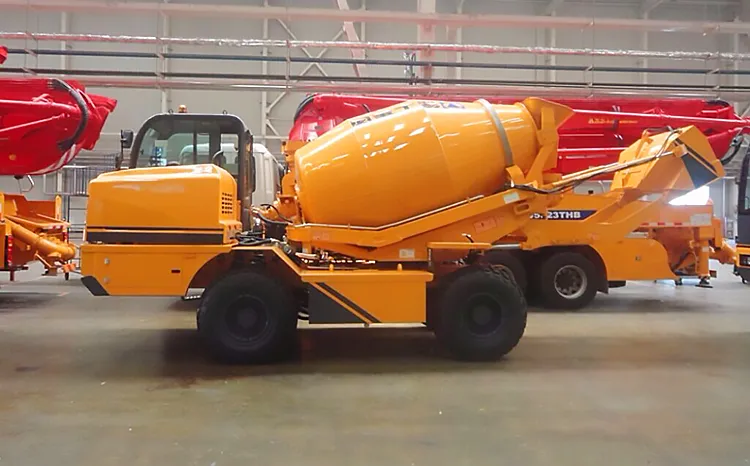

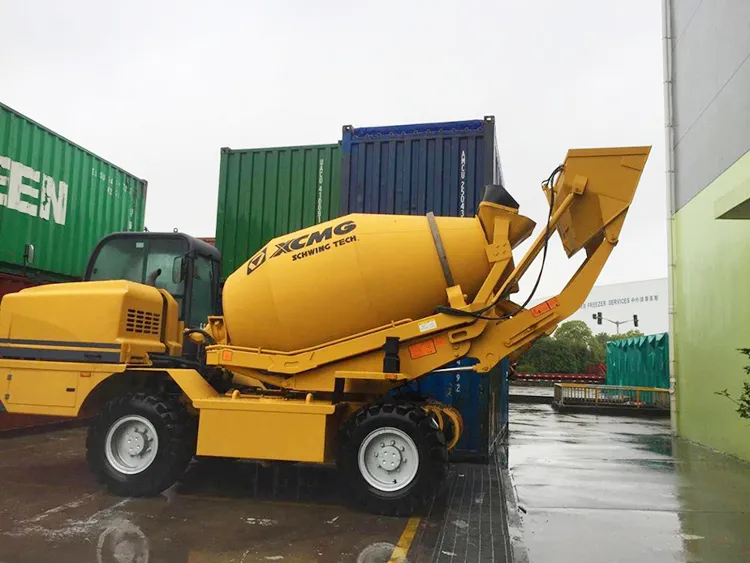

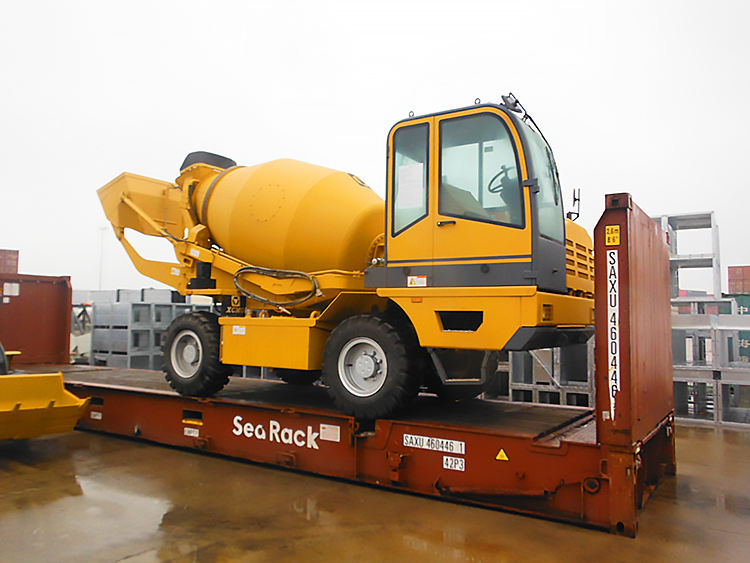

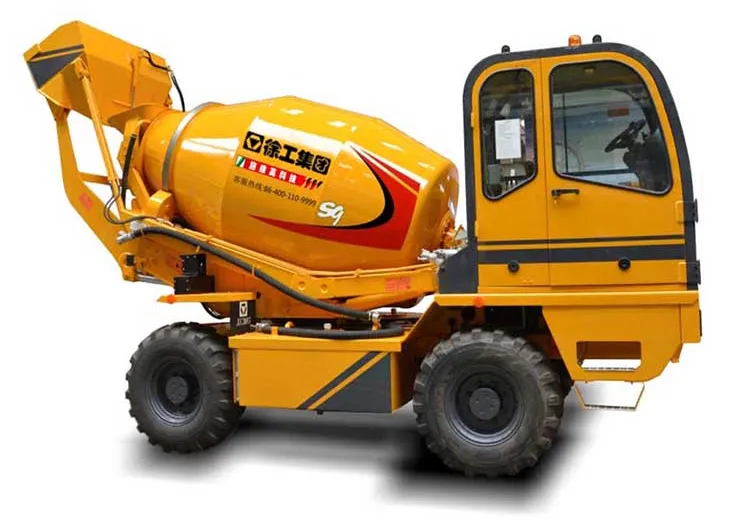

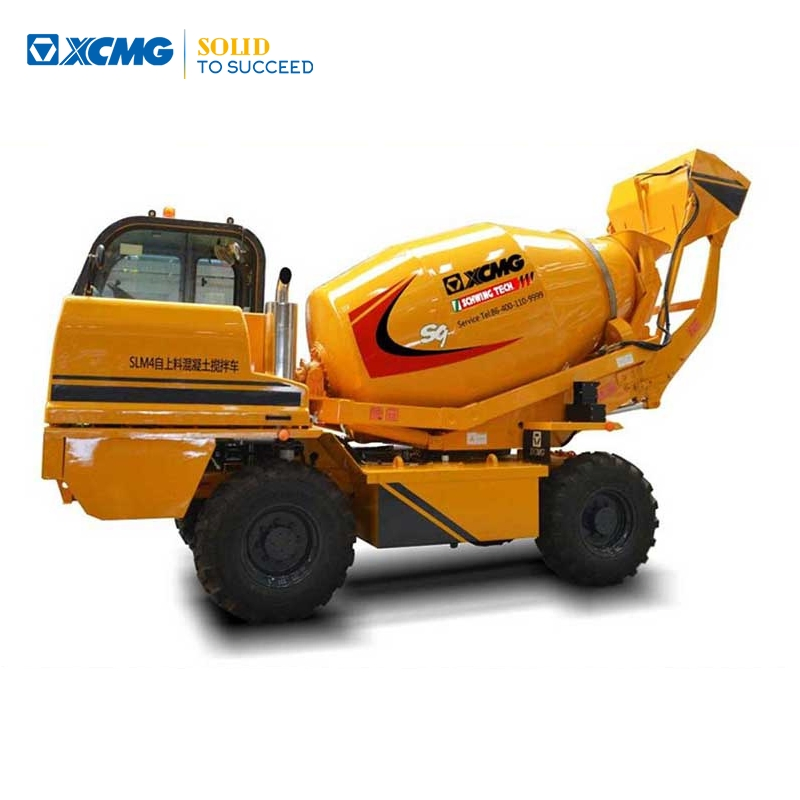

SLM4 Self Loading Concrete Mixer Truck
The SLM4 self-loading concrete mixer is a high-performance 4-cube concrete mixer designed for efficiency. With a maximum driving speed of 30km/h and a production efficiency of approximately 12-14m³/h, it streamlines construction workflows. All bucket actions are easily managed via a pilot control handle.
This equipment combines the functions of a concrete transport truck and a mixing station. It handles loading, measuring, mixing, and unloading, enabling seamless transportation and on-site construction.
Equipped with four-wheel drive, the mixer operates reliably even in challenging working conditions, ensuring consistent work efficiency.
Aggregates are weighed during the loading process. With a weighing accuracy within 3%, it ensures the production of high-quality concrete and improves overall output efficiency.
| Item | Unit | SLM4 Specification |
|---|---|---|
| Engine | - | 82KW@2200rpm (ChinaII) |
| Geometrical capacity of drum | m3 | 5.3 |
| Max. output | m3 | 4 |
| Transmission system | - | Hydrostatic; variable pump with variable motor; 4WD |
| Vehicle speed | Km/h | 0~30 |
| Cab | - | Closed type; Joystick operated bucket |
| Rotation angle of drum | ° | 255 |
| Max. gradeability | % | 44 |
| Bucket Capacity | L | 600 |
| Curb mass | Kg | 8800 |
