IDS Auto
IDS Auto
| Traction | 6X4 |
| Driving type | LHD (RHD is option) |

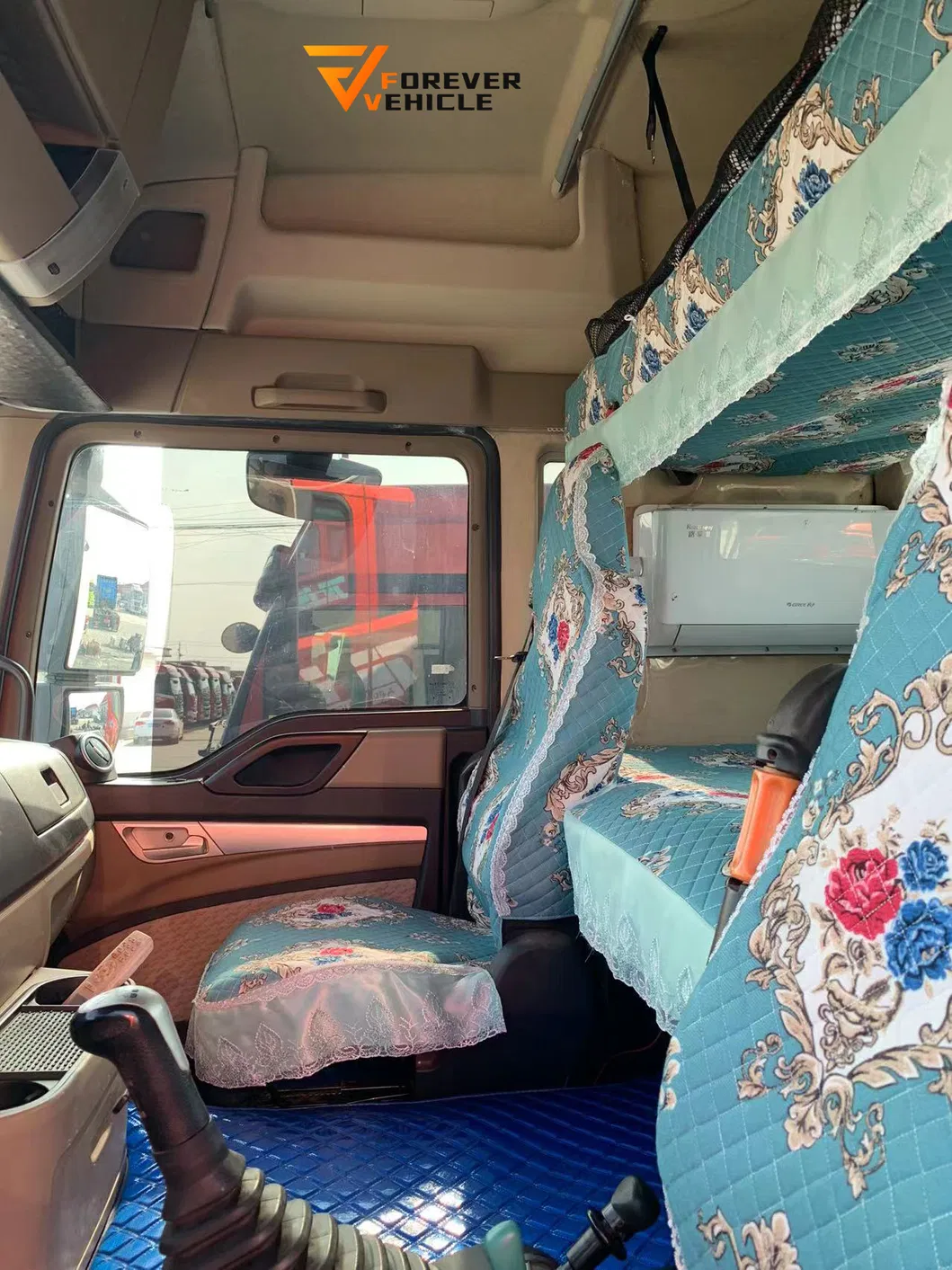

| Cabin | HW76 Cab, with one sleeper bed, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60° |
| Construction | Current standard all steel construction |
| Instrument panel | Indicators of compressed air pressure, coolant temperature, engine oil pressure and battery charging |
| Seats | 4-point support fully floating suspension + shock absorbers adjustable driver & passenger fixed |
| Engine Brand | SINOTRUK |
| Model | WD615.47 371hp |
| Emission | Euro II |
| Engine type | Diesel 4-stroke direct injection engine, 6-cylinder in line with water cooling, turbo-charging |
| Displacement | 9.726 L / Diesel |
| Max. output | 371hp @ 2200rpm |
| Max. torque | 1500Nm @ 1100-1600 rpm |
| Compression ratio | 17:1 |
| Gear Model | HW19710 (10 Forward & 2 Reverse) |
| Clutch | Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting with air assistance |
| Steering Model | ZF8098 |

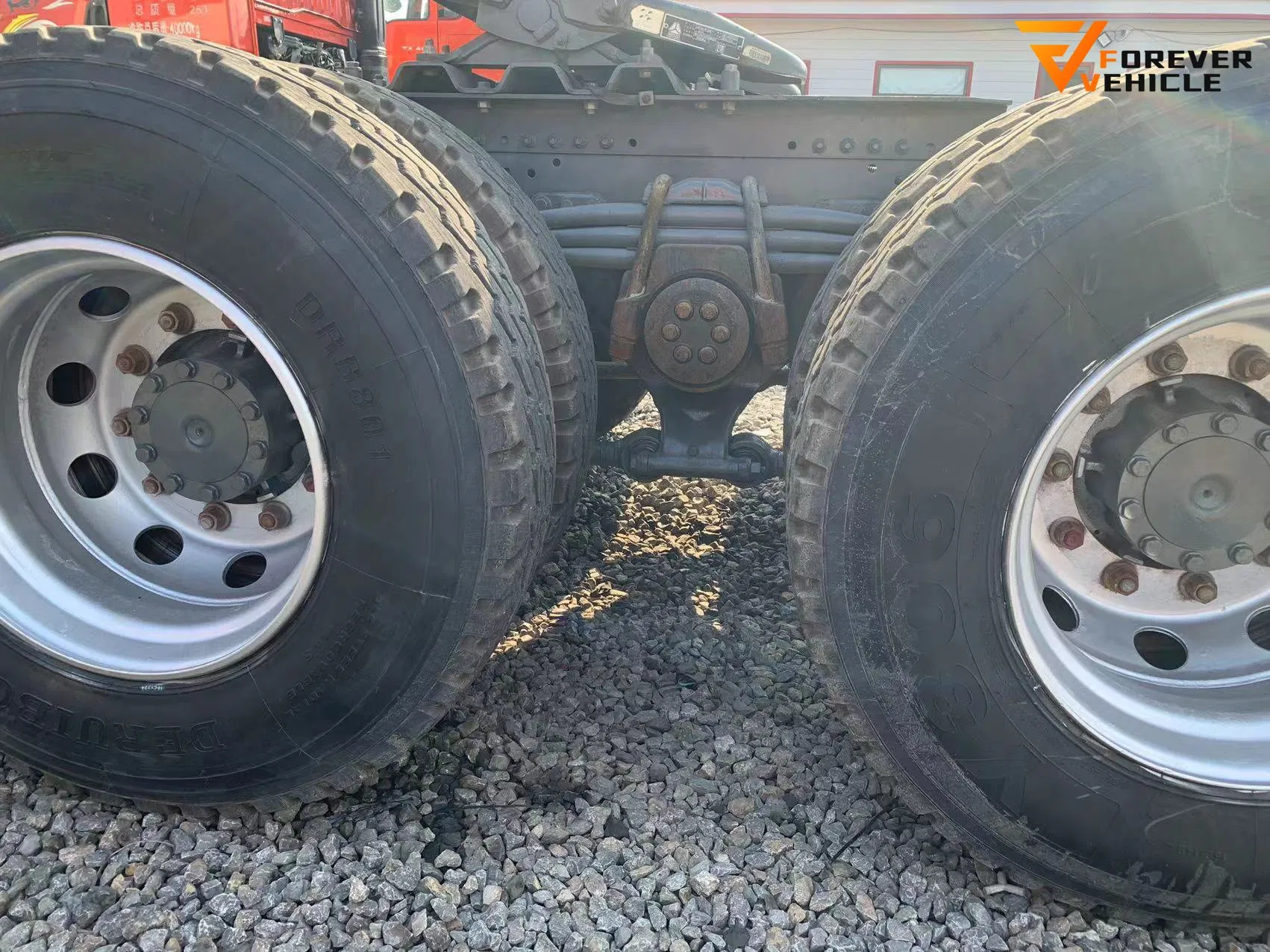

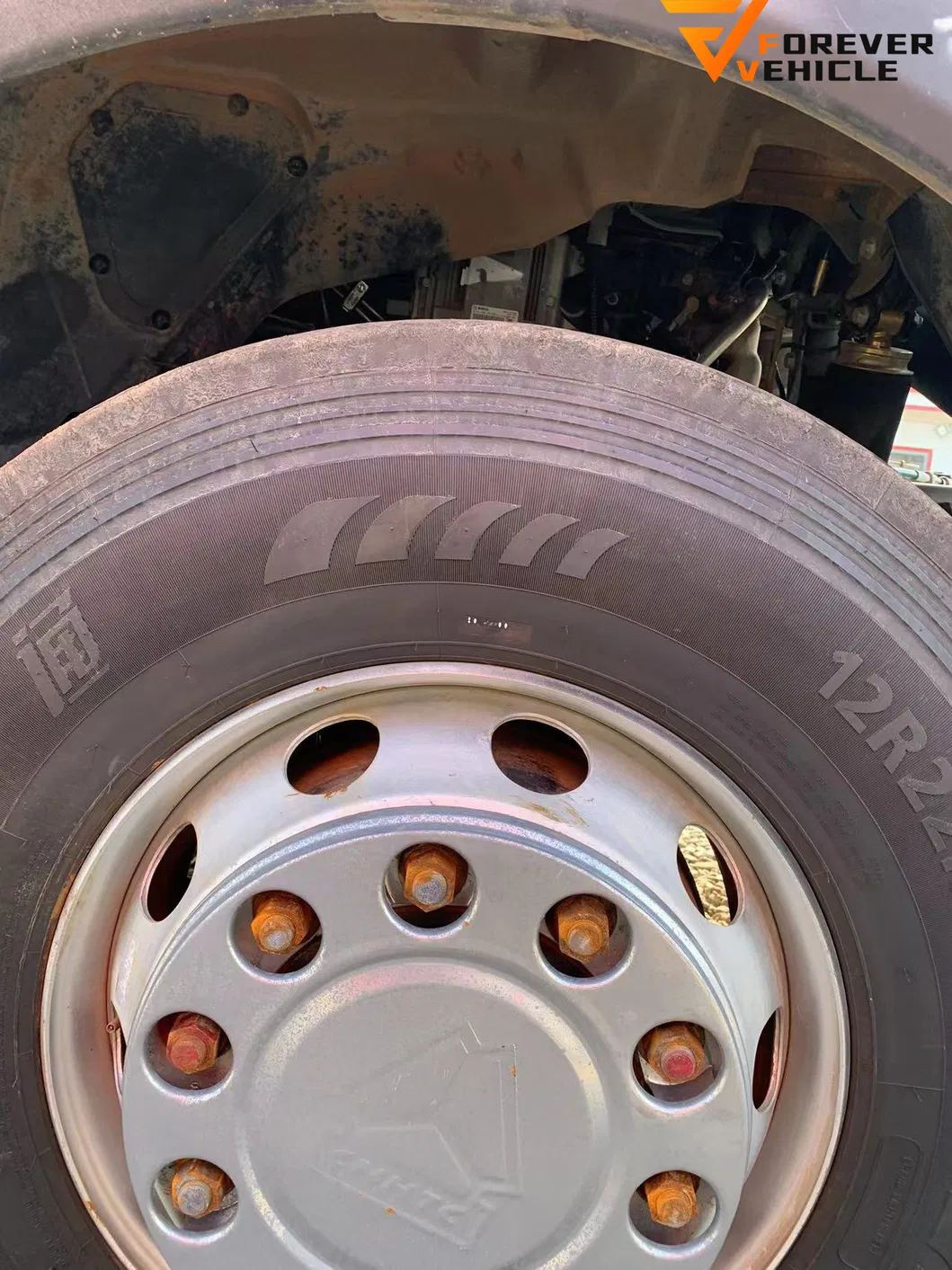

| Tyre | 12.00R20 Tyres |

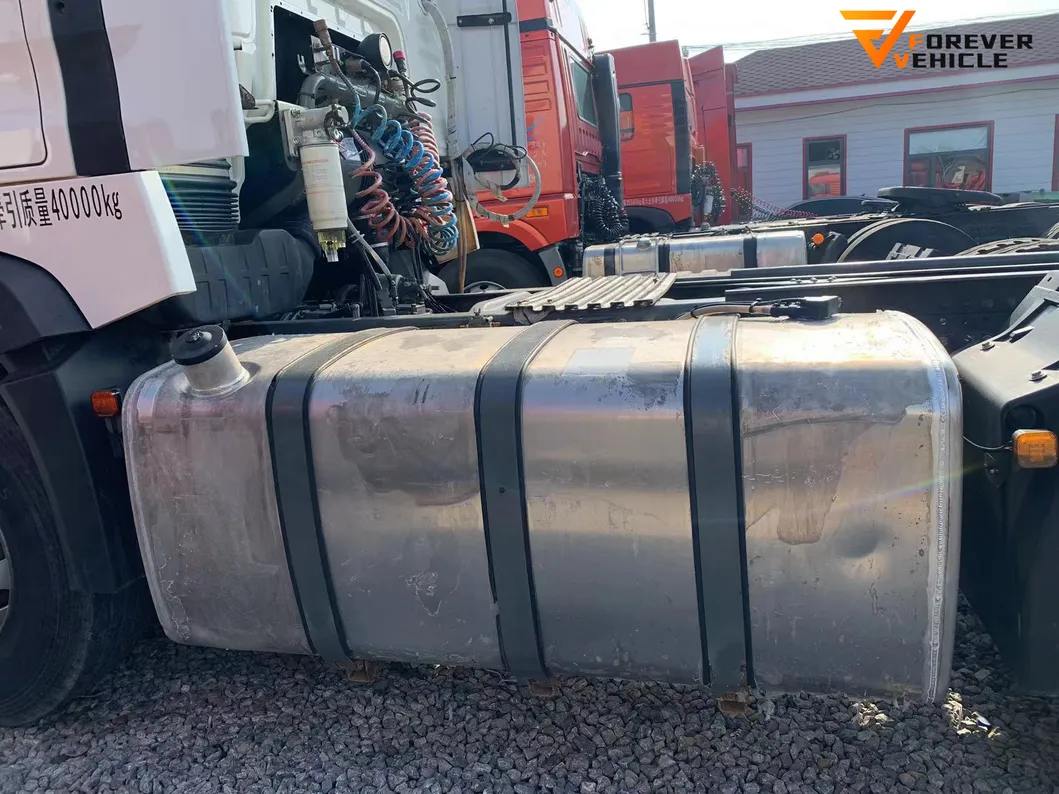

| Fuel tank | 300L Iron Tank with locking fuel cap |
| Axles | Front: HF9 tons (drum brake) | Rear: HC16 16tons |
