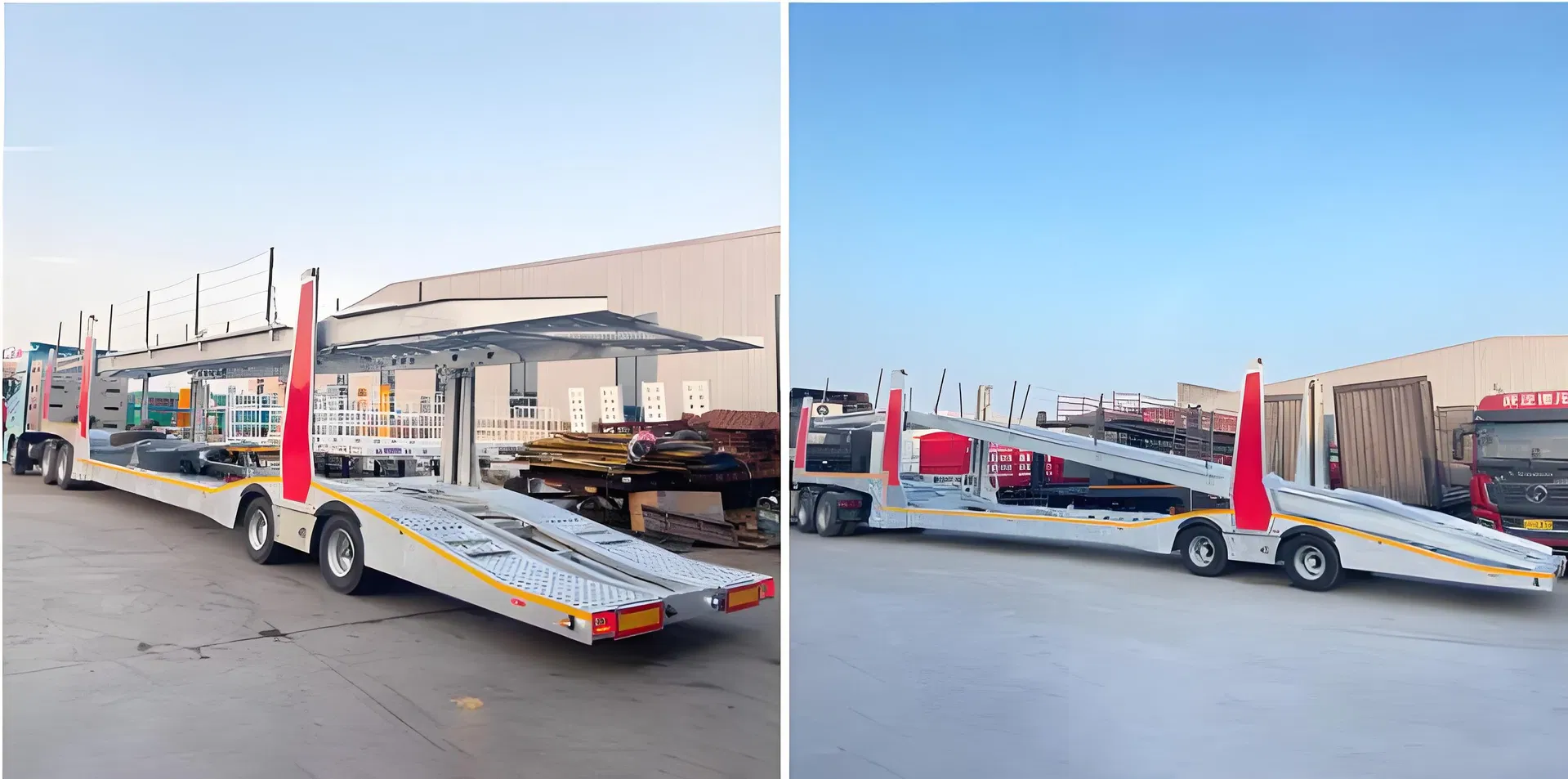

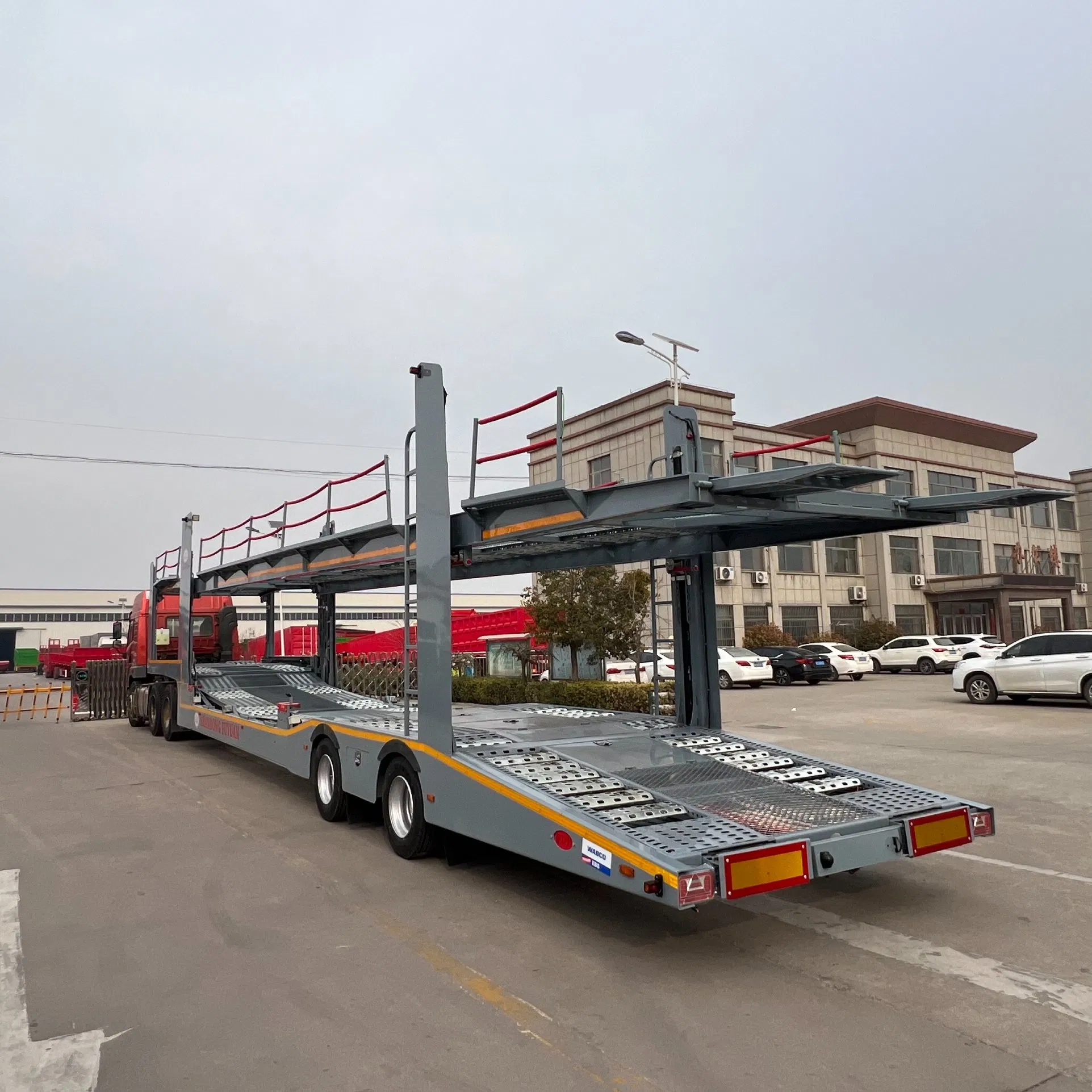

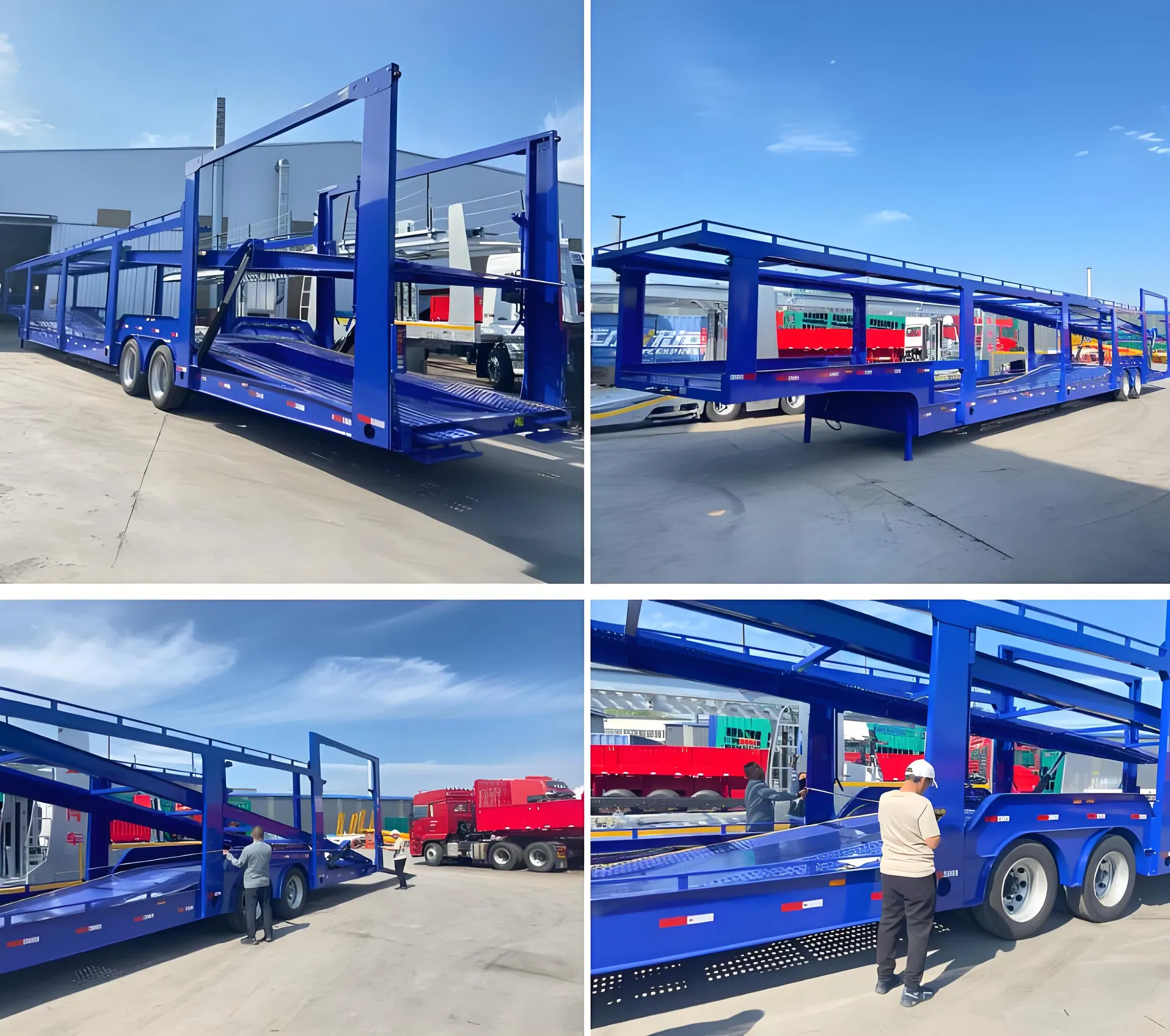

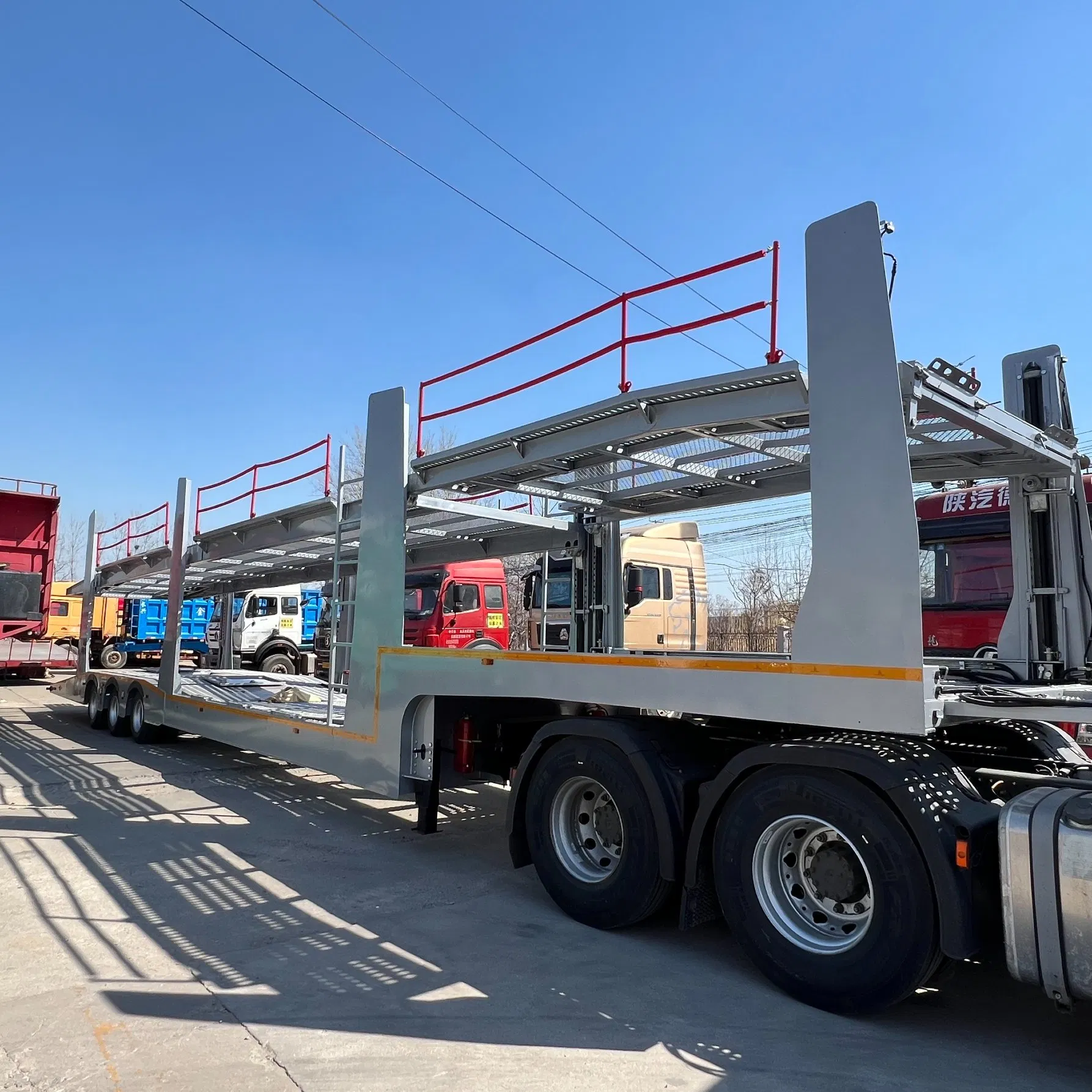

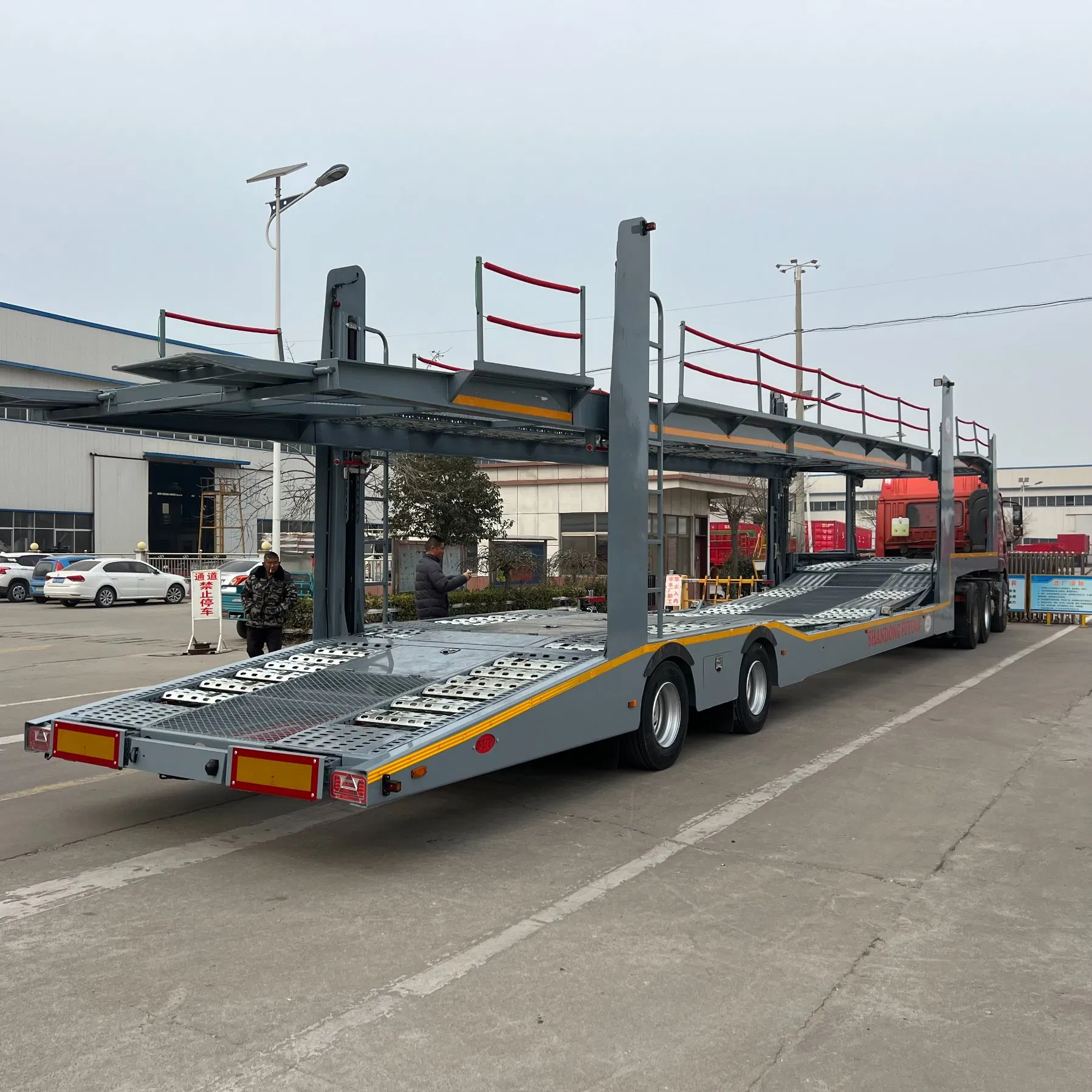

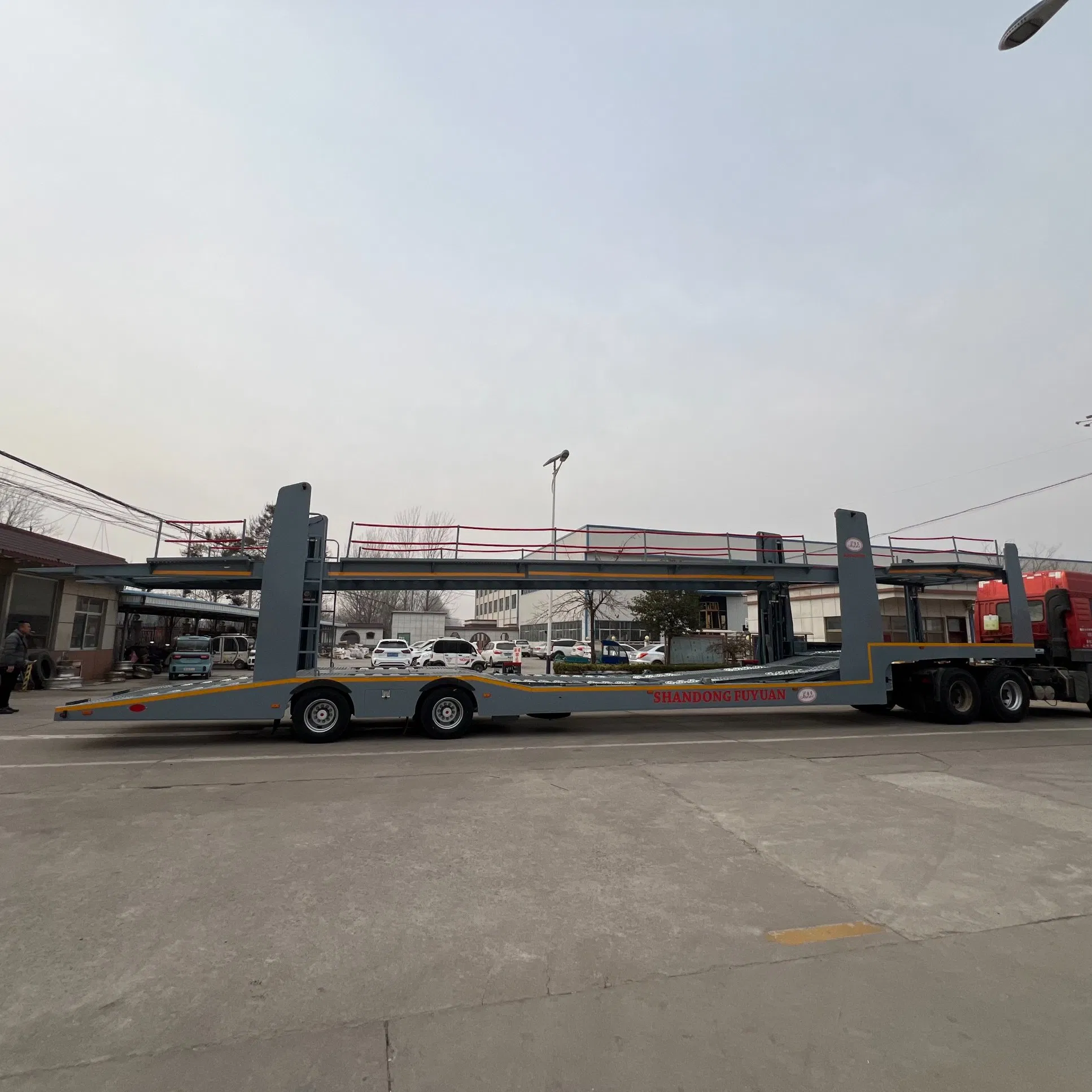

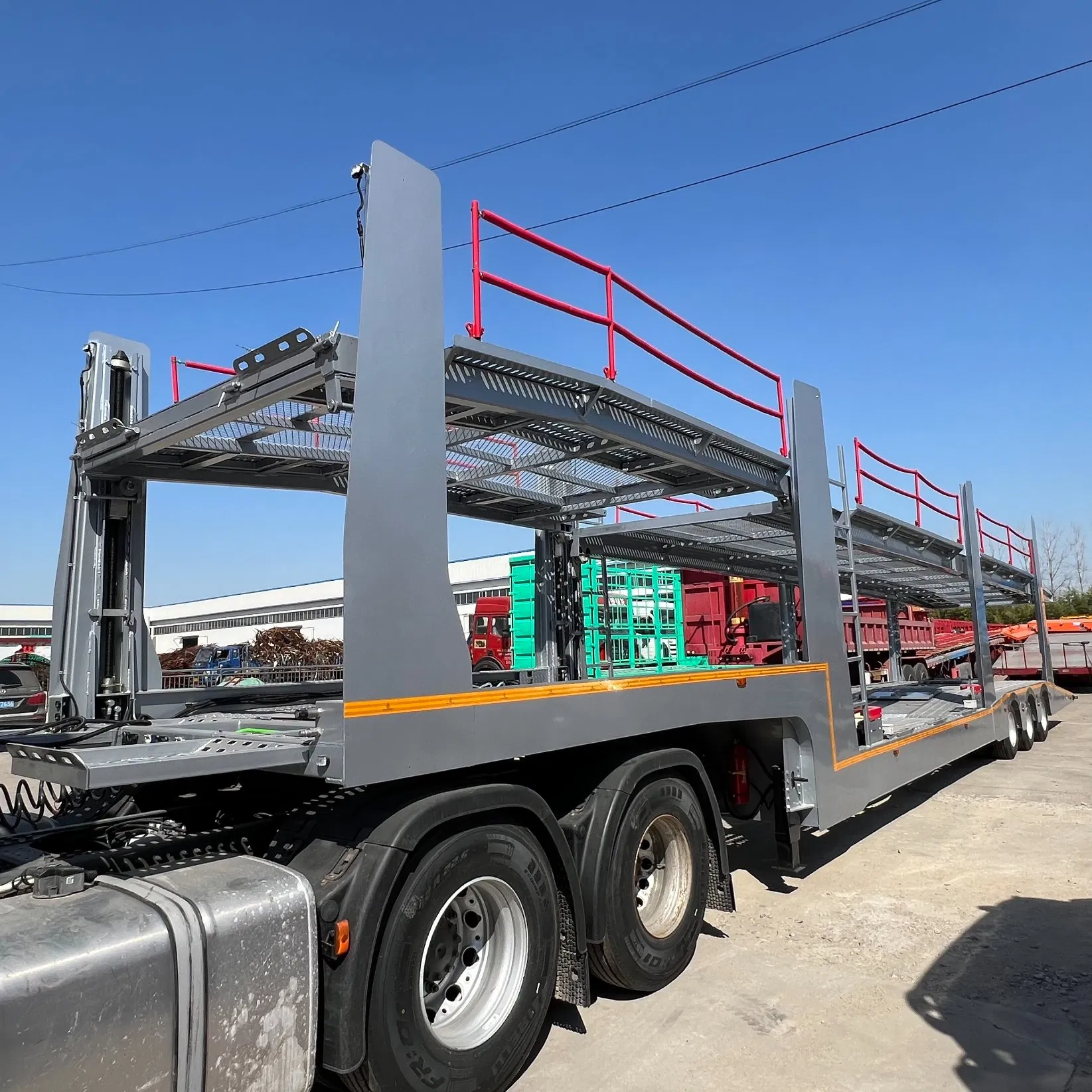

Car Carrier Semi Trailer refers to a vehicle that transports sedans. There are three models based on structural form: double axle double tires, double axle single tires, and single axle double tires. The entire upper platform can be adjusted to accommodate 5-10 cars of different specifications, such as sedans, MPVs, SUVs, and pickup trucks.
| Items | Car carrier trailer (6 cars) | Car carrier trailer (10+ cars) |
| Loading Capacity | 6 cars | 10 cars or more |
| Axle | 2 pieces, 13T FUWA/BPW | 3 pieces, 13T FUWA/BPW |
| Tyre | 8 pieces, 12R22.5 | 12 pieces, 12R22.5 |

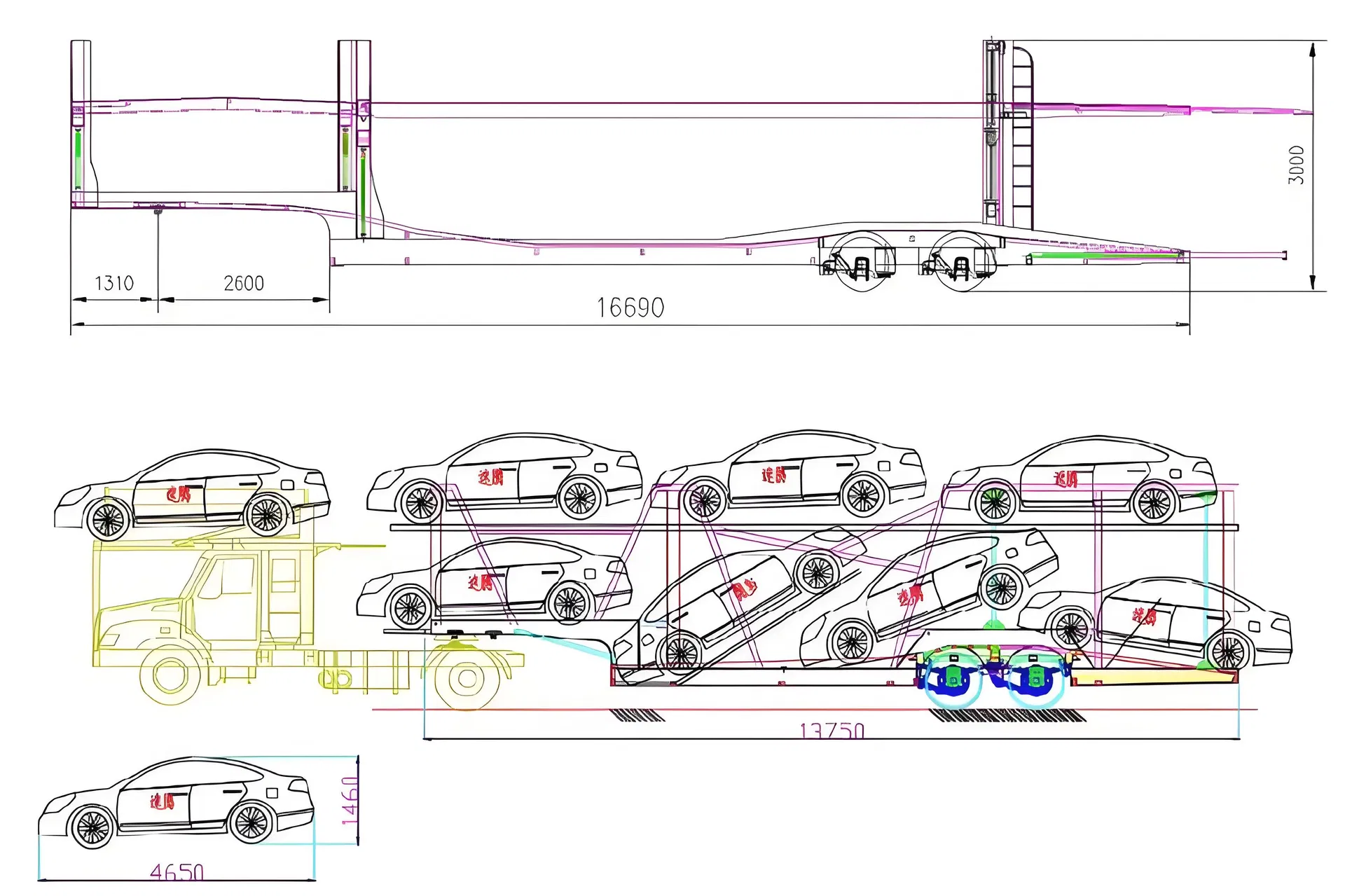

| Dimensions(LxWxH) | 14000 to 21000mm x 3000 x 3900mm | |
| Tare weight | 9 tons to 11 tons | |
| Suspension System | Leaf spring suspension / air suspension | |
| Brake System | Dual line pneumatic with WABCO valve | |
| Main Beam | Height 500mm Q345 | |
| Kingpin | 2' or 3.5' interchangeable | |

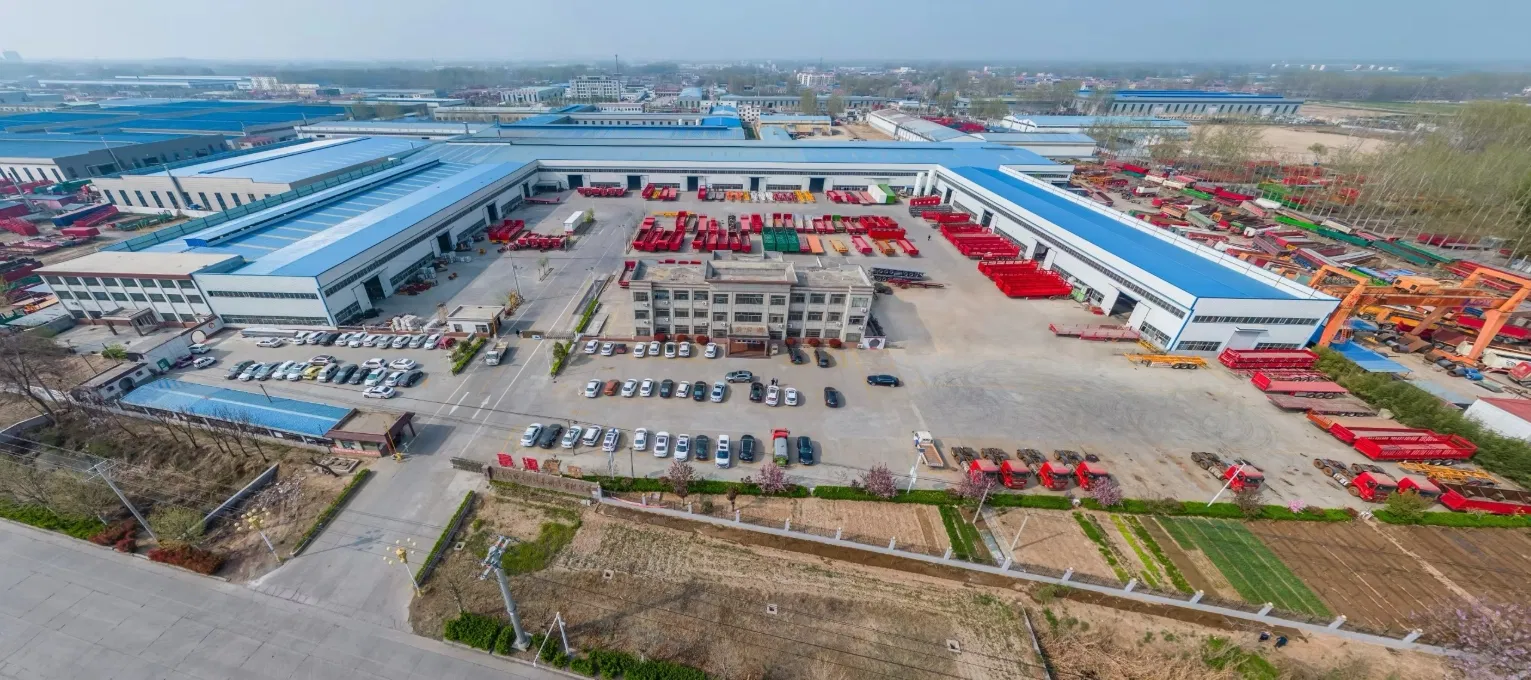

Equipped with advanced production and testing facilities, the manufacturing process adheres to strict quality standards. Products have passed national mandatory 3C certification, ensuring performance indicators meet international requirements. The specialized production lines cover railroad semi-trailers, container trucks, and special vehicles for powder material transportation.
