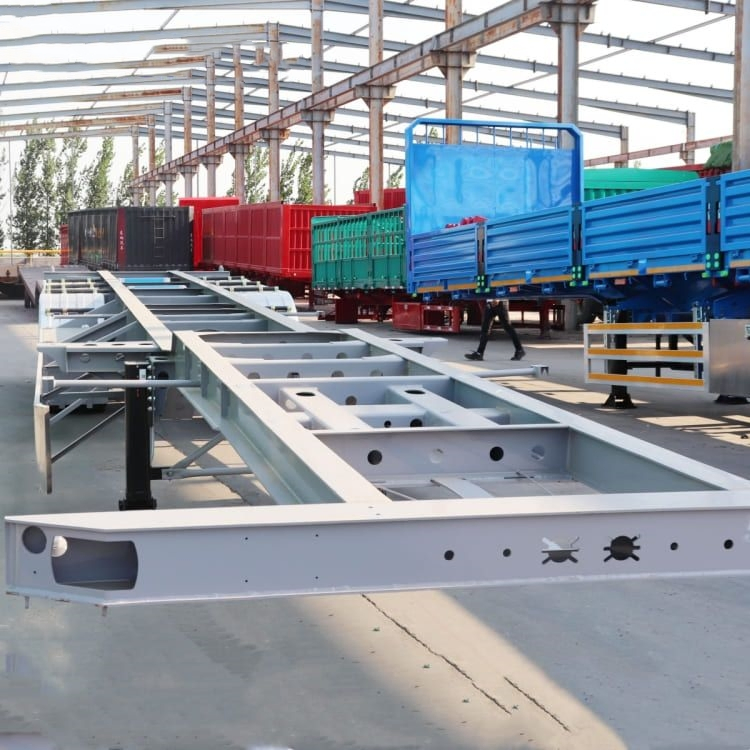

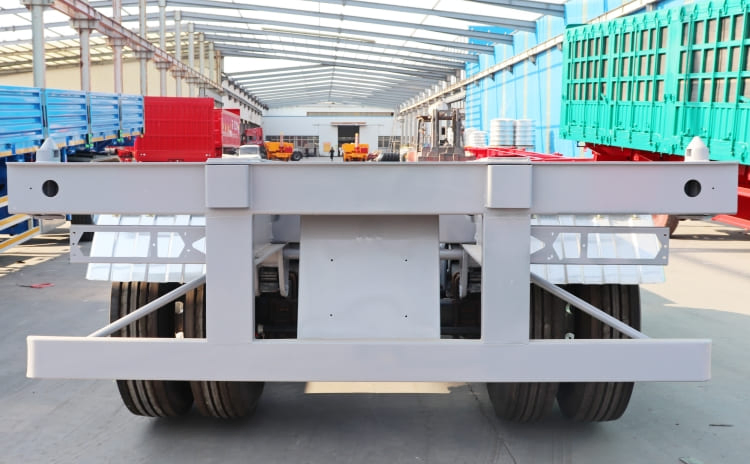

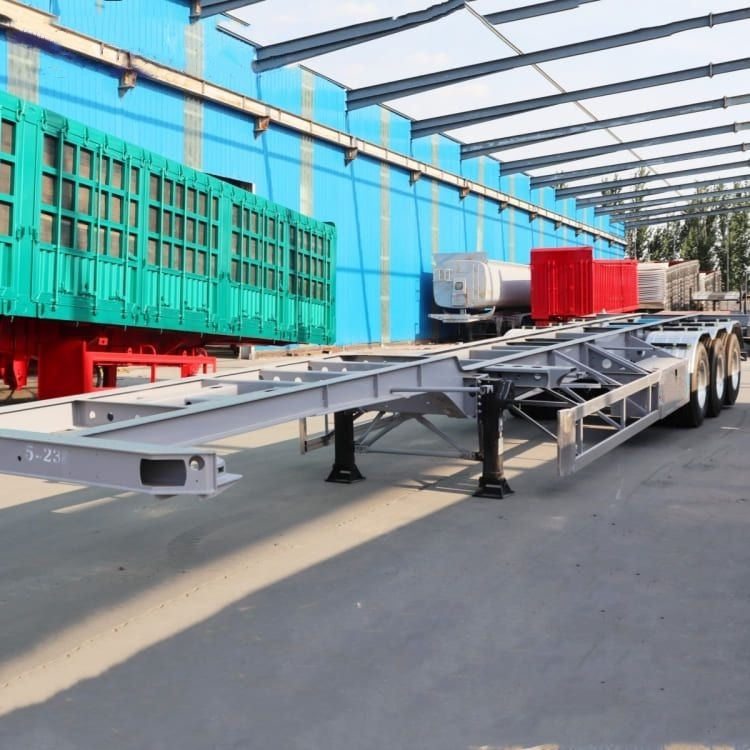

Container Cargo Trailer 3 Tri Axle Gooseneck Skeleton Skeletal Semi Trailer for Sale Manufacturer

1 / 5

Container Cargo Trailer 3 Tri Axle Gooseneck Skeleton Skeletal Semi Trailer for Sale Manufacturer

Customization:	Available
After-sales Service:	Video Technical Support
Warranty:	5year

Send Inquiry

Product Description

Basic Information

Model NO.:Skeletal Semi Trailer

Type:Semi-Trailer

Load Capacity:50T / 60ton

Certification:ECE, GCC, CE, ISO9001, DOT, CCC, ISO/TS16949

Wheel Base:8000-9000mm

Axle Number:3

Tire Number:12 + 1 unit

Overall Dimension:9000mm*2550mm*1800mm

Brakes:Wabco-ABS

Material:Steel

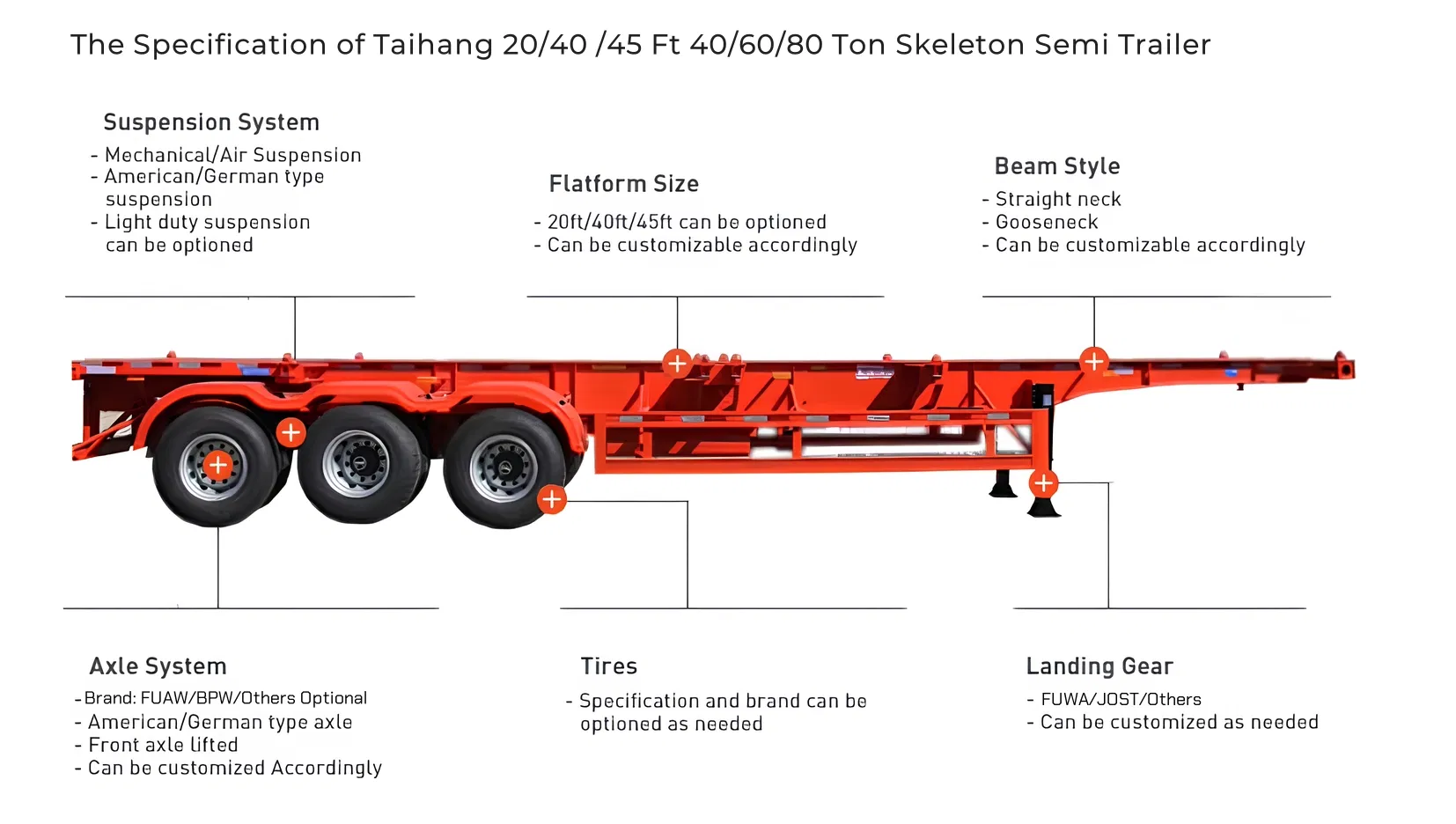

Product Description

Product Specification

Dimension(mm)	Support customization
Loading capacity	40-100 Ton
Axles	2/3/4 axles, 13T/16T, FUWA/BPW/Huajing Brand
Tire	8/12/16 units, 12.00R22.5 or 315/80R22.5
Suspension	Mechanical suspension or Air suspension
King Pin	JOST brand 2.0 or 3.5 inch (bolted or welded)
Main Beam	Height: 500mm, Q345B Steel
Brake System	WABCO RE 6 relay valve; T30/30+T30 brake chamber
Twist Locks	4, 8, 12 sets (lifting or screw type)
Voltage	24V

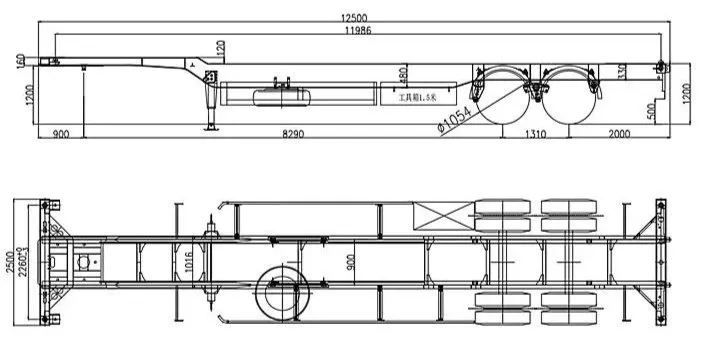

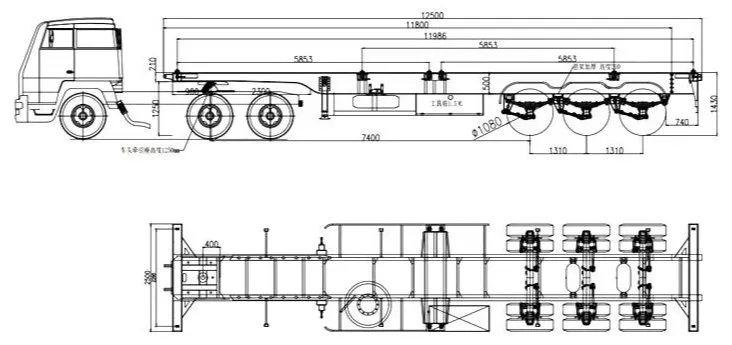

2/3 Axle Skeleton Trailer Drawing

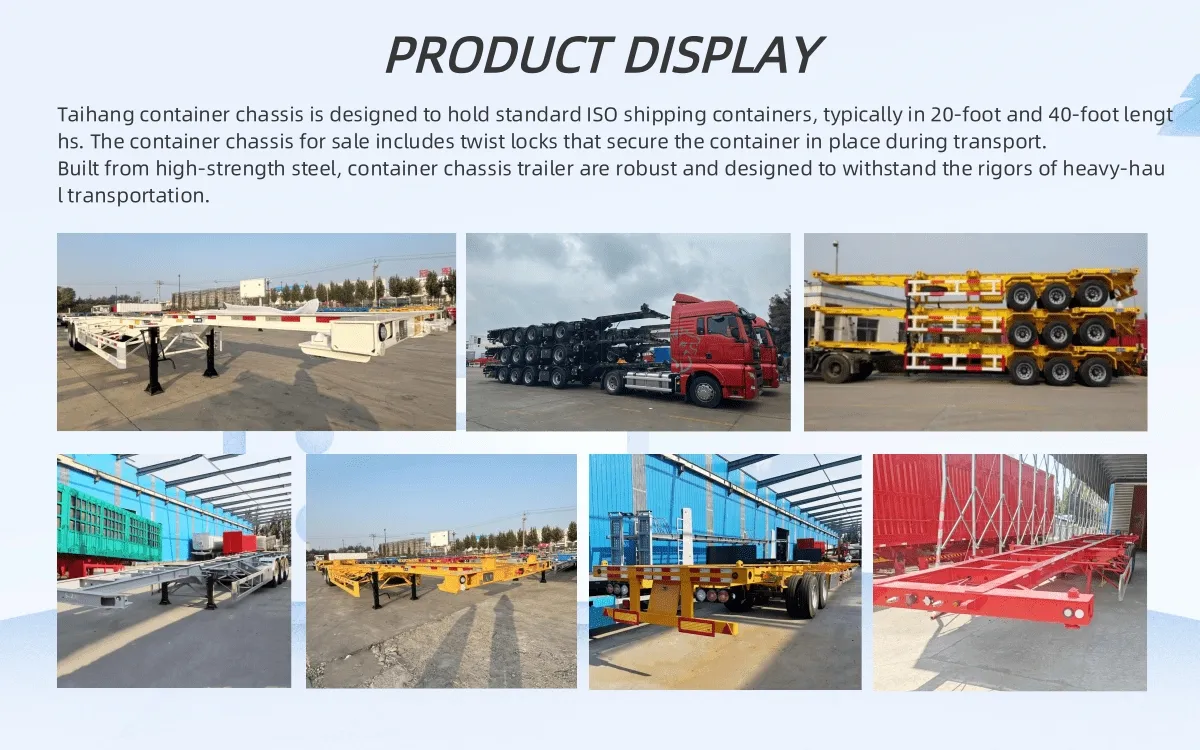

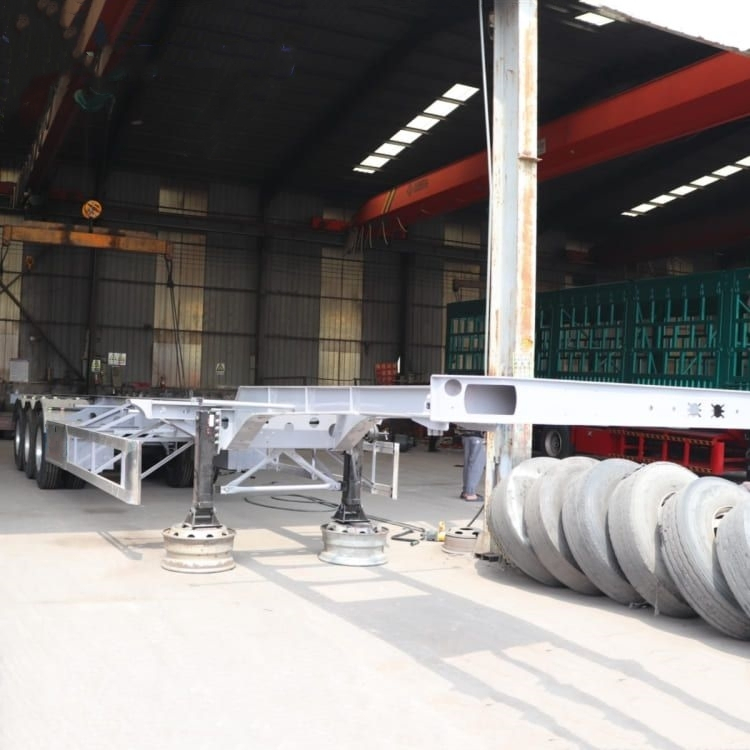

Production Showcase

Frequently Asked Questions

Q: Are you a manufacturer? A: Yes, we have our own factory with many years of experience in semi-trailer production. We sincerely welcome you to visit our facilities.

Q: How long is the delivery time? A: Usually 10 to 30 working days after receiving prepayment. Standard models in stock can be shipped within 10 days.

Q: What is your warranty policy? A: We provide a one-year warranty period. Under normal use, if accessories are damaged, we provide free replacements.

Q: Do you offer customized services? A: Yes, we offer full customization on vehicle design, painting, logos, and specific mechanical requirements.

Q: Can your trailers couple with my existing tractor head? A: Yes. By providing your tractor model or fifth-wheel height, we can design the trailer to match your specific dimensions.

Q: What are your payment terms? A: We accept T/T (30% deposit, 70% before shipment) or 100% irrevocable Letter of Credit (L/C).
