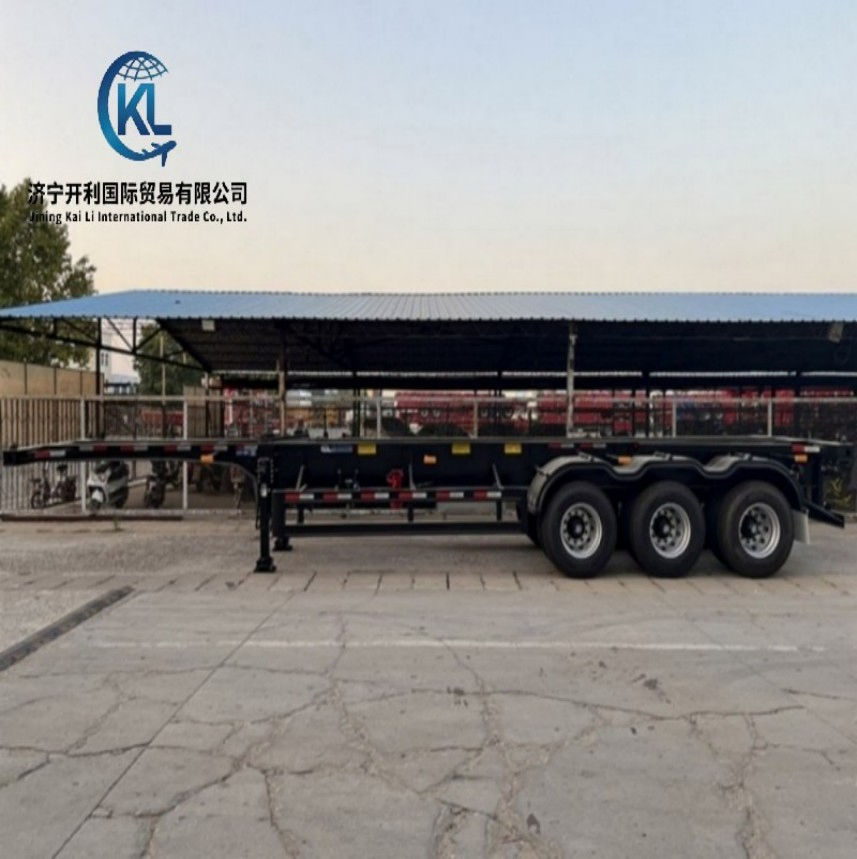

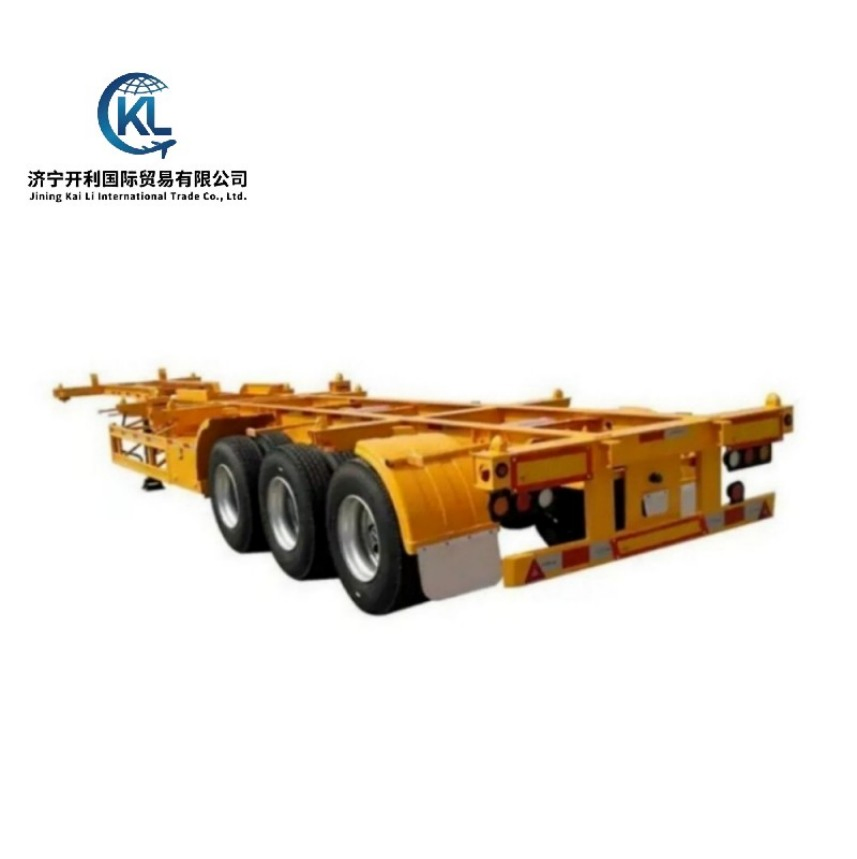

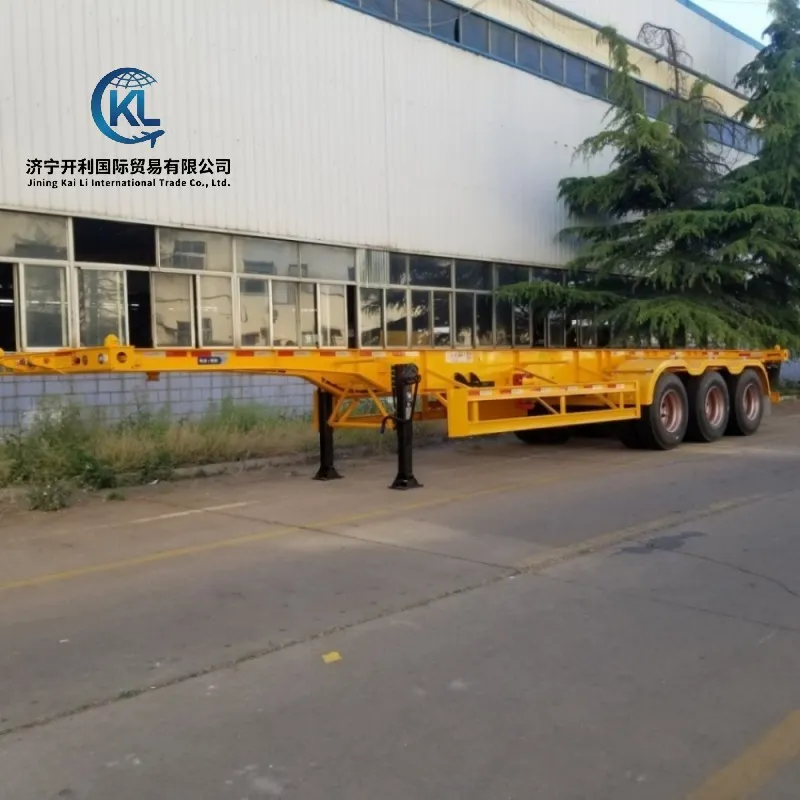

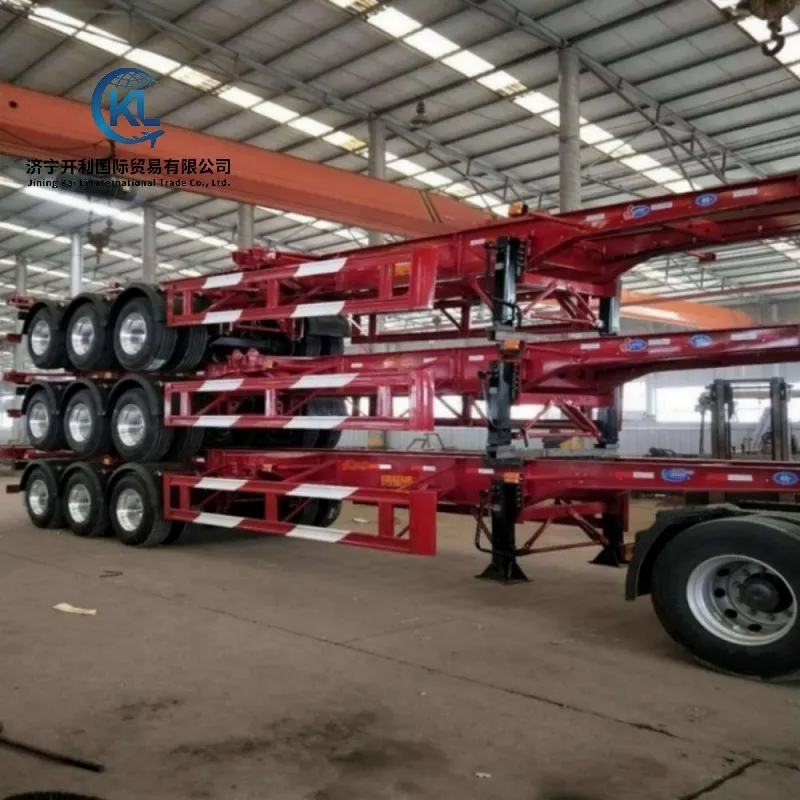

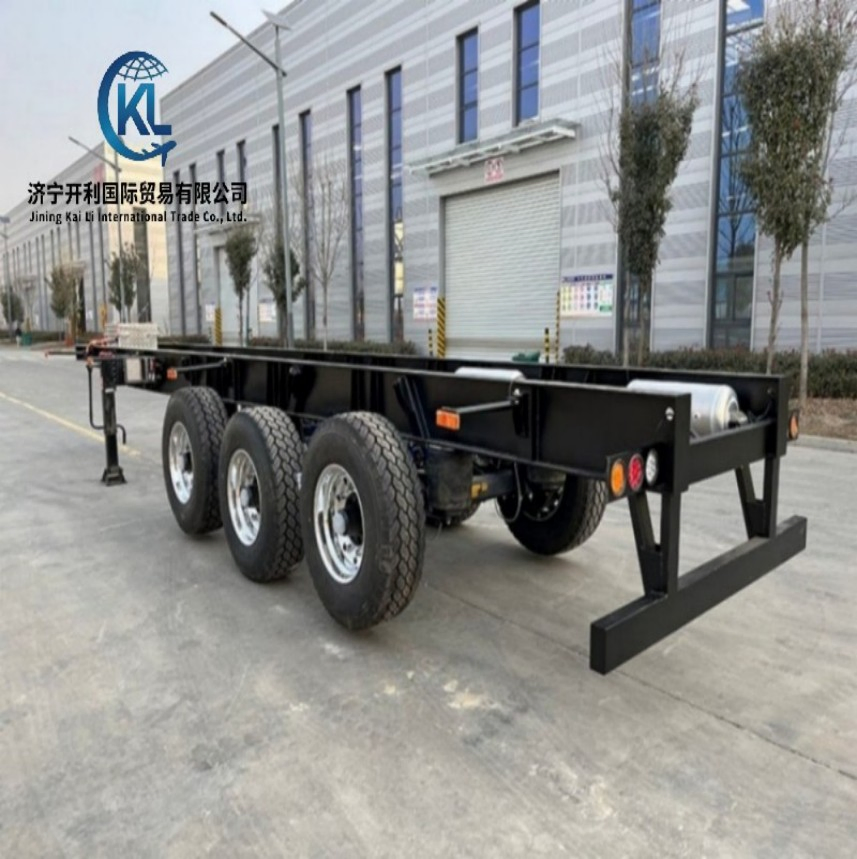

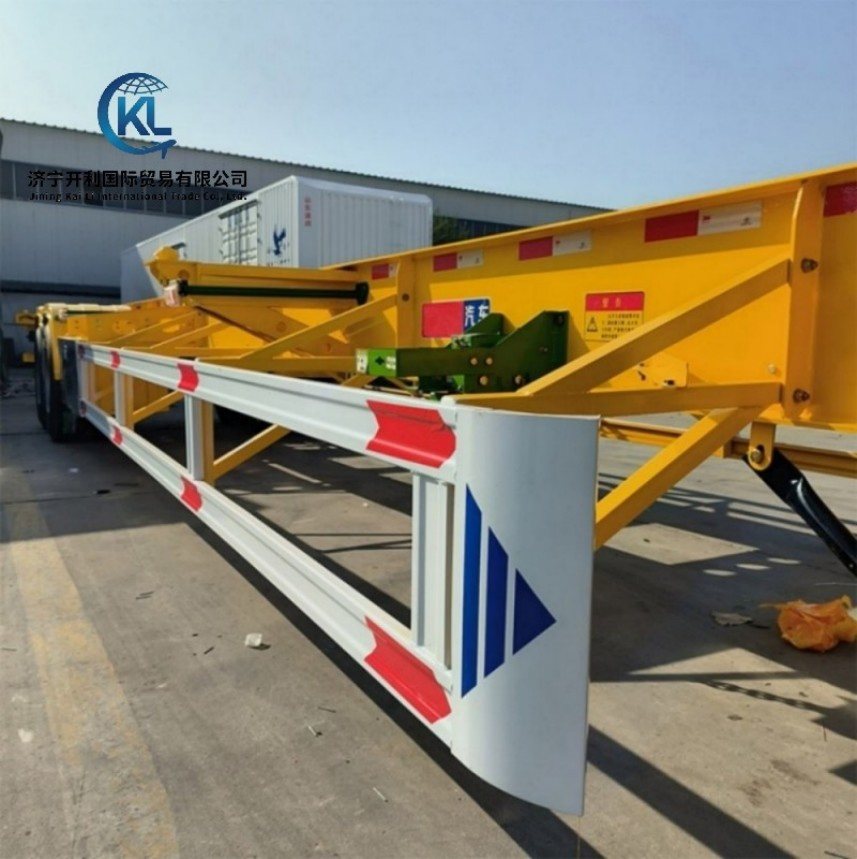

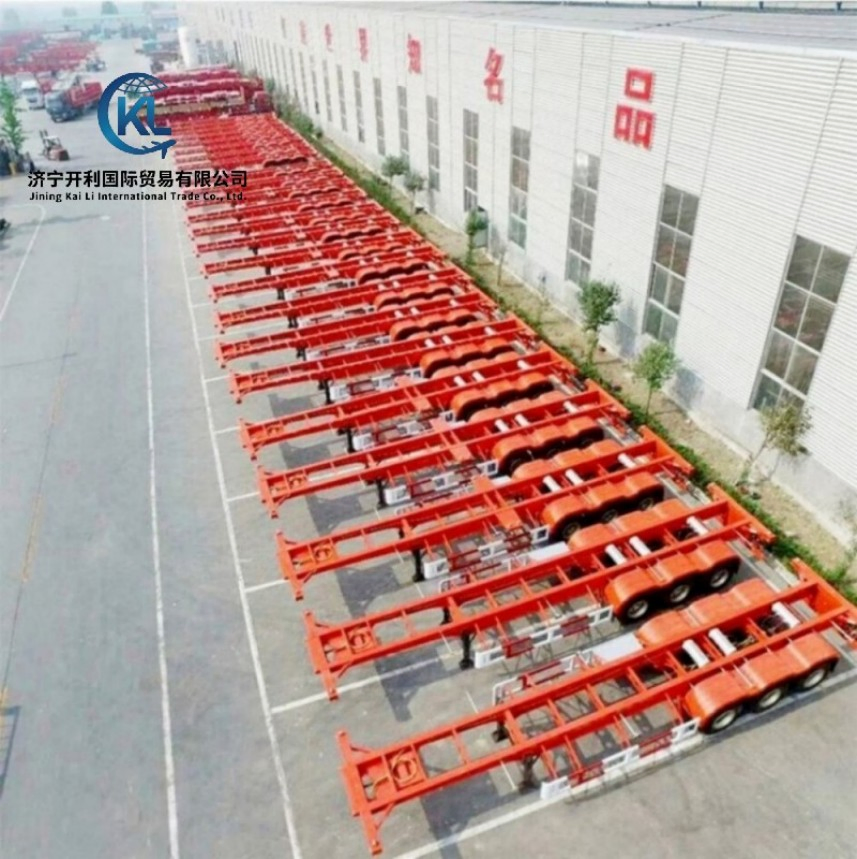

Skeleton semi-trailers are usually used to transport container. it can be directly loaded in the consignor's warehouse and transported to the consignee's warehouse for unloading. When changing vehicles and ships midway, there is no need to remove the cargo from the container and reload. It can be quickly loaded and unloaded, and can be directly and conveniently converted from one mode of transportation to another.
| Product Name | Skeleton Semi Trailer |

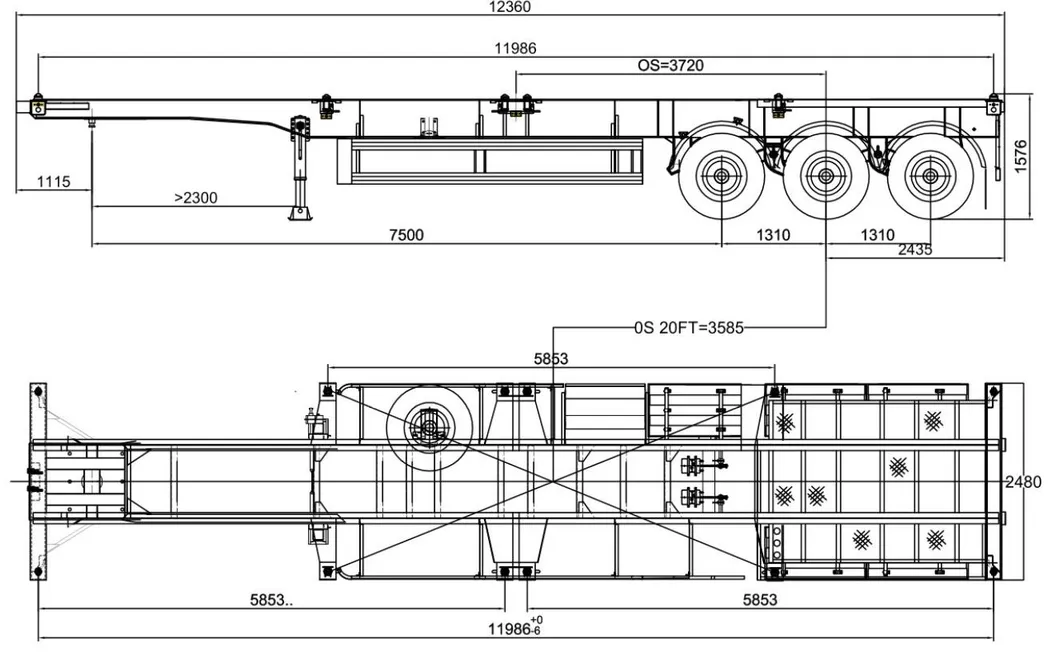

| Dimension (LxWxH) | Outside 12380×2480×1550mm (customizable) |
| Max Loading Capacity | 50000 kg (customizable) |
| Main Beam | Q345B / T700 Steel Height 500mm; Upper 14mm, Down 16mm, Middle 8mm. |
| Axles | 13/16/20 Ton. Optional 2/3/4/6 axles (Brand: SAF/FUWA/BPW etc) |
| Tire | 12.00R22.5 / 315 80R22.5 / 11.00R20 (Brand optional) |
| Landing Gear | 28t Heavy Duty Landing Gear (FUWA/JOST etc.) |
| Brake System | Dual line brake system, Air chamber T30/30, 3 X 40L gas storage drums |
