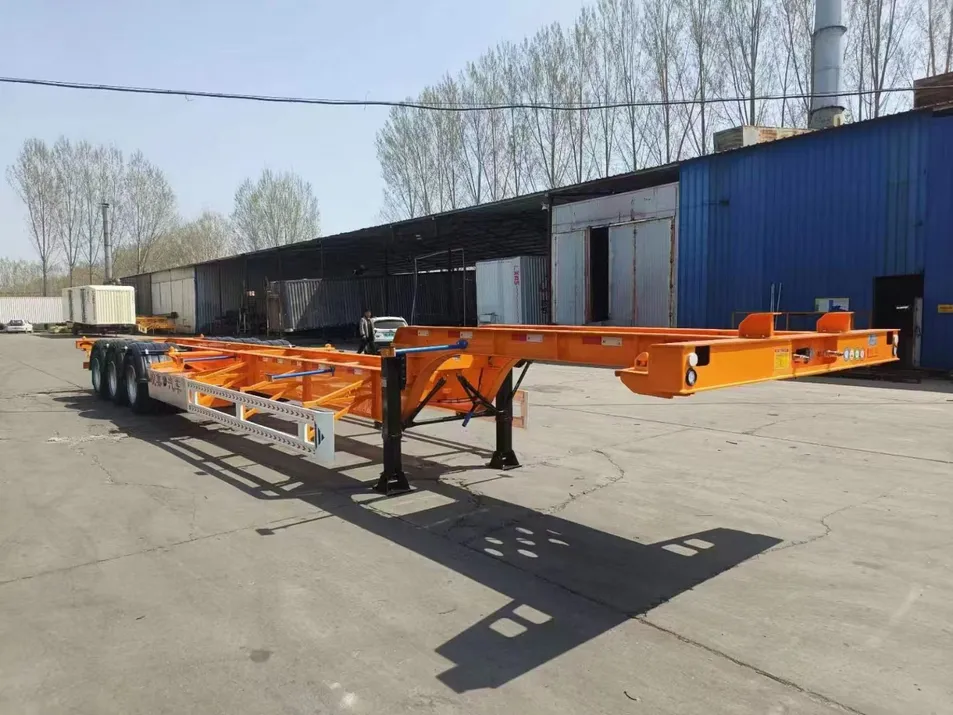

1. The Skeleton Flatbed Semi Trailer is a heavy-duty, robust transportation solution designed specifically for the safe and efficient transport of cargo, particularly containers and heavy machinery.
2. Specially designed for shuttling between shore crane and container stacking with special features that facilitate easy container loading and maximize productivity.

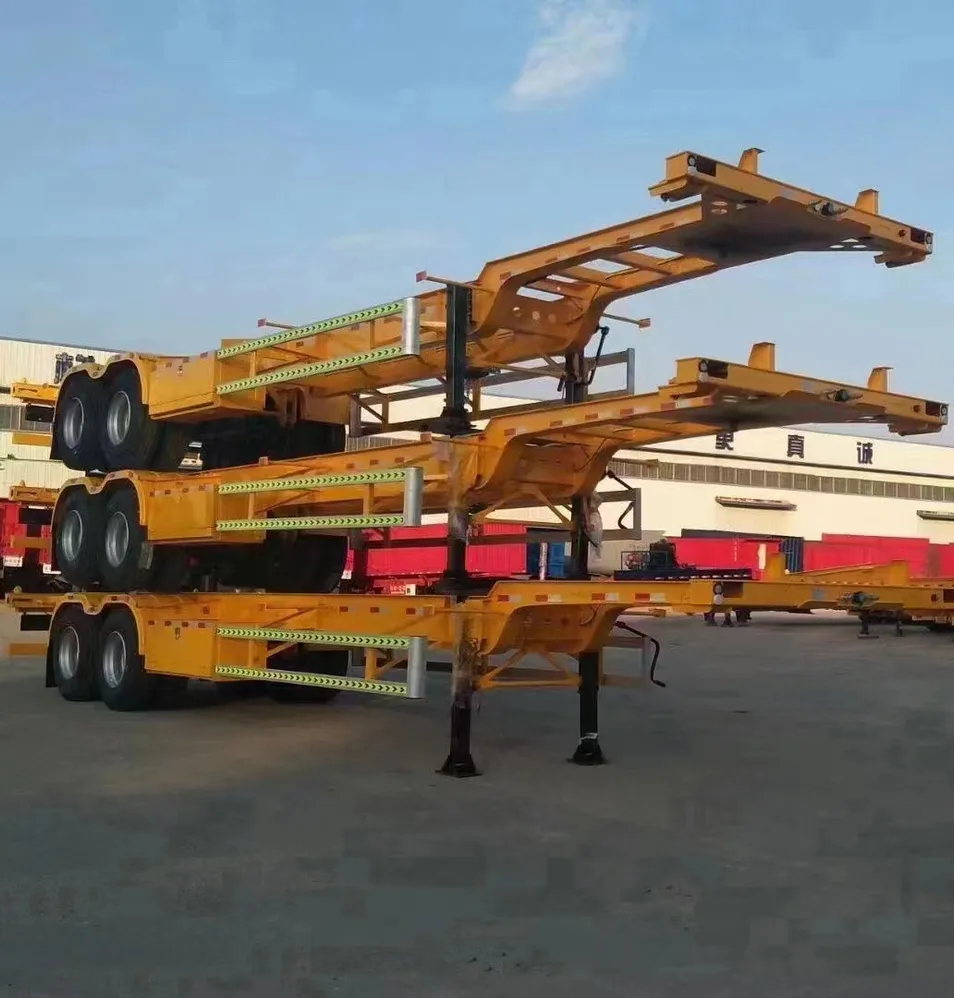

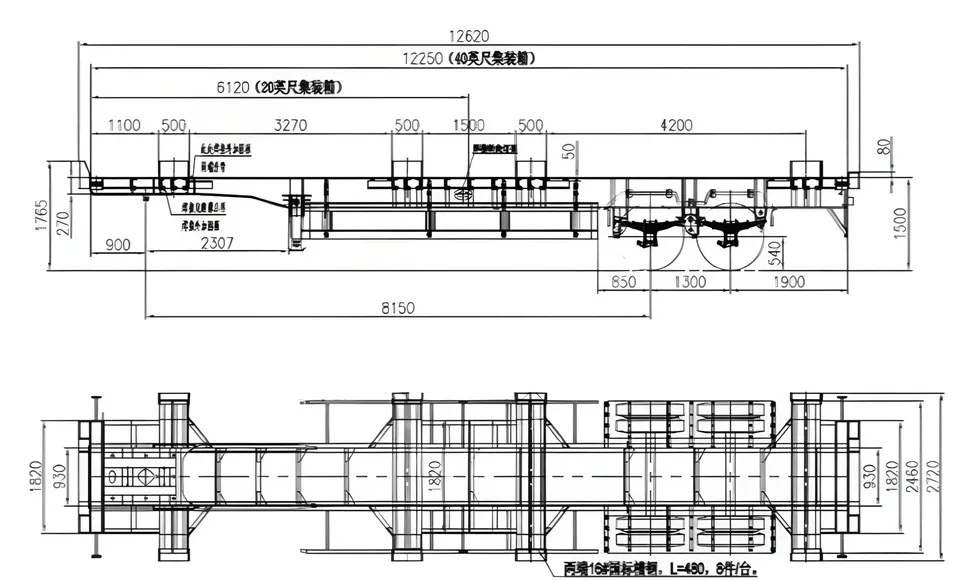

Skeletal Frame Design: Optimized for standard shipping containers (20ft, 40ft, and 45ft sizes). The open structure allows easy access and fast handling in ports and warehouses.
Heavy-Duty Construction: Built with high-strength steel to withstand challenging transport conditions and rough roads.
High Load Capacity: Equipped with adjustable twist locks, capable of carrying up to 40 tons or more depending on the model.
| 3 Axles 40FT Skeleton Semi Trailer | |
|---|---|
| Payload | 60 T |
| Dimension (L*W*H) | 12500mm*2500mm*1500mm |
| Platform | 3mm thickness checkered plate |
| Twist lock | 12 pcs (Supports 1x20", 2x20" or 1x40" containers) |
| King pin | 2.0/3.5 inches (bolted or welded) |
| Axles | 13T, 3pcs |
| Suspensions | Mechanical suspension (Heavy duty America type) |
| Tires | 12pcs; 12R22.5 |
| Brake system | WABCO 6 relays valve; T30/30+T30 air chambers |
