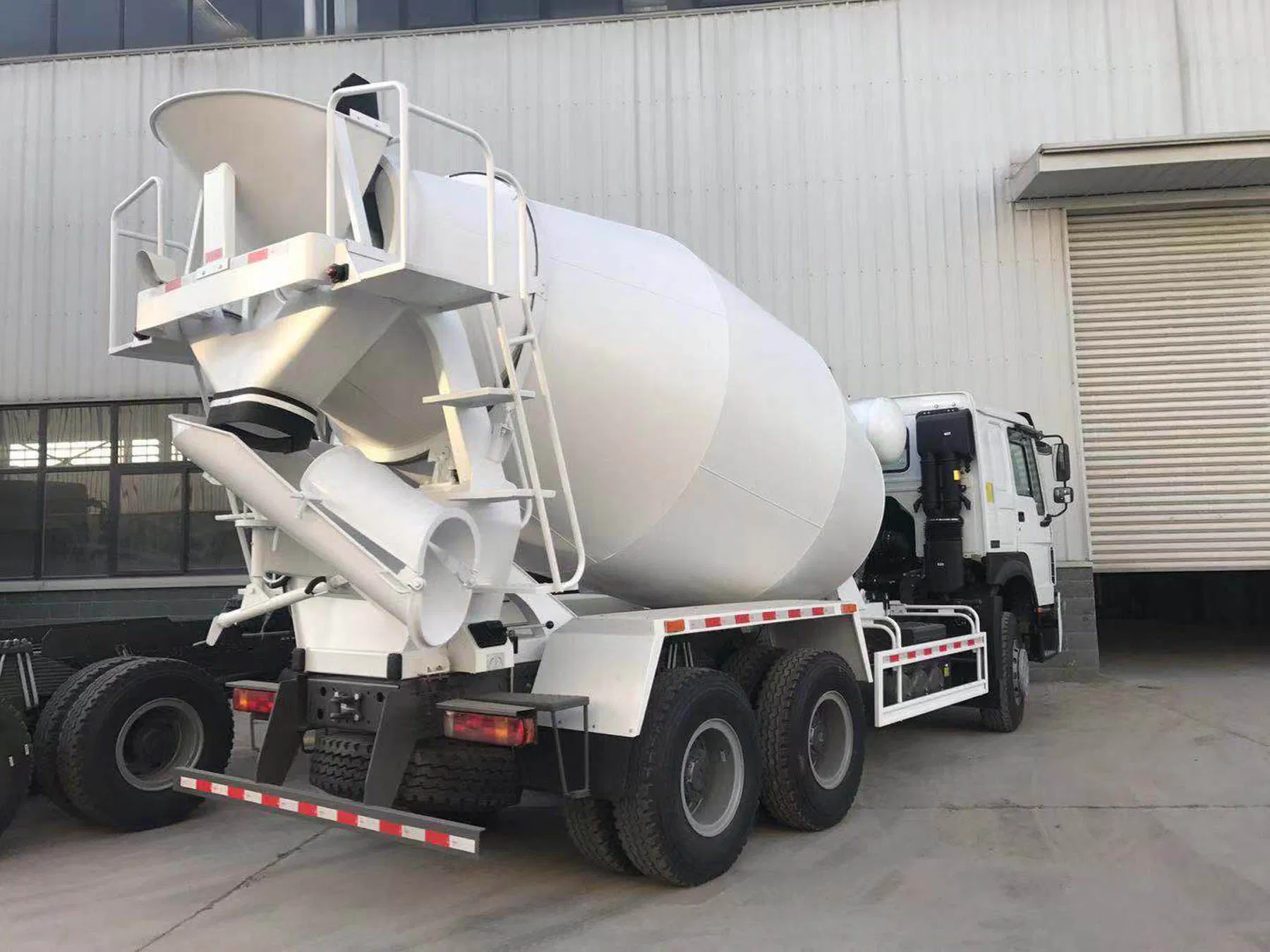

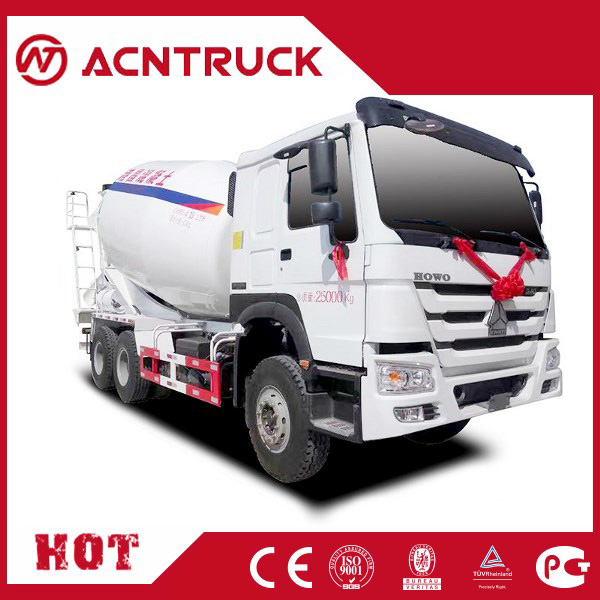

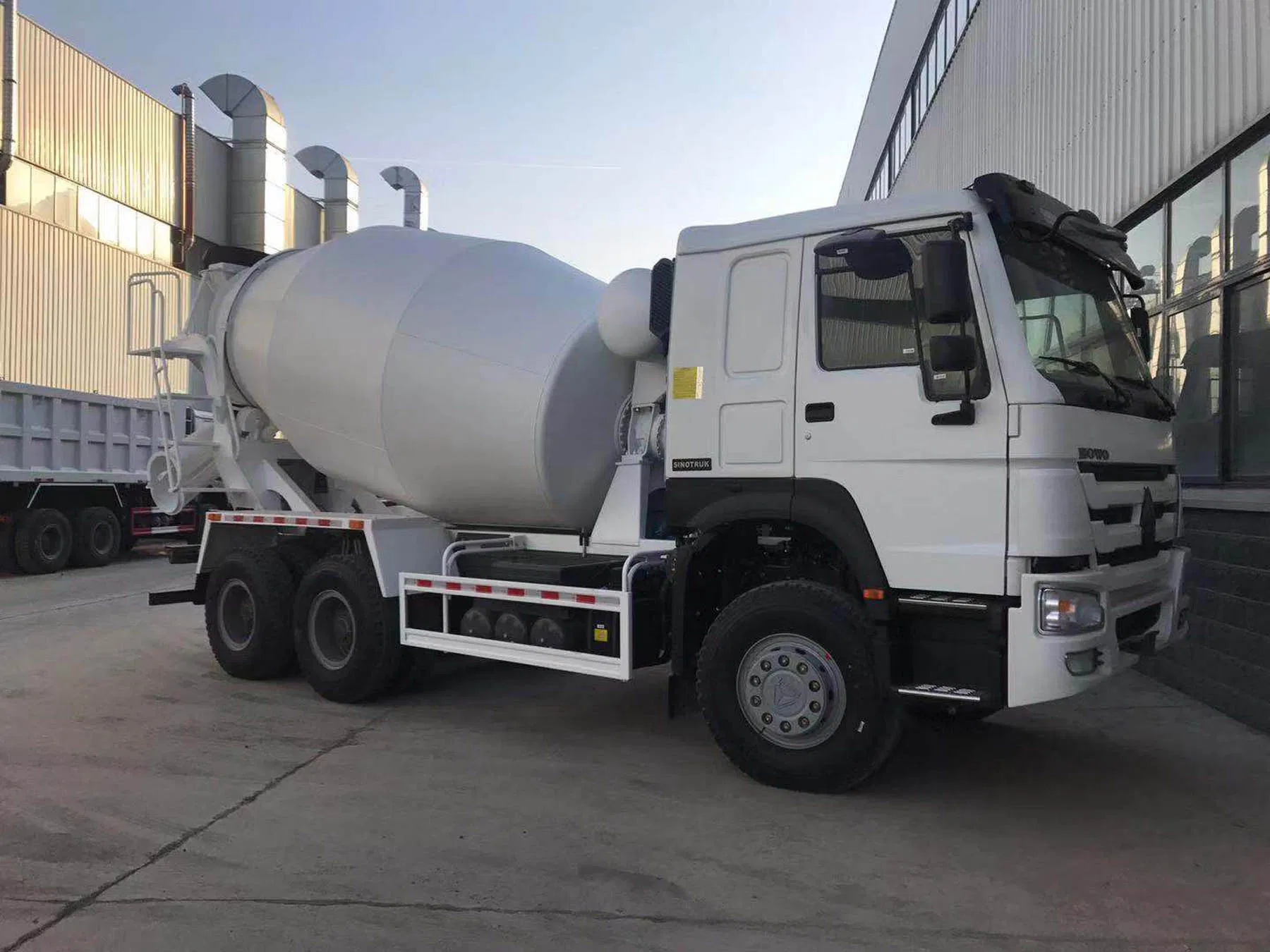

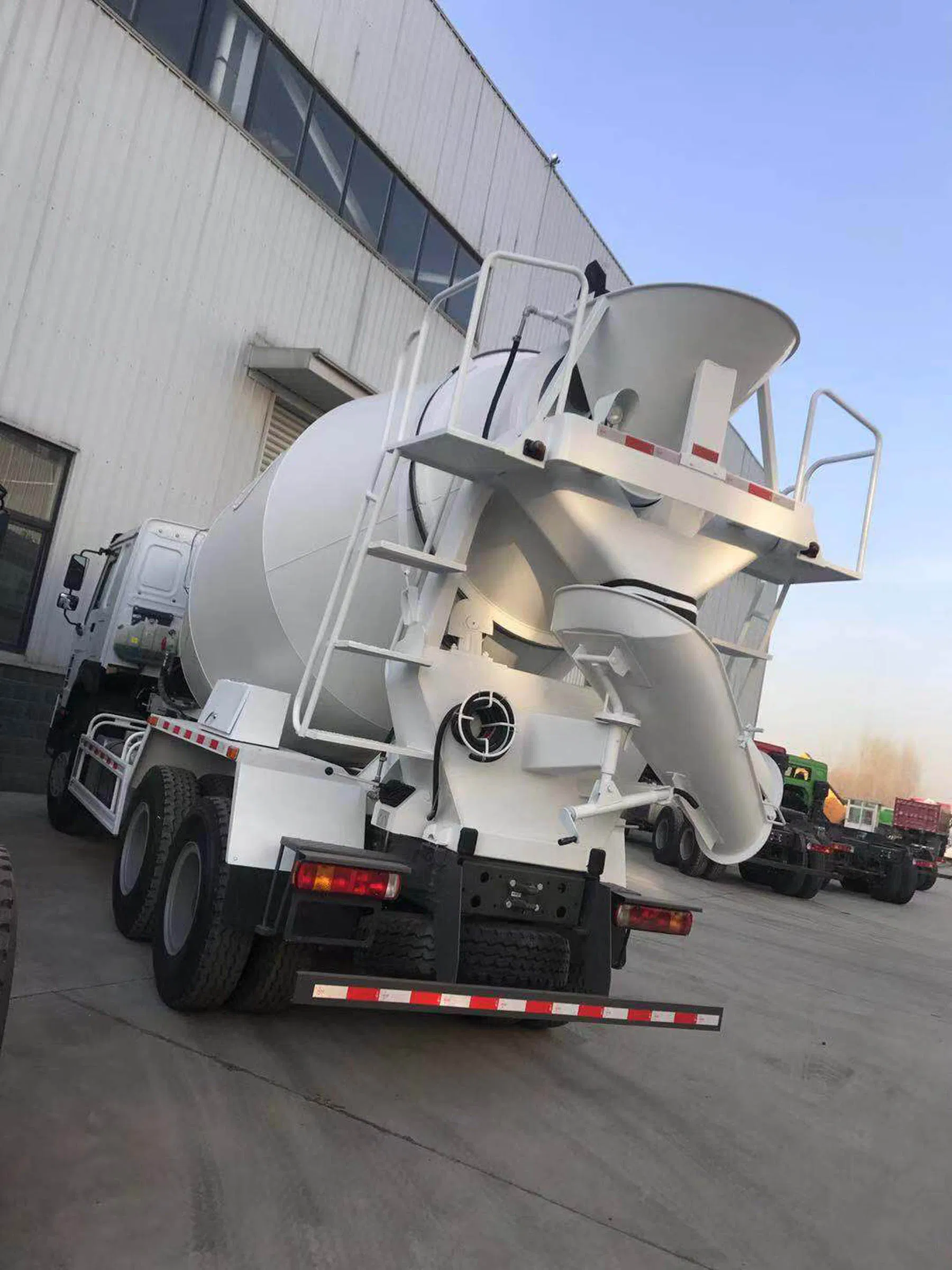

Sinotruck HOWO 6X4 Euro3 340HP 10m3 25ton Concrete Mixer Truck
Sinotruck HOWO 6X4 Euro3 340HP 10m3 25ton Concrete Mixer Truck
Sinotruck HOWO 6X4 Euro3 340HP 10m3 25ton Concrete Mixer Truck
Sinotruck HOWO 6X4 Euro3 340HP 10m3 25ton Concrete Mixer Truck
Sinotruck HOWO 6X4 Euro3 340HP 10m3 25ton Concrete Mixer Truck
1 / 5
Sinotruck HOWO 6X4 Euro3 340HP 10m3 25ton Concrete Mixer Truck
Sinotruck HOWO 6X4 Euro3 340HP 10m3 25ton Concrete Mixer Truck
Sinotruck HOWO 6X4 Euro3 340HP 10m3 25ton Concrete Mixer Truck
Sinotruck HOWO 6X4 Euro3 340HP 10m3 25ton Concrete Mixer Truck
Sinotruck HOWO 6X4 Euro3 340HP 10m3 25ton Concrete Mixer Truck

Sinotruck HOWO 6X4 Euro3 340HP 10m3 25ton Concrete Mixer Truck

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

ℹ️

Basic Specifications

Model NO.
HW76
Emission Standard
Euro3
Displacement
9
Payload
25t
Fuel
Diesel
Drive Mode
6x4
Maximum Horsepower
300-400hp
Condition
New
Rated Mass
11650kg
Engine
Wd615.95c, 340HP
Rated Power
249kw
Wheelbase
3825+1350mm
Front Axle
Hf9 Drum Brake, 9000kg
Rear Axle
Hc16 2X16000kg
Tyre
12.00r20, 10+1PC
Specification
9040× 2500× 3890mm
🚚

Product Description

SINOTRUCK HOWO 6x4 Euro3 340hp 10m3 25ton Concrete Mixer Truck

Designed for heavy-duty construction tasks, this concrete mixer truck combines high-performance engineering with durability. It features a robust 6x4 drive system and is powered by a reliable 340HP engine, making it ideal for transporting concrete in demanding environments.

Technical Parameters
CabHW76 Cab, Single bed, Air conditioner
Dimension(Lx W xH)9040×2500×3890mm
Total mass25000kg
Kerb mass13220kg
Rated mass11650kg
Engine modelWD615.95C, 340hp
Rated output power249kw
Torque1490N.m / 1200-1500rpm
Emission StandardE-III
GearboxHW19710, 10 Forward & 2 Reverse, Manual
Tank Volume10m³
Pump, Motor, ReducerImported parts
📷

Detailed Images

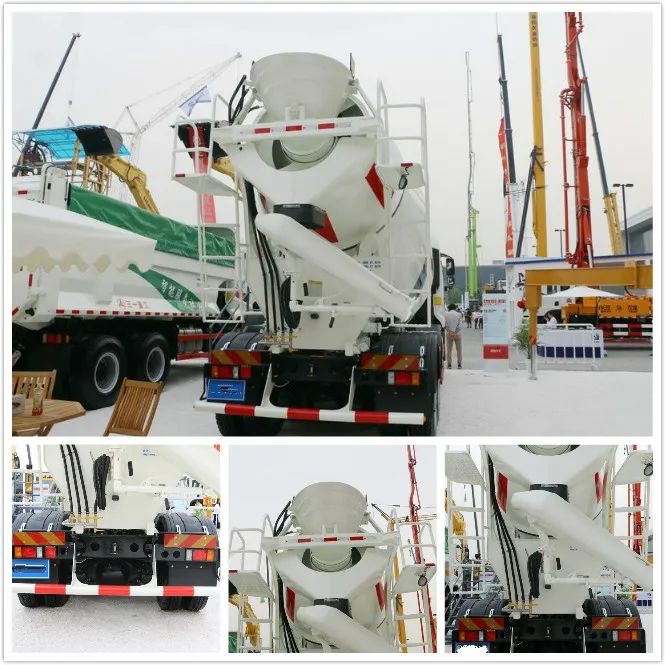

Concrete Mixer Truck View 1

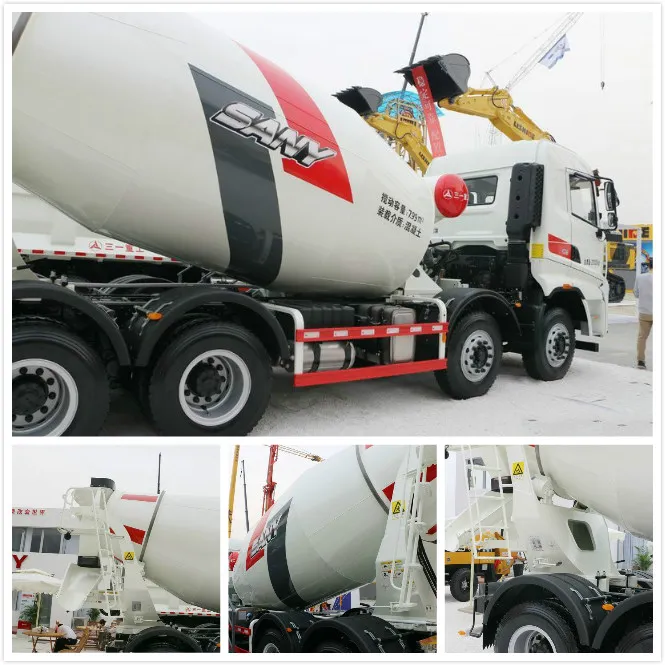

Concrete Mixer Truck View 2
Production Process
Truck Rear View
Truck Side View
Chassis Details
Mixing Drum
Internal Components
Control System
❓

Frequently Asked Questions

What is the mixing tank capacity of this truck?
The SINOTRUK HOWO mixer truck features a tank volume of 10m³, designed for efficient concrete transport.
What type of engine is installed in the HW76 model?
It is equipped with a WD615.95C Euro 3 diesel engine, providing 340HP of power and a rated speed of 1900rpm.
What are the drive mode and axle specifications?
The truck uses a 6x4 drive mode with an HF9 drum brake front axle (9000kg) and HC16 double rear axles (2x16000kg).
Are the critical mixing components imported?
Yes, the core components of the mixing system, including the pump, motor, and reducer, are high-quality imported parts for better reliability.
Does the cabin include air conditioning?
Yes, the HW76 cab is designed for operator comfort and comes standard with a single bed and an air conditioning system.
What is the maximum gradeability of this mixer truck?
The truck has a maximum gradeability of 28%, allowing it to perform well on inclined construction site terrains.
