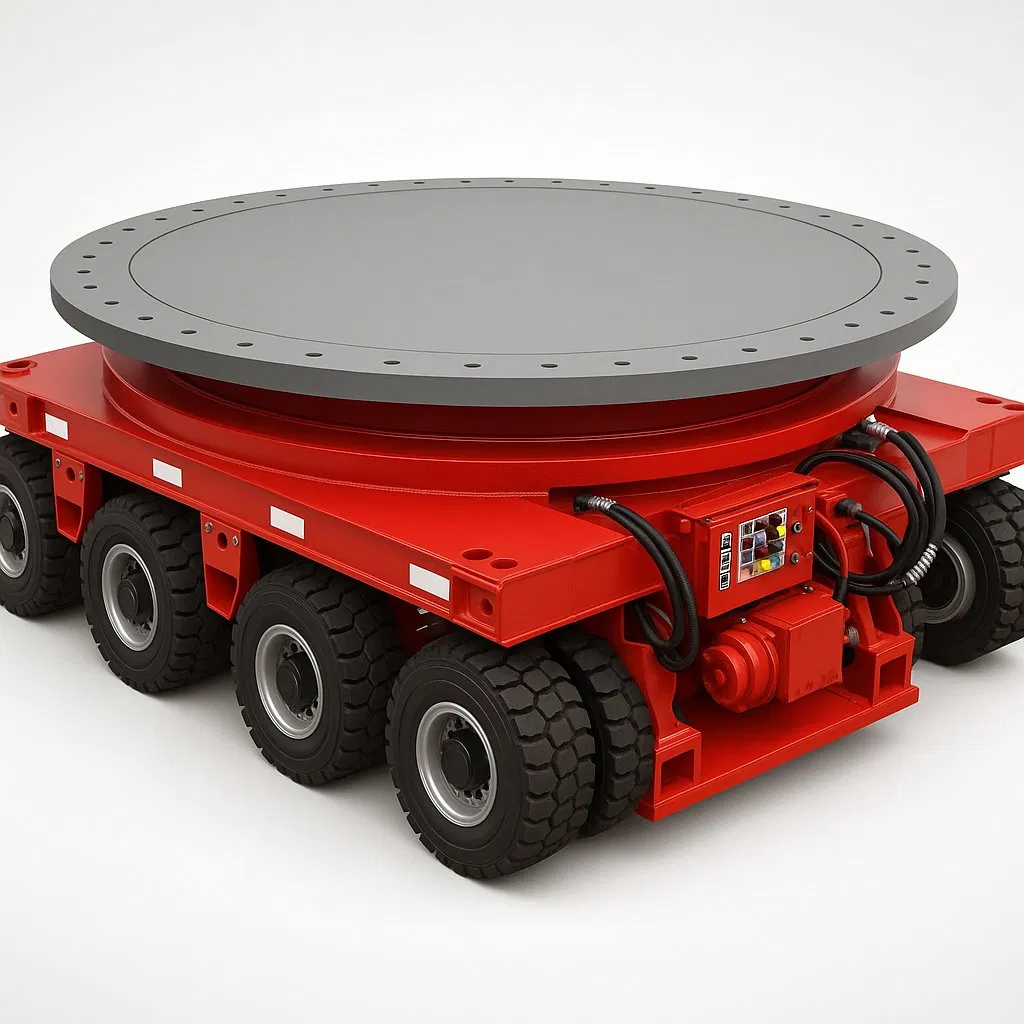

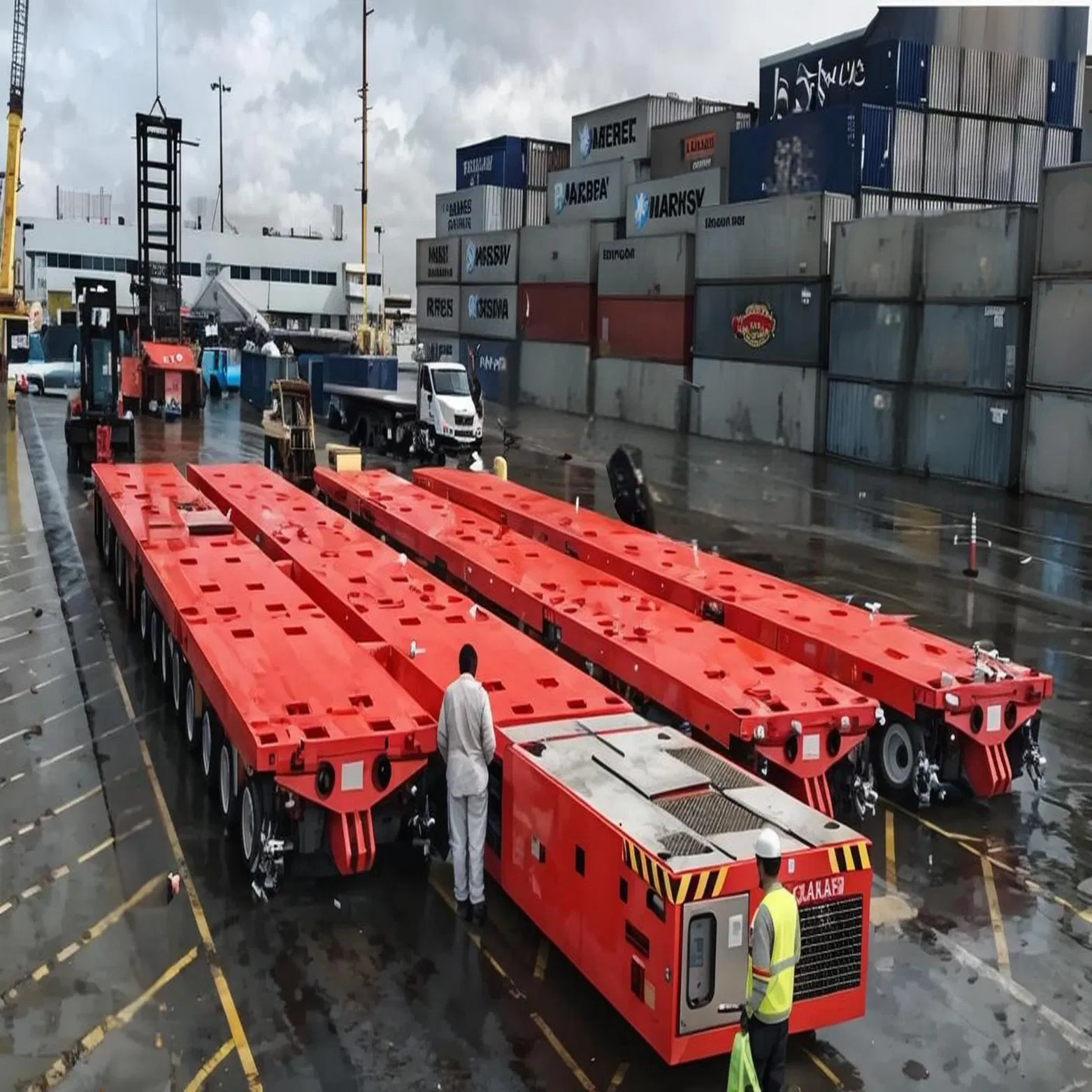

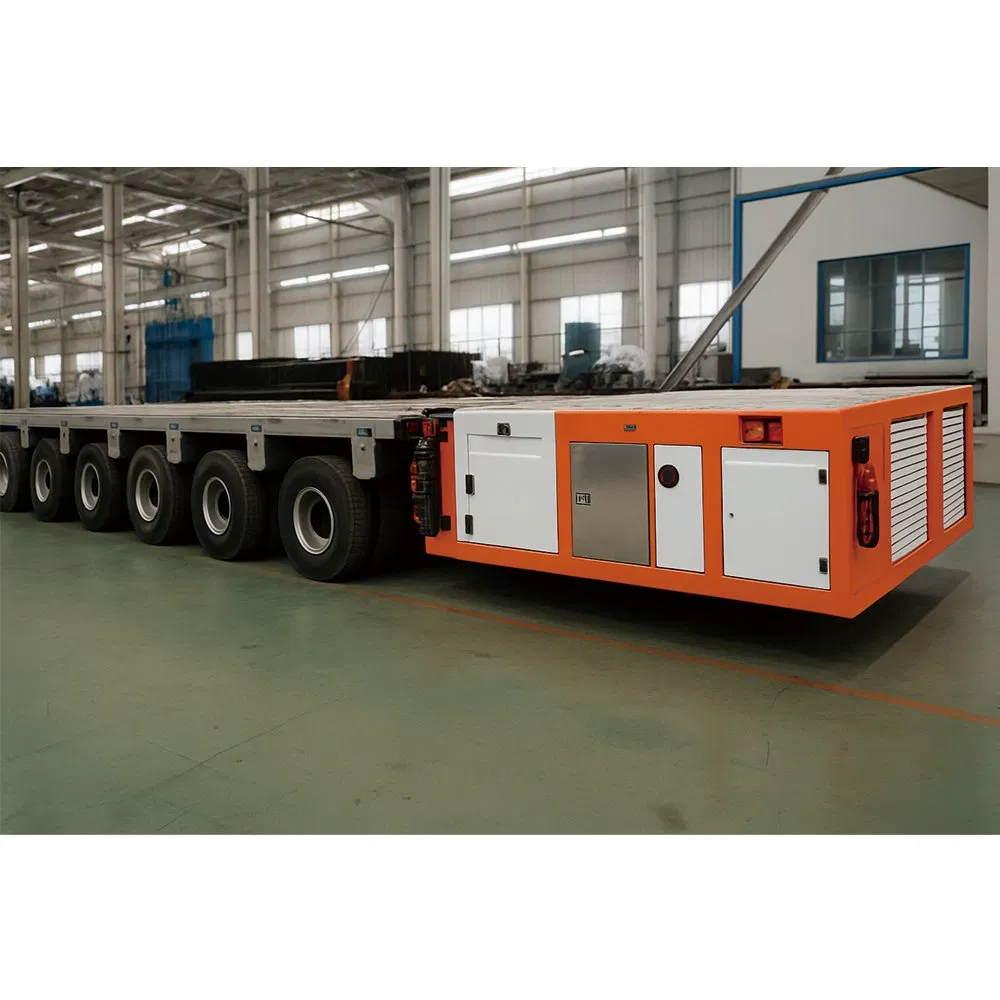

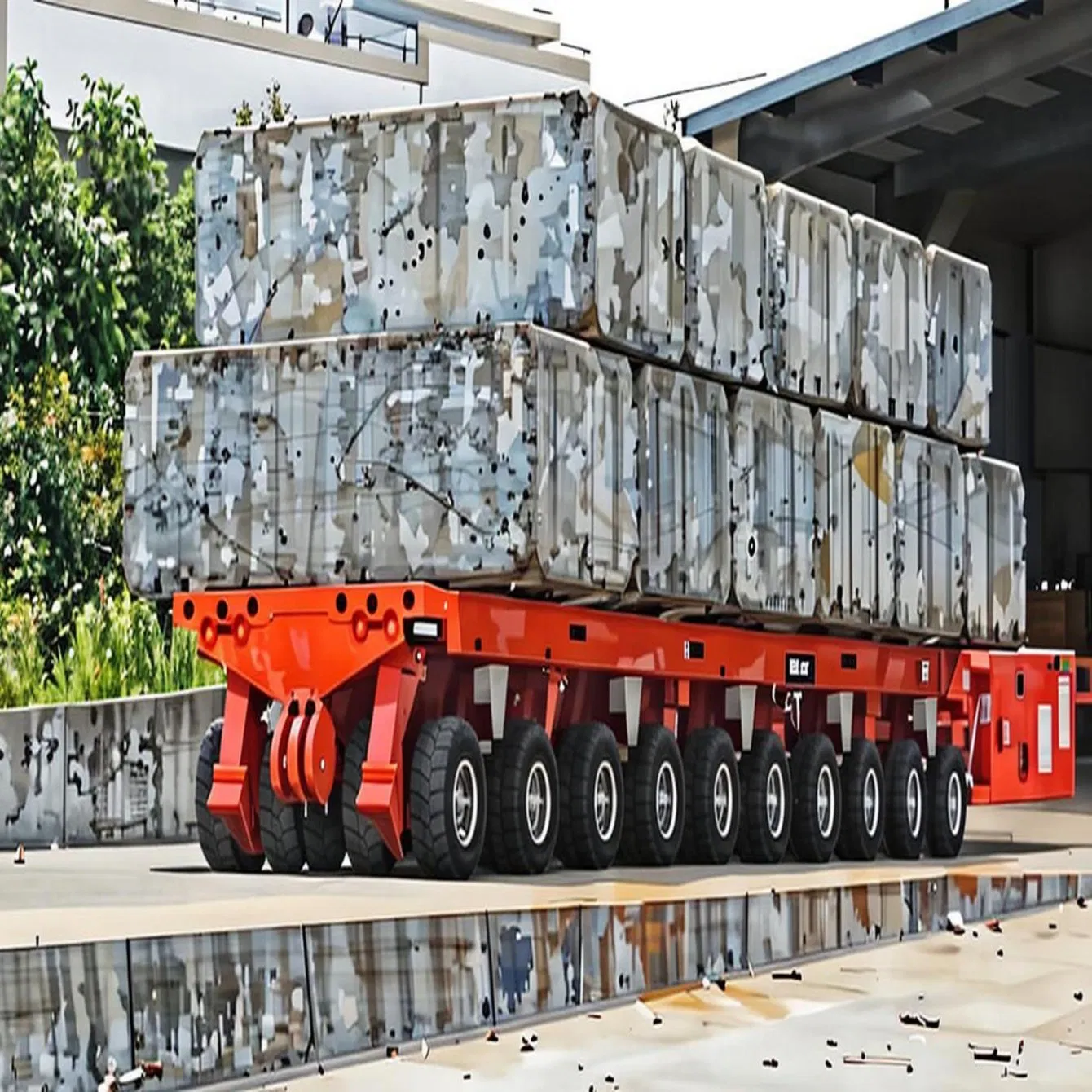

Heavy Duty Self-Propelled Modular Transporter (SPMT) Multi-Axle Hydraulic Trailer for Project Cargo

Customization: Available
After-sales Service: Yes
Warranty: Yes

Product Description

Basic Info

Model NO.
trailer
Type
Semi-Trailer
Load Capacity
60t-100 T
Certification
CE, CCC
Wheel Base
1310mm
Tread
2240mm
Grade
Heavy Duty
Shape
Flatbed
Axle Number
3 Line 6 Axle
Tire Number
24
Material
Steel
Condition
New
Brake System
Wabco
Langing Gear
Jost

About Us

Professional Transport Equipment
Established in 2005, our company is a leading integrated transportation solution provider integrating R&D, production, and trade. Covering an area of 222,000 square meters, we utilize advanced automation equipment, a professional R&D team, and cutting-edge manufacturing technology to provide high-quality special transportation equipment. Our product range includes gas equipment (pressure reduction skids, cryogenic storage tanks, gasifiers), hydraulic modular trailers, gas pipeline slide container trailers, powder/liquid tankers, and a full range of semi-trailers (heavy-duty low-bed, flat container, skeleton, side curtain, self-unloading) for energy, hazardous chemical transportation, and engineering logistics.

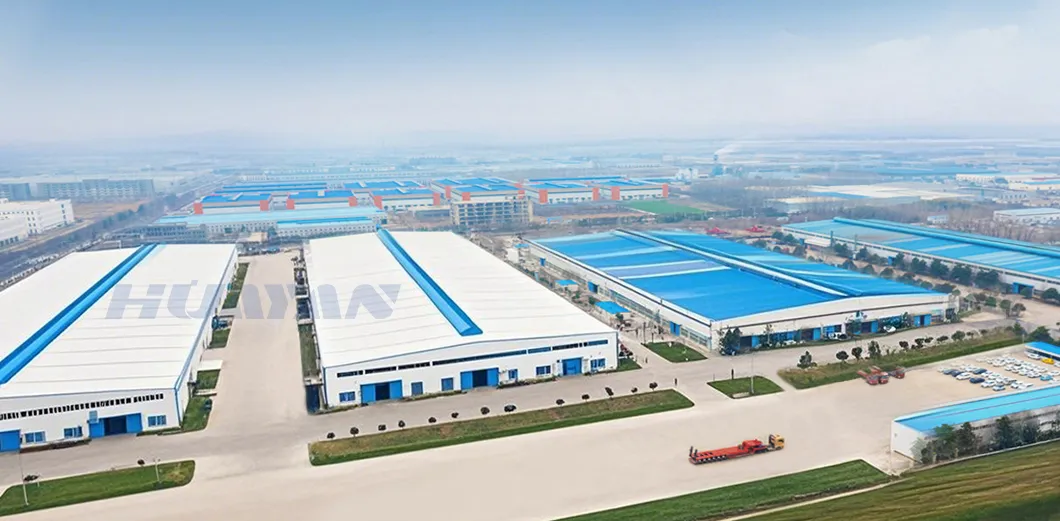

Factory Overview Production Line

Product Description

This hydraulic trailer combines cutting-edge German and French technologies with proprietary innovations to deliver a high-strength, user-friendly heavy-duty transport solution. Its core frame is precision-welded from Q550D extra-thick steel plates in a reinforced box-shaped structure, processed through gantry milling for seamless joints and millimeter-level accuracy, ensuring exceptional load-bearing capacity and deformation resistance.

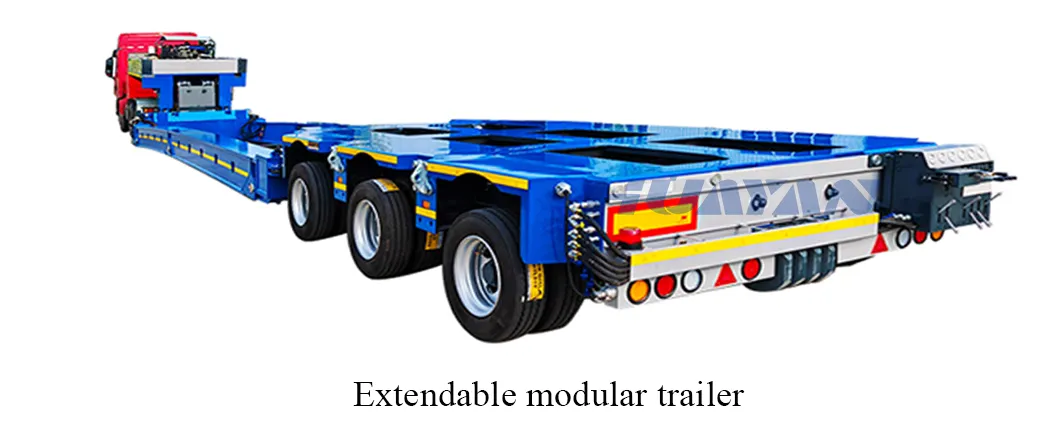

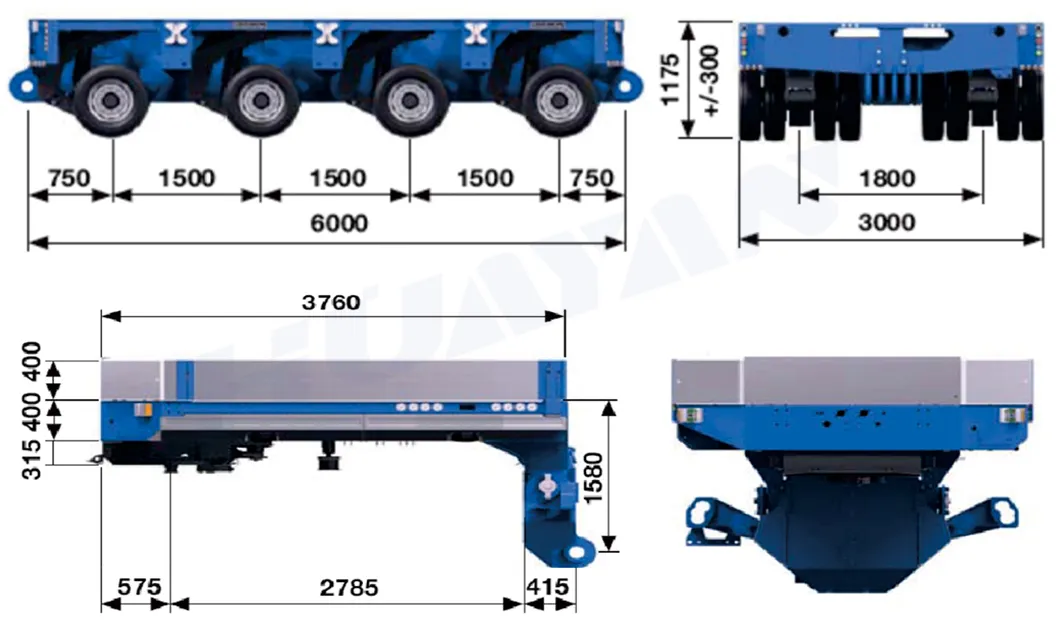

Trailer Detail 1 Trailer Detail 2

Technical Parameters

Series No. Name Spec.
1Wheel Base1550mm
2Wheel Track735/1820mm
3Tyre Qty8 pcs/each axis
4Tyre Spec215/75R17.5
5Cargo bed width2990mm
6Suspension travel±300mm
7Steering mechanismAll-wheel hydraulic traction steering
8Frame main materialQ550D
9Max turning angle55°
10Load per axis22.5 tons (18km/h)

Main Advantages

🏗️

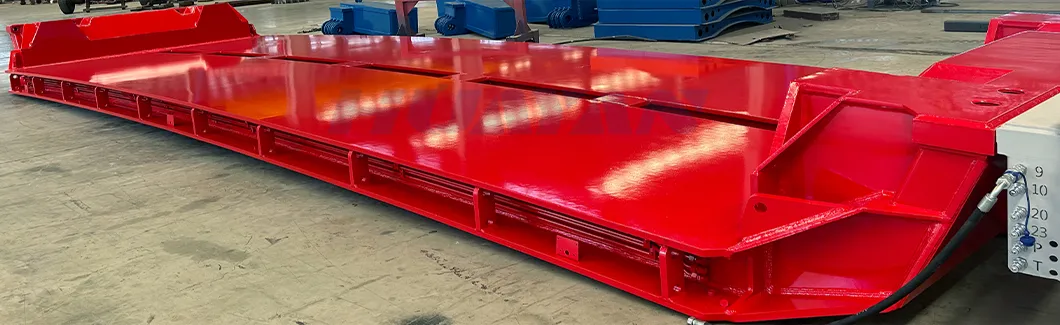

Strong load-bearing capacity: High-strength steel welded into an I-shaped main beam, capable of withstanding large concentrated loads. Loading capacity
⚖️

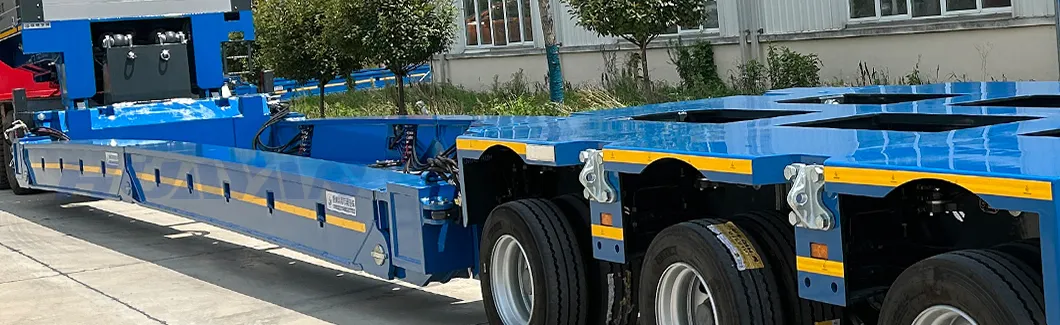

High transportation stability: Three-point support layout combined with full-wheel hydraulic control ensures safe and stable transport. Stability
🔄

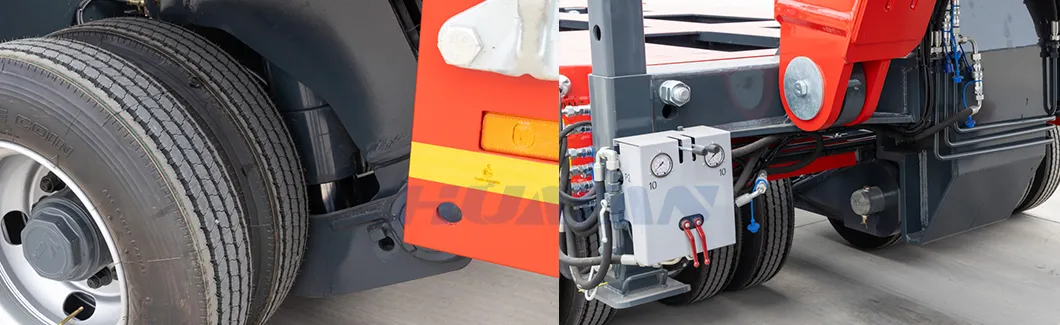

Flexible steering: Advanced steering system can realize automatic and controlled steering, reducing turning radius. Steering flexibility
🧩

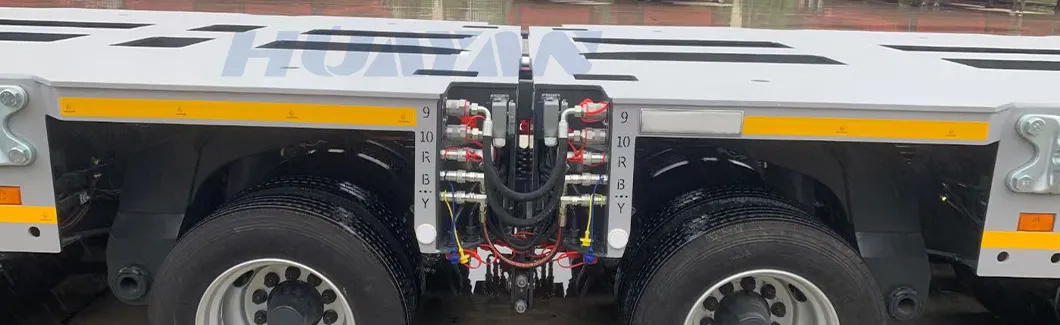

Modular design: Functions for longitudinal and transverse splicing, easily combined according to cargo size and weight. Modular combination

Certifications & Standards

Our products have passed ISO9001, 14001, and CE certificates. We also provide relevant certificates that meet specific national requirements.
Certificates

Detailed Photos

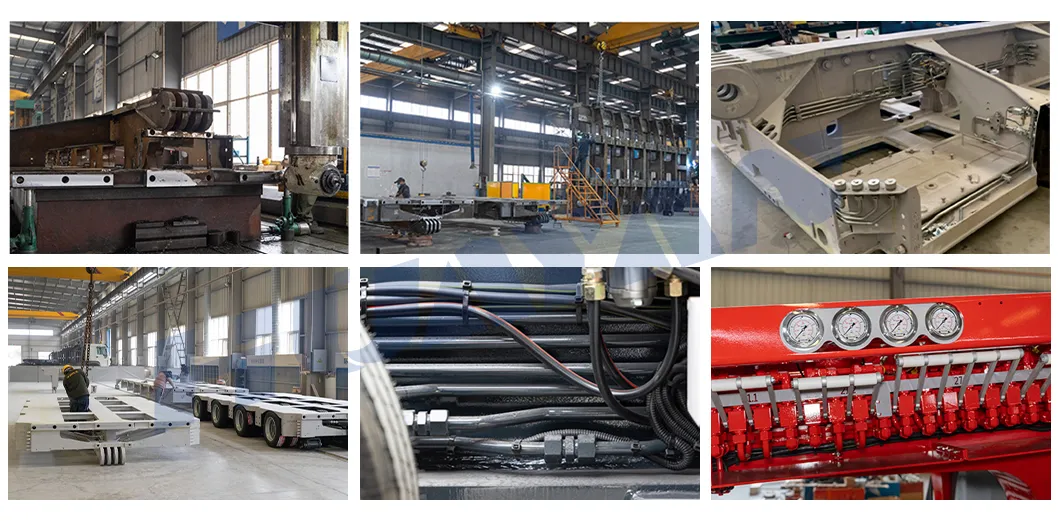

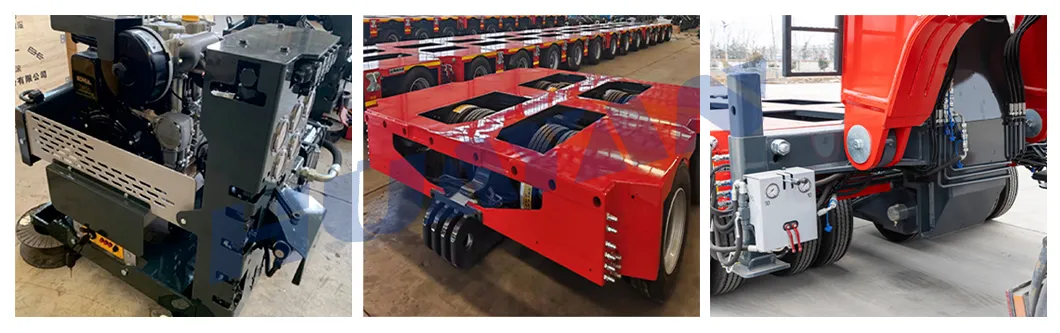

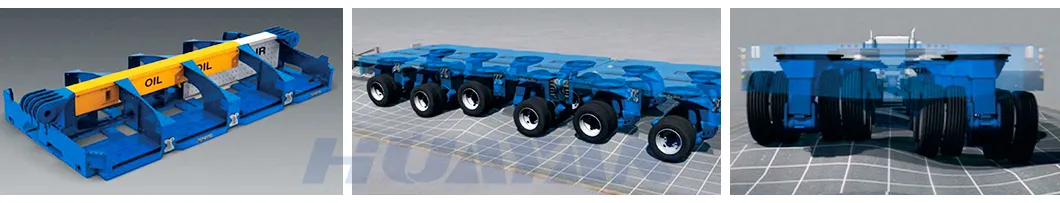

Precision Machining Hydraulic System Control Box

Product Recommendations

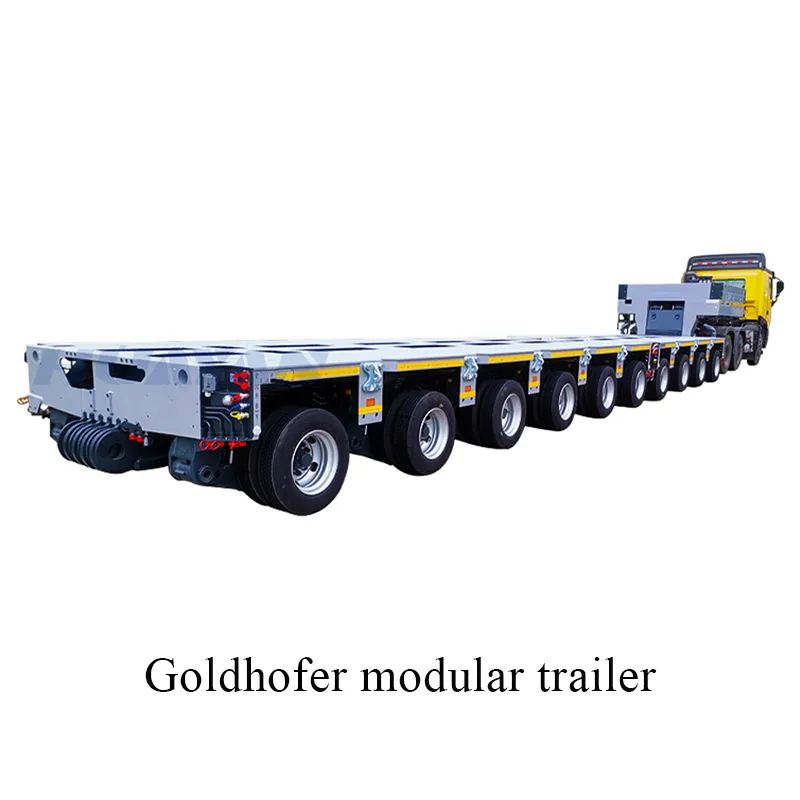

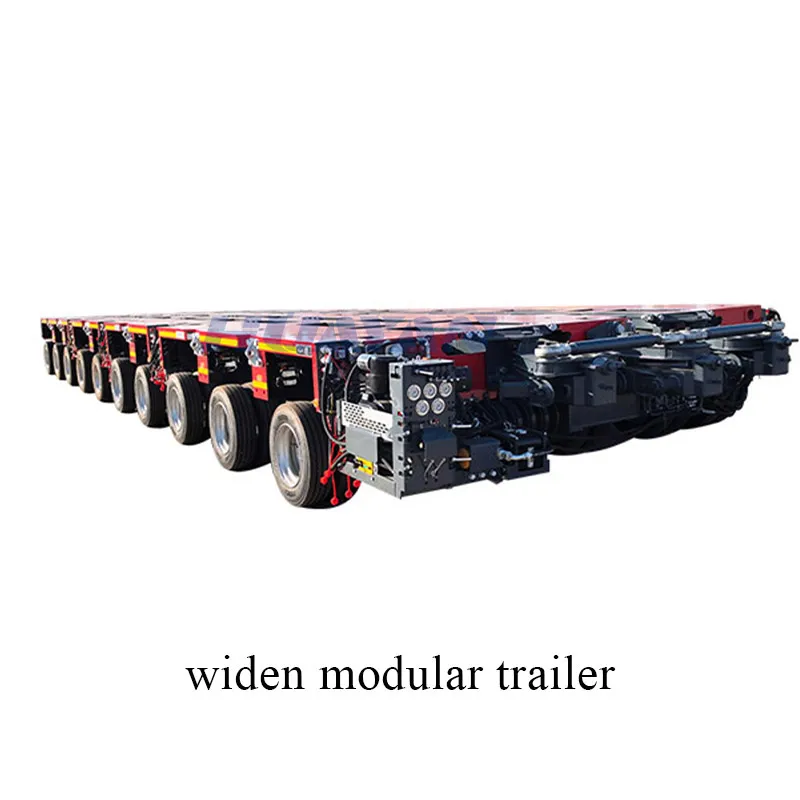

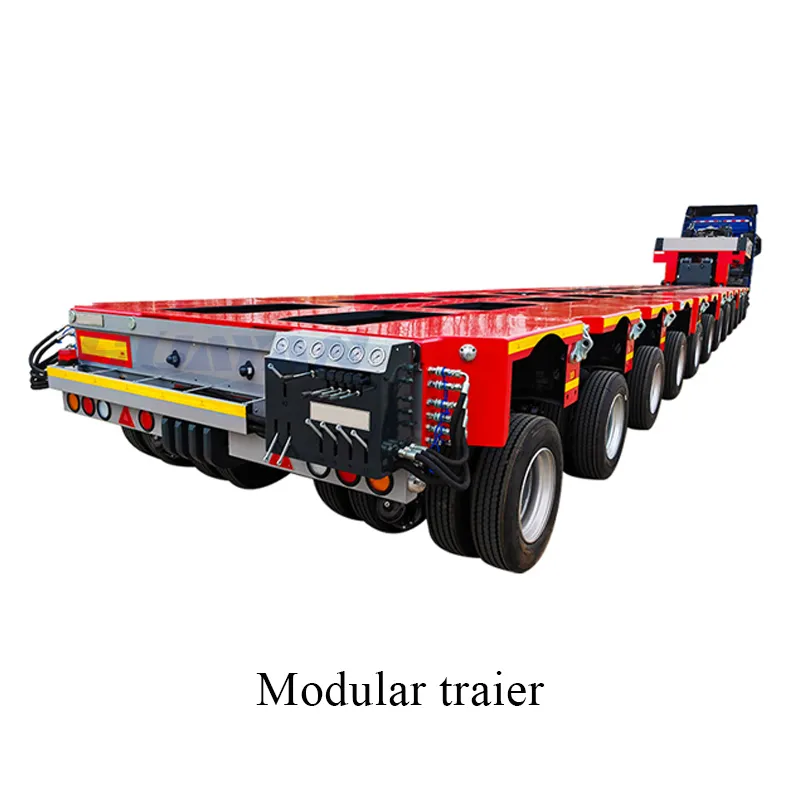

Modular Trailer 1 Modular Trailer 2 Modular Trailer 3

Exhibition & Delivery

Partners Logistics Team Packing Delivery

Frequently Asked Questions

Are you a manufacturer or trading company?
We are a manufacturer and supplier of specialized transport equipment, offering a one-stop solution for all kinds of difficult transport jobs.
What products can you provide?
We specialize in special transport vehicles including wind blade trailers, modular trailers, low bed trailers, and flatbed trailers. All products can be customized as requested.
What is the delivery time?
For standard models, we can ship within 10-15 working days. For special or customized trailers, the delivery time is approximately 25 working days.
What is the warranty period?
The ordinary semi-trailer comes with a 10-year warranty, while heavy-duty and special trailers have a warranty period of 8 years.
What after-sales service do you provide?
We provide lifelong after-sales service and spare parts support. Our team offers remote video guidance or door-to-door technical service when required.
Do you provide one-stop logistics solutions?
Yes, we prepare detailed delivery schedules and have strong logistics capabilities to provide both domestic and international delivery for your projects.
