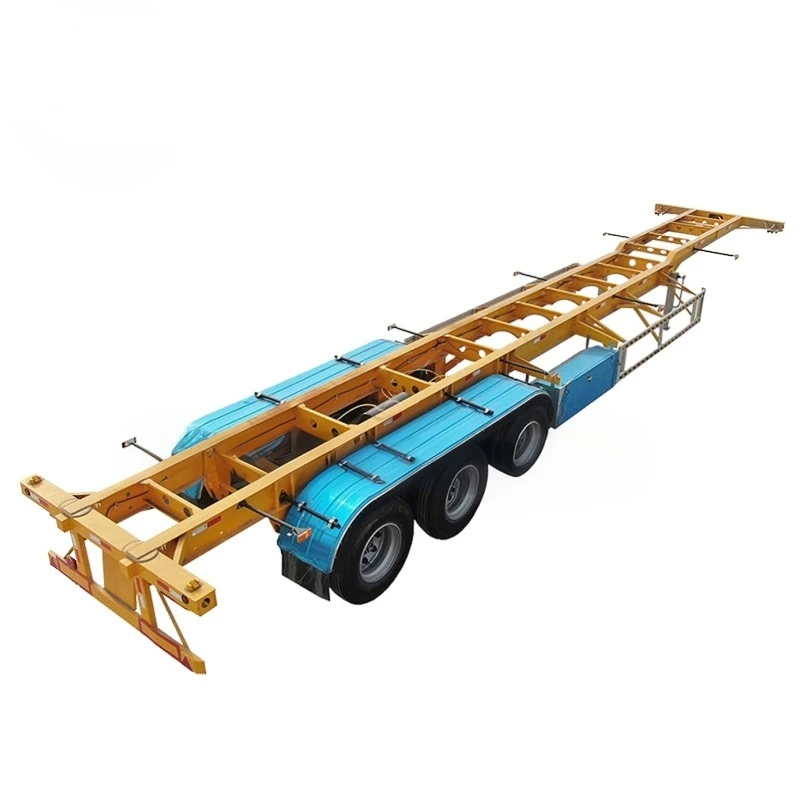

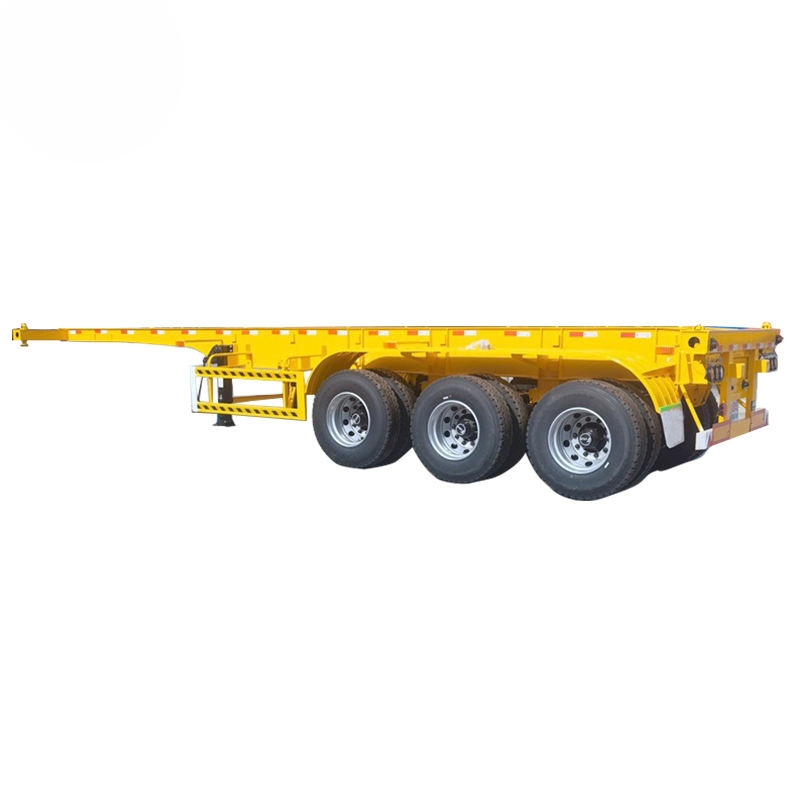

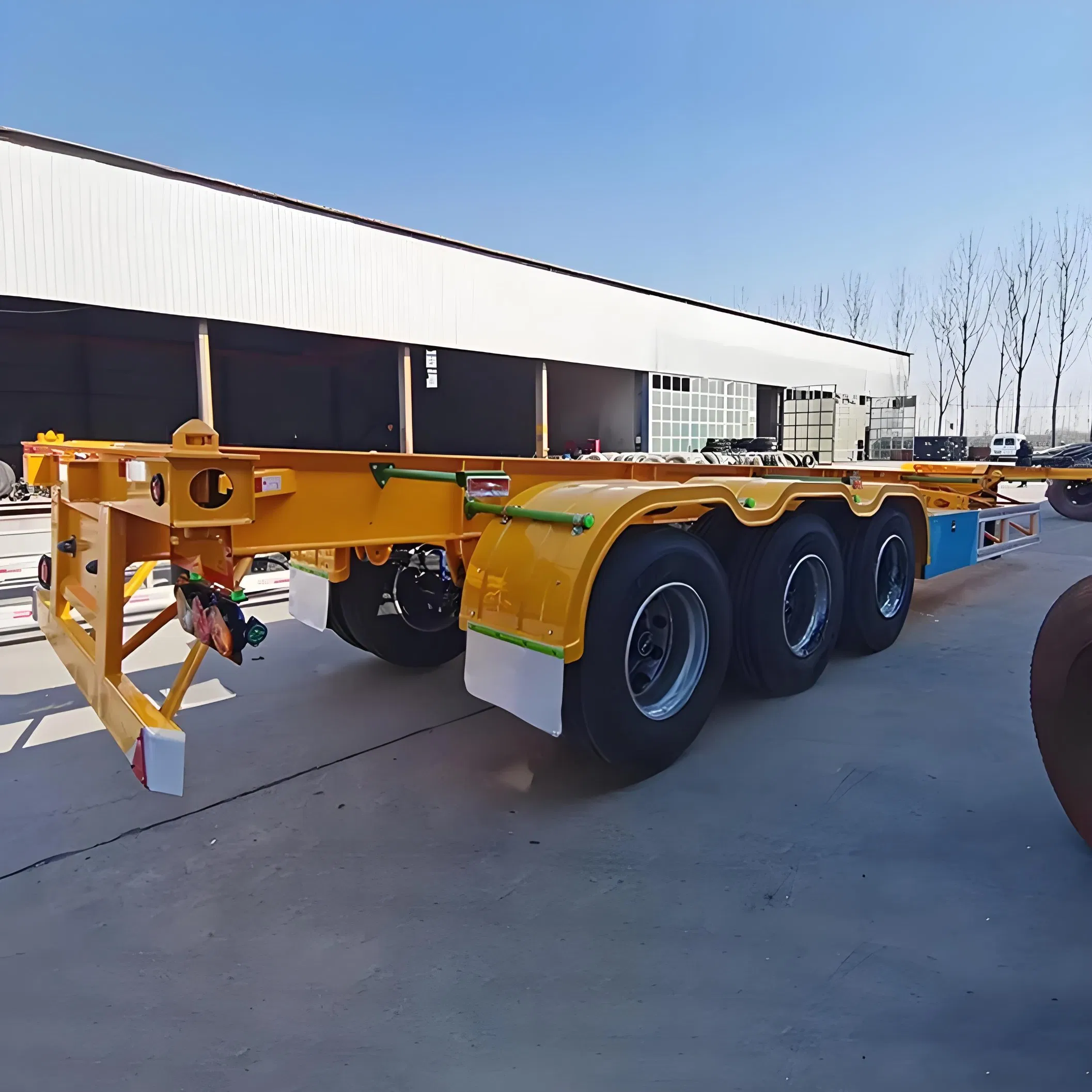

Skeleton semi-trailer is a large vehicle used for transporting goods. It consists of a tractor unit and a semi-trailer box. The box structure is relatively simple, usually with only one backboard and no fixed cargo compartments. The skeleton semi-trailer has the feature of being detachable, allowing for flexible assembly and disassembly according to the requirements of the cargo, adapting to different sizes and weights of goods transportation.

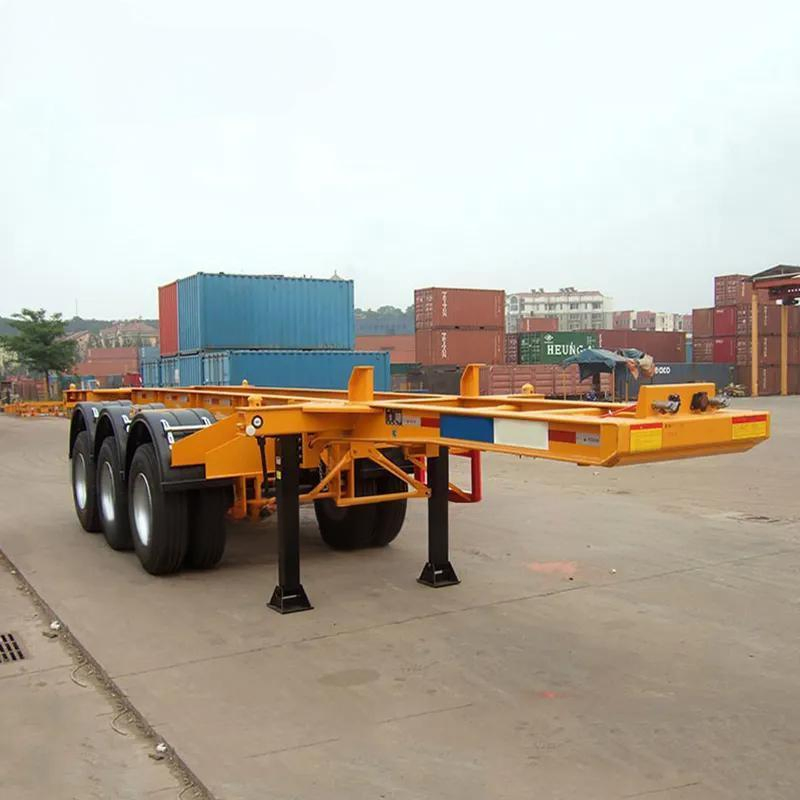

This makes the skeleton semi-trailer a versatile and multi-purpose transportation tool, suitable for various types of cargo transportation, including but not limited to containers, timber, steel, and machinery equipment. The structural design of skeleton semi-trailer can effectively improve the load-bearing capacity, enabling it to carry larger sizes and weights of goods.

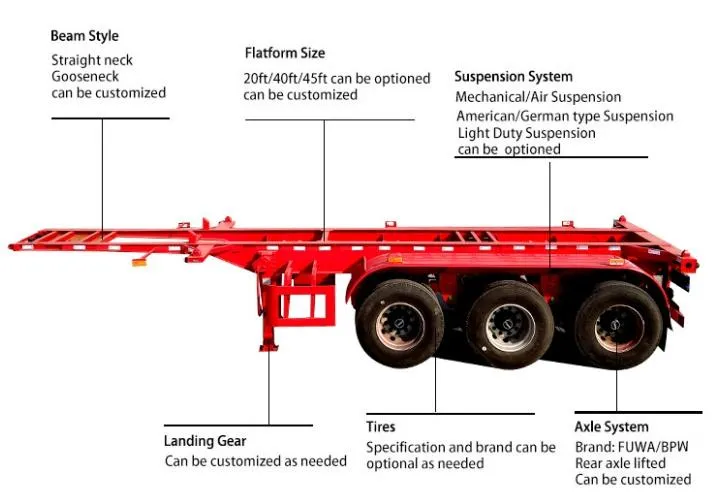

Key Features:
• Uniform Load Distribution: The skeleton car has a light weight and a small weight that fully supports the structure. Structural safety is enhanced as the entire body participates in the load.
• Advanced Manufacturing: Cutting edge automation equipment adopted in the factory. Steel is welded by automatic submerged arc process for solid and durable connection spots.
• High Stability: The support surface is reduced and the center of gravity is lowered, ensuring smooth travel during high-speed turns or emergency situations.

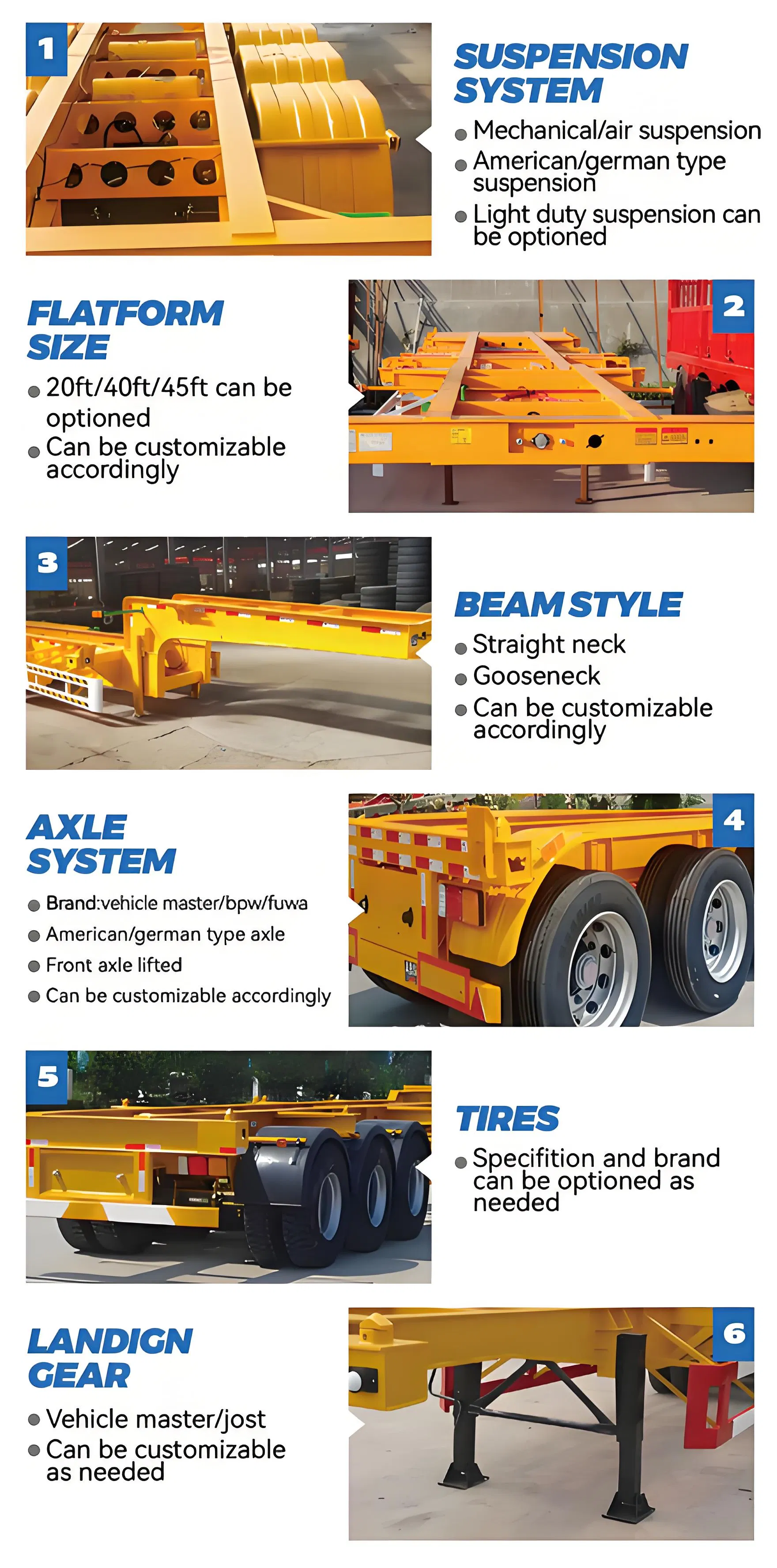

| Dimension | 12500*2500*1600 (Customizable) |
| Payload | 30-80T |
| Tare Weight | About 6.5T |
| Main Beam | Height 500mm, Upper 14mm, Down 16mm, Middle 8mm |
| Axle | 13Ton Fuwa/BPW Brand |
| King Pin | #50 (2") / #90 (3.5") JOST |
| Suspension | Mechanical / Air Suspension |
| Tire | 11.00R22.5 / 12.00R22.5 (Optional) |
| Electrical System | 24V with LED light |
The company is a manufacturer of semi-trailers and special purpose vehicles approved by the Ministry of Industry and Information Technology, and a supplier of logistics and energy equipment. Products cover six series including railroad semi-trailers, container trucks, and special vehicles for powder material transportation.

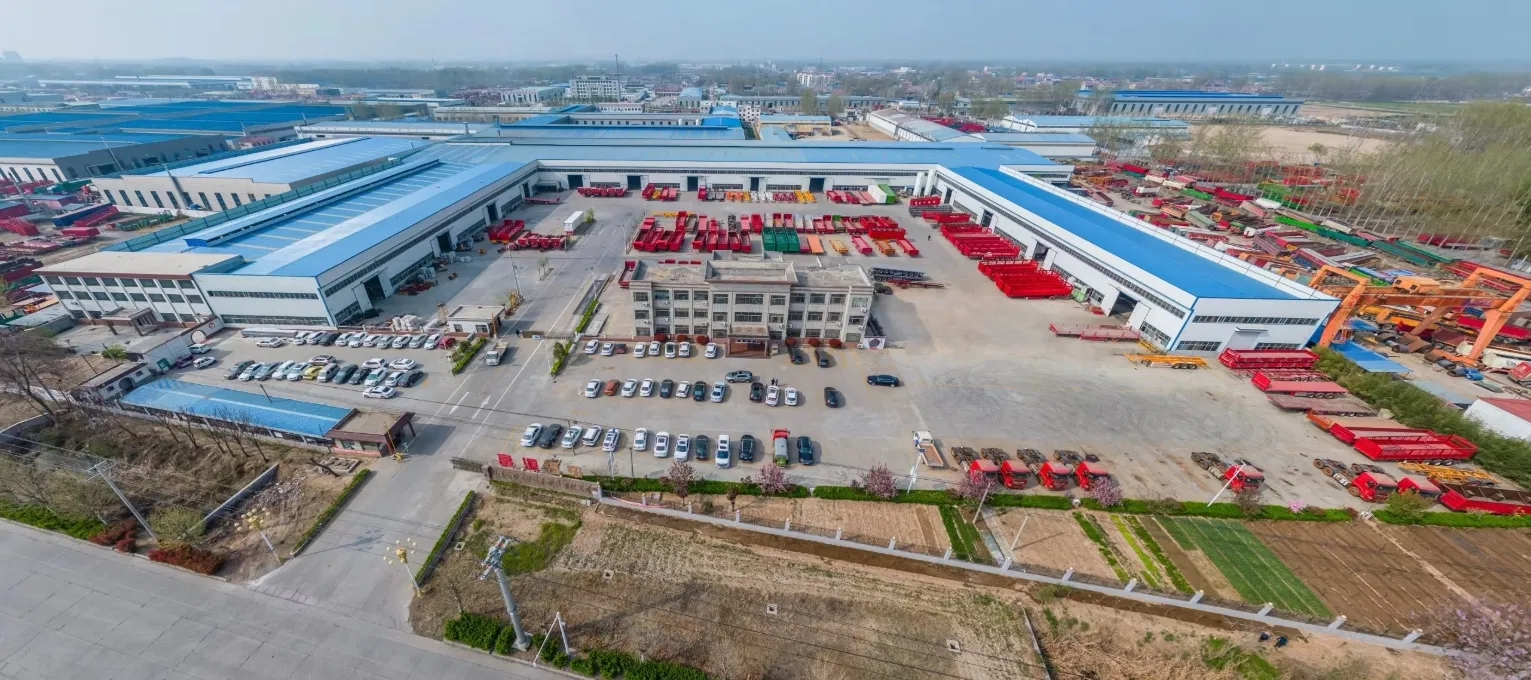

Covering an area of 120 acres, we integrate scientific research, development, production, and sales. Equipped with advanced testing facilities, our products pass the national mandatory 3C certification, meeting high-performance indicators for both domestic and international markets.
