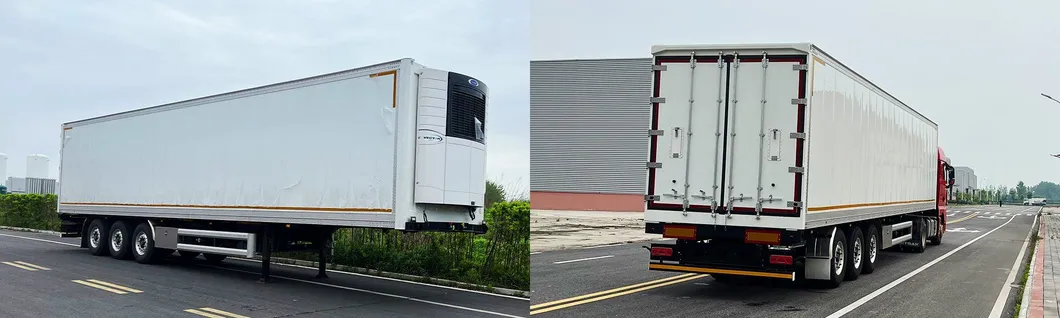

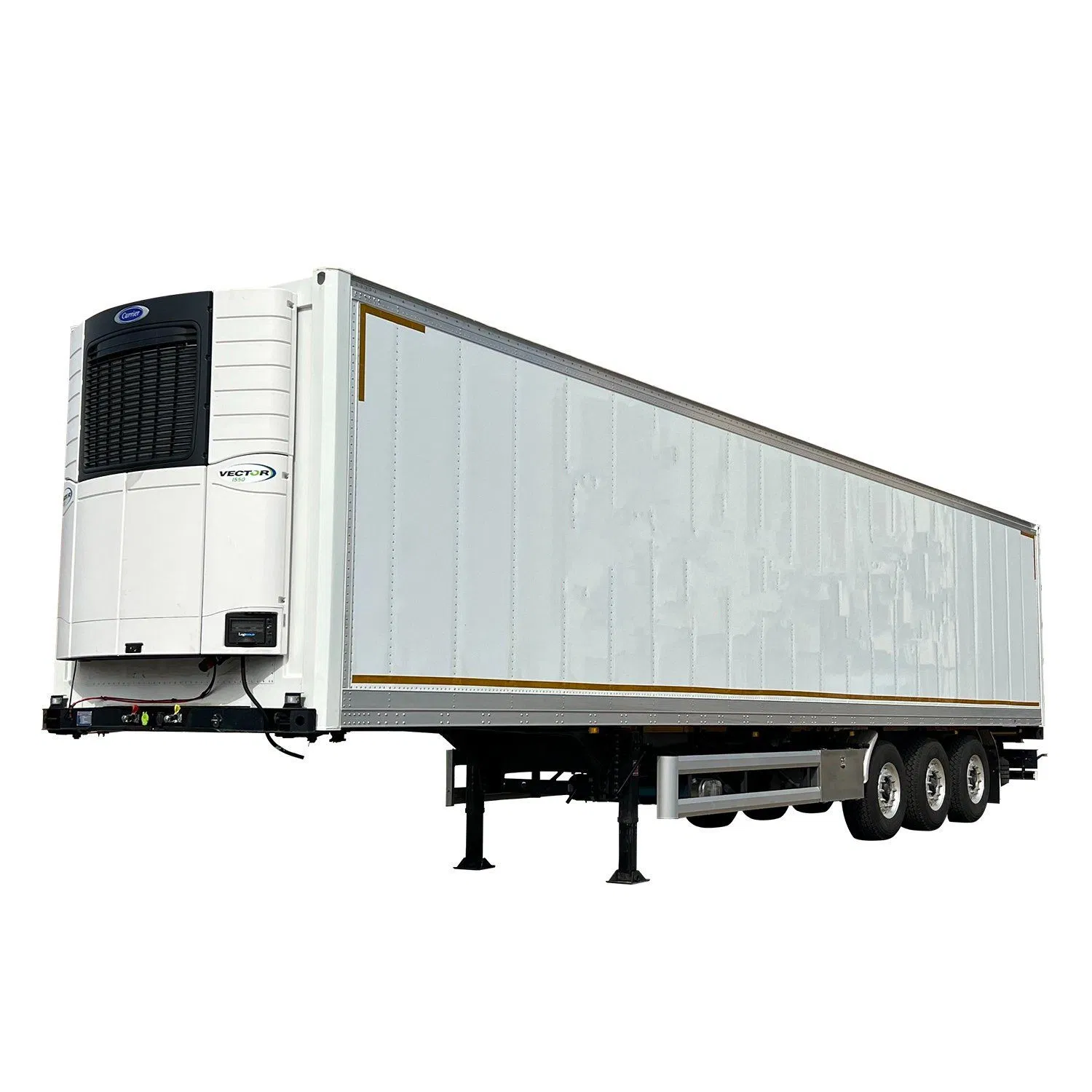

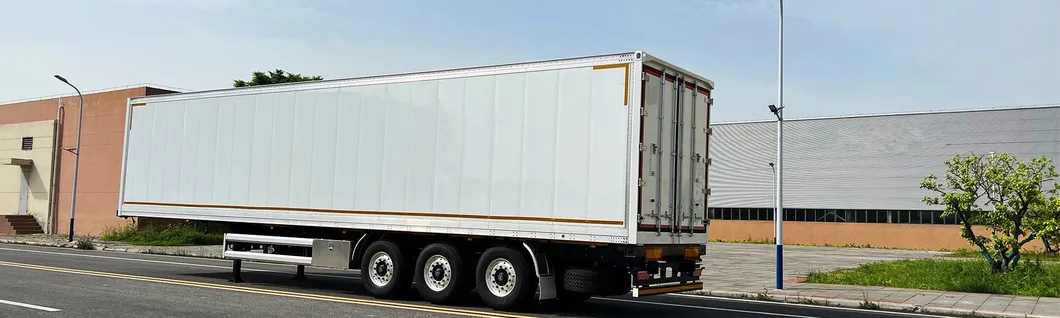

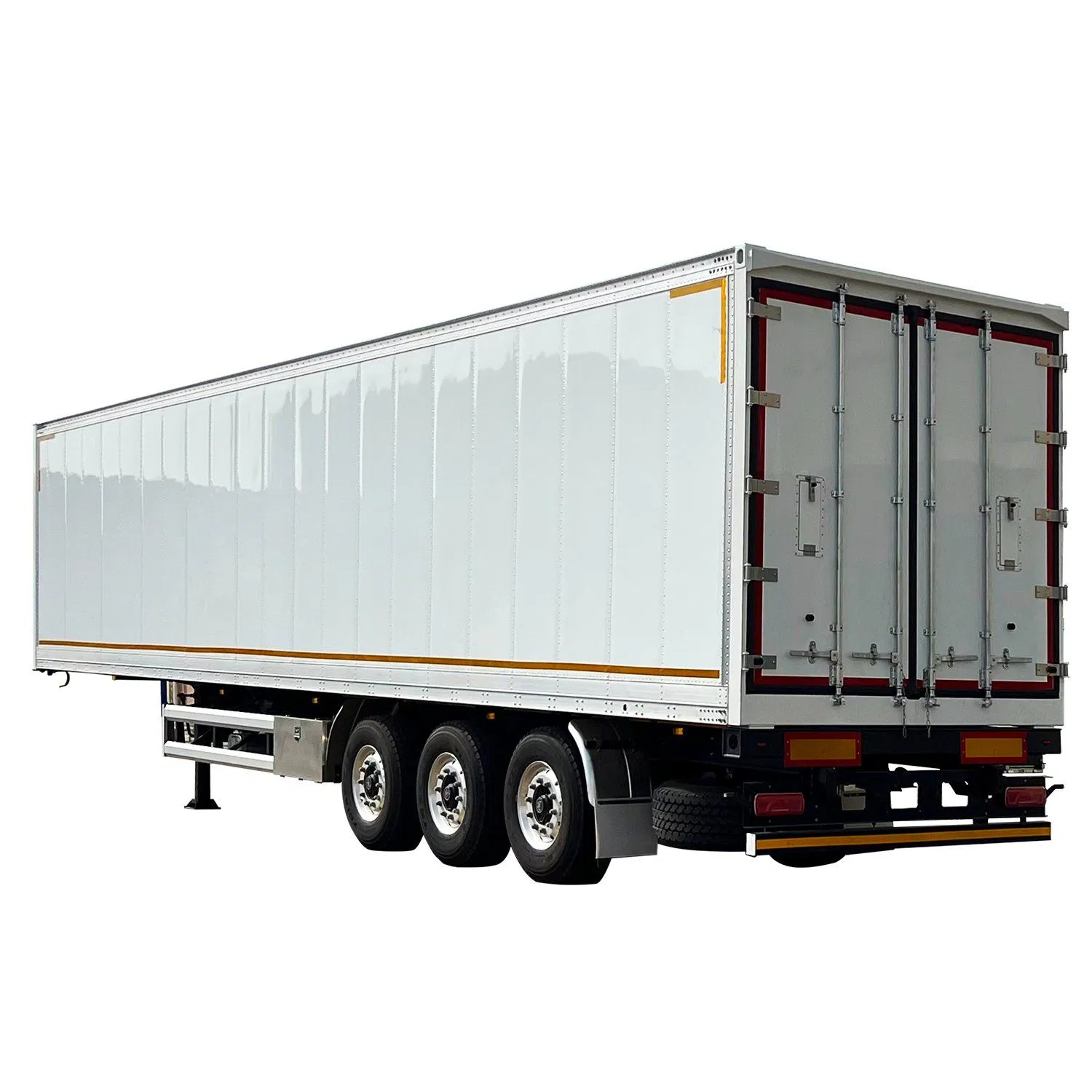

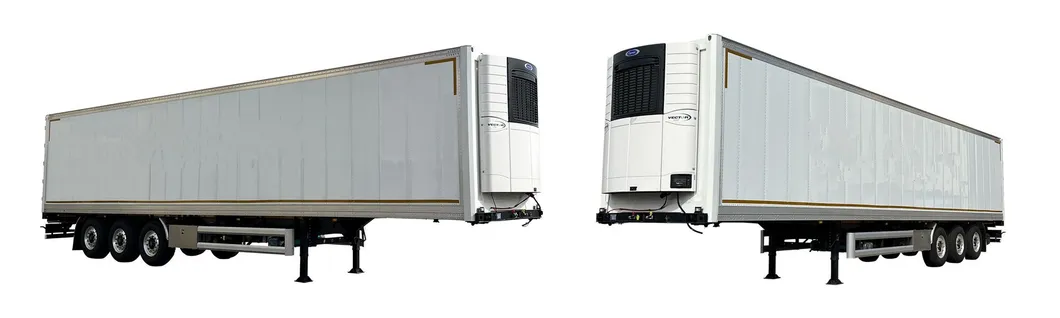

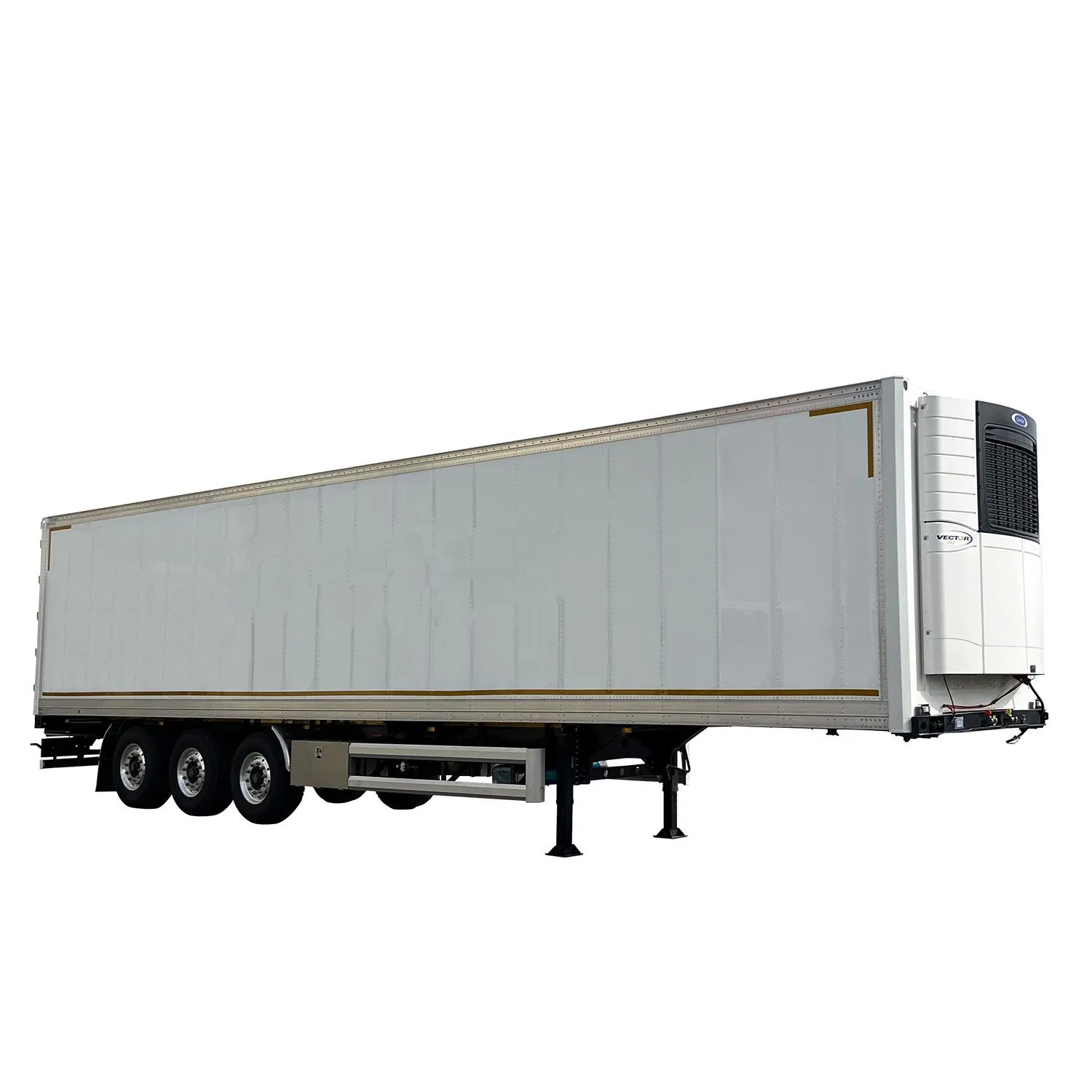

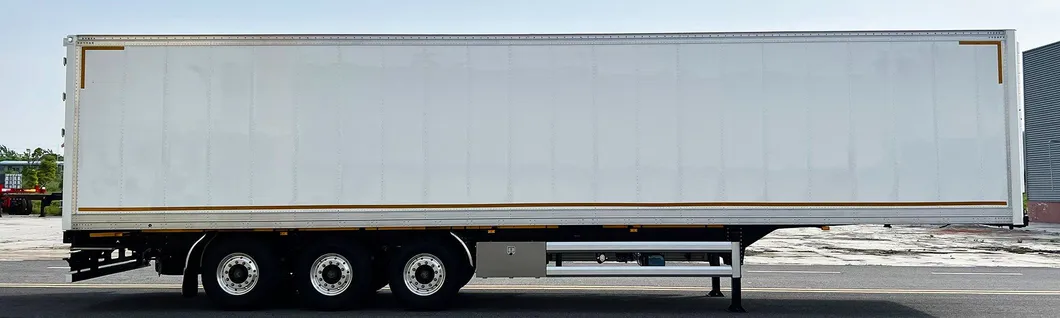

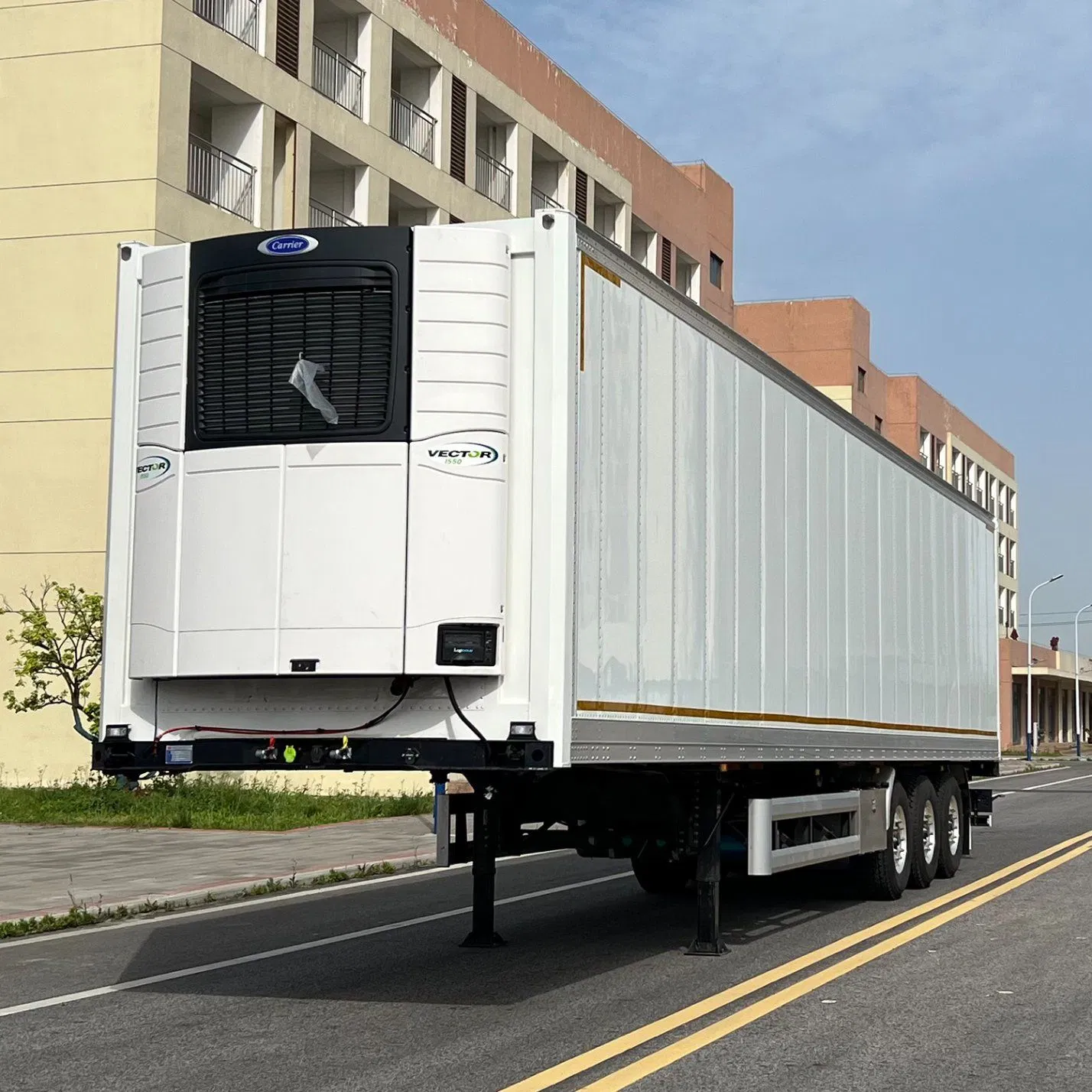

3 Axle Refrigerated Truck Semi Trailer Refrigerator Cooling Trailer
A refrigerated semi-trailer is specialized transport equipment fitted with high-performance insulation and a dedicated refrigeration system. It is designed specifically for the long-haul transportation of food, pharmaceuticals, and other temperature-sensitive goods requiring consistent low-temperature preservation.
| Details | Specification (Reference) |
|---|---|
| 1. Overall Parameters | |
| Total Length (incl. refrigerator) | 13600mm |
| Total Width / Height | 2500mm / 4000mm |
| Internal Dimensions (L*W*H) | 13425mm * 2330mm * 3000mm |
| Internal Volume | 78m³ |
| Refrigerator Model | Carrier 7300 |
| 2. Insulation Layer Thickness | |
| Front Wall / Side Plate | 100mm / 75mm |
| Roof / Floor / Door | 80mm / 64mm / 76mm |
| 3. Body Configuration | |
| Outer/Inner Plate | Precoated white aluminum / Food grade thermoplastic board |

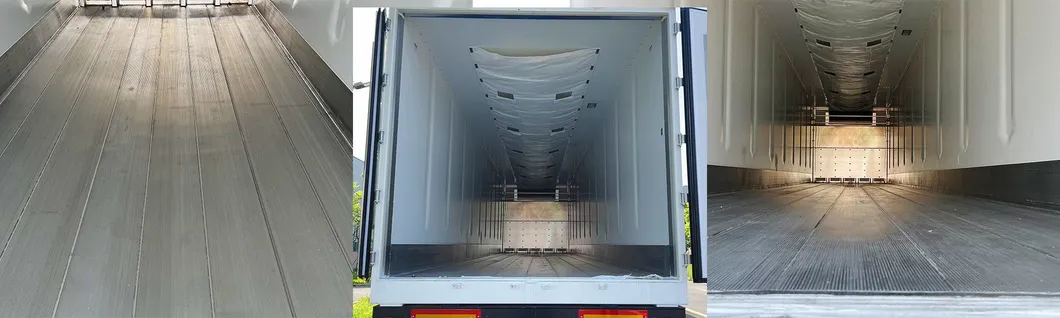

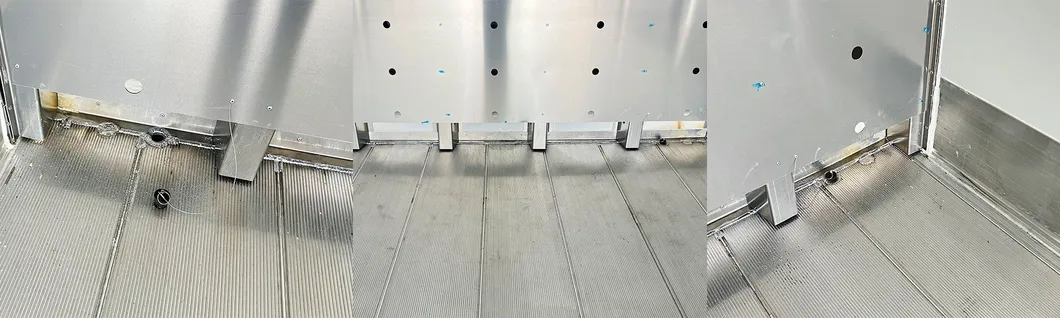

| Floor Form | Reinforced air guide aluminum alloy (Castle Floor) |
| Rear Door | Stainless steel frame, Aluminum alloy hinges |
| 4. Traveling Mechanism | |

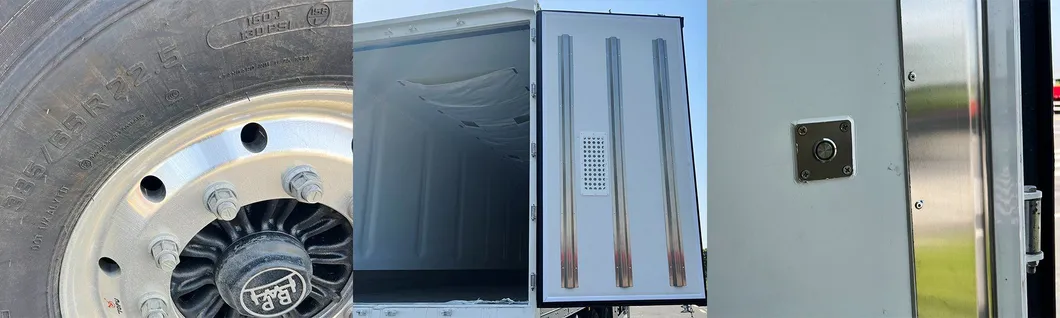

| Axles / Suspension | BPW 13T / Three axis mechanical or Air suspension |
| Tires | 12 Tubeless vacuum tires (Chaoyang Brand) |
Food-Grade Interior: All inner plates are food-grade to ensure cargo safety and hygiene.
Insulation Technology: European cyclopentane foaming with high-end polyurethane material.
Premium Components: Utilizing BPW axles and air suspension for a lightweight yet durable chassis.

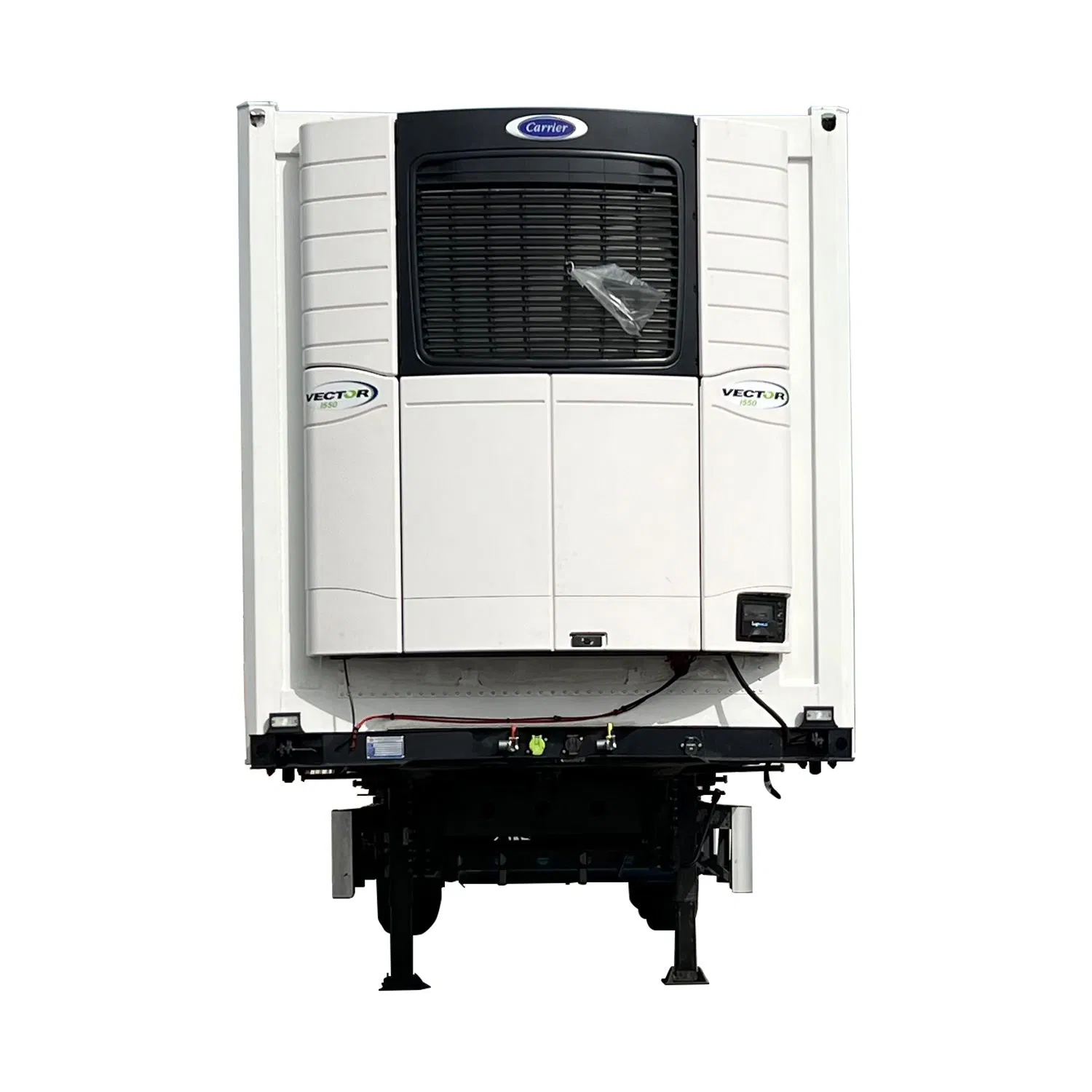

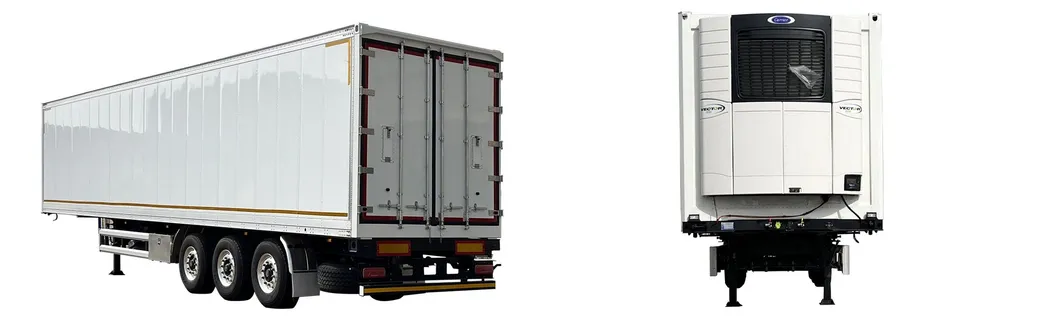

Powerful Cooling: Equipped with American Carrier 7300 units, reaching temperatures as low as -20°C.
Our facility is a leading exporter of semi-trailers and specialized trailer parts. Spanning over 200,000 square meters with a dedicated workforce of over 130 professionals, we focus on high-quality manufacturing of low bed, flatbed, skeleton, and refrigerated semi-trailers.

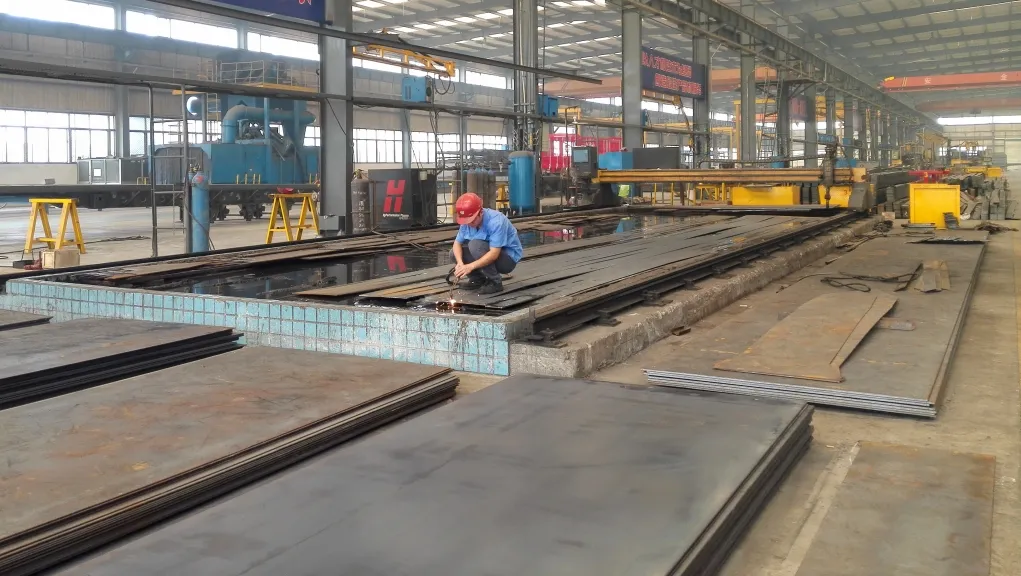

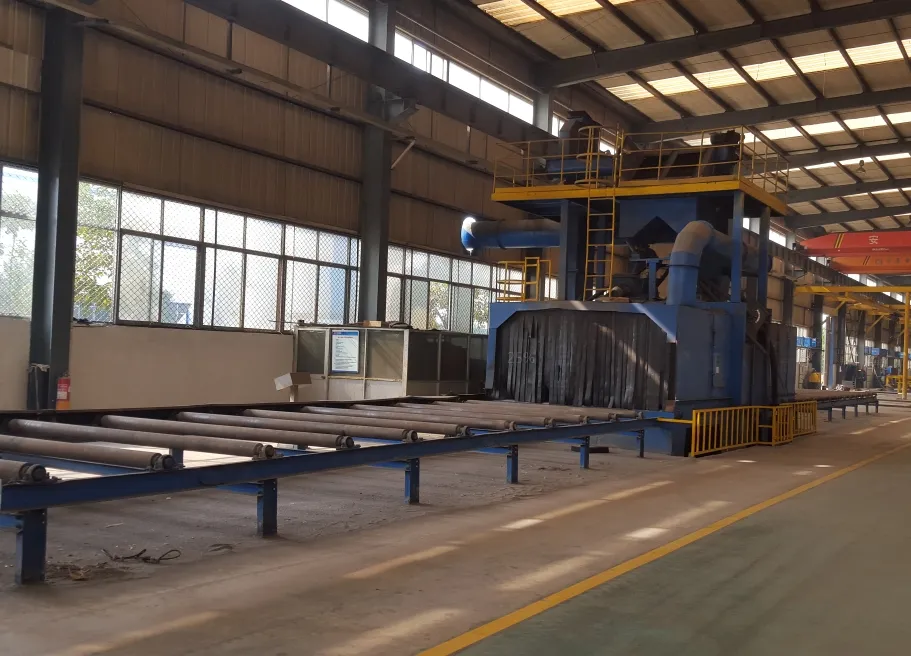

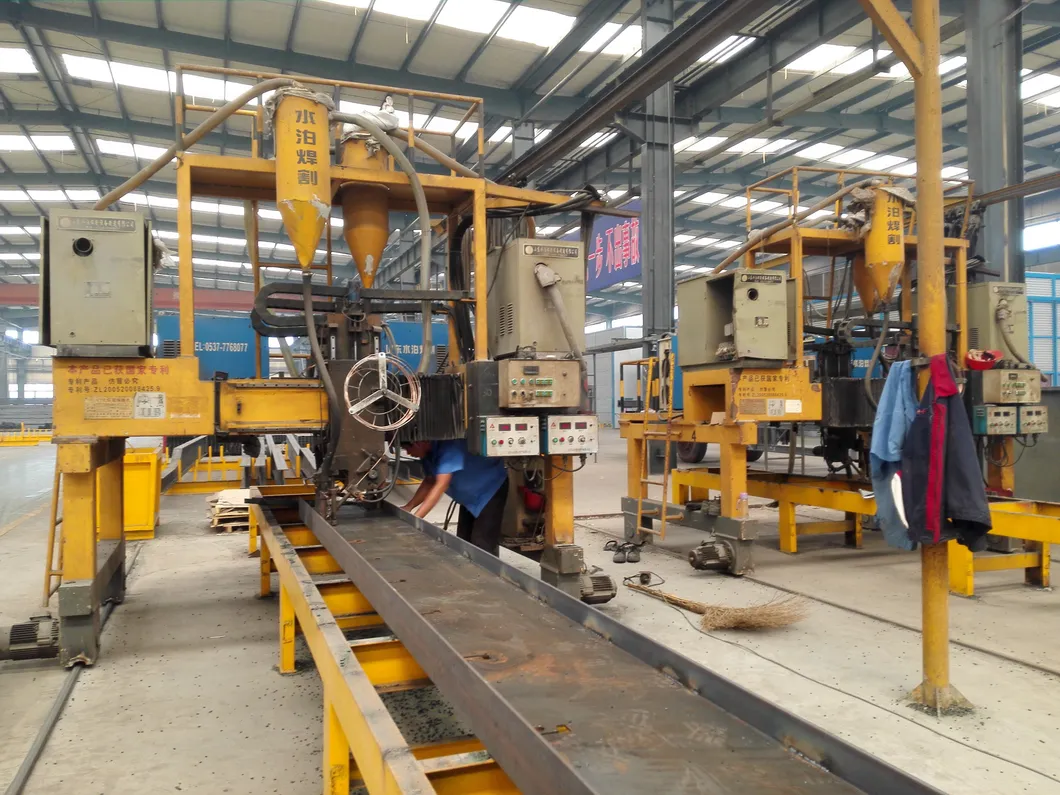

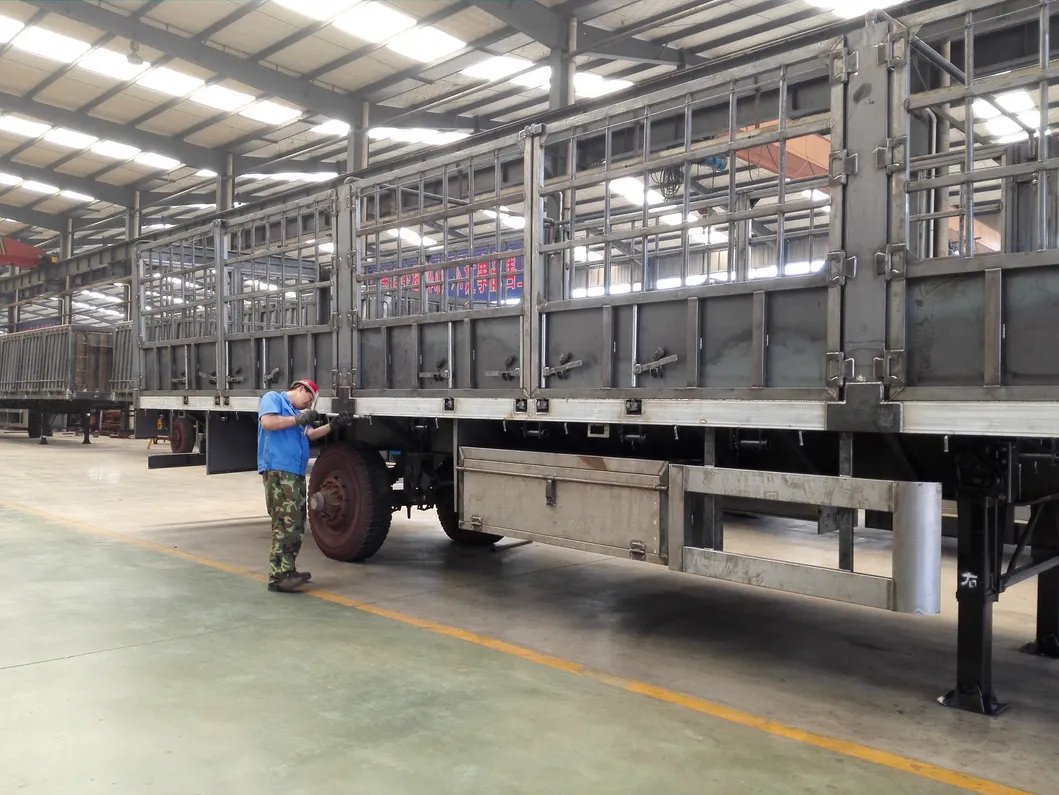

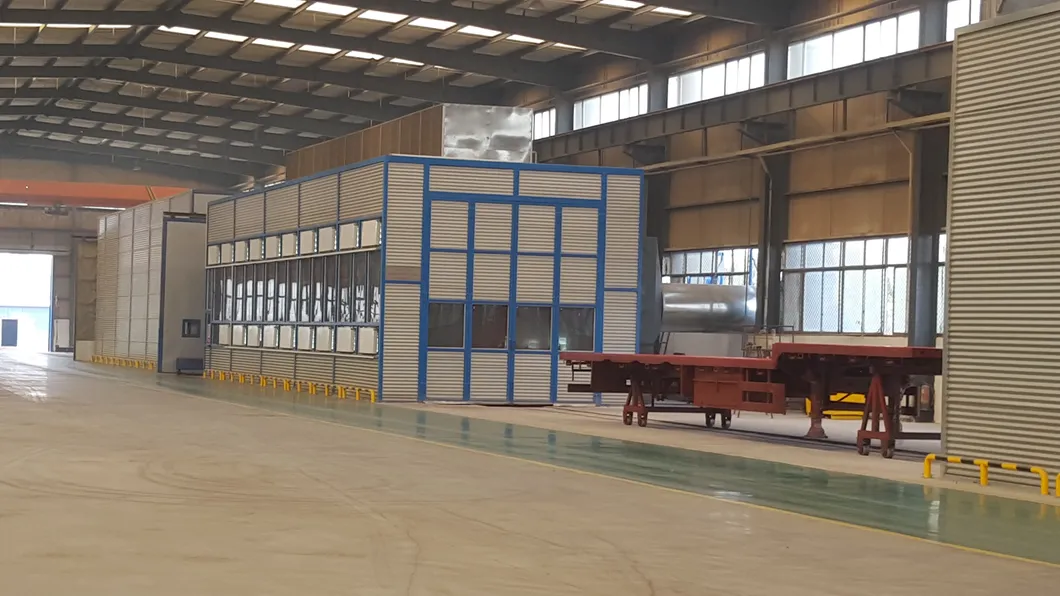

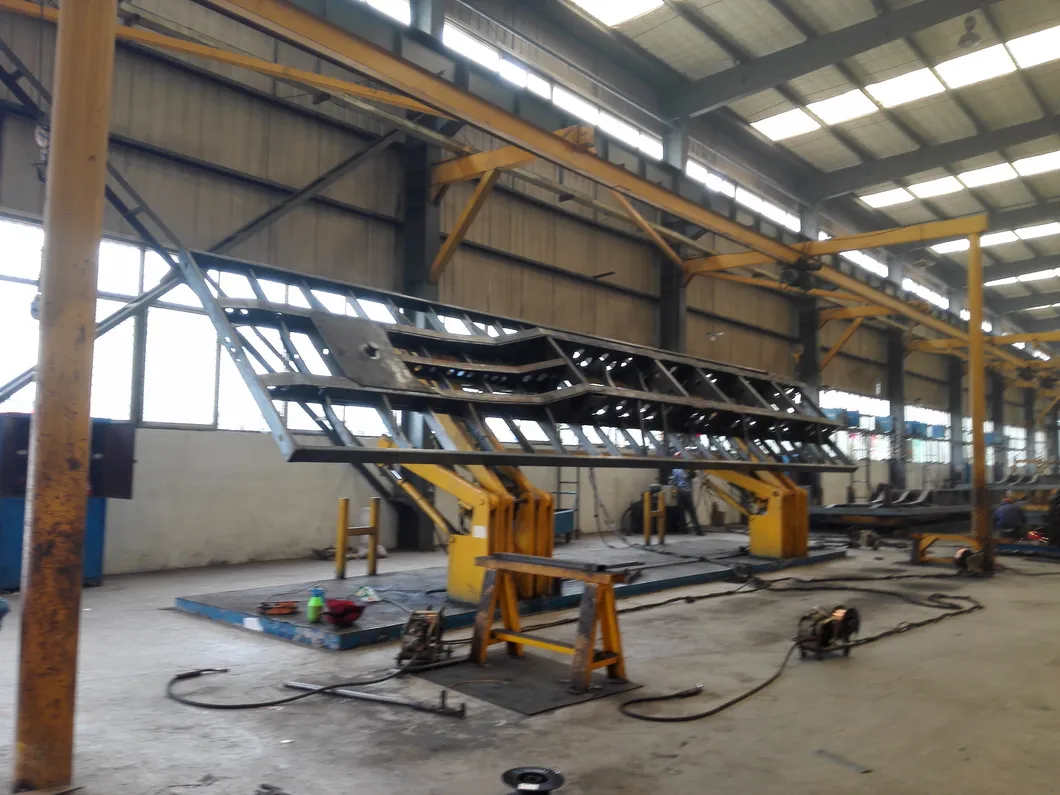

With advanced production lines, automatic welding systems, and a robust quality guarantee system, our products are trusted globally. We aim to solve customer challenges through innovation and precise engineering.
