| Model NO. | CLV9400FST |
| Type | Semi-Trailer |
| Load Capacity | 50T |
| Certification | ECE, GCC, CE, ISO9001, DOT, CCC, ISO/TS16949 |
| Axle Number | 3 |
| Temperature Range | -30-20℃ (-22-68℉) |
| Refrigeration Brand | Thermo King / Carrier |
| Insulation Material | Glass Fiber Board + 10cm Polyurethane Insulation |
| Brake System | Wabco Brand Re-6 Emergency Relay Valve |
| Inner Wall | FDA-Certified Food-Grade Thermoplastic Sheet |

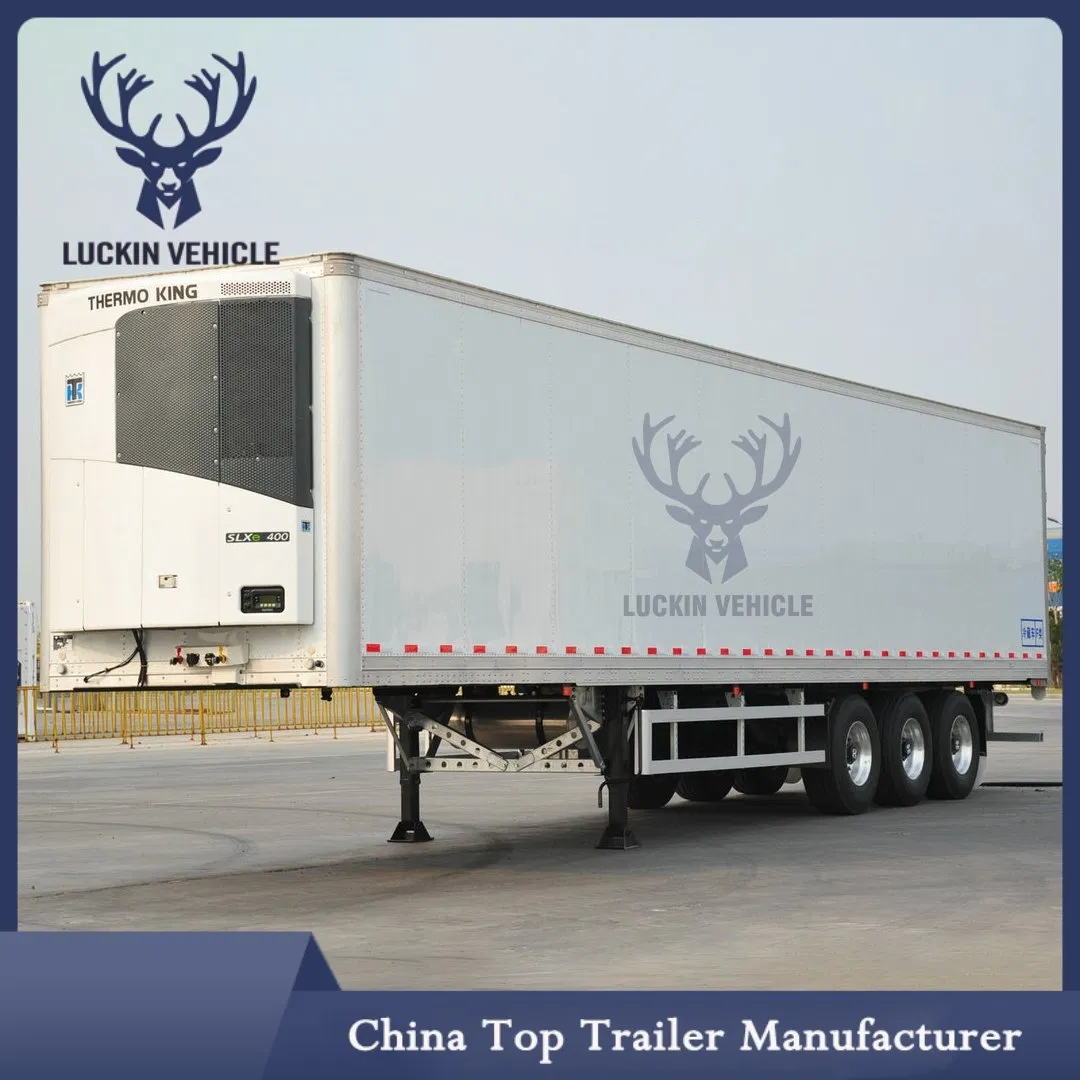

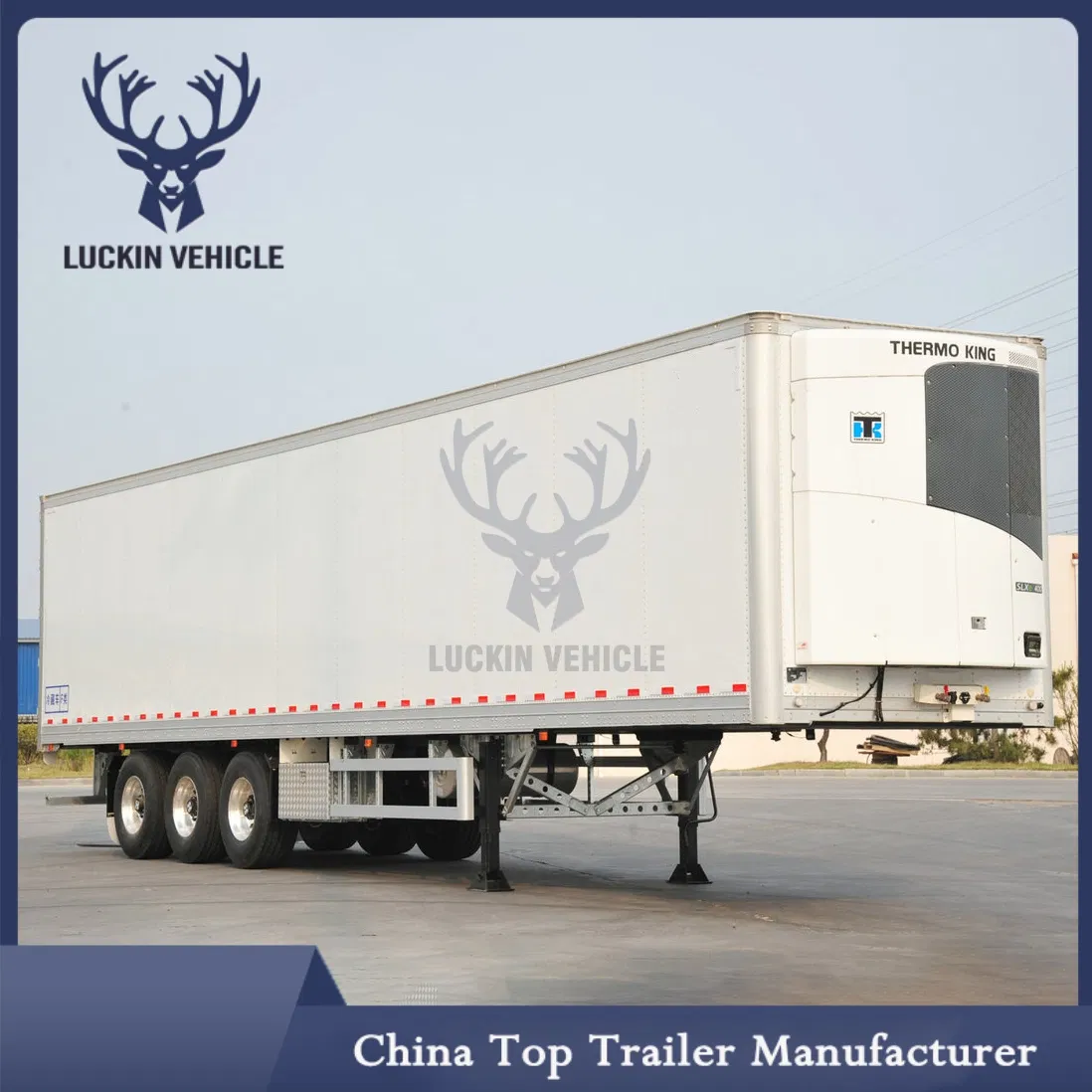

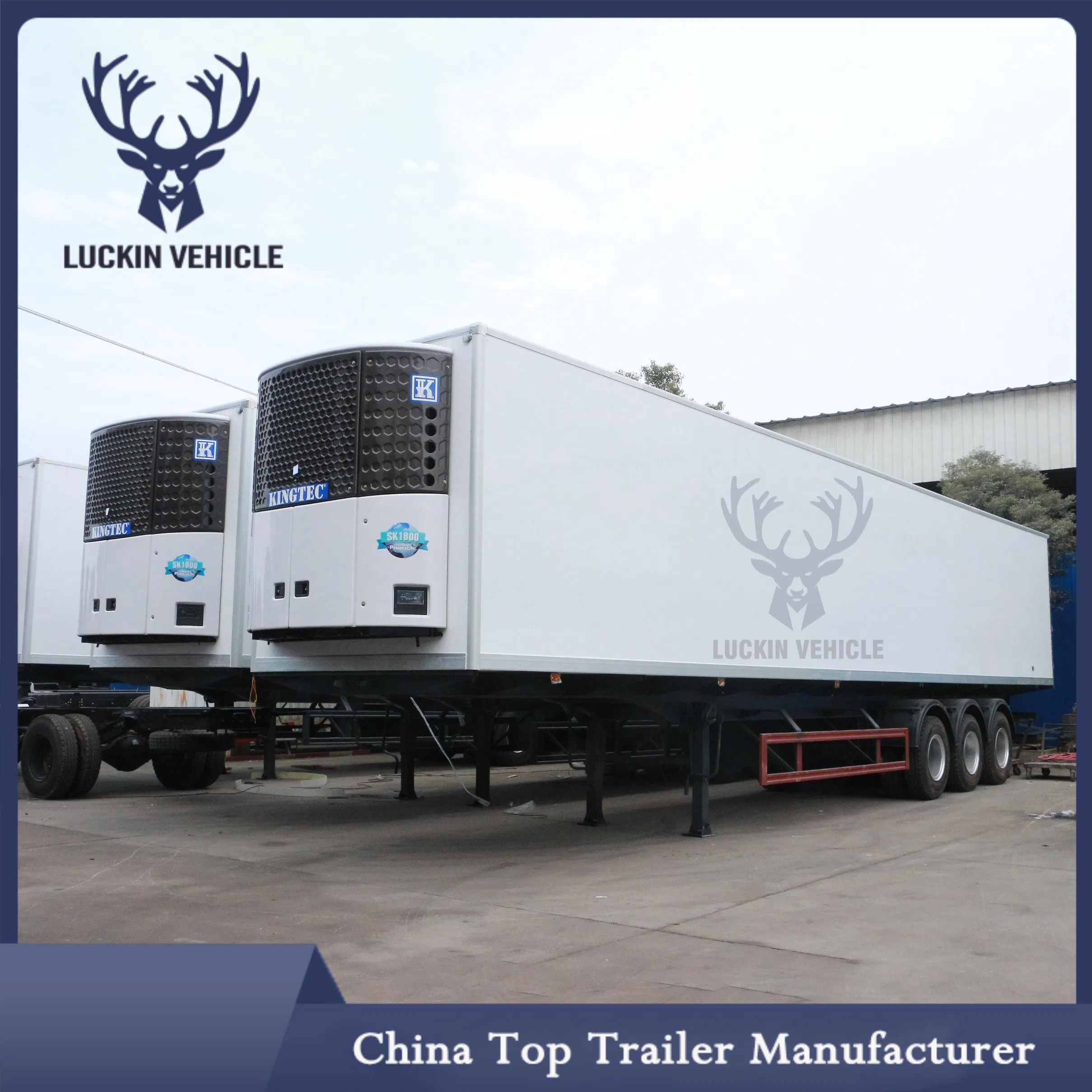

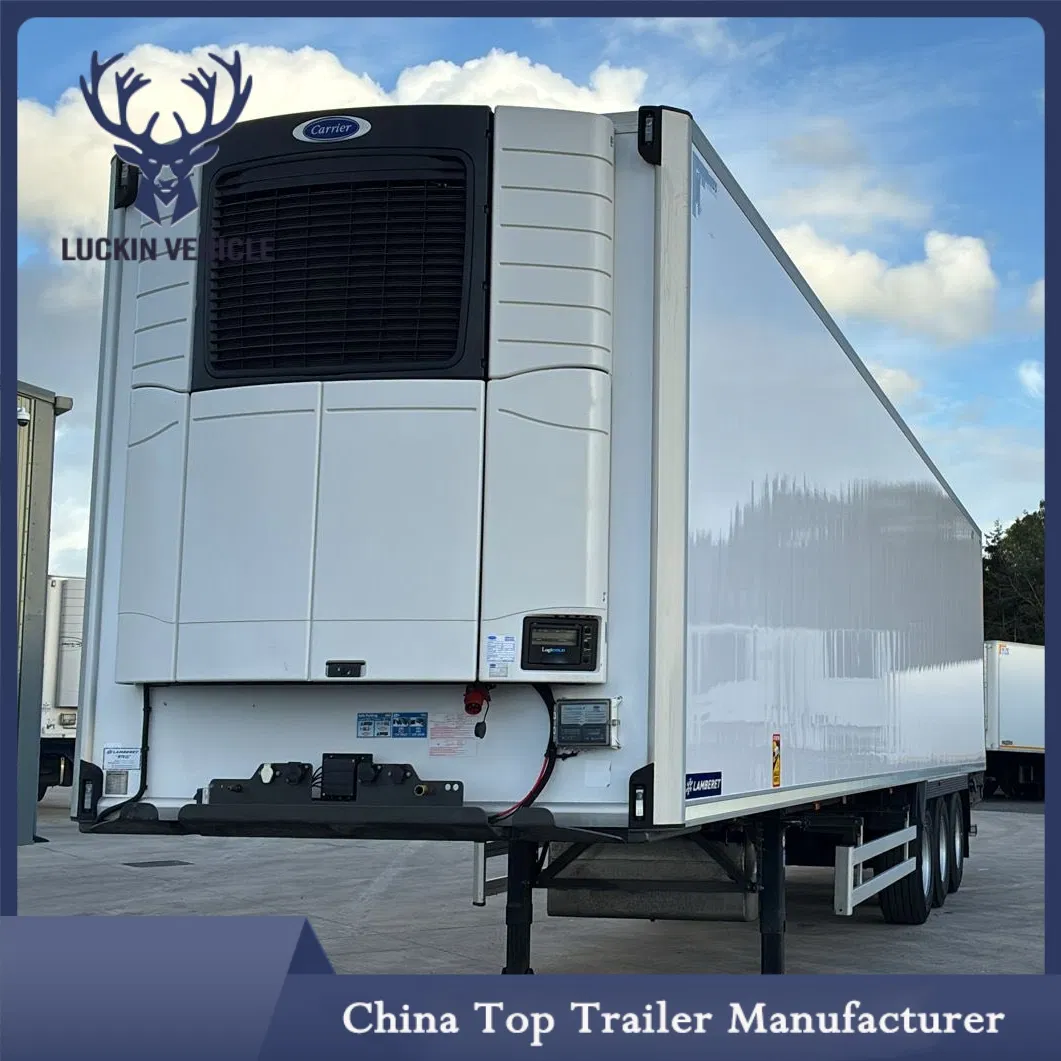

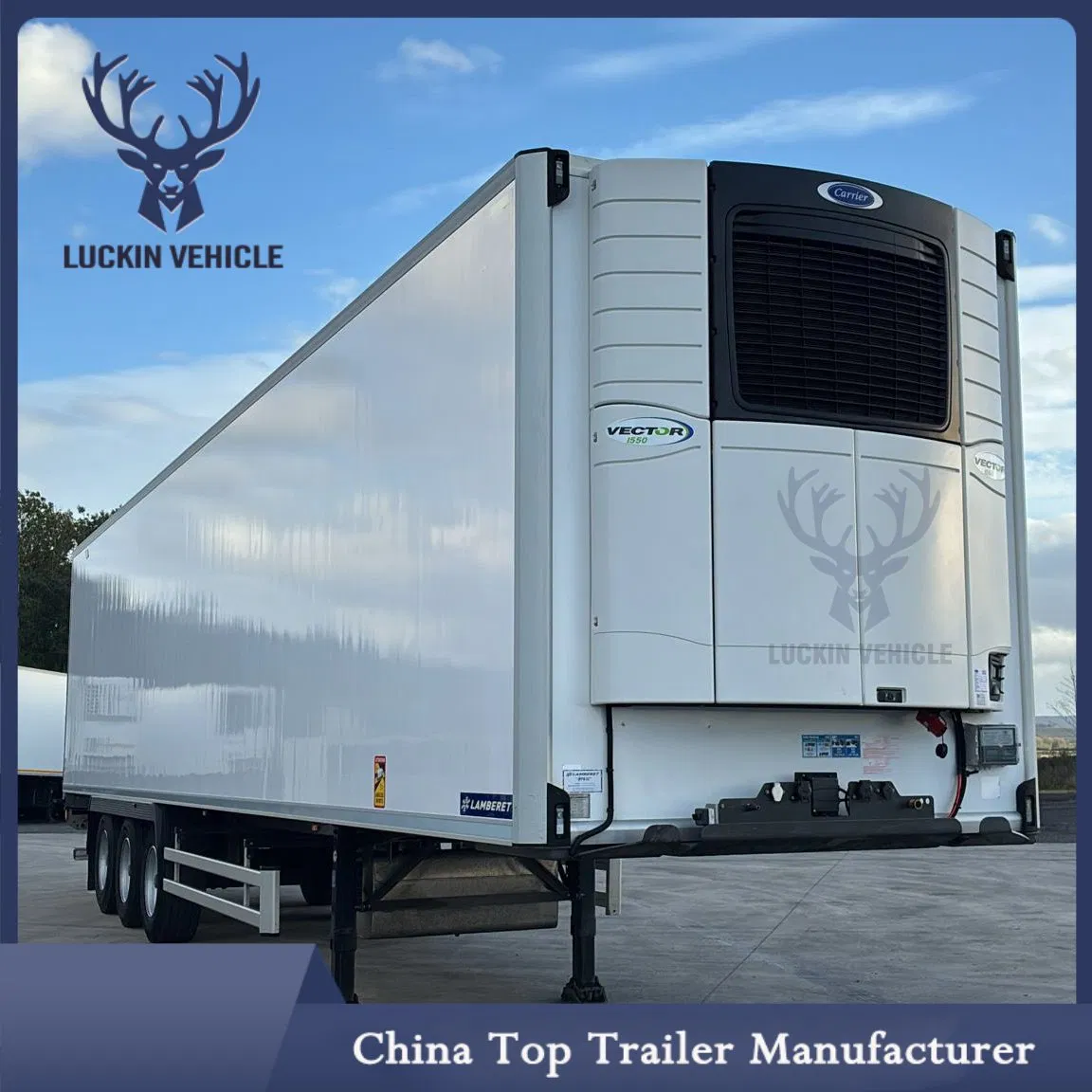

Engineered for large-scale, integrated fresh goods transportation, this Tri-Axis Refrigerated Semi-Trailer is the ultimate partner for efficient cold chain delivery.
Boasting a remarkable 80-cubic-meter capacity and an ultra-lightweight design at just 8.6 tons, this trailer offers 12 more cubic meters than conventional models. Built with high-polymer composite materials in a fully sealed modular structure, it cuts weight by 15% compared to non-metal alternatives, boosting payload and durability.
The insulated body features fiberglass reinforced panels on both sides with 10cm thick polyurethane foam. It's manufactured in one seamless press under constant temperature with a 16-meter hydraulic forming machine, finished with aluminum alloy framing and stainless steel door locks.
| Internal Volume | 82 m³ (theoretical) |
| Curb Weight | 8000kg (+/- 3%) |
| External Dimensions | 13600 x 2600 x 4000 mm |
| Side Panels / Floor | 63.5mm thickness |

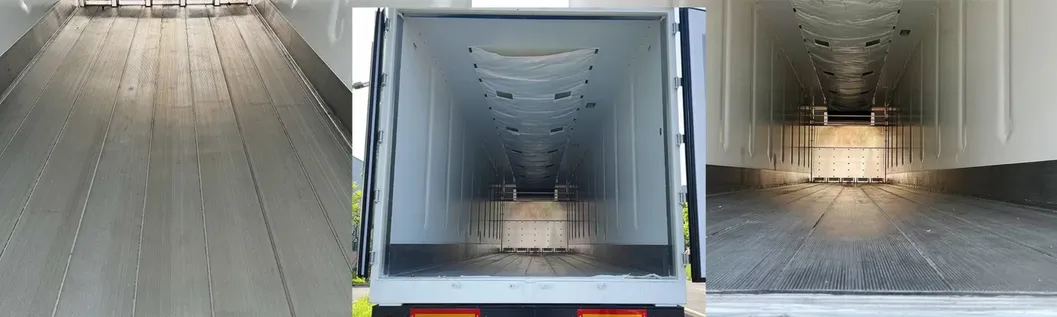

| Inner Lining | FDA-certified food-grade thermoplastic sheet |

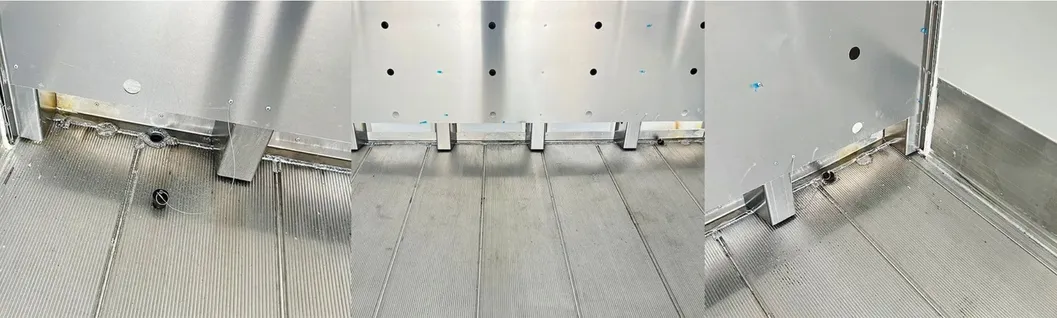

| Floor Form | Reinforced DUCT aluminum floor (American Duct floor) |

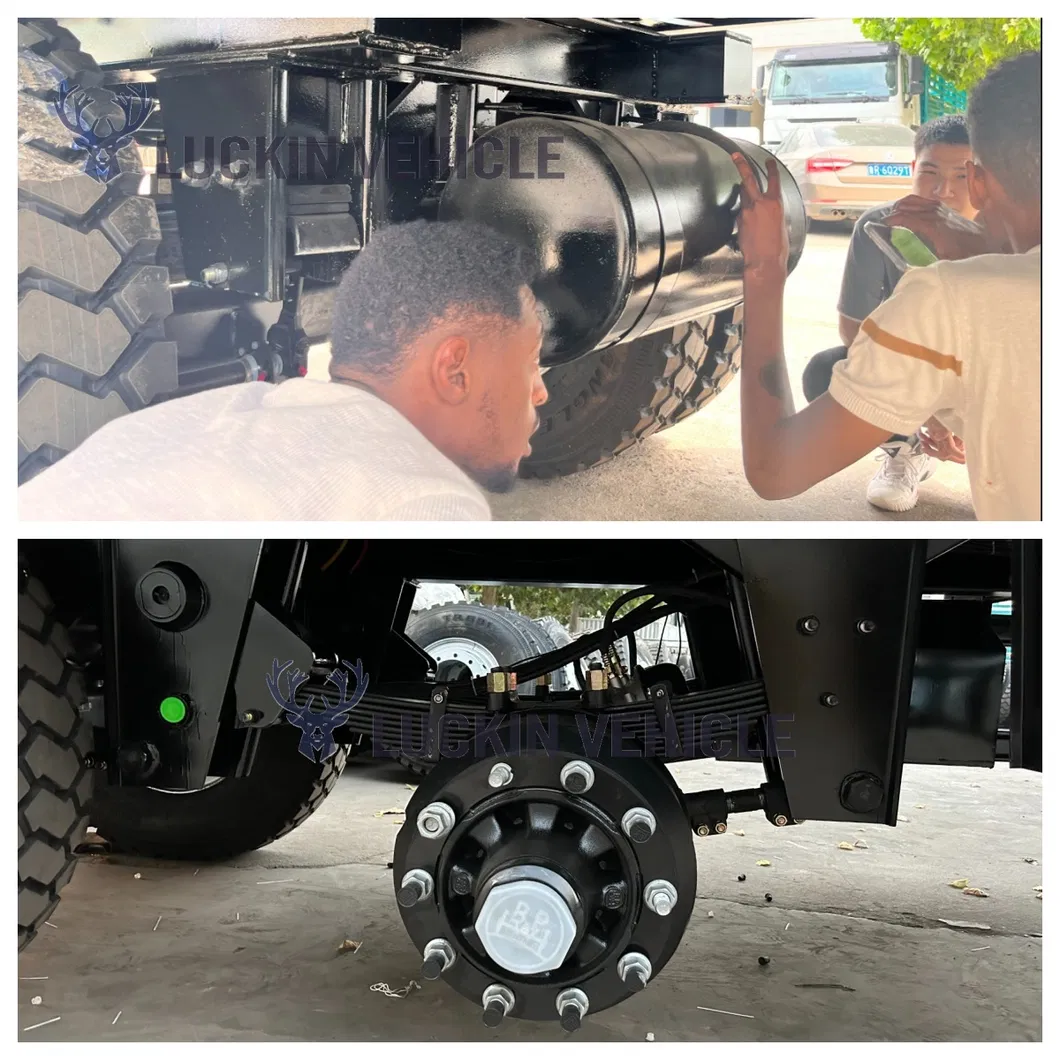

| Axle Brand | BPW 10T 400K air suspension |
| Tires | 425/65R22.5 or 12R22.5 (12 units) |
| Lock Rods | 4 Galvanized lock rods |
