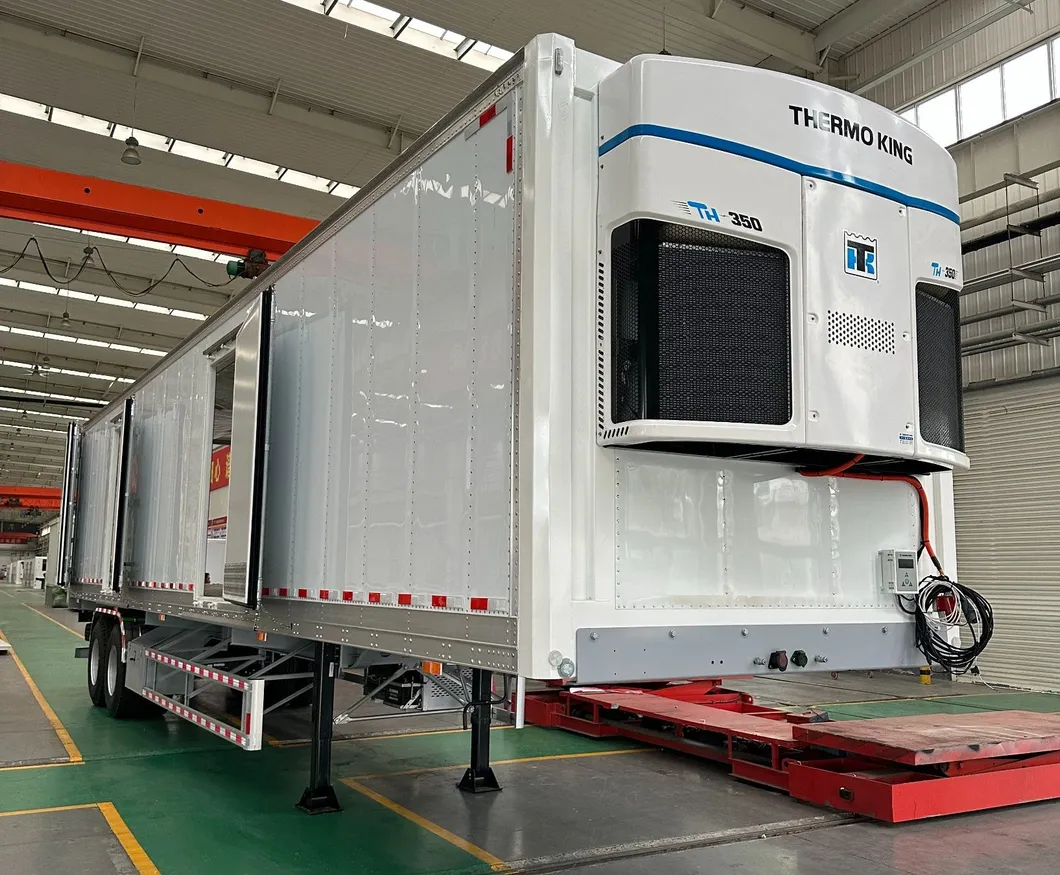

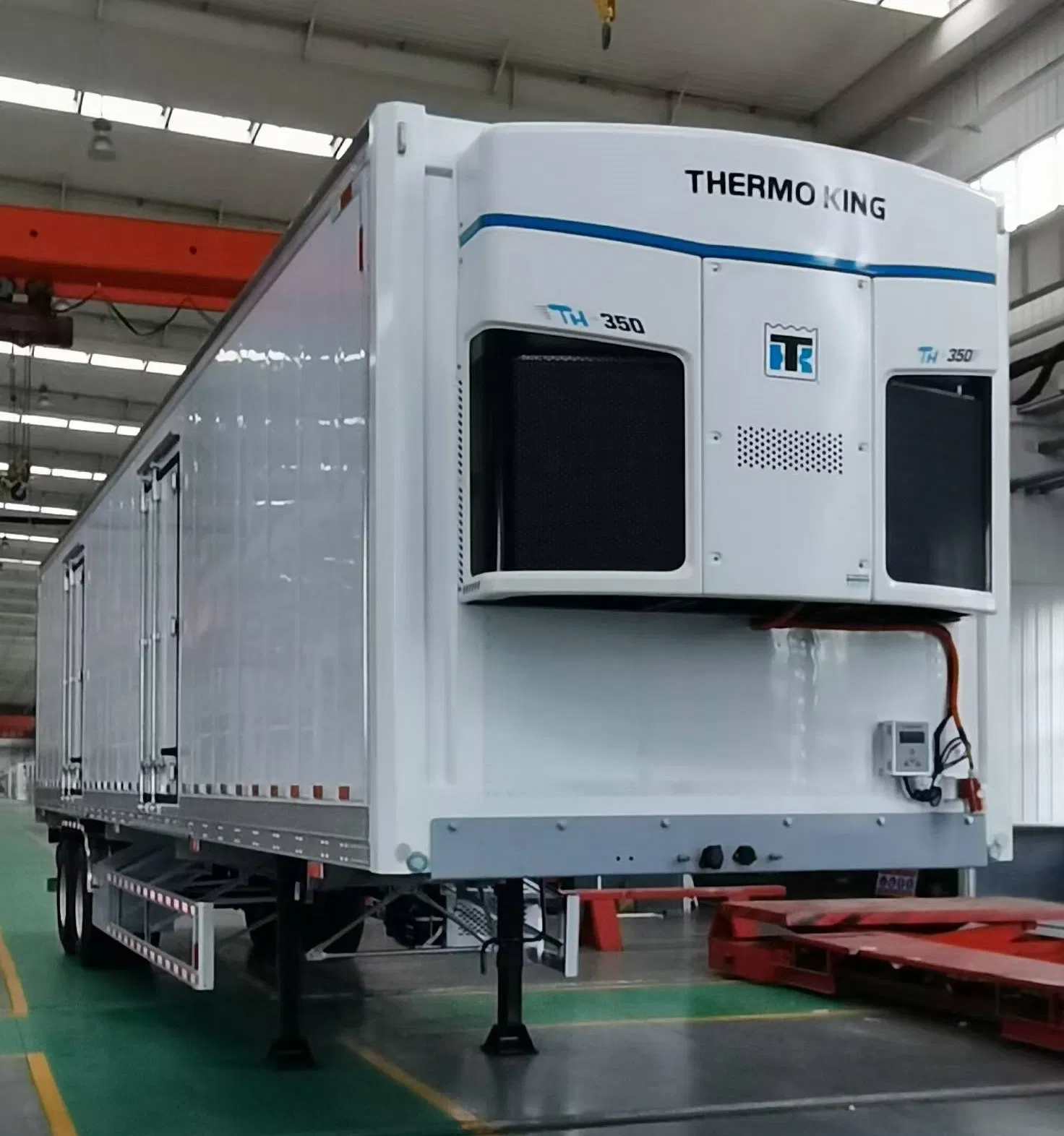

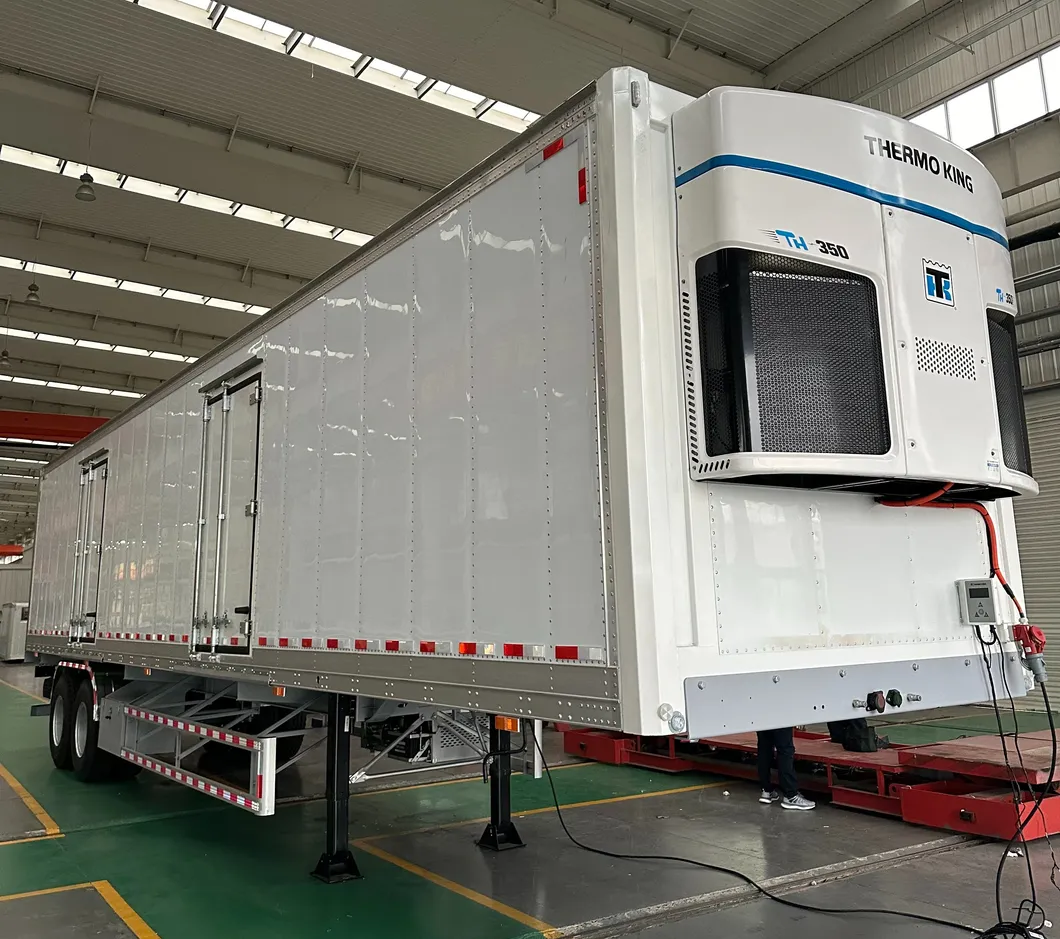

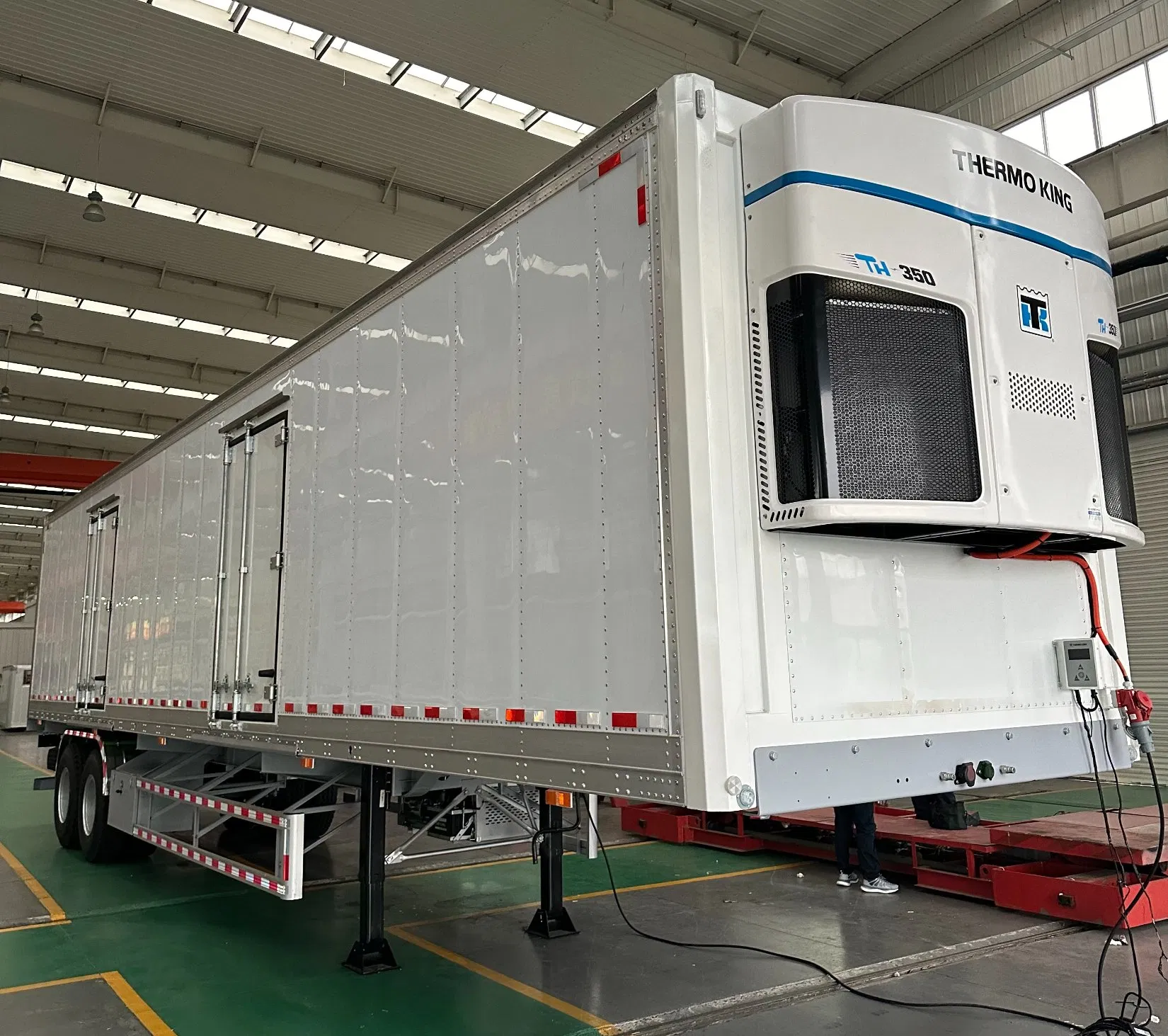

13.6m Refrigerated semi-trailer Aluminum alloy Refrigerated Van Thermo King Refrigeration unit
Total length (including refrigeration unit): 13600 * 2600 * 4000mm
Internal dimensions: Approximately 13412 * 2450 * 2450mm
Content area: 80.2m³ - 80.5m³
- Weight Parameters: Curb weight approx 7500kg; Max design total weight 40000kg; Rated load capacity 27500kg.

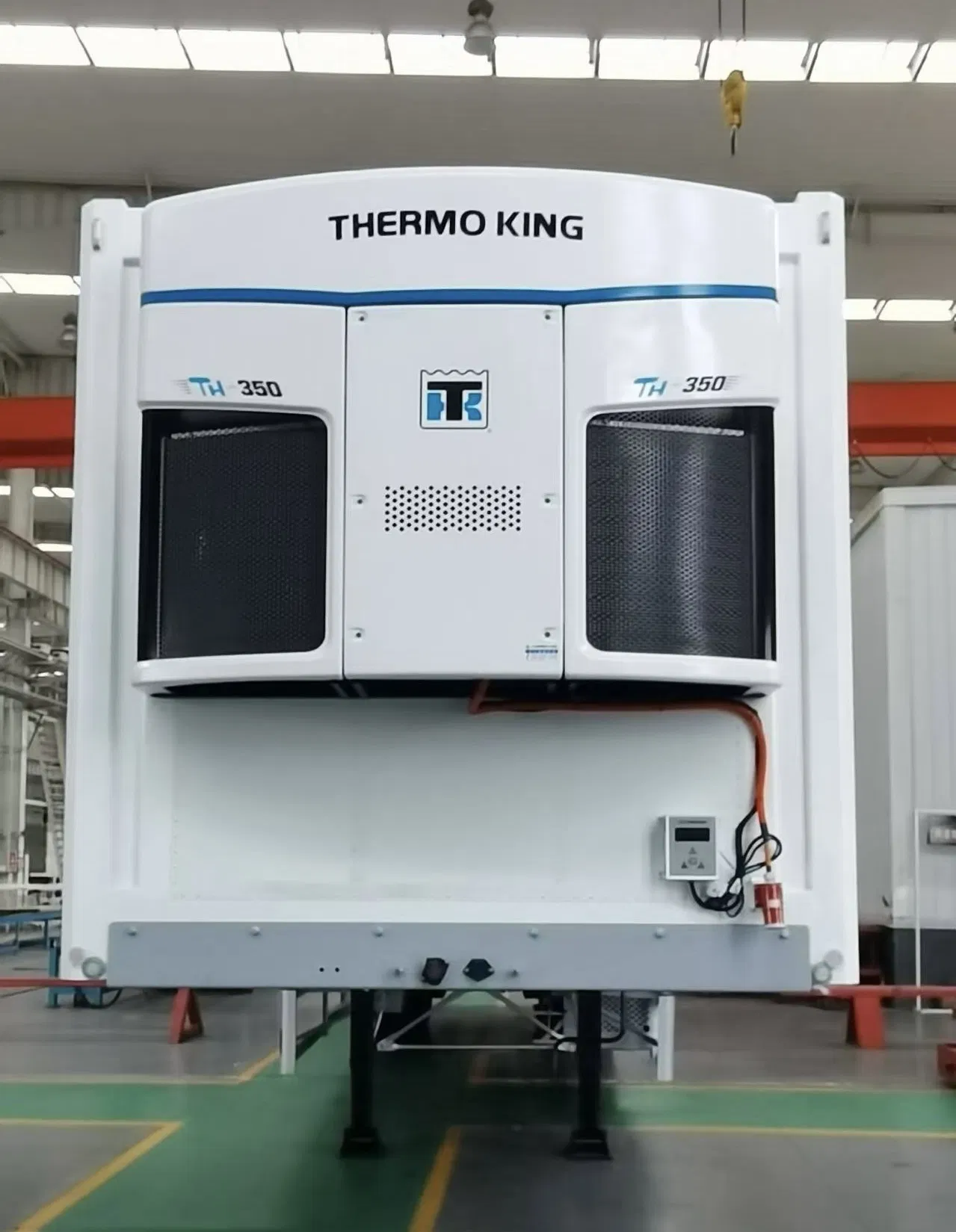

- Refrigeration Unit: Thermo King TH350/TH450; Equipped with Weichai or Yunnei generator; 200L aluminum alloy fuel tank.
- Insulation Thickness: Front wall 90mm, Side 60mm, Top 76mm, Floor 64mm, Door 76mm.
- Cabin Configuration: Pre-coated white aluminum outer panels; Food grade thermoplastic interior panels; Reinforced air-guiding aluminum floor.
- Chassis & Components: BPW Axles (13 tons); JOST linked leg support; Triangle 12.00R20 tires (9 sets); ABS Kemi system.

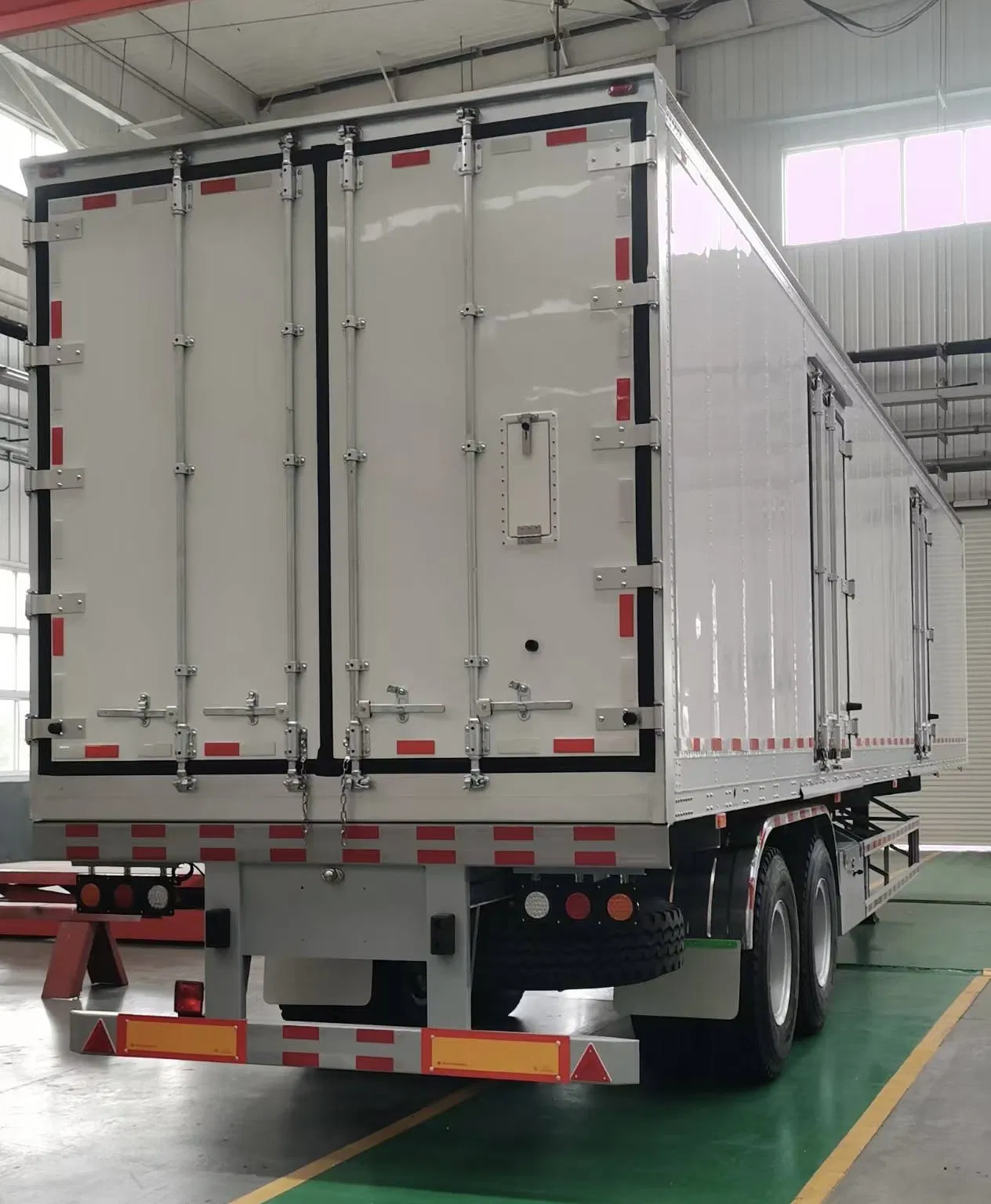

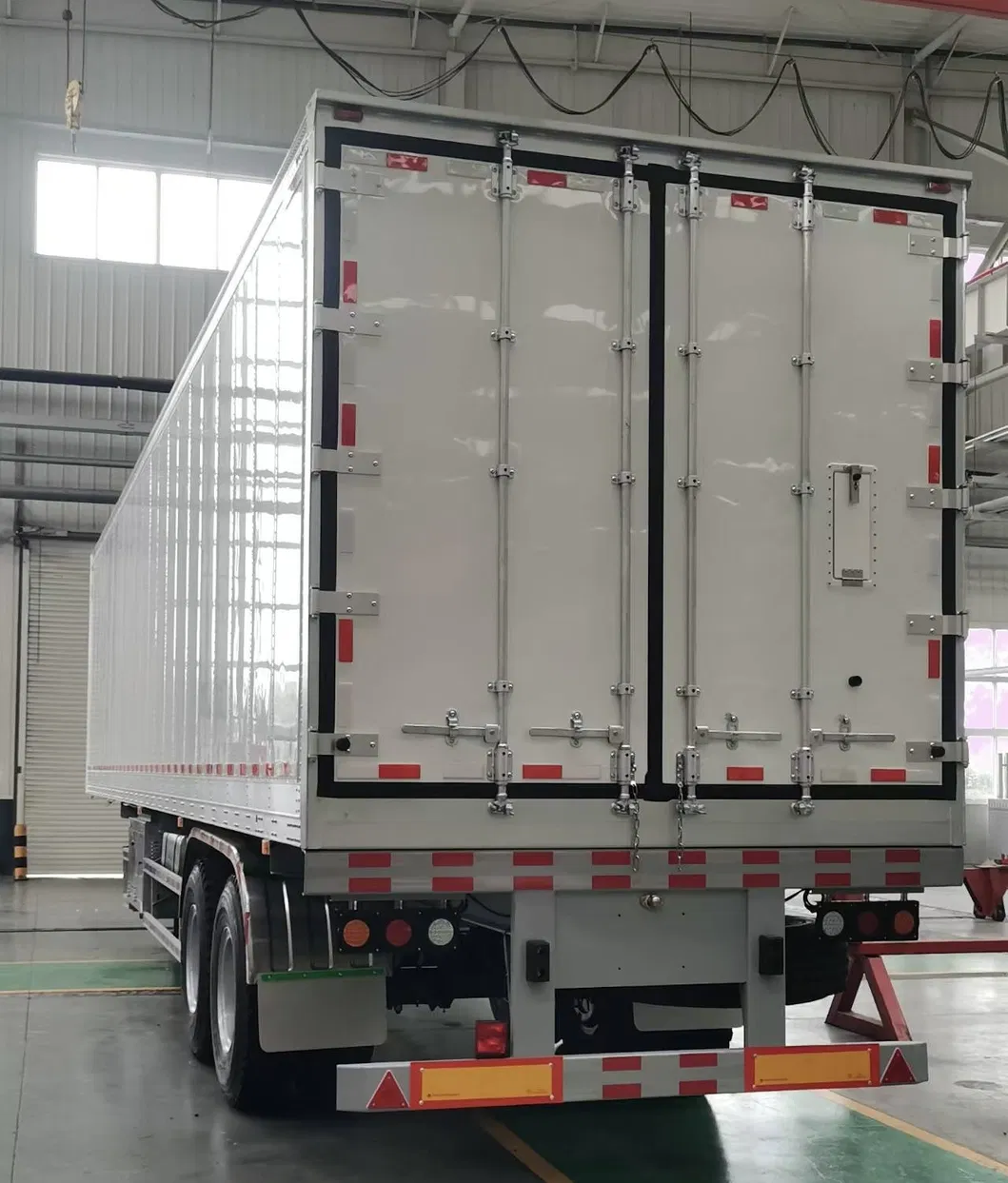

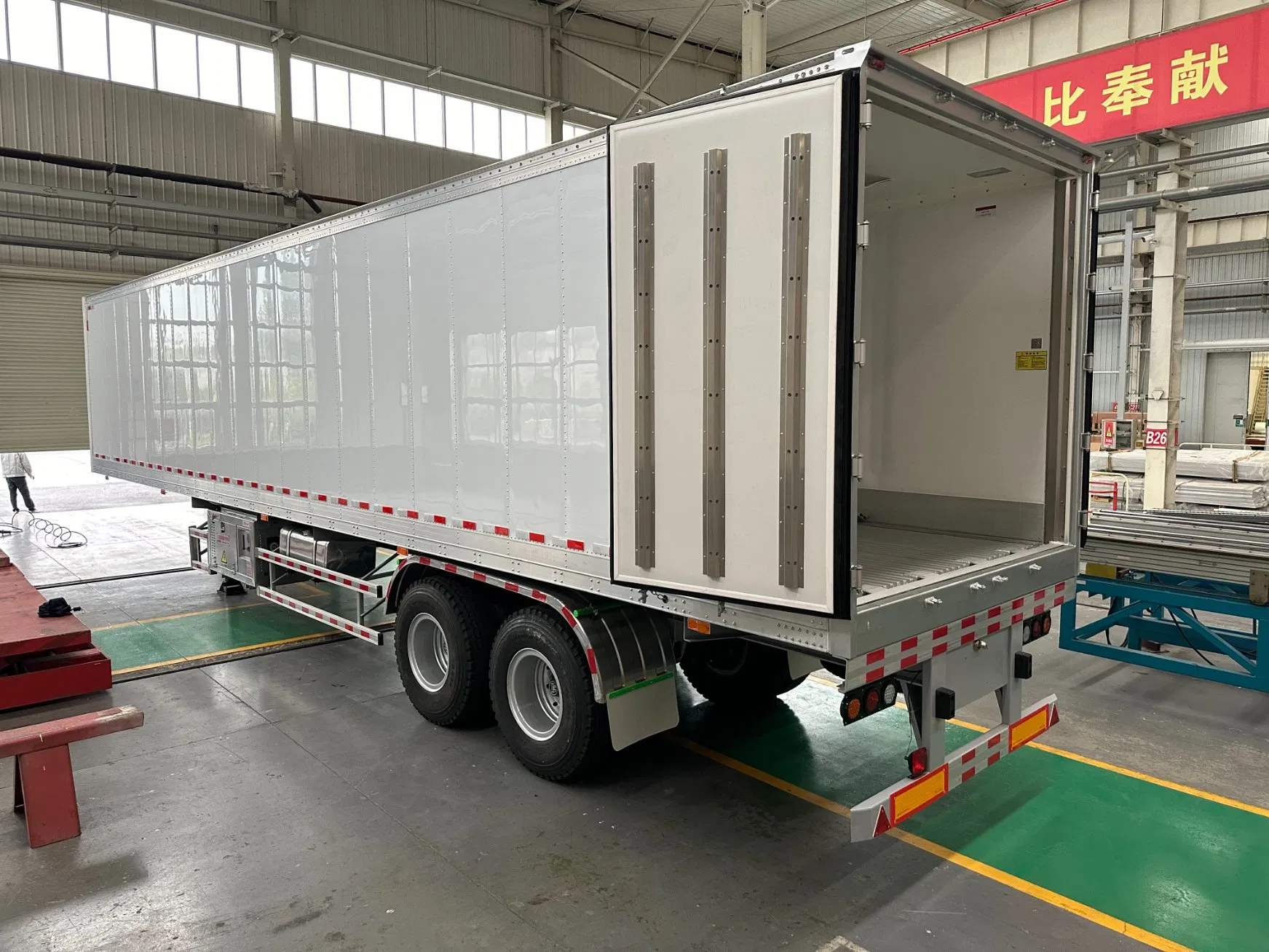

- Accessories: 2 side doors (2000*1300mm); 3 LED interior ceiling lights; Left-side mounted toolbox; Stainless steel rear door frame.
Q1: What is the load capacity and total weight of this refrigerated trailer?
The trailer has a rated load capacity of 27,500kg, with a maximum design total weight of 40,000kg. The curb weight is approximately 7,500kg.
Q2: Which refrigeration unit and generator are installed?
It features a Thermo King TH350/TH450 refrigeration unit. The generator unit is equipped with Weichai or Yunnei engines and includes a 200L aluminum alloy fuel tank.
Q3: What are the insulation materials and thicknesses used in the cabin?
The cabin uses high-quality foam layers with varying thicknesses: Front wall 90mm, Top plate and Door panels 76mm, Floor 64mm, and Side panels 60mm for optimal temperature retention.
Q4: What are the internal and external dimensions of the unit?
The external dimensions are 13600 * 2600 * 4000mm. The internal clear space is approximately 13412 * 2450 * 2450mm, providing a volume of over 80m³.
Q5: What type of axles and braking system does the trailer use?
The trailer is equipped with 13-ton BPW axles, a hub/drum braking form, and an ABS Kemi system for enhanced safety during transport.
Q6: Are there any special features for air circulation inside the cabin?
Yes, it includes a factory-installed top air duct, a reinforced castle-shaped aluminum ventilation floor, and sunken vertical air guide grooves on the side panels to ensure uniform cooling.
