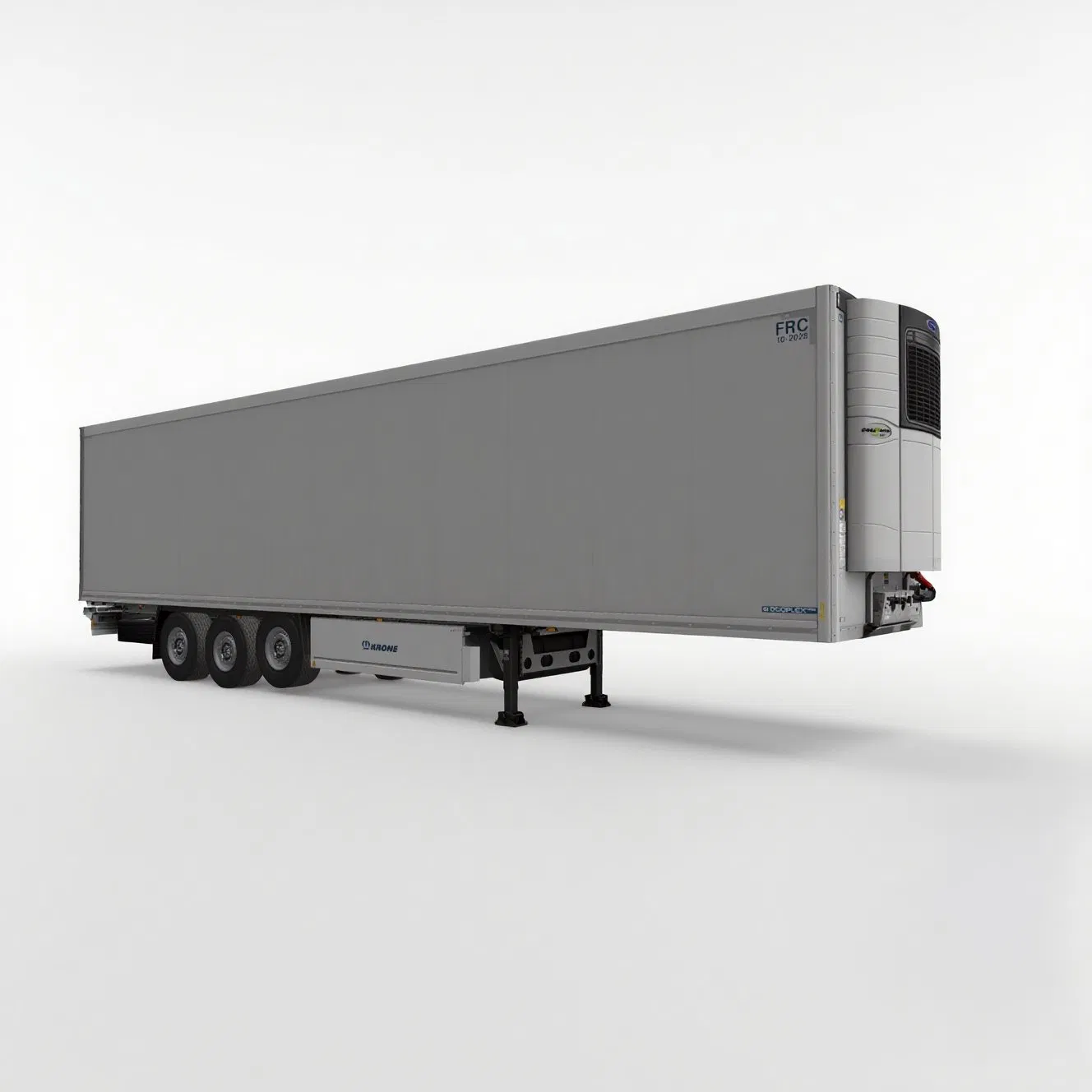

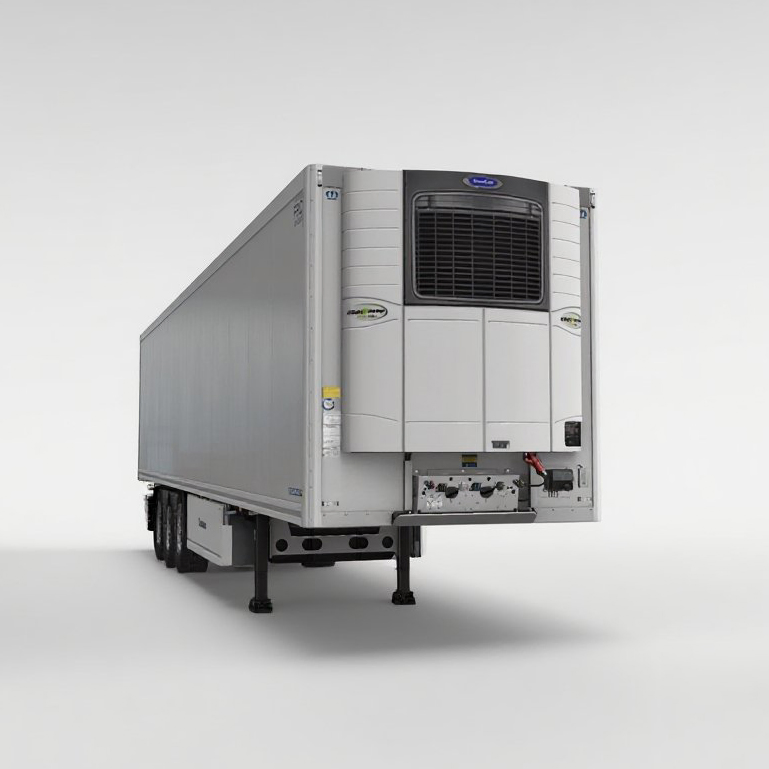

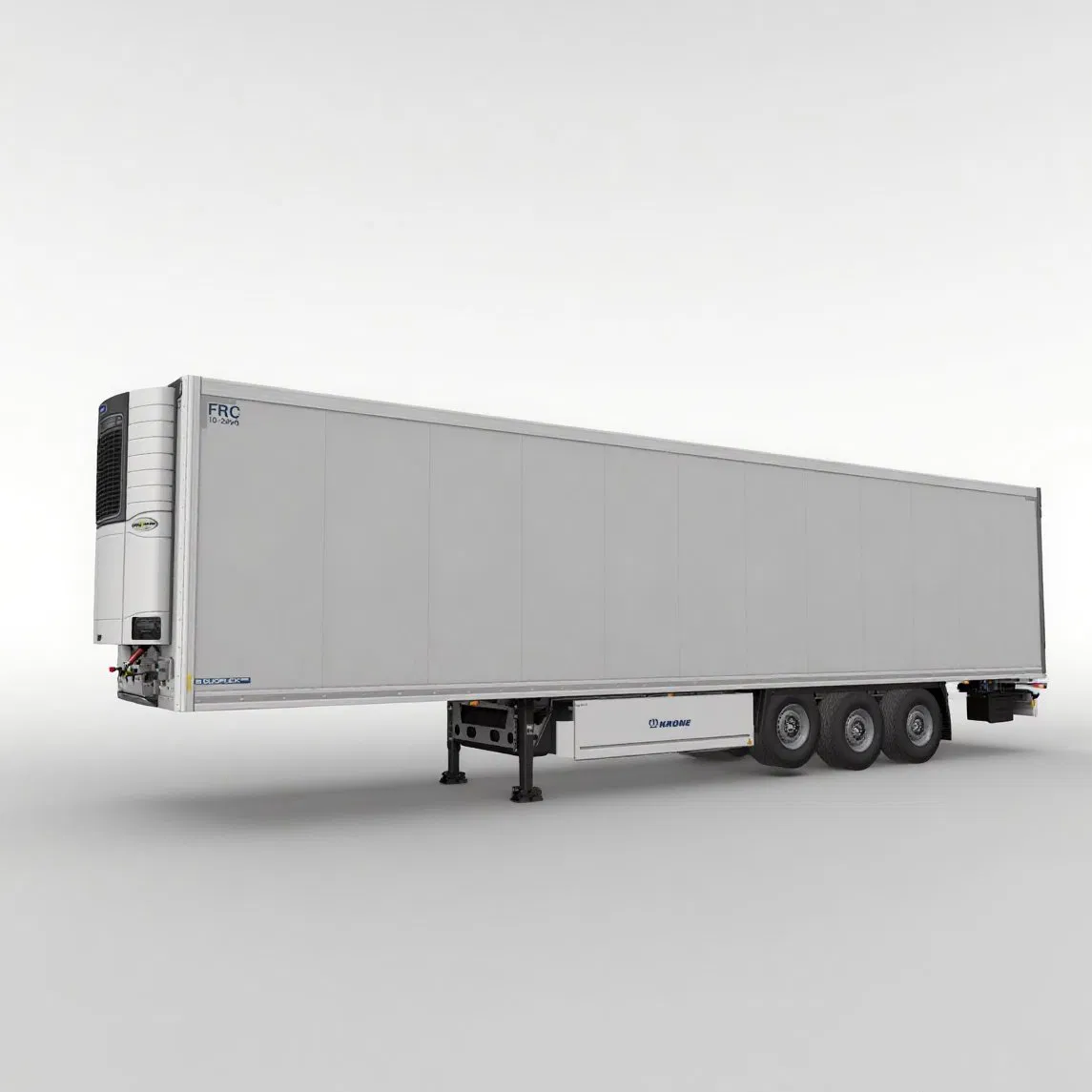

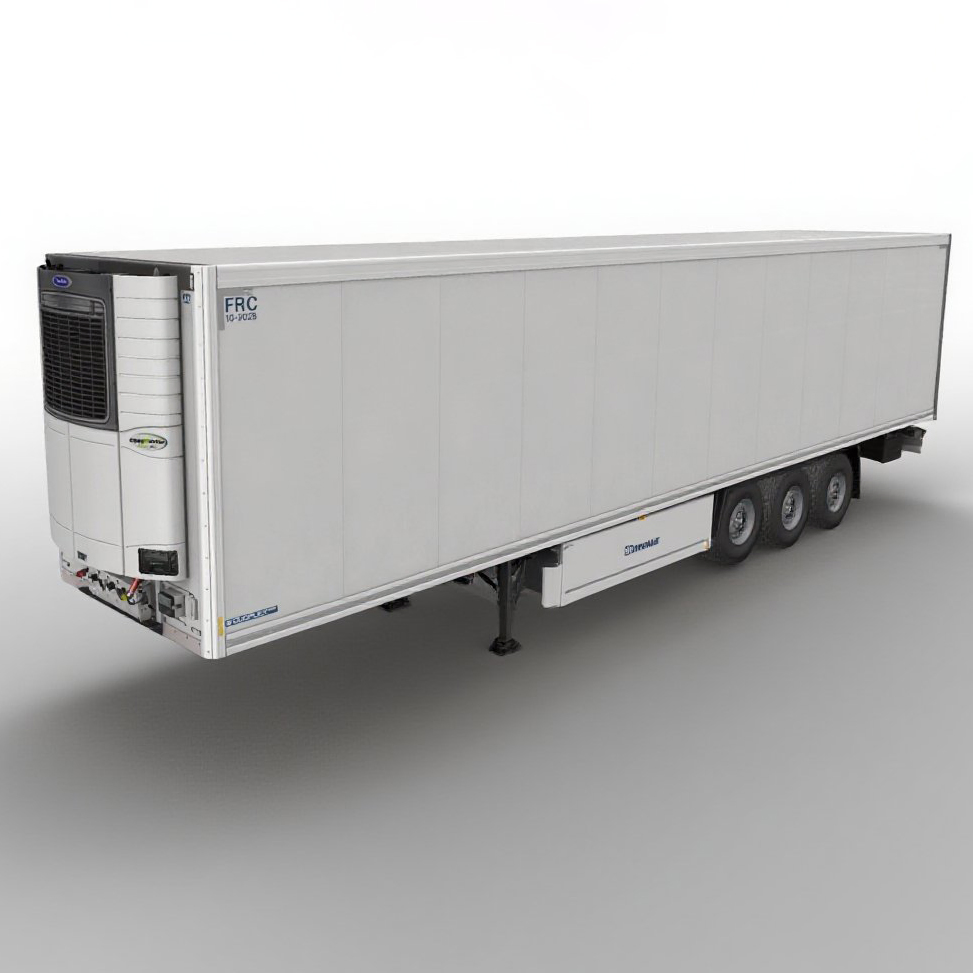

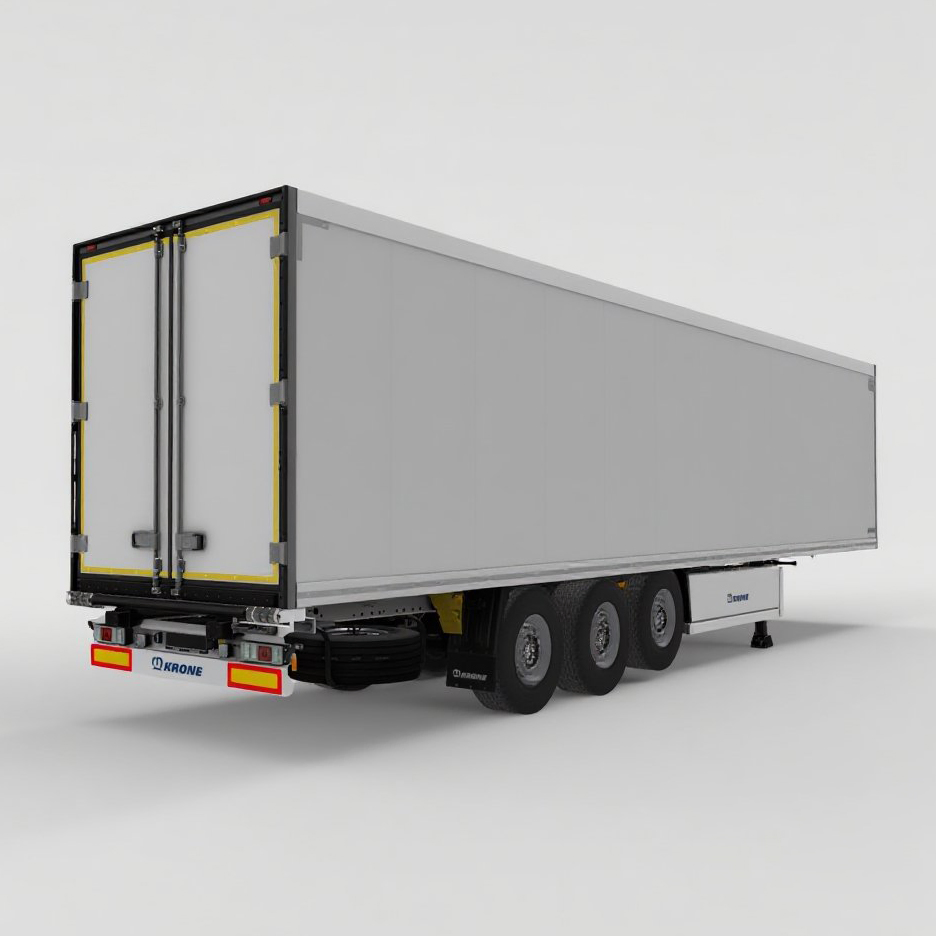

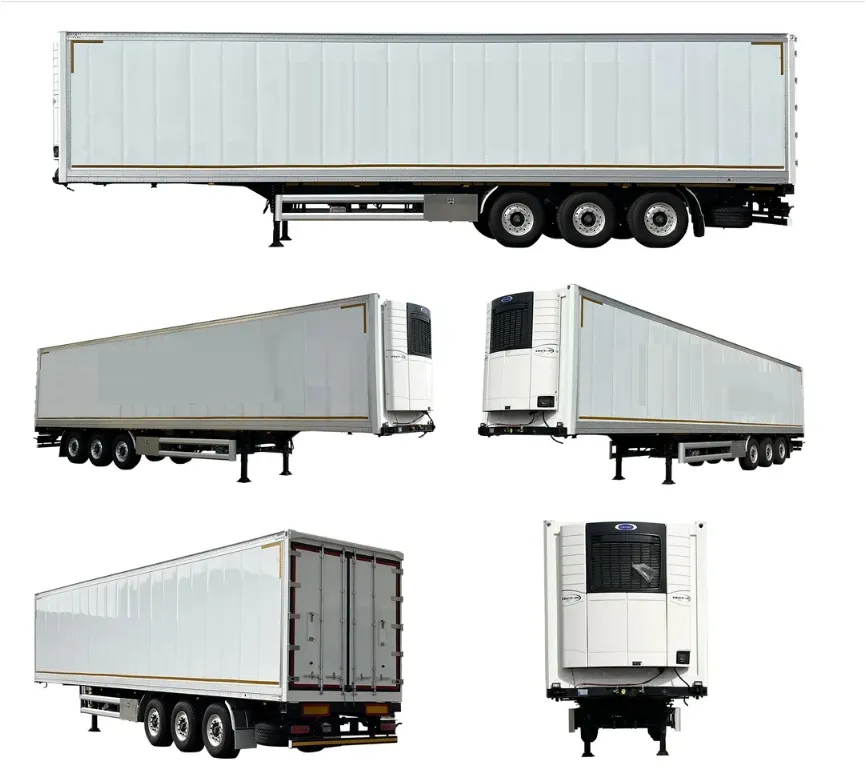

The refrigerated semi-trailer features exceptional thermal insulation performance, water resistance, and a lightweight design. The panels utilize European cyclopentane foaming technology, featuring galvanized aluminum plate inner and outer skins. High-end polyurethane foam insulation material is precisely injected using advanced machinery, ensuring sandwich integrated foaming for structural integrity.
Our secondary foaming process effectively fills gaps between boards, enhancing box strength and insulation performance. The floor's aluminum profiles are automatically welded into a single unit, improving durability, facilitating cleaning, and preventing odors or infestation.
| Size | 13000mm * 2550mm * 1800mm |
| Gross Weight | 9500kg |
| Loading Capacity | 60T |
| Main Beam | Height 500mm, Q345B Steel; Upper 14mm, Middle 8mm, Down 16mm |
| Box Structure | High strength aluminum profile, fully enclosed sandwich structure, polyurethane foam |
| Cooler/Freezer | Lumikko / Carrier or equivalent |
| Axles | 3 Axles, 13 Ton capacity |
| Tires | 235/75R17.5 * 12 pcs |
| Braking System | Dual line pneumatic, T30 air chamber, 40L air tanks |
| Suspension | Mechanical reinforced type / Leaf Spring (90mm x 13mm x 10 Layer) |
| King Pin | 2.00 inch bolt-in |
| Landing Gear | Two-speed manual 28T heavy duty |
| Accessories | Standard tool box, spare tire carrier, fire extinguishers |

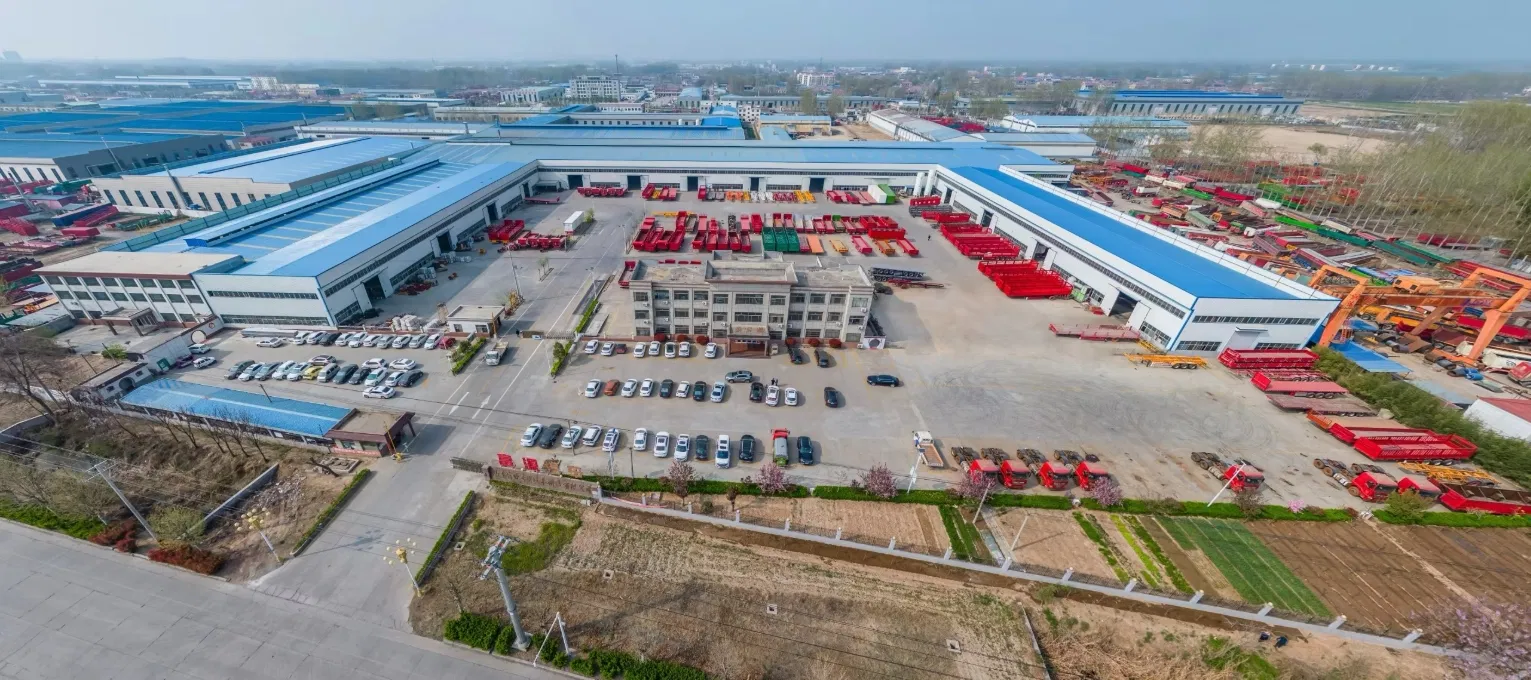

Our production integrates R&D, intelligent manufacturing, and smart inspection systems. Utilizing CAD/CAE design, laser cutting, and robotic welding, we ensure every vehicle meets high safety and efficiency standards. We specialize in railway trailers, container trailers, van trailers, and specialized transporters, serving logistics, mining, and infrastructure sectors globally.
