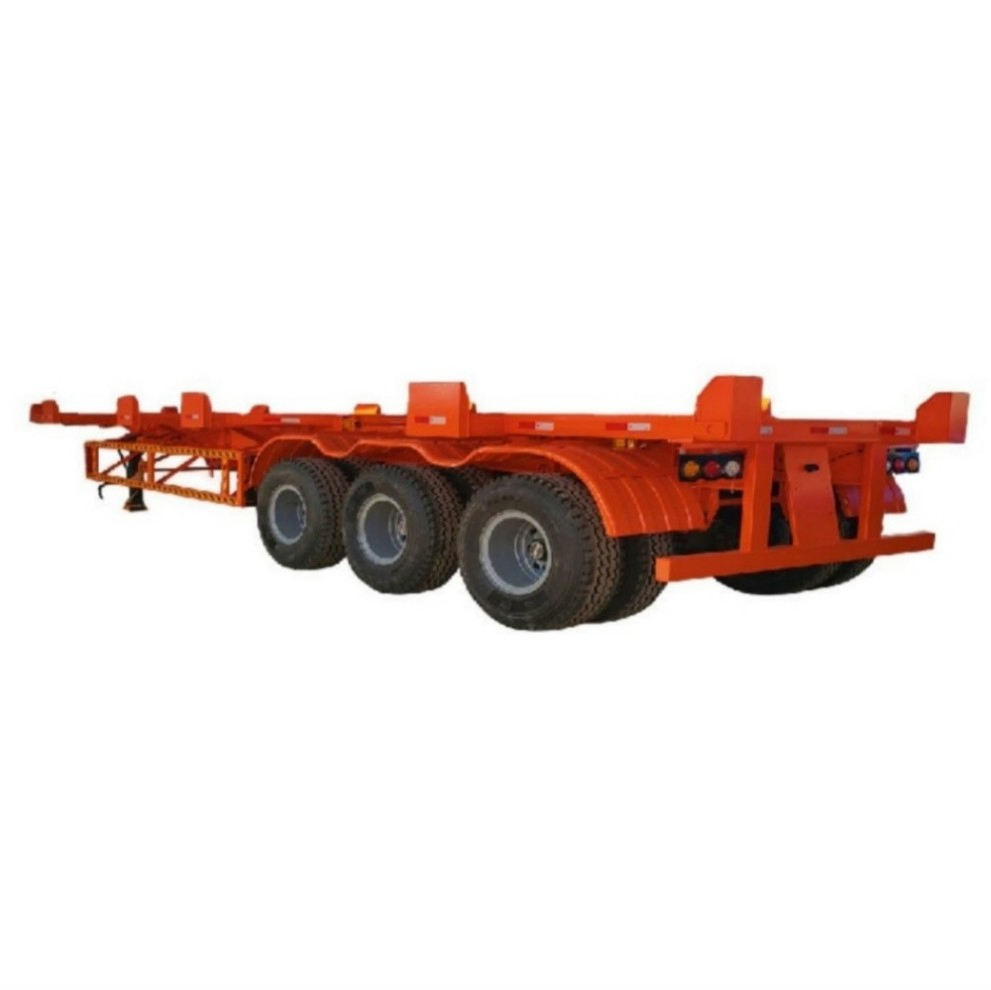

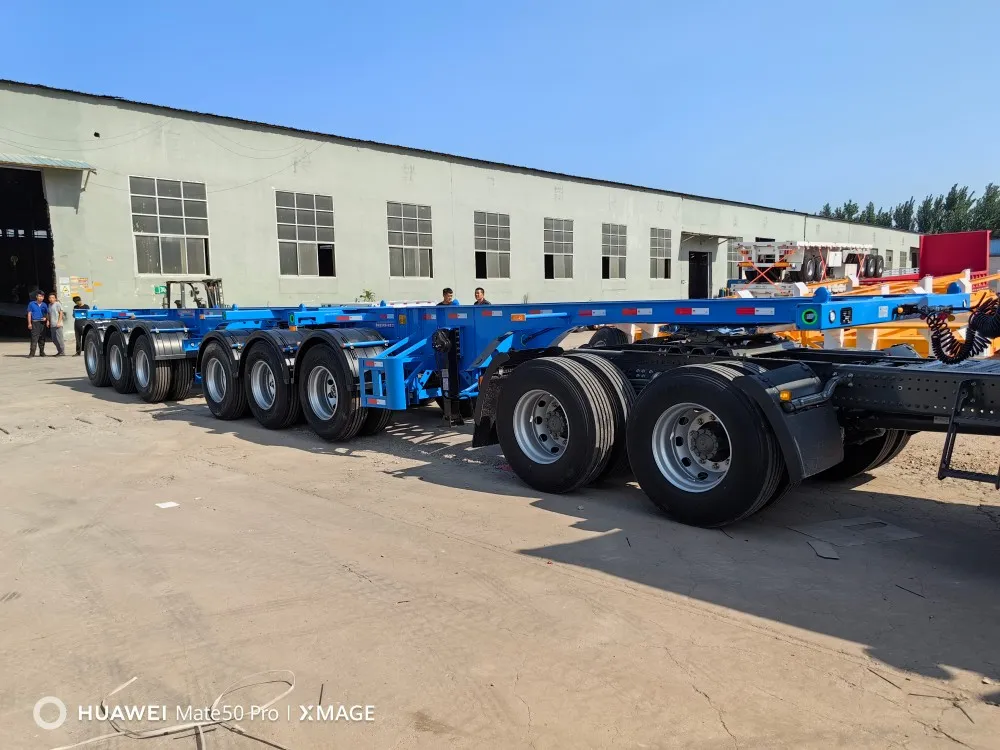

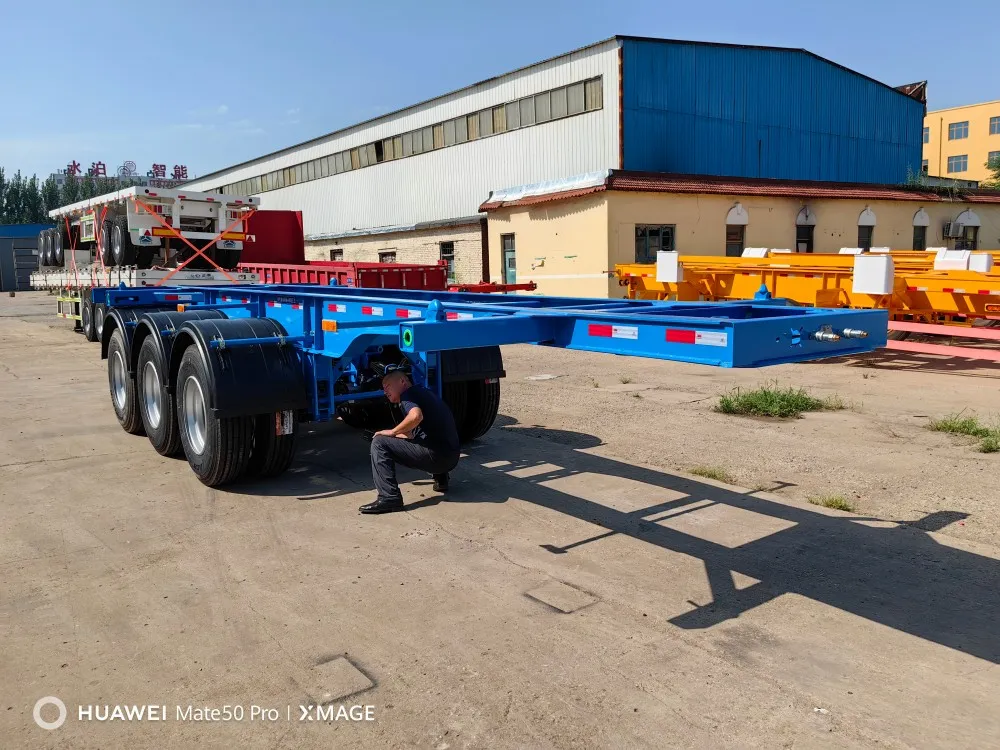

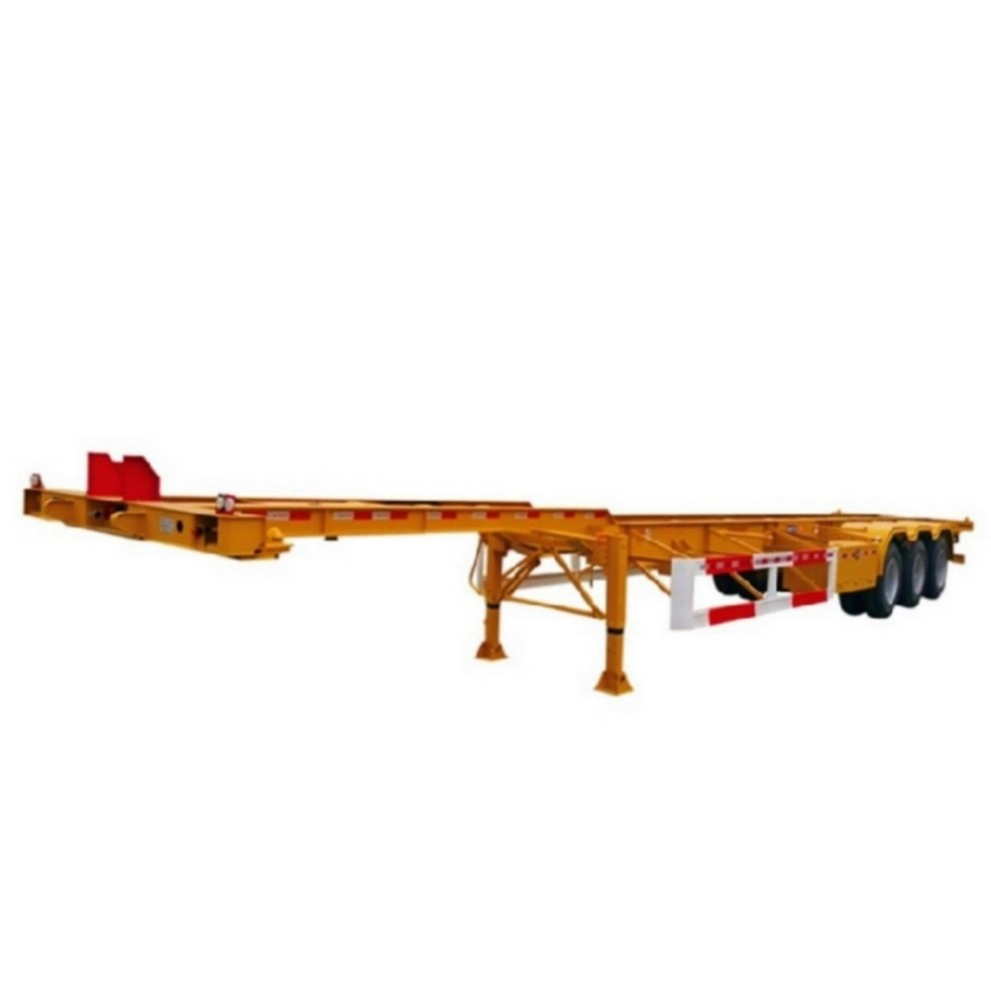

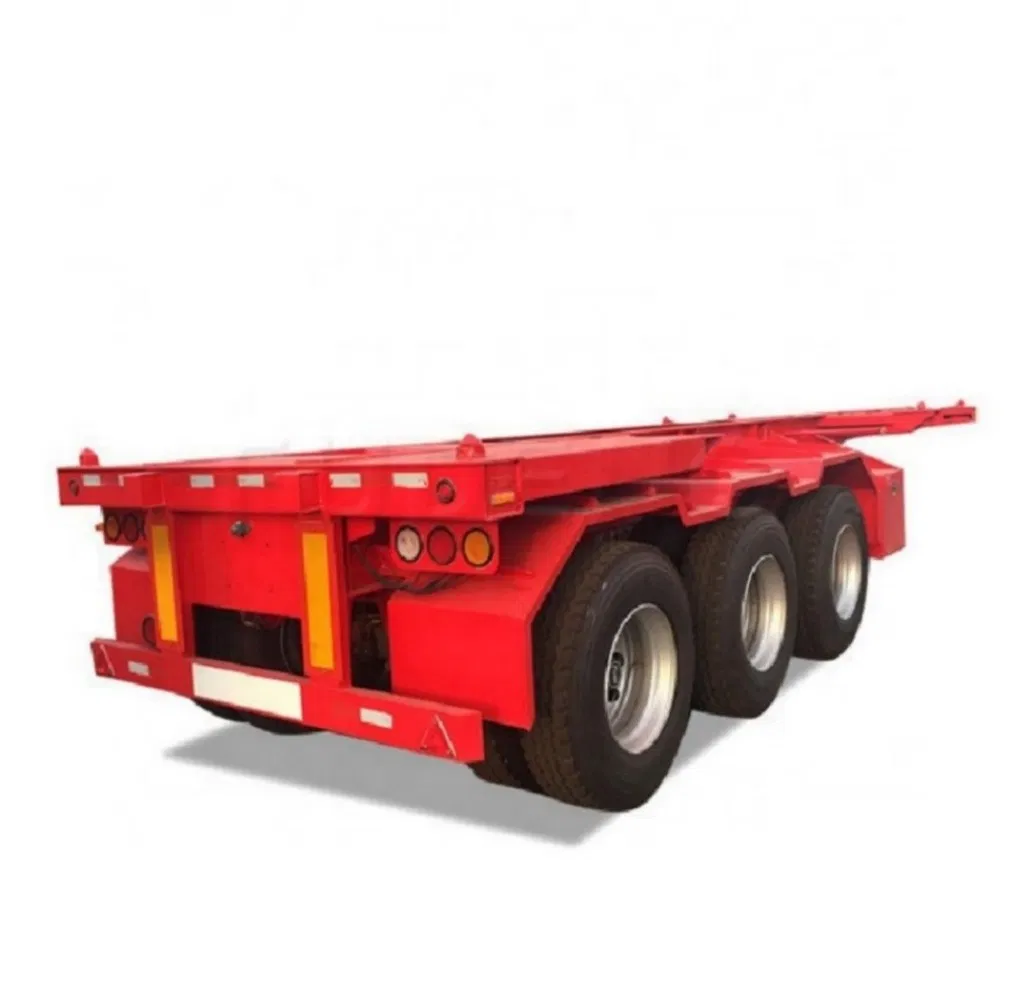

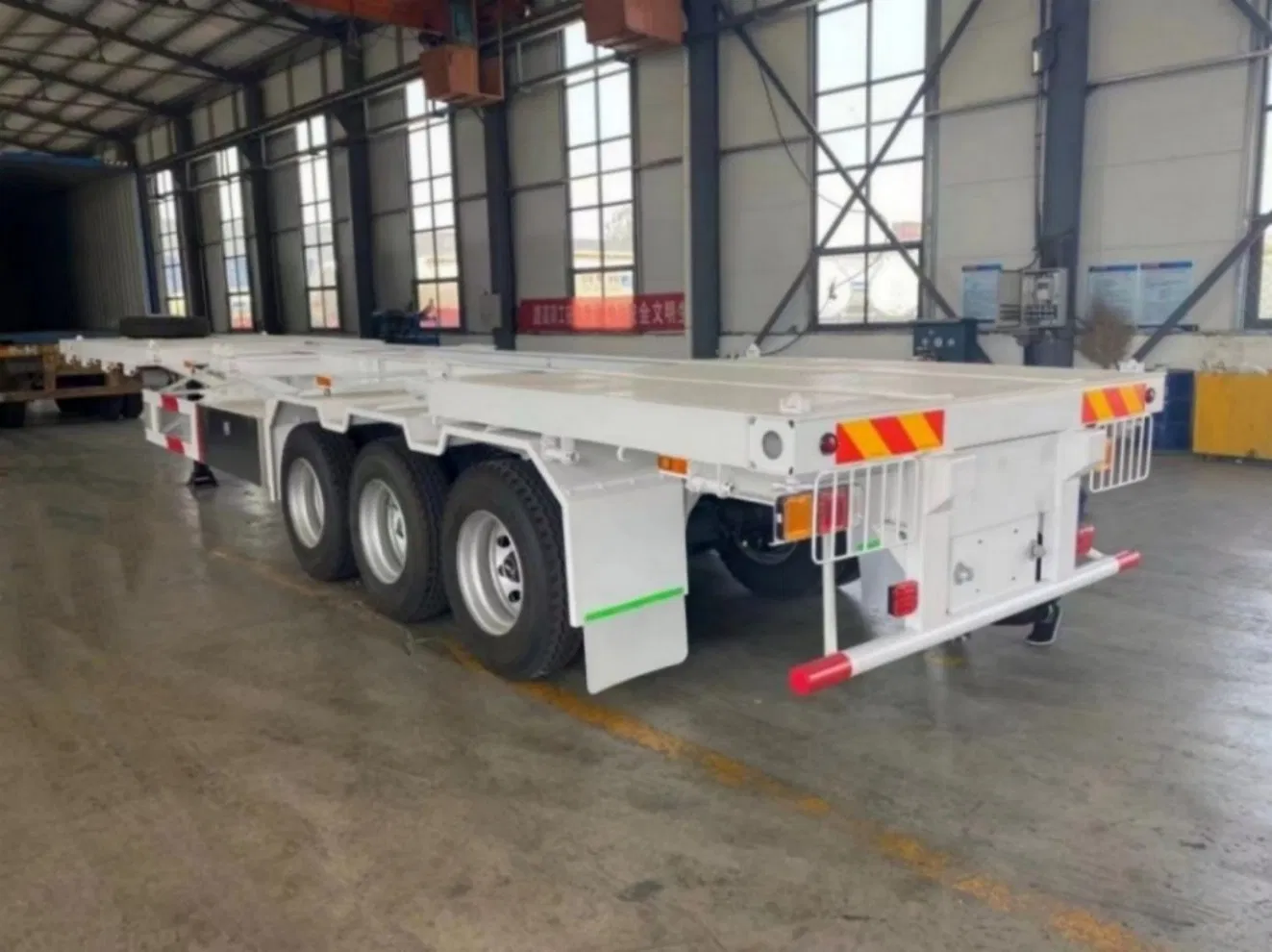

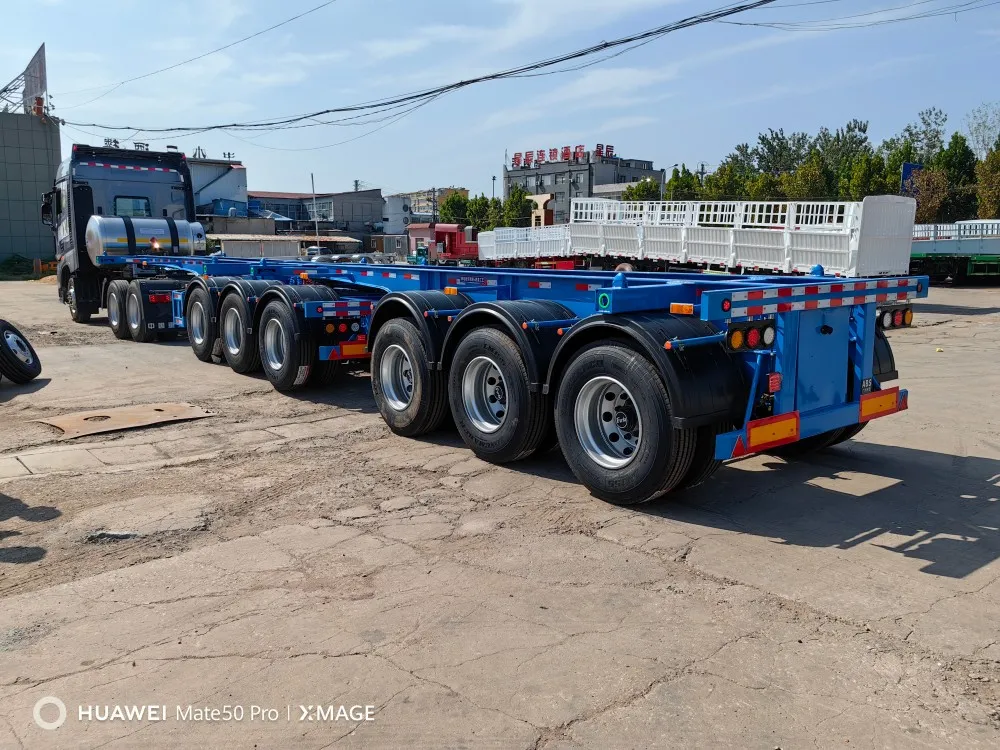

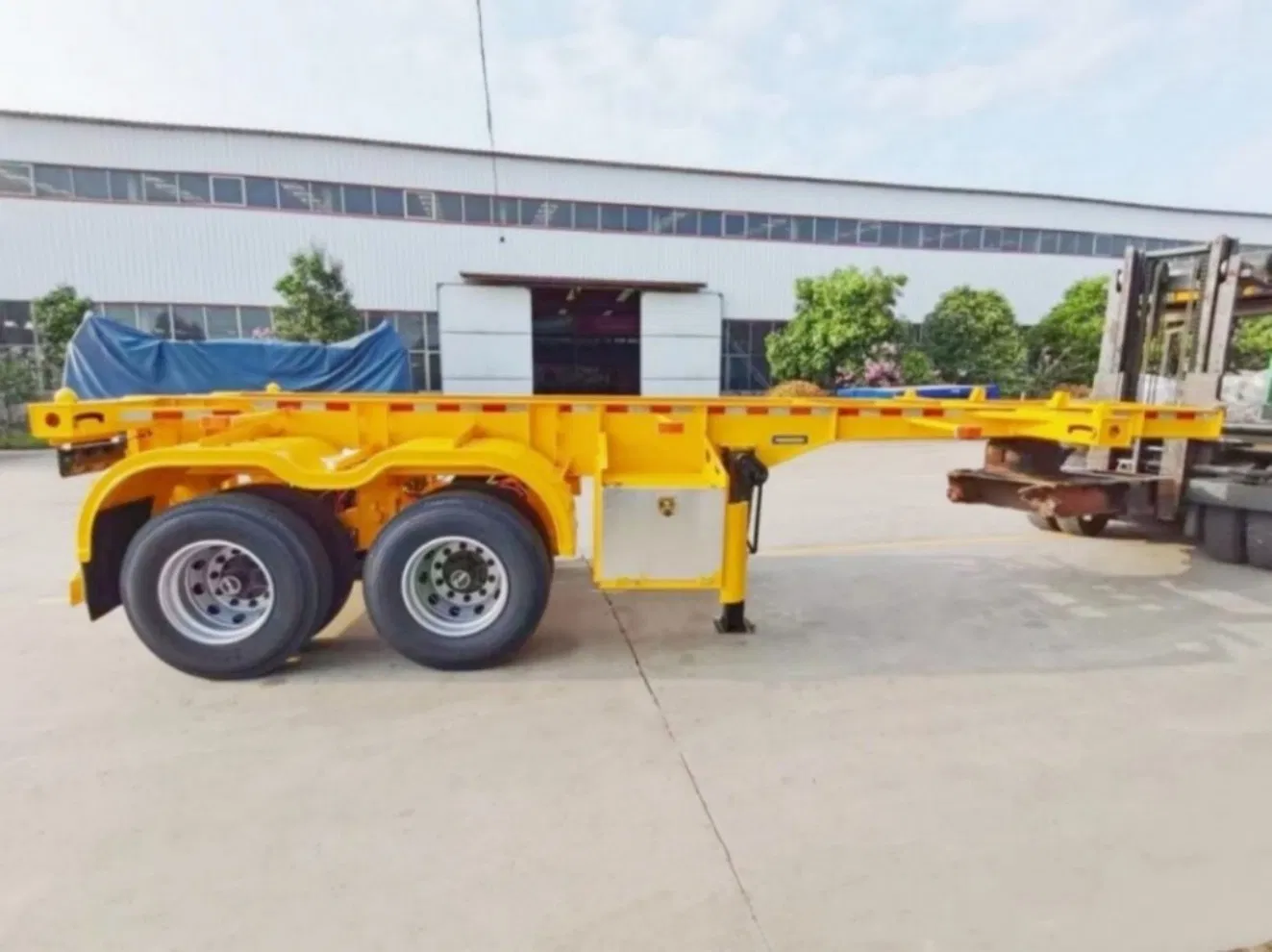

Skeleton semi-trailers are usually used to transport container. It can be directly loaded in the consignor's warehouse and transported to the consignee's warehouse for unloading. When changing vehicles and ships midway, there is no need to remove the cargo from the container and reload. It can be quickly loaded and unloaded, and can be directly and conveniently converted from one mode of transportation to another.

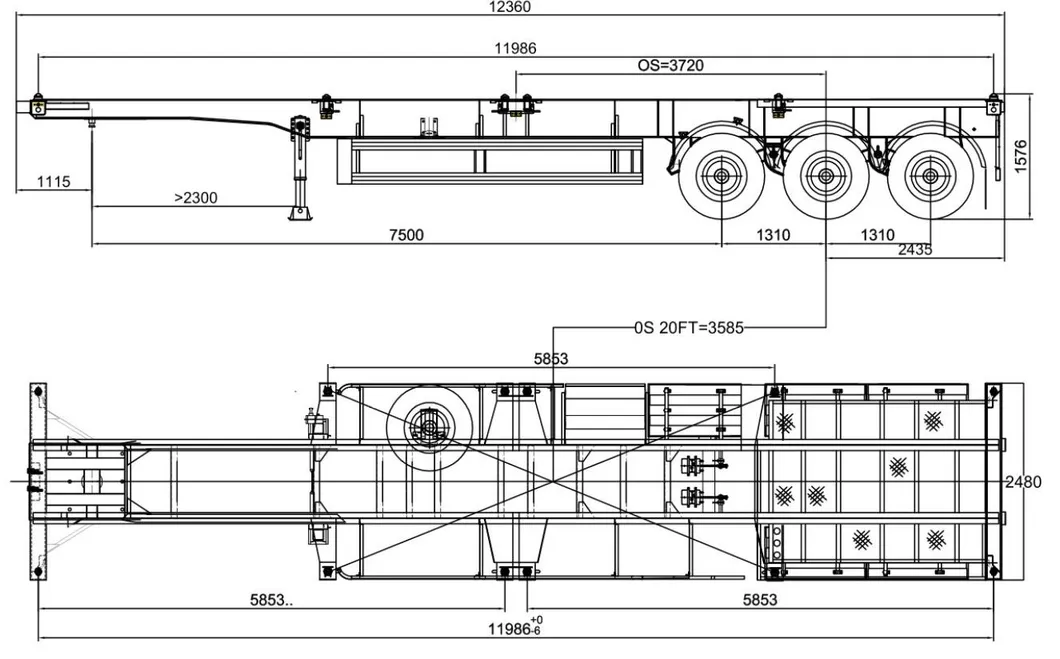

| Product Name | 20FT Skeleton Semi Triler | 40FT Skeleton Semi Triler | 45FT Skeleton Semi Triler |
|---|---|---|---|
| Dimension | 7500*2500*1550mm | 12500*2500*1550mm | 13950*2500*1550mm |
| Main Beam | Q345B / T700 Steel Height 500mm, Upper 14mm, Down 16mm, Middle 8mm | ||
| Twist Lock | 4/8 set ISO Standard | 12/14 set ISO Standard | 12/14 set ISO Standard |
| Axle | 2/3 axles BPW/FUWA | 2/3/4 axles BPW/FUWA | 3 axles BPW/FUWA |
| Tire | 12R22.5 Bridgestone/Triangle/Linglong | ||
| Support Leg | 28T Lifting JOST/YAHUA | ||
