IDS Auto IDS Auto

off-Road Special Purpose Vehicle 4WD Heavy Truck for Adventure

Customization: Available
After-sales Service: According to The Provisions of The Busines
Warranty: According to The Provisions of The Business Contra

Product Description

Basic Info.
Model NO.
LHT2060D
Body Type
Closed
Certification
EPA, CCC, DOT, EEC, CE
Power
>2000W
Seat
2-8
Max Speed
120 Km/H
Gearbox
6MT / 6AT
Specification
5320*2310*1950
Trademark
LHT
Origin
China
Product Description

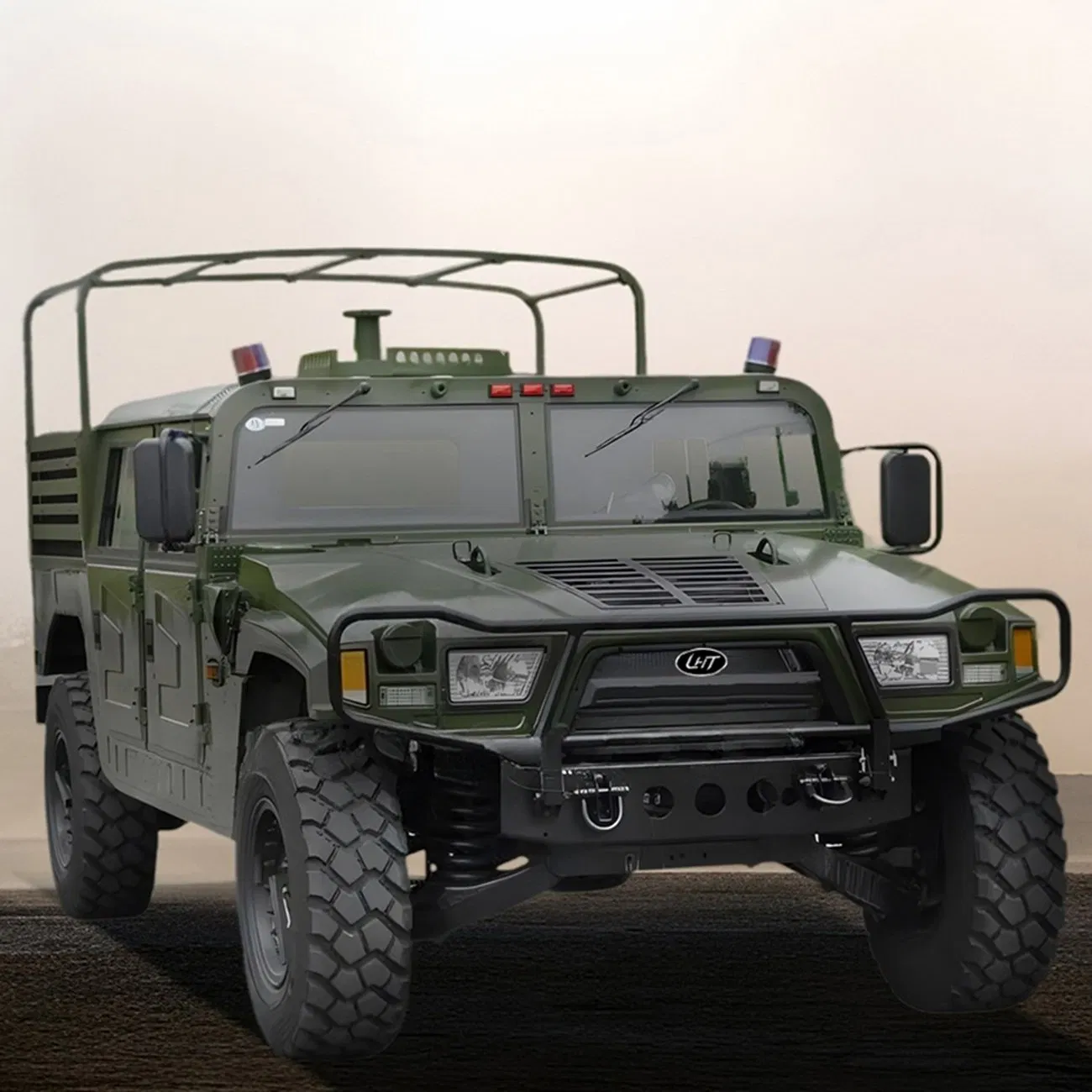

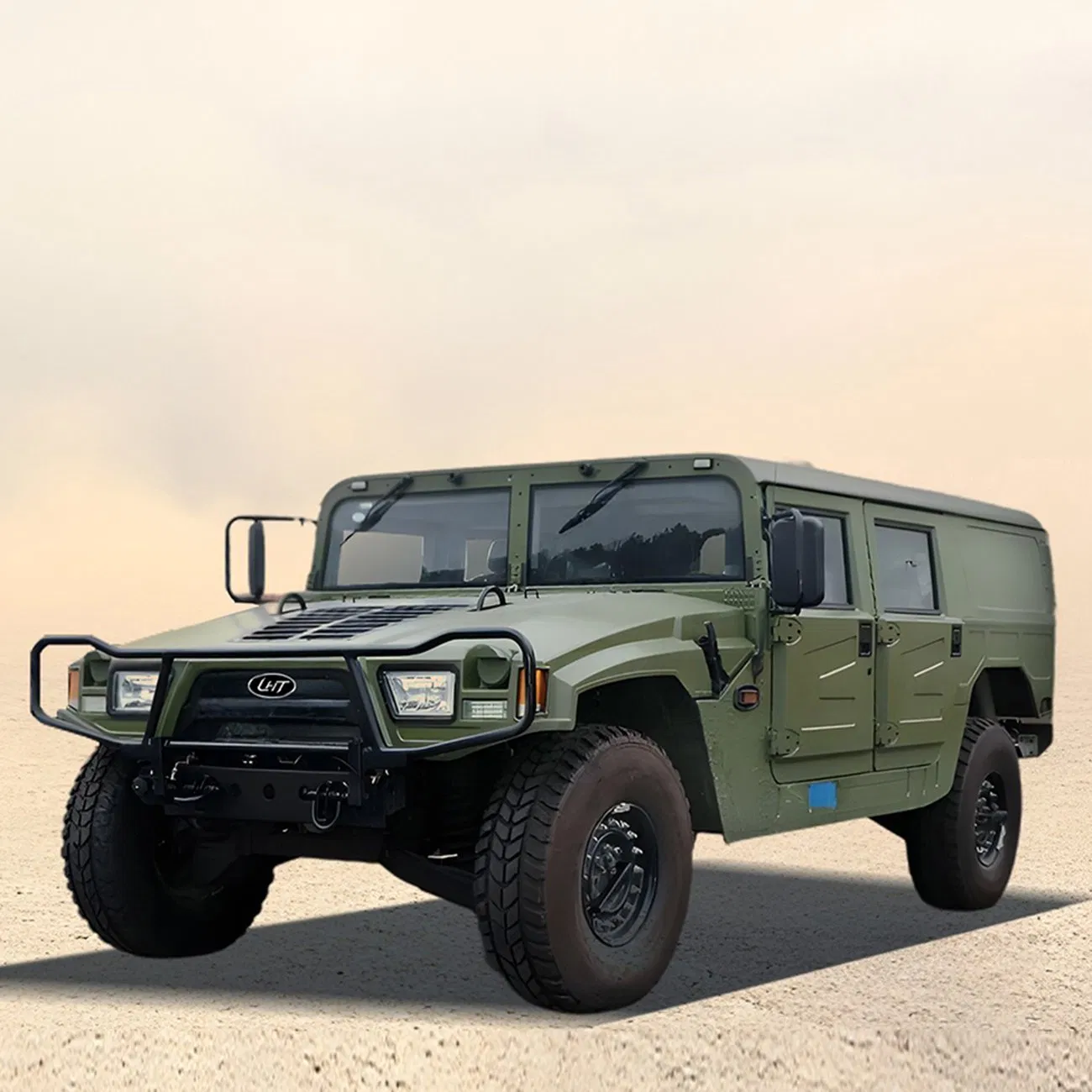

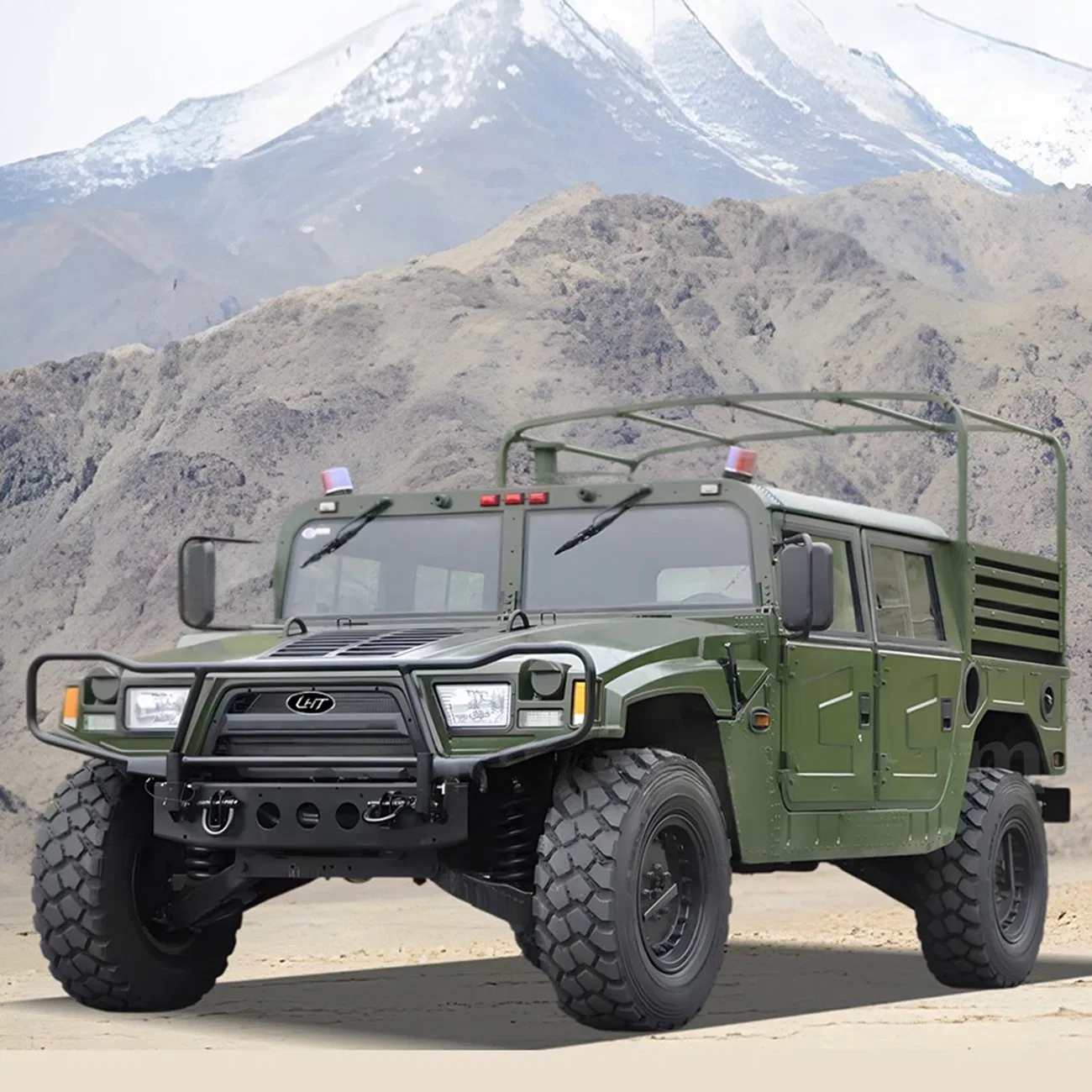

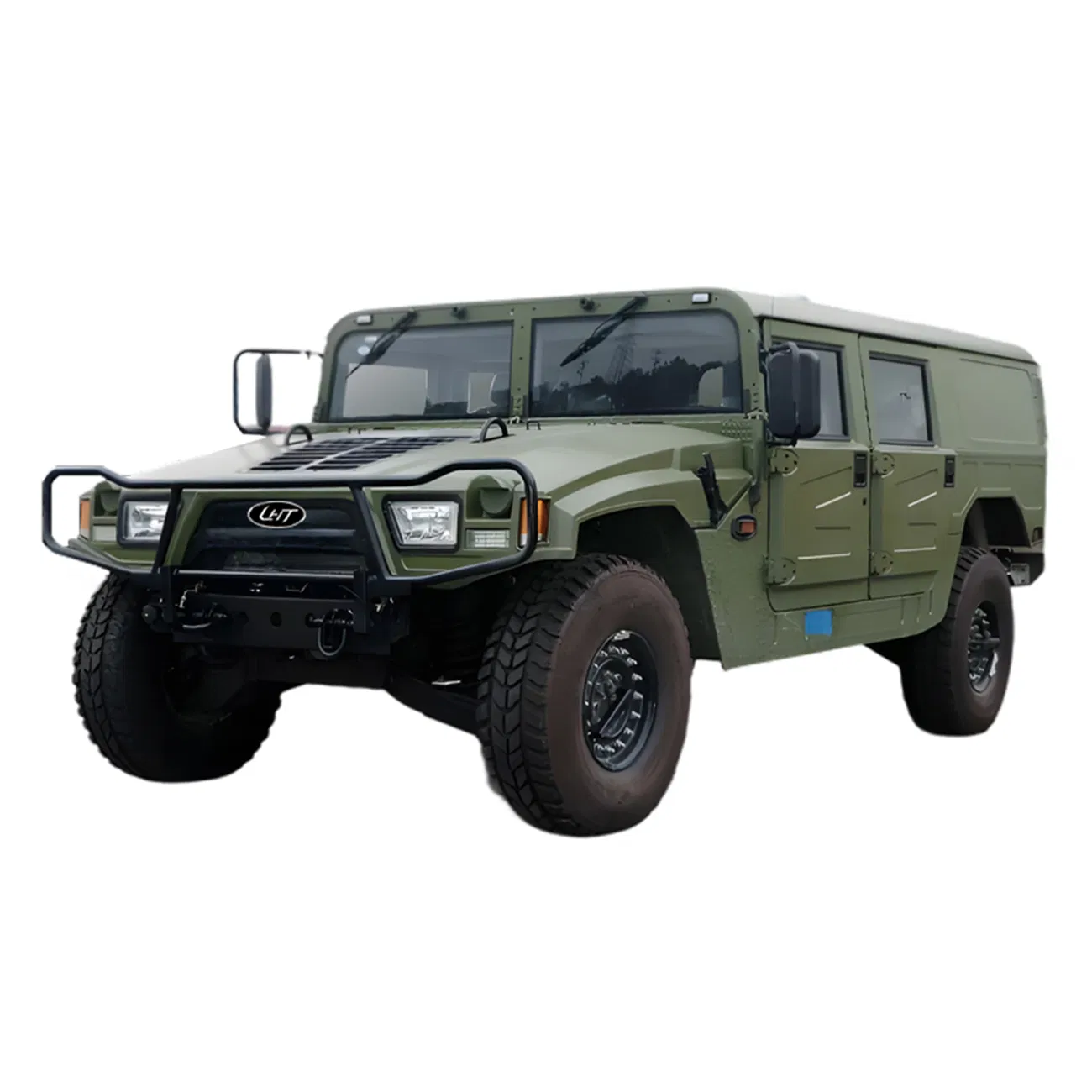

4x4 6Ton Protected Vehicle

This 6 Ton Civil 4WD Special Protected Vehicle combines Hummer-grade chassis technology, exceptional mobility, and superior protective capabilities into a versatile multi-functional Civil vehicle. Whether executing command tasks, support missions, or providing high mobility and protection for infantry units, this vehicle excels in completing tasks, adapting to complex environments, and delivering efficient, reliable, and secure solutions for modern forces.

High-Performance Chassis System

  • Equipped with front and rear double-wishbone independent suspension, the same technology used in world-renowned off-road platforms. This ensures excellent off-road capability and stability in extremely challenging terrains.
  • The double-wishbone system effectively reduces vehicle vibrations, improving ride comfort while maintaining exceptional stability on rough surfaces.
  • Operational efficiency in mountains, deserts, muddy terrains, or battlefield debris zones.

Multi-Functional Adaptability: 6 Ton Platform

With a total weight of 6 tons, the vehicle serves as a highly flexible multi-purpose platform modified for diverse mission requirements:

  • Command Vehicle: Battlefield command center with communication systems.
  • Support Vehicle: Logistical supply, medical rescue, or material transportation.
  • High-Mobility Troop Vehicle: Rapid response and quick deployment.
  • Infantry Combat Squad Vehicle: Fast mobility and protection for assault operations.

Bulletproof Design and Customization

The bulletproof body design offers a high level of protection for occupants, resisting small arms fire and explosion shrapnel.

  • Available in both Left-Hand Drive (LHD) and Right-Hand Drive (RHD) configurations.
  • Transmission options: 6-speed manual (MT) or 6-speed automatic (AT).
  • Chassis-only version available for specialized customization (armored or anti-explosive vehicles).
Technical Specifications
Parameter Details
Vehicle ModelLHT2060D
Vehicle Type4x4 Special Protected Vehicle
Fuel TypeDiesel
Drive TypeLeft Hand Drive / Right Hand Drive
Dimension L*W*H (mm)5320*2310*1950
Seats2-8
G.V.W (kg)6000
Max. Speed (km/h)120
Max Gradient60%
EngineCummins
Gearbox6MT, Optional 6AT
Vehicle Performance Banner
Frequently Asked Questions
What is the maximum speed of the LHT2060D vehicle?
The vehicle can reach a maximum speed of 120 km/h, making it suitable for high-mobility missions.
Is the vehicle available in Right-Hand Drive (RHD)?
Yes, the special protected vehicle is available in both Left-Hand Drive (LHD) and Right-Hand Drive (RHD) configurations to meet global regulations.
What level of protection does the bulletproof body offer?
The design effectively resists small arms fire and explosion shrapnel, ensuring high safety for occupants in hazardous environments.
Can the vehicle handle extreme off-road terrains?
Absolutely. With a 60% max gradient capability and double-wishbone independent suspension, it excels in mountains, deserts, and muddy conditions.
What engine and gearbox options are available?
The vehicle is powered by a Cummins diesel engine and comes with a 6-speed manual transmission (6MT), with an optional 6-speed automatic (6AT).
Is there a chassis-only version for specialized modifications?
Yes, a chassis-only version is available, providing a platform for customization into advanced armored or anti-explosive vehicles.
