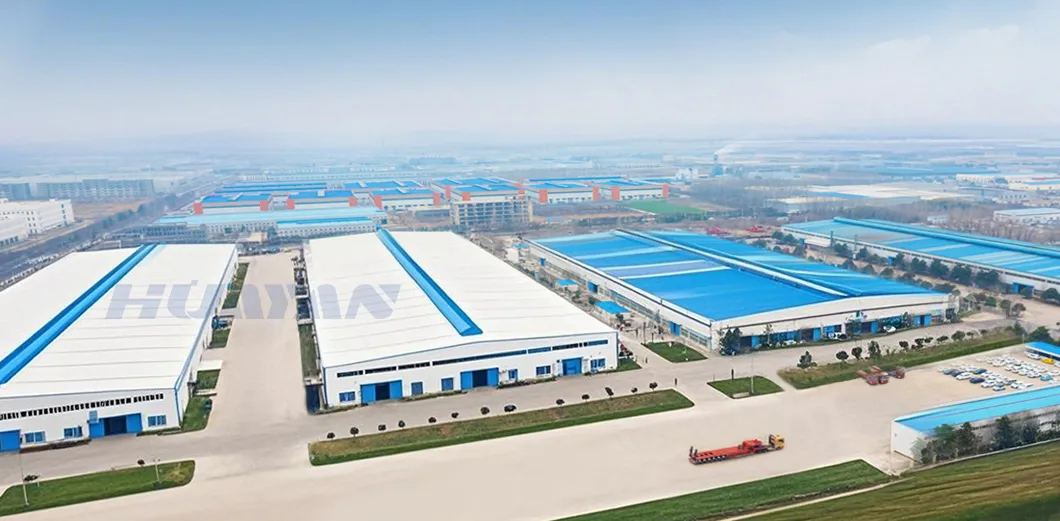

Established in 2005, we are a leading integrated transportation solution provider integrating R&D, production, and trade. Covering an area of 222,000 square meters, the facility uses advanced automation equipment, a professional R&D team, and cutting-edge manufacturing technology to provide high-quality special transportation equipment.
Our core expertise includes gas equipment (pressure reduction skids, cryogenic storage tanks, gasifiers), hydraulic modular trailers, gas pipeline slide container trailers, powder/liquid tankers, and a full range of semi-trailers designed for energy, hazardous chemical transportation, and engineering logistics. The core hydraulic system is compatible with international standards, ensuring compliance with global technical benchmarks.

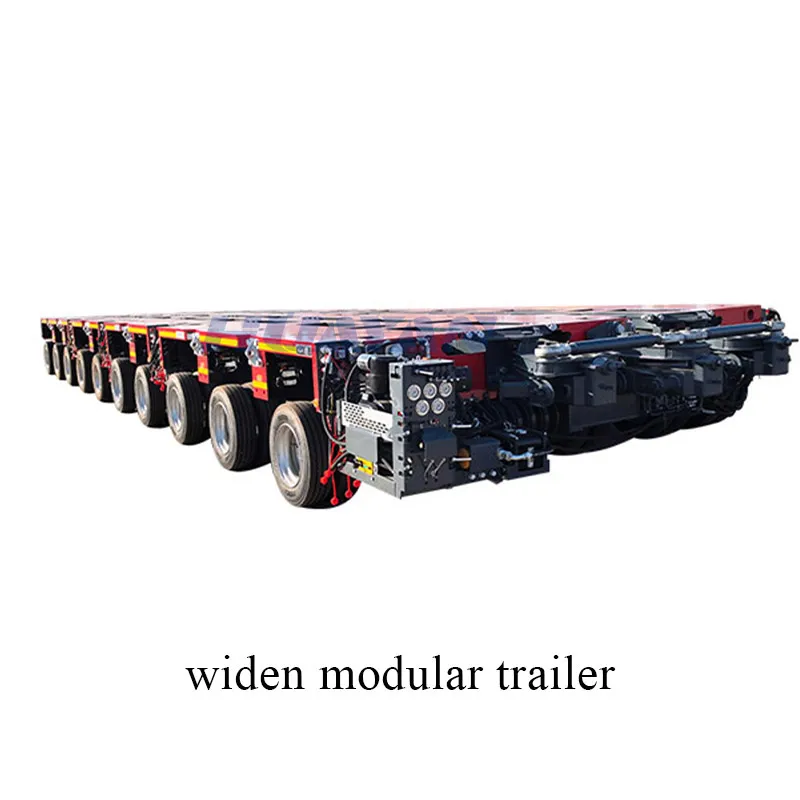

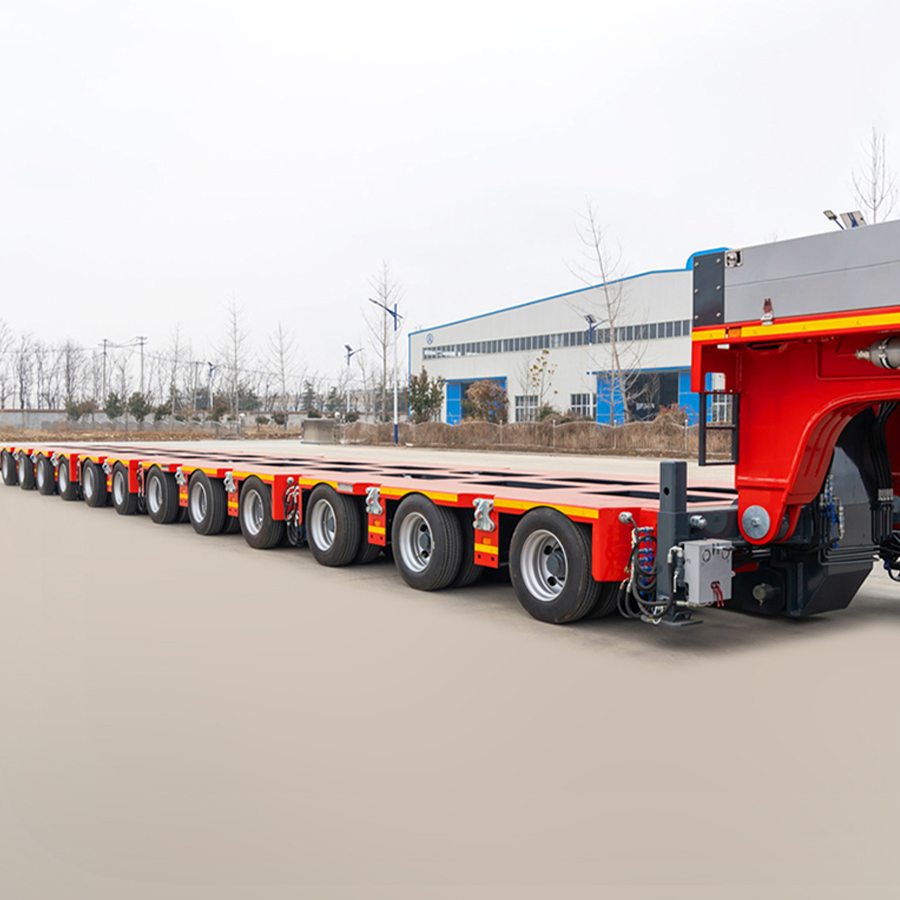

This hydraulic trailer combines cutting-edge international technologies with proprietary innovations to deliver a high-strength, user-friendly heavy-duty transport solution. Its core frame is precision-welded from Q550D extra-thick steel plates in a reinforced box-shaped structure, processed through gantry milling for seamless joints and millimeter-level accuracy.
Performance upgrades include CNC-bent standardized piping systems, a 55° maximum front-wheel steering angle for tight turns, and quick-connect hydraulic/pneumatic couplings. The suspension system adopts cylinder-drawn technology matching premium sealing standards.

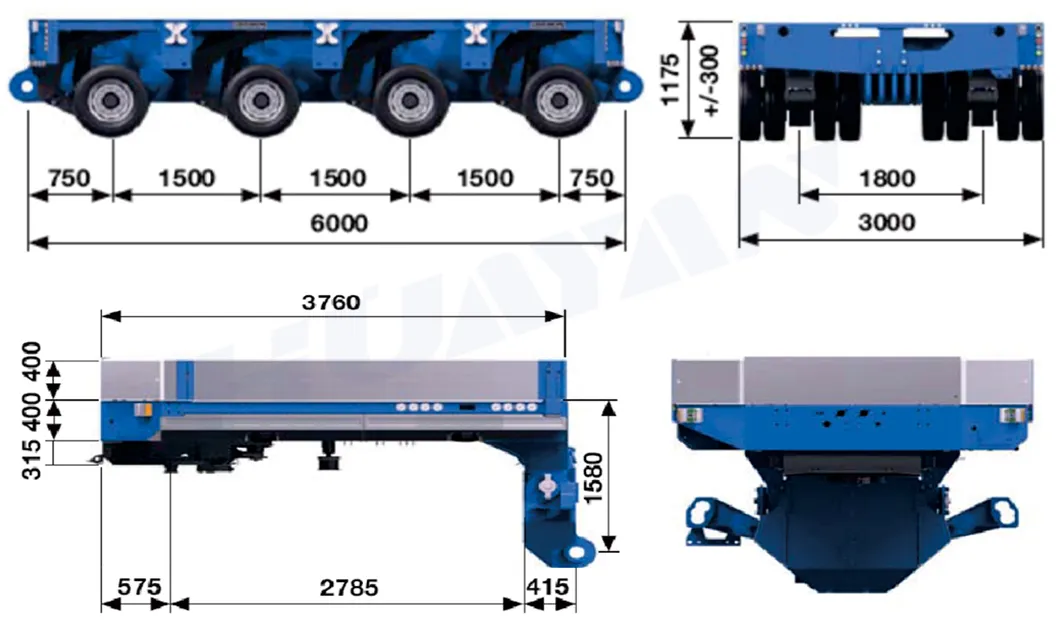

| No. | Name | Specification |
|---|---|---|
| 1 | Wheel Base | 1550mm |
| 2 | Wheel Track | 735/1820mm |
| 3 | Tyre Qty | 8 pcs / each axis |
| 4 | Tyre Spec | 215/75R17.5 |
| 5 | Cargo Bed Width | 2990mm |
| 6 | Cargo Platform Height | 1070mm |
| 7 | Suspension Travel | ±300mm |
| 8 | Steering Mechanism | All-wheel hydraulic traction or control steering |
| 9 | Max Turning Angle | 55° |
| 10 | Effective Load Capacity | 22.5 tons per axis (18km/h) |
| No. | Accessories Name | Brand |
|---|---|---|
| 1 | Tire | Double-Coin / Giti |
| 2 | Steel Ring | Zhengxing |
| 3 | Axle | York |
| 4 | Oil Cylinder | Hengli |
| 5 | Ball Valve | MHA / Poster |
| 6 | Multi-way Valve | Bondioli & Pavesi |
| 7 | Hydraulic Hose | Aeroquip |

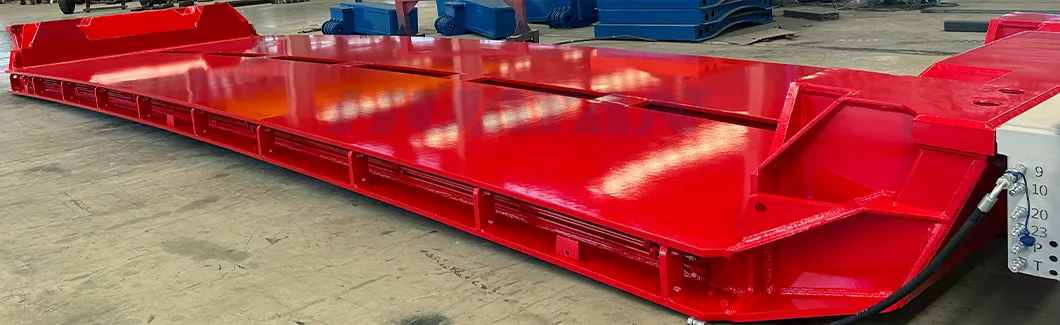

High-strength steel welded into an I-shaped main beam can withstand large concentrated loads. Rated loads reach up to 28 tons per single axle row.

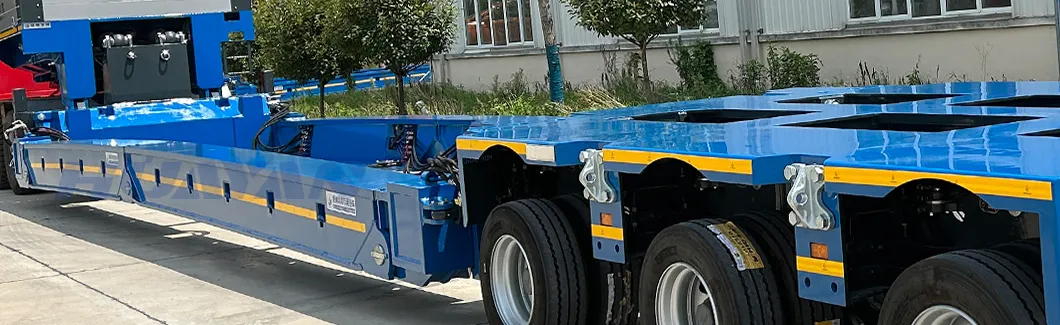

Adopts three-point support combined with full-wheel hydraulic control to ensure uniform, safe, and stable loading across different road conditions.

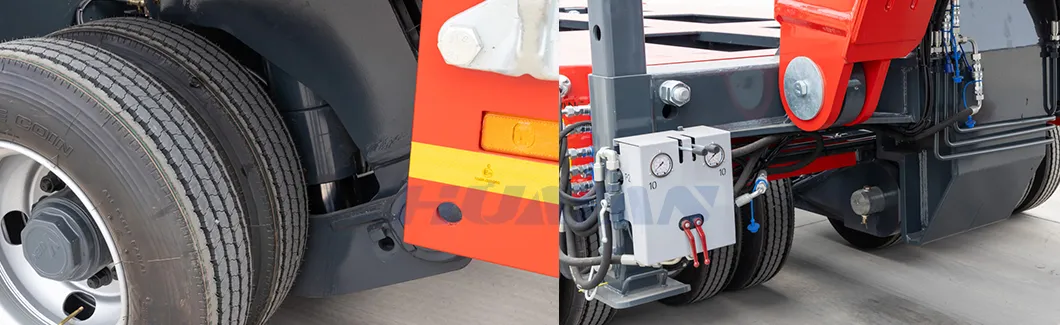

Advanced steering system allows for automatic and manual controlled steering, significantly reducing the turning radius in complex environments.

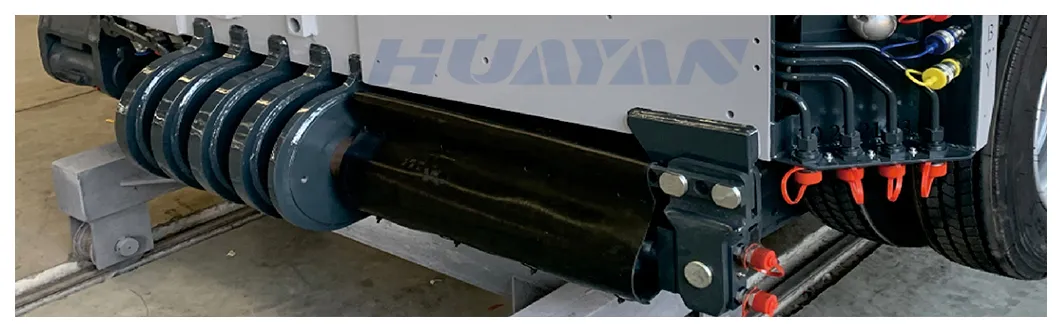

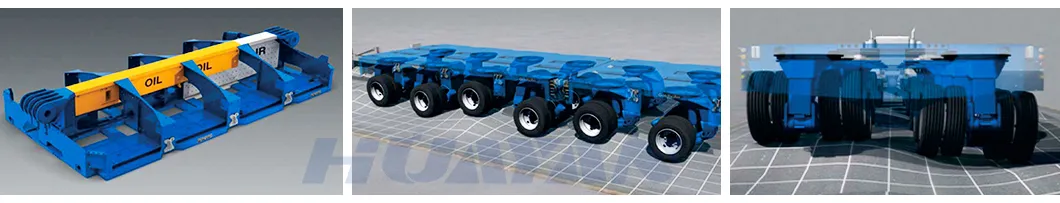

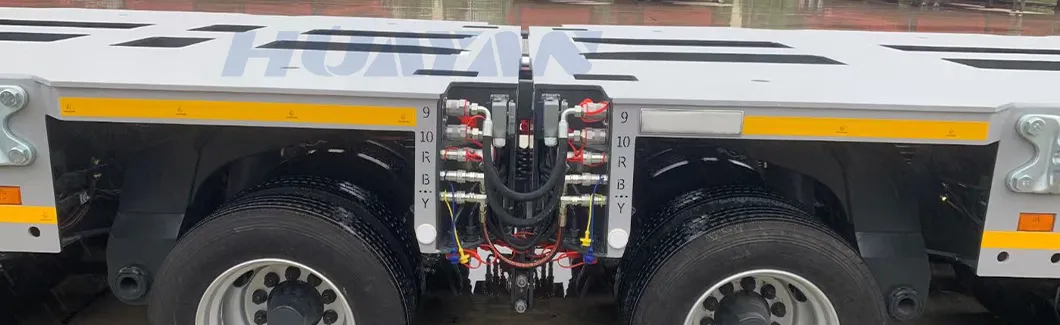

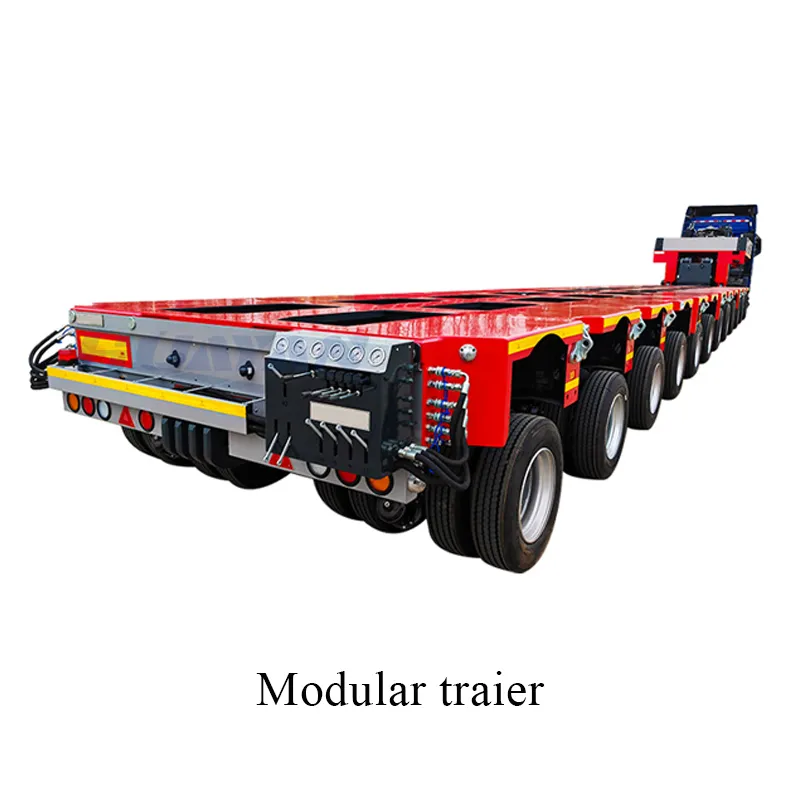

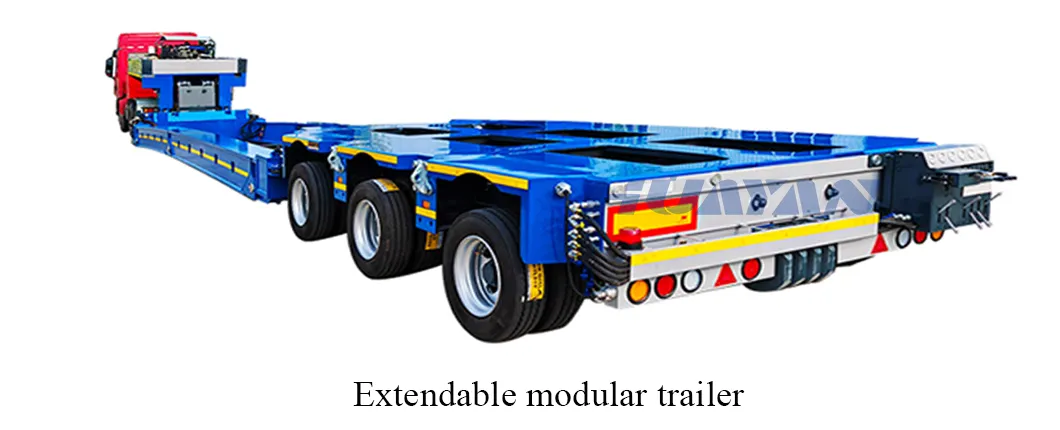

Modular design with longitudinal and transverse splicing allows for free combinations based on cargo size and weight requirements.
Products have passed ISO9001, 14001, and CE certificates. We provide documentation meeting global national requirements.

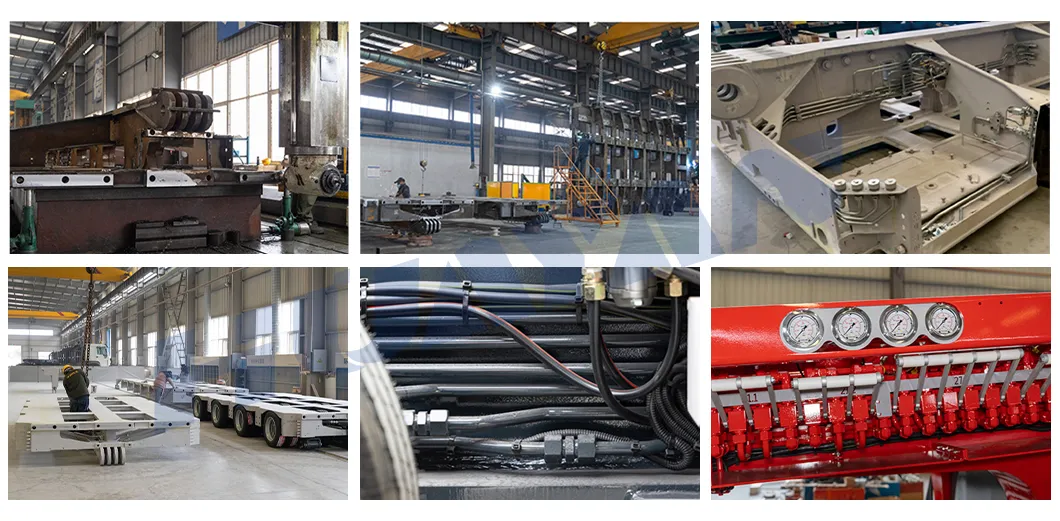

Vehicle bodies are processed using an automatic gantry manufacturing center. All mounting holes are machined in a single operation to ensure splicing accuracy.

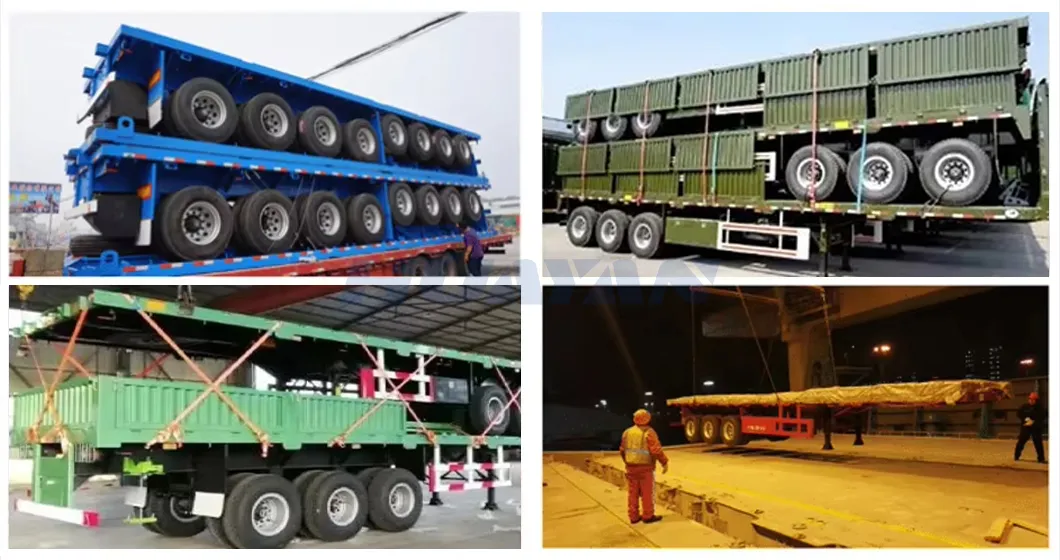

We provide comprehensive project delivery schedules and robust logistics capabilities for both domestic and international shipping.
