| Technical Parameters | |||
| Model | YJJ9400TDP | Type | Semi-Trailer |
| Load Capacity | 30-80t | Certification | ISO9001, CCC |
| Wheel Base | 7300-10200mm | Tread | 1840-2180mm |
| Suspension | Leaf Spring (10 Layers) | Axle Number | 3 / 4 / 5 |
| Material | High Strength Steel | Condition | New |

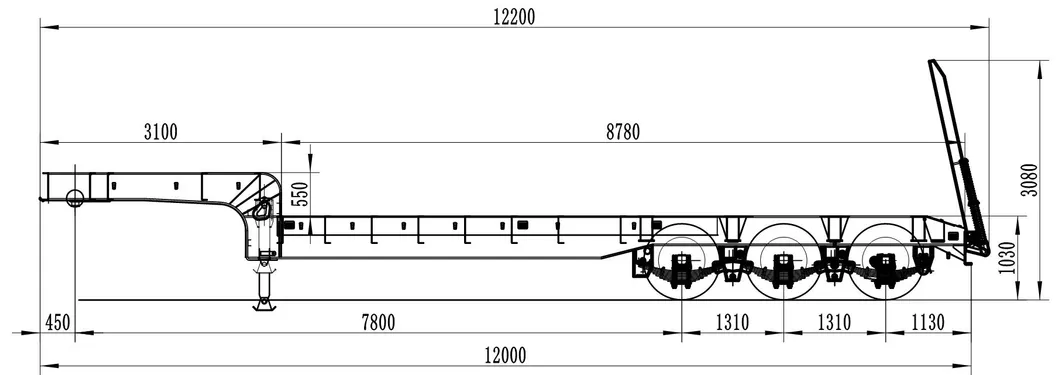

| Tyre | 11.00r20 / 12r22.5 | Dimensions | 12200*3000*3080mm |

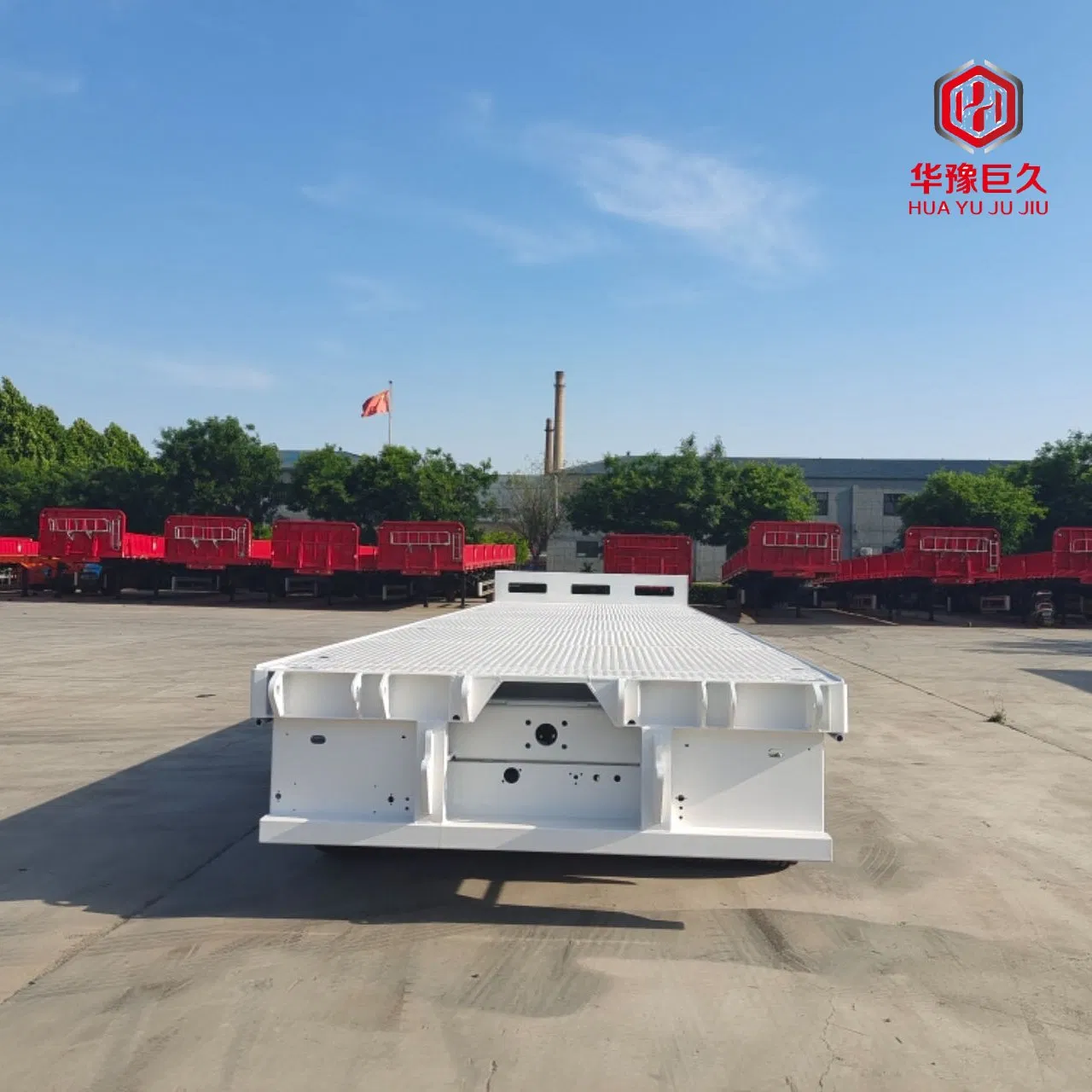

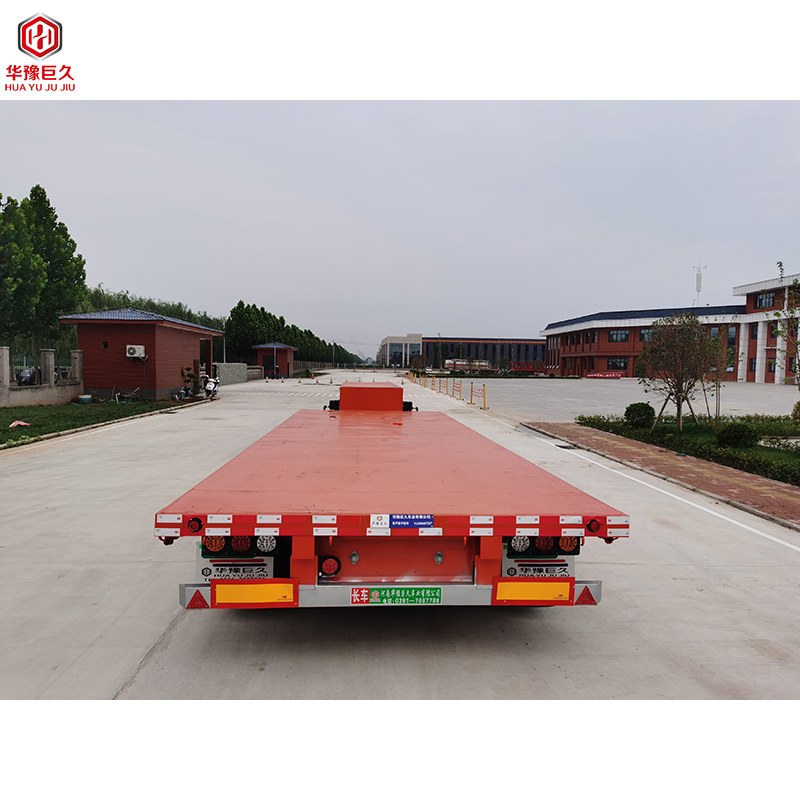

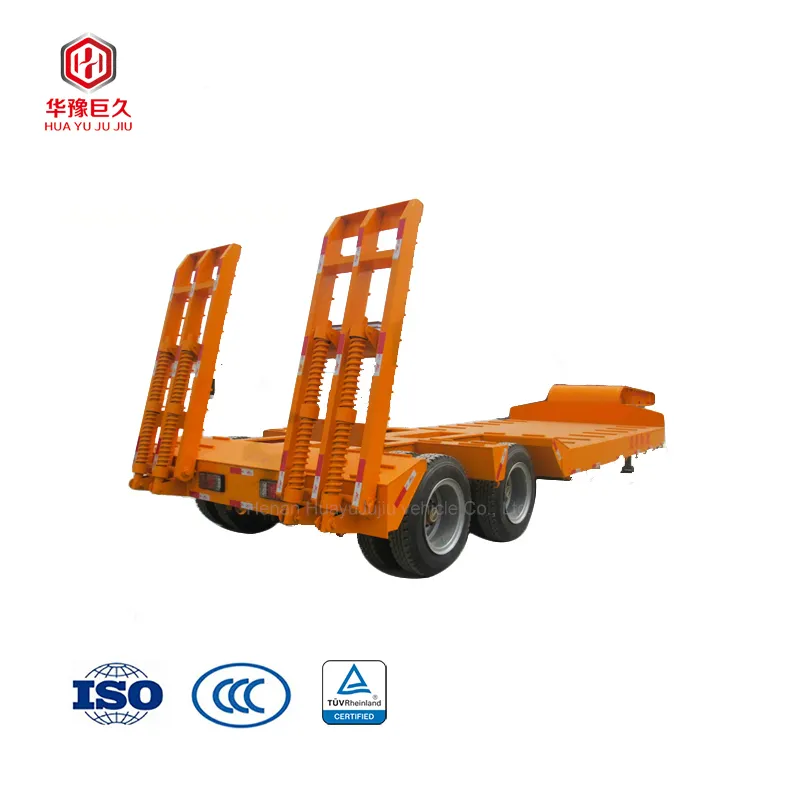

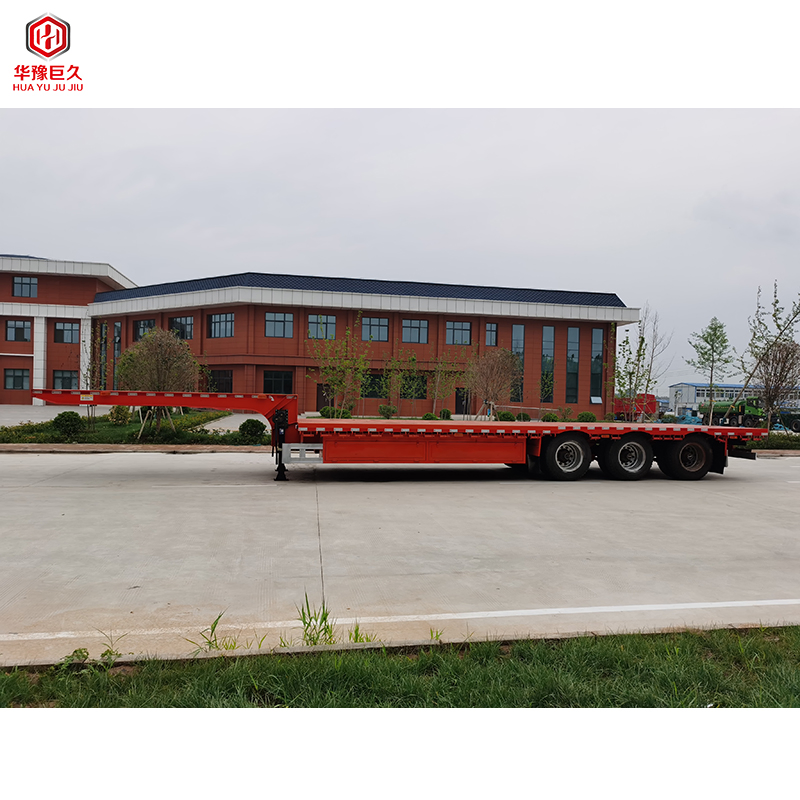

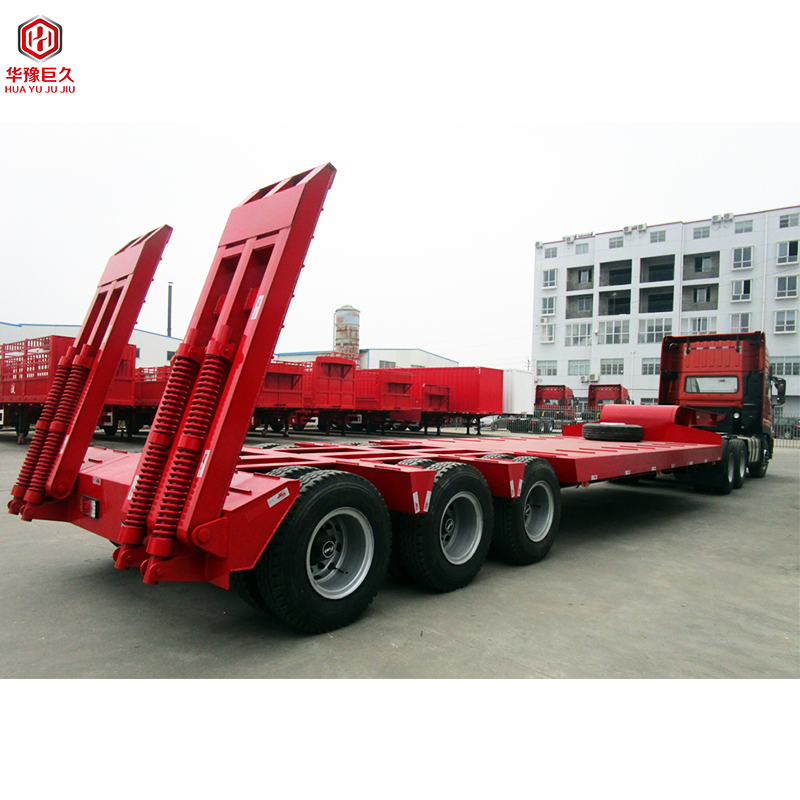

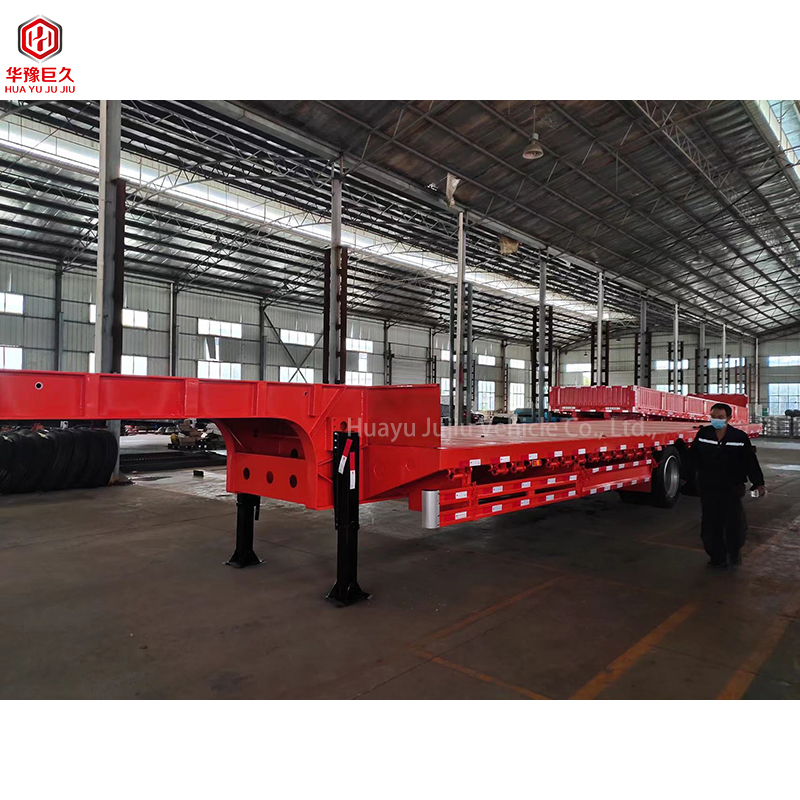

Multi Axles Hydraulic Steering Lowbed Semi Trailer For Special Transport

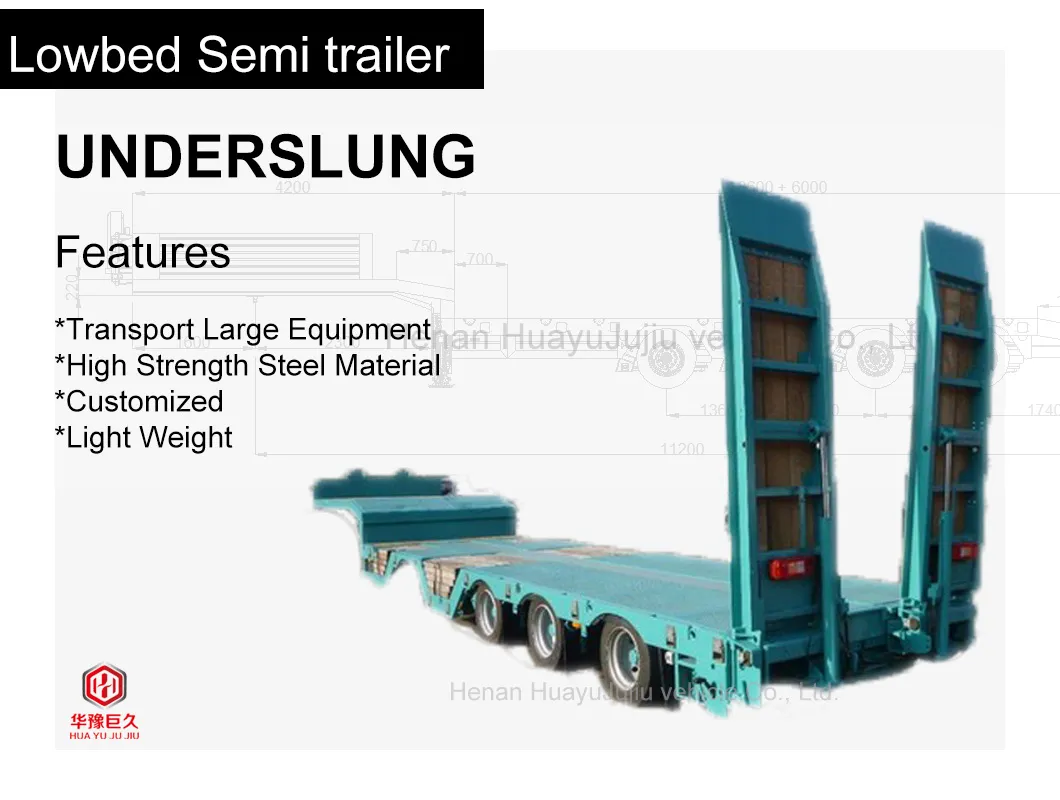

Our semi trailers utilize high-strength steel to ensure durability while reducing tare weight by up to 35% compared to standard materials under rated loads. These units are specifically engineered for transporting large-scale mechanical equipment and are widely used in construction and heavy industry fields.
| Feature | Detailed Specification |
| Tare Weight | 8-11 ton |
| Payload | 30-80 ton |
| Main Beam | Top flange 10/12mm, Middle flange 4/5/6mm, Bottom flange 10/12/14mm |
| Axles | 13/16/20T FUWA/BPW options |
| King Pin | 2'' (50#) or 3.5'' (90#) JOST/FUWA |
| Brake System | Dual line pneumatic brake system with ABS |

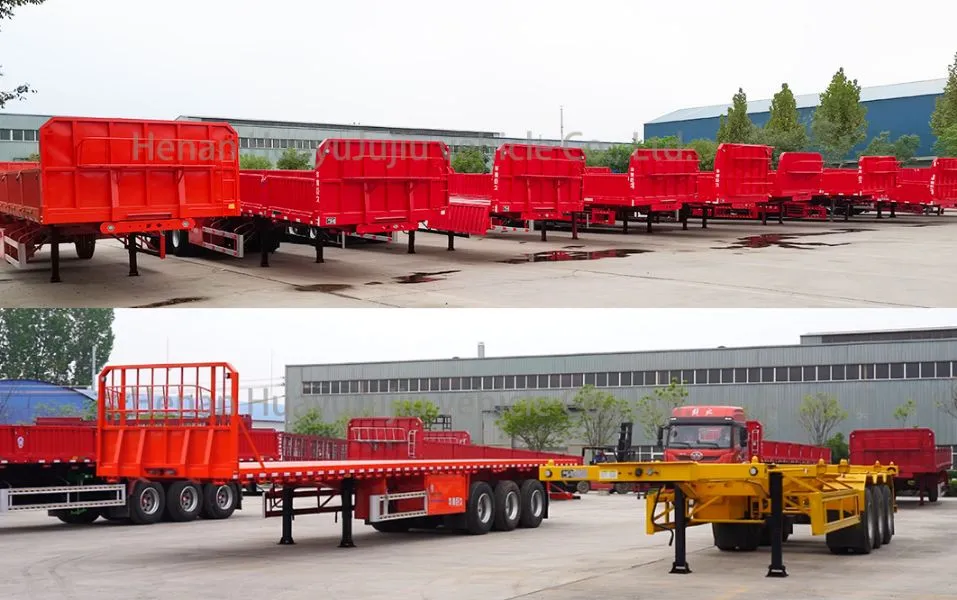

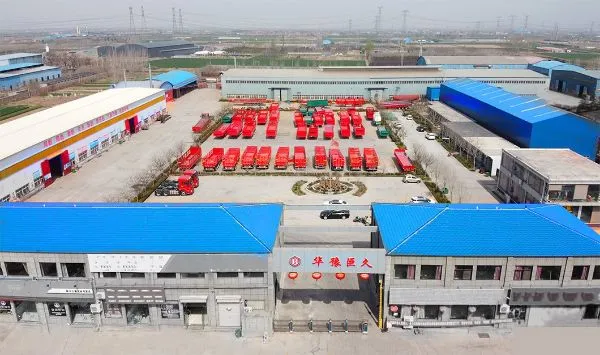

Our comprehensive production capabilities cover a full series of trailers and heavy-duty vehicles:

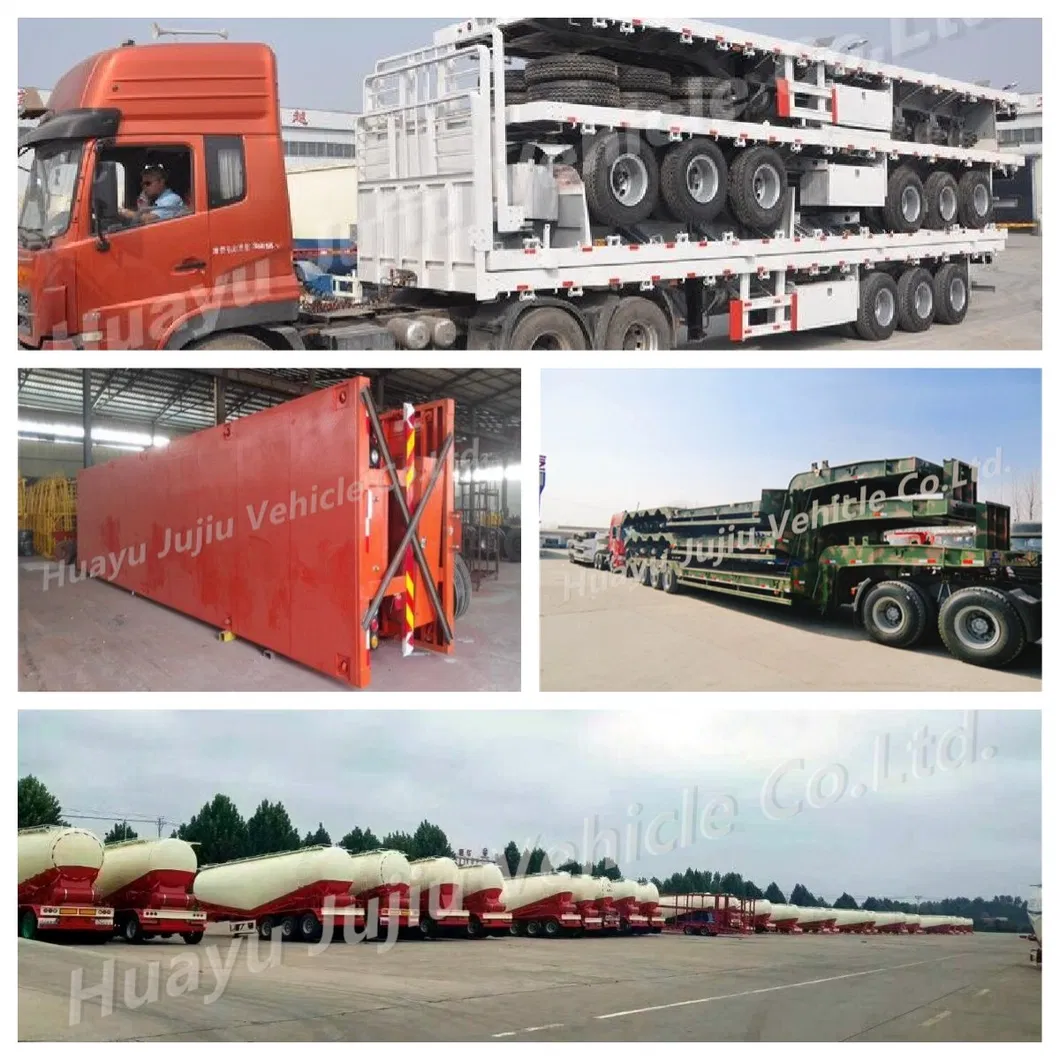

Transportation Methods:
Roll-off Transportation: Ideal for long-distance transport of heavy trailers. Specialized containers allow for efficient loading and unloading.
Framed Containers: Trailers are placed inside custom-designed frames for enhanced protection during sea transit.
Bulk Cargo: Often used for short-distance regional transport via flatbed trucks.
