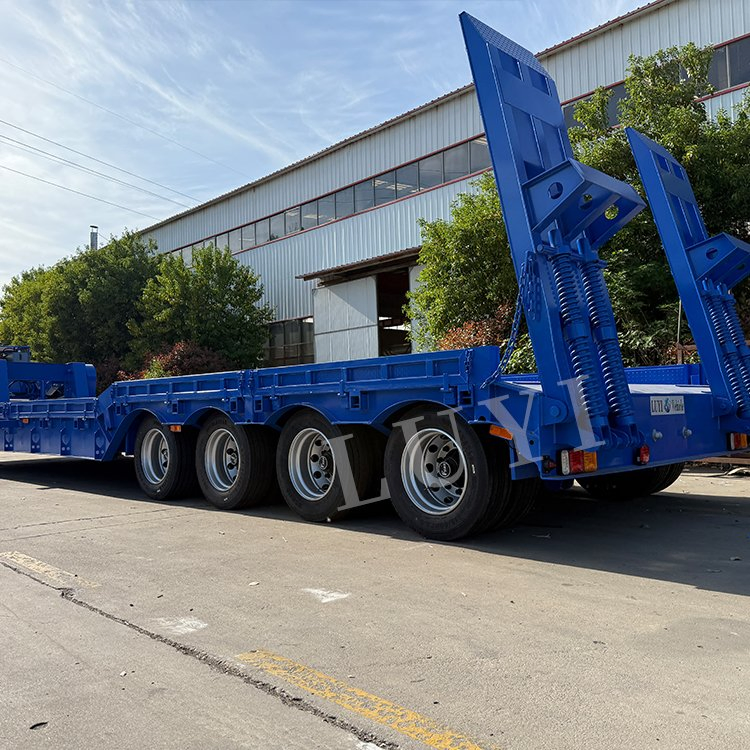

Luyi Multi Axle Removable Detachable Gooseneck Front Load Lowbed Lowboy 100 Ton Low Bed Semi Trailer

Customization: Available
After-sales Service: Solve All Your Problems
Warranty: 6 Years

Product Description

Basic Information
Model NO.
4 axle detachable low bed trailer
Type
Semi-Trailer
Load Capacity
80T - 120T
Certification
CE, ISO9001, CCC
Wheel Base
9000-10000mm
Grade
Heavy Duty
Suspension
Mechanical or Air Suspension
Axle Number
4
Material
High Strength Steel
Specification
15000x3000x1800mm
Product Overview

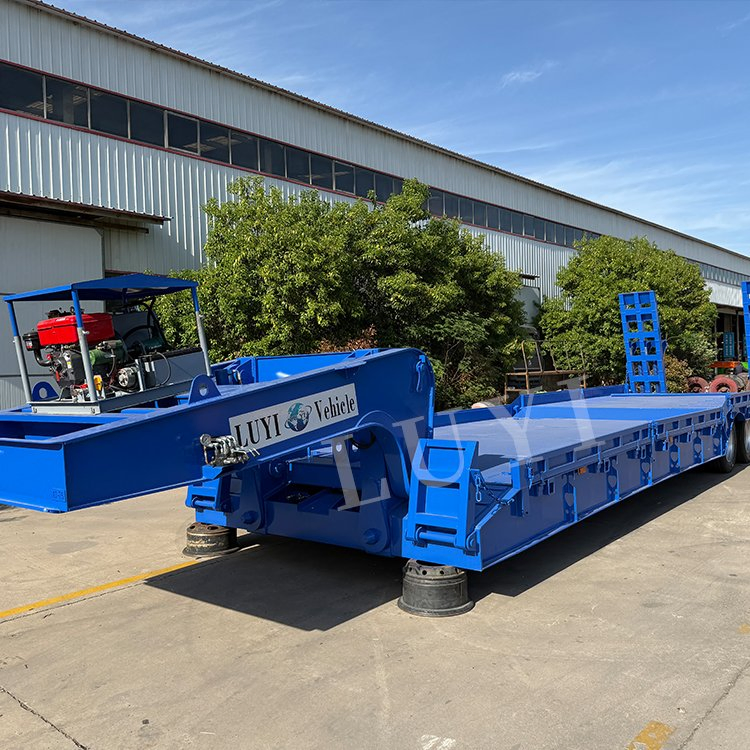

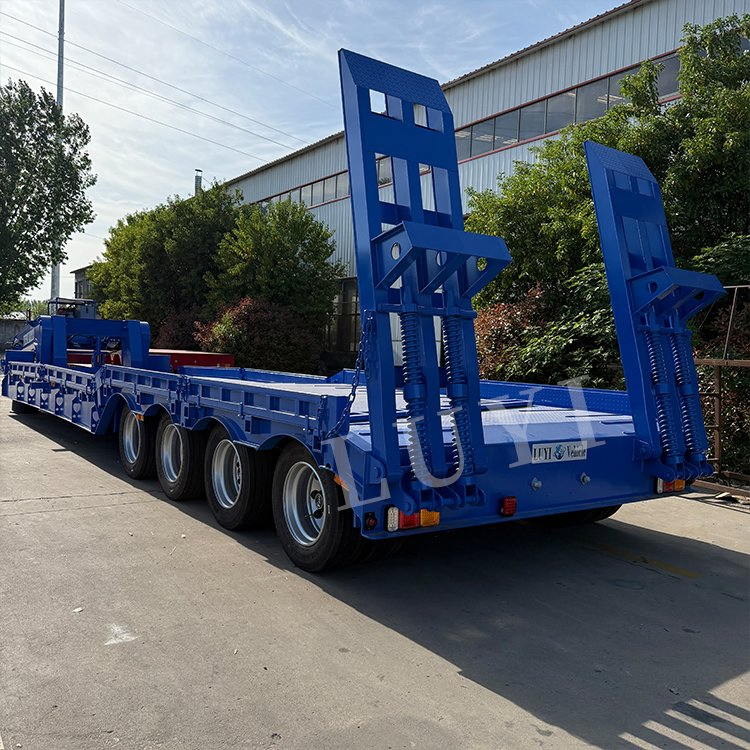

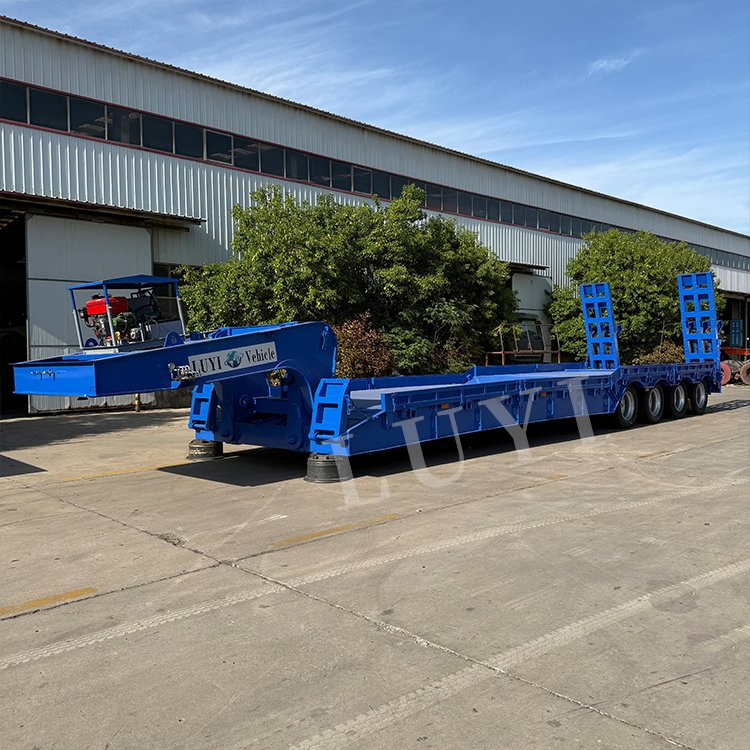

Multi Axle Removable Detachable Gooseneck Front Load Lowbed Lowboy 100 Ton Semi Trailer

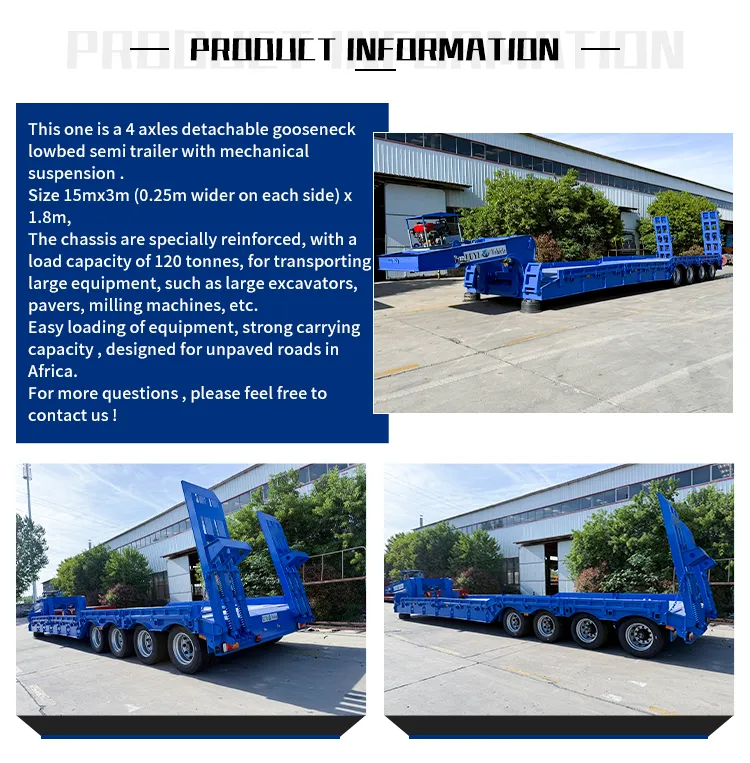

This 4 axles detachable gooseneck lowbed semi trailer with mechanical suspension is designed for transporting large equipment such as excavators, pavers, and milling machines. The chassis are specially reinforced for a load capacity up to 120 tonnes, specifically engineered for unpaved roads and harsh conditions.

Detailed Description

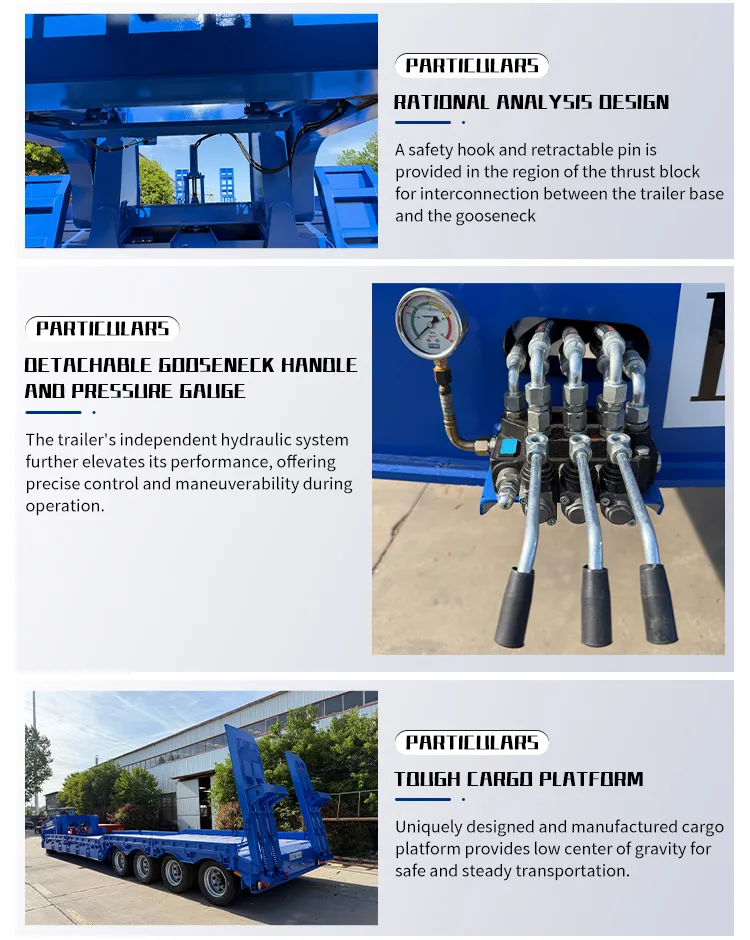

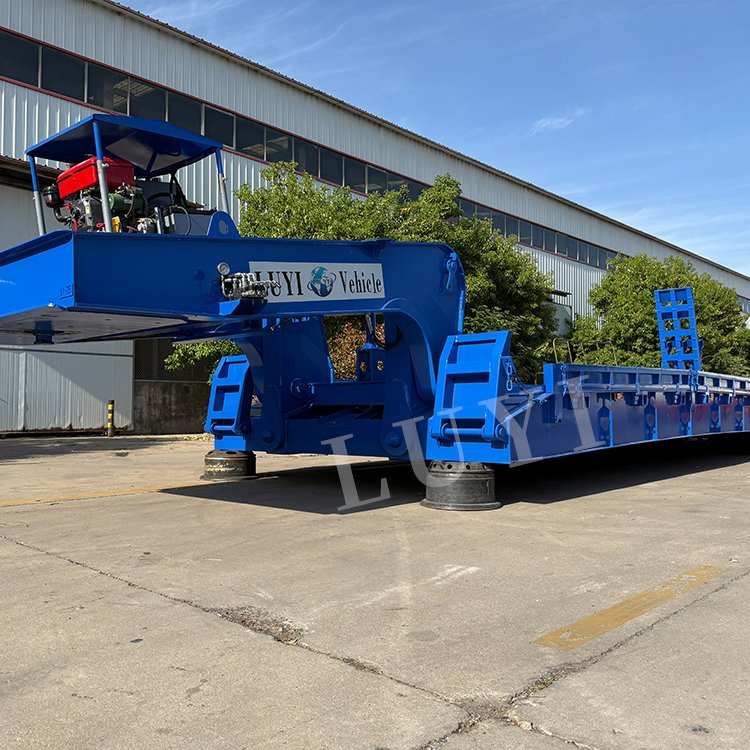

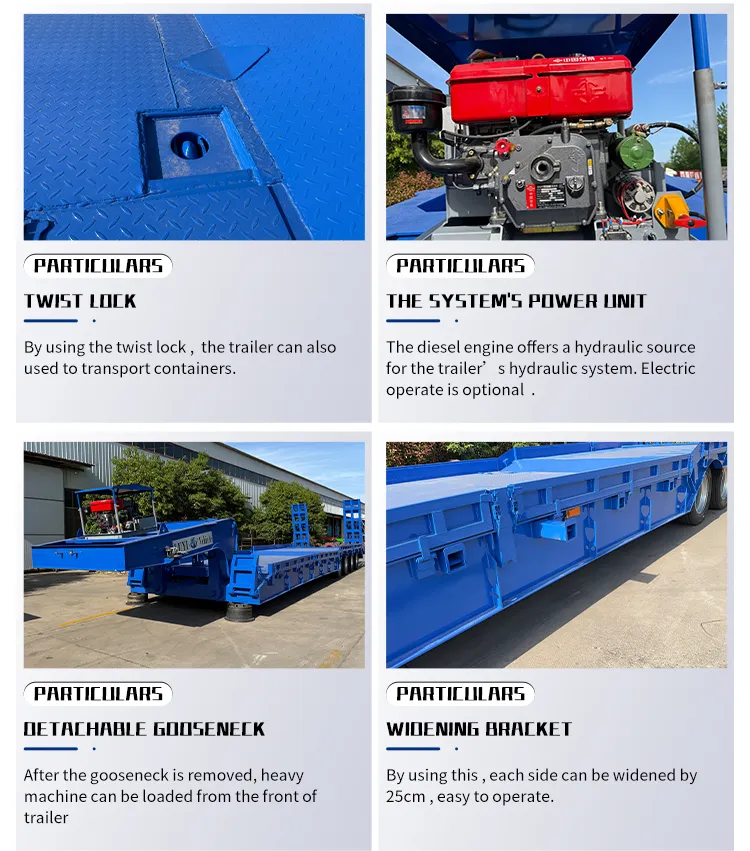

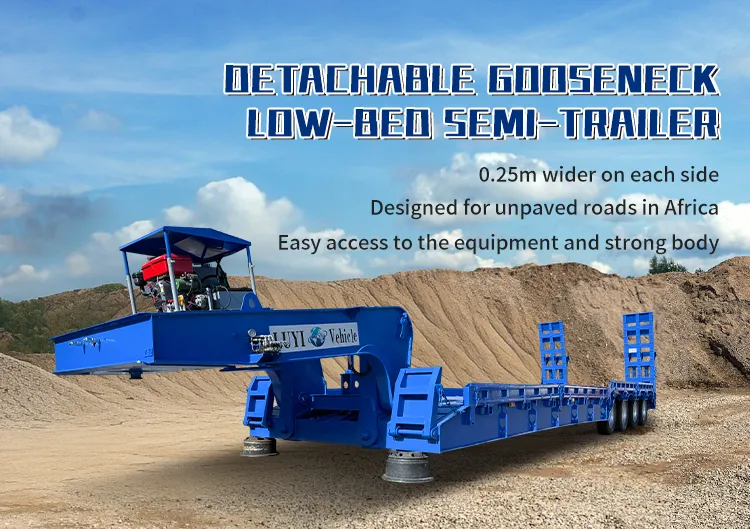

Detachable gooseneck trailers allow the trailer platform to be lowered to the ground, creating its own ramp for easier loading and unloading of heavy machinery. The cargo moves from the front of the trailer onto the work platform, ensuring safety and efficiency.

Technical Specifications
Landing Gear Standard 28 Ton
Tire 12R22.5 / 12.00R20 / 11R22.5
Suspension Mechanical Suspension / Air Suspension
Kingpin 2"(50mm) or 3.5"(90mm) JOST
Brake System WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber
Axle 3/4/5/6 axles, FUWA/BPW brand axle
Key Advantages
1

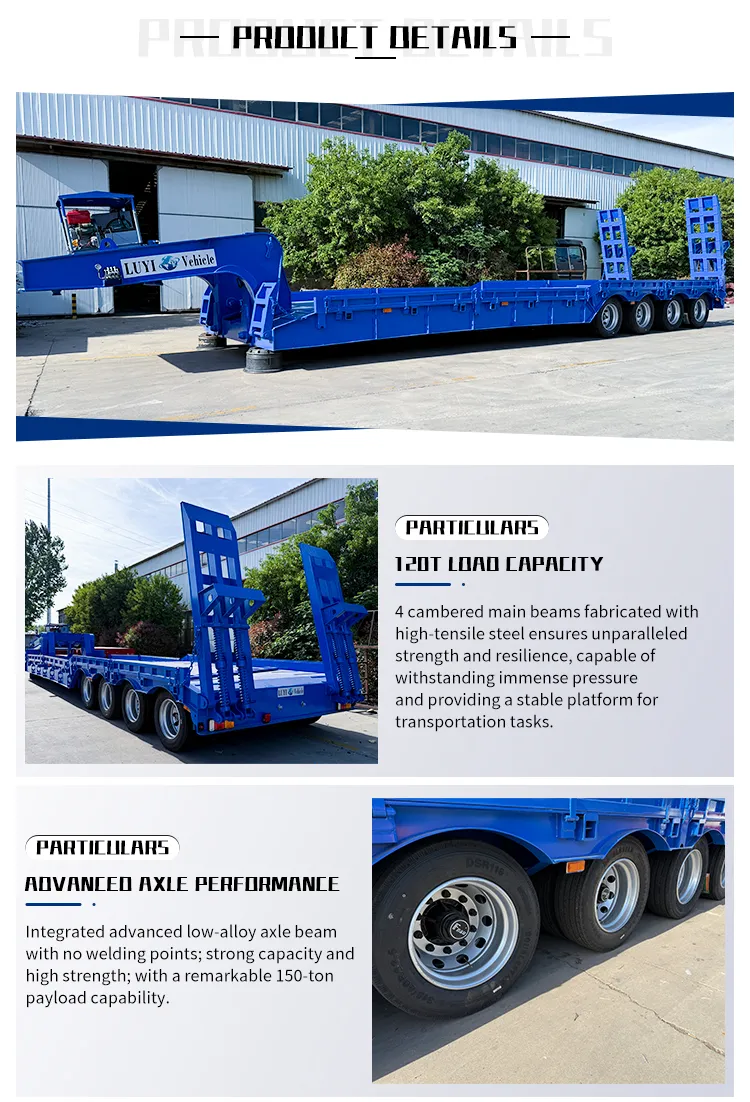

High-Strength Material: Made of high-strength steel plate with a ballast-resistant and sturdy structural model.
2

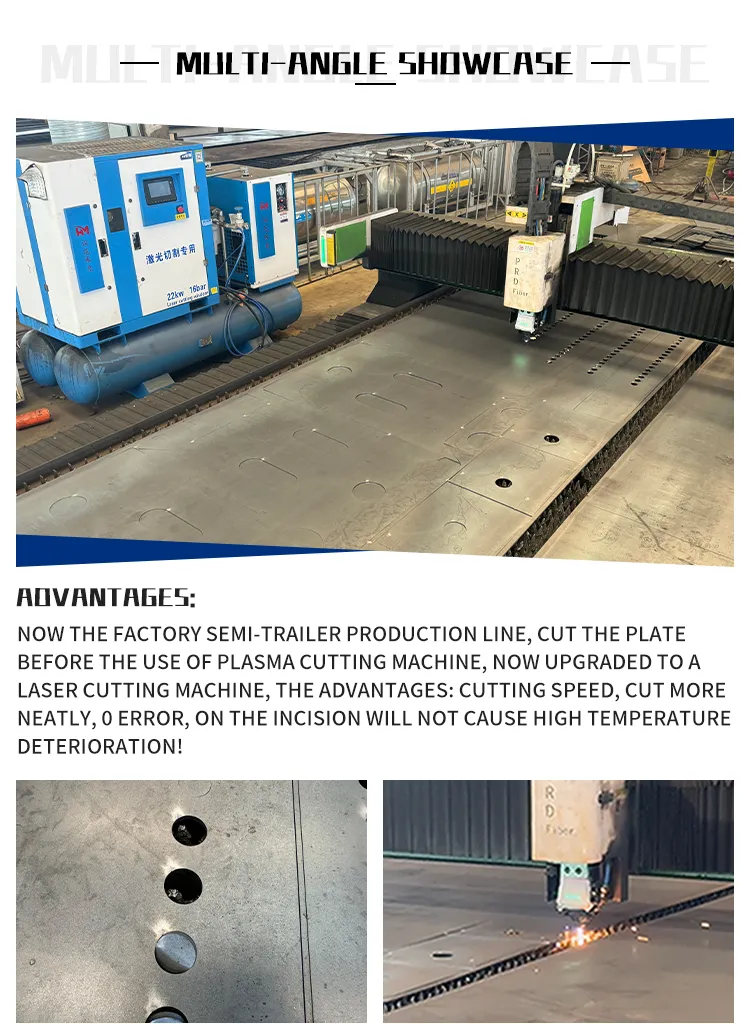

Advanced Welding: Main beam adopts robot welding technology for strong, reliable joints suitable for harsh roads.
3
Stability: Low center of gravity (850mm above ground) ensures superior stability and safety during heavy transport.
4
Global Standards: Built with world-renowned brand accessories to ensure long service life and low maintenance.
Company Capabilities

With over 20 years of production experience, our trailers are exported to more than 200 countries. We specialize in customized semi-trailers, full trailers, and heavy-duty trucks, providing high-quality solutions for global transportation needs.

Frequently Asked Questions (FAQ)
What is the maximum load capacity of the detachable gooseneck trailer?
The standard capacity ranges from 50 to 120 tons, but we can customize multi-axle configurations to handle up to 150 tons depending on your requirements.
How does the detachable gooseneck improve loading efficiency?
It allows the front of the trailer to detach and lower the deck to the ground, serving as a shallow-angle ramp for heavy machinery like excavators to drive directly onto the platform.
Can the trailer dimensions be customized?
Yes, all vehicle models in our factory can be customized in terms of length, width (including side extensions), and height to meet local laws and specific shipping needs.
What brands of components are used in the trailer?
We use world-renowned brands such as JOST for kingpins and landing gear, FUWA or BPW for axles, and WABCO for the braking systems.
Is the trailer suitable for off-road or unpaved conditions?
Absolutely. Our trailers feature reinforced chassis and heavy-duty mechanical suspensions specifically designed for the demanding unpaved road conditions often found in Africa and other developing regions.
What are the available suspension options?

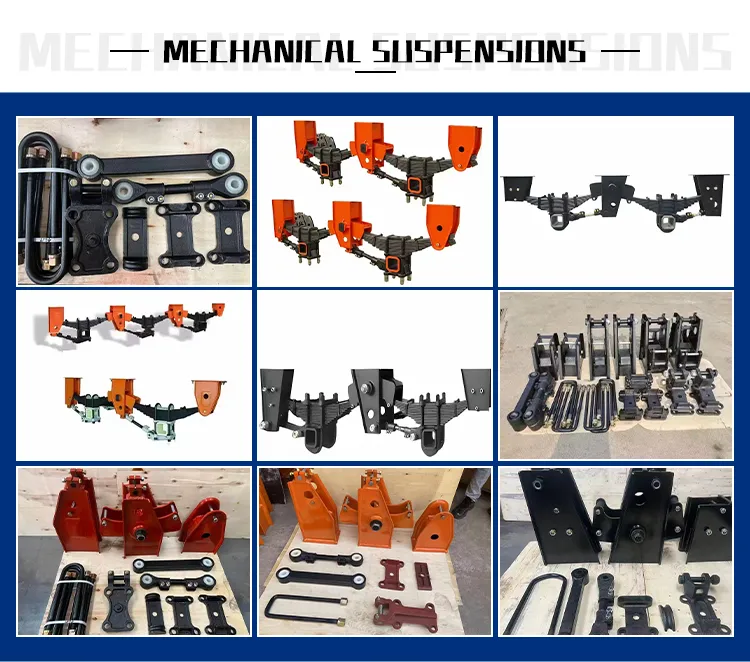

We offer both heavy-duty Mechanical Suspension for maximum durability and Air Suspension for better shock absorption and cargo protection.
