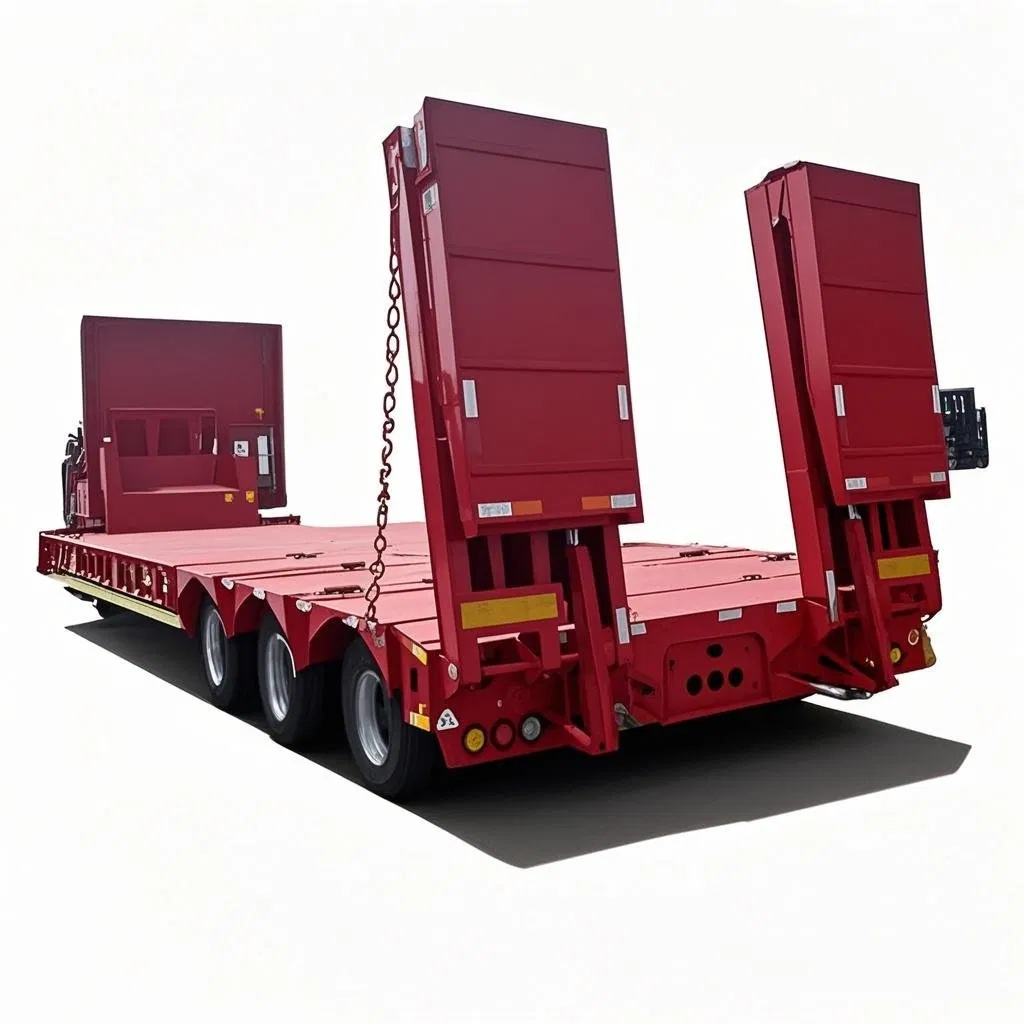

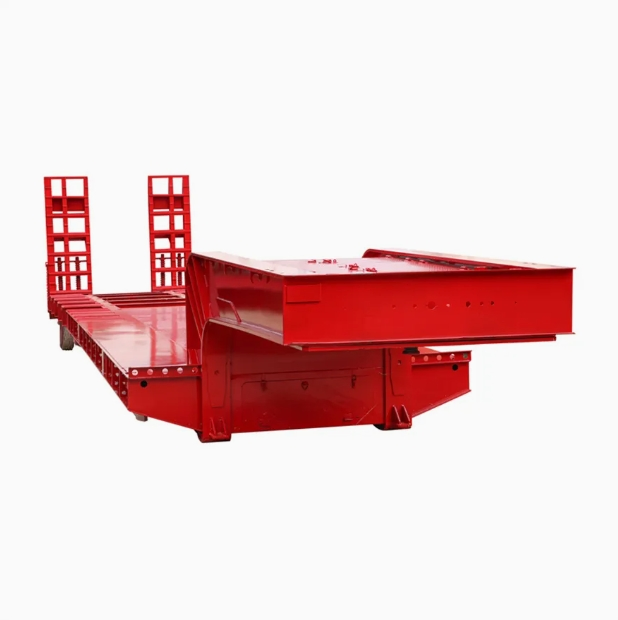

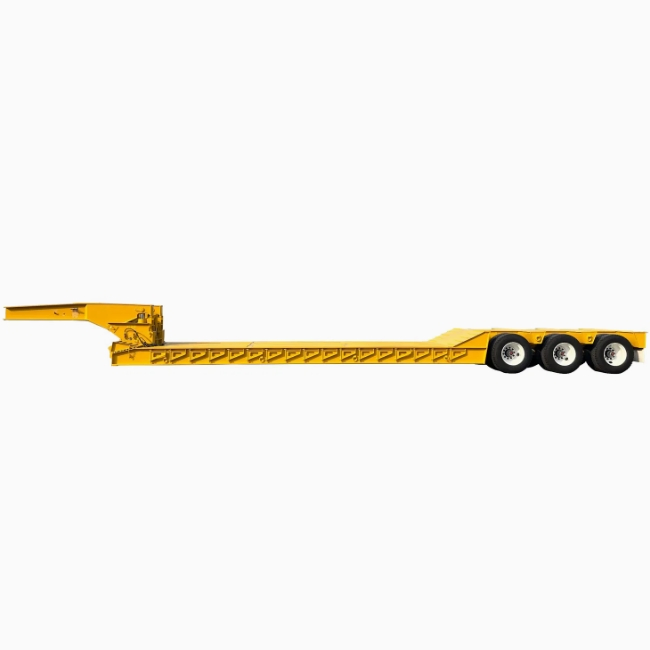

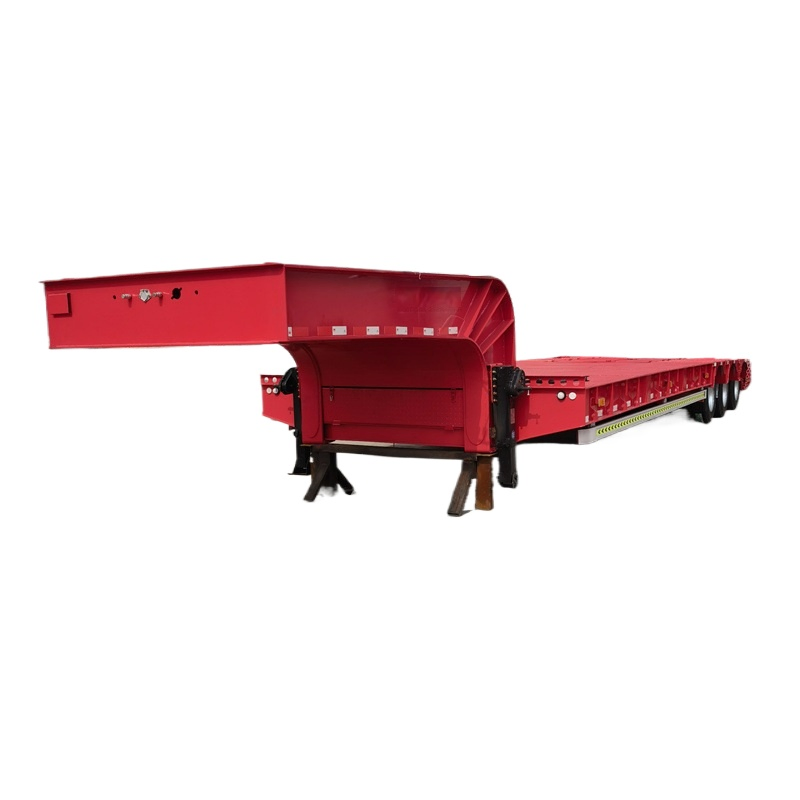

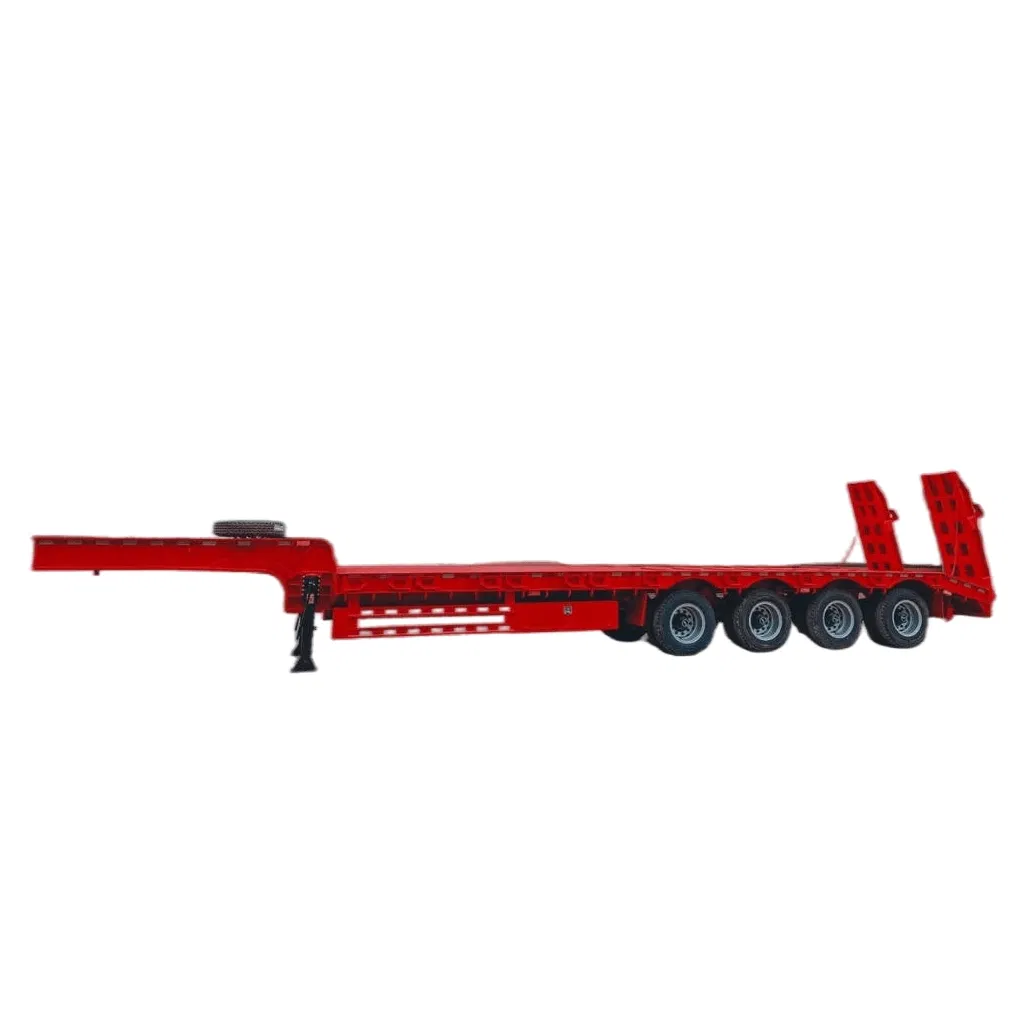

Fuyuan Factory Made 2/3/4/5 Axles Gooseneck Lowbed Semi Trailer
Fuyuan low bed semi-trailers are designed to transport heavy-duty vehicles such as tractors, buses, rail vehicles, mining machinery, and construction equipment (excavators, bulldozers, cranes). A lower center of gravity ensures superior stability and safety, particularly when transporting super-high loads through overhead obstacles.
Load capacities range from 20 to 150 tons depending on the axle configuration and tire size.

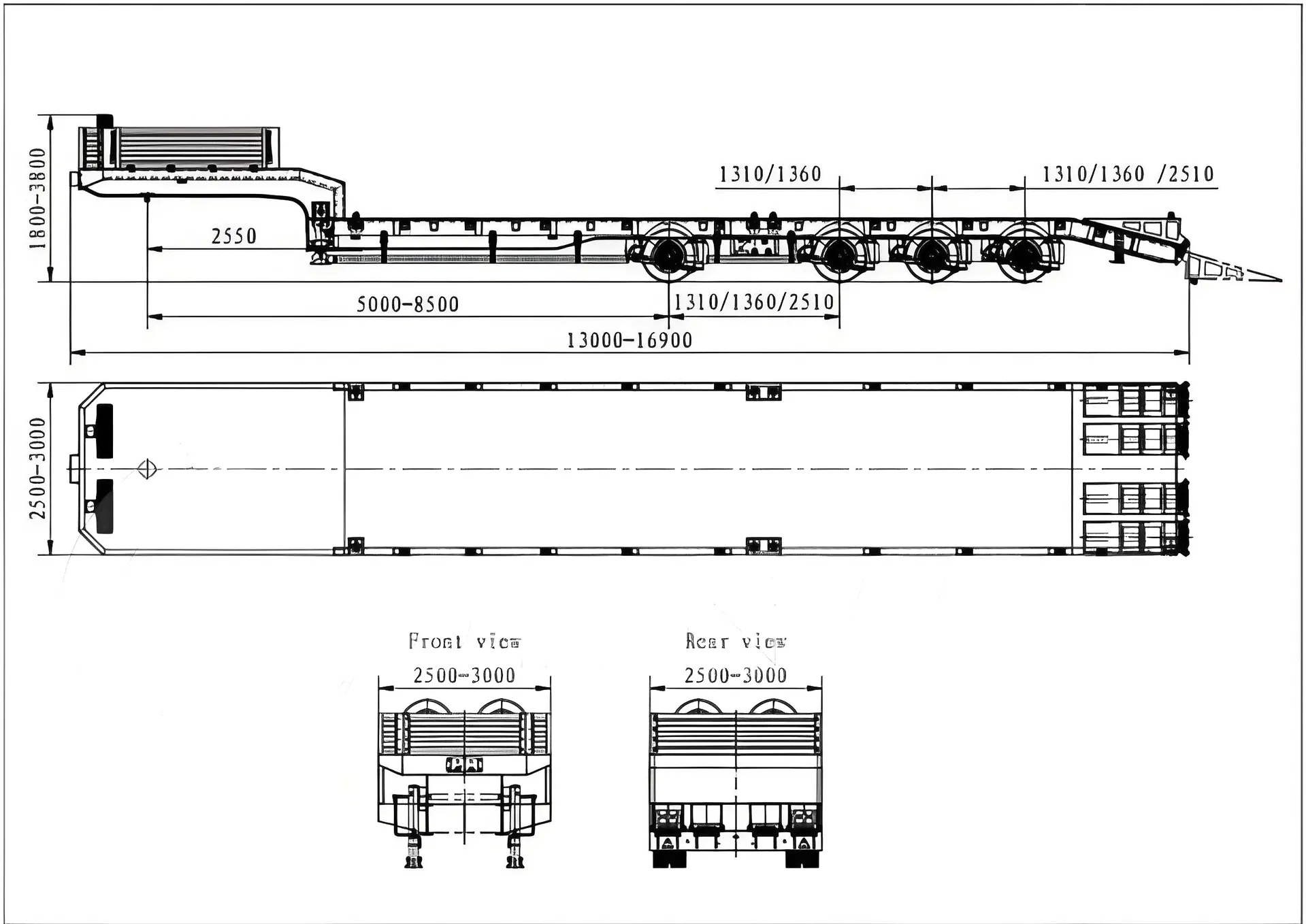

| Feature | 2 Axles | 3 Axles | 4 Axles |
|---|---|---|---|
| Size (mm) | 12500*3000*1100 | 13000*3000*1100 | 14000*3000*1100 |
| Payload | 40,000 KG | 60,000 KG | 80,000 KG |
| Main Beam | Height 500mm, Q345B Steel; Upper 16mm, Middle 8mm, Lower 18mm | ||

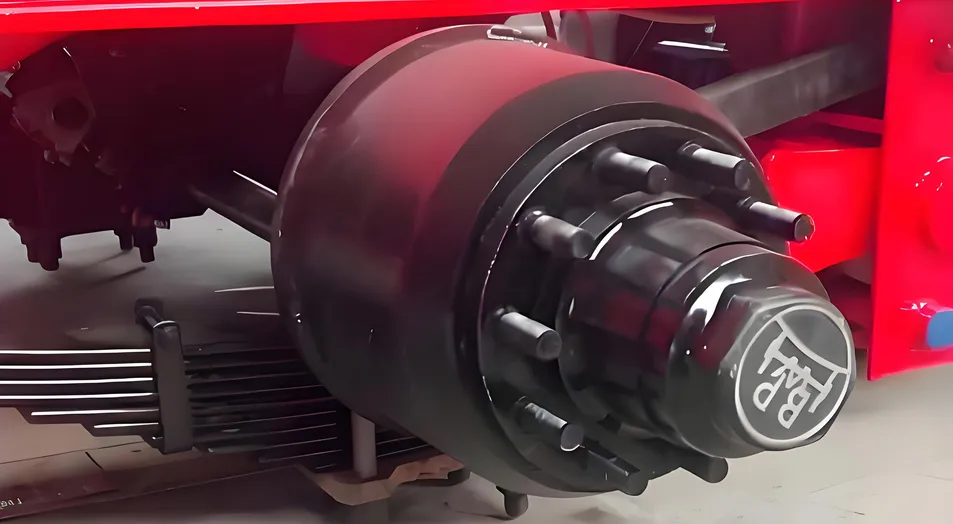

| Axles | 13 Ton capacity (BPW/FUWA optional) | ||
| Tires | 12R22.5 / 11.00R20 (8-12 pcs) | ||
| Braking | Double air chamber, WABCO valve, ABS optional | ||

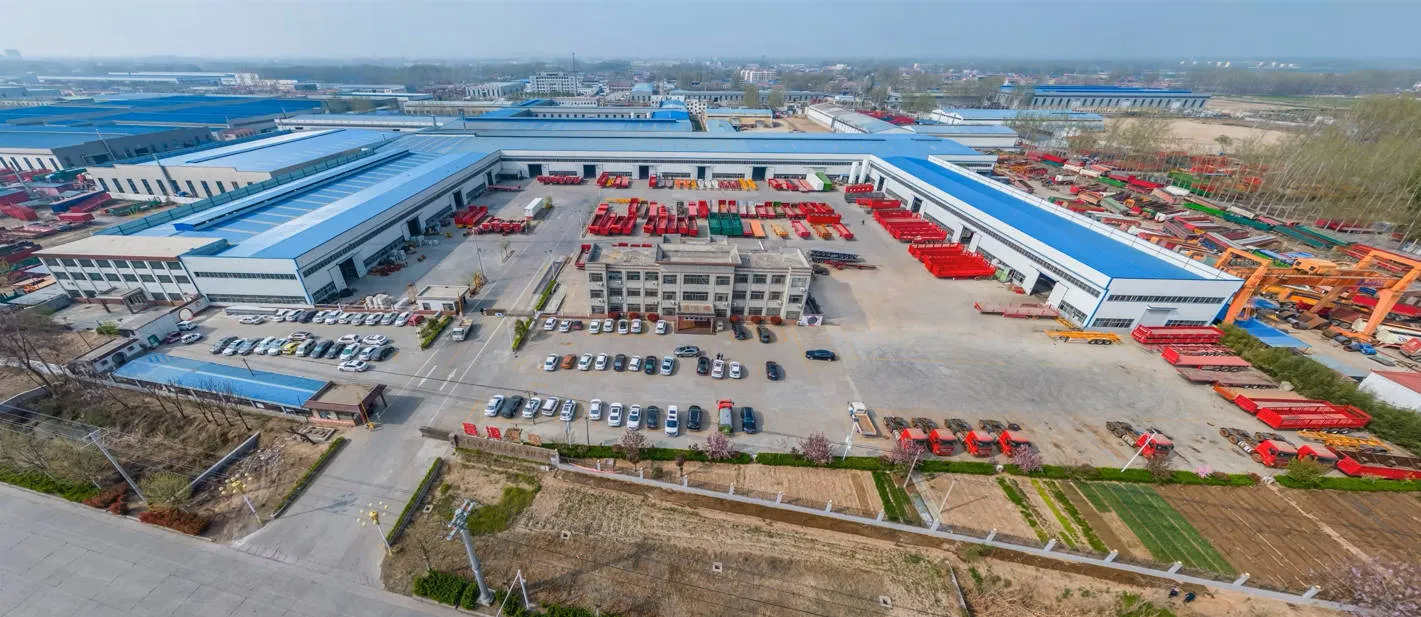

Operating across 60,000 square meters, our facility integrates R&D, intelligent production, and global sales. Our specialized equipment includes laser cutting, robotic welding, and CAD/CAE design systems to ensure product reliability. We export to over 60 countries, delivering smarter and safer transport solutions worldwide.
