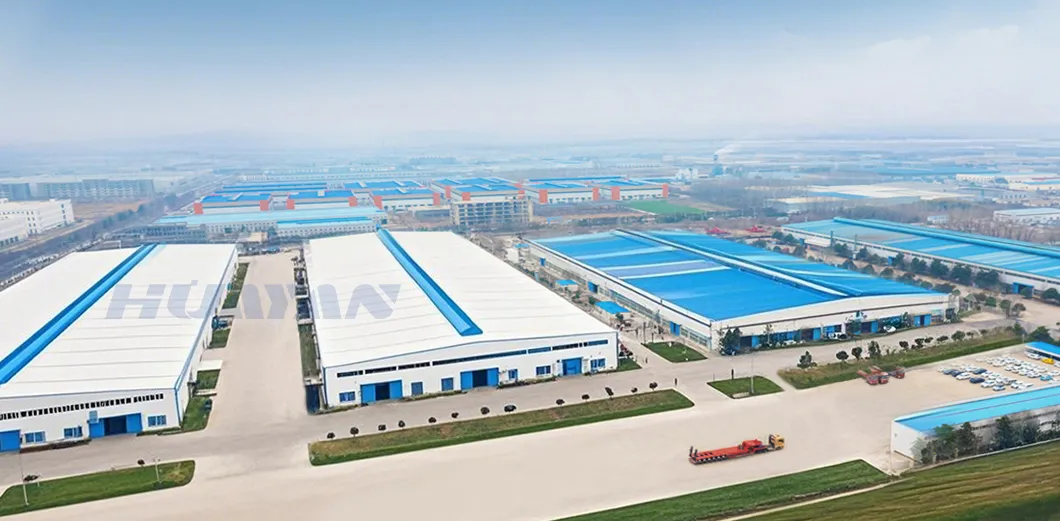

Established in 2005, we are a leading integrated transportation solution provider integrating R&D, production and trade. Covering an area of 222,000 square meters, the company uses advanced automation equipment, a professional R&D team and cutting-edge manufacturing technology to provide high-quality special transportation equipment, including gas equipment (pressure reduction skids, cryogenic storage tanks, gasifiers), hydraulic modular trailers, gas pipeline slide container trailers, powder/liquid tankers and a full range of semi-trailers (heavy-duty low-bed, flat container, skeleton, side curtain, self-unloading) for energy, hazardous chemical transportation and engineering logistics.
The core hydraulic system is compatible with international standards, ensuring compliance with global technical standards. With more than 20 years of export experience, we serve more than 30 countries. The company has passed ISO9001, ASME, ADR certification, supported by a R&D team of more than 60 people, achieving a 100% order delivery rate through digital management.

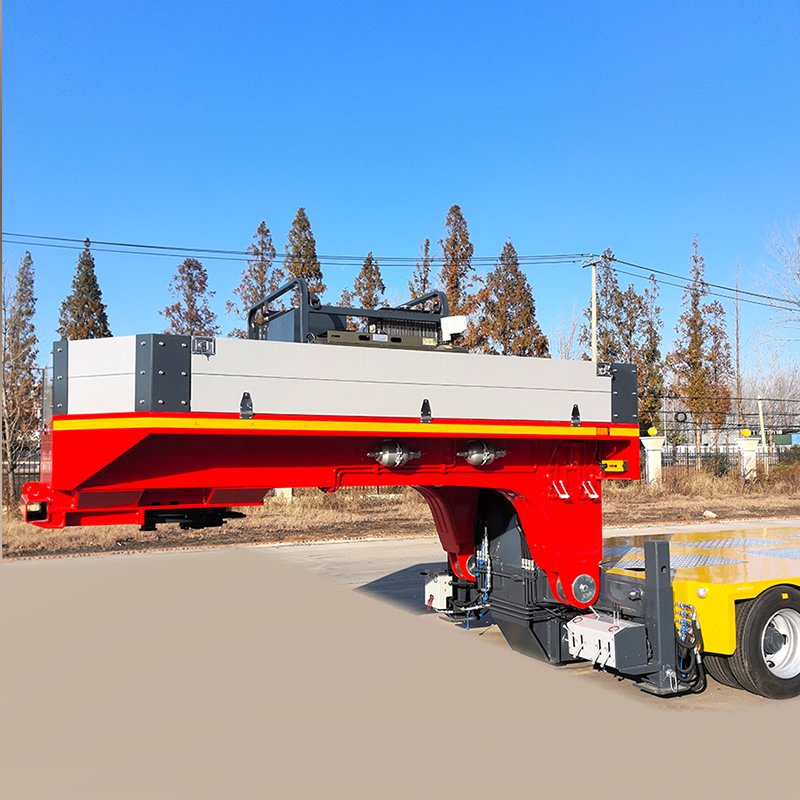

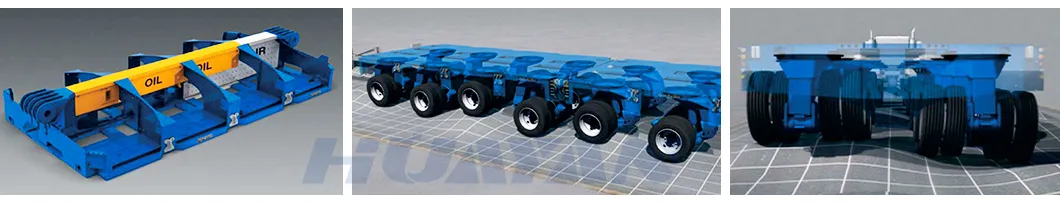

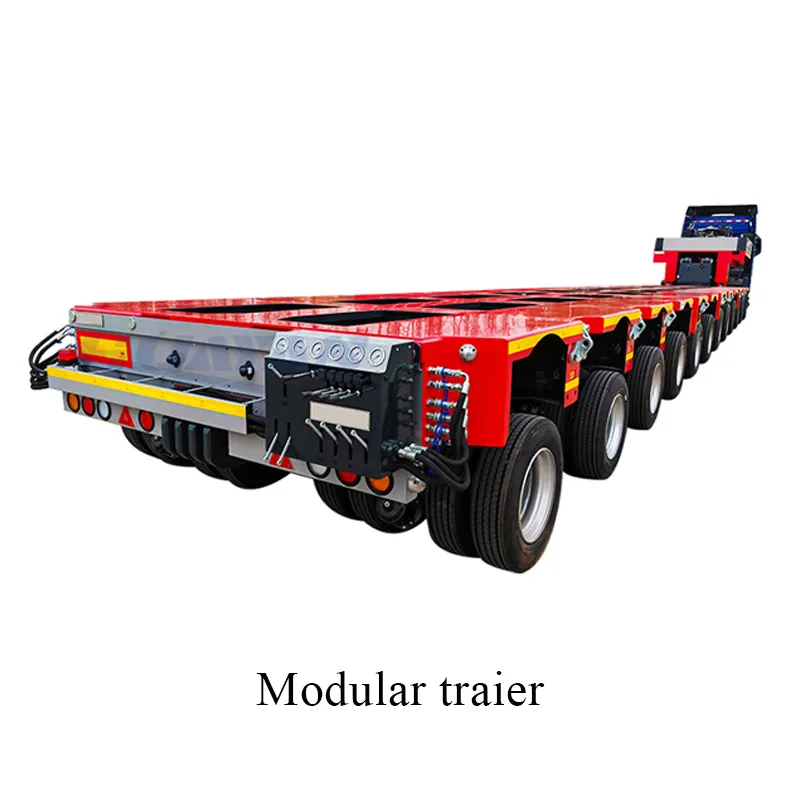

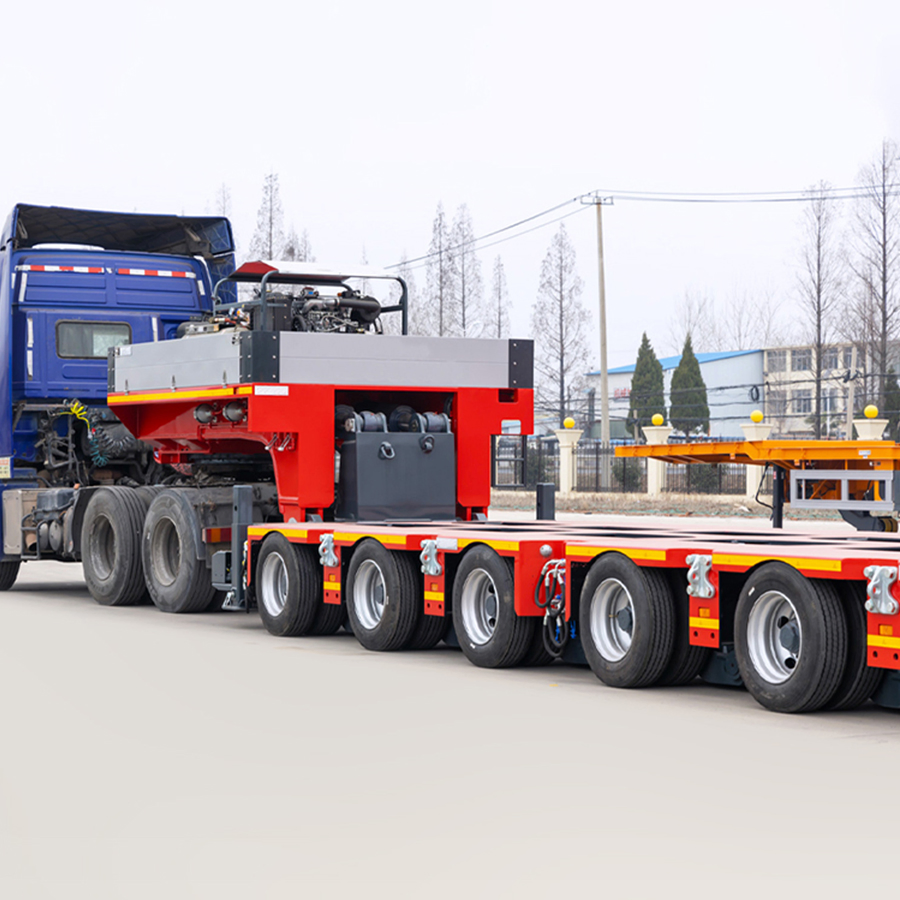

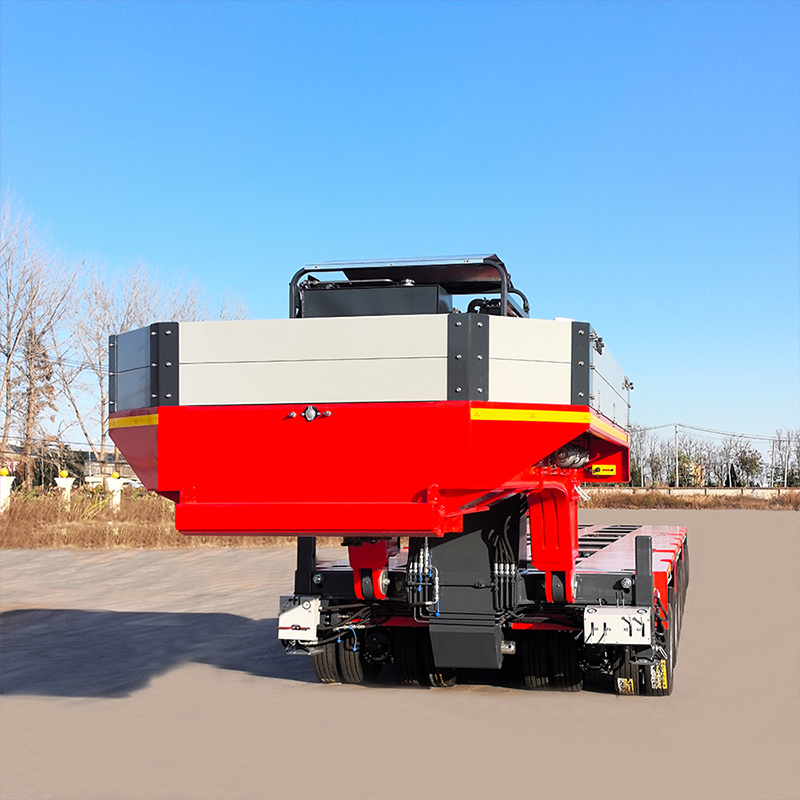

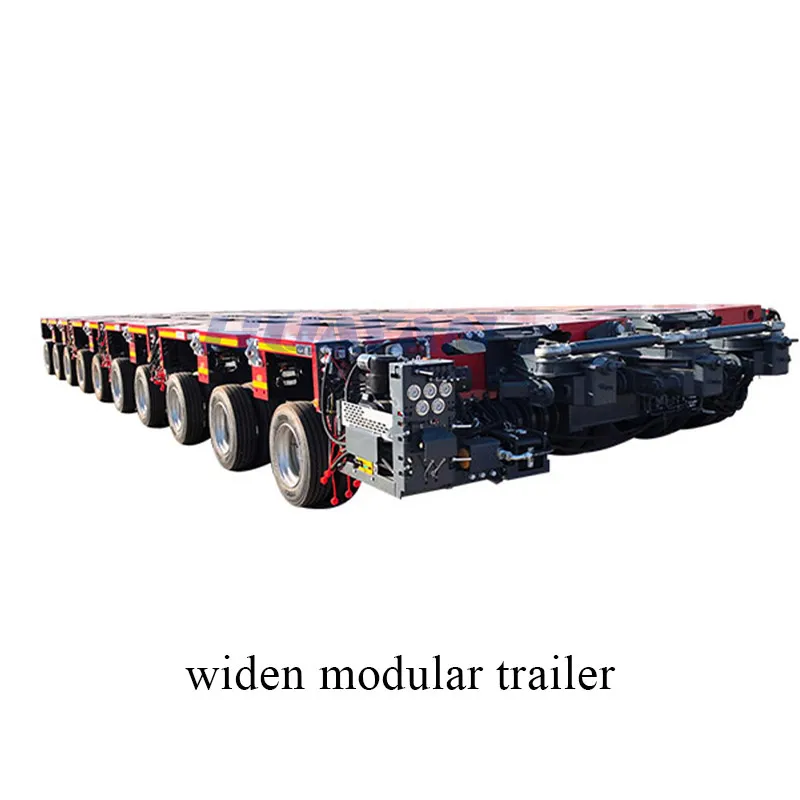

This hydraulic trailer combines cutting-edge technologies with proprietary innovations to deliver a high-strength, user-friendly heavy-duty transport solution. Its core frame is precision-welded from Q550D extra-thick steel plates in a reinforced box-shaped structure, processed through gantry milling for seamless joints and millimeter-level accuracy, ensuring exceptional load-bearing capacity and deformation resistance.
| No. | Name | Specification |
|---|---|---|
| 1 | Wheel Base | 1550mm |
| 2 | Wheel Track | 735/1820mm |
| 3 | Tyre Qty | 8 pcs/each axis |
| 4 | Tyre Spec | 215/75R17.5 |
| 5 | Rim Spec | 6.0-17.5 |
| 6 | Cargo bed width | 2990mm |
| 7 | Cargo platform height | 1070mm |
| 8 | Suspension travel | ±300mm |
| 9 | Steering mechanism | All-wheel hydraulic steering |
| 10 | Frame main material | Q550D |
| 11 | Maximum turning angle | 55° |
| 12 | Effective load capacity | 22.5 tons (18km/h) per axis |
| Accessories Name | Brand |
|---|---|
| Tire | Double-Coin/Giti |
| Steel ring | Zhengxing |
| Axle | York |
| Oil Cylinder | Hengli |
| Ball Valve | MHA/Poster |
| Quick connector | Faster |

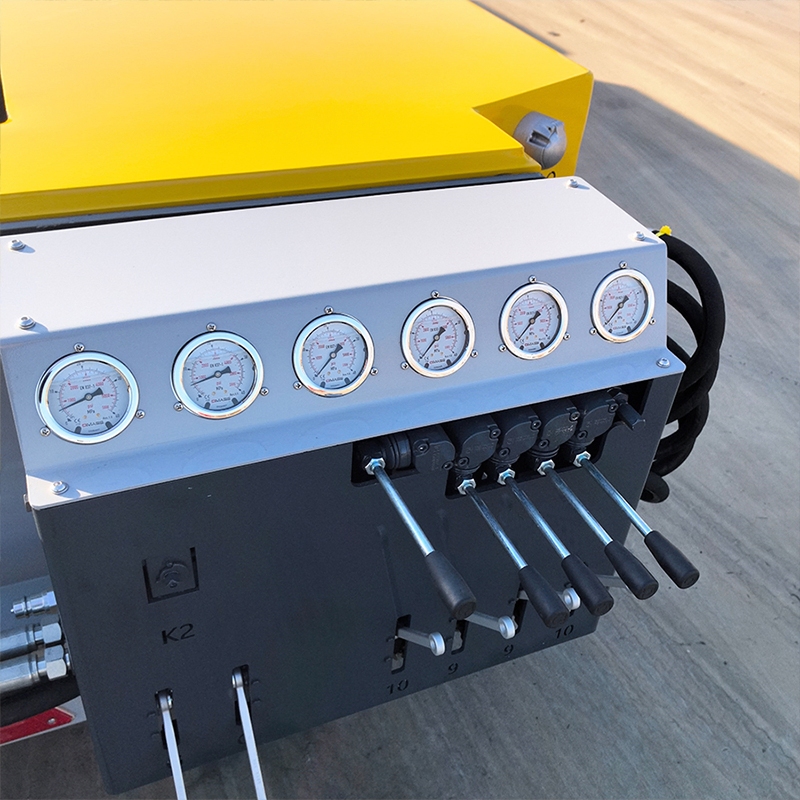

| Multi-way valve | Bondioli & Pavesi |
| Hydraulic hose | Aeroquip |

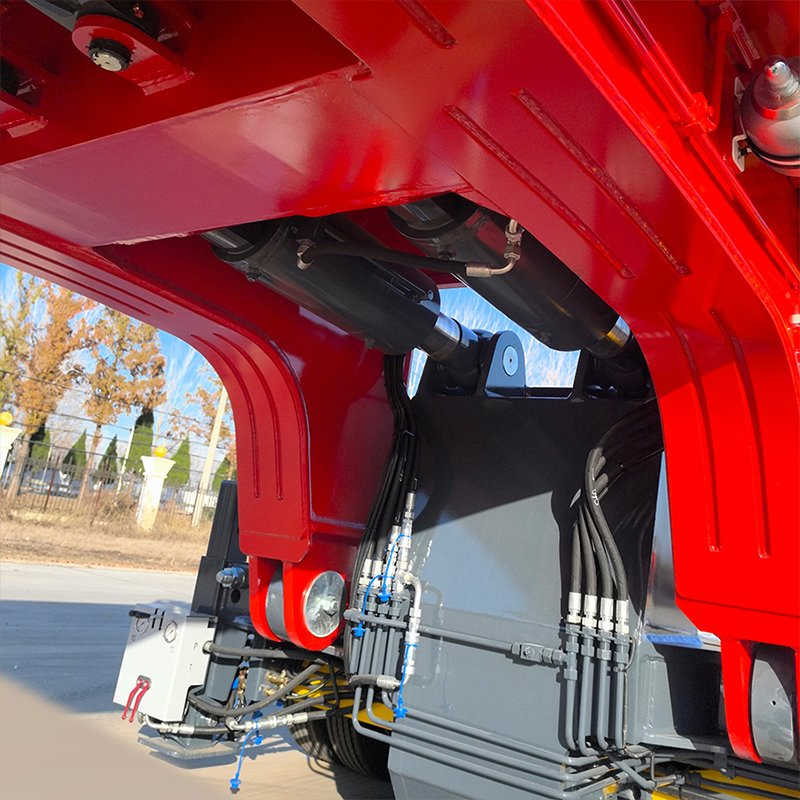

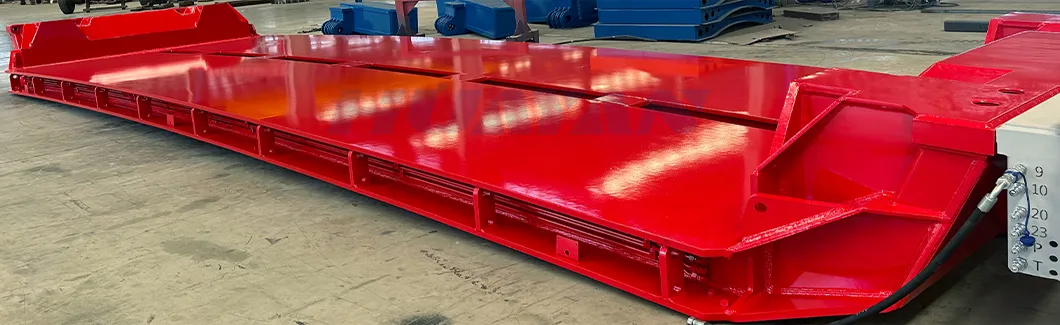

Strong load-bearing capacity: Made of high-strength steel welded into an I-shaped main beam, capable of withstanding large concentrated loads.

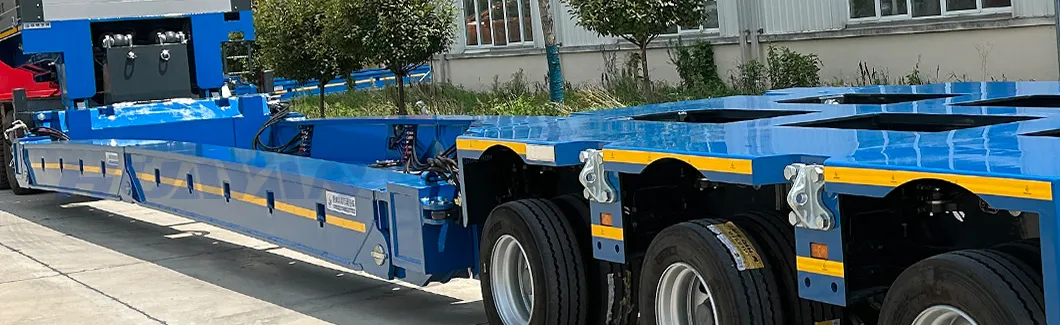

High transportation stability: Three-point support layout combined with full-wheel hydraulic control ensures safe and stable transportation.

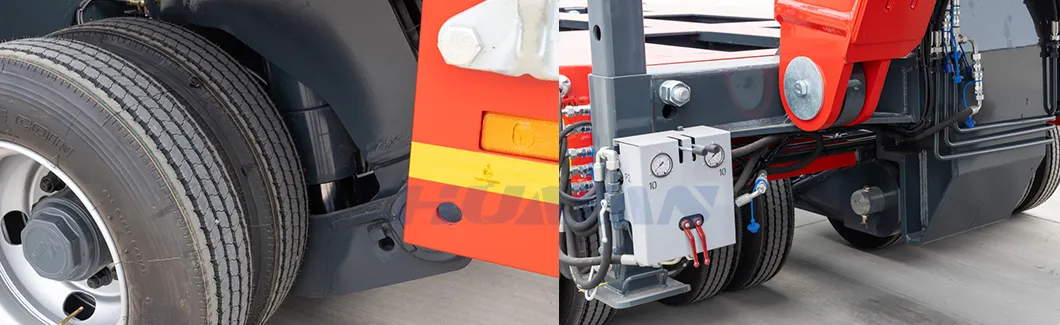

Flexible steering: Advanced steering system allows for automatic and controlled steering in complex road conditions.

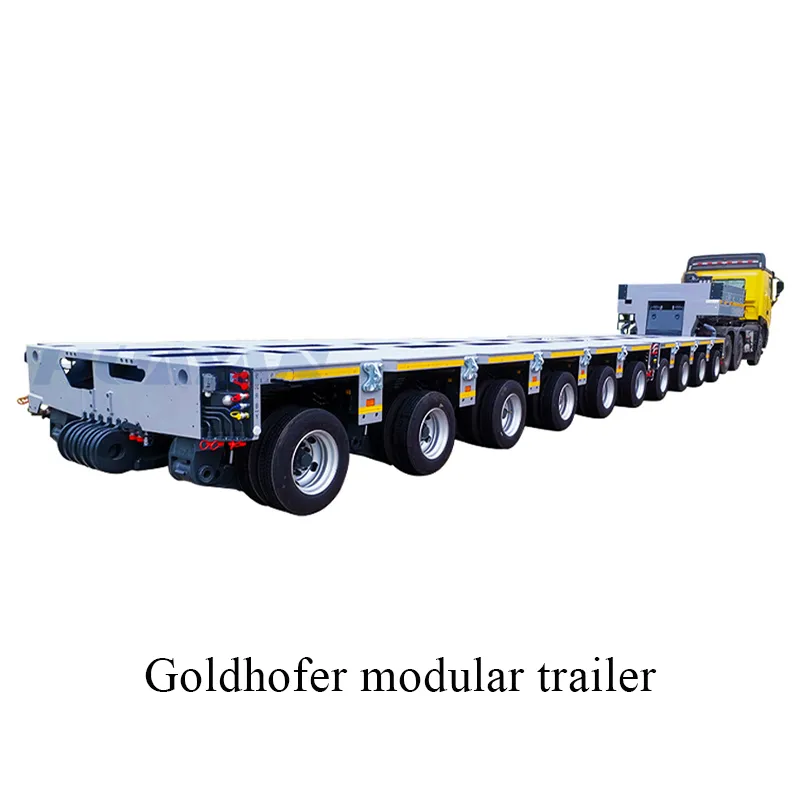

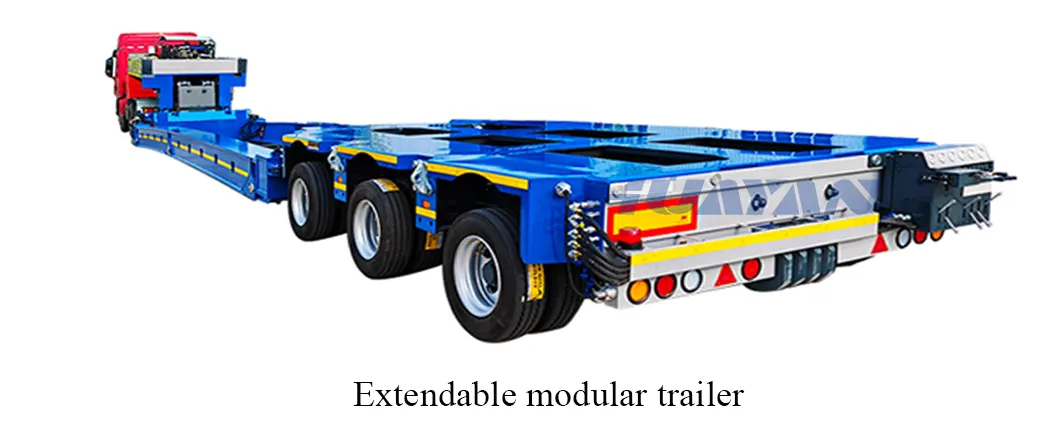

Modular Combination: Features longitudinal and transverse splicing functions to adapt to workpieces of different sizes and weights.
Our products have passed ISO9001, 14001 and CE certificates. We also provide relevant certificates that meet specific national requirements.

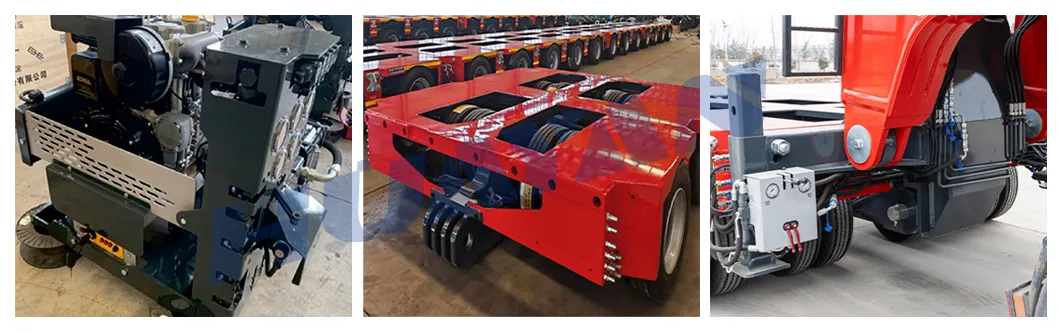

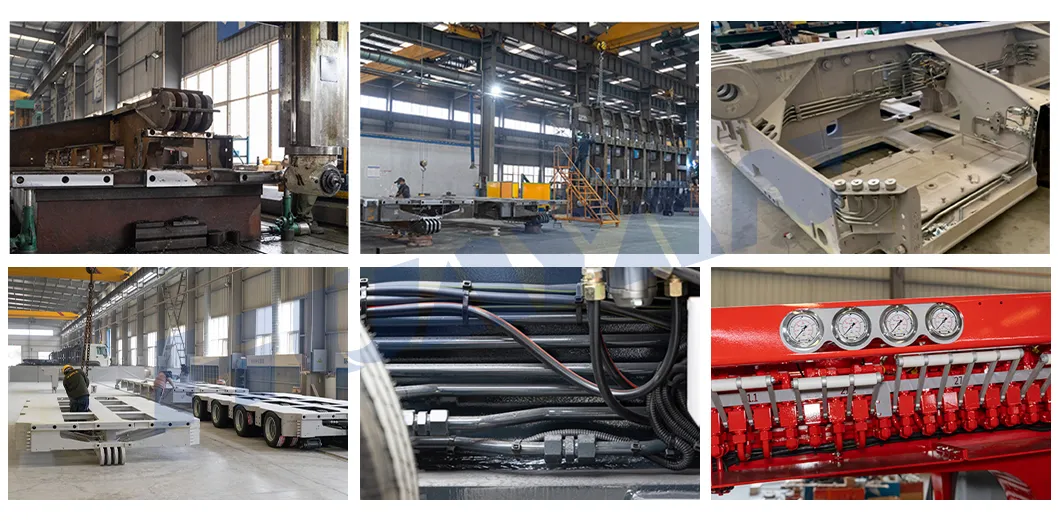

Vehicle body processed using an automatic gantry manufacturing center for precision. All mounting holes are machined in a single clamping operation.

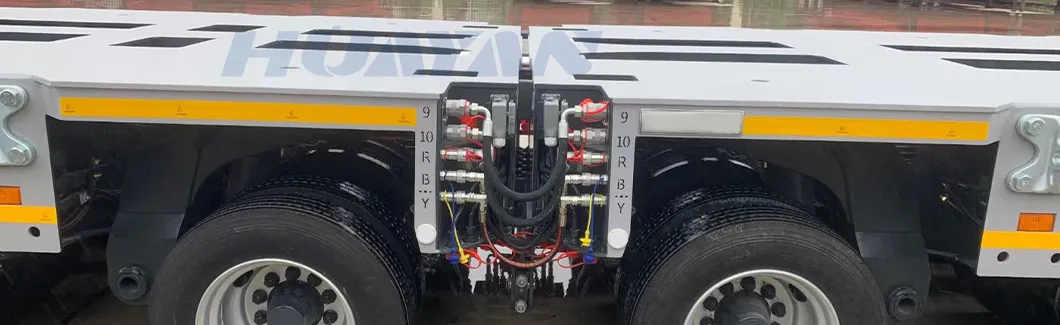

CNC pipe bending system for a unified and integrated layout, ensuring leak-proof performance.
