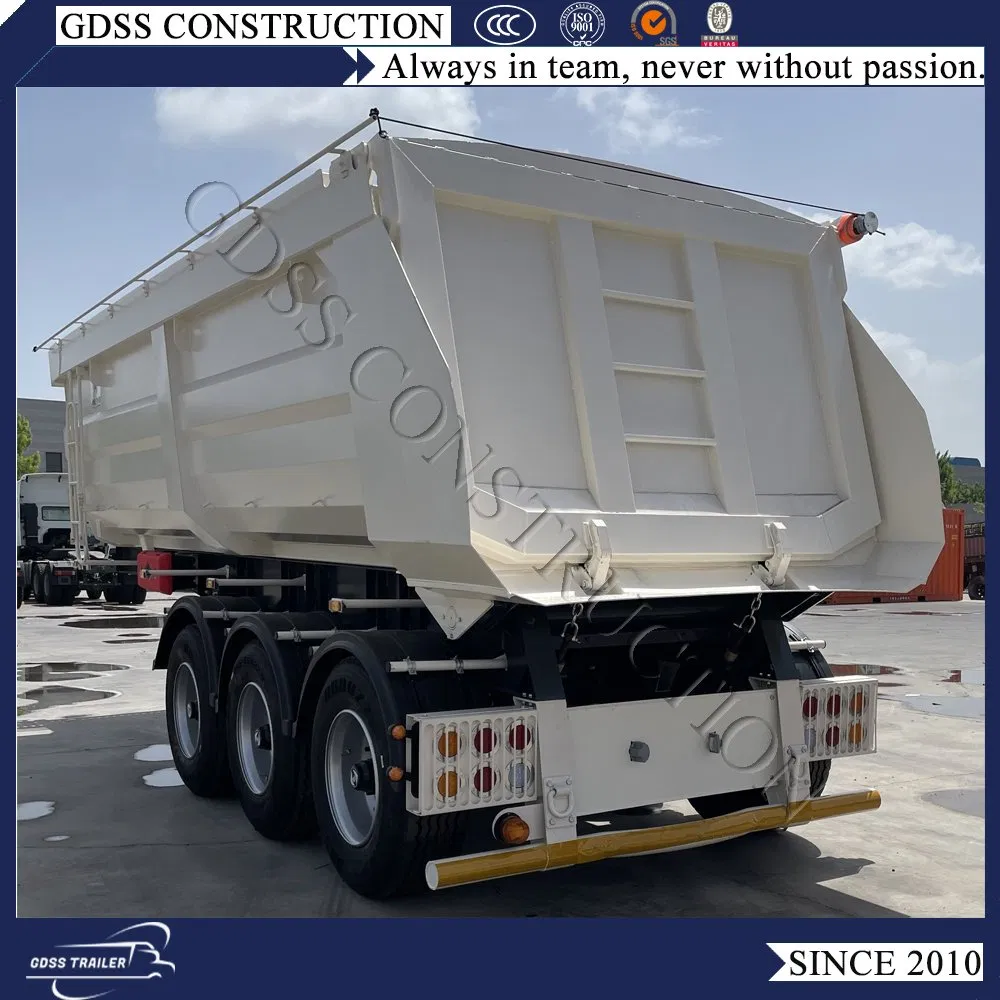

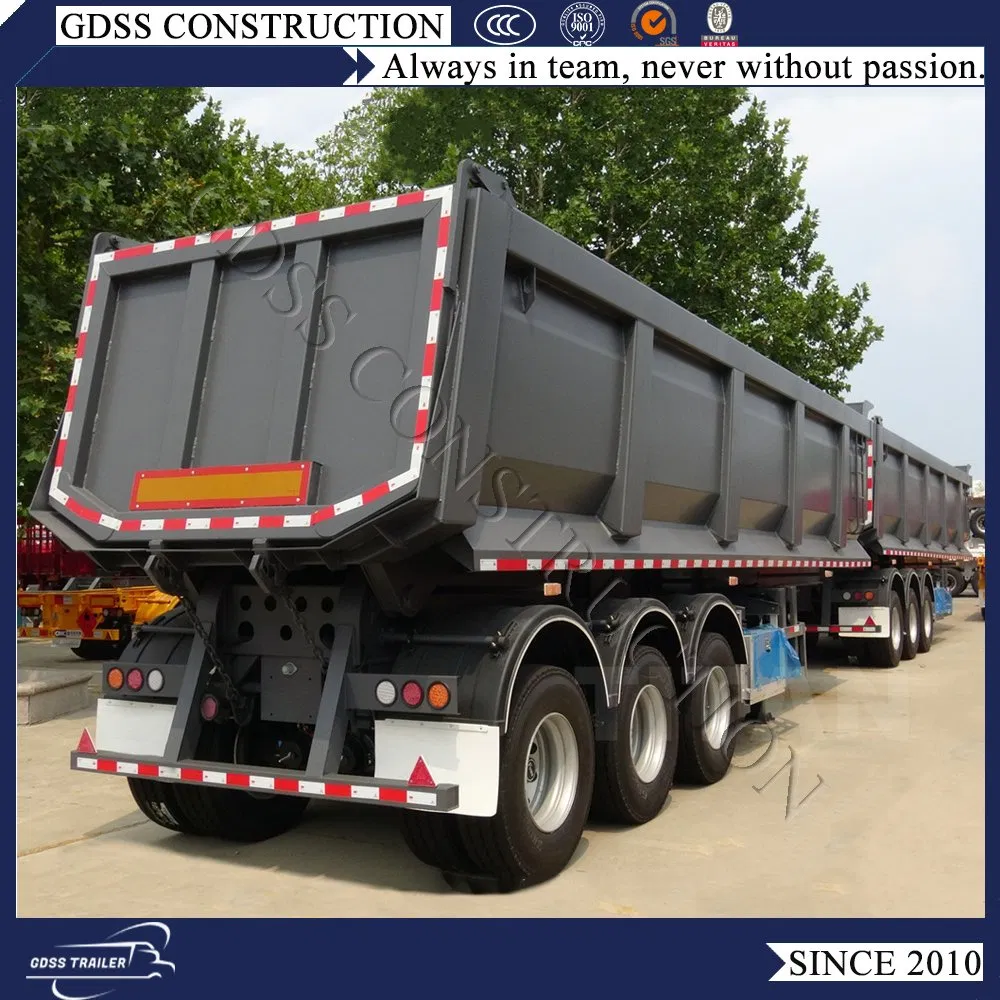

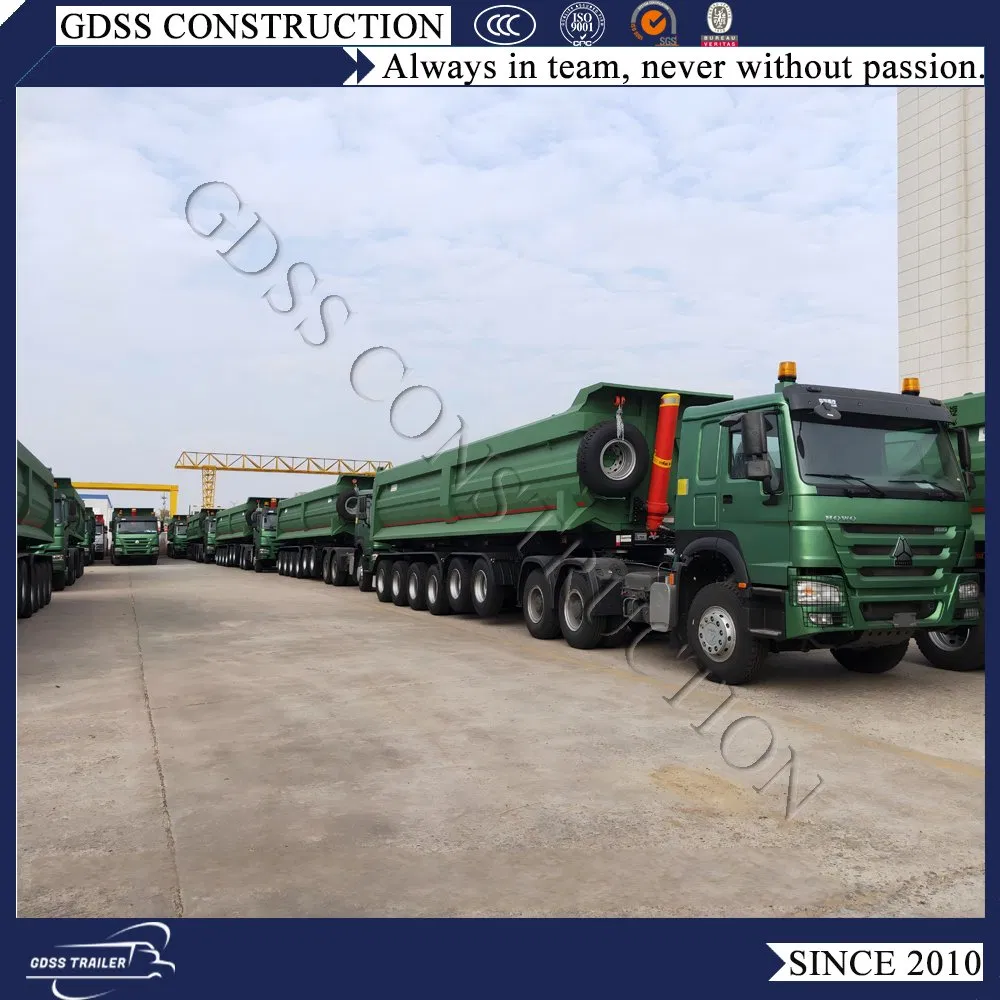

Hydraulic Side Dump 3 Axle 70ton Heavy Tipper Semi Trailer

Send Inquiry

Product Description

Basic Information

Model NO.GD9700DST

TypeSemi-Trailer

Load Capacity80T

CertificationISO9001, CCC, ISO/TS16949

Wheel Base8000-9000mm

Tread2240mm

Axle Number3

Tire Number12

MaterialAluminum

ConditionNew

UsageTransport Coal, Sand Stone and So on

Production Capacity50 Units/Month

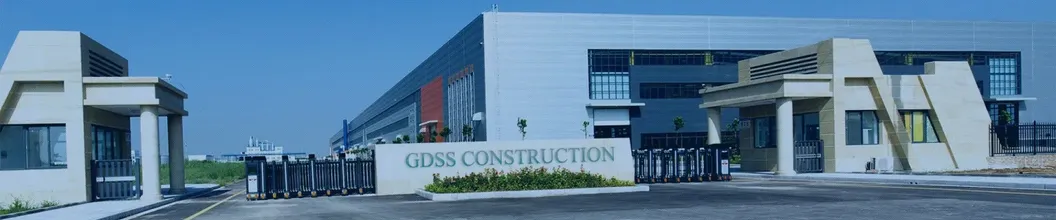

Company Profile

Product Parameters

DUMP SEMI TRAILER

Overall length	10000 mm
Overall width	2500 mm
Overall height	2800 mm
Tare weight	8T
Loading capacity	60Tons
Chassis	Constructed of original main beams electrically welded with corresponding extra strong cross member. "I" type main beam, high strength steel of 500mm, of material type Q345B. Top flange 16mm, bottom flange 16 mm, middle 14 mm.
Axle	3 axles, 13 Ton type, double tires formation.
Hydraulic system	Brand of HYVA, meet the trailer's capacity.
Suspension	Leaf spring suspension, 10 pieces of each set, 6 sets in total
Floor and side wall	Thickness of 5 mm steel plate floor; Side wall thickness 5 mm.
Kinpin	2'' bolt-in Kinpin, JOST brand.
Landing gear	Static capacity 80 Tons, lifting capacity 28 Tons. Swivel large pads.
Rim & Tire	9.00x22.5 Rims / 12R22.5 Tires (12 pieces each)
Electrical	24V DC. Tail, brake, reflector and direction indicators included.

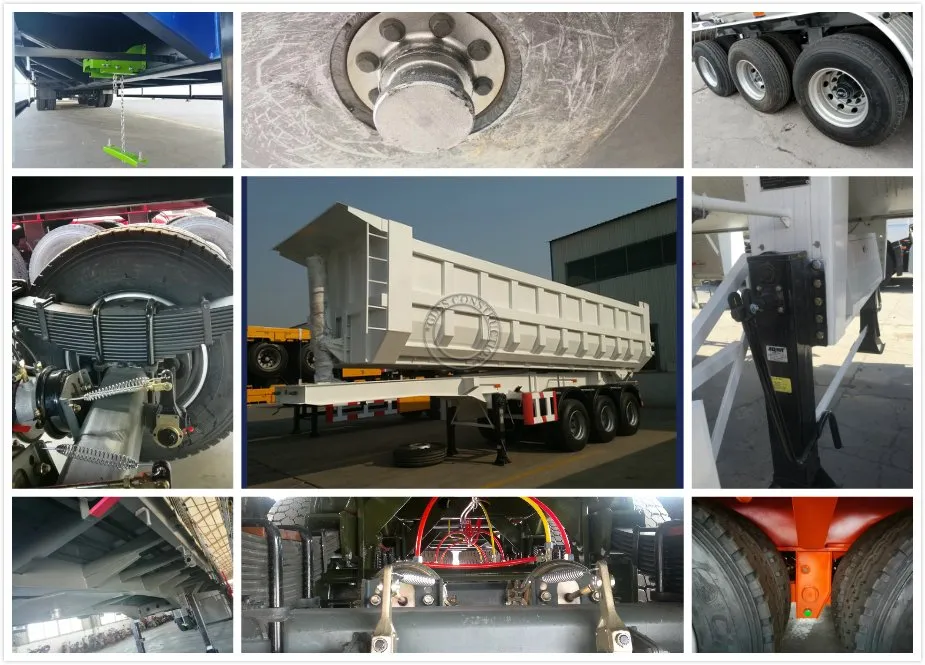

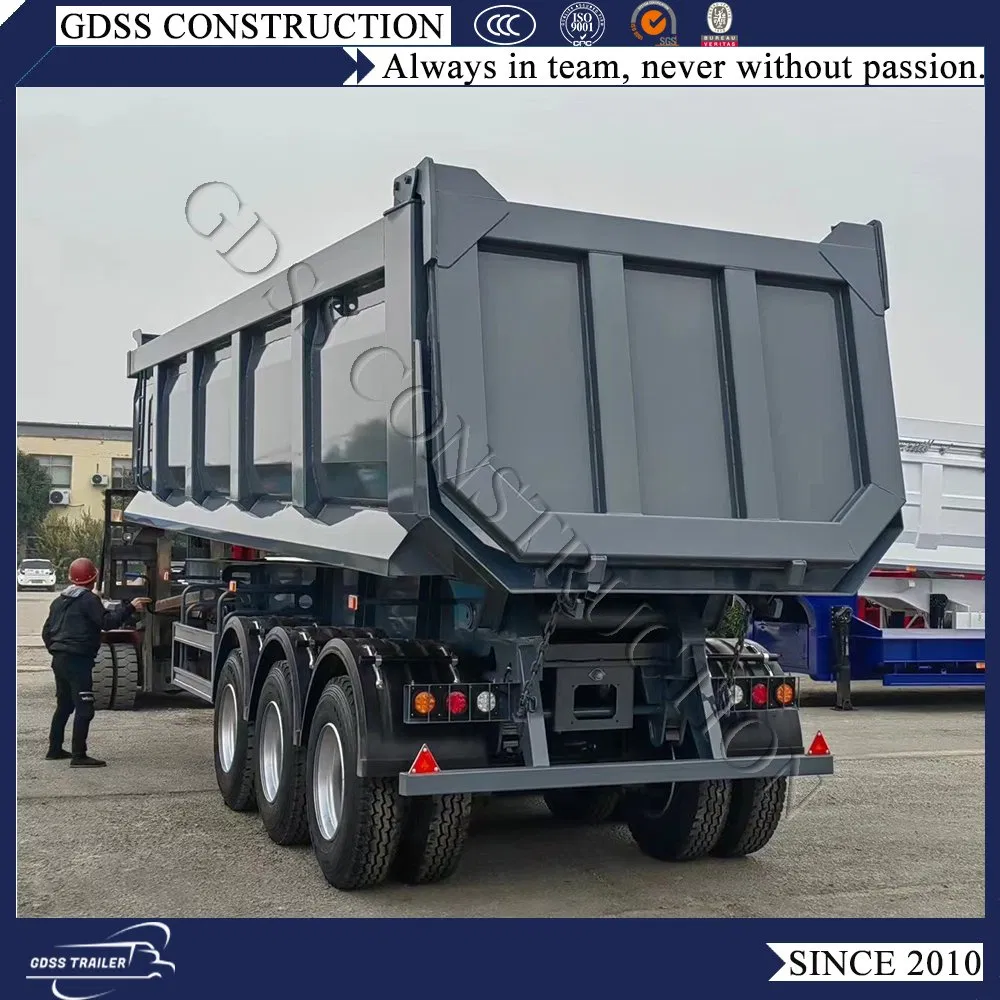

Detailed Photos

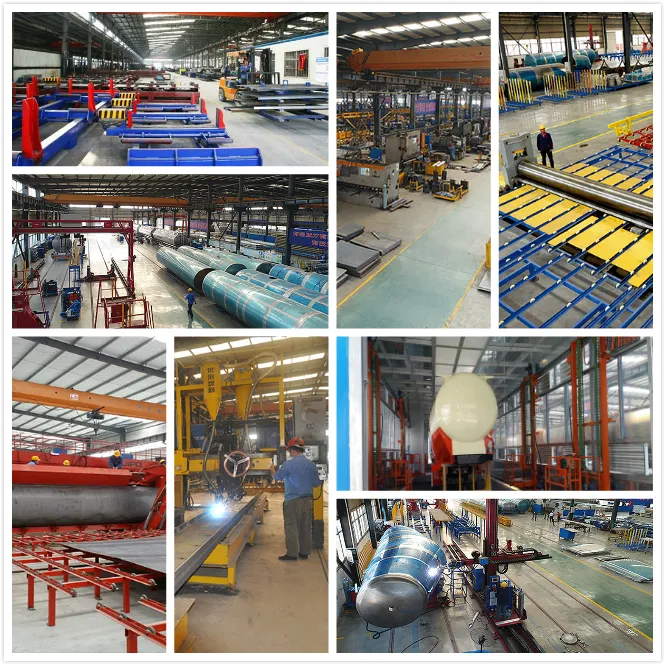

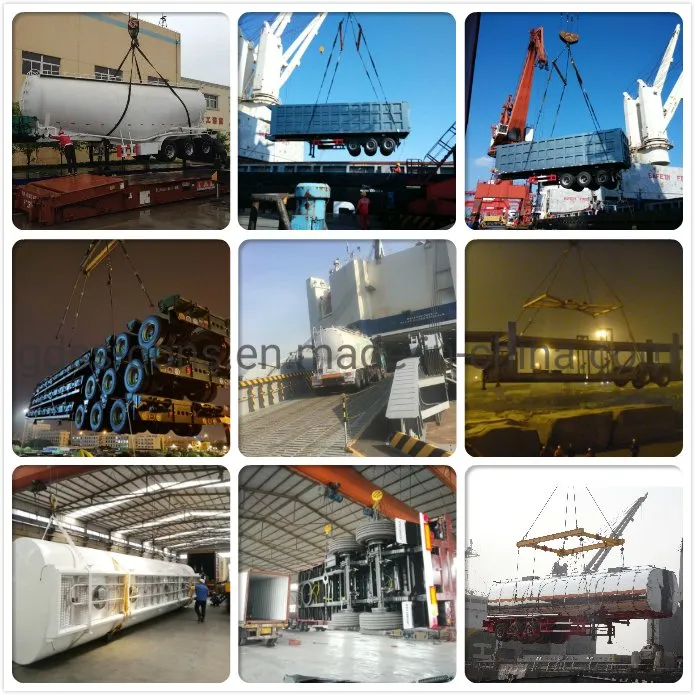

Packaging, Shipping & Workshop

Exhibition & Customer Visits

Frequently Asked Questions

1. Can we first order one unit for a test? Yes, ordering a single unit for testing purposes is welcome.

2. Can you customize the trailer to specific sizes? Yes, the design can be fully customized according to your specific requirements.

3. What is the typical production lead time? Normally, it takes approximately 35 days to complete production.

4. Is it possible to add our company logo to the trailer? Yes, we can paint your custom logo on the vehicle as requested.

5. How are the trailers delivered? We ship via container, bulk cargo ship, or RORO ship, choosing the most cost-effective method for you.

6. What is the warranty coverage? We provide a two-year warranty for the main beam and a one-year warranty for other parts like the axles.
