Overview
Type:Semi-Trailer
Load Capacity:100t
Certification:ISO9001, CCC, ISO/TS16949
Wheel Base:1310
Tread:2240mm
Grade:Heavy Duty
Suspension:Leaf Spring Suspension
Shape:Step Deck Trailer
Axle Number:4
Tire Number:16
Material:Steel
Gooseneck:Hydraulic Folding Gooseneck
Product Description

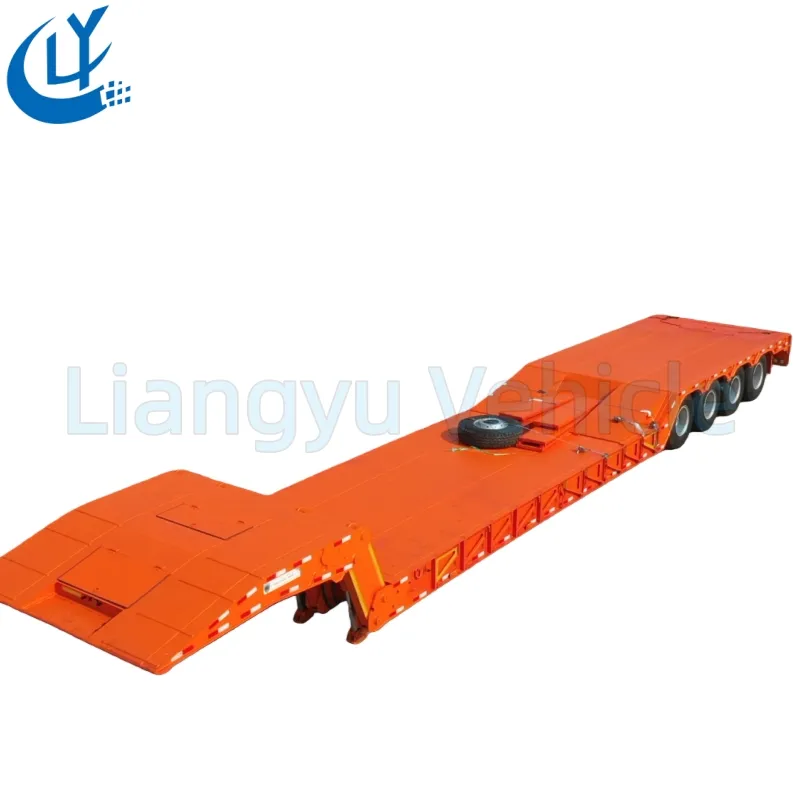

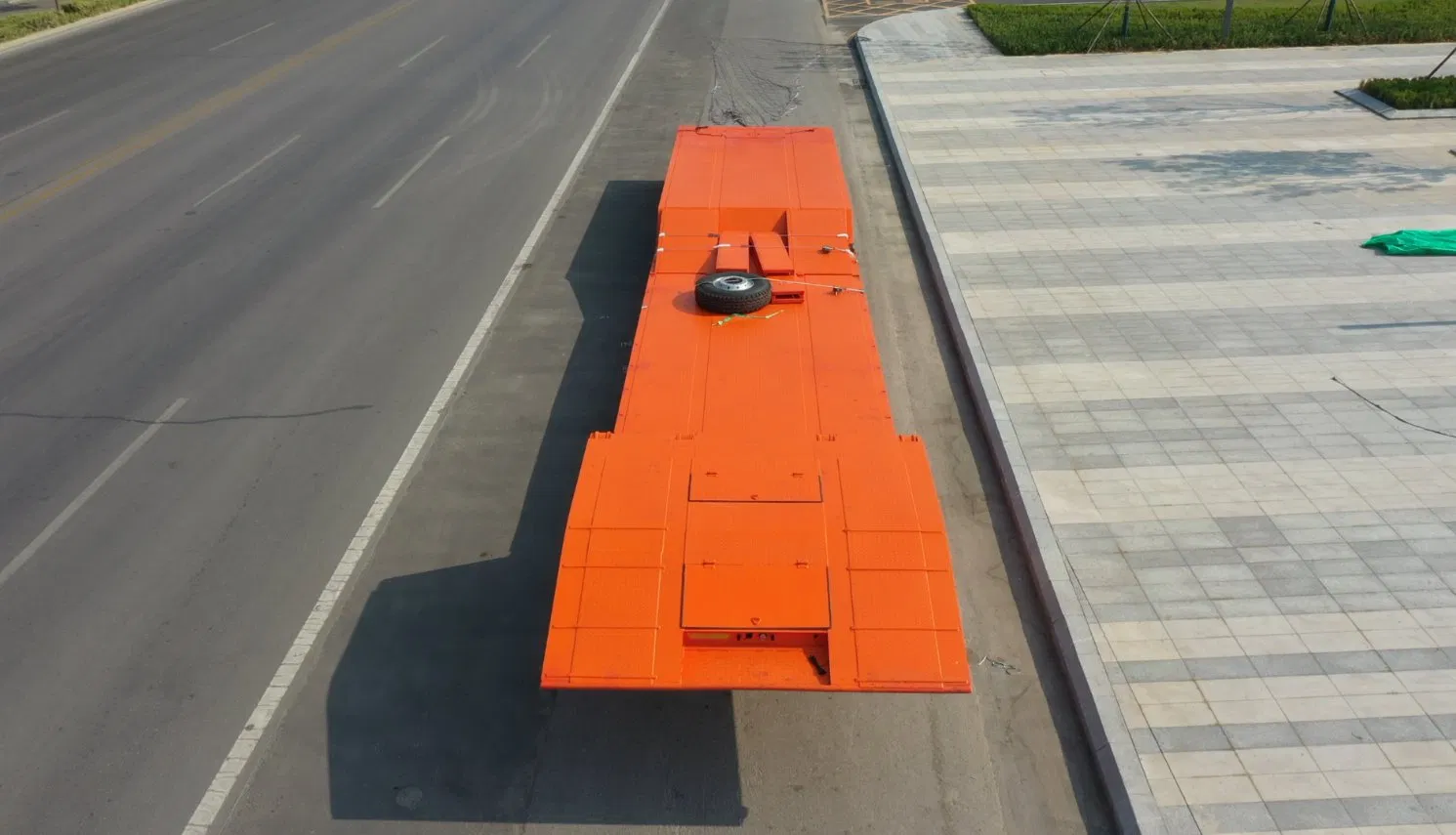

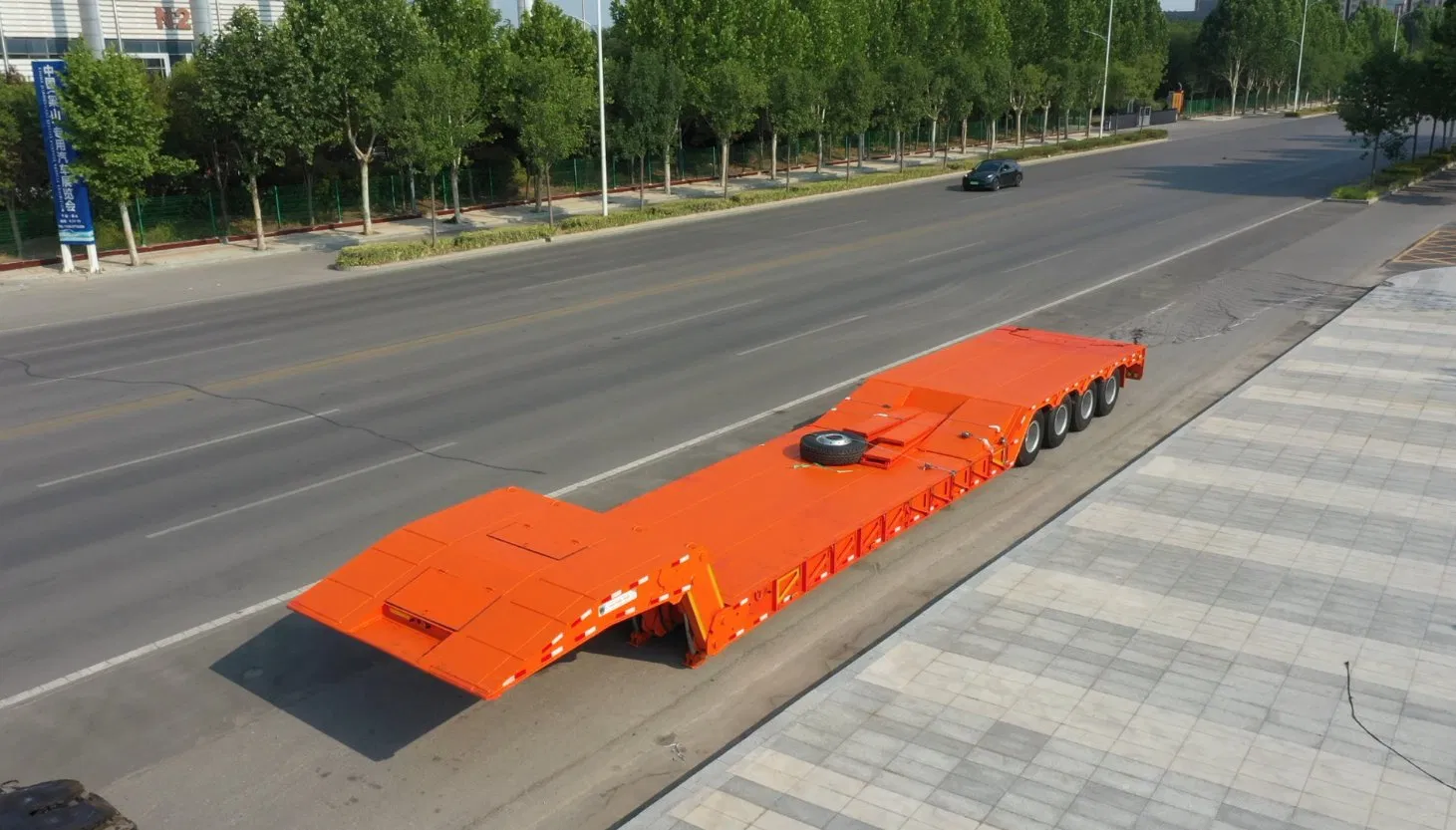

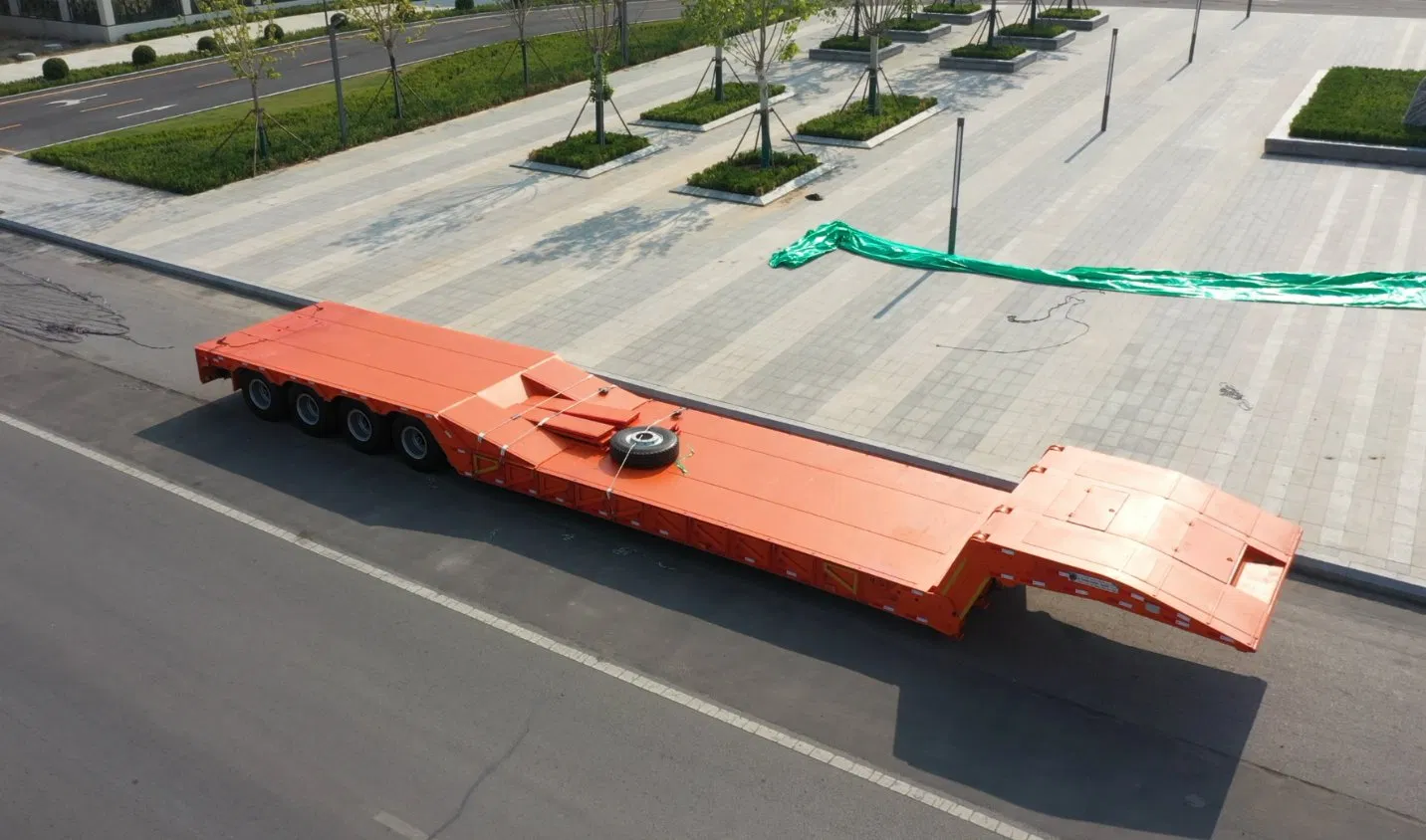

The folding gooseneck lowboy trailer is a specialized vehicle designed for transporting heavy and oversized cargo. Its core structure consists of a hydraulically foldable/detachable gooseneck, high-strength lowboy frame, multi-axle suspension, and hydraulic control system. Featuring the iconic folding gooseneck design, the front end of the platform can be lowered close to the ground, allowing construction machinery and large equipment to load and unload independently without additional auxiliary tools.
Easy Front-Loading

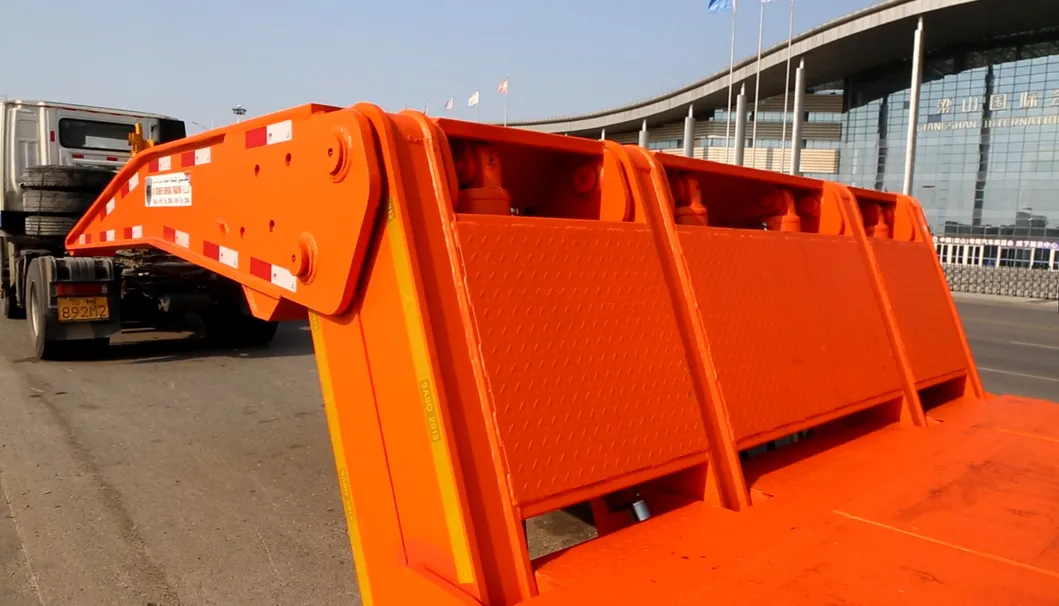

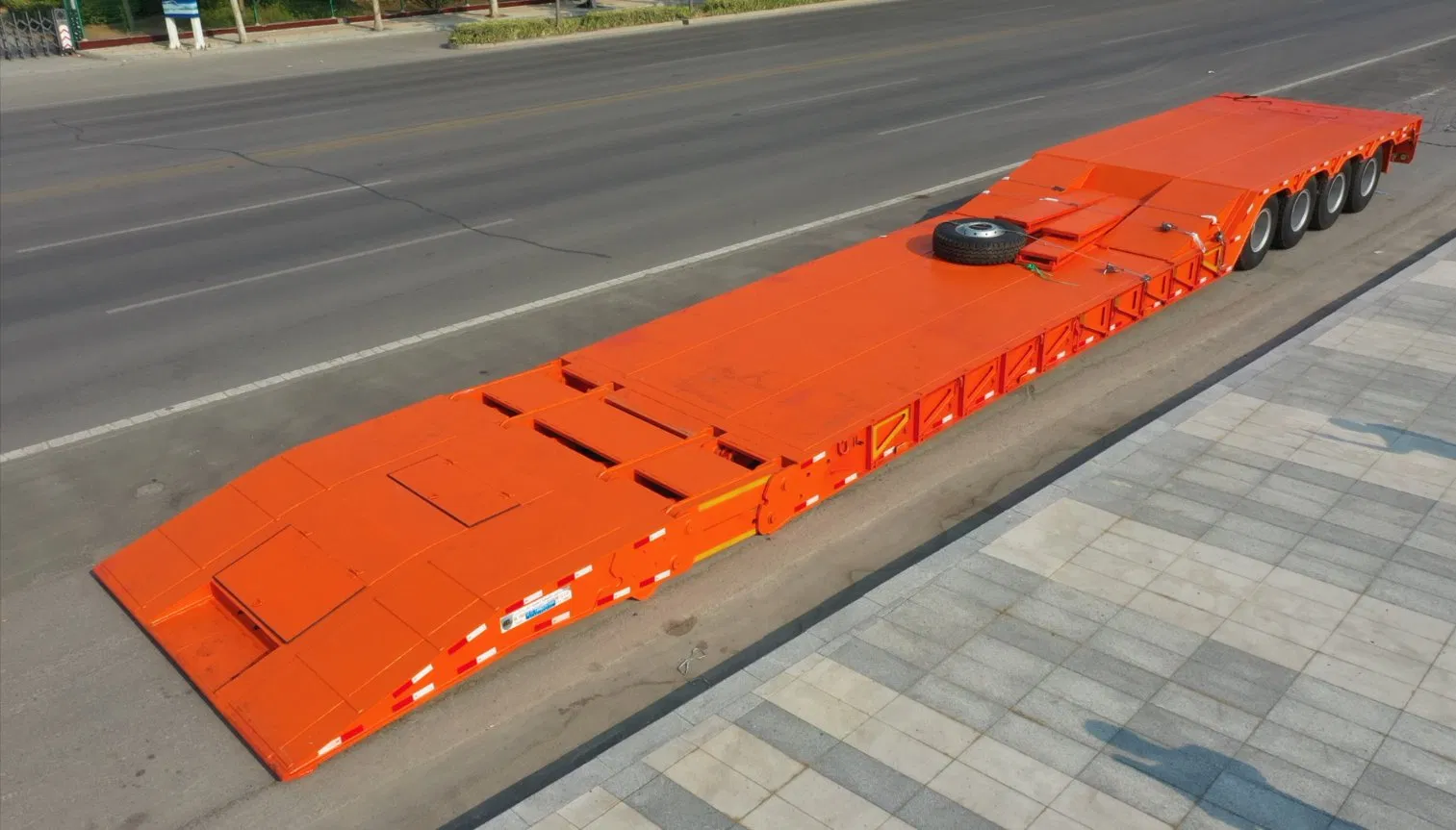

Benefit from a hinged gooseneck that folds down to create a seven-degree load angle on the front. Load heavy equipment efficiently without the need to detach a gooseneck. When folded down, the tapered gooseneck adjusts to uneven terrain without the use of blocks.
Strong Main Deck
Haul the heaviest equipment with confidence. The main beam material is Q690 and the main deck feature a perimeter frame design with G-channel crossmembers every 30cm, for superior strength and durability.

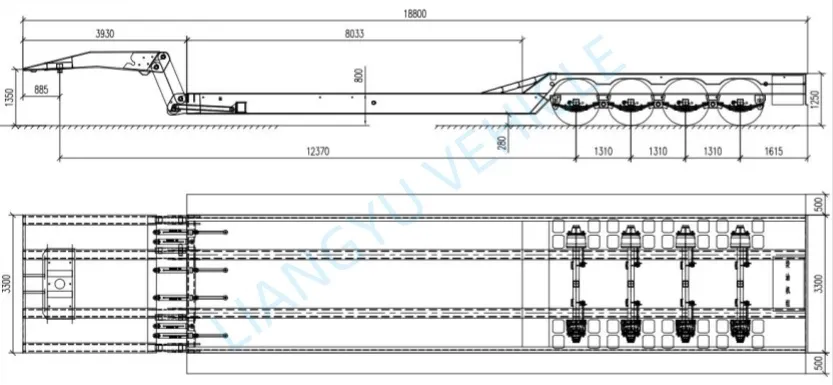

Product Parameters
| Name |
Hydraulic Folding Gooseneck Trailer |
| Size |
18800mm*3300mm |
Axle |
4 pcs * 20T |
| Main Beam |
Height: 500mm, Q690D Material |
Suspension |
Reverse suspension, 8mm |
| Tyre |
1200R20 * 17pcs |
Payload |
90T |

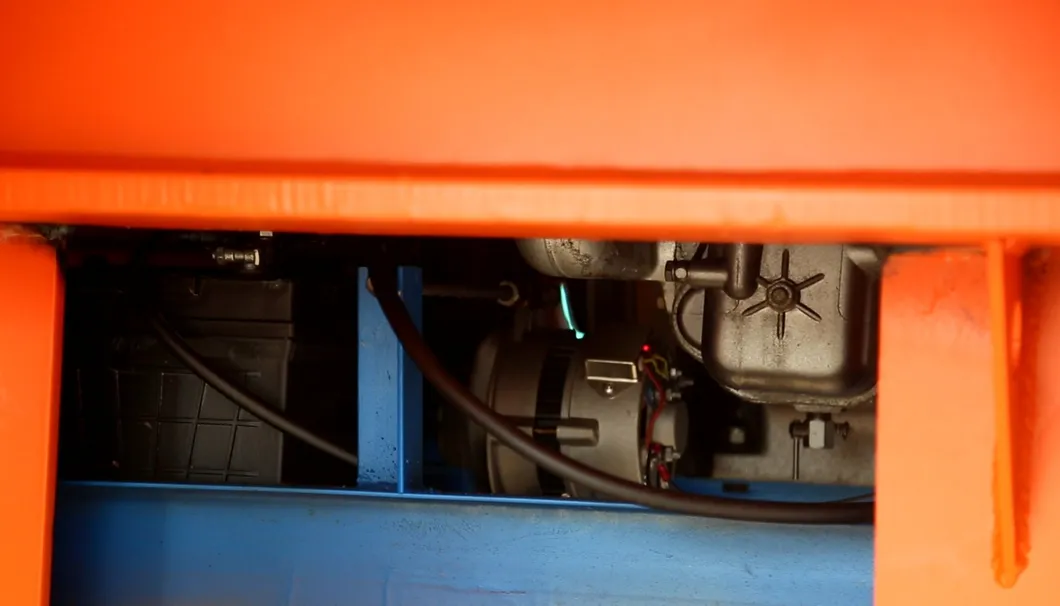

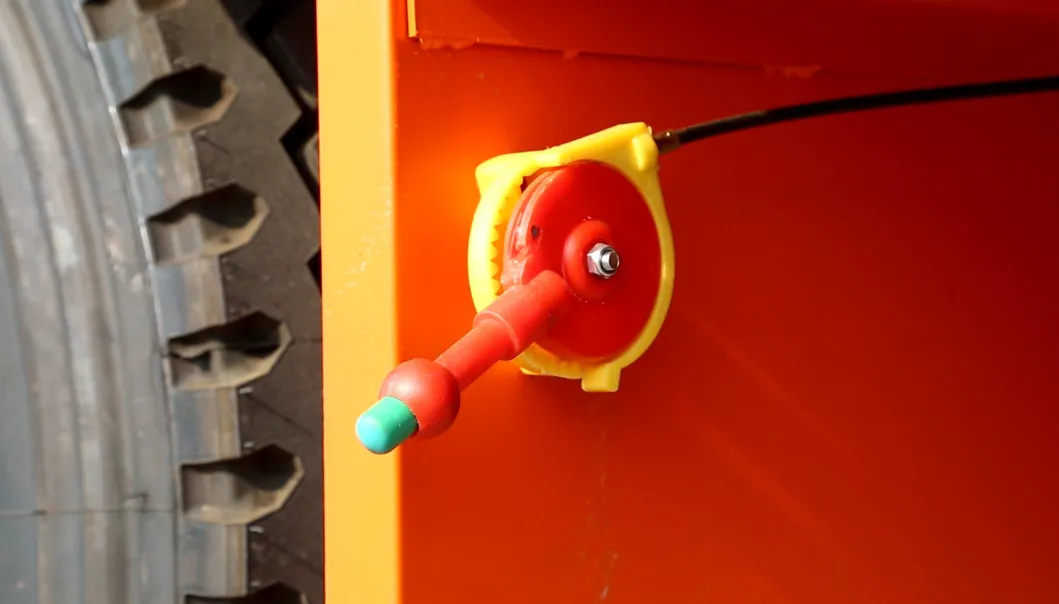

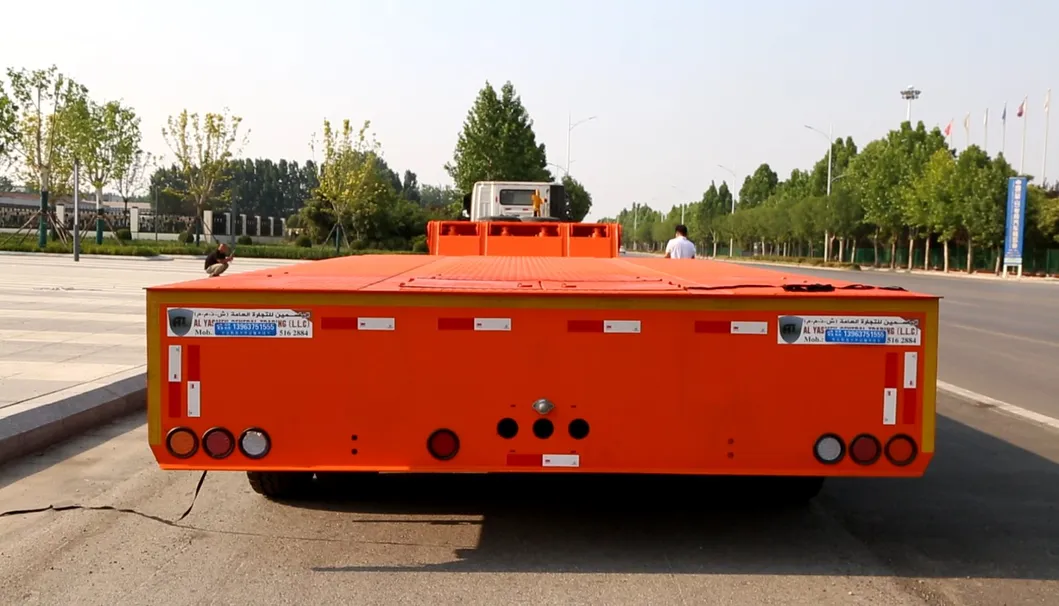

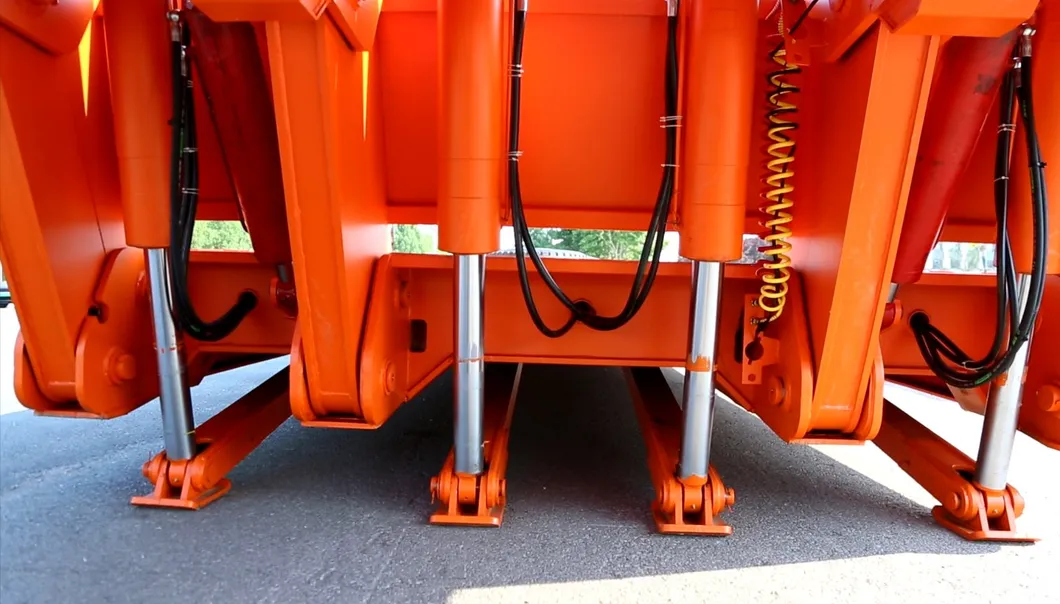

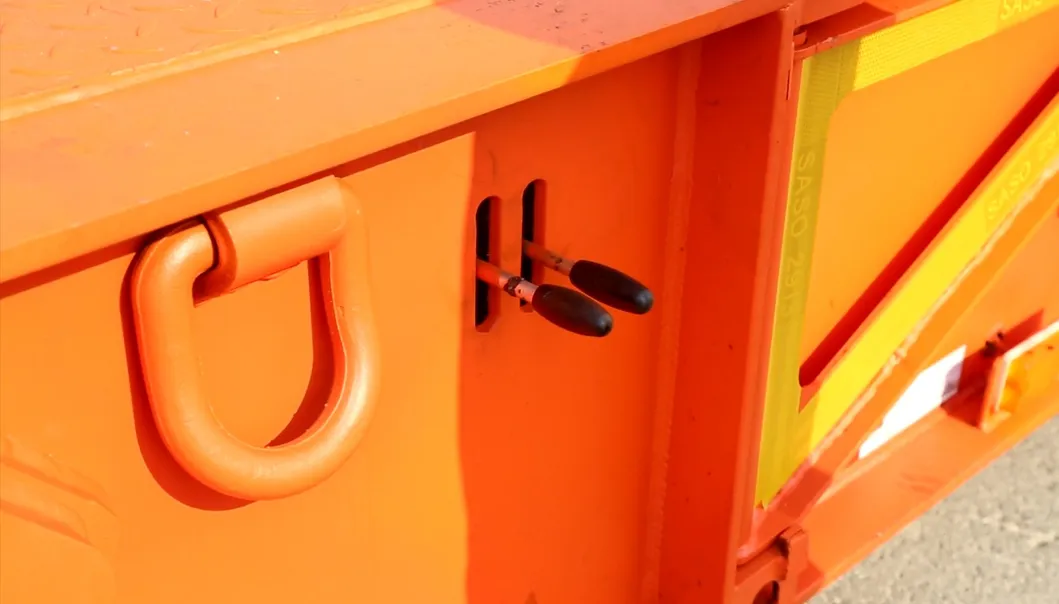

Detailed Photos
Our Advantages
- ✔ Lower working platform height for high and voluminous loads.
- ✔ High tensile steel frame to ensure durability on bad road conditions.
- ✔ Submerged arc welding technology to avoid welding-opening problems.
- ✔ High strength steel loading ramps with high loading capacity.
- ✔ World famous brand spare parts to ensure high quality and save costs.

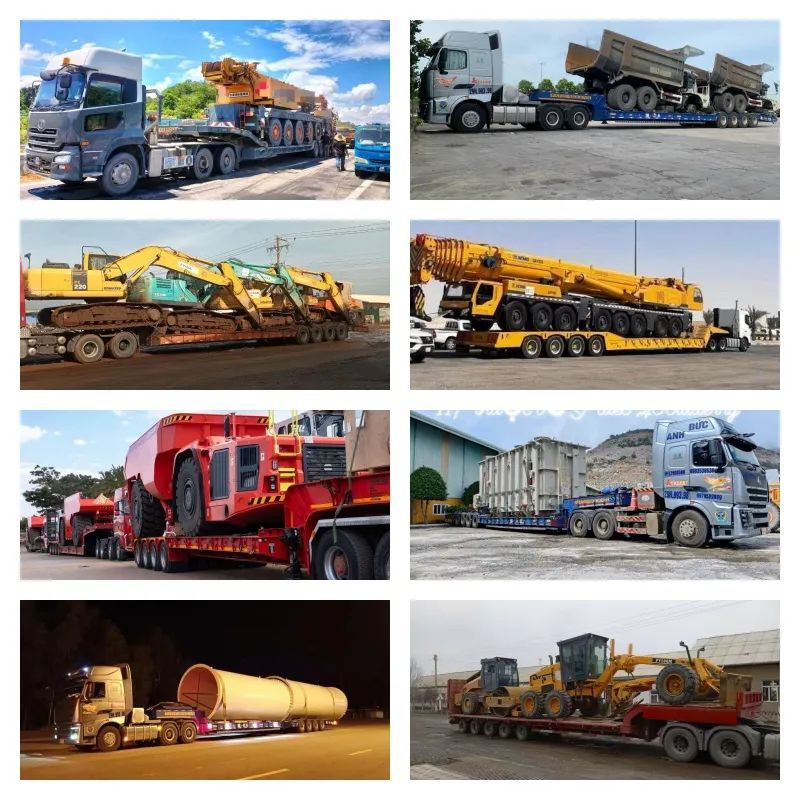

Customers Using Case

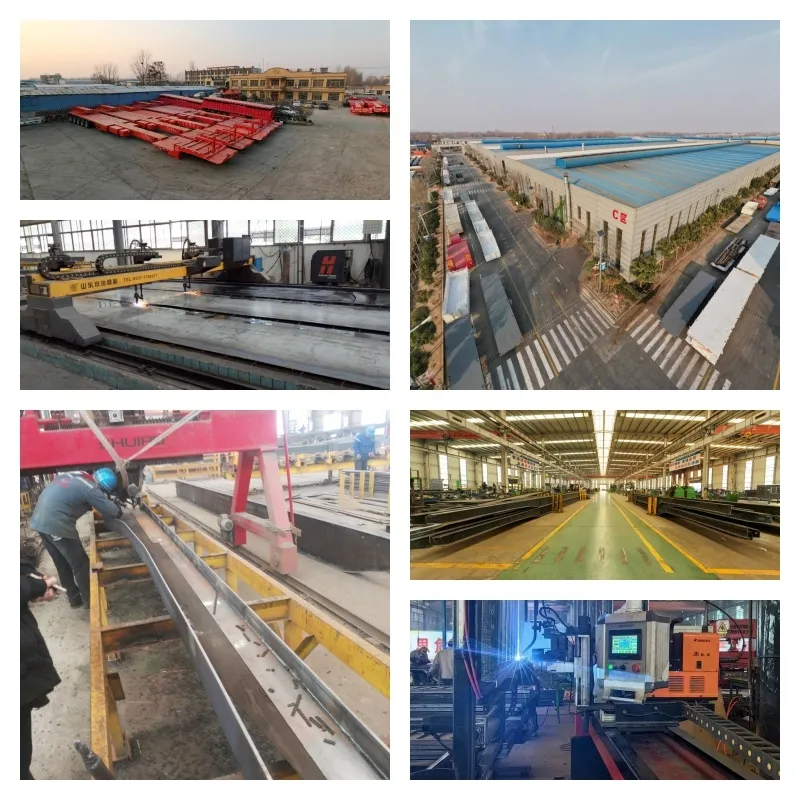

Production & Exhibition
FAQ
What kind of trailers and trucks do you offer?
We offer high-quality trailers and trucks, manufactured to meet your specific requirements.
What payment options do you accept?
We accept both Telegraphic Transfer (T/T) and Letter of Credit (LC), providing you with flexibility and convenience.
What kind of after-sales services do you offer?
We offer technical support and provide spare parts to ensure the long lifespan of our products.
How do you deliver spare parts?
Spare parts are delivered through trusted shipping methods such as DHL, UPS, or FedEx.
What shipping options do you provide?
We use container, flat rack container, Roll-on/Roll-off (Roro) vessel, and bulk vessel for shipping.
What is the delivery time?
Delivery time ranges from 7 to 60 days after receiving the deposit, depending on the order requirements.
