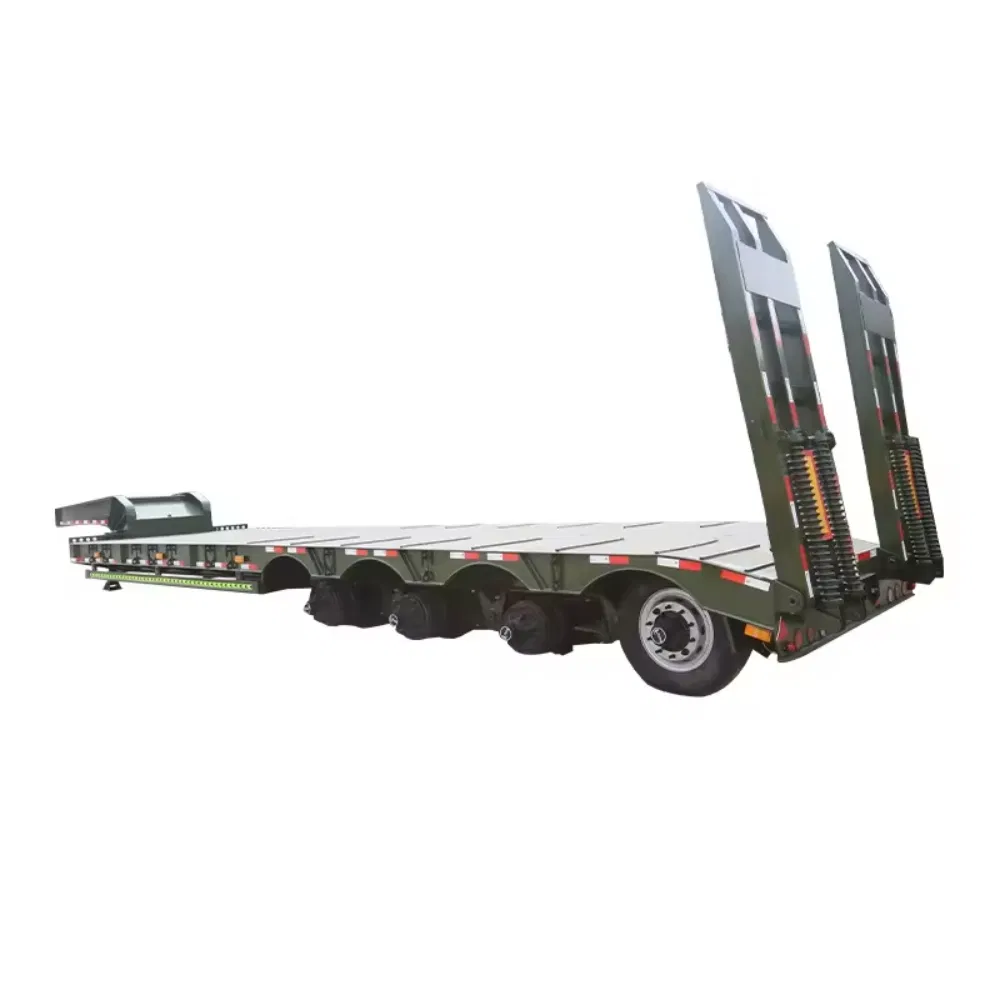

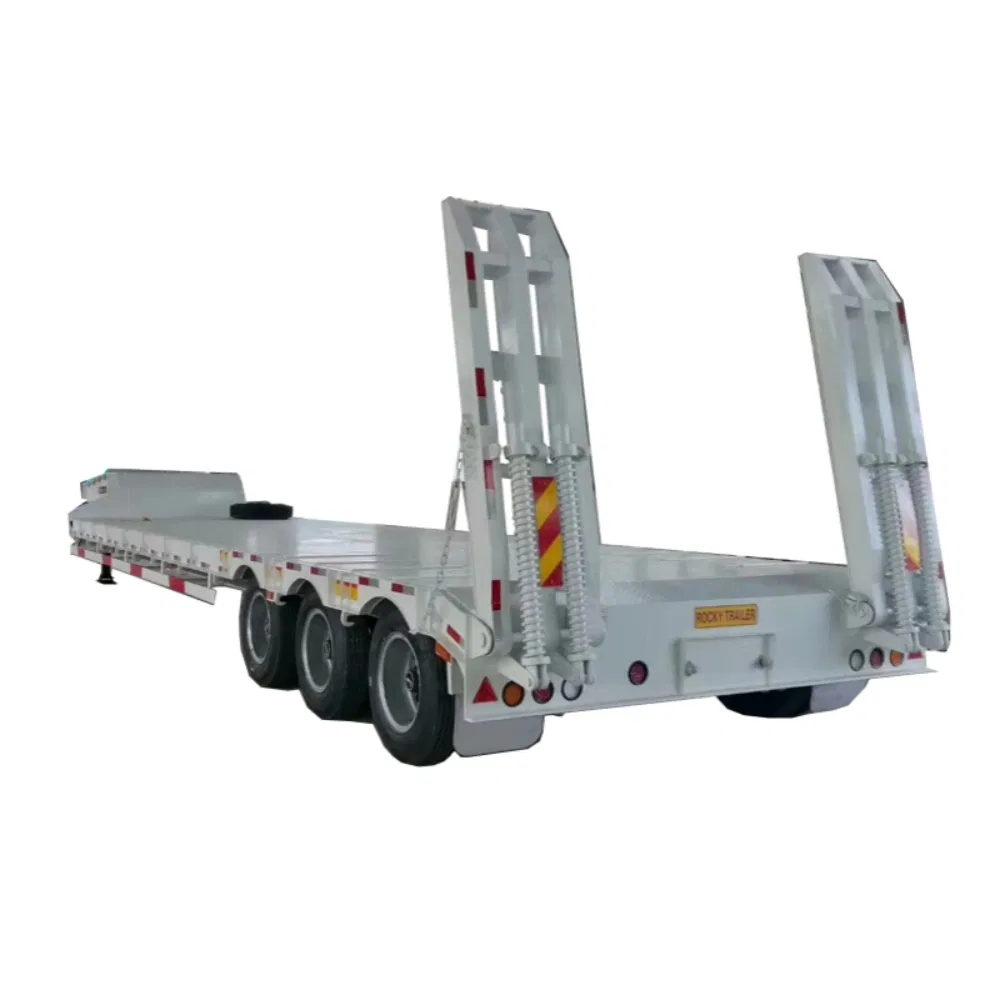

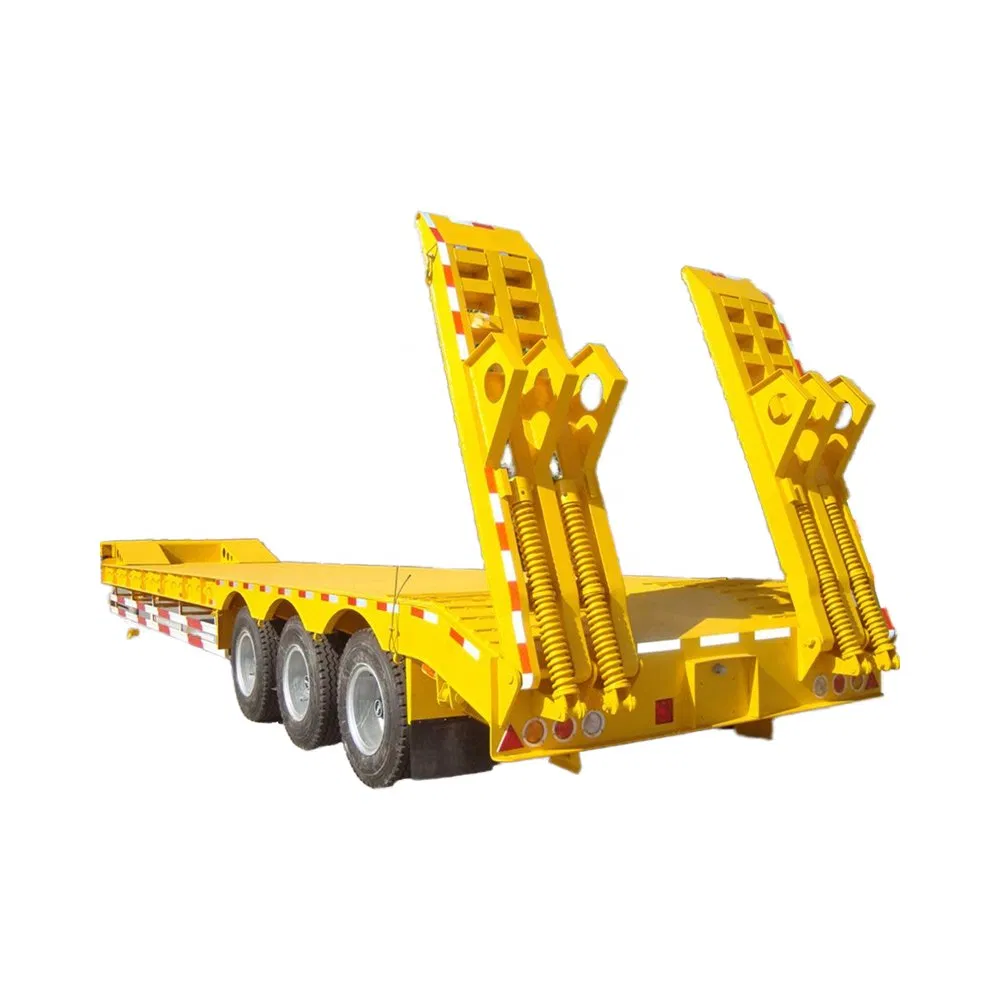

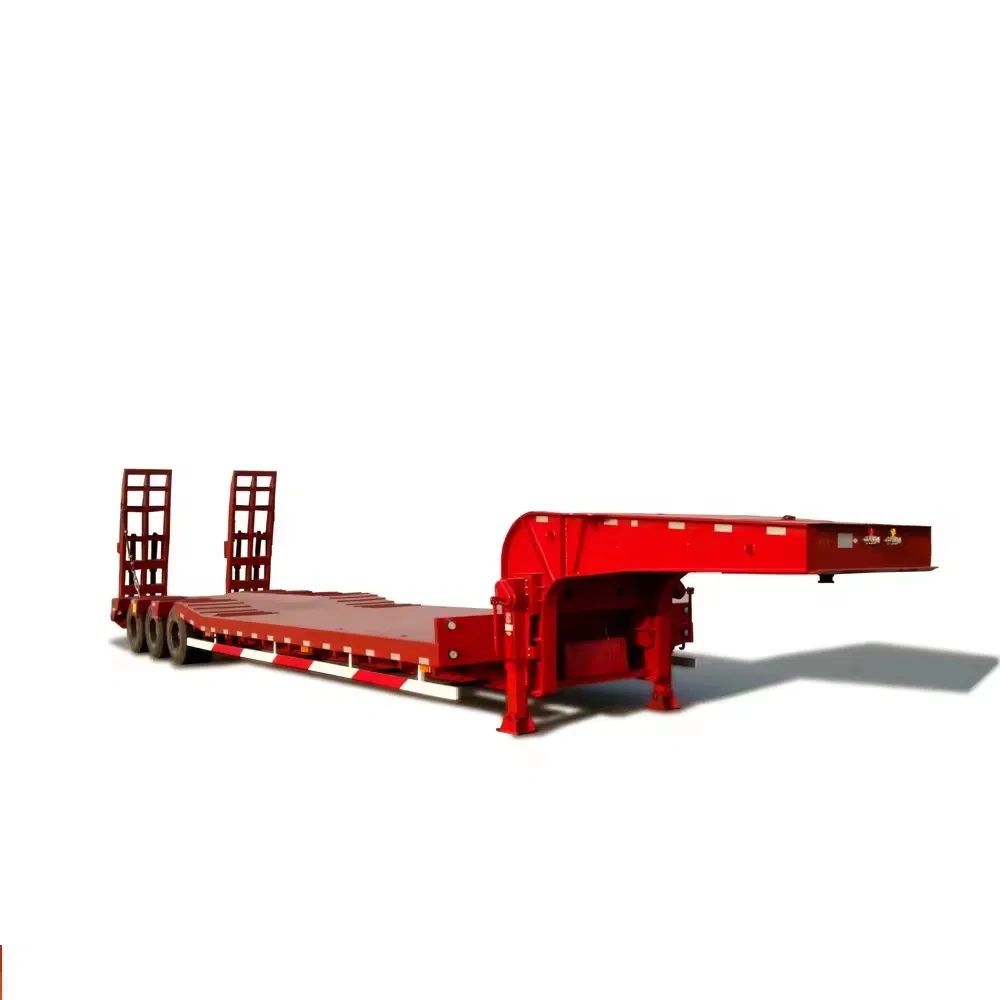

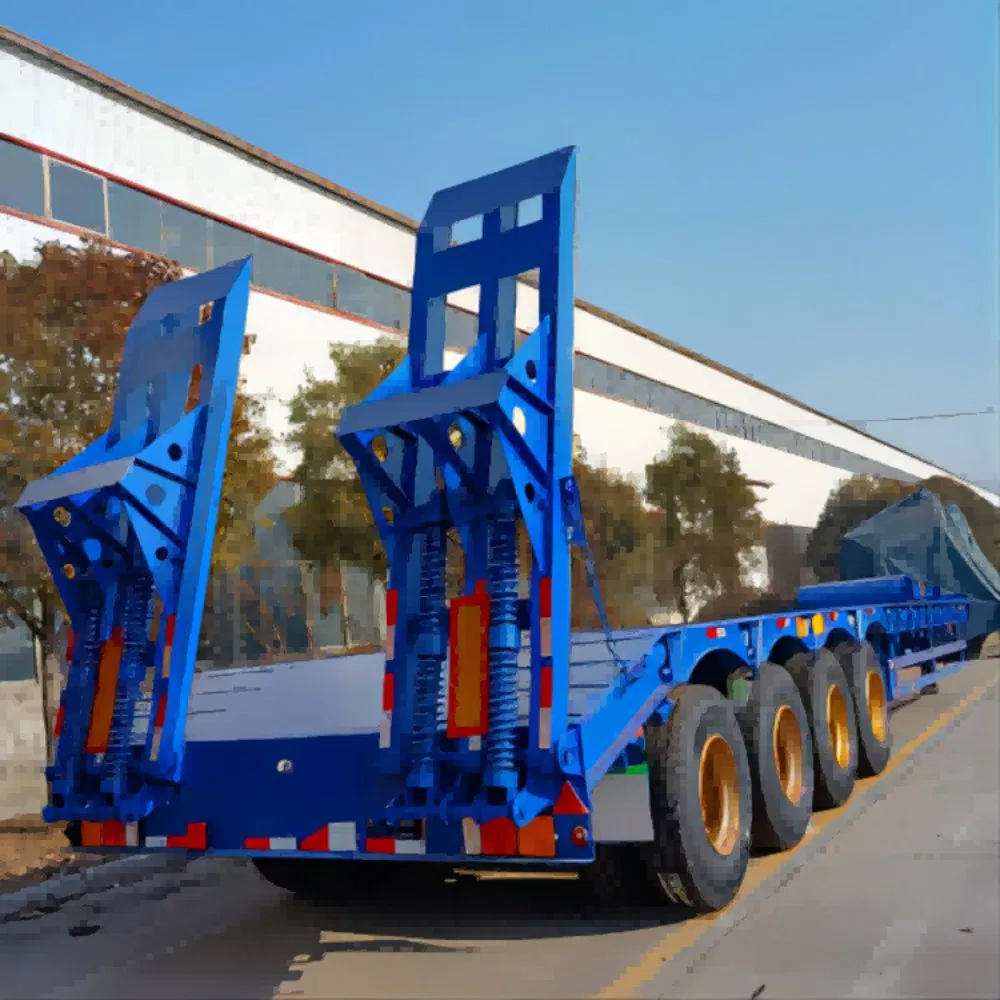

3 Axle 60 Tons 100 Ton Hydraulic Extendable Lowboy Loader Lowbed Low Bed Truck Semi Trailer for Sale
3 Axle 60 Tons 100 Ton Hydraulic Extendable Lowboy Loader Lowbed Low Bed Truck Semi Trailer for Sale
3 Axle 60 Tons 100 Ton Hydraulic Extendable Lowboy Loader Lowbed Low Bed Truck Semi Trailer for Sale
3 Axle 60 Tons 100 Ton Hydraulic Extendable Lowboy Loader Lowbed Low Bed Truck Semi Trailer for Sale
3 Axle 60 Tons 100 Ton Hydraulic Extendable Lowboy Loader Lowbed Low Bed Truck Semi Trailer for Sale
1 / 5
3 Axle 60 Tons 100 Ton Hydraulic Extendable Lowboy Loader Lowbed Low Bed Truck Semi Trailer for Sale
3 Axle 60 Tons 100 Ton Hydraulic Extendable Lowboy Loader Lowbed Low Bed Truck Semi Trailer for Sale
3 Axle 60 Tons 100 Ton Hydraulic Extendable Lowboy Loader Lowbed Low Bed Truck Semi Trailer for Sale
3 Axle 60 Tons 100 Ton Hydraulic Extendable Lowboy Loader Lowbed Low Bed Truck Semi Trailer for Sale
3 Axle 60 Tons 100 Ton Hydraulic Extendable Lowboy Loader Lowbed Low Bed Truck Semi Trailer for Sale

3 Axle 60 Tons 100 Ton Hydraulic Extendable Lowboy Loader Lowbed Low Bed Truck Semi Trailer for Sale

Customization: Available
After-sales Service: Online Support
Warranty: 1 Year
Send Inquiry

Product Description

■ Basic Information
Model NO.
lowbed semi trailer
Type
Semi-Trailer
Load Capacity
80T
Certification
GCC, CE, ISO9001, CCC
Axle Number
3/4
Material
Steel
Condition
Used
Specification
1200X250X320 cm
■ Product Description
Product Banner
Lowbed Lowboy Semi Trailer (Customerize and OEM Service Available)
Product Name 2 axles lowbed semi trailer 3 axles lowbed semi trailer 4 axles lowbed semi trailer
Size(mm) 12500*3000*1100 13000*3000*1100 14000*3000*1100
Payload 40000KG 60000KG 80000KG
Axles 2 * 13ton capacity 3 * 13ton capacity 4 * 13ton capacity
Main beam Height: 500mm, upper plate is 16mm, middle plate is 8mm, down plate is 18mm; Q345B Steel.
Tire 12R22.5 / 11.00R20 8pcs (Other size optional)

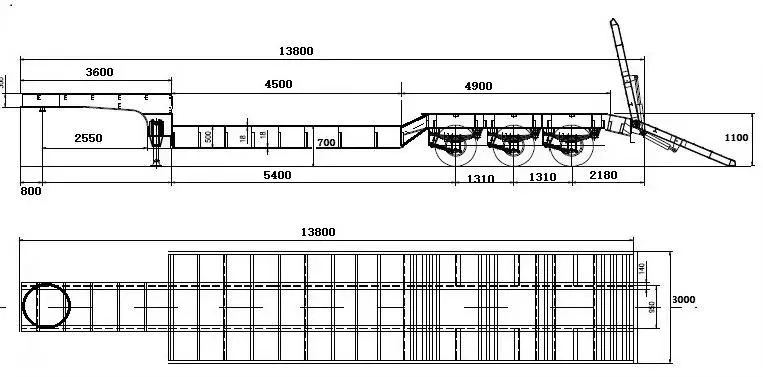

Technical Drawing

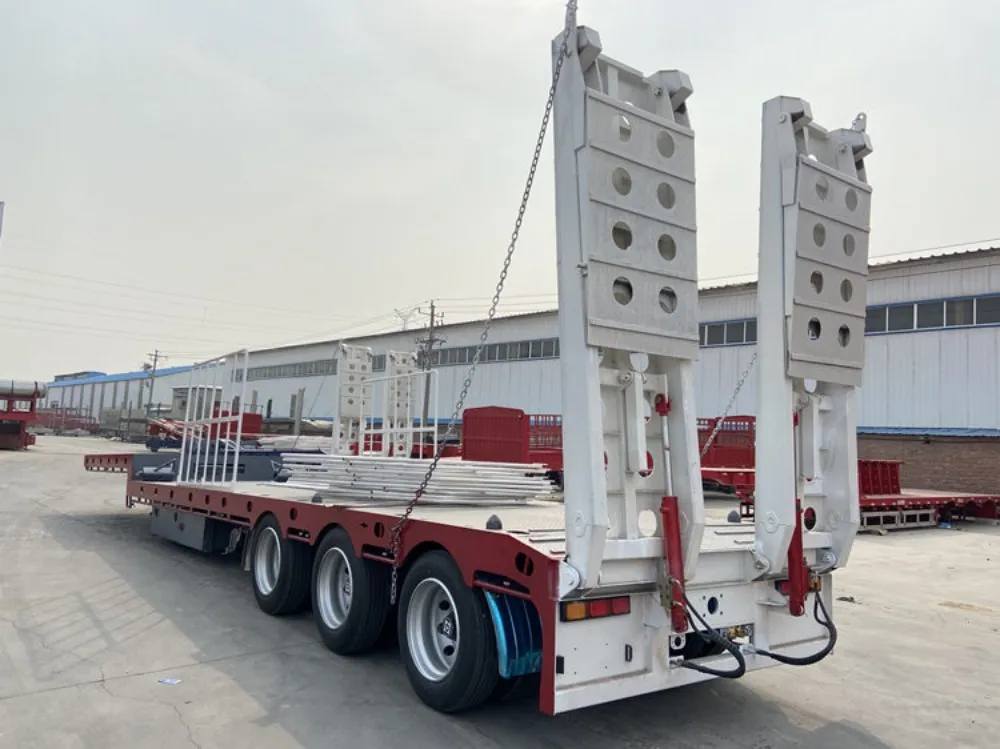

Application
Usually used to transport container, heavy vehicles, rail vehicles, mining machinery, construction machinery and other heavy loads. The lower the center of gravity, the better the stability and safety.
1. High rigidity and strength I-shaped longitudinal beams.
2. Low main plane for stability in carrying large construction equipment.
3. Mechanical suspension with mass balance blocks for equalized force distribution.

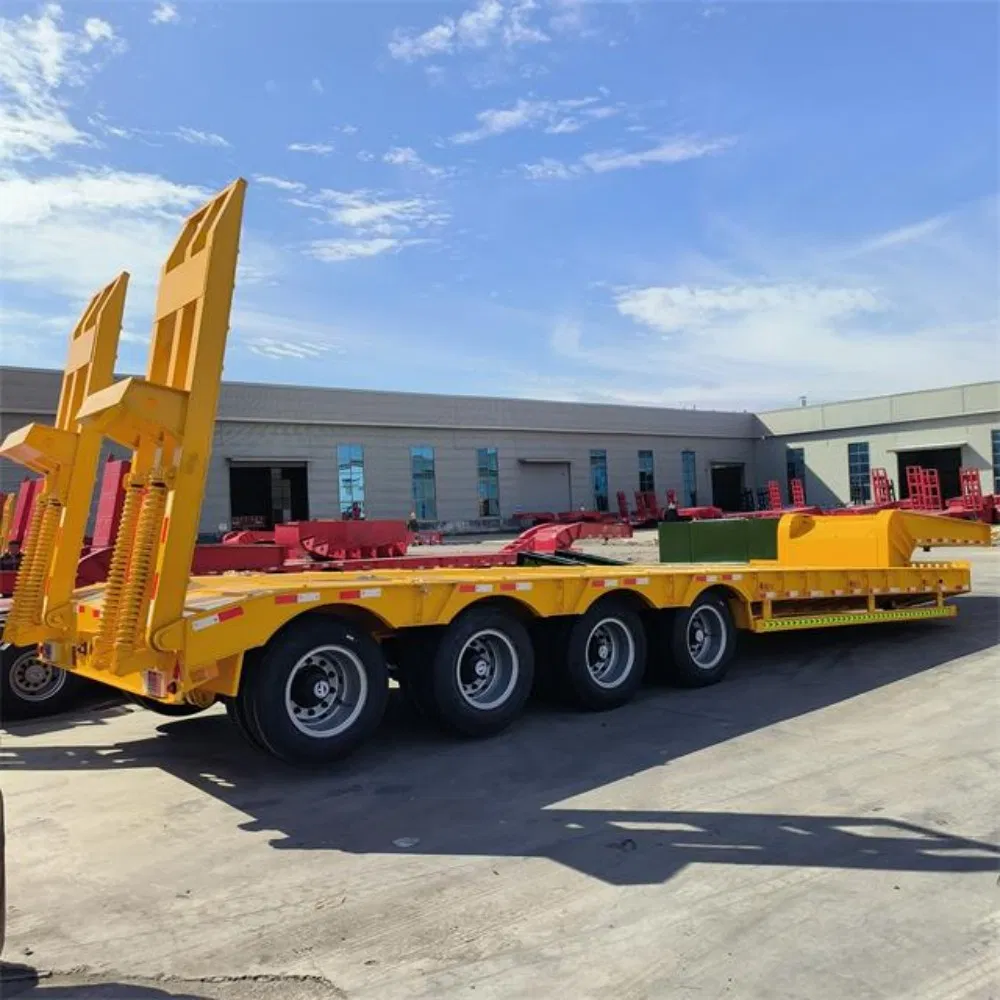

Detail View

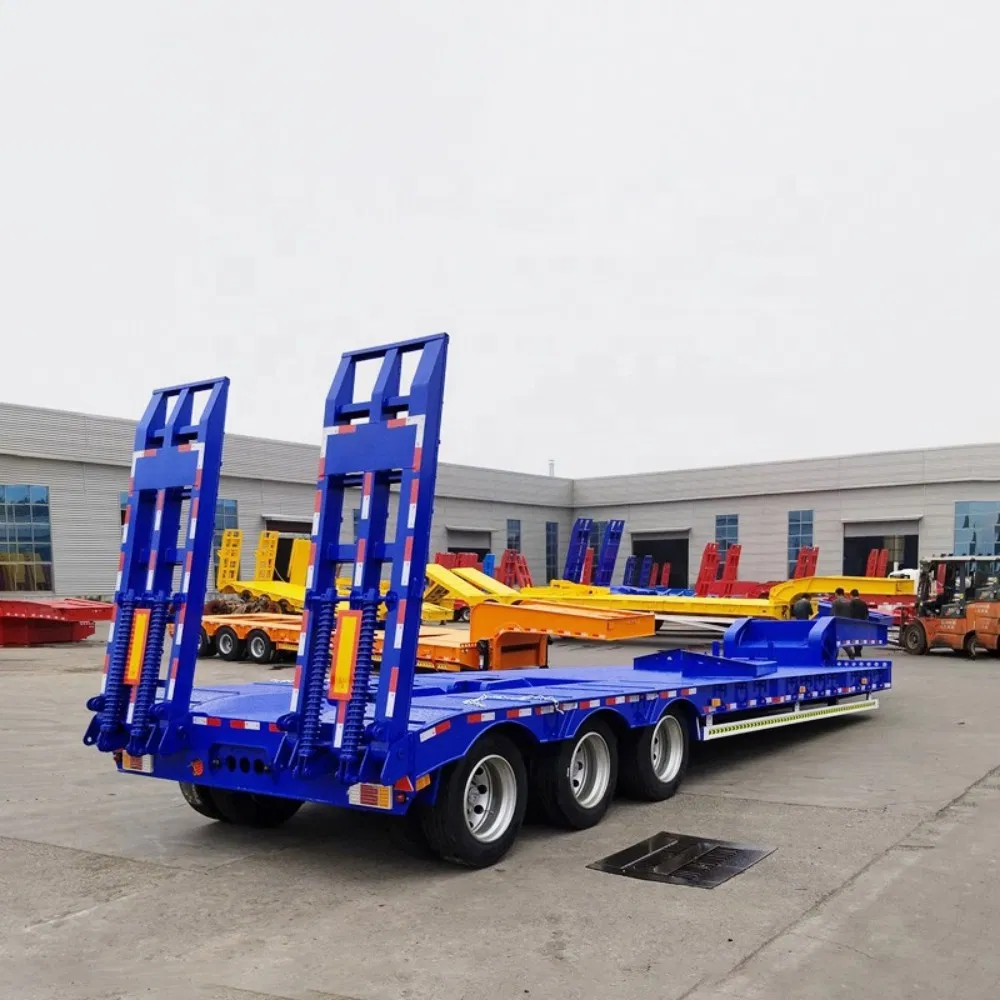

Manufacturing
4. Shot blasted frame to eliminate welding residues with electrophoretic coating lasting over 10 years.
5. Famous brand parts: JOST, WABCO braking valves, and stable hydraulic support systems.
■ Other Products & Shipping
Hot Product
Packaging

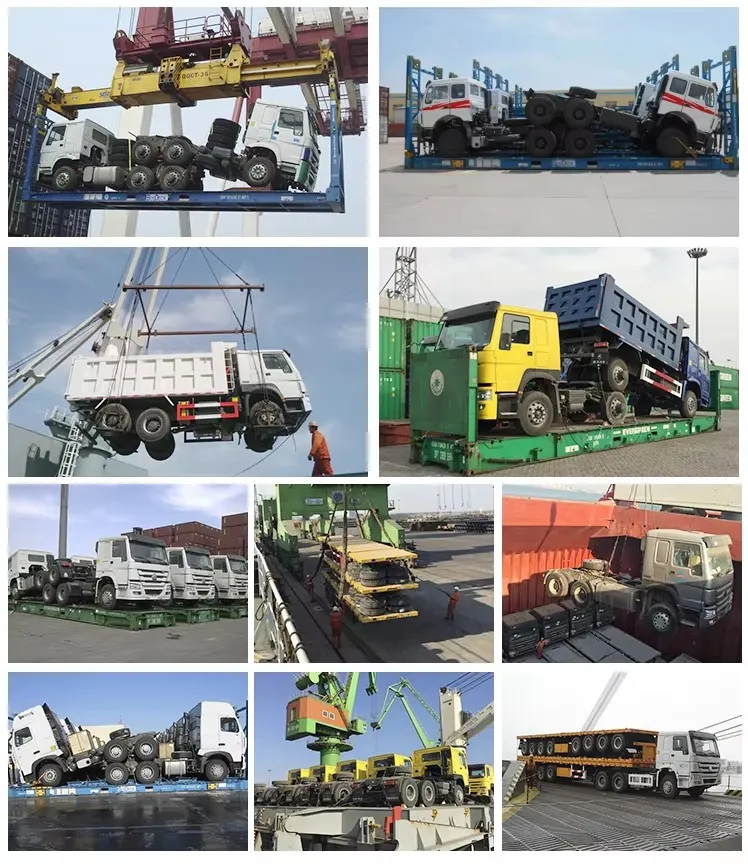

Shipping
? Frequently Asked Questions
What is the main application of this lowbed semi-trailer?
It is primarily used for transporting mechanical equipment, large objects, highway construction equipment, large tanks, and various steel products.
Can the specifications be customized?
Yes, we provide OEM services and can design models according to specific client requirements, including size, payload, and axle configurations.
What materials are used in the construction?
The main beam is made of high-strength Q345B steel, and the side beams use Q235 steel, ensuring high rigidity and durability.
What kind of braking system is installed?
The trailer features a double air chamber system with a brake valve and 45L air tanks. ABS is available as an optional upgrade.
How is the trailer protected against corrosion?
The process includes sandblasting to remove rust, followed by a coat of anticorrosive primer and finish urethane paint for long-lasting protection.
What axle and tire options are available?
We offer 2, 3, or 4 axle configurations with 13-ton capacity each. Tires options include 12R22.5, 11.00R20, and others upon request.
