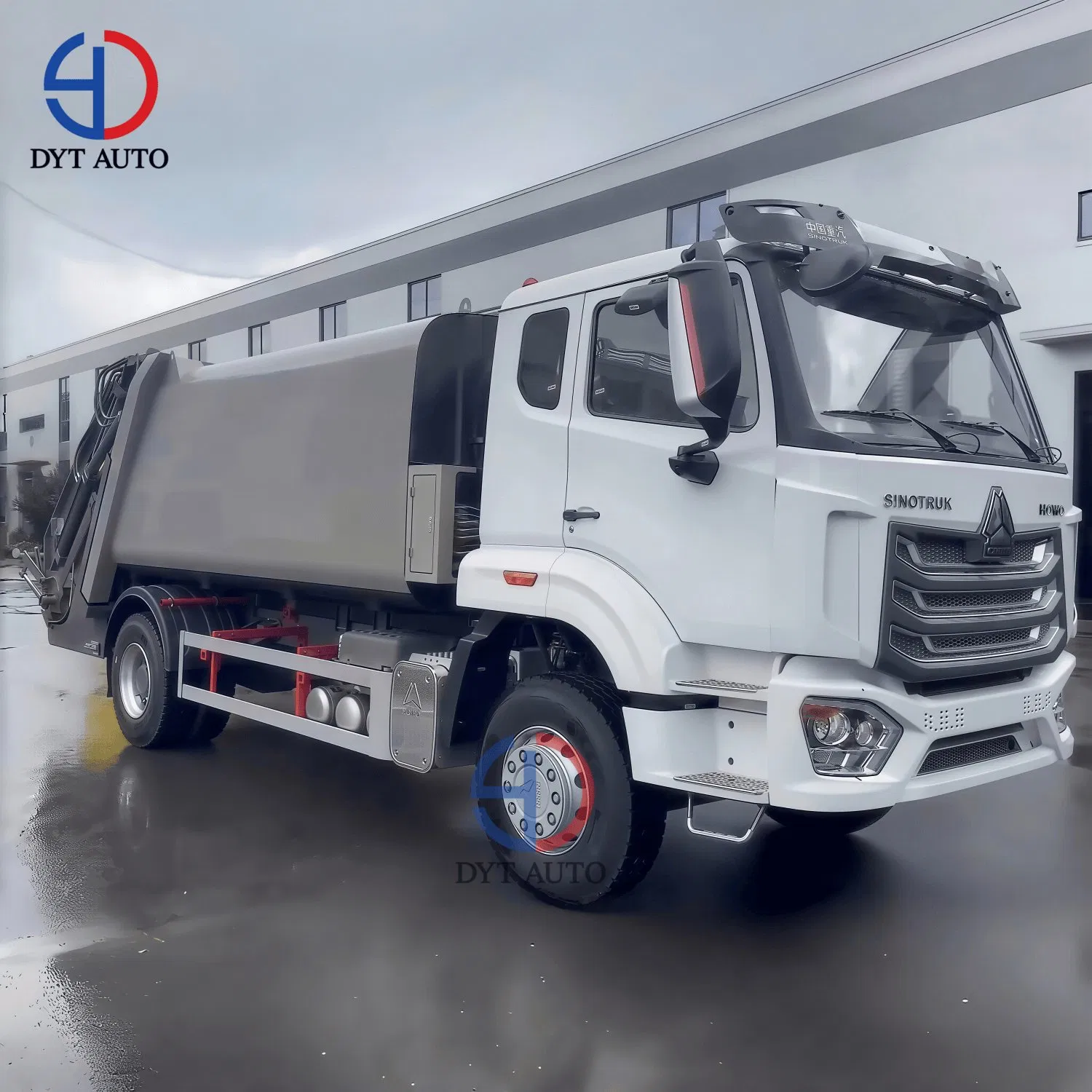

HOWO 16cbm Rear Loader Trash Waste Compactor Garbage Collection Special Purpose Truck

1 / 5

HOWO 16cbm Rear Loader Trash Waste Compactor Garbage Collection Special Purpose Truck

Customization:	Available
After-sales Service:	7X24 Hours Online
Warranty:	1 Year

Send Inquiry

Product Description

📦 Basic Information Overview

Model	DYHJ147-LJ1	Chassis Brand	HOWO
Type	Compactor	Emission Standard	Euro 2
Volume	16m³	Payload	13.5t
Fuel Type	Diesel	Drive Wheel	4×2
Condition	New	Transmission	Manual
Material	High Strength Steel	GVW	25,000kg
Overall Dimensions	8,950 × 2,550 × 3,500mm

🚛 Product Description

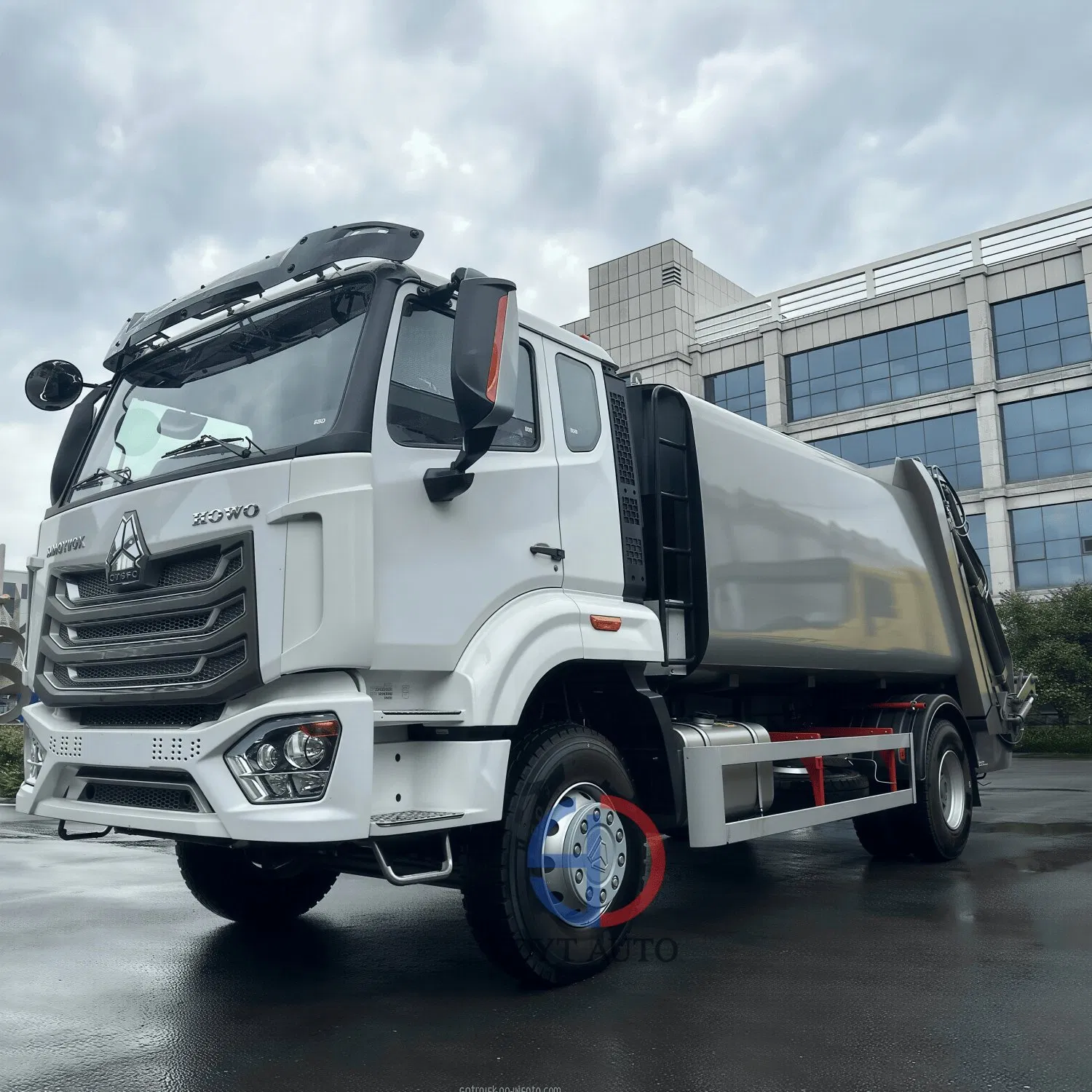

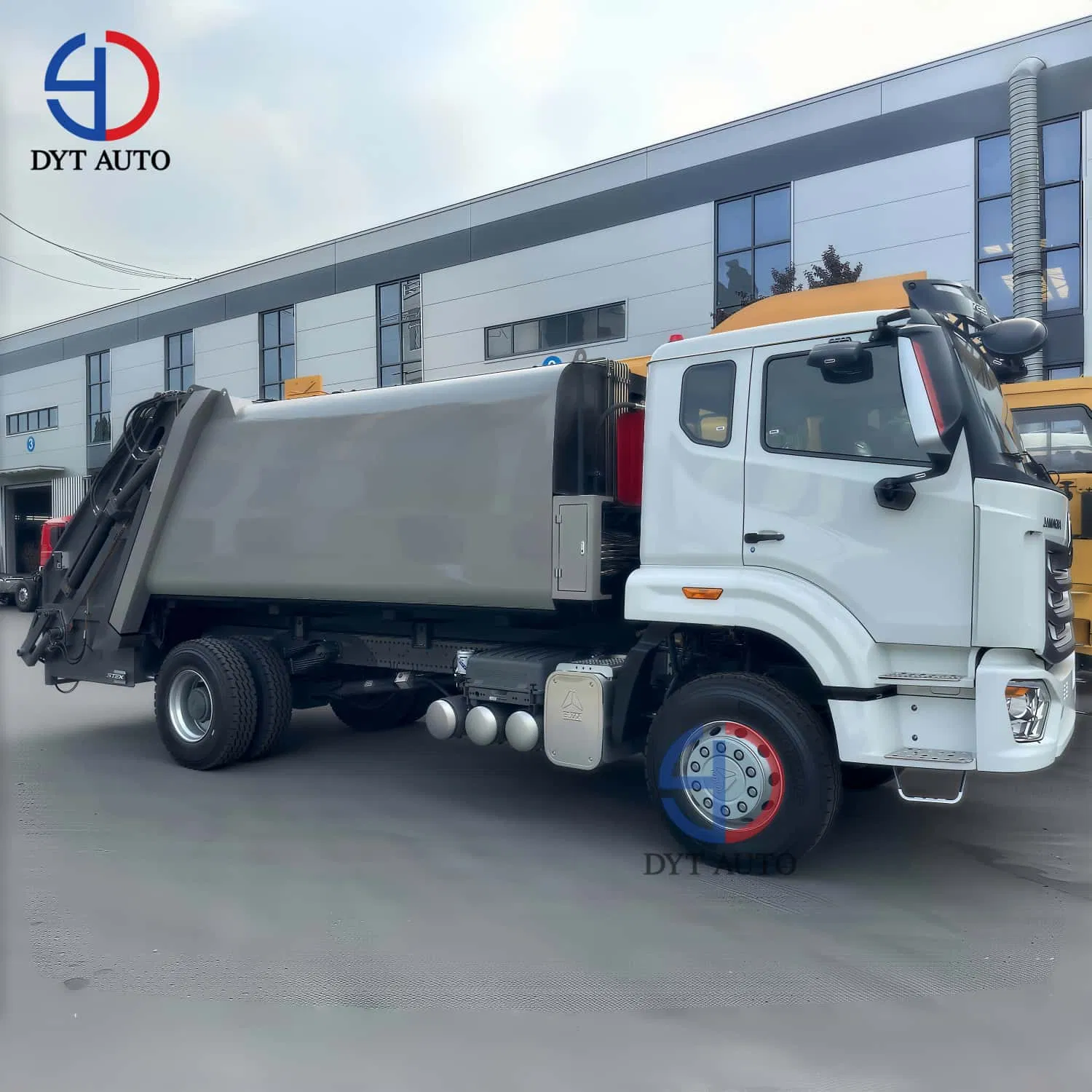

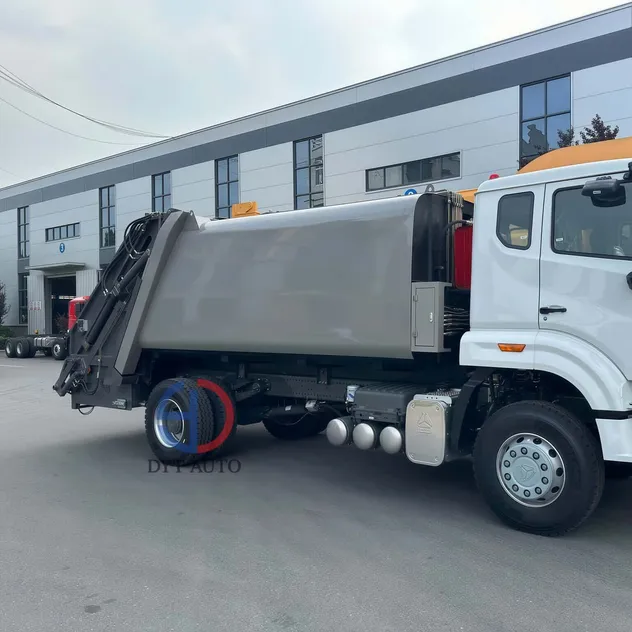

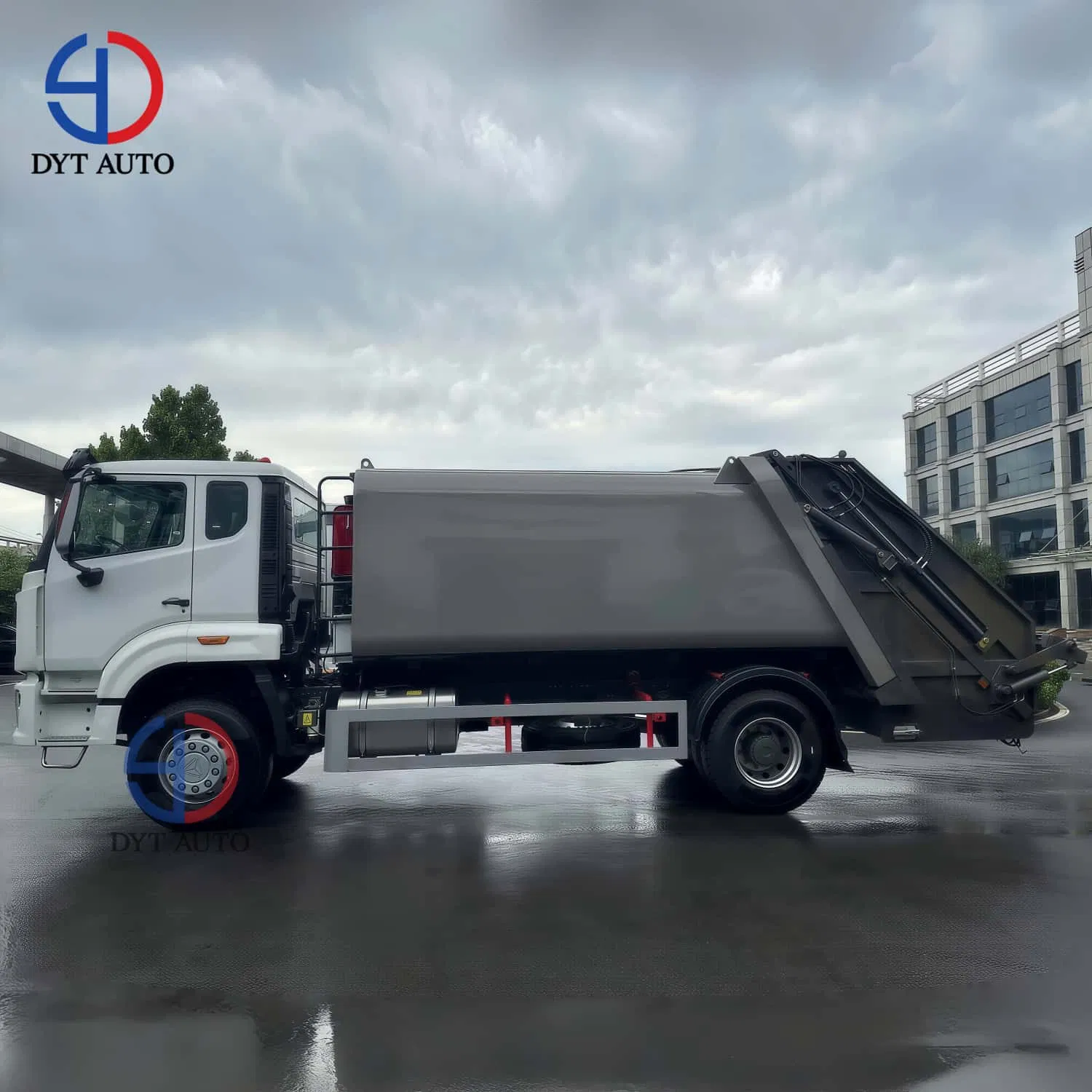

HOWO 16 Cubic Meter Compactor Garbage Truck

This heavy-duty vehicle is designed for efficient urban waste collection. It utilizes a high-strength manganese steel body with electrophoresis treatment for superior durability.

Chassis: Top-quality HOWO heavy-duty chassis with excellent overseas performance.
Durability: T420 high-strength manganese steel construction.

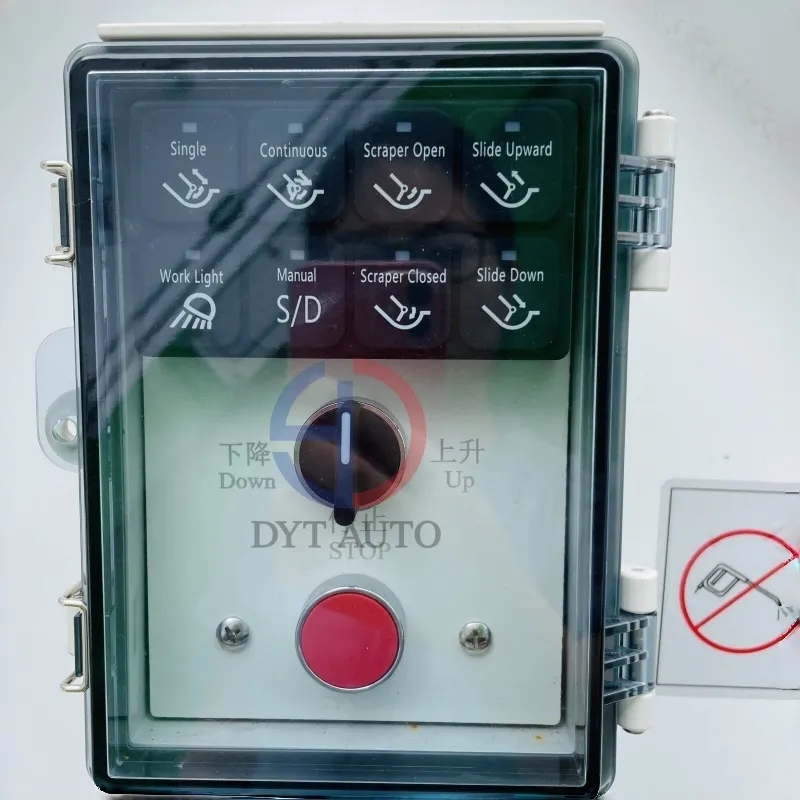

Advanced Control: PLC control system with 4 operation modes (cab, rear, remote, and manual).

🚀 High Compression Ratio Equipped with a scraper-type mechanism, achieving a ratio of 3:1 to 5:1, significantly increasing loading capacity and reducing trip frequency.

♻️ Versatile Loading Compatible with 120L, 240L, and 660L standardized bins. Features adjustable lift arms for varied container heights.

⚙️ Full Automation One-button filling, compression, and unloading via a sophisticated hydraulic drive system for easy operation.

📋 Technical Specifications

Chassis Parameters

Engine Model	WP10.300E22 (300HP)
Engine Type	6-cylinder, Turbocharged, Intercooled, Diesel
Gearbox	10 Forward & 2 Reverse
Tires	315/80R22.5 (6+1 units)
Axle Capacity	Front 7T / Rear 16T

Compactor Parameters

Compartment Volume	16 CBM
Steel Thickness	Side: 4mm / Bottom: 5mm (T420 Manganese)
Compact Density	0.9±0.05 T/m³
Loading Cycle	≤ 40s
Sewage Tank	200L (Anti-pollution leakage design)
Hydraulic Pressure	18 MPa

🛠️ Main Components

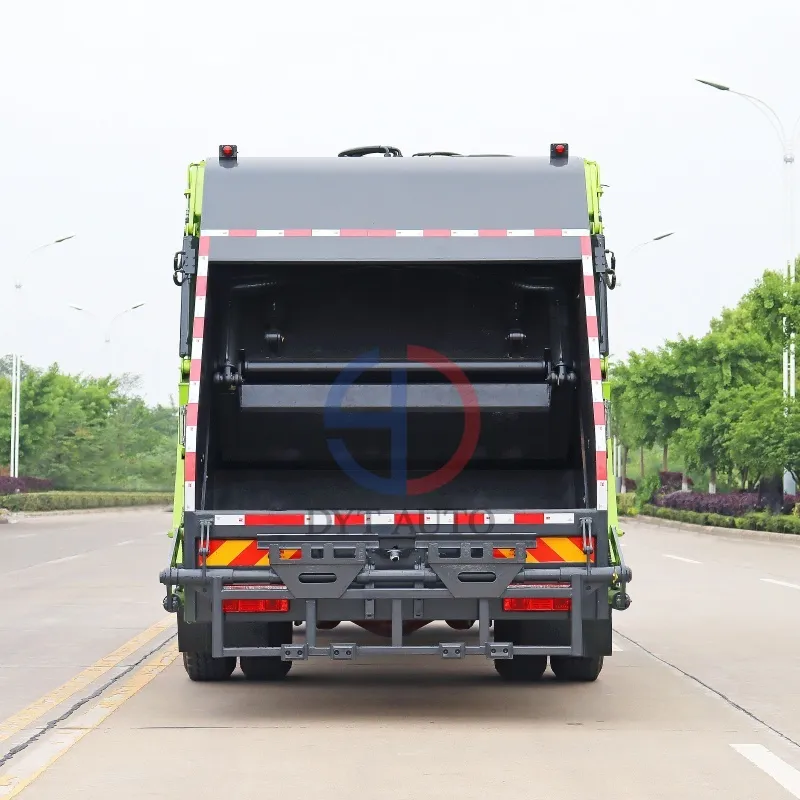

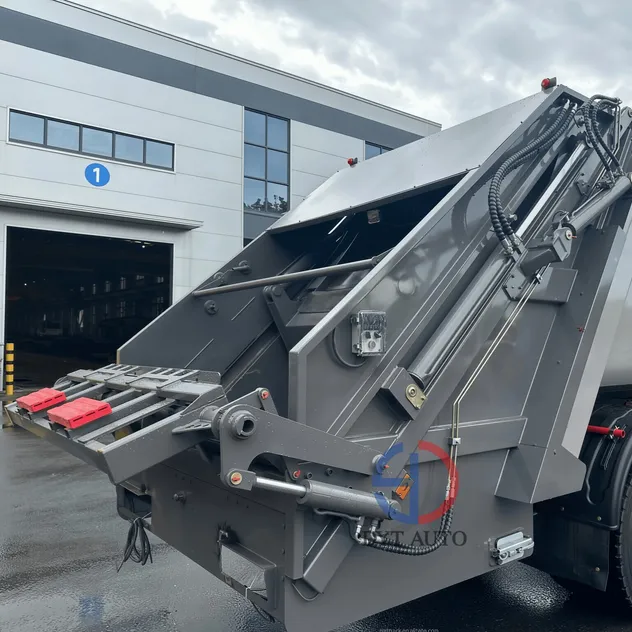

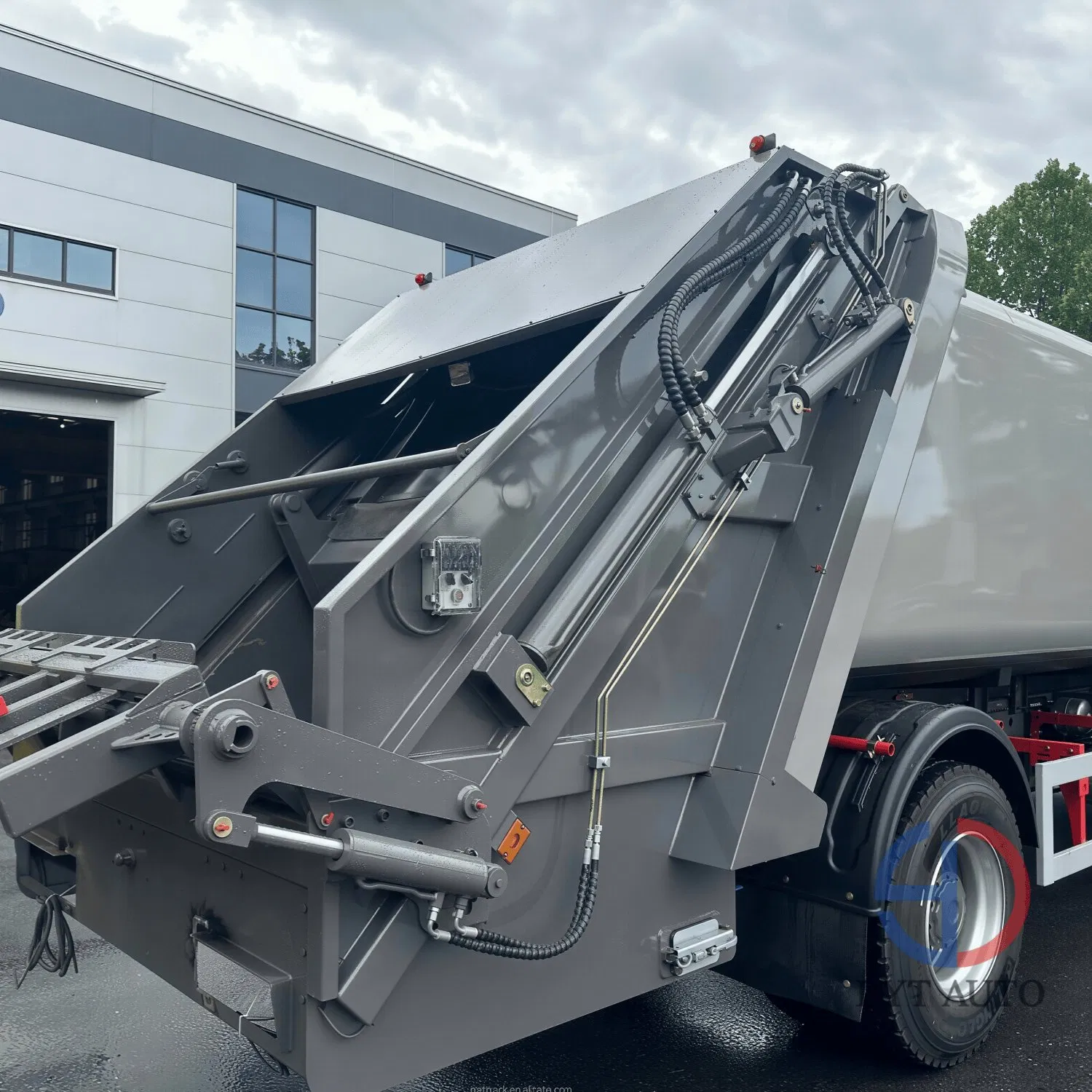

Compactor Assembly

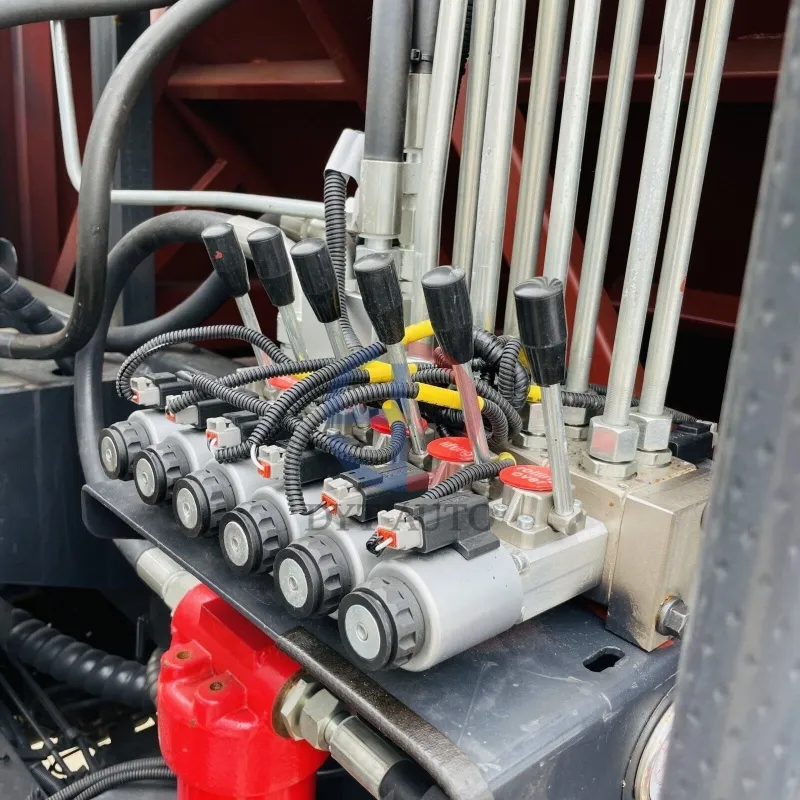

Hydraulic System

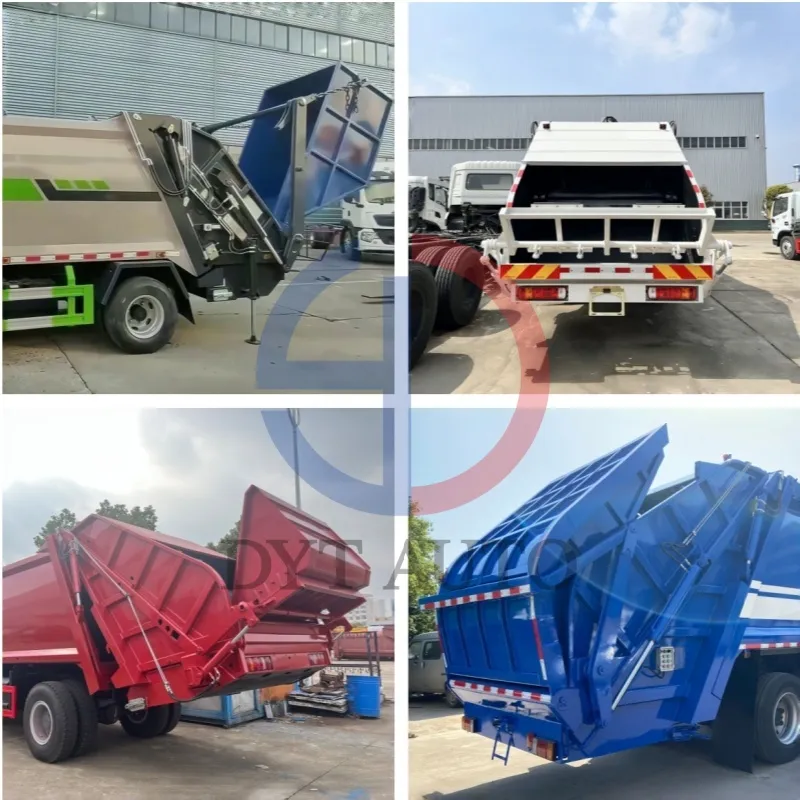

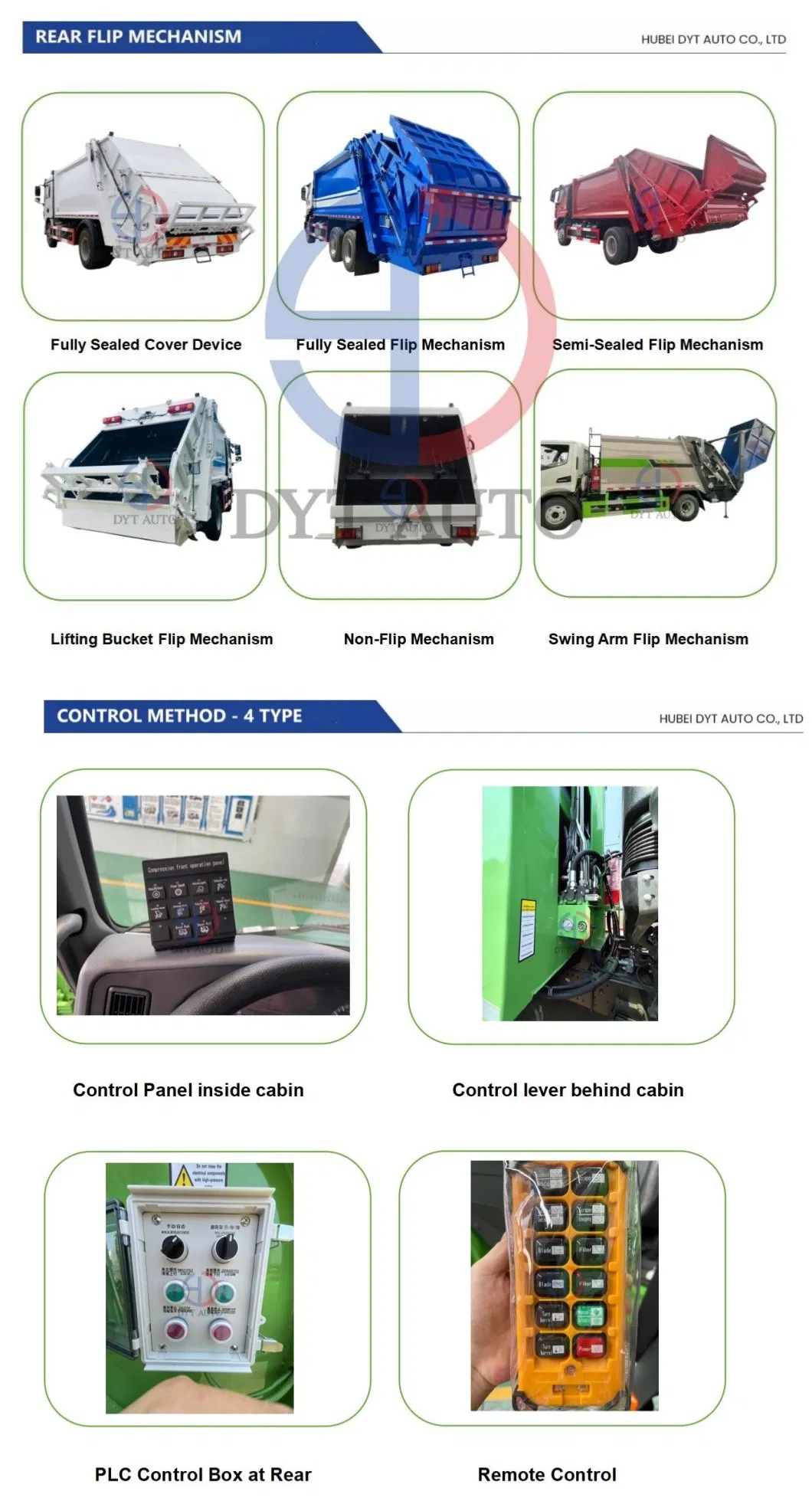

Control & Loading Methods:

Hook-mounted bin tipping: Fits standard 240L/660L/1100L bins.
Small bucket tipping: Equipped with dedicated hoppers for industrial use.
Swing-arm tipping: Ideal for transfer stations.

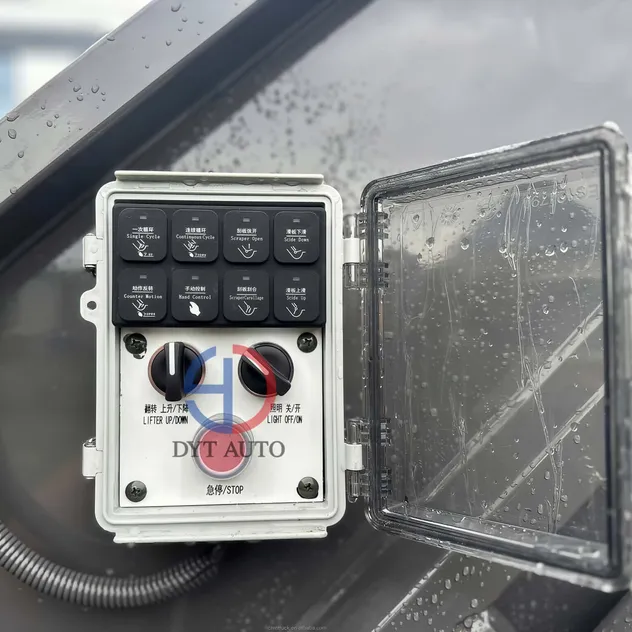

PLC System: coordinates actions for automated waste handling with safety protections.

🌐 Global Delivery & Projects

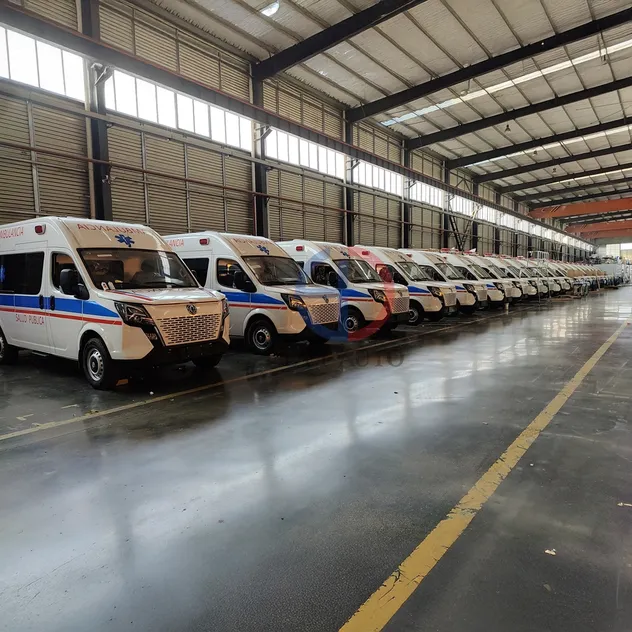

Ambulance Project

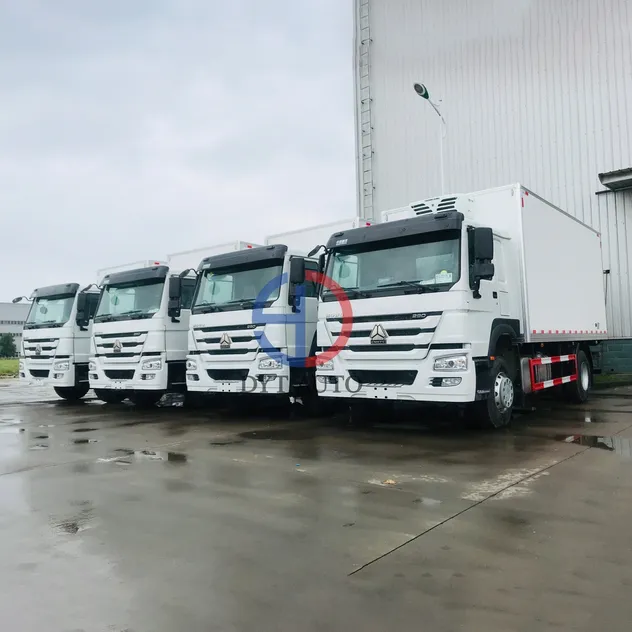

Refrigerator Trucks

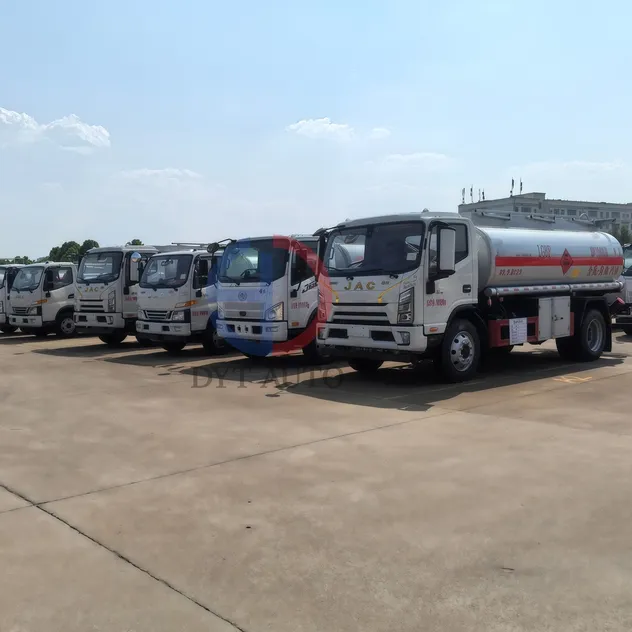

Fuel Trucks

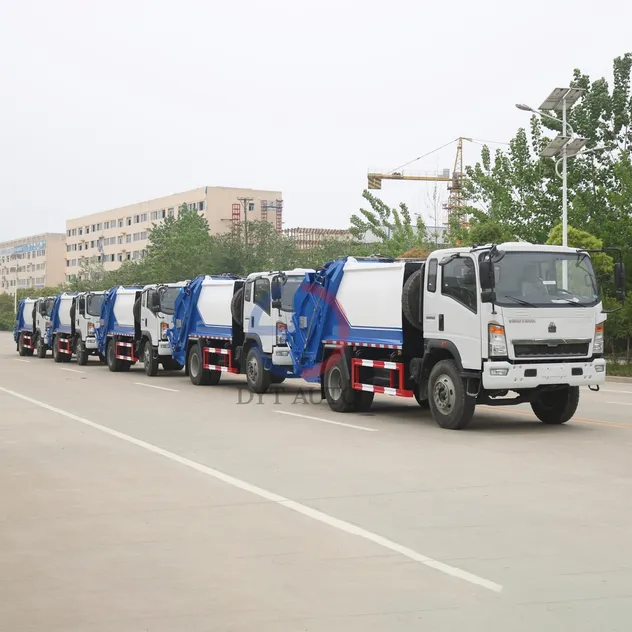

Garbage Compactor Trucks

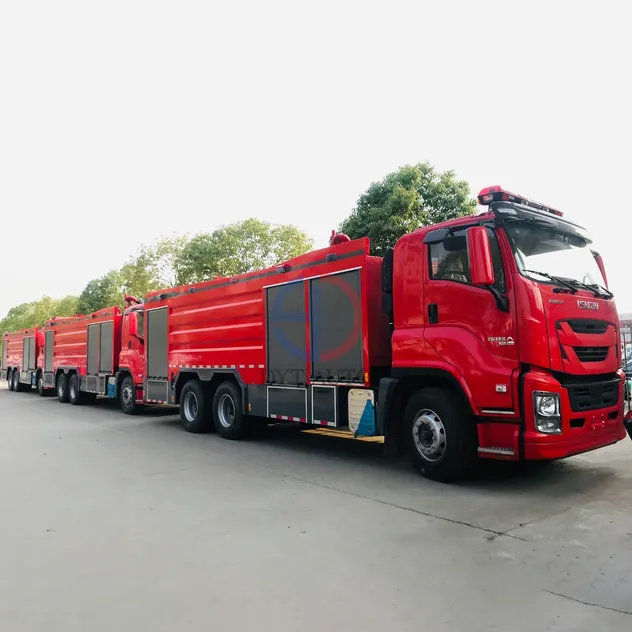

Fire Trucks

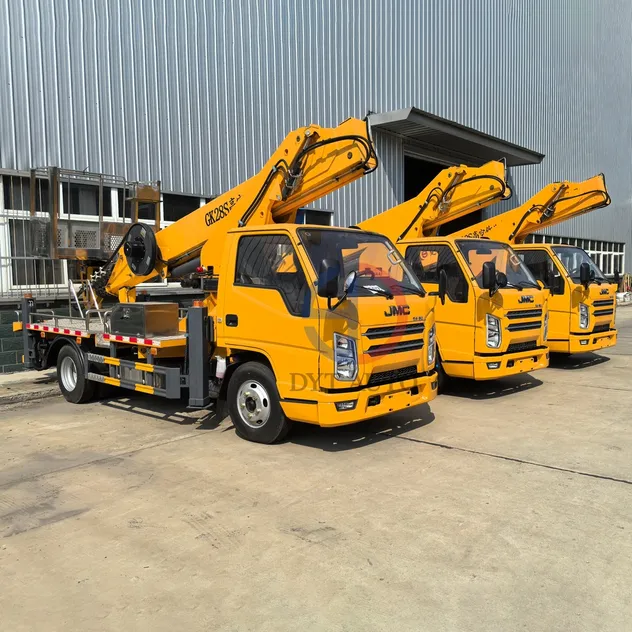

Manlift Trucks

Frequently Asked Questions

What is the standard delivery time for the vehicles?

Normally, delivery takes around 35-55 working days. For specialized off-road type trucks, the lead time may extend to 65-90 working days.

What kind of warranty is provided?

We provide a one-year warranty covering chassis core components (Engine, transmission, and frame) as well as a one-year warranty for the upper body main components.

How is after-sales service handled for international customers?

We offer 7x24 hours online support. For simple maintenance, we provide parts and video tutorials. For complex issues, on-site engineer service can be arranged.

What shipping methods are available?

We select the most suitable method based on truck dimensions, including RO-RO, bulk vessel, 40FR, 40OT, 40FT, or 20FT containers.

What are the accepted payment terms?

We accept T/T (Telegraphic Transfer), L/C at sight (Letter of Credit), Western Union, and Money Gram.

Is customization available for specific requirements?

Yes, we provide both OEM and ODM custom services to meet specific technical requirements and operational environments.
