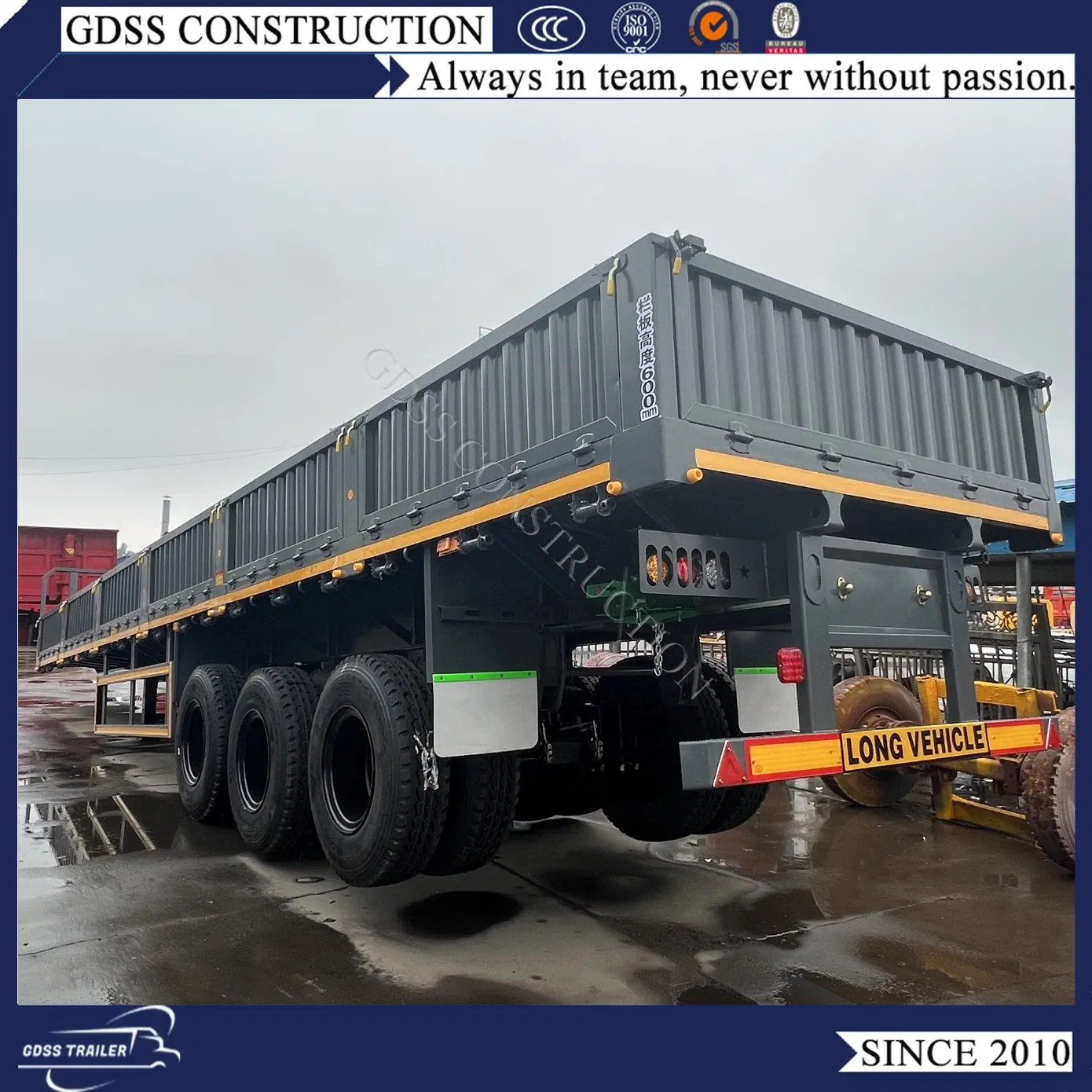

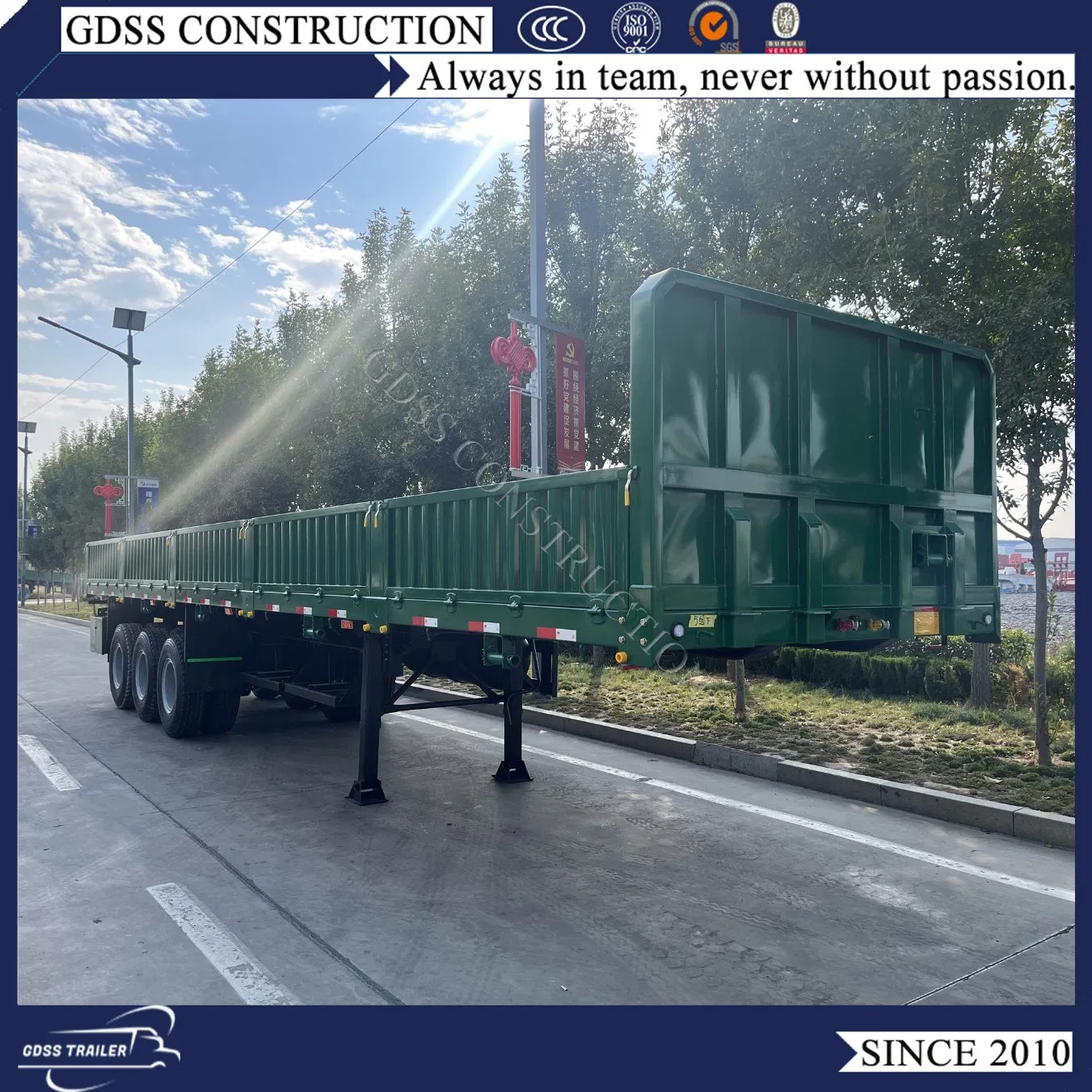

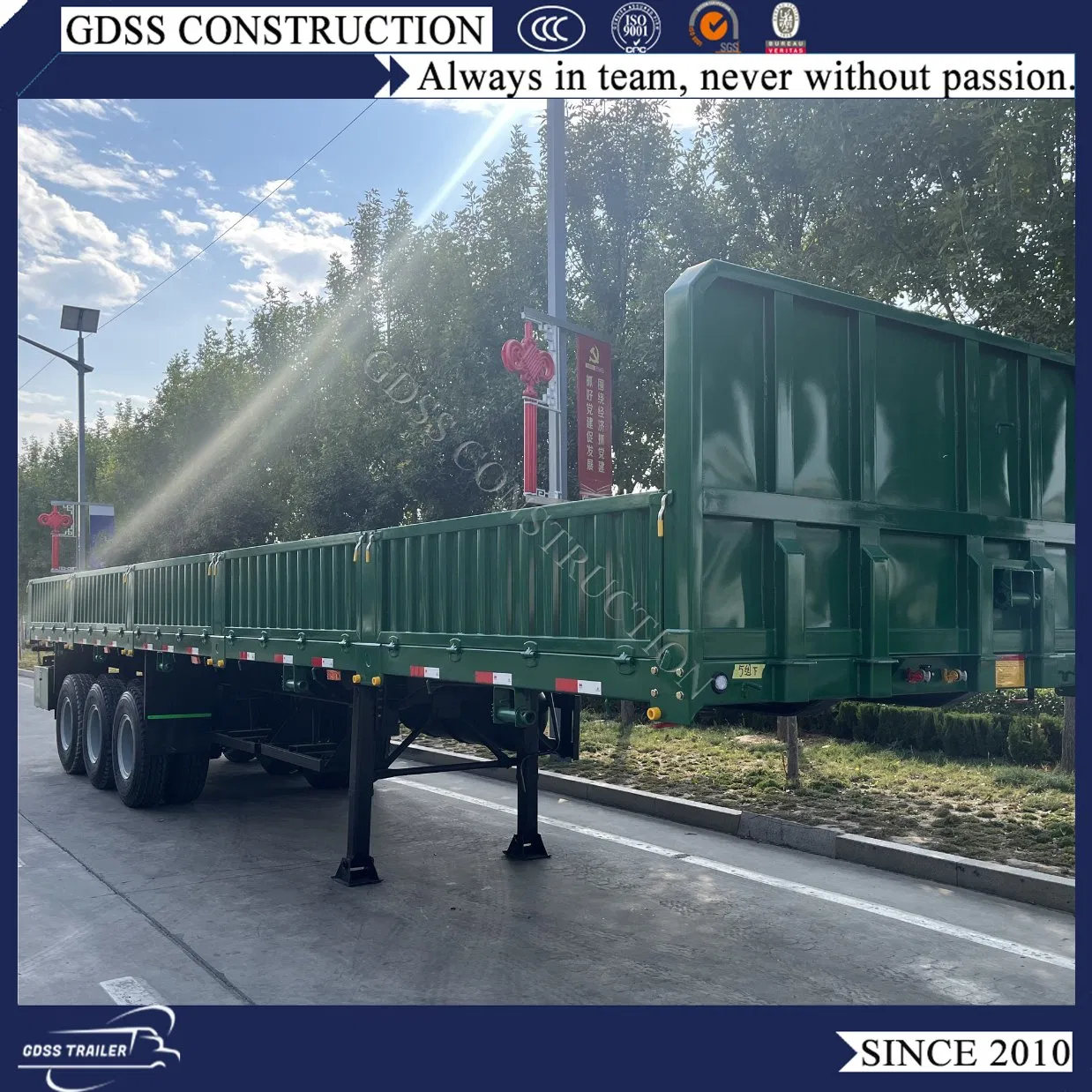

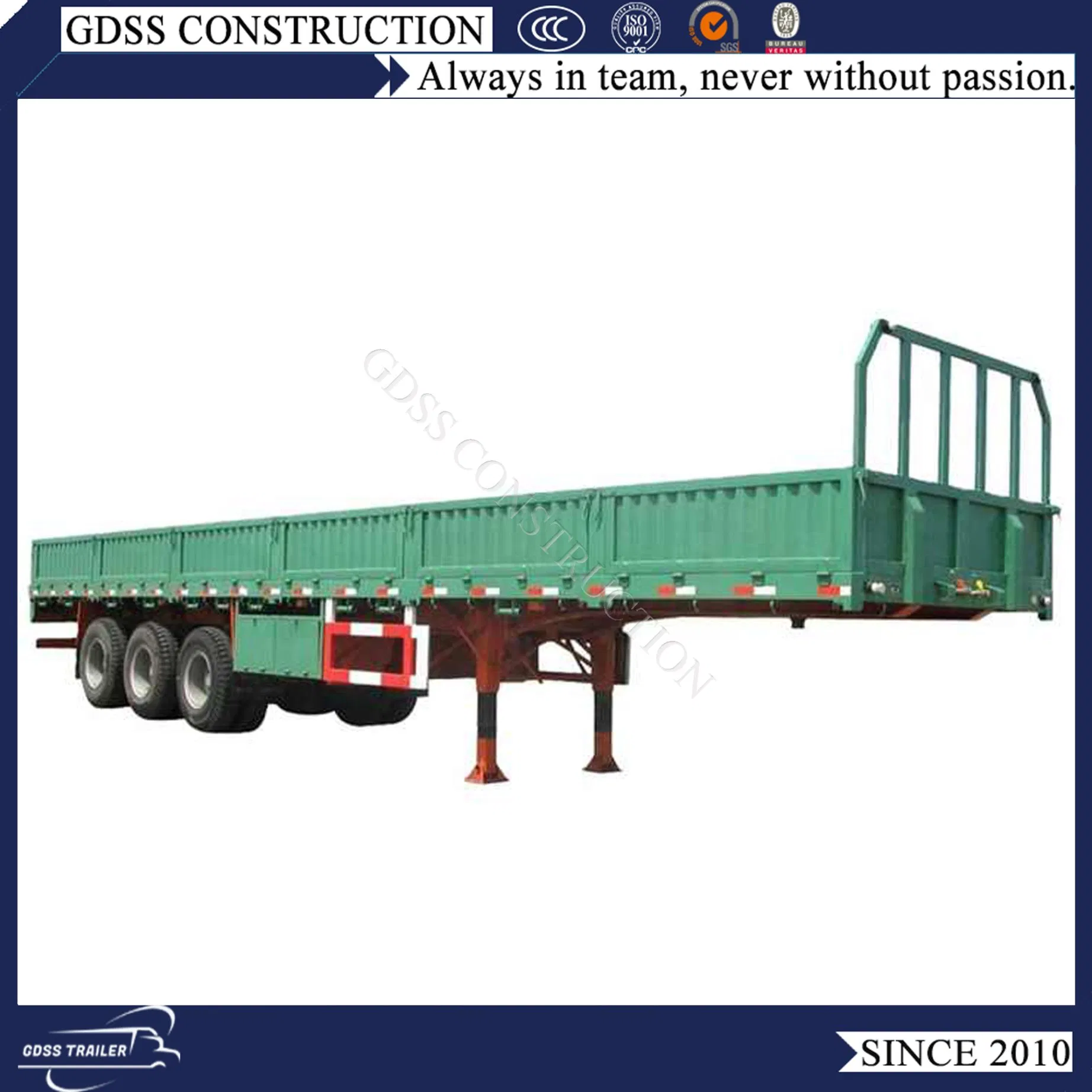

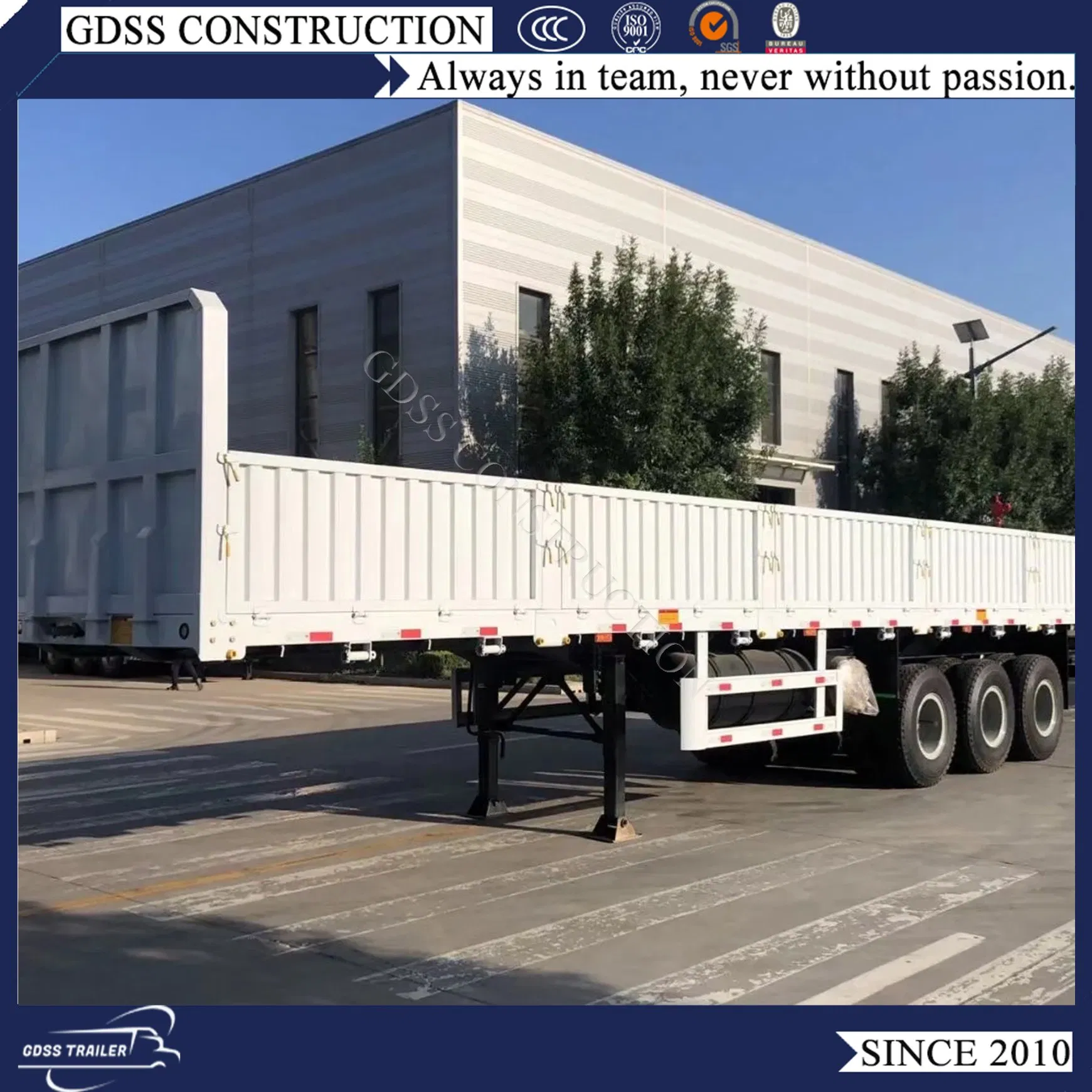

High Wall 40FT Long Transport Cattle Livestock Semi Trailer

Customization: Available
After-sales Service: One Year
Warranty: One Year

Product Description

High Wall Cattle Semi Trailer
Basic Specifications
Model NO.
GD9390P
Type
Semi-Trailer
Load Capacity
50T
Certification
ISO9001, CCC, ISO/TS16949
Axle Number
3
Tire Number
12
Material
Steel
Trailer Type
High Wall Cattle Semi Trailer
Usage
Transport Animals
Size
40FT
Product Description
  • Dimension: Overall length: 12500mm, Width: 2500mm, Height: 2600mm. Loading capacity: 50T.
  • Chassis: Main beam material Q345B, automatic submerged-arc welded. Diamond plate floor with 8 sets of twist locks.
  • Loading Box: Side wall material Q235B, height 800mm. Stake parts height 800mm.
  • Axle & Suspension: 13T model axles (3 sets) with US type independent stamping steel rigid suspension.
  • Tyre & Rim: 11R22.5 tyres (12 pcs) with 8.25*22.5 wheel rims.
  • Painting: Sand blasting before painting, one coat of primer plus two coats of color (optional).
Detailed Photos & Workshop

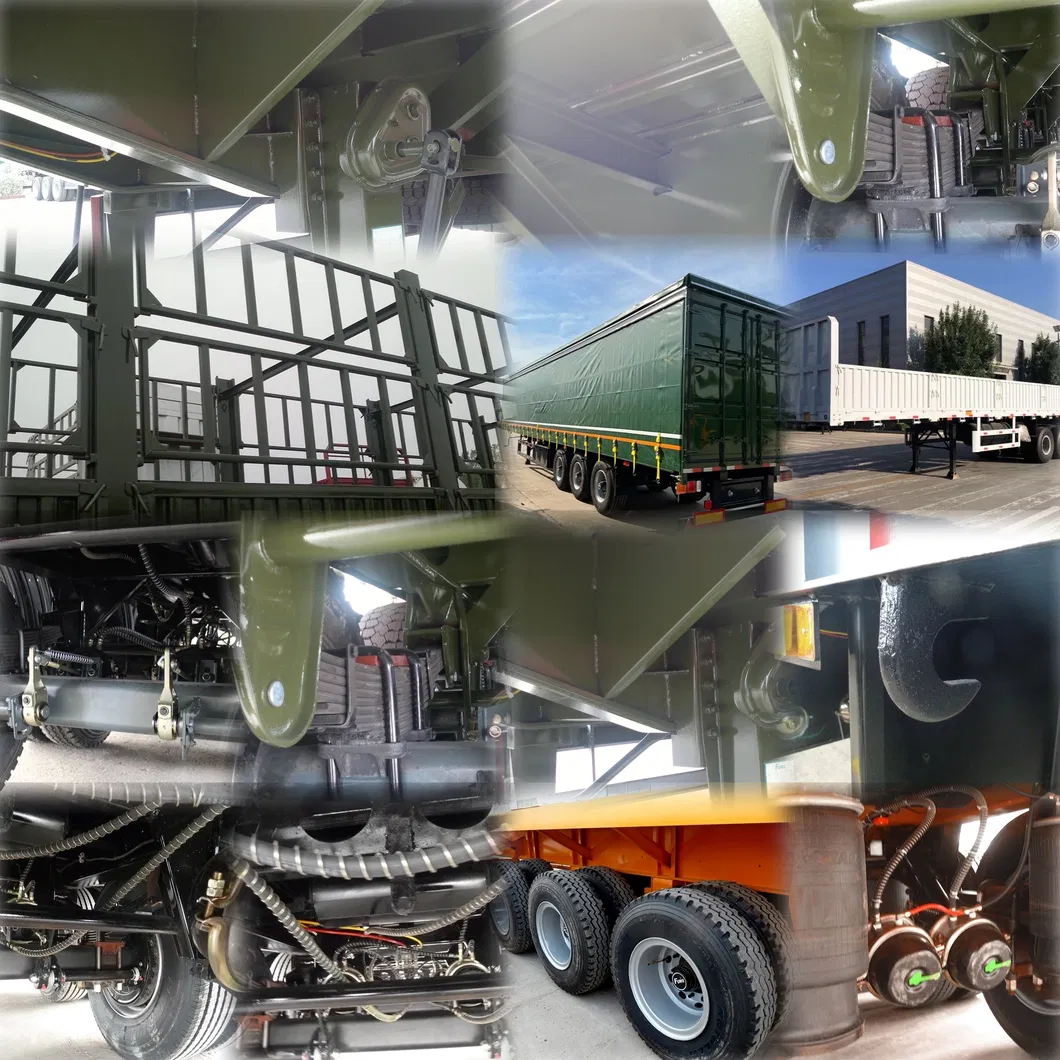

Detailed View

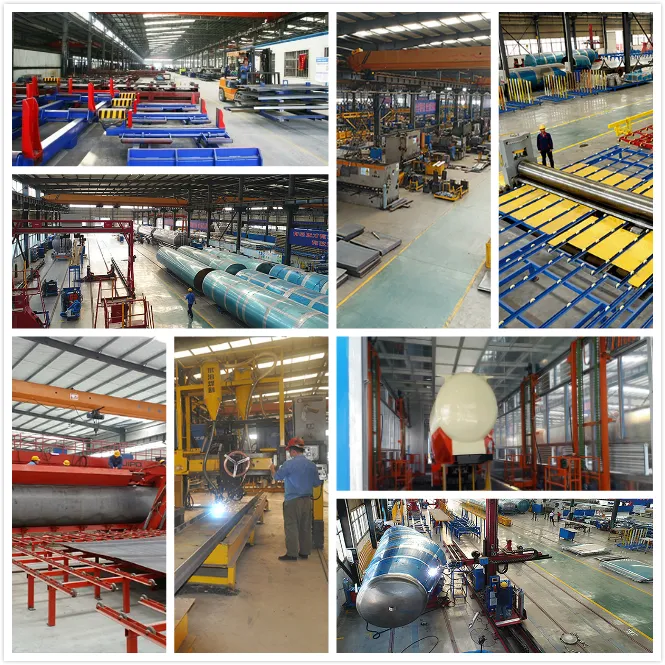

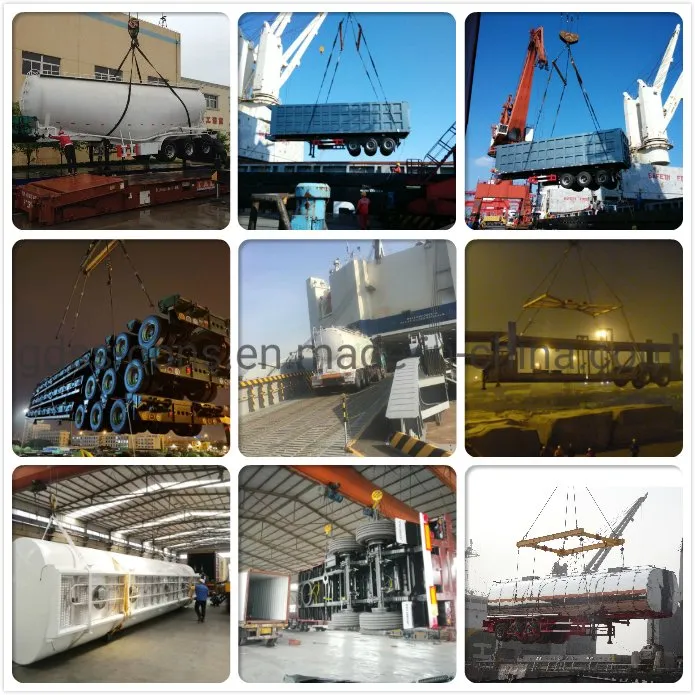

Workshop Packaging
Exhibition & Feedback
Exhibition Feedback
Frequently Asked Questions
1. How to place an order for the trailer? Confirm your requirements, receive a design and quotation, sign the contract, and pay the deposit. Production starts immediately, and balance is paid after video/photo confirmation of the finished unit.
2. What is the guarantee period for the products? We provide a one-year guarantee on the main beam. Components like axles and tires are covered by their respective suppliers' warranties.
3. Is customized service available? Yes, we provide customization based on your specific transportation needs and technical feasibility.
4. Can the trailer couple with my existing tractor head? Yes, we design the trailer according to your tractor's data, such as fifth-wheel height and turning radius.
5. What is the typical delivery time? Production usually takes 25 working days per unit. We arrange the earliest possible vessel for shipping once production is complete.
6. How are import duties managed? We can assist by providing lower value documentation, such as invoices and Certificates of Origin (C/O), to facilitate custom clearance.
