Spmt Heavy Duty Hydraulic Self Propelled Modular Trailer with Steering Lifting Multi Axles

1 / 5

Spmt Heavy Duty Hydraulic Self Propelled Modular Trailer with Steering Lifting Multi Axles

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

Heavy Duty Trailer

Type

Spmt

Load Capacity

80T

Certification

CE, ISO9001, CCC, ISO/TS16949

Wheel Base

1400

Grade

Heavy Duty

Suspension System

Leaf Spring Suspension

Axle Number

4 Axle / 6 Axles / 8 Axle

Material

Steel

Condition

New

Engine Power

370~390 Kw

HS Code

8716930000

Product Overview

This transport semi-trailer is engineered for special operations involving over-length, over-width, over-low, and non-detachable goods, including precision instruments and bridge components.

Core Advantages: Our designs are based on specialized transportation requirements, optimizing loading positions and load-bearing styles for maximum efficiency and safety.

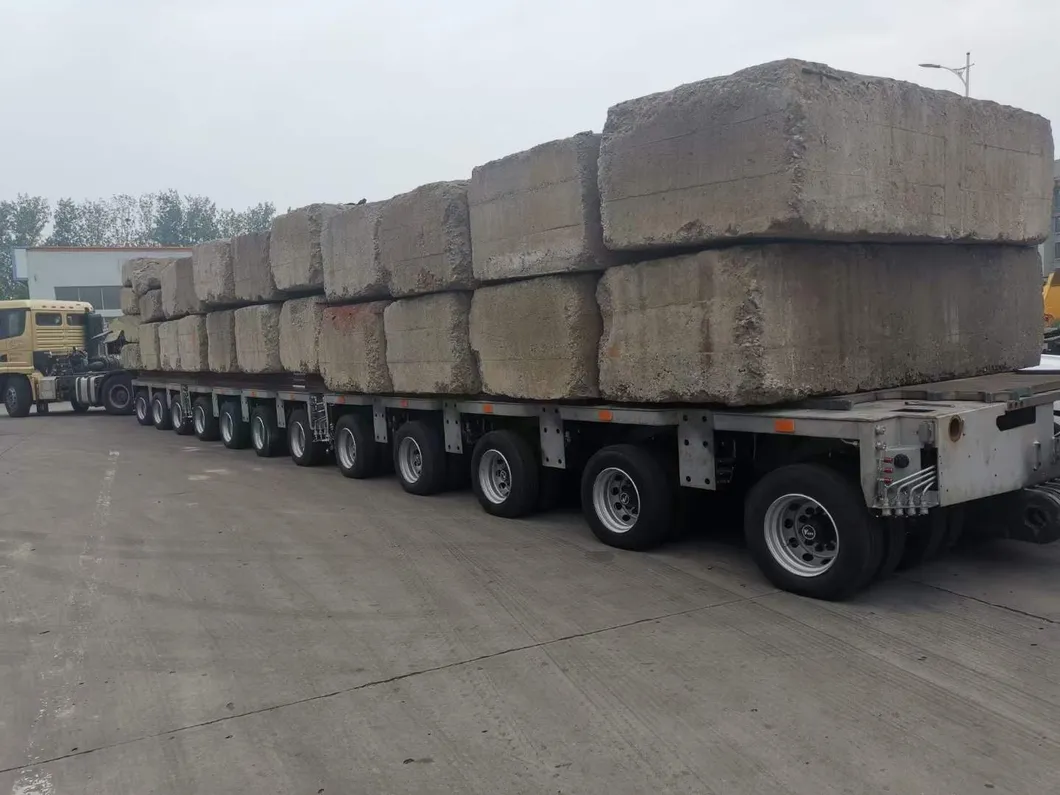

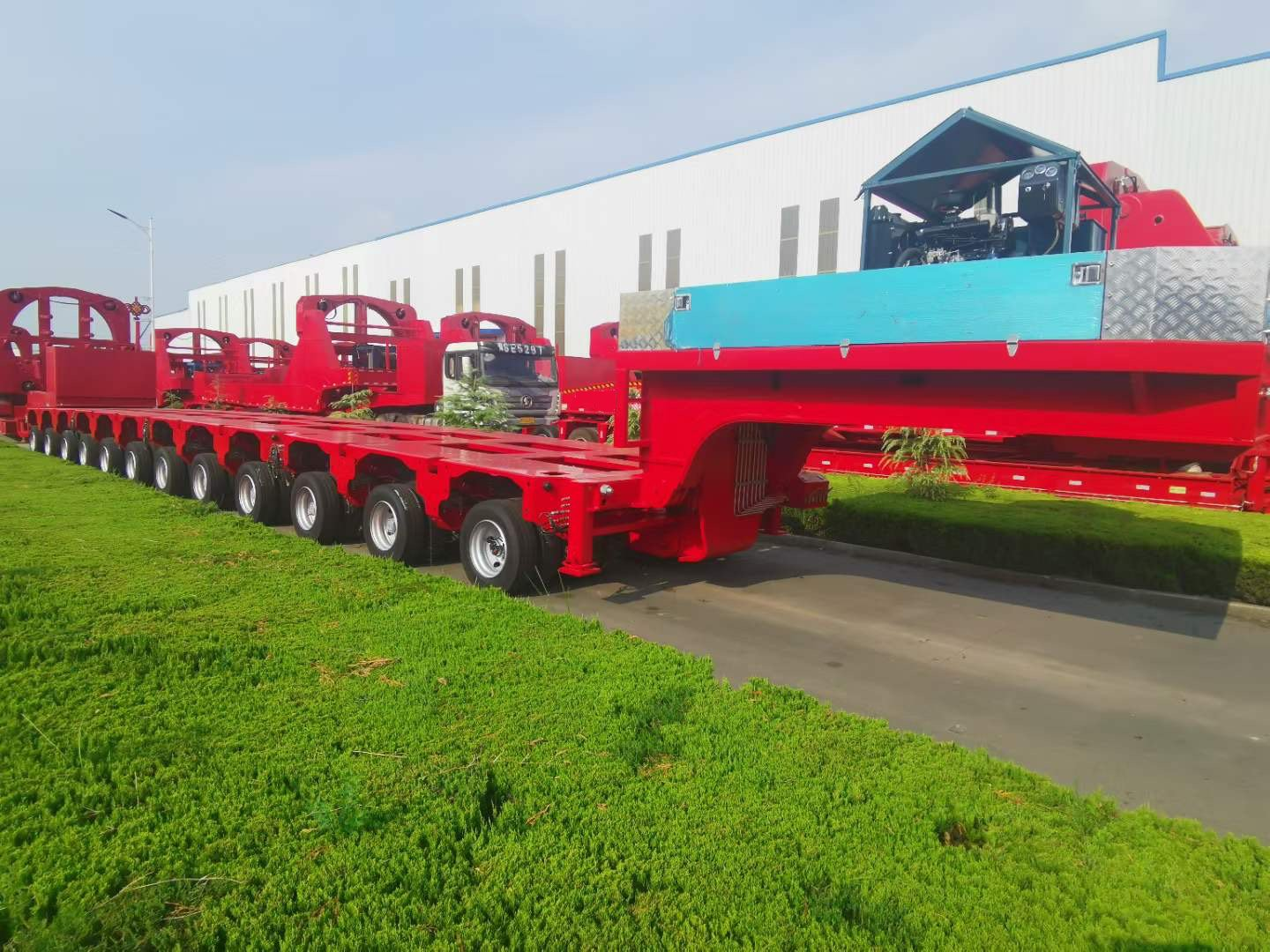

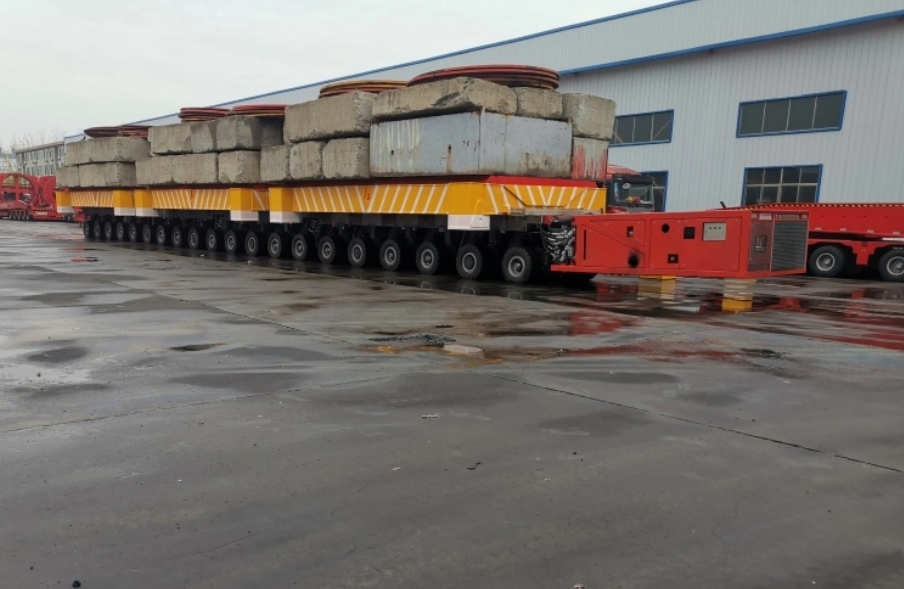

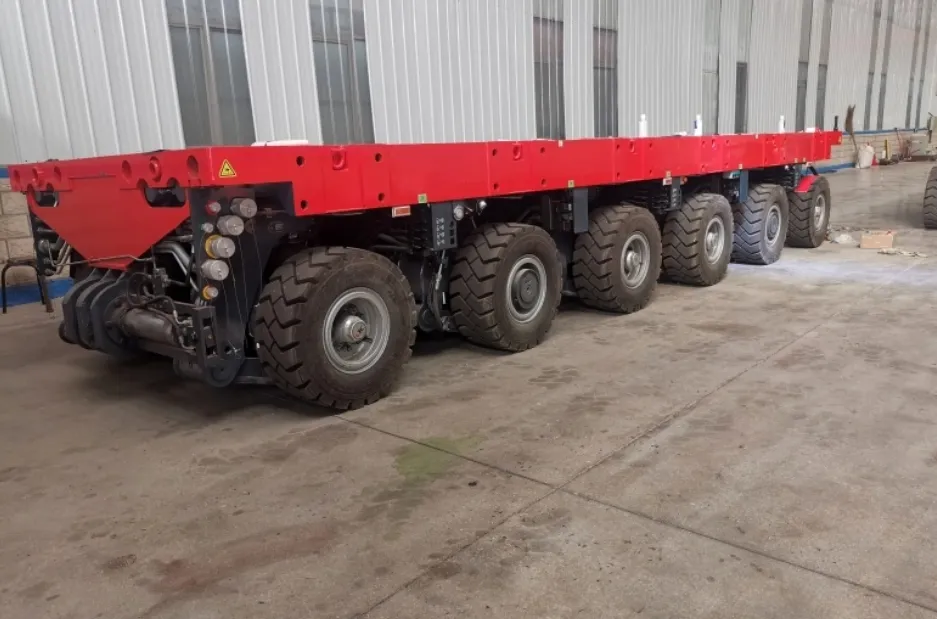

Spmt Heavy Duty Hydraulic Self Propelled Modular Trailer

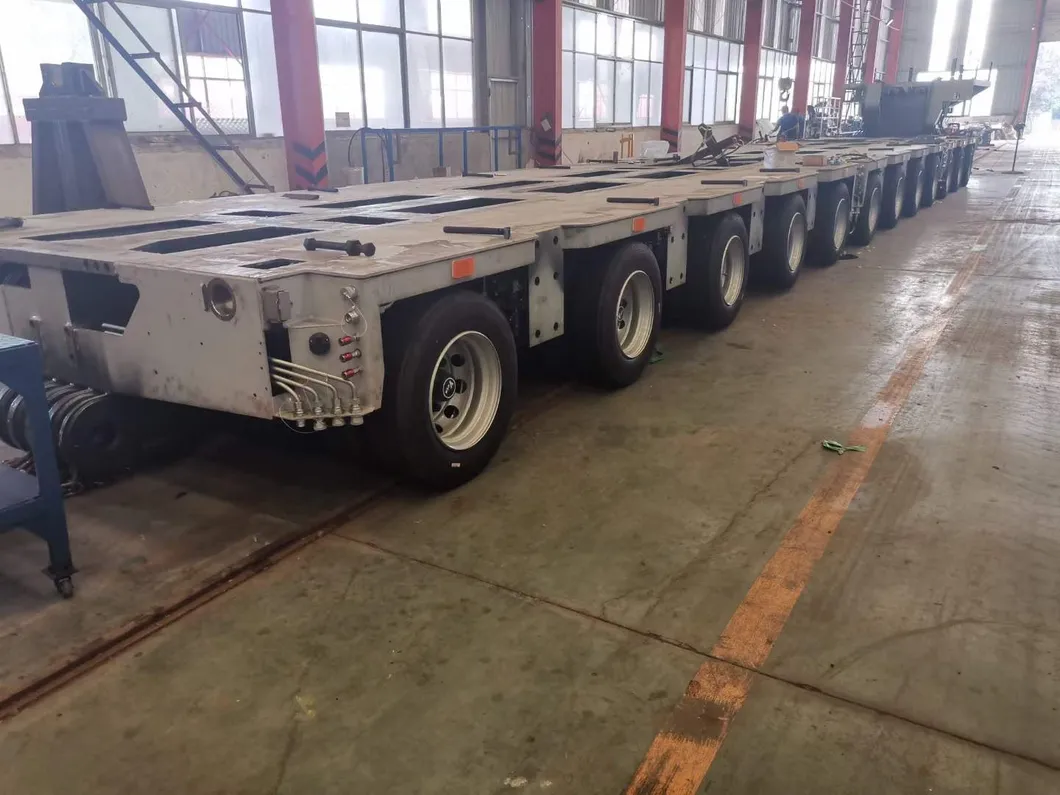

Spmt Heavy Duty Trailer Steering Mechanism

Technical Specifications

No.	Parameters	Value (4 Axle)	Value (6 Axle)
1	Length (mm)	15600	8.4
2	Width (mm)	2430
3	Height (mm)	1520 ± 350
4	Axle Load (T)	44 (v≤0.5 km/h) / 34.5 (v≤ 4 km/h)
5	Max Steering Angle	230°
6	Steering Mode	Eight-shaped, transverse, oblique, center rotation, pendulum
7	Tire Type	355/65R15
8	Drive Bogies	2	4
9	Engine Power	330~390KW

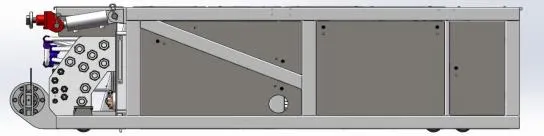

Power Module Unit (PPU) Data

Ref	Feature	Technical Data
1	Model	P390
2	Power	390kw / 2100rpm
3	Weight	8000Kg
4	Dimensions (LWH)	4350mm * 2310mm * 1080mm
5	Fuel Tank Volume	400L
6	Hydraulic Tank Volume	750L
7	Driven Axles Capability	Up to 40 axles

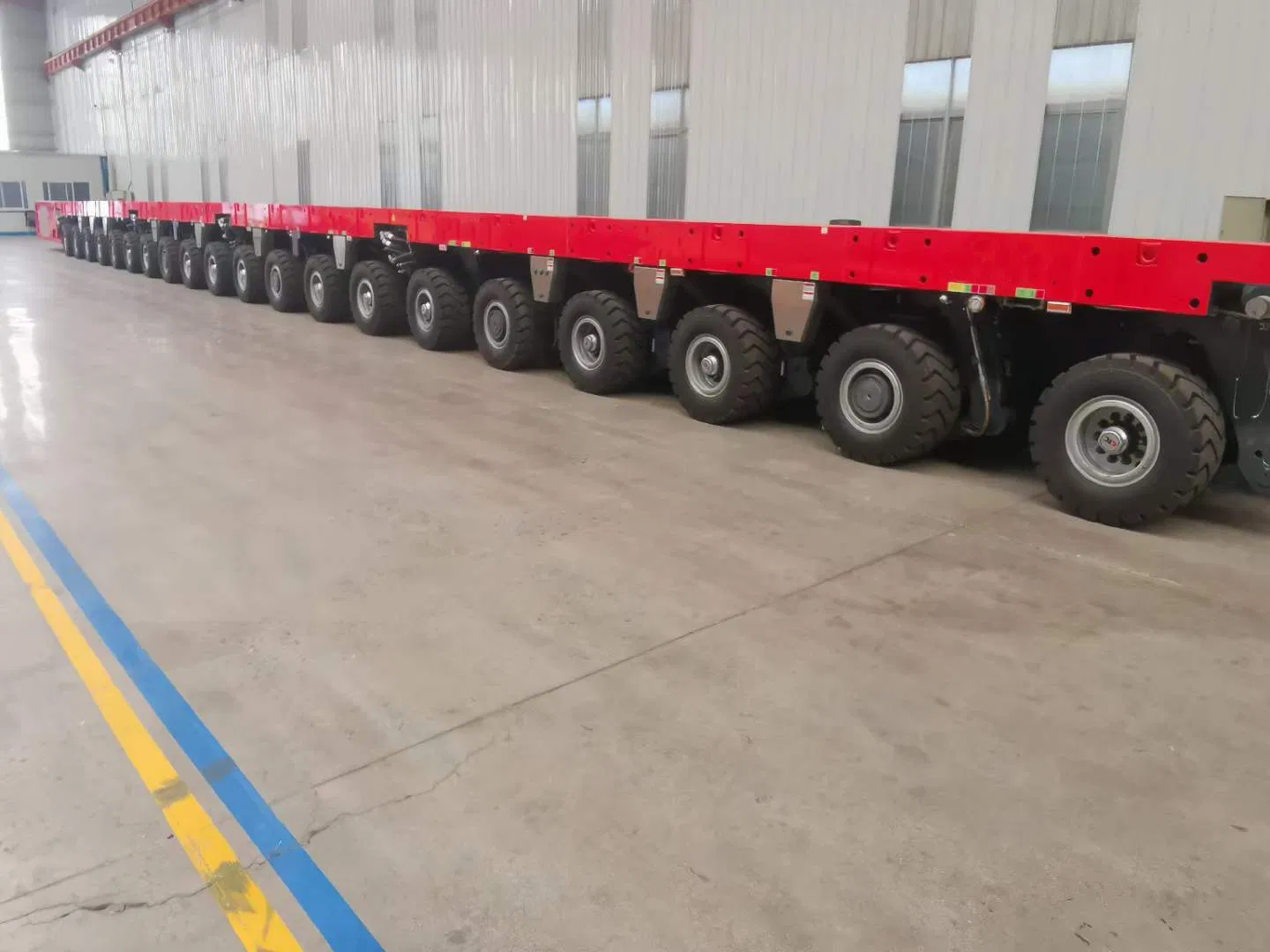

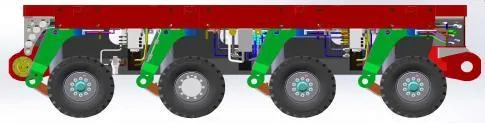

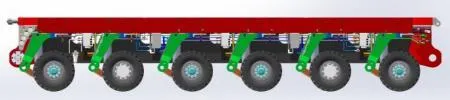

Axis Module Configuration

Key Advantages

Narrow-body modular design with a single module width of 2430mm for better accessibility.
High 44t axle load capacity, optimized for concentrated heavy-load transport.
Advanced multi-vehicle combination: supports connections up to 600 axis modules with a maximum load of 20,000t.
Intelligent multi-mode steering system applicable to both single and combined vehicle configurations.
High-pressure hydraulic pipes with flaring joints for superior leak resistance.
Automatic axis identification and visual digital interface to minimize manual operation errors.

Frequently Asked Questions

❓What is the maximum load capacity of these modular trailers?

Single modules are rated for 80T, but through multi-vehicle combinations, the system can handle up to 20,000 tons for specialized industrial transport.

❓Can the vehicle be customized for specific cargo?

Yes, we design trailers based on the specific transportation method, cargo weight, dimensions, and road conditions provided by the client.

❓What steering modes are available for the SPMT?

The system supports multiple modes including eight-shaped steering, transverse, oblique, center rotation, and pendulum modes.

❓What is the standard warranty period for the heavy-duty trailers?

Our trailers typically come with a two-year warranty, backed by high-quality manufacturing standards and reliable after-sales support.

❓What shipping methods are used for delivery?

Depending on the size, we ship via 40FT/40HQ containers, open-top containers, flatbed containers, Ro-Ro ships, or bulk carriers.

❓What information is needed to receive a detailed quote?

Please provide your intended use, road conditions, cargo type, total weight, and required dimensions to ensure an accurate technical proposal.
