Basic Information
Certification
ISO9001, CCC, ISO/TS16949
Suspension System
Cross Arm / Hydraulic
Loading Capacity
200t, 300t, 400t, 500t
Semi Trailer Type
Hydraulic Modular Flatbed
Product Description

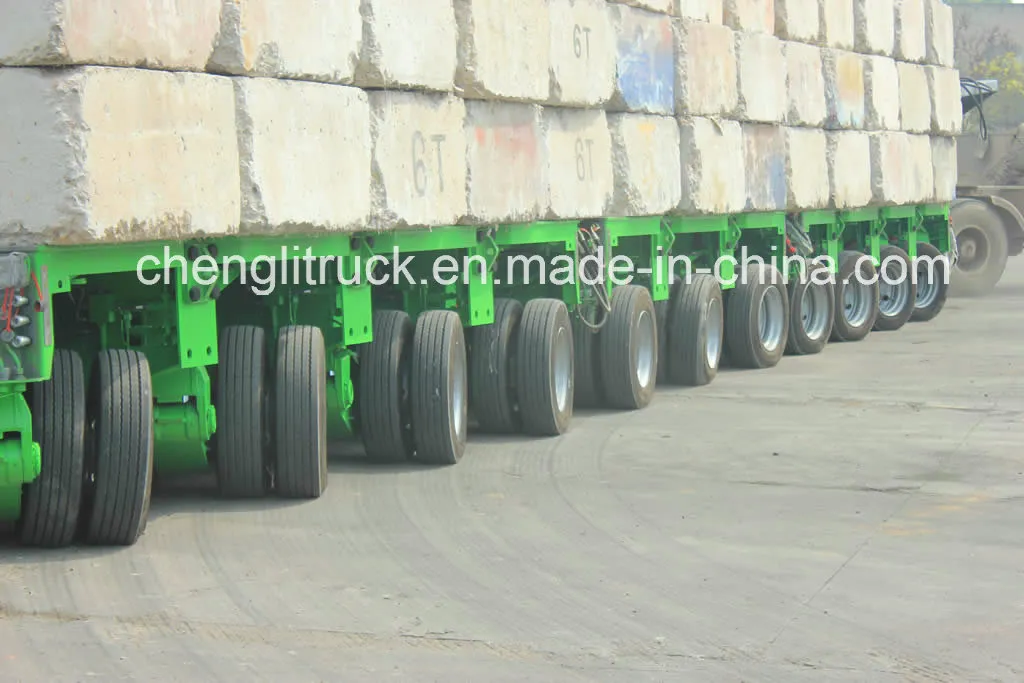

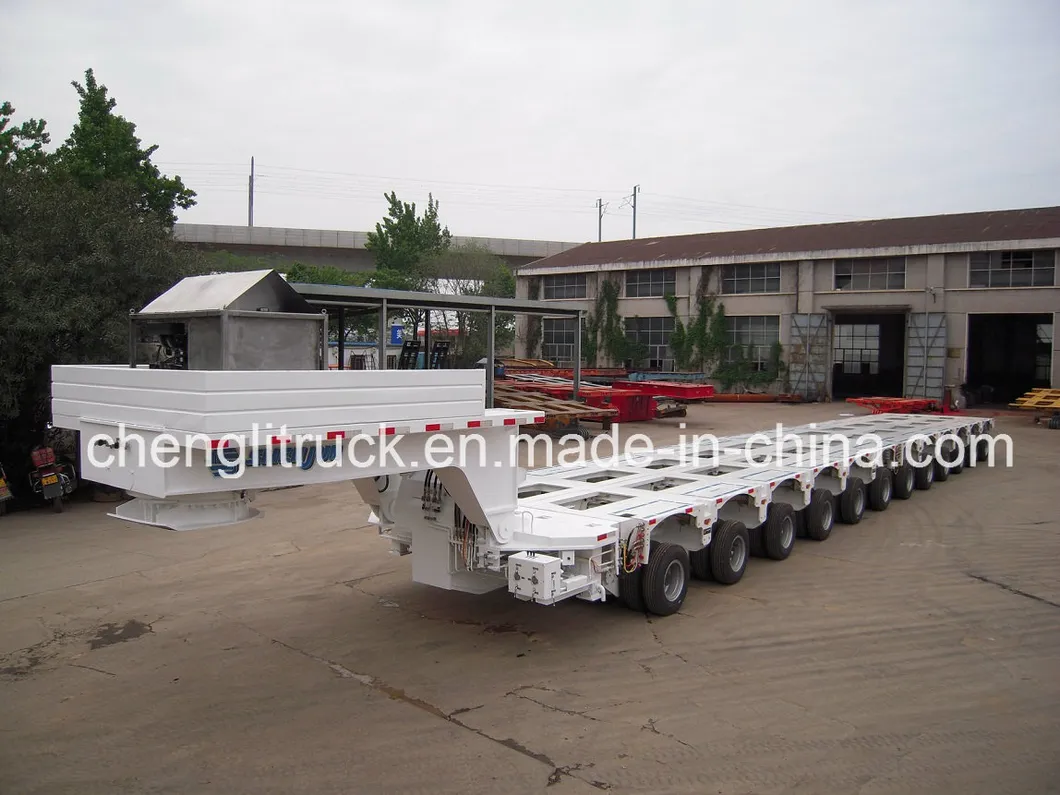

Heavy Duty Bridge Girder Transporter

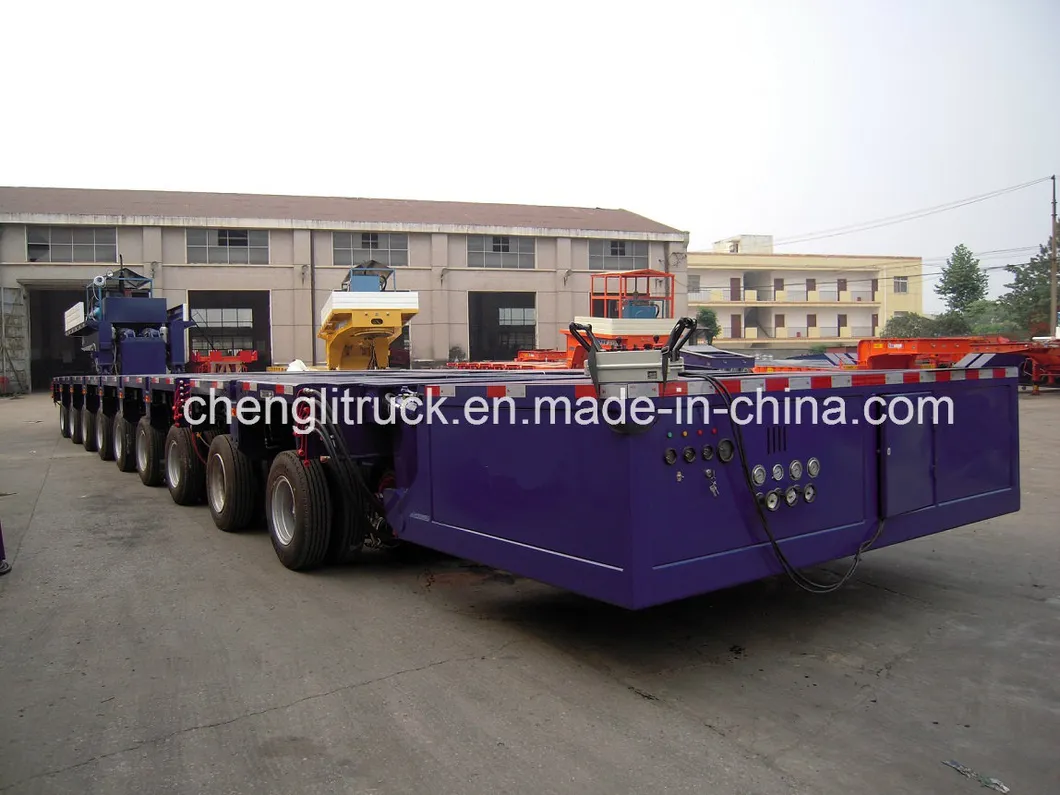

Hydraulic Modular Semi Trailer
| Load Capacity | 27 ton / axle line (3km/h) up to 16 ton / axle line (60km/h) |
| Axle Load | 15 ton |
| Axlebase | 1550mm |
| Wheelbase | 750mm / 1820mm |
| Tire Specifications | 7.5R15 or 215/75R17.5 |
| Platform Height | 760mm - 1330mm |
| Approach/Departure Angle | 22° / 22° |
| Steering Style | Full wheels or manual control |
| Suspension | Hydraulic suspension, 3 points support |
| Brake System | Dual Pipe-Line |
BEST COMPETITIVE PRICE WITH TRUSTED QUALITY
Our Main Product Range
Dump Truck / Tipper Truck
Fire Fighting Truck
Truck with Mounted Crane
LPG Tank Truck / Trailer
Water Sprinkler Truck
Concrete Mixer Truck
Refrigeration Van Truck
Sewage Suction Truck
Bulk Cement Powder Truck
High-altitude Operation Truck
Garbage Compactor Truck
Flatbed / Low Bed Semi Trailer
Frequently Asked Questions (FAQ)
What is the maximum loading capacity of this modular trailer?
This heavy-duty hydraulic modular trailer is designed for extreme loads, with capacities available in 200t, 300t, 400t, and up to 500t configurations depending on the number of axle lines.
What kind of steering system does the trailer use?
The trailer features a highly flexible steering system that supports full wheels automatic steering or manual control for navigating tight turns and complex job sites.
How does the hydraulic suspension system work?
It utilizes a 3-point support hydraulic suspension that allows the platform height to be adjusted between 760mm and 1330mm, ensuring stability and load compensation on uneven terrain.
Is the trailer suitable for high-speed transport?
While designed for heavy loads, the axle load capacity varies with speed. For example, it can carry 16 tons per axle line at 60km/h, whereas for heavy-duty 27-ton loads, the speed is limited to 3km/h.
What certifications do these trailers hold?
Our trailers are manufactured under strict quality control systems and hold ISO9001, CCC, and ISO/TS16949 certifications to ensure international safety and quality standards.
