Basic Information
Model NO.:LHY9400P
Tire:12r22.5/12.00r20
Kingpin:2"/3.5" Bolt in Type
Landing Gear:Jost Brand
Light:LED
Spare Tire:1PCS
Tool:1set
Package:Nude
Specification:12.5*2.5*1.5m
Origin:China Shandong
HS Code:8716900000
Capacity:12000set/Year
Product Description

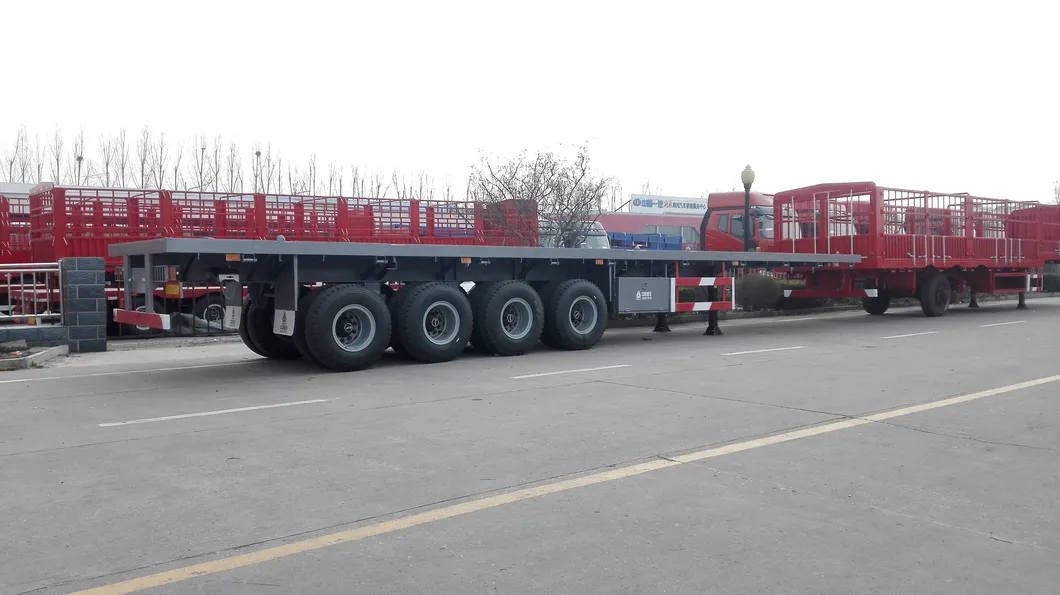

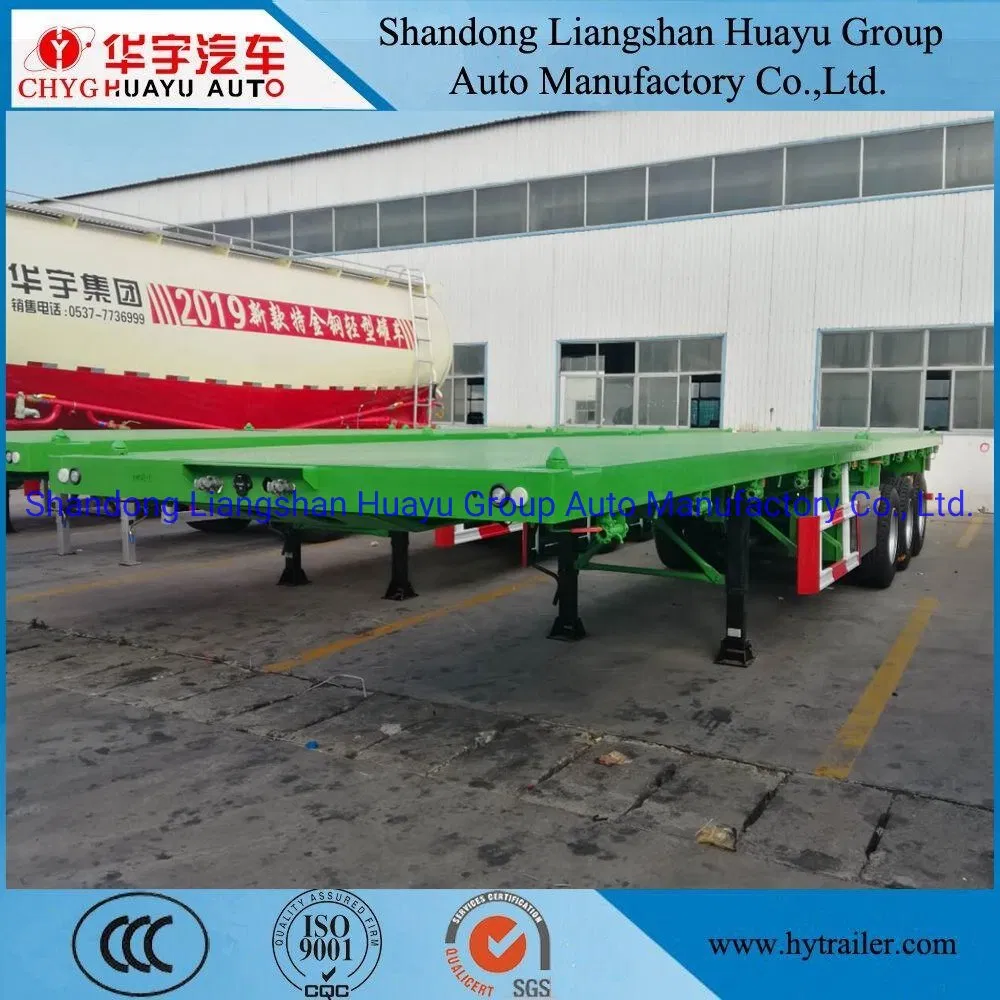

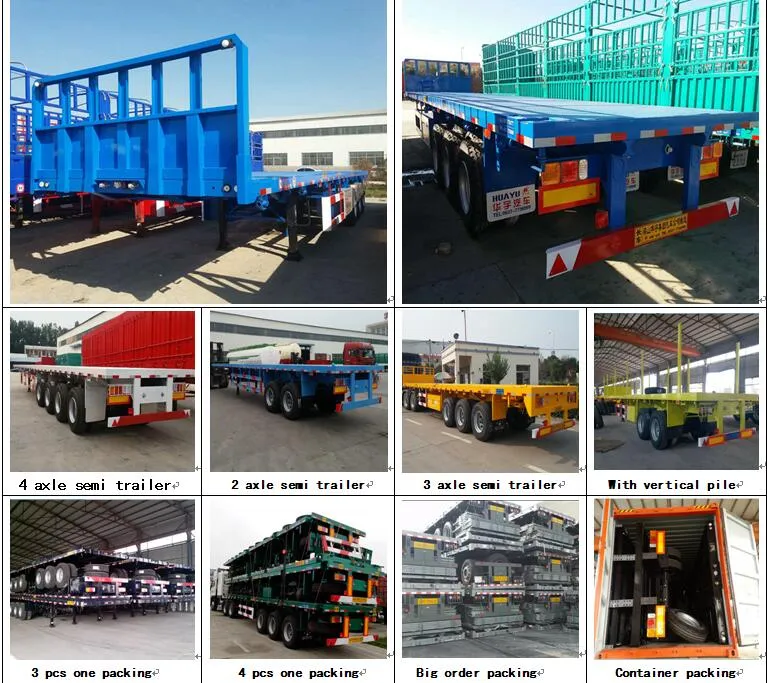

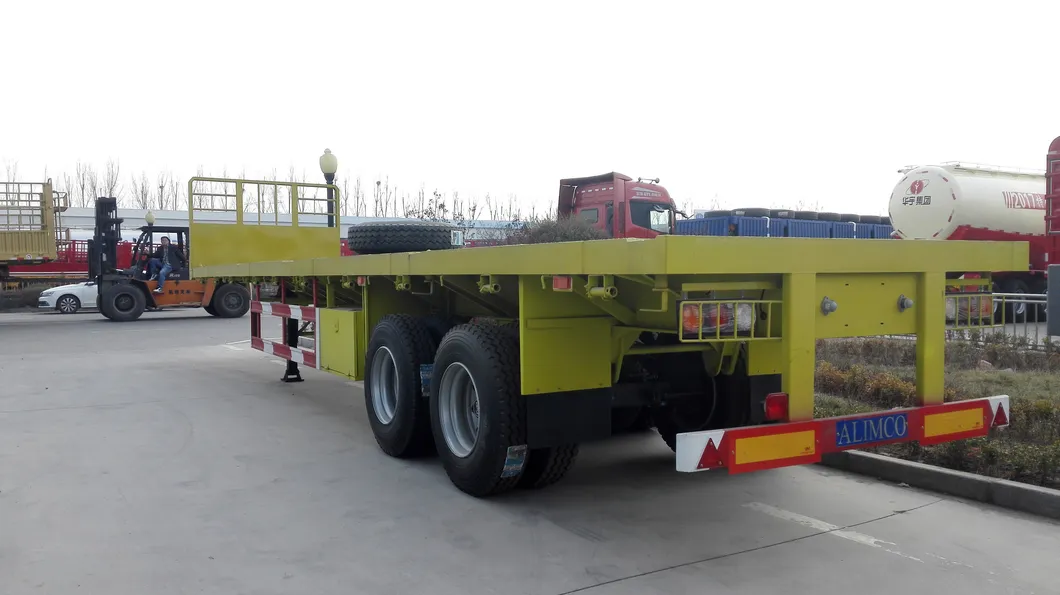

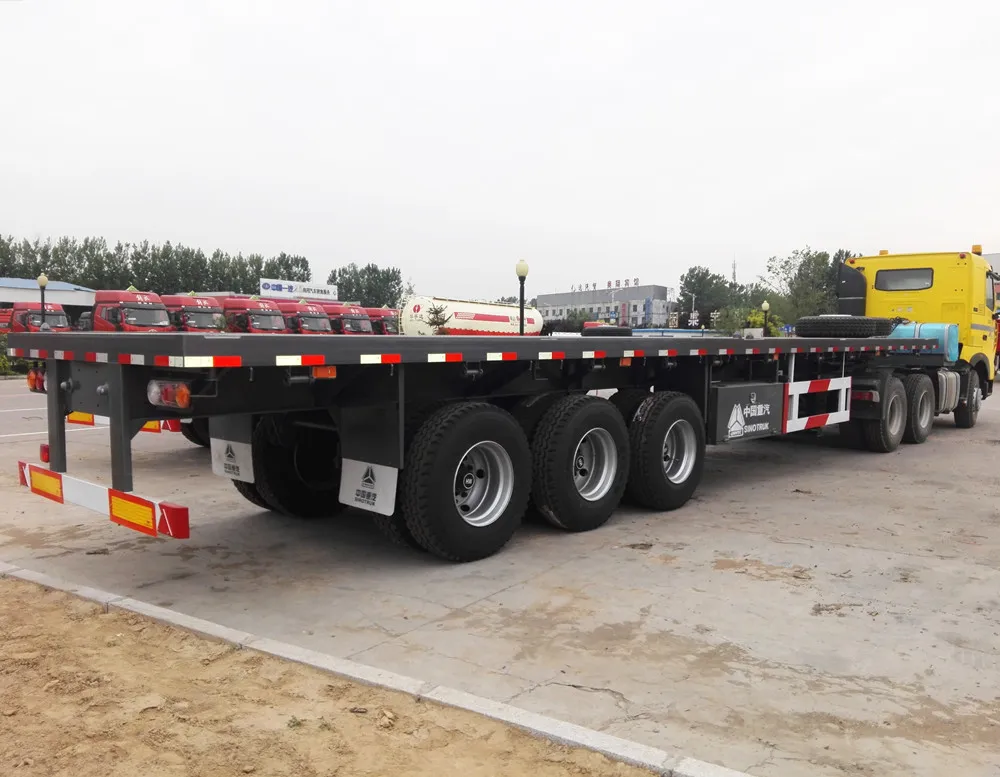

2/3/4 axle heavy duty 40FT flatbed/plateform utility/cargo/container chassis truck Semi Trailer with twist lock
Product Parameters
| Size | 12500x2500x1600mm |
| Payload | 50ton |
| Tare Weight | 7000kg |
| Axle | 3x13ton/14ton/16ton/20ton; Brand optional |
| Suspension | Mechanical/Air/American/Germany type optional |
| Tire | 11R22.5/12R22.5/11.00R20/12.00R20 |
| Kingpin | 2" / 3.5" |
| I Beam | Up:14mm; Bottom:16mm; Middle:8mm; Height:500mm; Q345B |
| Landing Gear | Jost C200 / Fuwa Two speed 28ton |
| Floor | 3mm checkered plate |
| Twist Lock | 12pcs for 1x40ft or 2x20ft container |
| Brake System | WABCO relay valve; Drum brake; T30/30 chamber |
| Painting | Sand blasting; Electrophoresis coating; Anticorrosive prime |

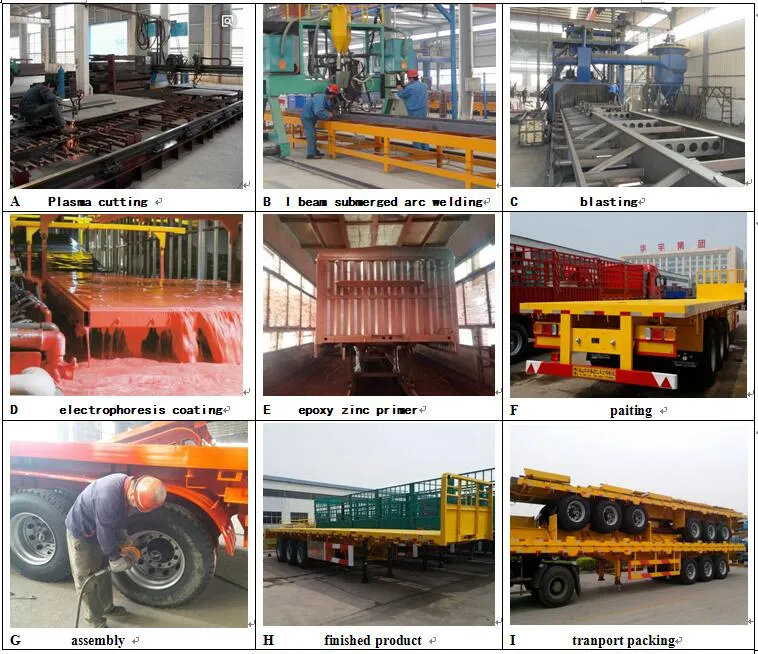

Normal Manufacturing Procedure
1. CuttingPlasma cutting machine used for precision steel shaping.
2. WeldingSubmerged arc welding for I-beams; Argon arc and electric welding for other parts.
3. Blasting & CoatingSurface cleaning, stress relief, and electrophoresis coating for durability.
4. AssemblyInstallation of tires, axles, landing gear, and electrical systems.
5. Quality InspectionComprehensive checking of welding lines, brake systems, and lamps before dispatch.
International Experience
- Extensive production capacity: 12,000 units per year.
- Annual export volume: 4,000 units of semi-trailers.
- Global presence: Participation in exhibitions across South Africa (2010), Russia (2012), America (2014), and Germany (2015).
Frequently Asked Questions
Q1: Why choose these trailers?
We focus strictly on customer requirements, ensuring every trailer is built to specific operational needs.
Q2: What are the main advantages?
We offer a combination of high durability, excellent after-sales support, and high cost-performance ratios.
Q3: What kind of load can the flatbed trailer handle?
The standard payload is 50 tons, suitable for 40ft containers or two 20ft containers.
Q4: Are the trailer components customizable?
Yes, brands for axles, tires, and suspension systems are optional based on client preference.
Q5: What is the surface treatment process?
Every chassis undergoes sandblasting and electrophoresis coating followed by anti-corrosive primer for maximum rust protection.
Q6: Is quality inspection performed before delivery?
Yes, all systems including brakes, lighting, and structural bolts are reinforced and tested before leaving the factory.
