| Model NO. | HBG1 |
| Type | Semi-Trailer |
| Load Capacity | 100t-300t |
| Certification | ISO9001, CCC, ISO/TS16949 |
| Axle Number | 12 Lines 24 Axis |
| Tire Number | 96 PCS |
| Material | Steel |

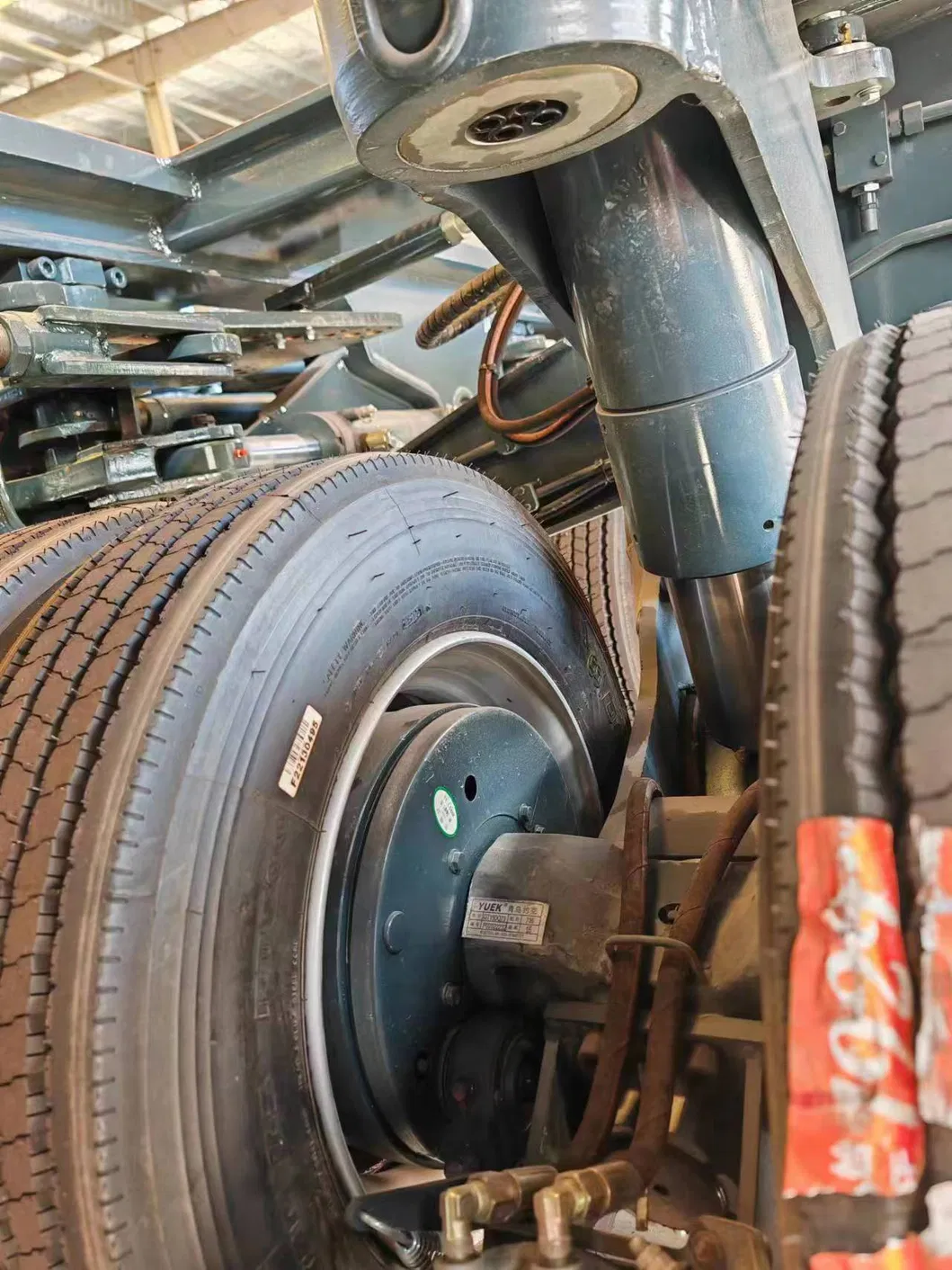

| Suspension | Hydro-Pneumatic Suspension |

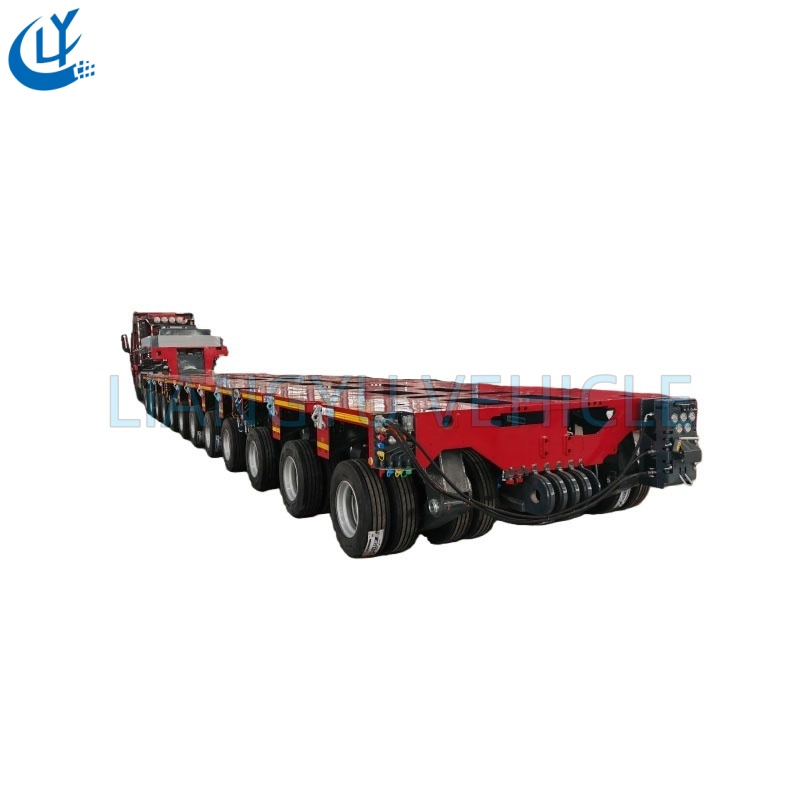

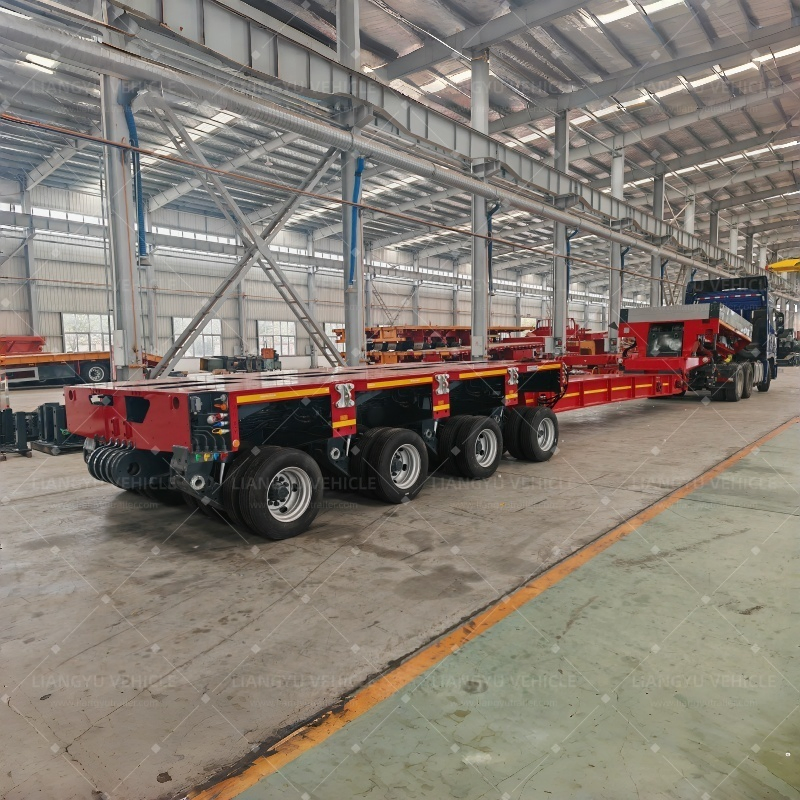

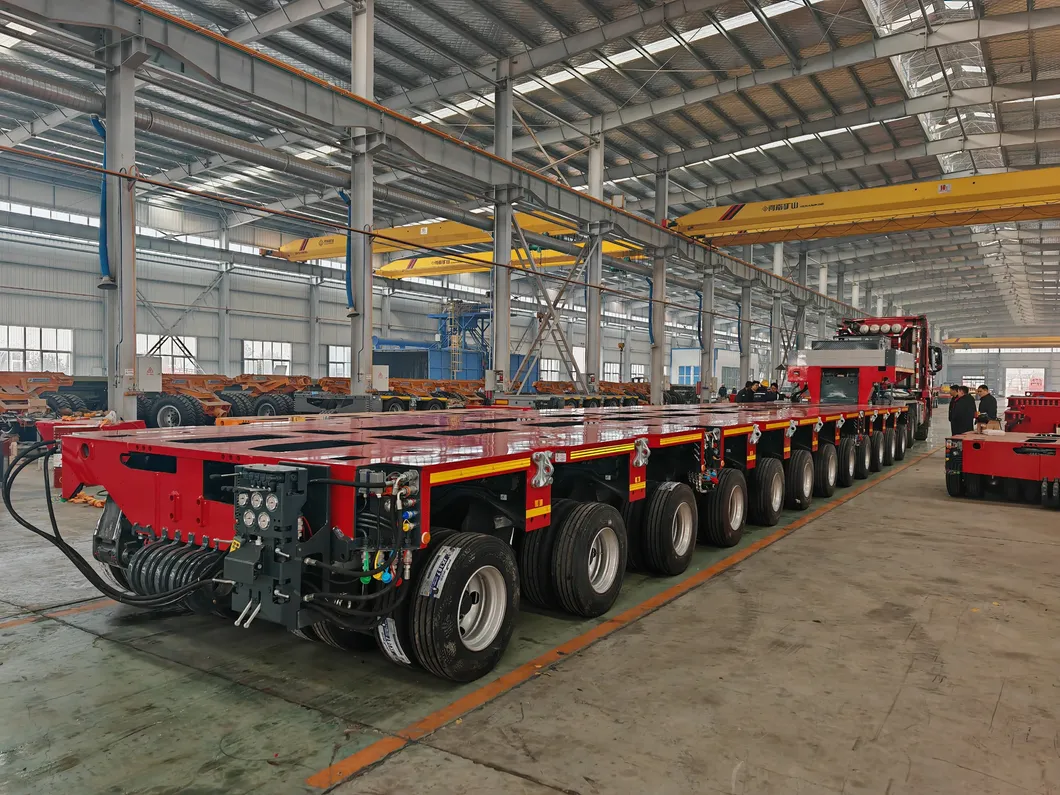

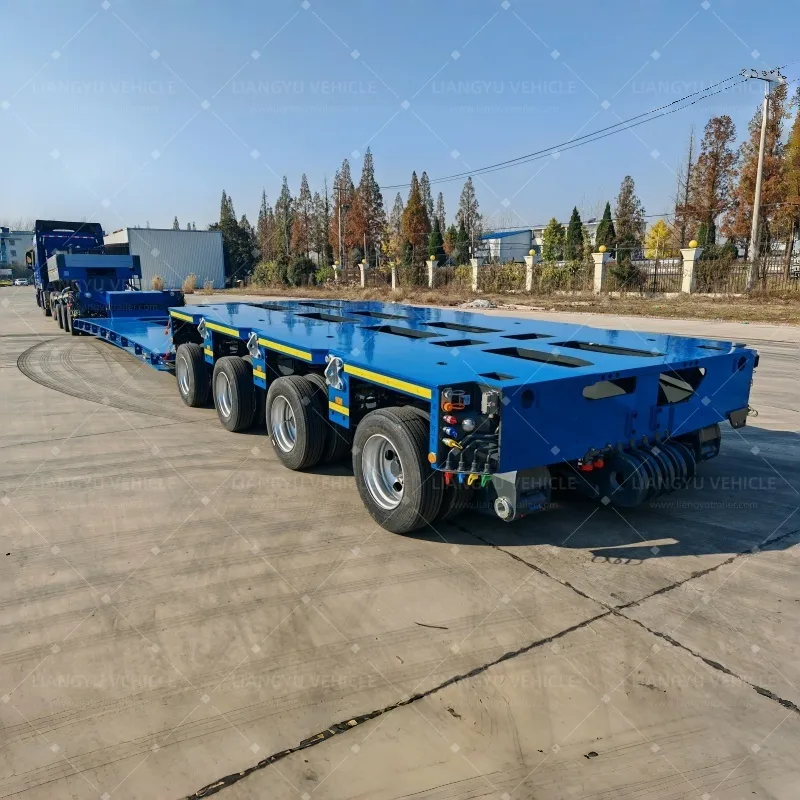

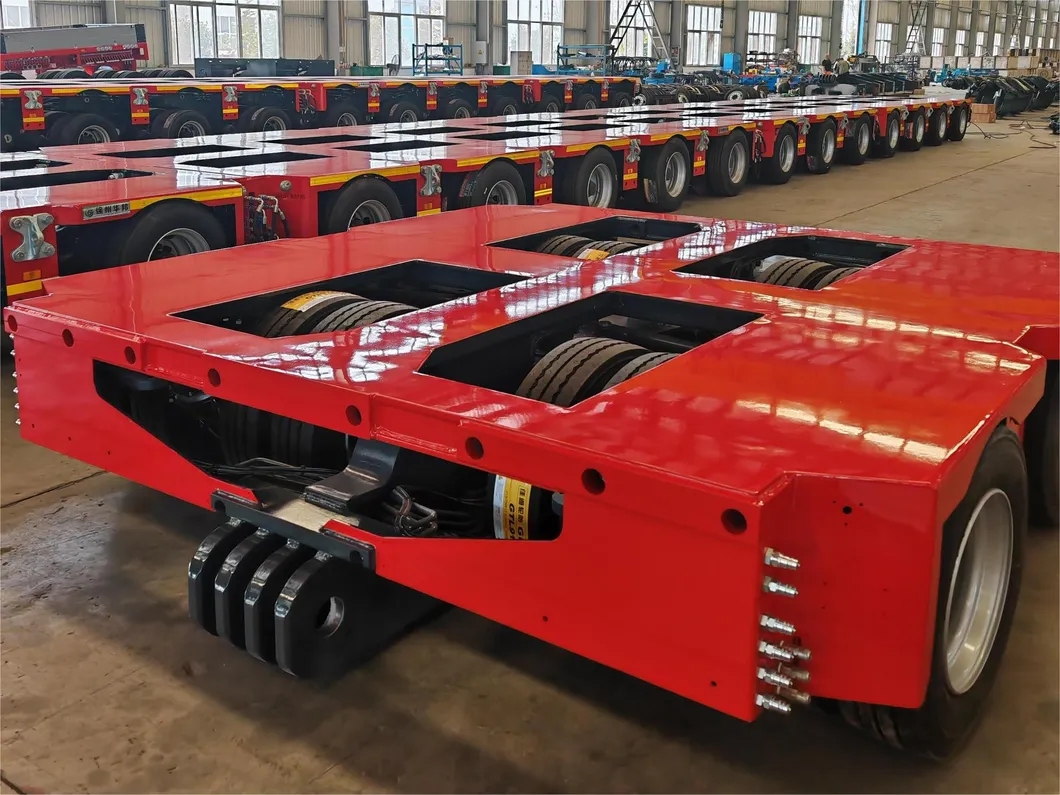

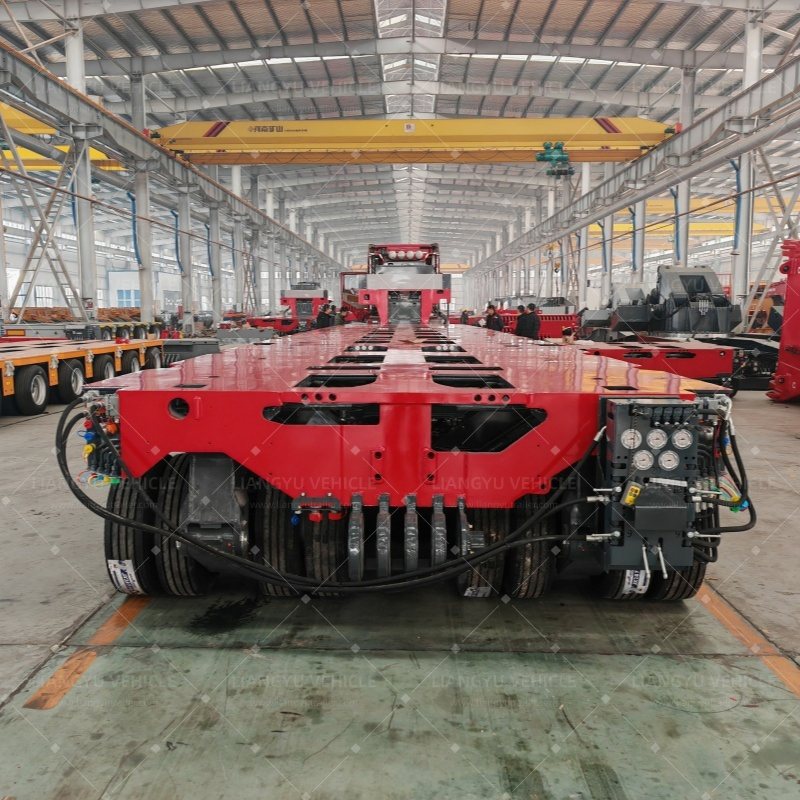

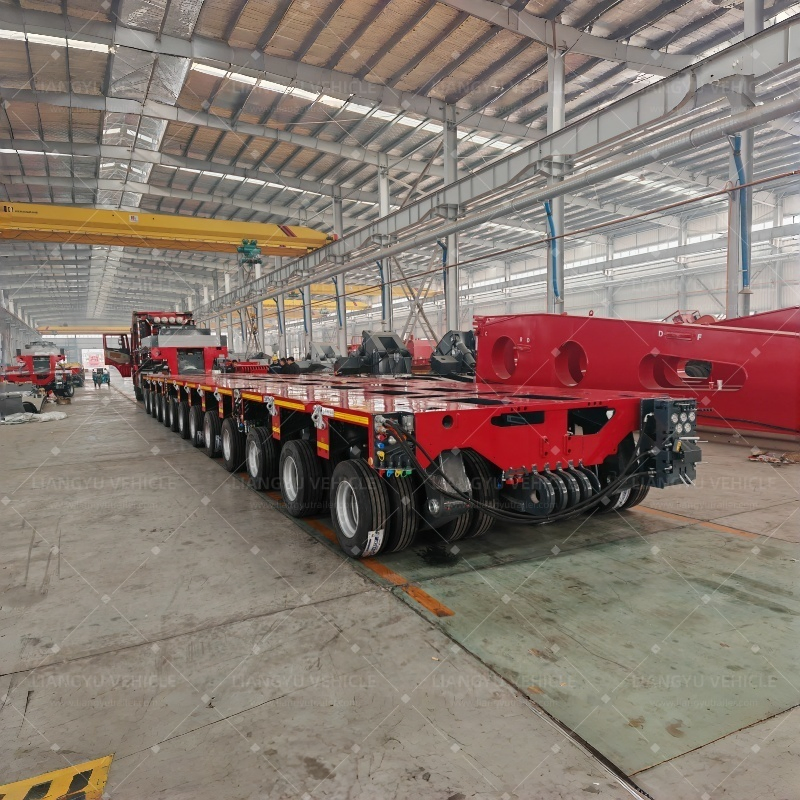

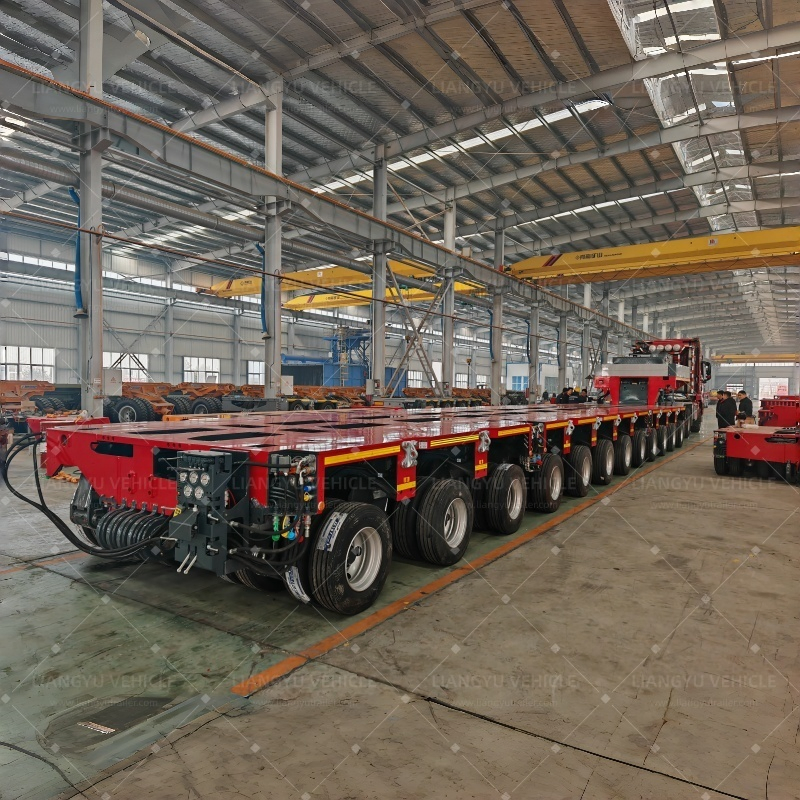

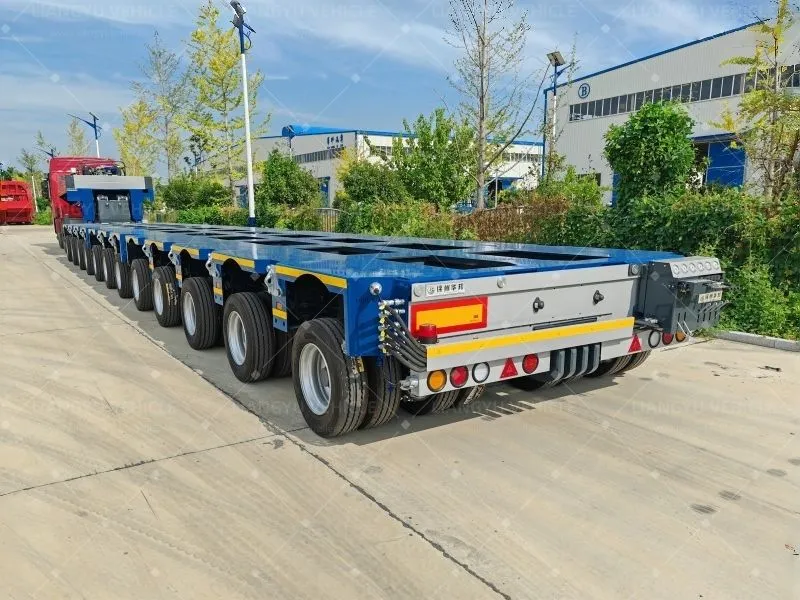

The hydraulic modular trailer is a high-performance heavy-haul transportation vehicle designed for moving oversized, overweight, and ultra-long cargo such as large-scale engineering machinery, wind power equipment, bridge segments, and petrochemical modules. Composed of multiple independent modular units, it can be flexibly combined horizontally and vertically according to the size and weight of the cargo.
| Description | Specification |
|---|---|
| Wheel Base | 1550mm |
| Cargo Bed Width | 2990mm |
| Platform Height | 1070mm (middle heavy load) |
| Suspension Travel | ±300mm |
| Main Material | Q550D High-Strength Steel |
| Turning Angle | 55° |
| Effective Load | 22.5 tons per axis (at 18km/h) |
Specializing in the production of various semi-trailers, the facility features advanced automatic welding lines and spraying processes. Products include wind turbine blade trailers, heavy machinery transporters, and tank trailers. All vehicles strictly follow international quality standards and are ISO certified to ensure safety and durability.
