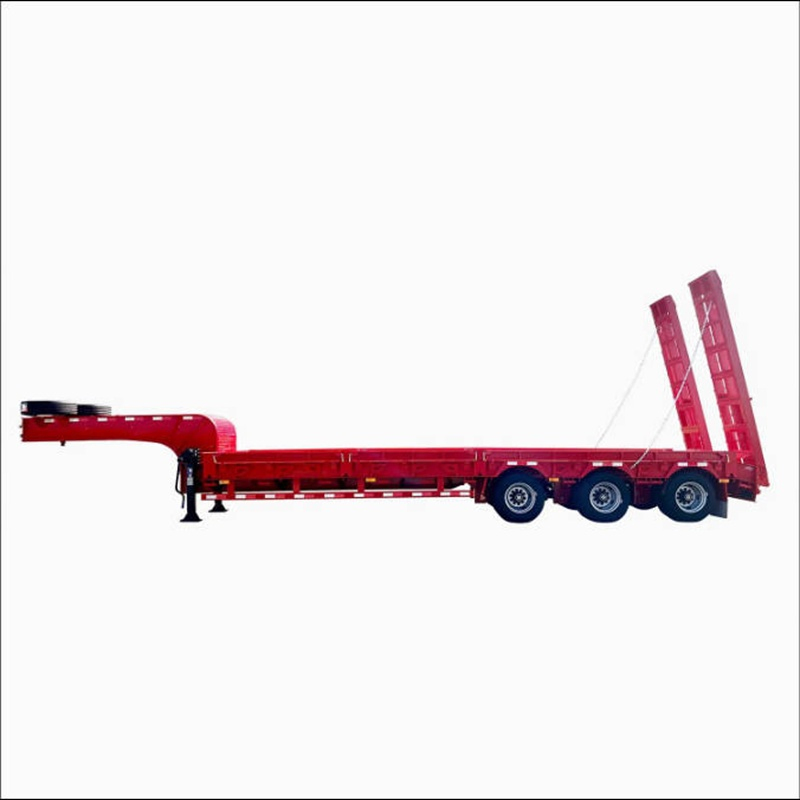

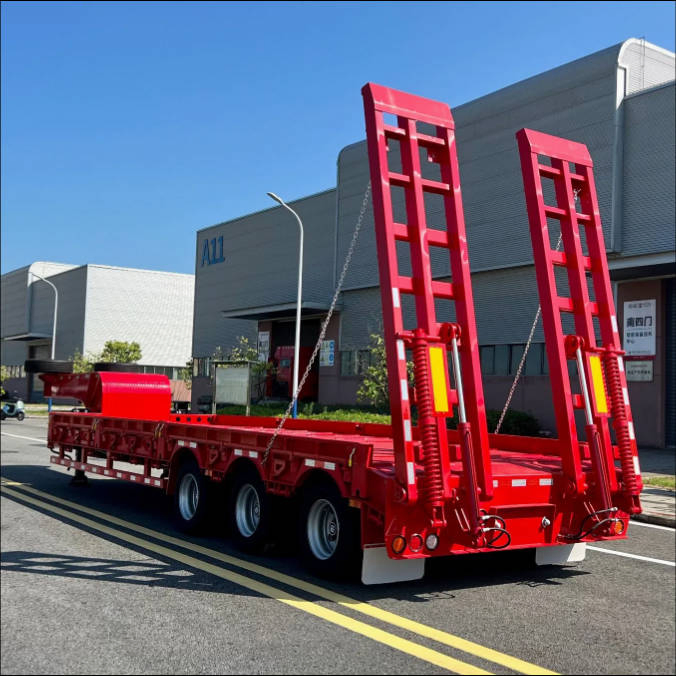

60-80ton Flatbed Trailer Truck Trailer Lowbed Semi Trailer Hydraulic Modular Trailer Lowboy 3/4/5axles Heavy Duty Dolly Semi Trailer

1 / 5

60-80ton Flatbed Trailer Truck Trailer Lowbed Semi Trailer Hydraulic Modular Trailer Lowboy 3/4/5axles Heavy Duty Dolly Semi Trailer

Customization:	Available
Type:	Semi-Trailer
Load Capacity:	30-120t

Send Inquiry

Product Description

📋 Basic Information

Model NO.

LUXI

Certification

ECE, ISO9001, CCC, ISO/TS16949, Ottc

Wheel Base

8000-9000mm

Tread

2240mm

Grade

Heavy Duty

Suspension

Leaf Springs and Air Suspension

Shape

Customizable

Axle Number

3/4/5

Tire Number

12/16/20

Material

Steel

Condition

New

HS Code

8716391000

🚛 Product Description

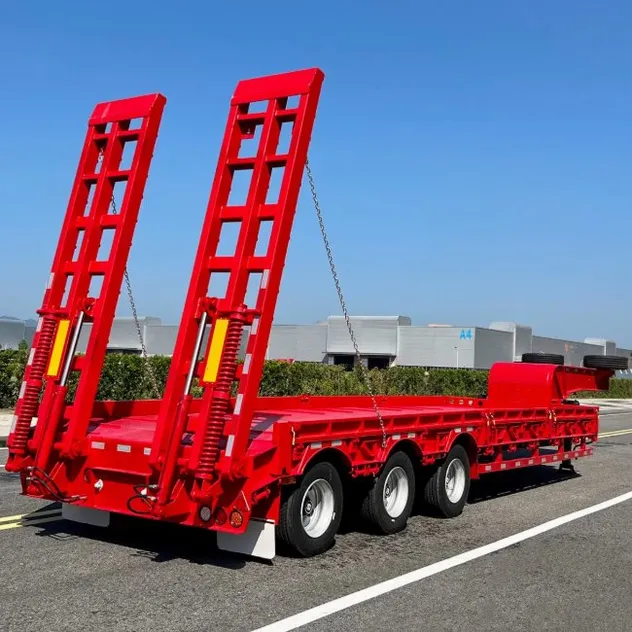

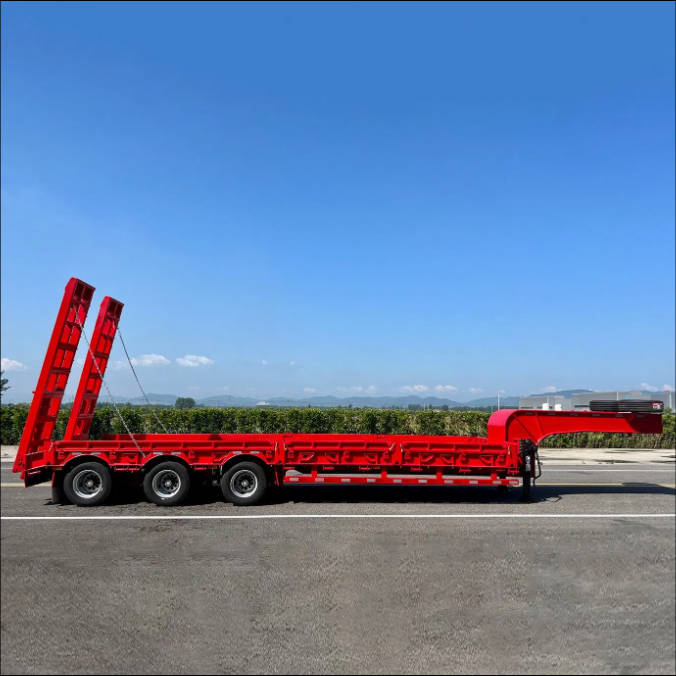

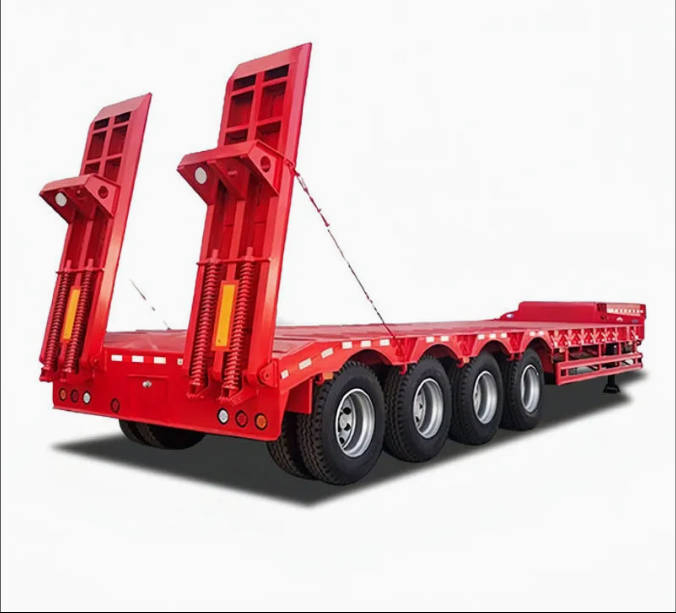

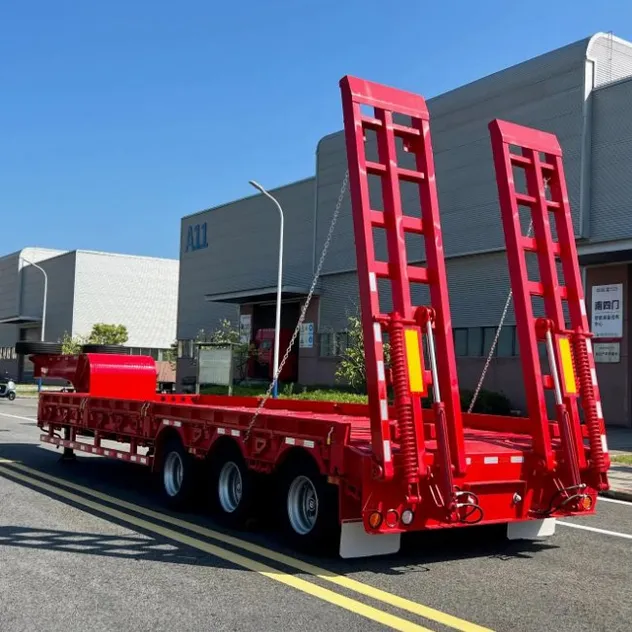

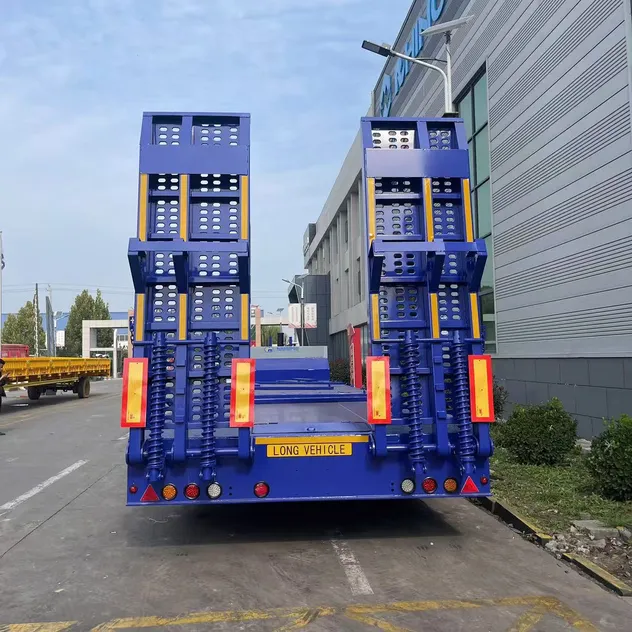

Low bed semi-trailers are specialized for transporting heavy-duty vehicles such as tractors, buses, and special-purpose vehicles. They are widely used for rail vehicles, mining machinery, forestry equipment, and construction machinery including excavators, bulldozers, loaders, road pavers, and cranes.

🛡️

Enhanced Stability: The lower center of gravity ensures superior stability and safety when transporting super-high loads and navigating overhead obstacles.

Depending on the number of axles and tire specifications, the load capacity ranges between 20-150 tons. Increasing the number of axles allows for greater payload handling.

⚙️ Technical Specifications

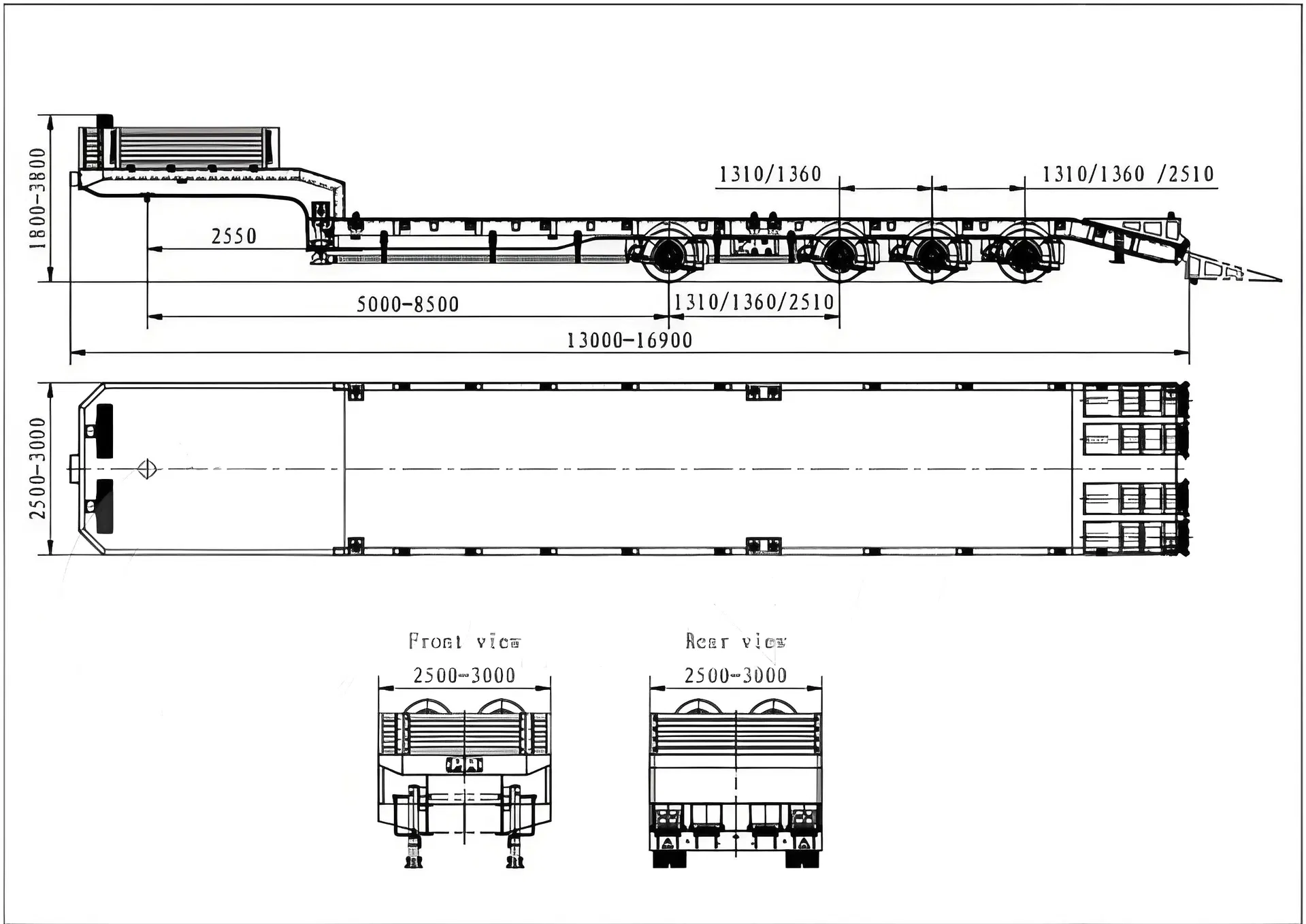

Feature	2 Axles	3 Axles	4 Axles
Size (mm)	1250030001100	1300030001100	1400030001100
Payload	40,000 KG	60,000 KG	80,000 KG
Plate	4mm checked	4mm checked	5mm checked
Axles	2 * 13T	3 * 13T	4 * 13T

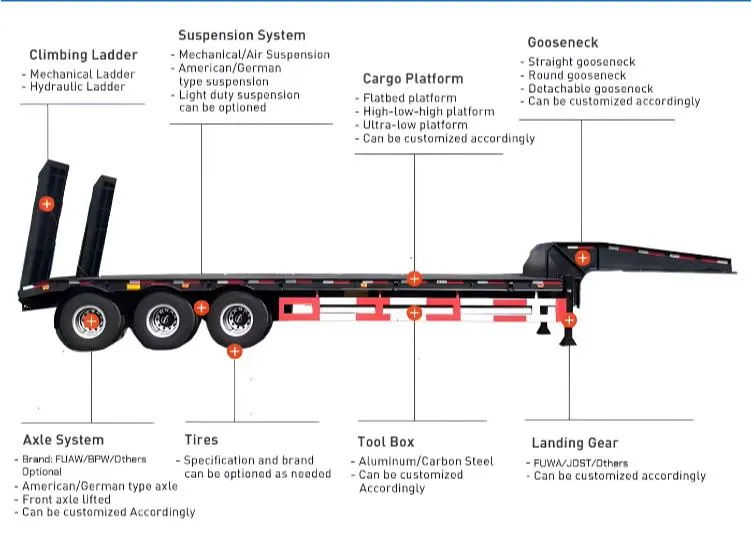

Main Beam	Height: 500mm, Q345B Steel; Upper 16mm, Middle 8mm, Down 18mm
Suspension	Mechanical suspension (Air suspension optional)
Tires	12R22.5 / 11.00R20 8pcs (Other sizes optional)
Braking	Double air chamber, 45L air tanks, ABS optional
Usage	Mechanical equipment, large objects, power plant machine, steel products

📜 Certifications & Quality

📦 Packaging & Shipping

❓ Frequently Asked Questions

What are the main advantages of your trailers?

We utilize professional production lines and an expert technical team to ensure high quality and durable construction.

Can the logo and color be customized?

Yes, we provide full customization services for both color and branding based on your requirements.

What is the Minimum Order Quantity (MOQ)?

Our minimum order quantity is one unit.

How long is the delivery time?

For standard configurations with materials in stock, we offer quick delivery. Customized orders are typically processed within 15 working days after payment.

What after-sales services do you provide?

We provide comprehensive after-sales support and ensure fast delivery of spare parts and technical assistance.

Are your trailers certified for international use?

Yes, our products pass national mandatory 3C certification and comply with international standards such as ISO9001 and ECE.

Product Detail

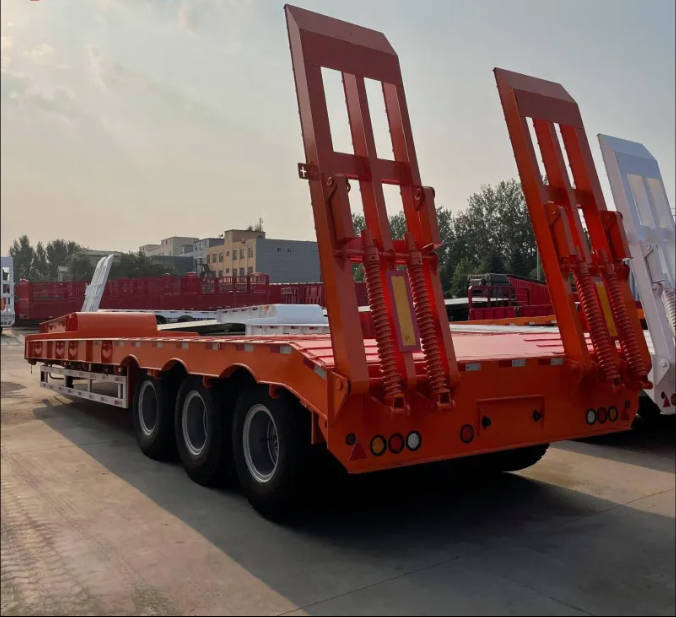

60-80ton Flatbed Trailer Truck Trailer Lowbed Semi Trailer Hydraulic Modular Trailer Lowboy 3/4/5axles Heavy Duty Dolly Semi Trailer
