1. Steel Structure: The steel frame is made of top hot-rolled or rolled steel plates. Longitudinal beams are automatically welded with advanced sanding and painting processes used as preliminary treatment.

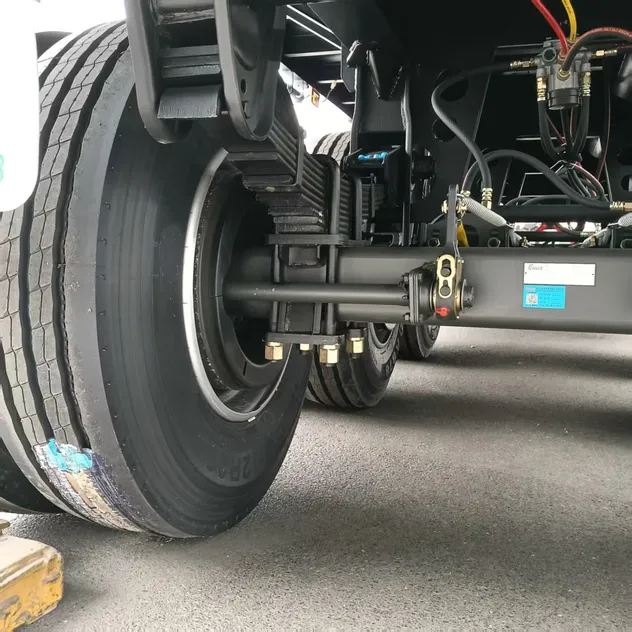

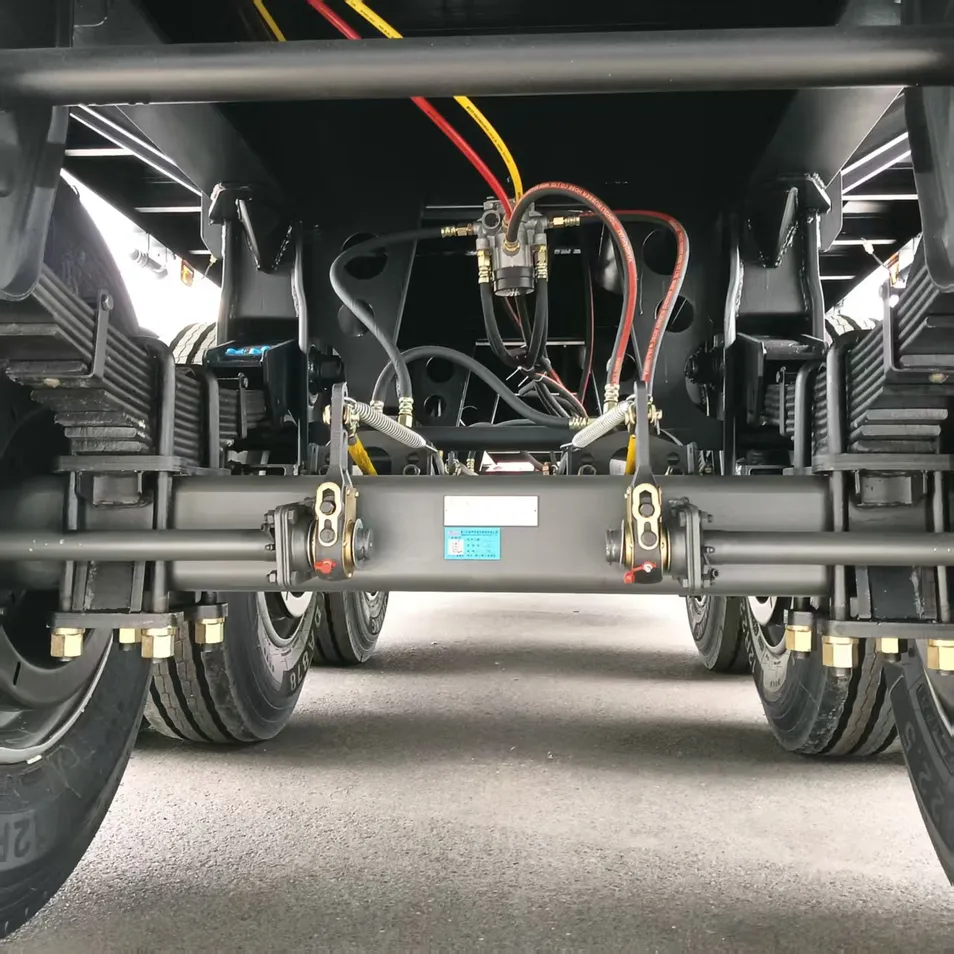

2. Suspension Systems: Multiple designs for various operating conditions including bogie, air, and mechanical suspension.

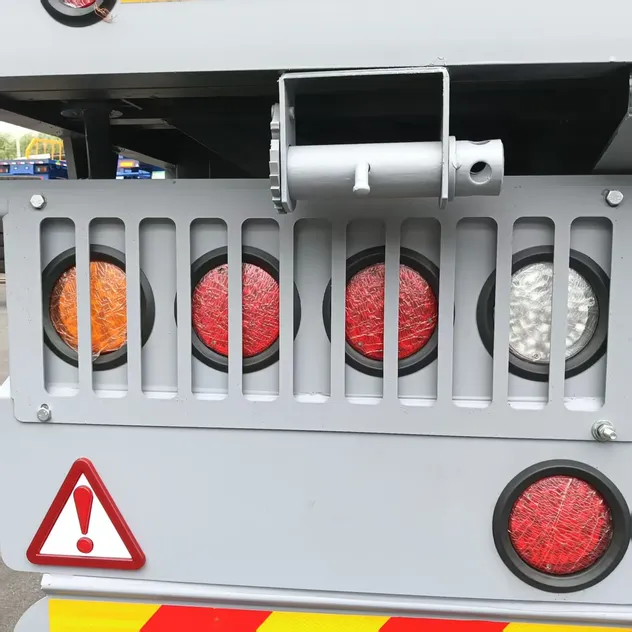

3. Advanced Lighting: Lamp assembly adopts advanced LED technology, high-quality PC materials, and dual-circuit wiring harnesses.
4. Safety Features: Optional automatic tire inflation and pressure sensor systems to improve safety and fuel economy.
5. Rigorous Testing: Analysis of composition, hardness, and metal phase ensures material standards; finished products undergo strict weld and paint adhesion checks.

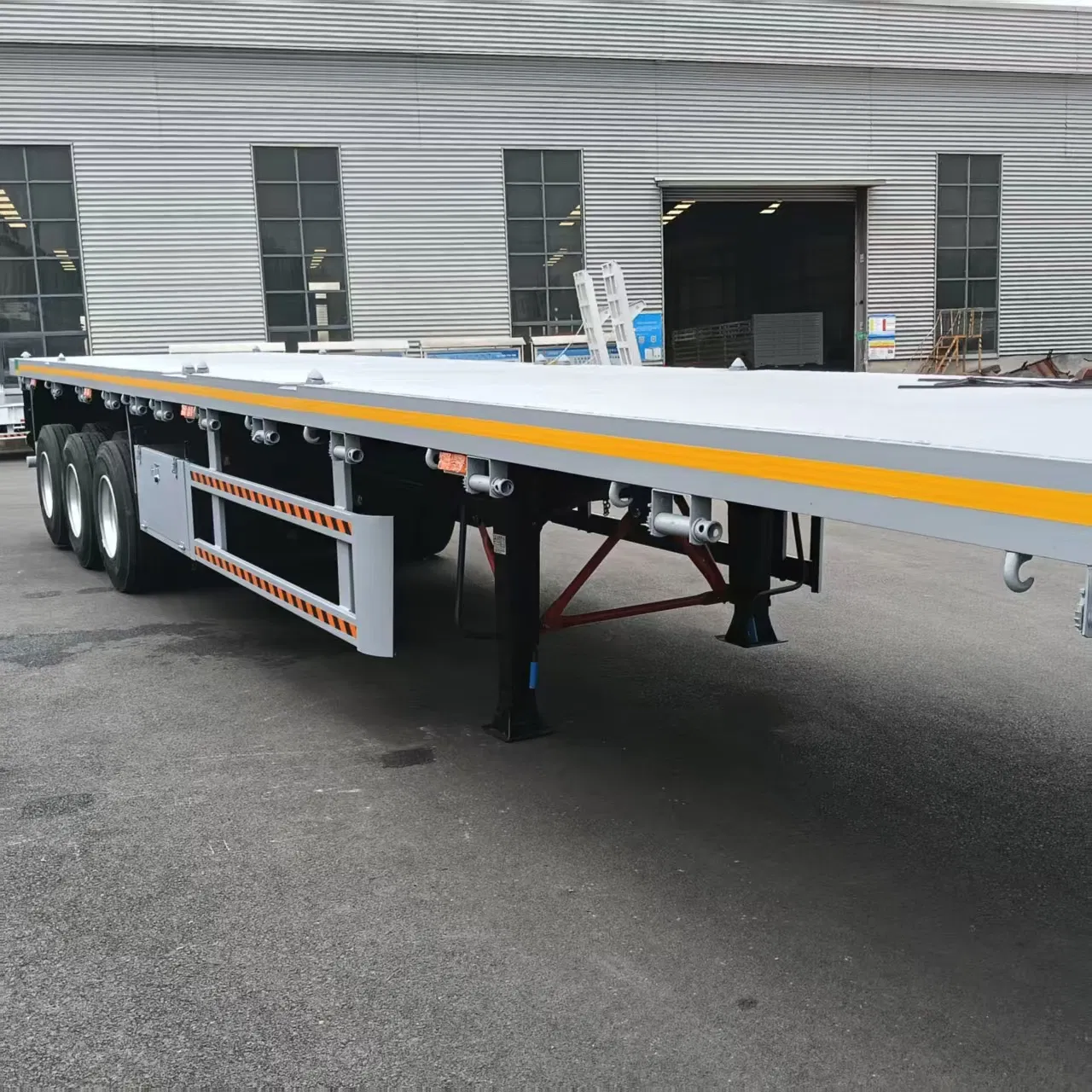

| Overall Dimensions (L*W*H) | 12500*2500*1600 mm |
| Function | Transport 2x20ft and 1x40ft containers |
| Loading Capacity | 50,000 kg |
| Main Beam | Height: 500mm; Upper: 14mm; Lower: 16mm; Middle: 8mm |

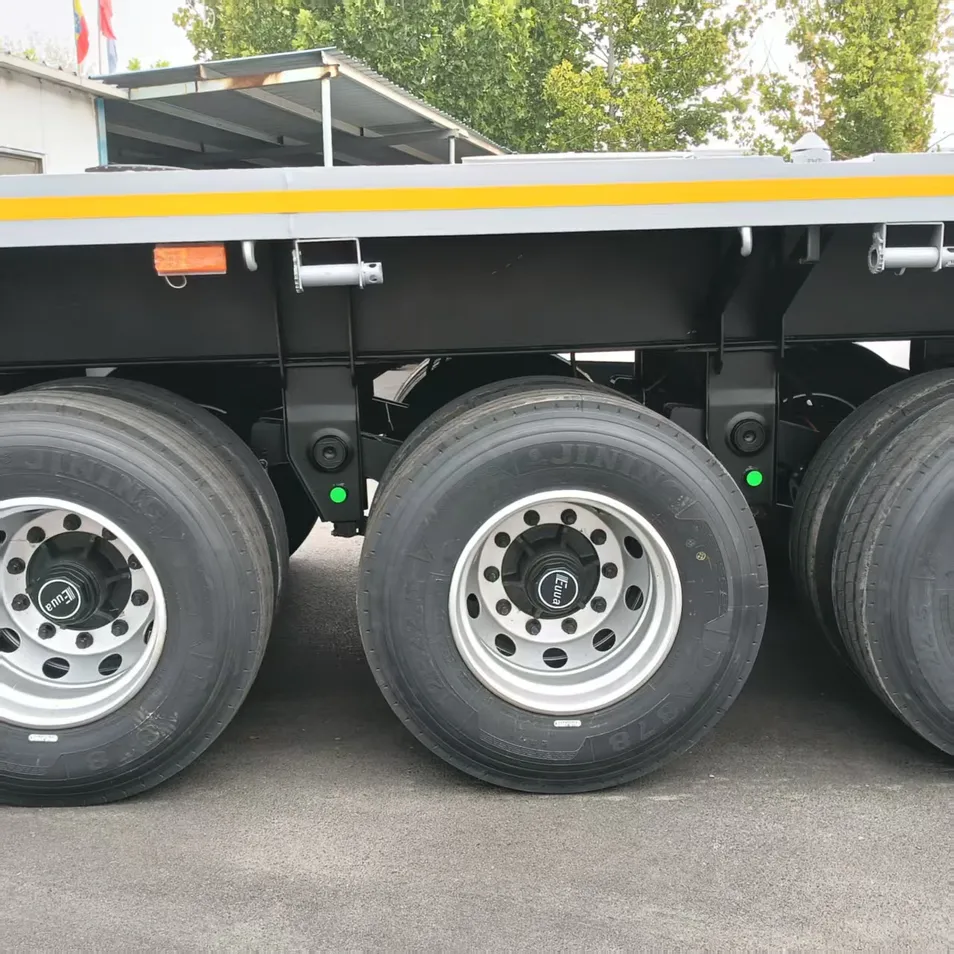

| Axle / Kingpin | 3 Axles / 3.5" (90#) Kingpin |
| Support Legs | 28 Ton Heavy Duty Landing Legs |
| Tires | 12R22.5, 12 pcs |

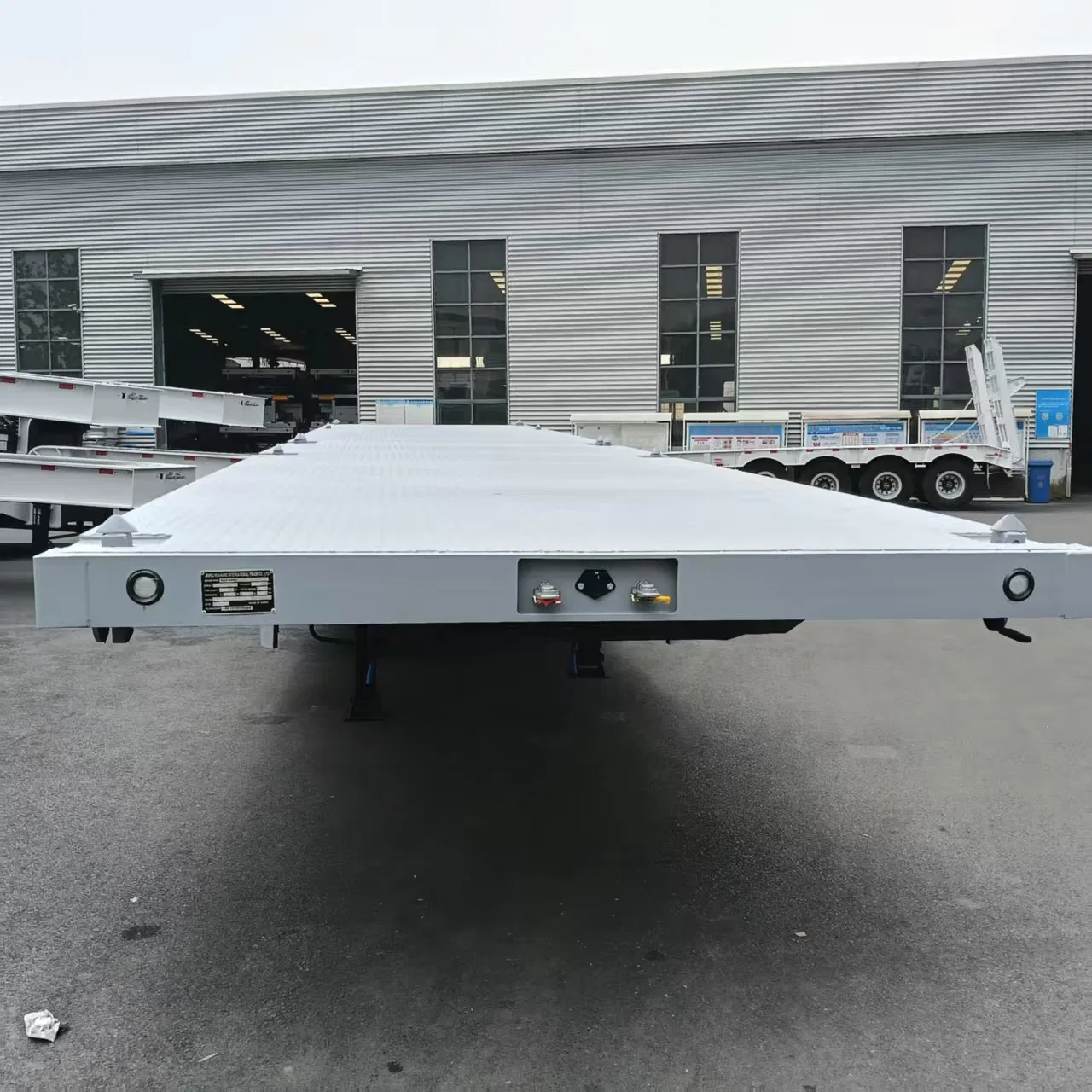

| Platform Plate | 3mm Metal Deck |

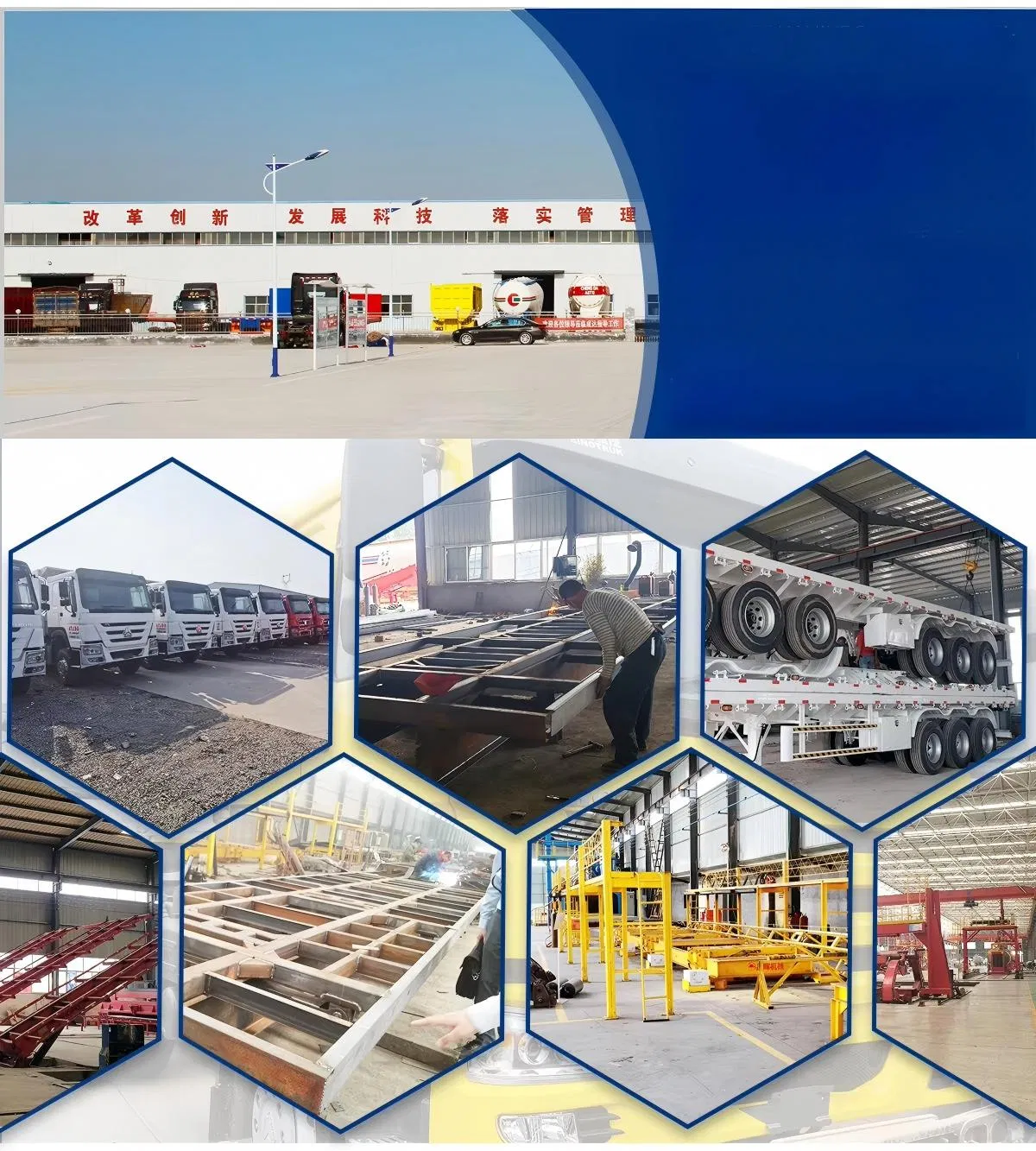

A professional team covers everything from design to after-sales service. In addition to triple axle flatbed trailers, we offer lowbed semi trailers, dump semi trailers, and tanker semi trailers, with specifications customizable to your needs.
