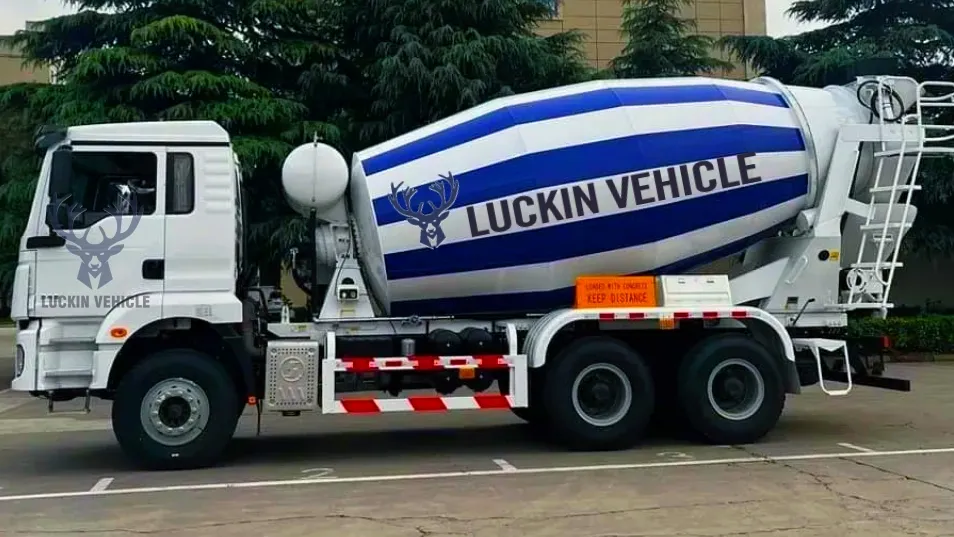

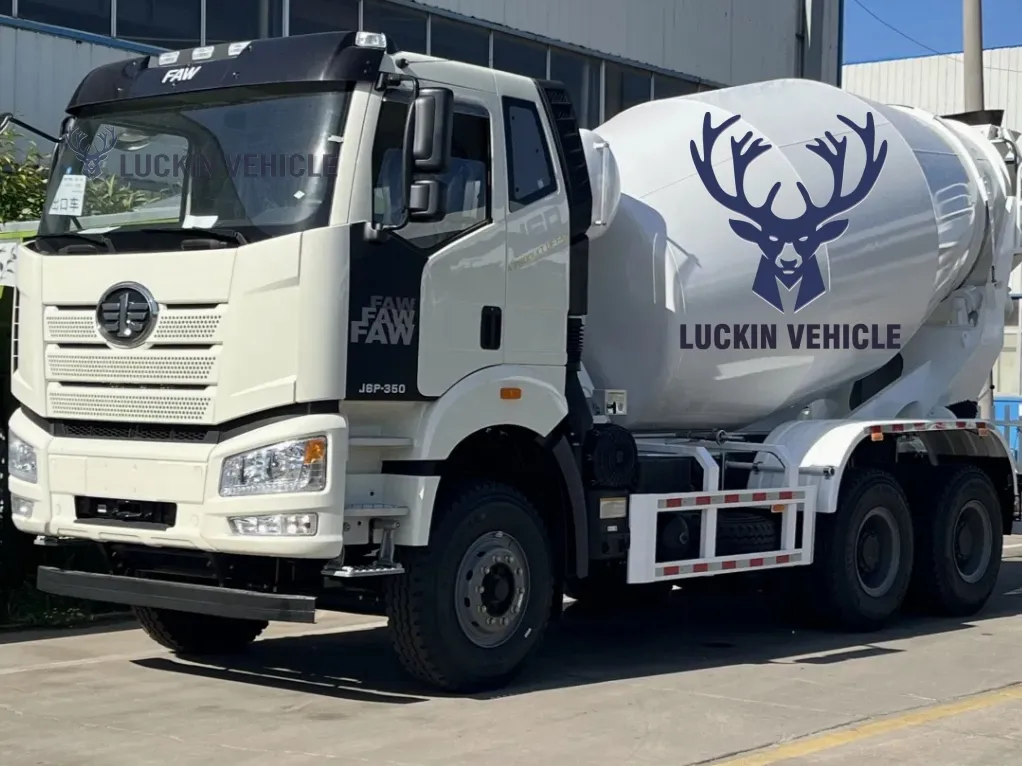

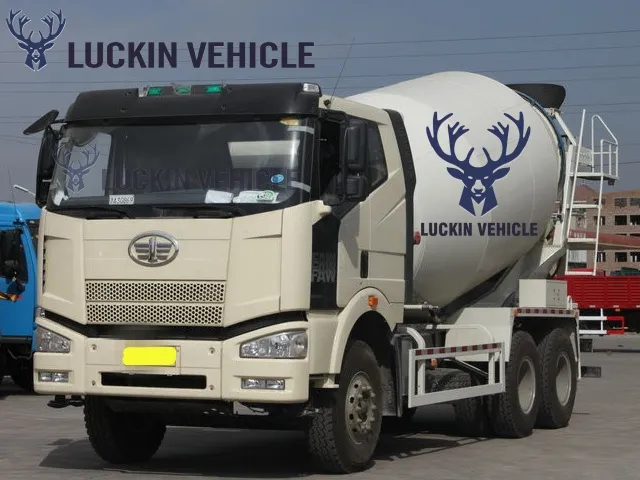

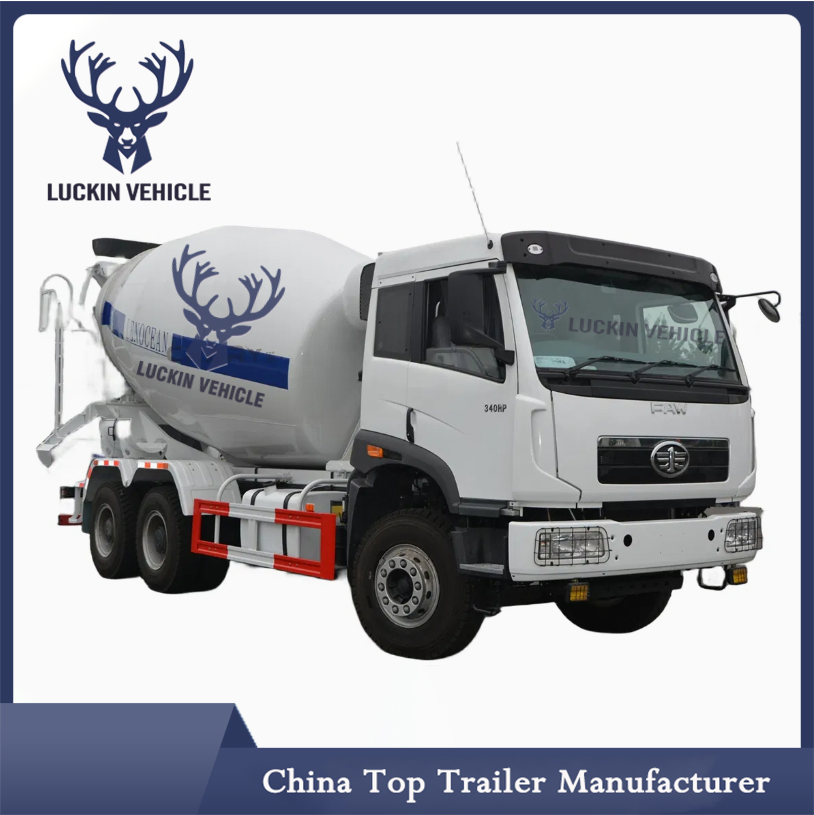

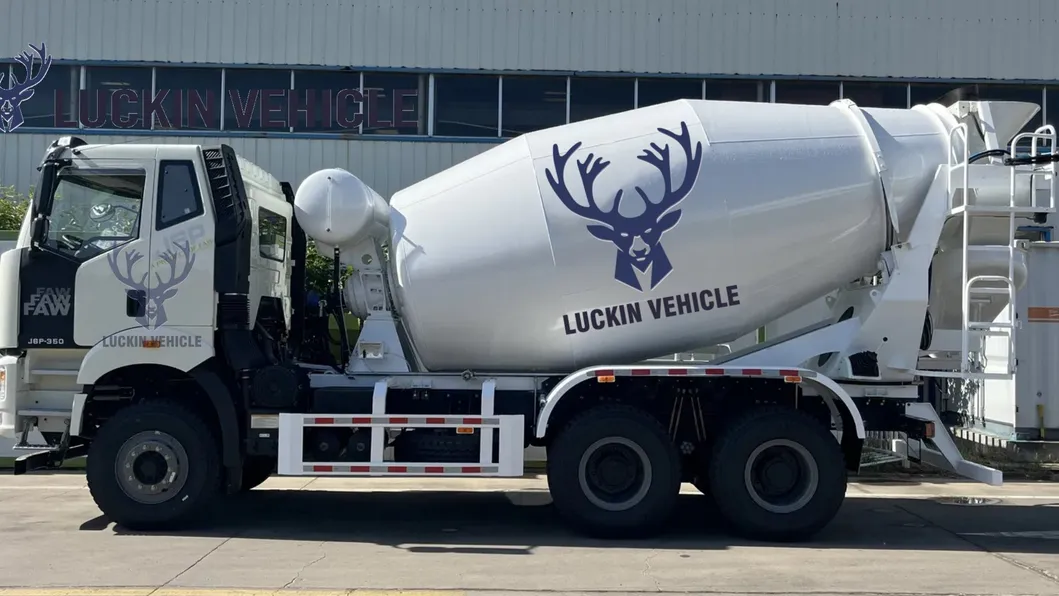

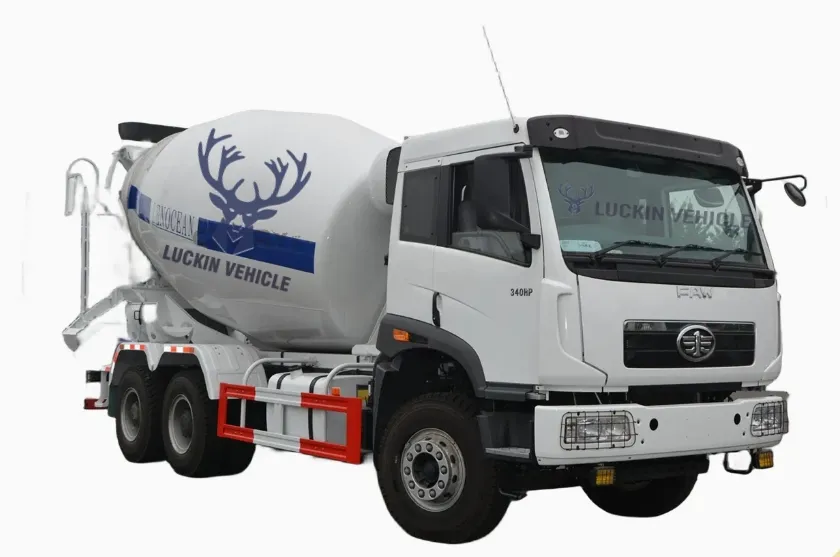

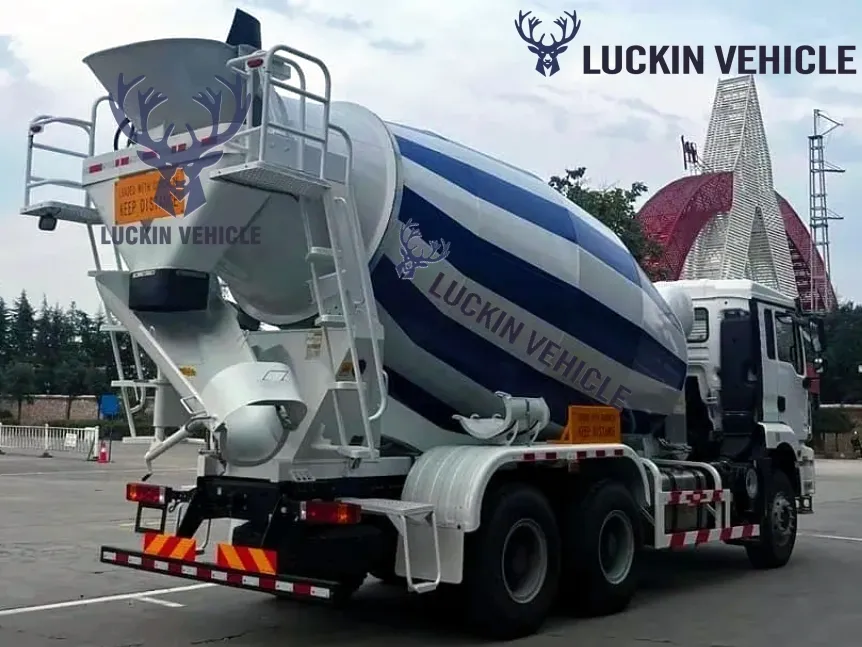

Special-purpose 8X4 6X4 10 Wheels Cement Concrete Mixer Truck
At present, the mixer truck is an indispensable professional transportation tool for urban construction roads, bridges, houses, water conservancy projects, and mixing stations.
The small concrete mixer truck has the characteristics of narrow body, short wheelbase, small turning radius and other personalized designs, and has strong advantages in working environments with limited height, width and length.
Advanced Hydraulic System: The concrete mixing and transportation tank can rely on the power of the truck to drive the gear oil pump and the hydraulic motor. The hydraulic components are controlled by the control lever, enabling fast feeding, fast unloading, and precise control.
| Specifications | |
|---|---|
| Drive Type | 8x4 |
| Cab Type | F3000 Cabin with A/C, One Sleeper |
| Kerb Mass | 13,240 kg |
| GVW | 38,240 kg |
| Max Dimensions | 9130 x 2500 x 3950 mm |
| Mixing Capacity | 6-12 m³ |
| Reduction Gear | Italy TOP P68 / 089 Pump |
| Max Speed | 90 km/h |
| Engine Brand | WEICHAI (WP10/12) |
| Power | 336hp - 420hp |
| Transmission | FAST 12-forward & 2-reverse speeds |
| Tyre Size | 12.00R20 |
