| Model NO. | standard |
| Size | 12500*2500*1550mm |
| Use | Container or as Need |
| Color | Customer's Request |
| Max Payload | 20001-25000 Kg |
| OEM | Offer |
| Logo | OEM |
| Transport Package | Bulk / Container |
| Trademark | ORENO |
| Origin | China |
High load capacity: Based on the existing ram material, the frame structure is optimized by advanced design concepts, which further improves the load capacity while reducing the self-weight.

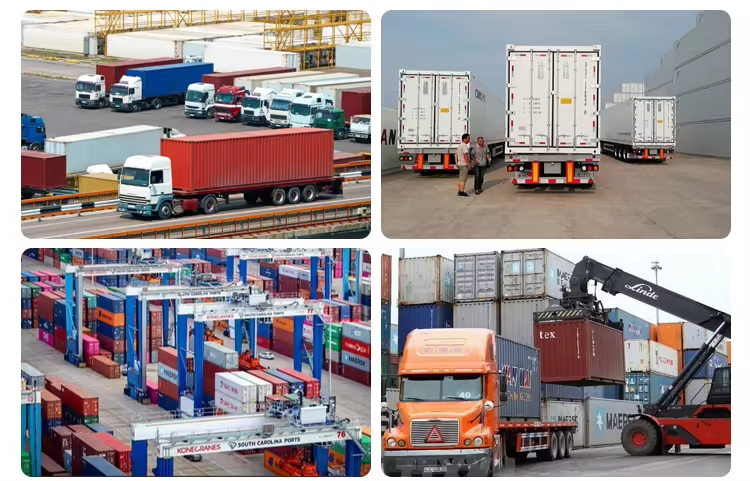

Application: It is widely used in container logistics, port cargo transfer stations, railway container loading and unloading stations, warehouses, logistics, customs and other container distribution centers.
| Loading weight | 50 tons |
| Size | 12500*2500*1500 mm |
| Axle | 3 axle |
| Tare weight | 7.5 tons |
| Axle brand | 3* 13 tons axle |
| Tyre brand | 12 units 12.00R22.5 tires, Triangle brand |
| Suspension System | 3 axle with spring suspension |
| Brake System | Dual line pneumatic brake system, T30/30 air chamber |
| Main Beam | Height 500mm; Q345B steel; 14/16/8mm |
| Twist locks | 8 pieces for 1x40ft or 2x20ft containers |
1. Highly robust structure steel with tensile and 40 ton loading capacity.
2. Length and width available custom made.
3. Heavy duty mechanical spring suspension for bad road conditions.
4. Air suspension and bogie suspension optional.
In nude, polish with water wax before shipment:
