| Model NO. | SYF9701TDP |
| Type | Semi-Trailer |
| Load Capacity | 60t |
| Certification | ISO9001, CCC, ISO/TS16949 |
| Wheel Base | 1310 |
| Tread | 2240mm |
| Axle Number | 5 Lines 10 Axles |
| Tire Number | 40 PCS |
| Material | Steel |
| Gooseneck | Can Be Lifting |
| Specification | 20360mm * 3400(+300mm of each side) |

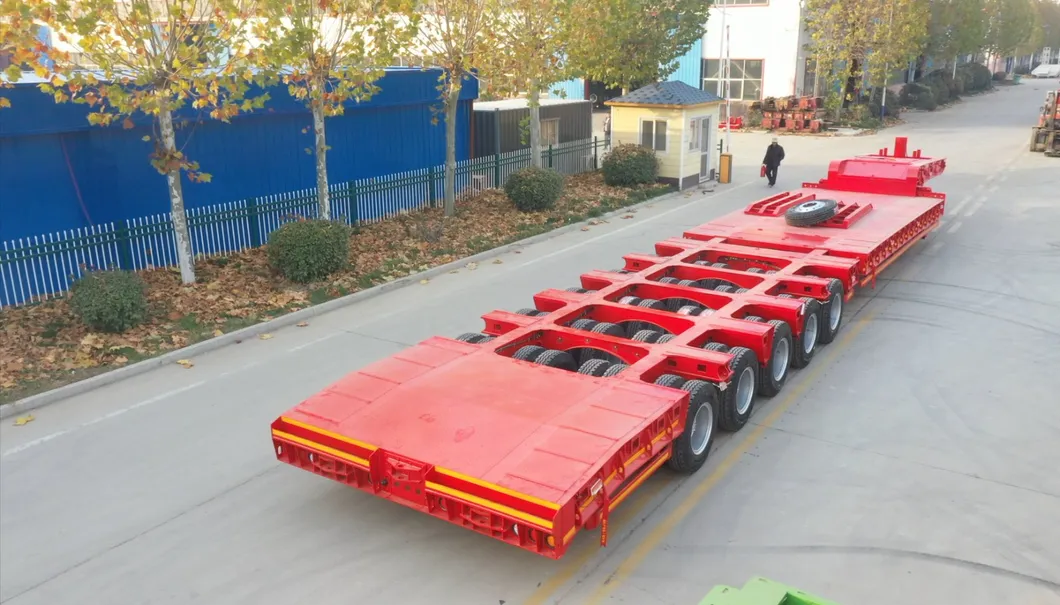

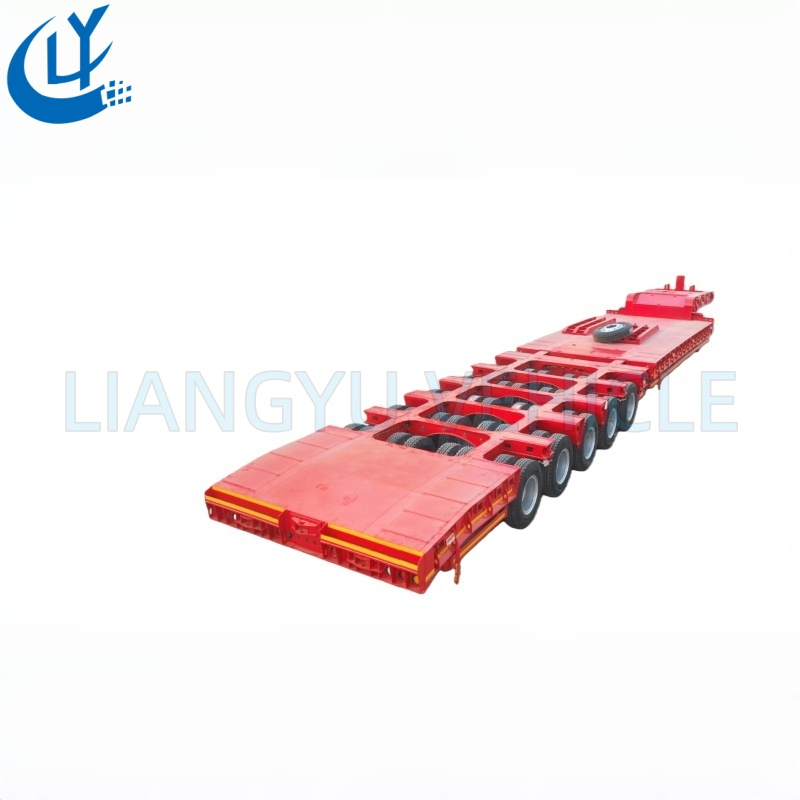

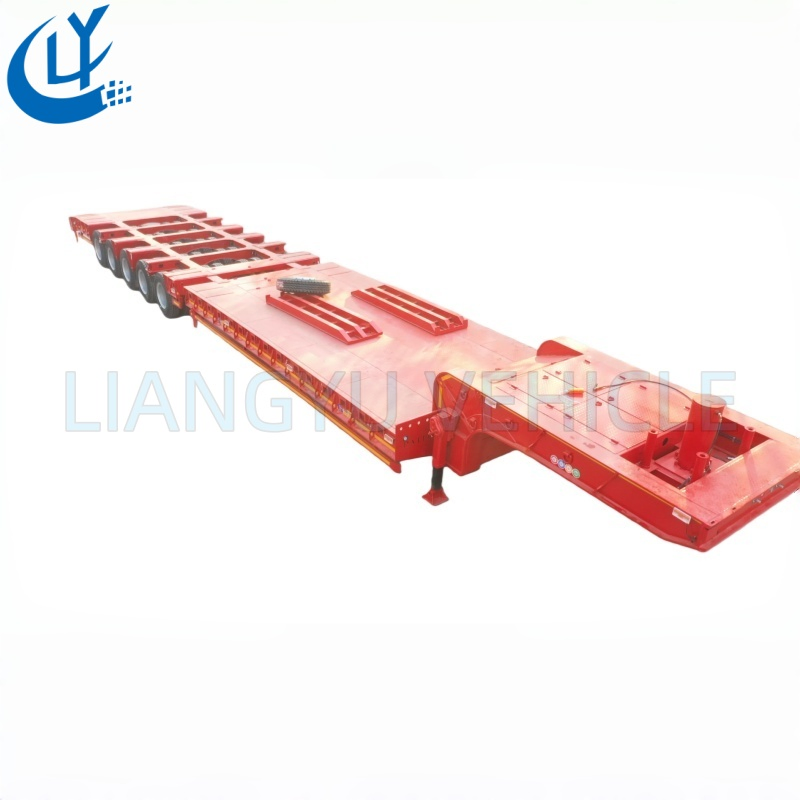

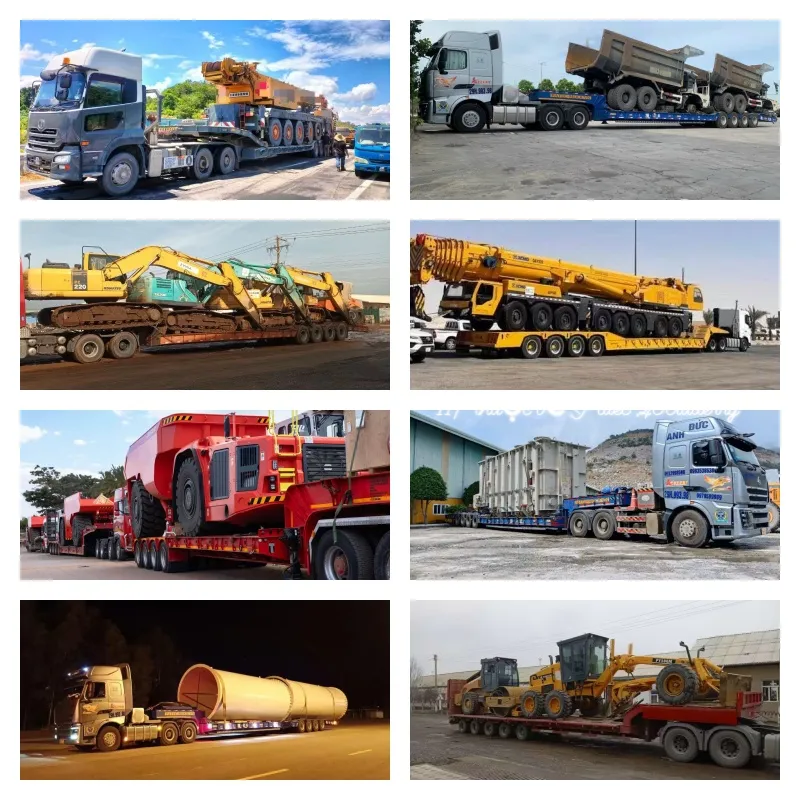

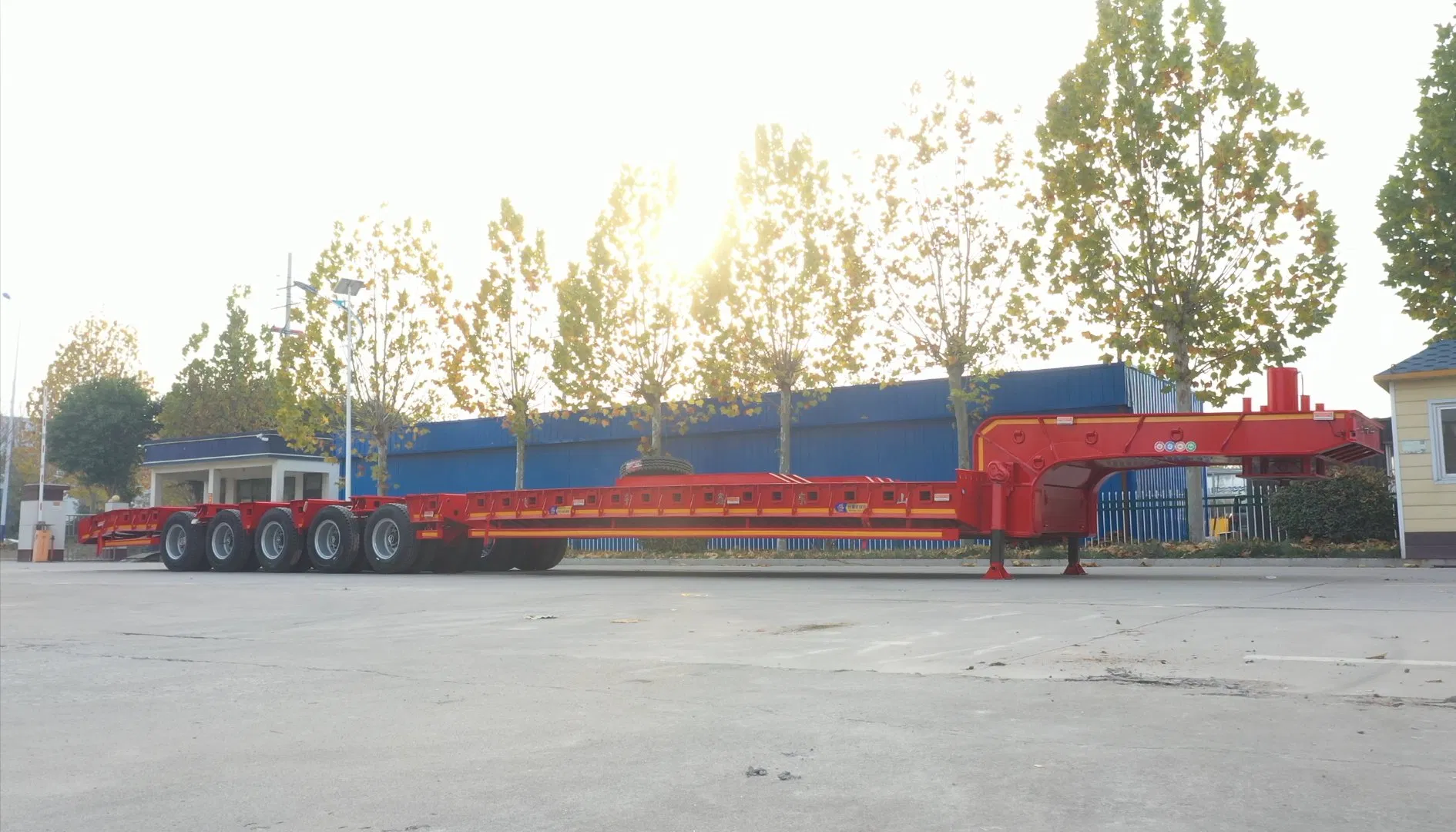

The 5-line 10-axle heavy-duty lowbed trailer is a high-end transportation equipment designed specifically for transporting ultra-heavy and ultra-large cargo. It is widely used for long-distance transfer and on-site dispatch of heavy materials such as engineering machinery, wind power equipment, nuclear power components, and large steel structures.
| Overall size | 20360mm(+5000mm) * 3400mm (+300mm each side) |
| Payload | 150 tons (Uniform load under closed status.) |
| Axle | 5 lines 10 axles, Brand: ZHENGYANG( ZY) |
| Suspension | Rigid suspension |
| Tyres | 9.00R20 * 41 pcs |
| Main beam | Height: 530mm, Material Q550D + T 700 |
| Floor | Diamond plate, 5mm/4mm |

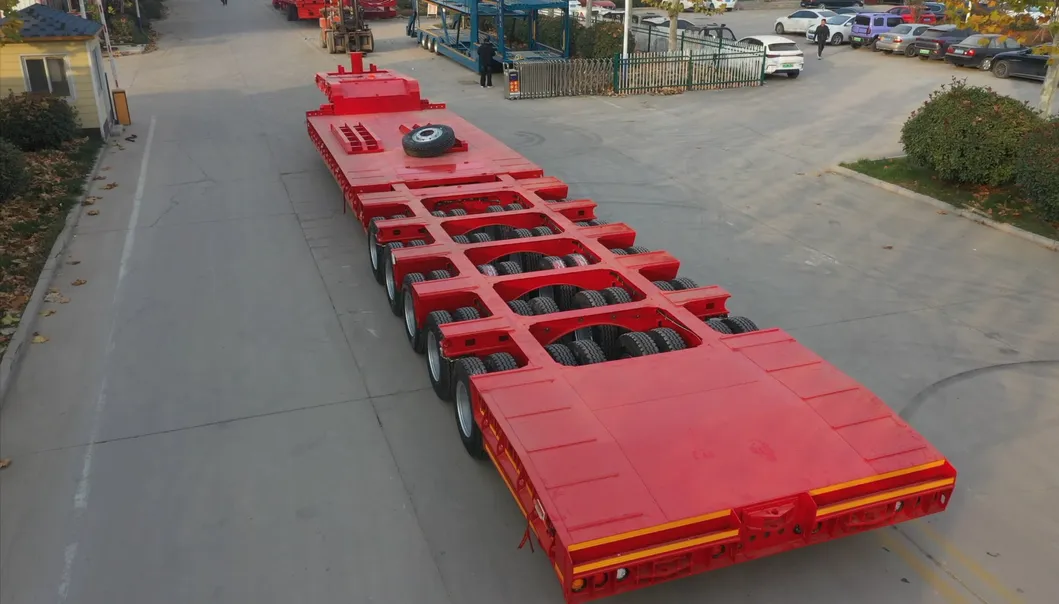

Superior Load Capacity: 10-Axle synchronous load distribution handles up to 150 tons.

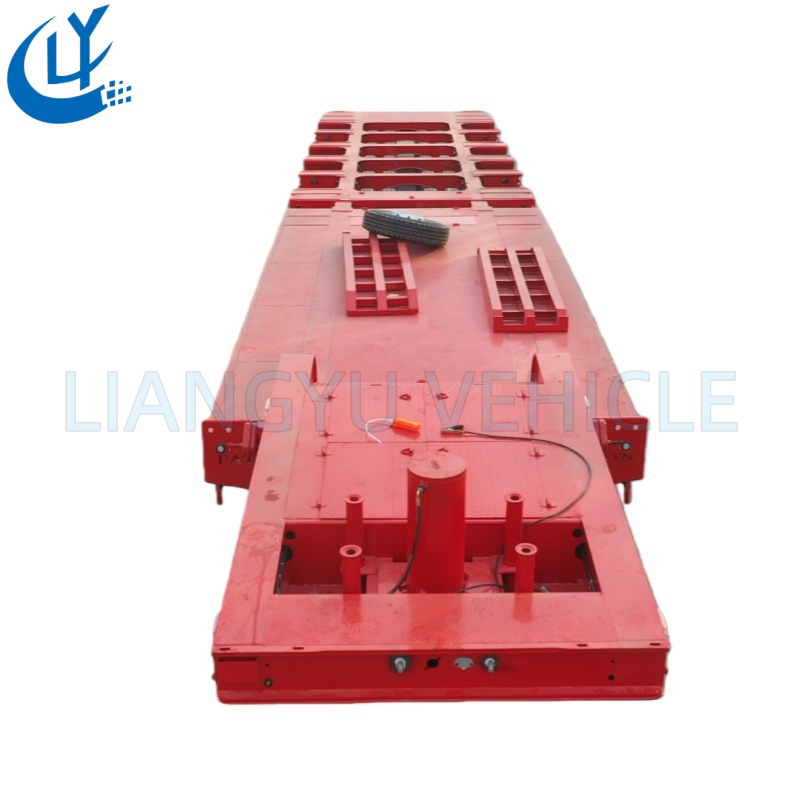

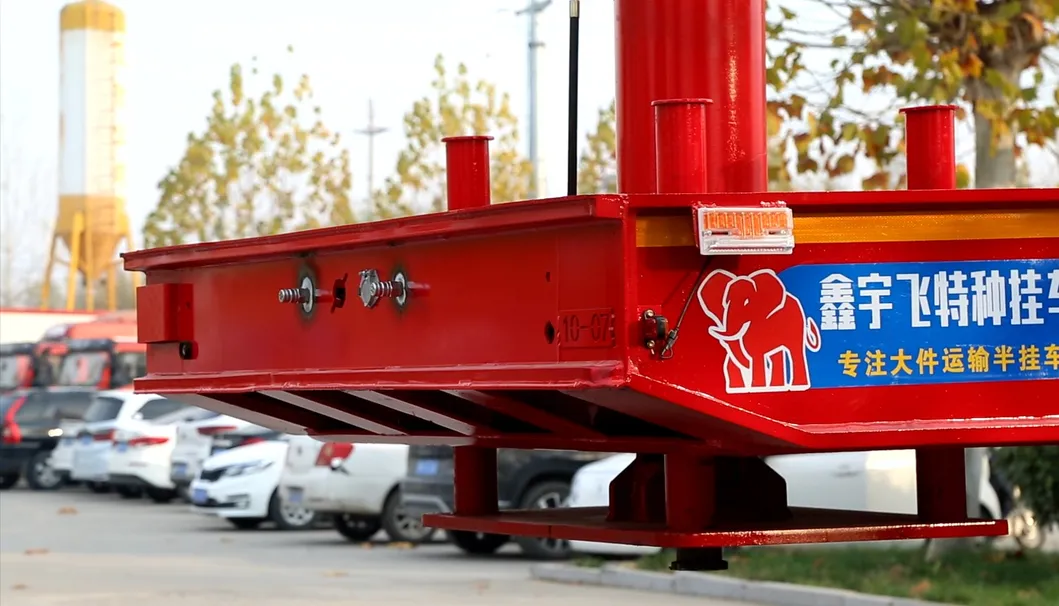

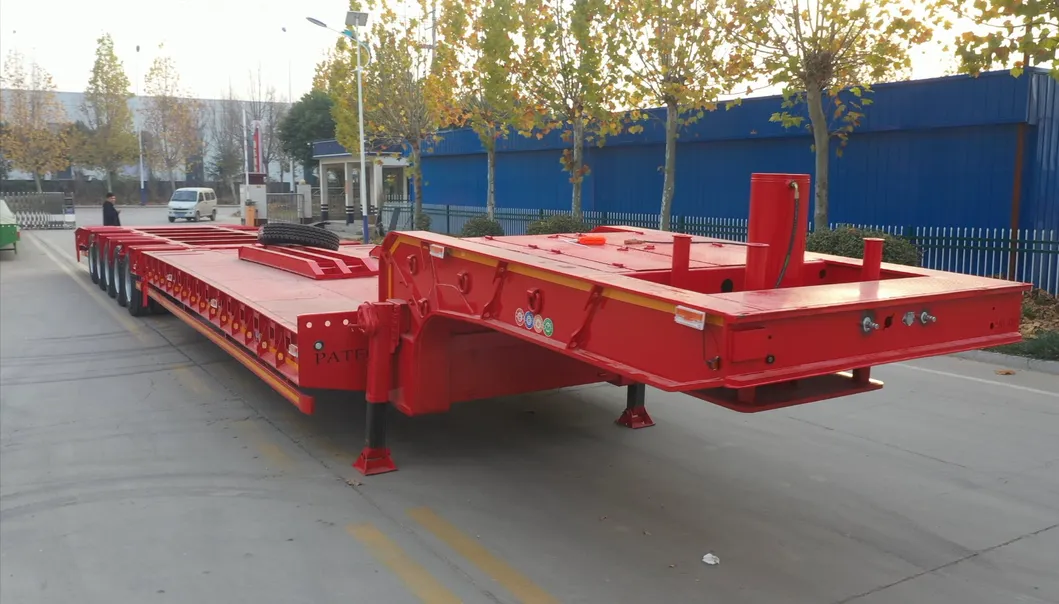

Hydraulic Lifting: Enhanced transport flexibility with hydraulic lifting gooseneck cylinders.
