| Model NO. | LWS9400TDP |
| Type | Semi-Trailer |
| Load Capacity | 50T |
| Certification | ECE, GCC, CE, ISO9001, DOT, CCC, ISO/TS16949, Ottc |
| Wheel Base | 7000-8000mm |
| Grade | Heavy Duty |
| Suspension | Leaf Spring Suspension |
| Axle Number | 3 |
| Tire Number | 12 |
| Material | Steel |
| Specification | 13000*3000*1700 |

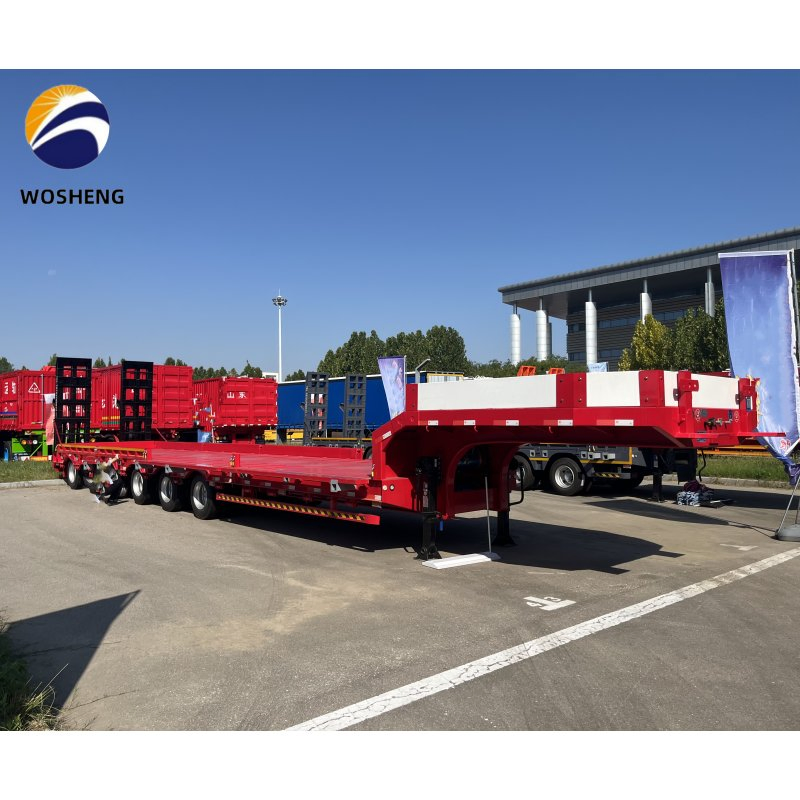

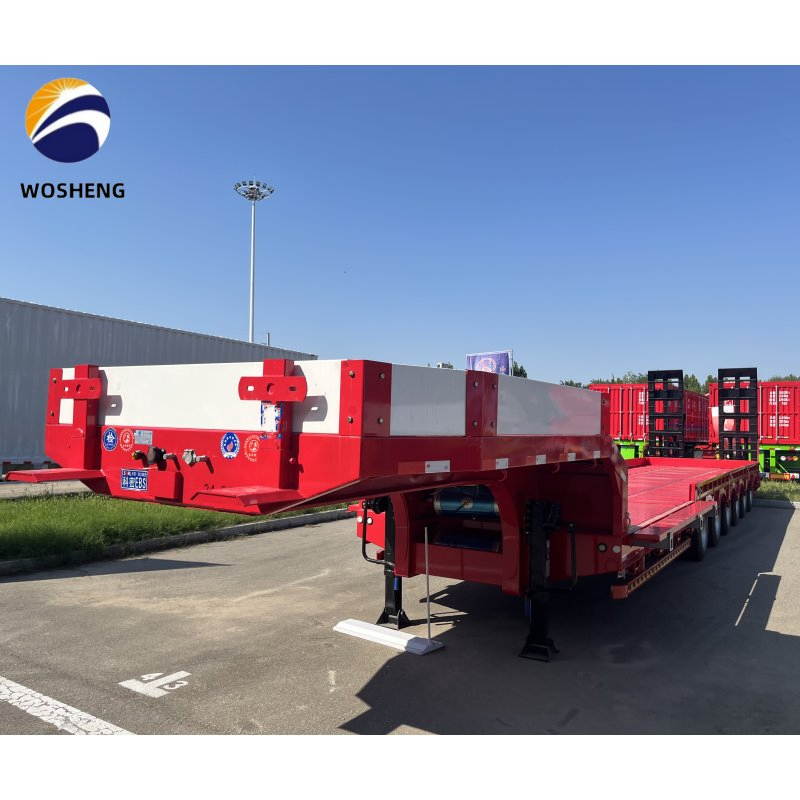

Low bed semi-trailers are usually used to transport container, heavy vehicles, rail vehicles, mining machinery, forestry machinery, construction machinery and other heavy loads. The lower the center of gravity, the better the stability and safety, the better the ability to transport super high loads and pass overhead obstacles.
Lowbed semi trailer have plate types, concave beam type and exposed tire type structure, its frame for the ladder, longitudinal beam section for the i-shape, with high stiffness, high strength characteristics. The main plane of the frame and cargo platform is low, which ensures the smoothness of transportation.

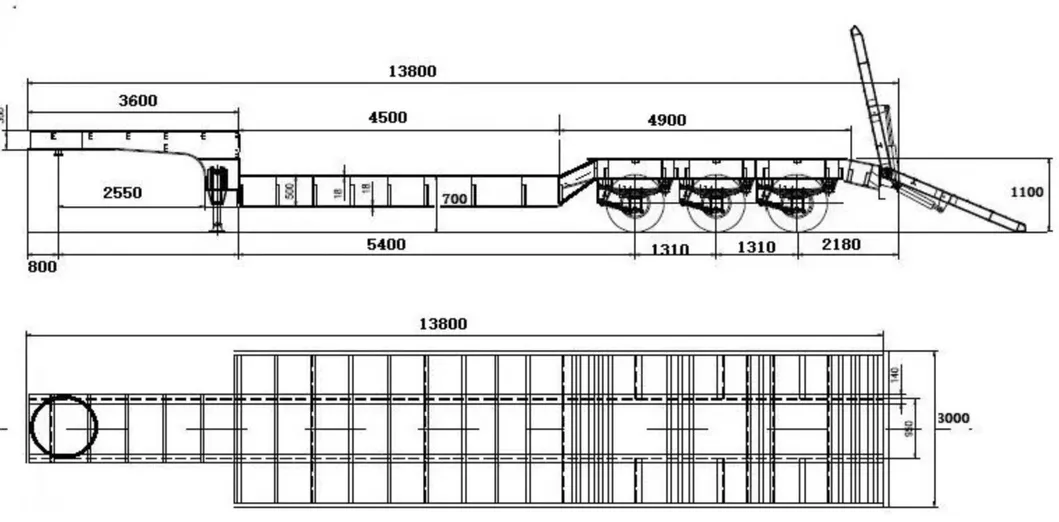

| Feature | 2 Axles | 3 Axles | 4 Axles |
|---|---|---|---|
| Size (mm) | 12500*3000*1100 | 13000*3000*1100 | 14000*3000*1100 |
| Payload | 40000KG | 60000KG | 80000KG |
| Main Beam | Height: 500mm, Q345B Steel | ||
| Suspension | Mechanical suspension (Air suspension optional) | ||
| Braking | Double air chamber, WABCO valve | ||

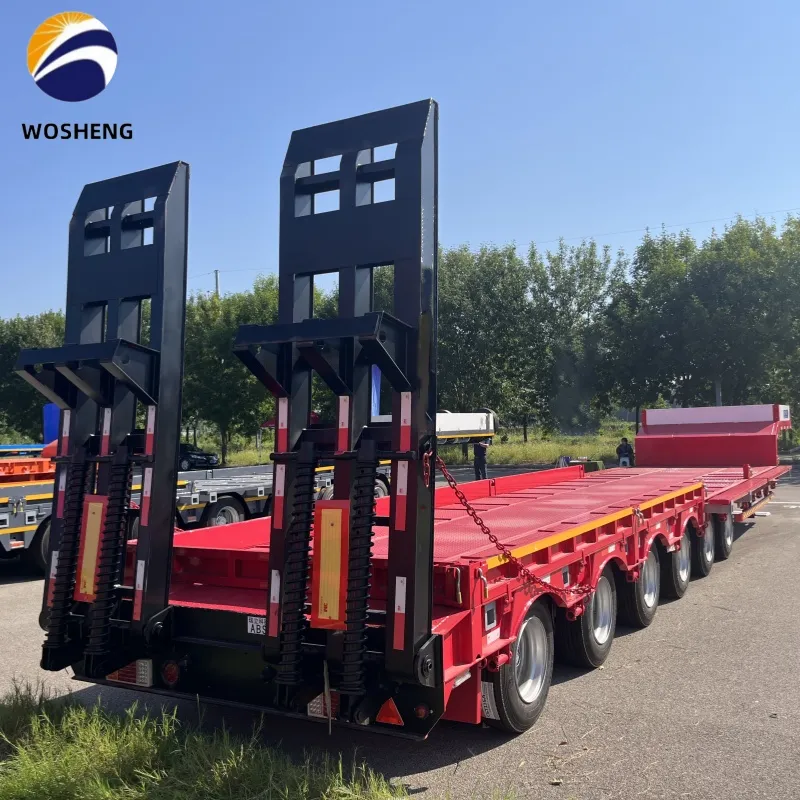

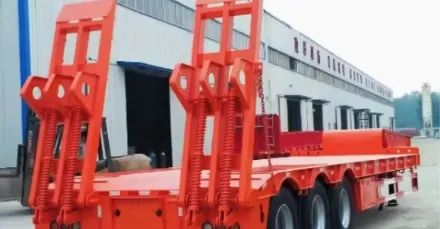

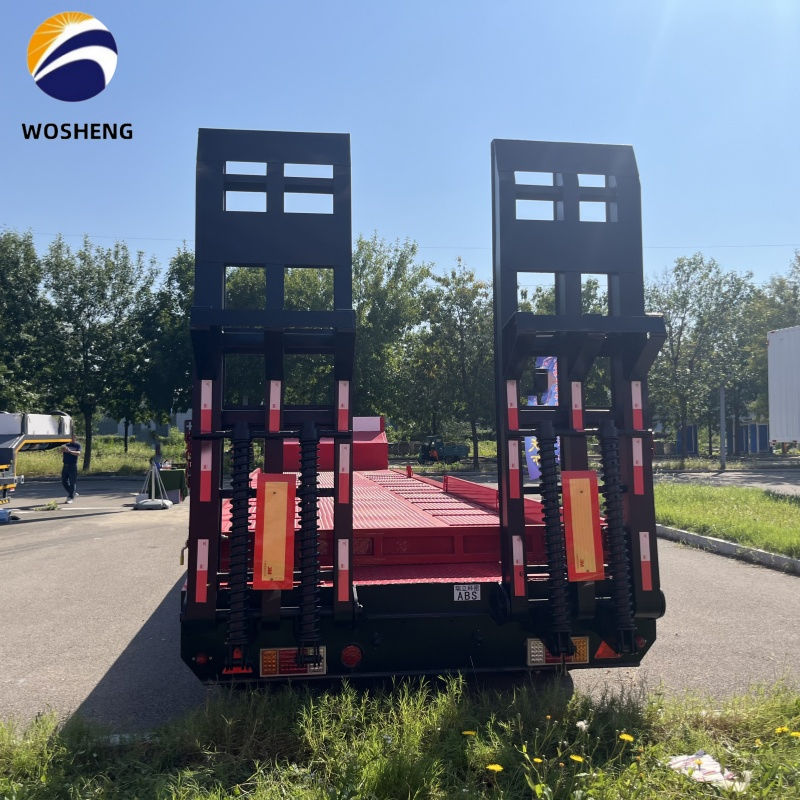

Mechanical Ladder: Equipped with anti-skid chains to prevent falling and ensure safety.

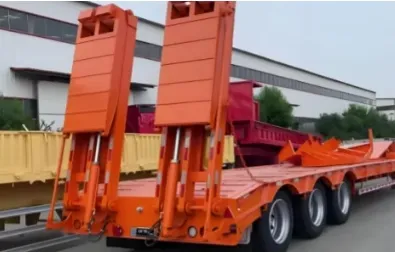

Hydraulic Ladder: Optional for 60+ tons capacity to avoid manual injury.

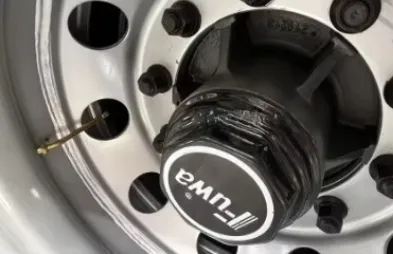

Axle System: BPW/FUWA/WOSHENG optional. Integrated low-alloy beam with no-welding process.

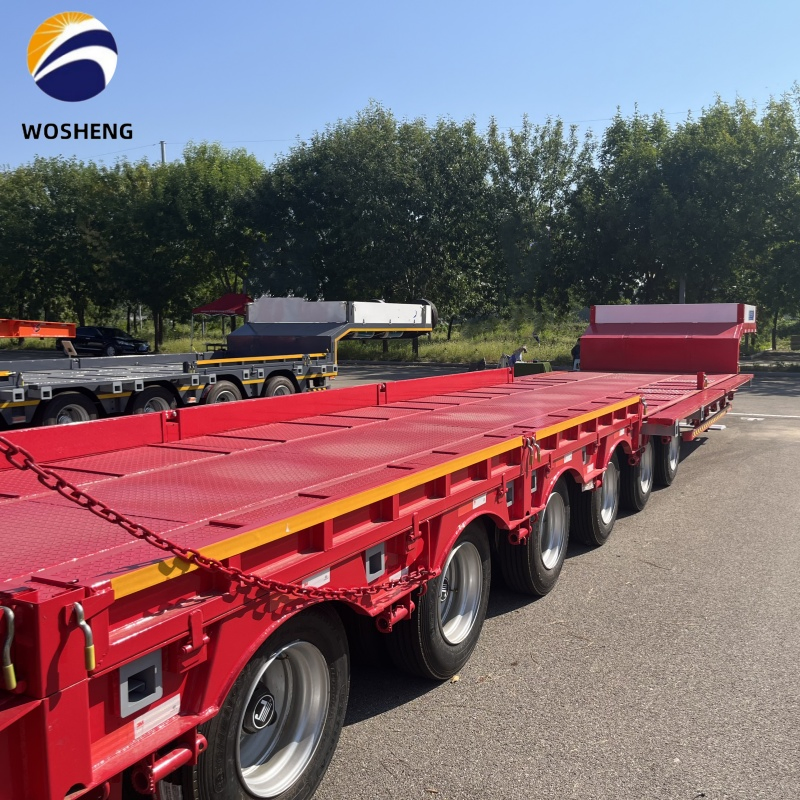

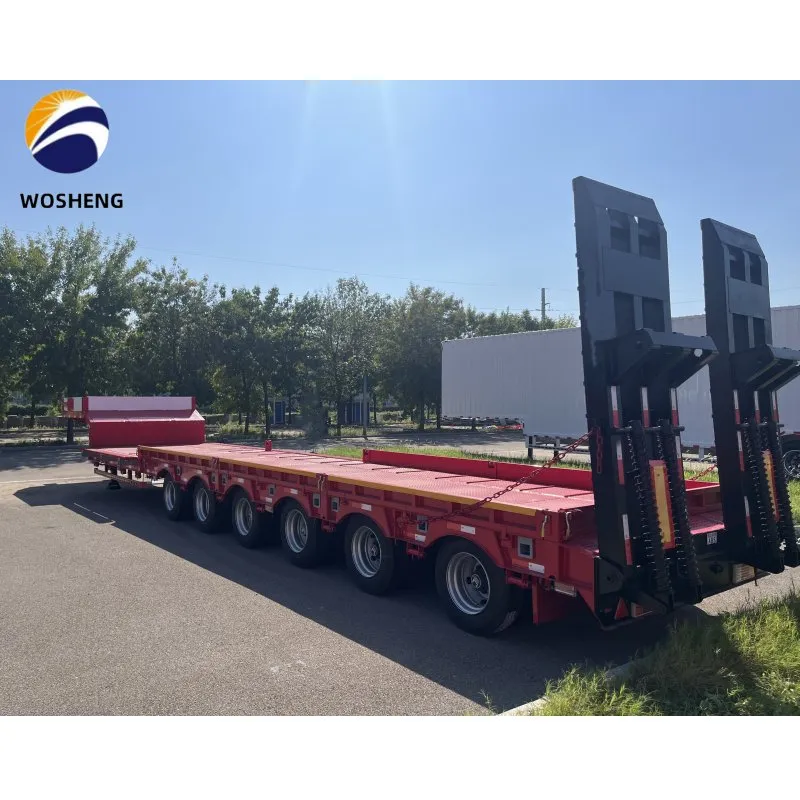

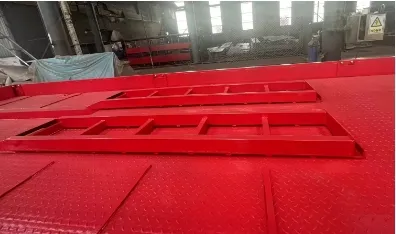

Cargo Platform: Patterned steel with anti-skid ribs to prevent load slipping.
We have obtained the 3C Certificate and ISO9000 Quality Management Certification. We are a national high-tech enterprise with more than 30 invention patents and utility model patents.

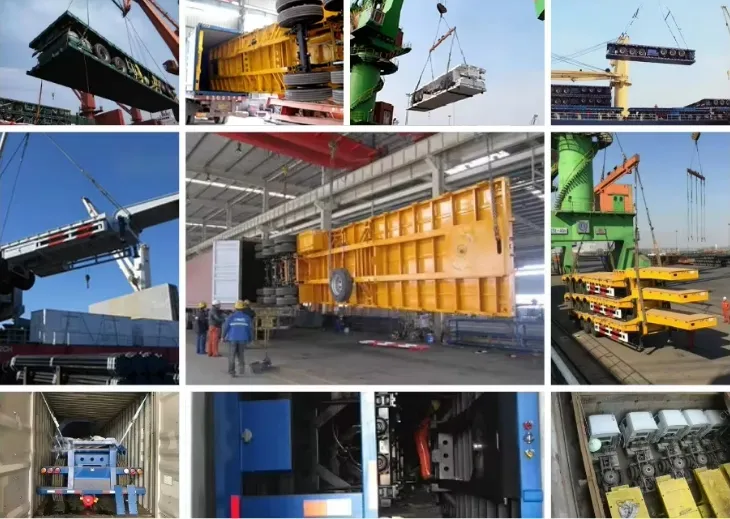

Shipment options include RoRo, Bulk Shipment, or Container delivery for global continents. Neighborhood countries can be served by road or railway.
