Basic Specifications
Certification
ISO9001, CCC
Production Capacity
100 Sets Per Month
Product Description

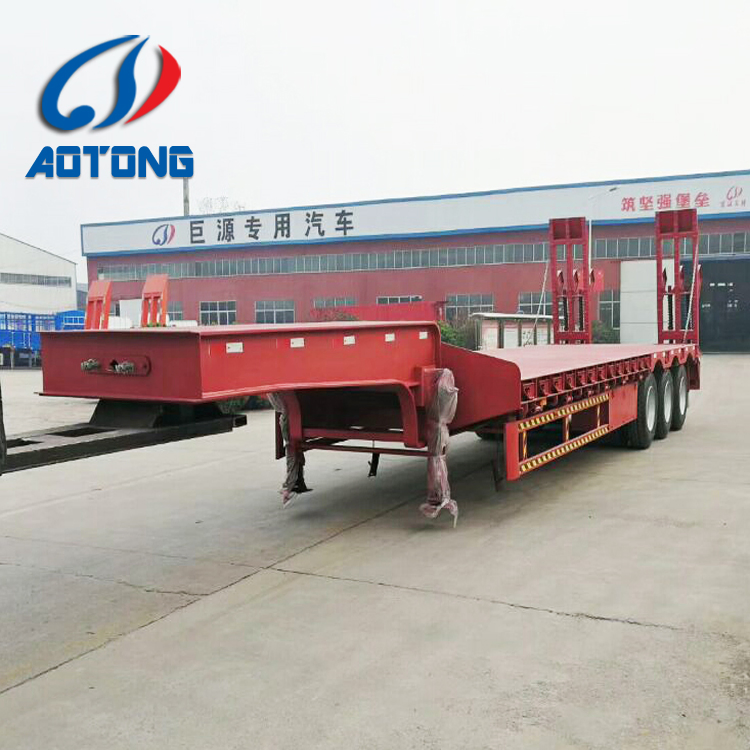

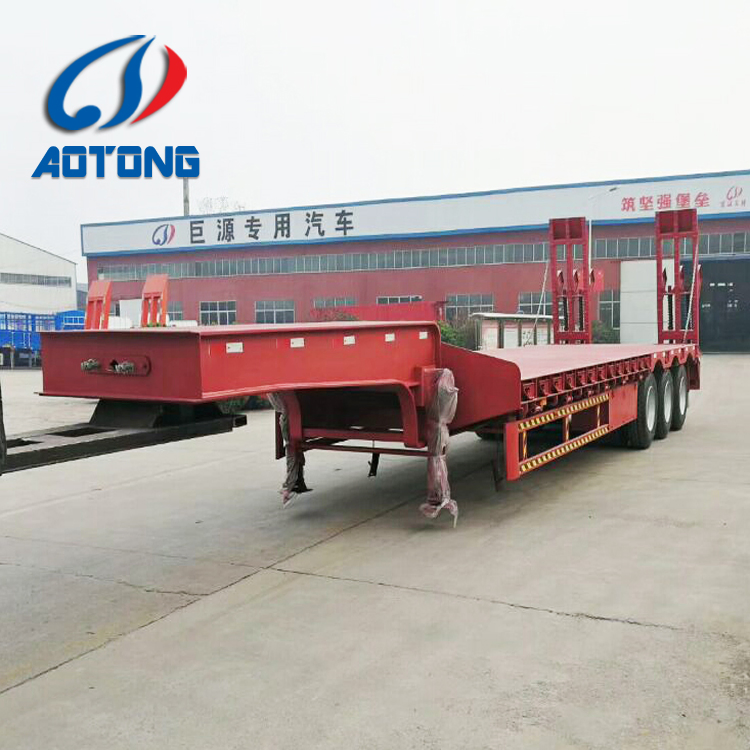

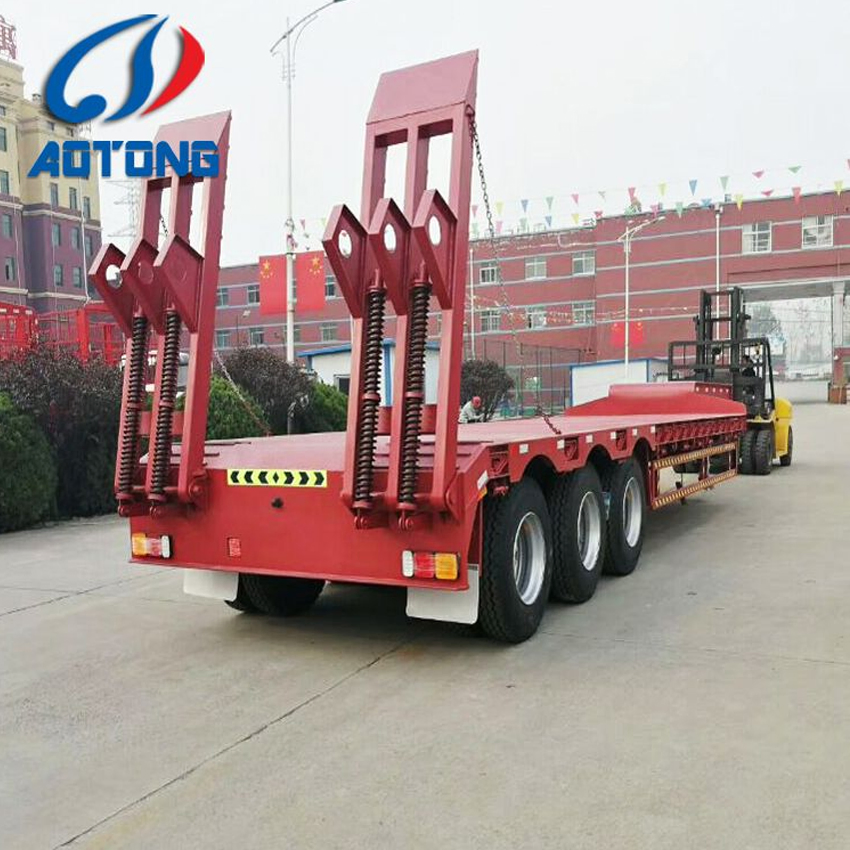

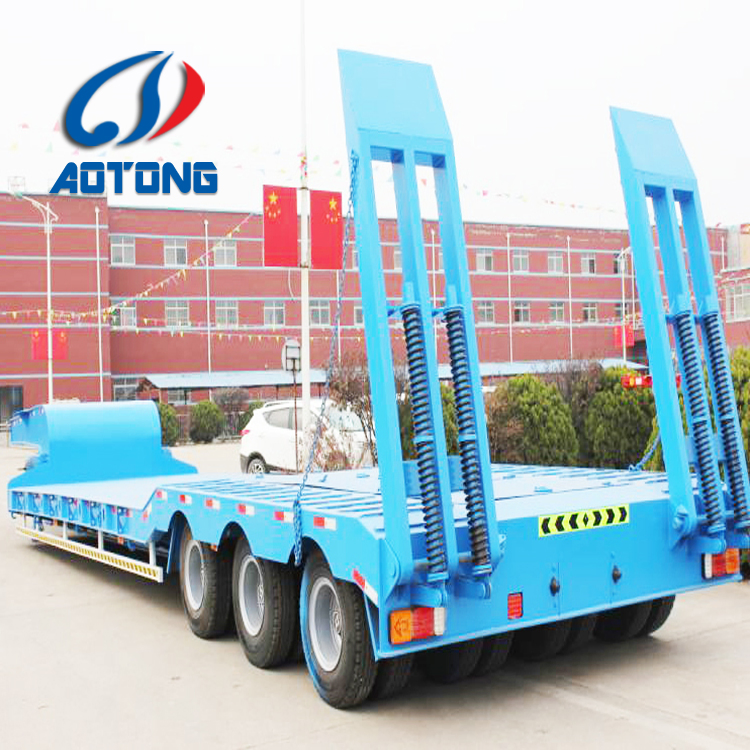

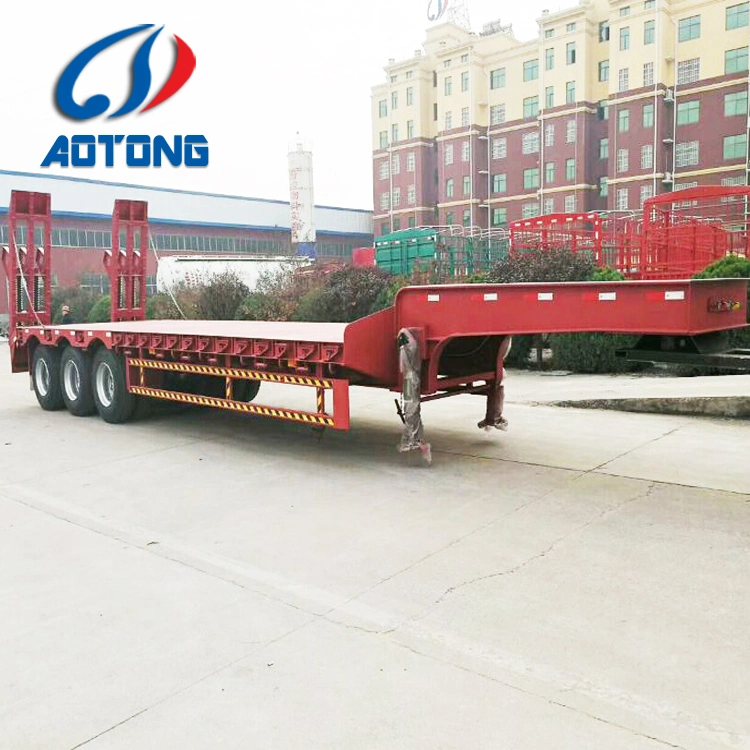

Double axle drop deck semi trailer, 30 ton low flatbed trailer design for sale
Specialized in many kinds of trailers and special vehicle: All types semi trailer: Store house bar series, van semi-trailer series, container carrier trailer, dump trailer, tanker trailer series, modular trailer, special trailer and transport car series etc.
|
| Product | Low flatbed semi trailer |
| Total Weight | 32400 kg |
| Rated Load | 23000 (23400) kg |
| Tare Weight | 9400, 9000 kg |
| Tyre Specifications | 8.25R20 14PR (Vacuum tyre or rail tyre) |
| Axle Brand | FUWA (BPW optional) |
| Suspension | Three-axle balanced type, double-axle balanced type or rigid hanging. Quality balance block is installed between front and back steel plates. |
| Outside Dimensions | 13000, 12500 X 3000, 2800 X 3150, 1710 (mm) |
| Main Beam Material | Q235B manganese plates, automatic submerged arc welded |
| Brake System | Four double and two single chamber; ABS (Optional) |
| Usage | Suitable for mid/long distance transportation of heavy duty and bulk cargo. |
Manufacturing Excellence: The whole body adopts steel with good quality, manufactured by advanced skills and strict managerial processes. The frame webs are made from manganese plates (400mm to 550mm high) welded with upper and lower flange plates, creating a robust unit through automatic submerged arc welding and peen-forming processing.
Frequently Asked Questions (FAQ)
Q1: What is the primary use for this low flatbed semi-trailer?
A1: It is designed for mid to long-distance transportation of heavy-duty equipment and bulk cargo, providing stability for oversized loads.
Q2: Can the trailer dimensions be customized?
A2: Yes, dimensions such as length and width can be manufactured according to specific customer requirements.
Q3: What type of suspension system is used?
A3: It typically uses a Cross Arm Type suspension or a balanced three-axle/double-axle system with quality steel springs for load balancing.
Q4: What materials are used in the main beam construction?
A4: The main beam is constructed using Q235B manganese plates, ensuring high strength and durability through automatic submerged arc welding.
Q5: What is the typical delivery timeframe?
A5: Standard production and delivery are completed within 25 working days after the receipt of the deposit.
Q6: Are different axle and tire brands available?
A6: Yes, while FUWA axles and standard 8.25R20 tires are common, BPW axles and various tire specifications are available as options.
