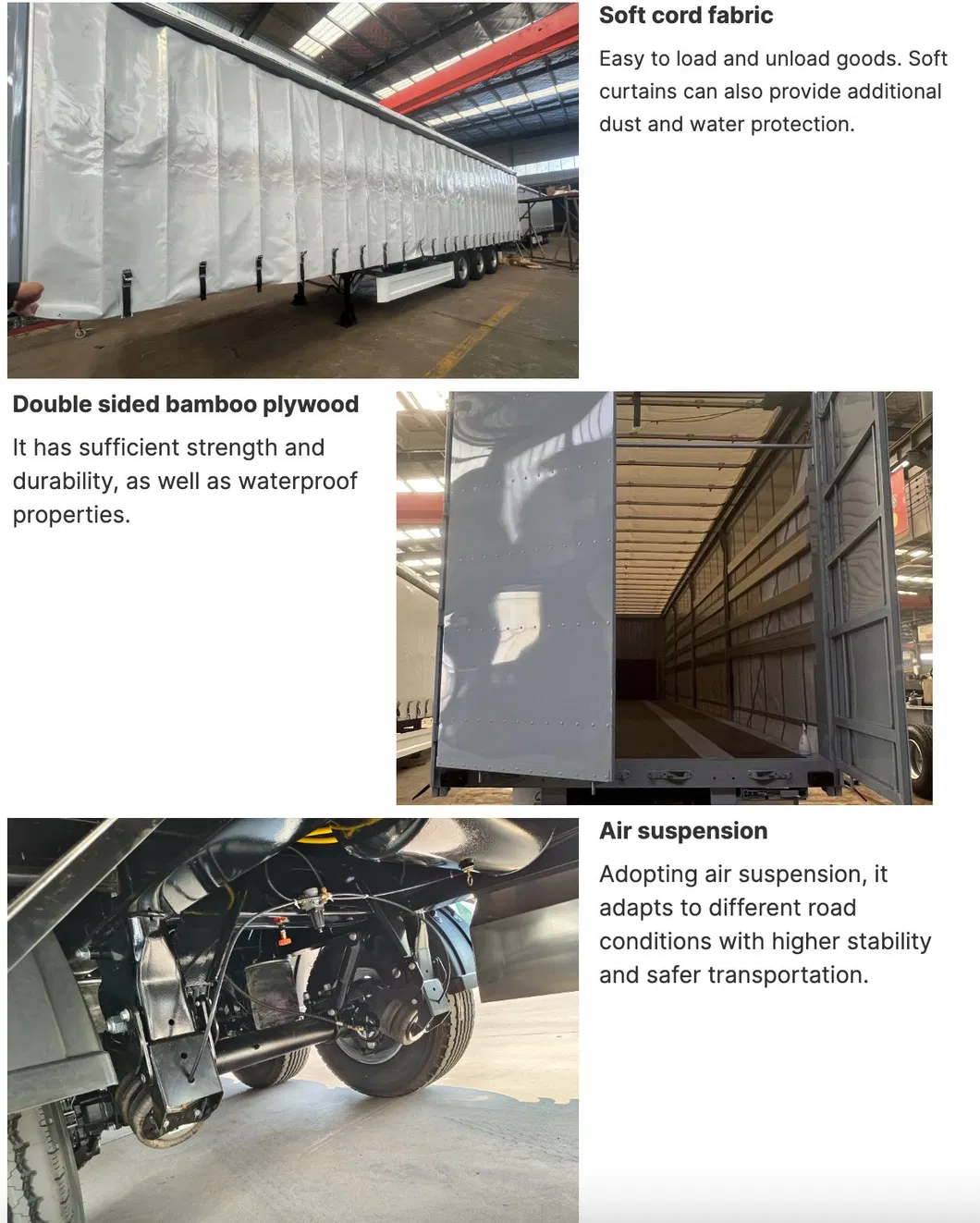

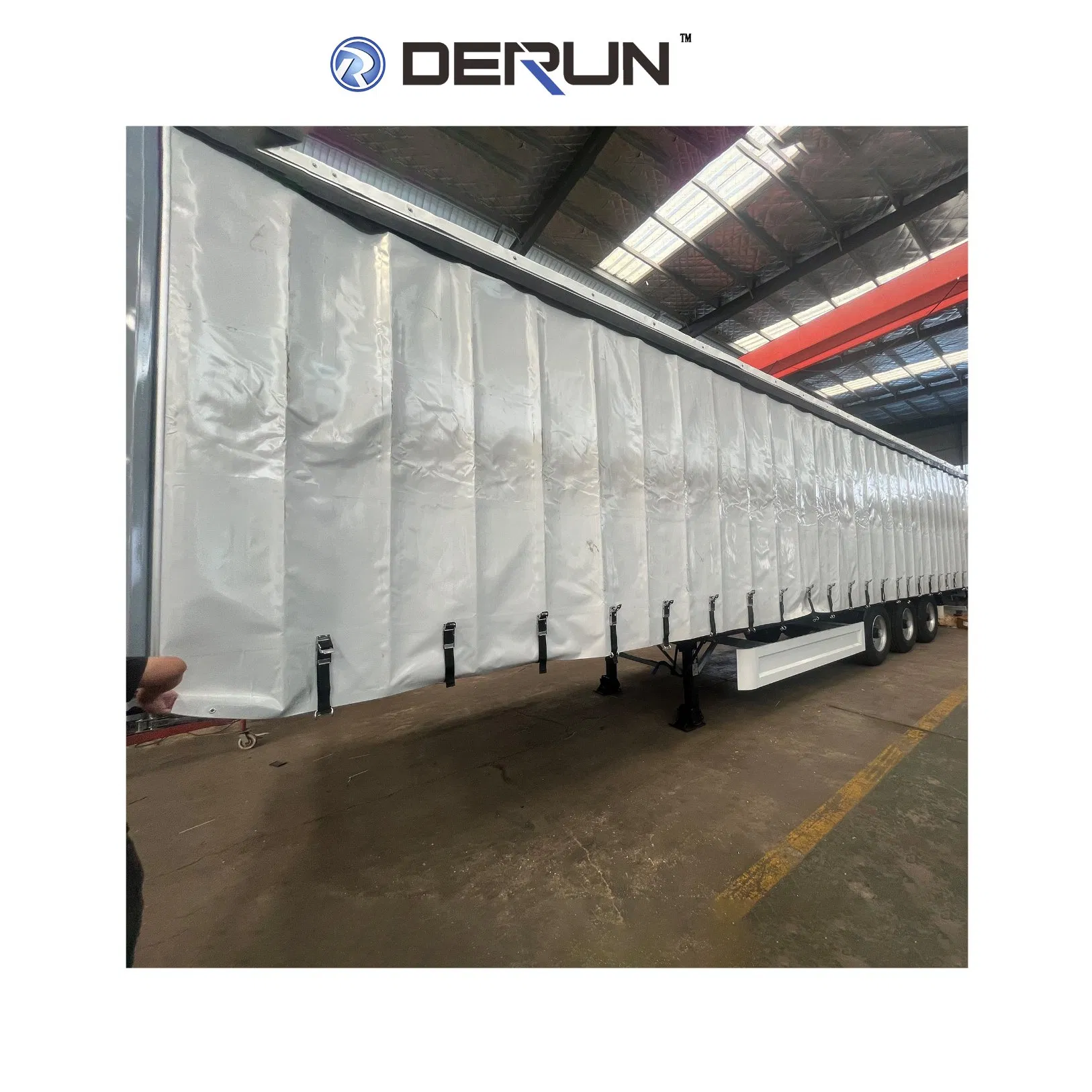

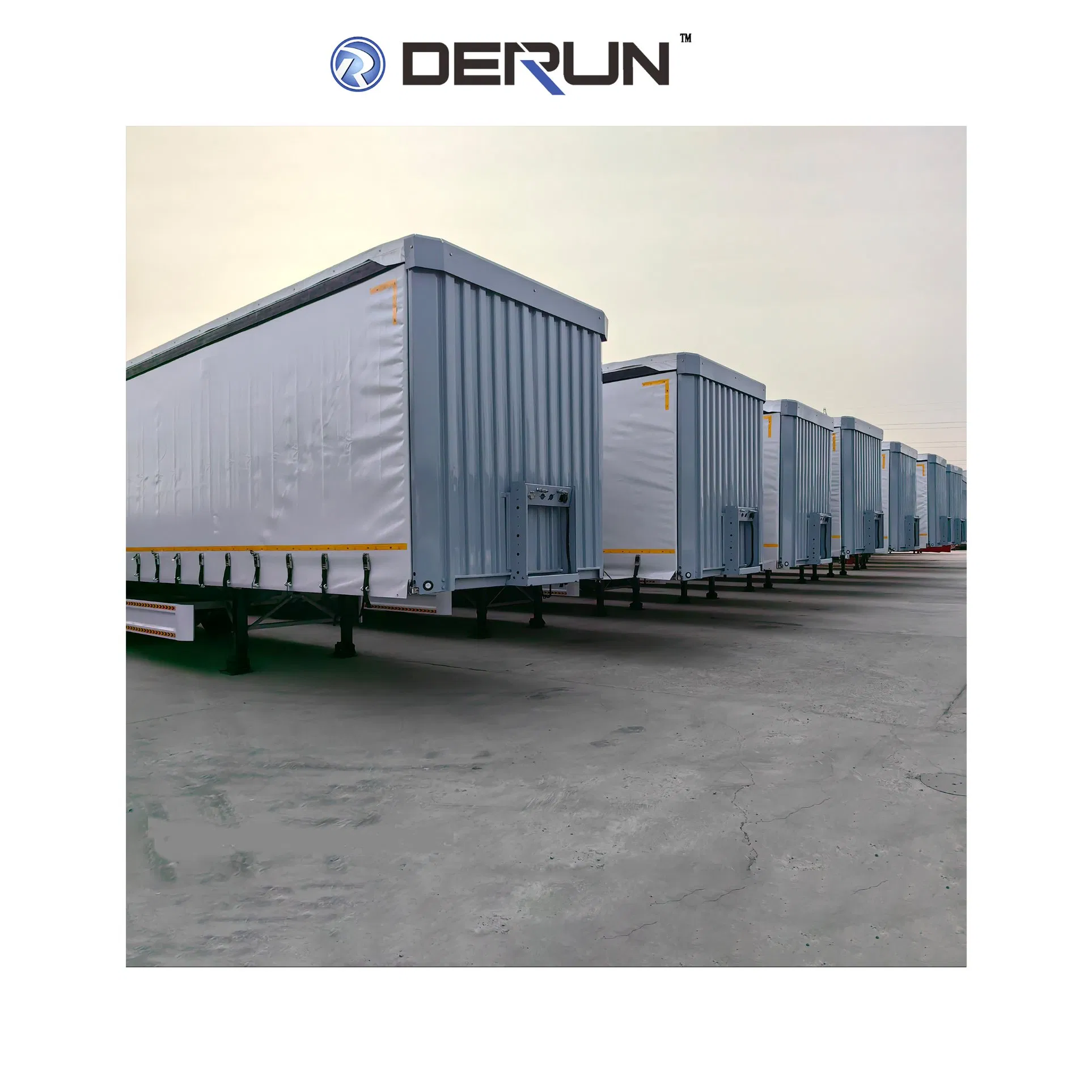

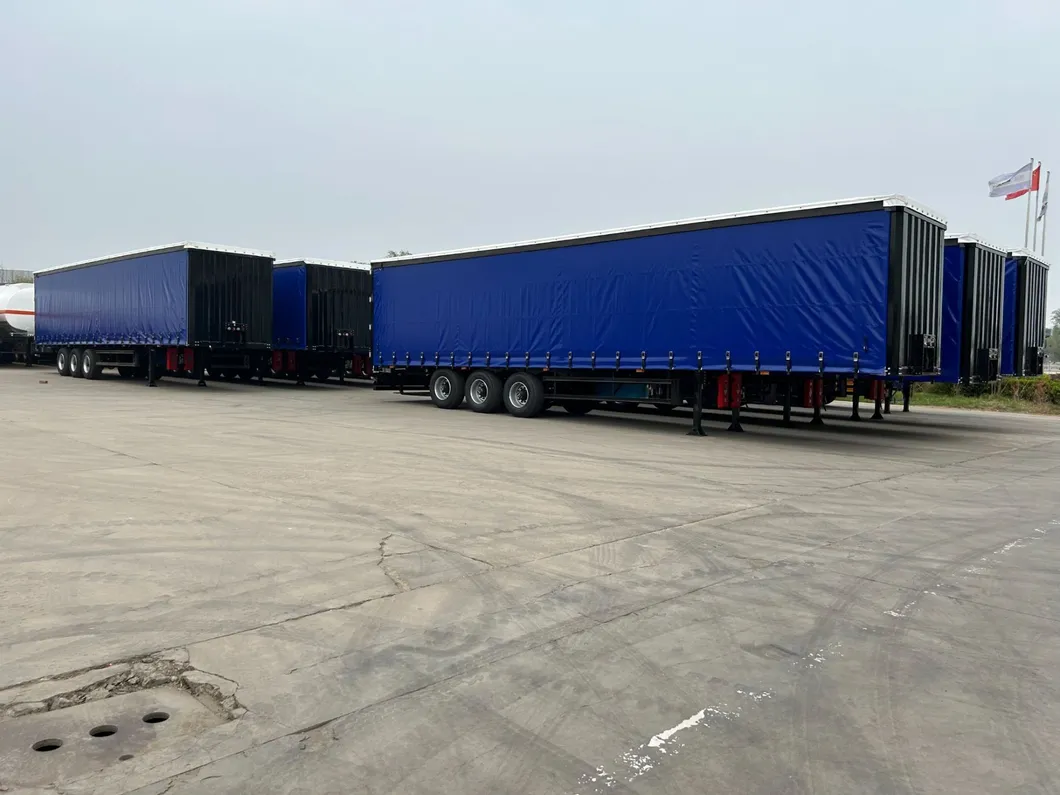

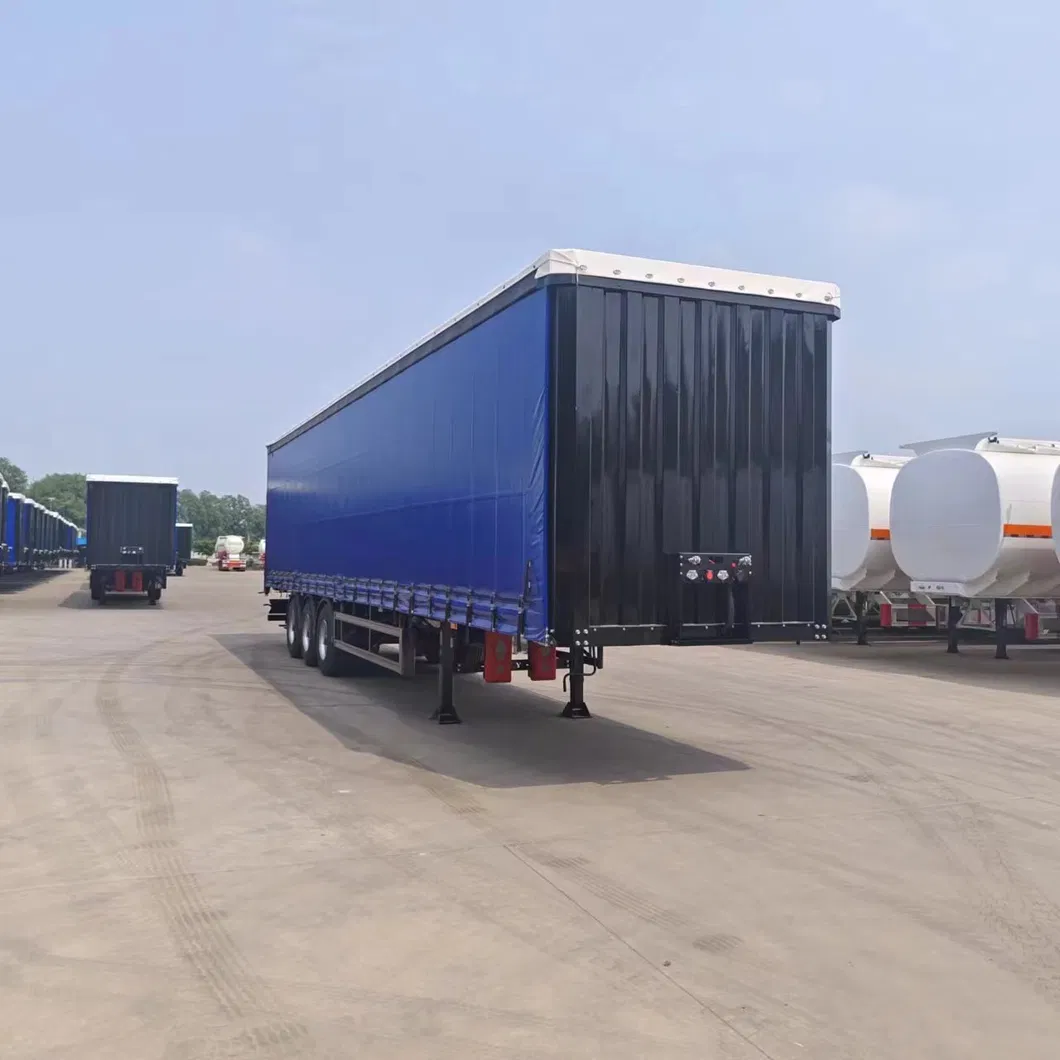

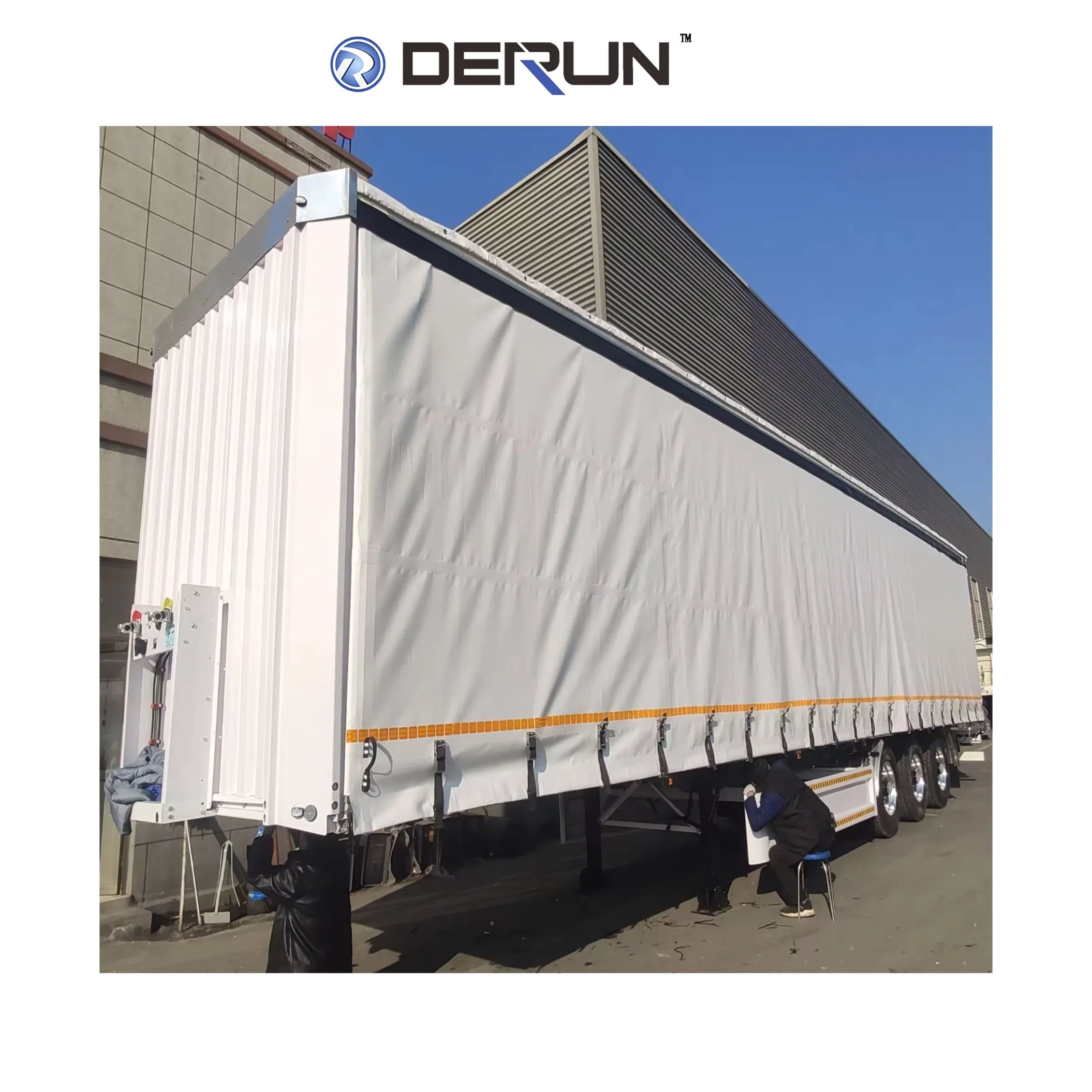

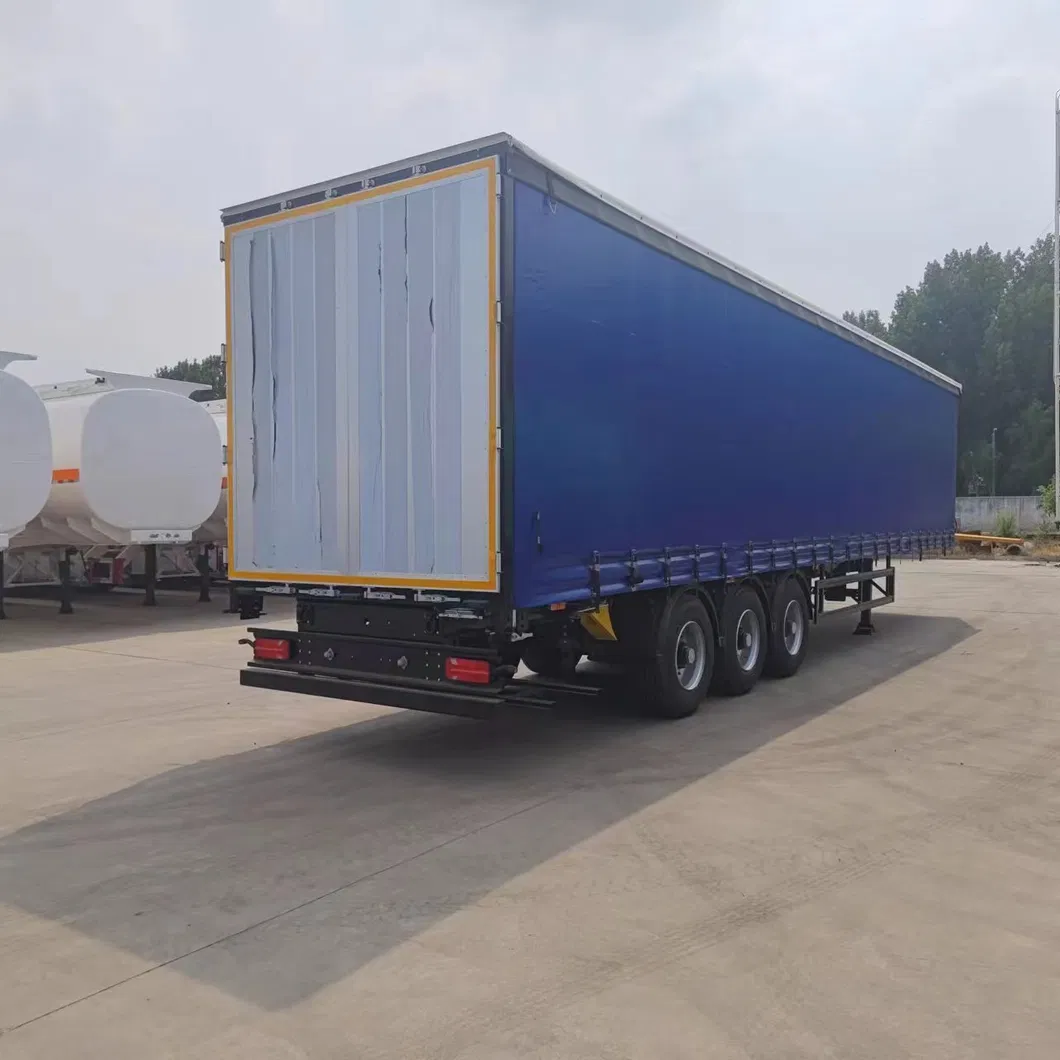

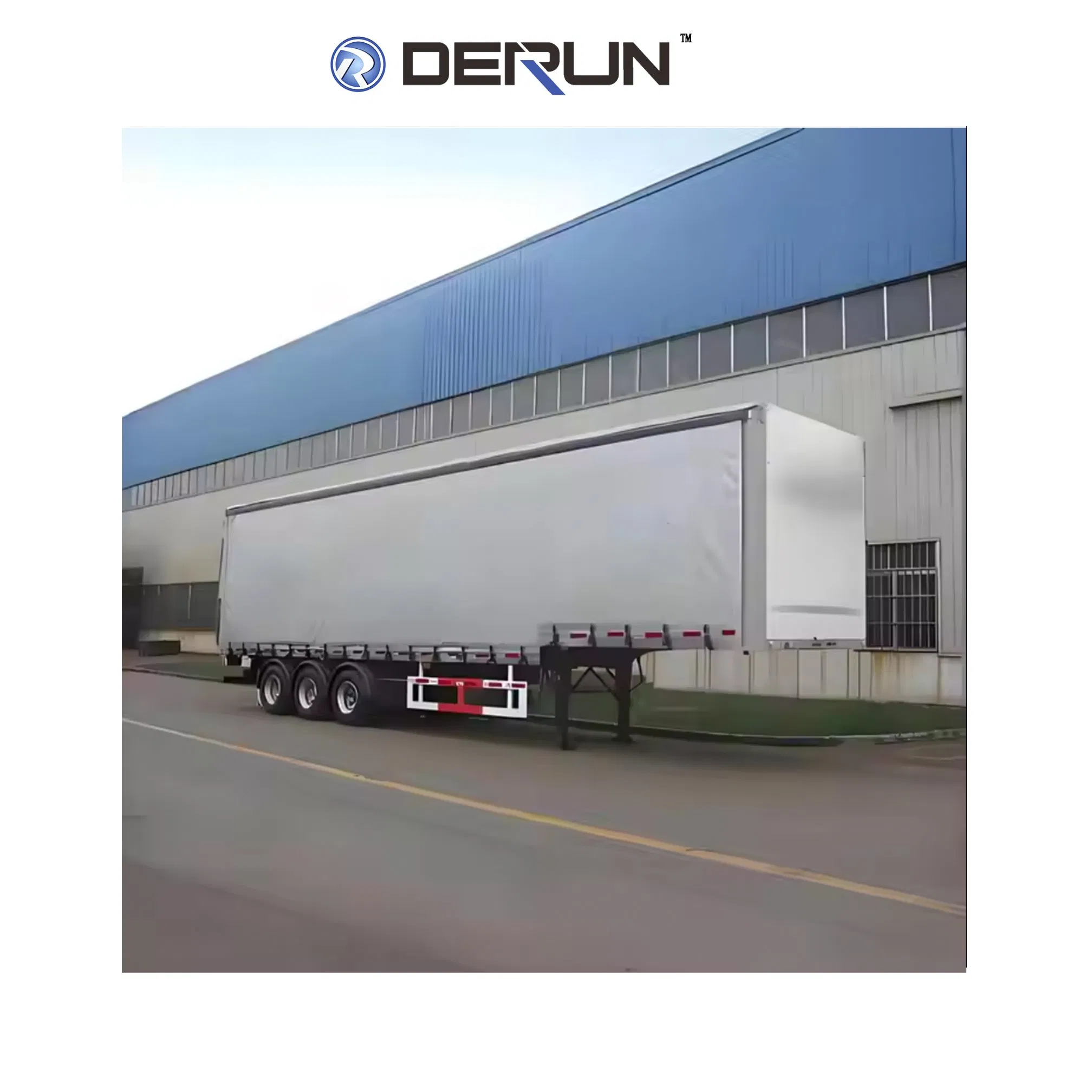

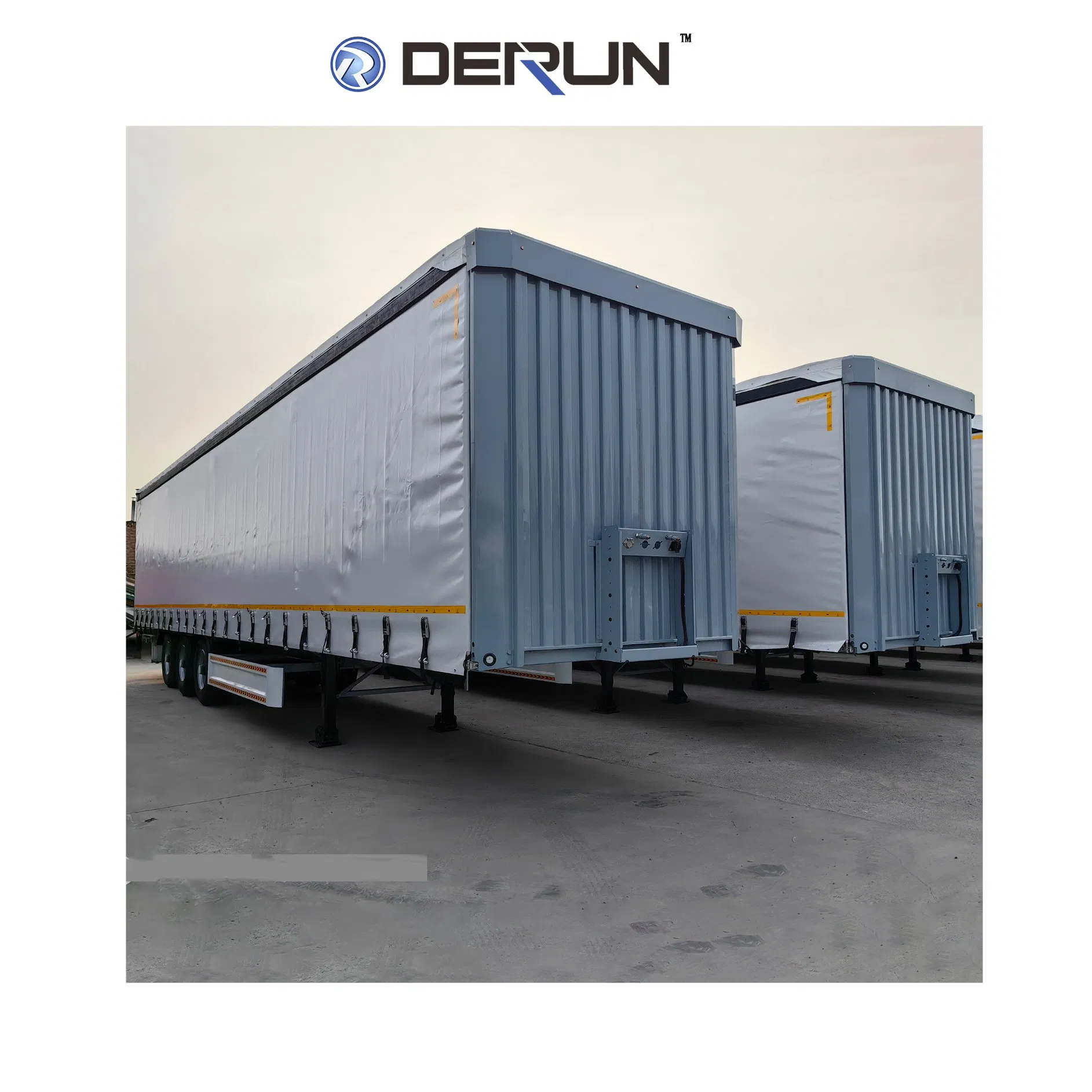

The side curtain trailer is made of soft tarpaulin material on both sides, with guide rails above and locking structures below. When loading and unloading goods, the side curtain fabric can be pushed and pulled to any position for convenient loading and unloading from different directions.
The top of the carriage adopts the same push-pull structure, and the tarpaulin can be fully stored at one end of the carriage, making it convenient to load and unload large cargos from the top. The rear of the carriage adopts a traditional double door structure, made of high-strength lightweight steel or aluminum alloy.
| Technical Specifications | |||
|---|---|---|---|
| Outside Dimension | 13000*2550*4000mm | Main Stringer Height | 450mm |
| Ceiling | Manual translation, 650g cord fabric | Back Door | Aluminum alloy double door |
| Axles | 13T*3 disc brake, Air suspension | Bottom Plate | 28mm Waterproof phenolic flooring |
| Tires | 385/65R22.5*6pcs | King Pin | JOST 50mm, bolt type |
| Landing Gear | FUWA 28T two-speed | ABS System | WABCO ABS |
| Side Curtain | Double side, cord fabric 900g | Color | Silver Gray / Optional |
