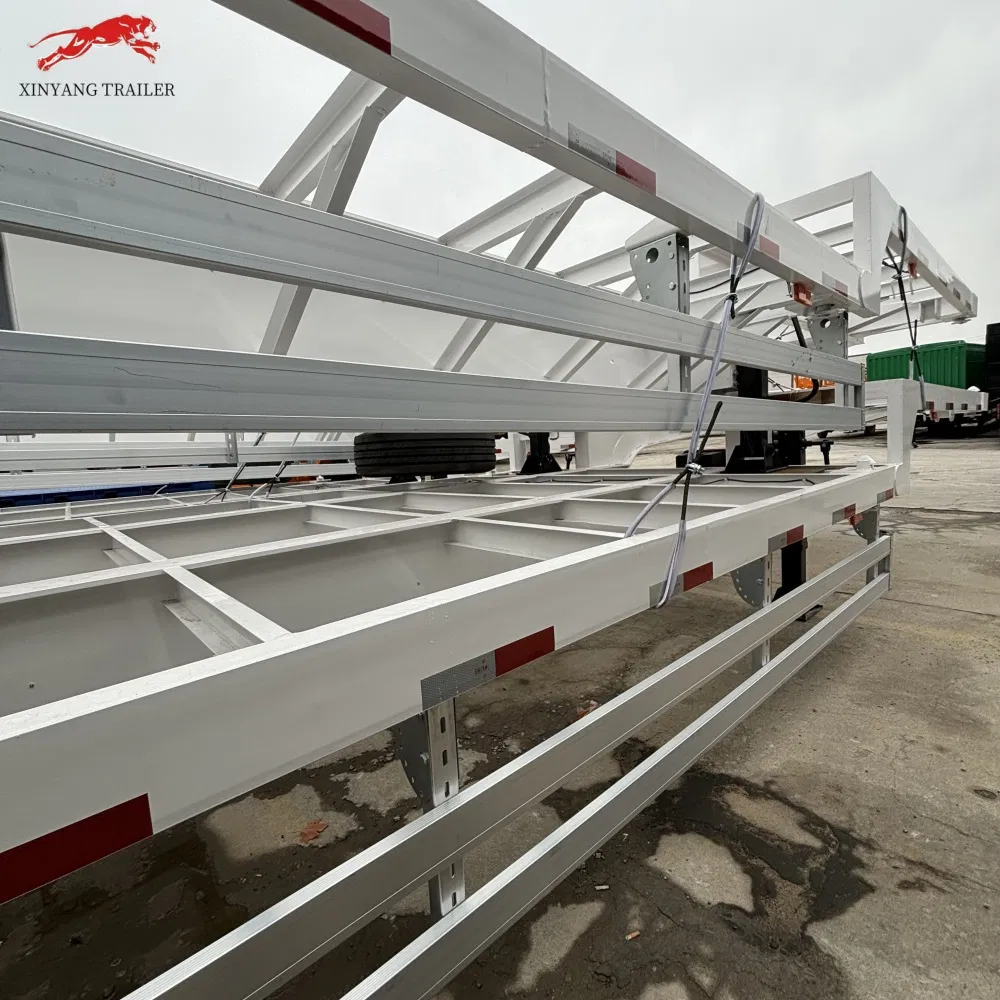

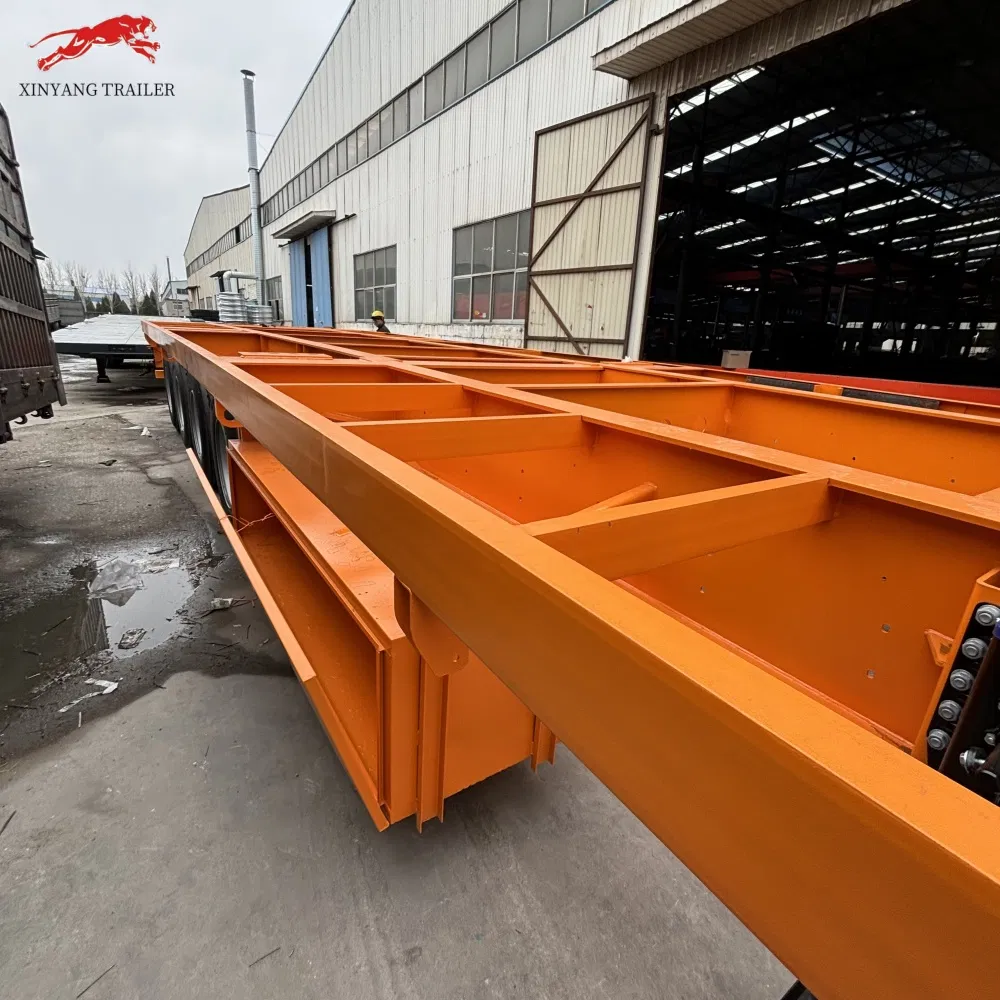

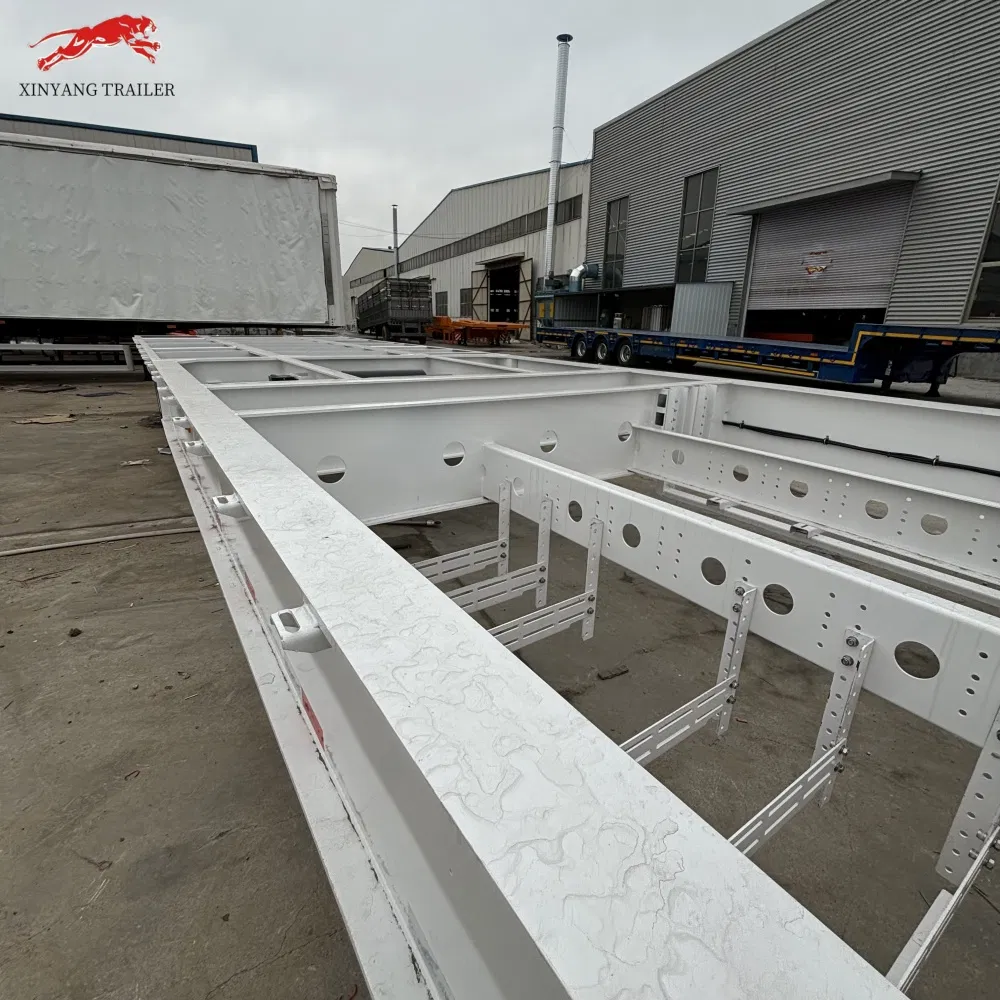

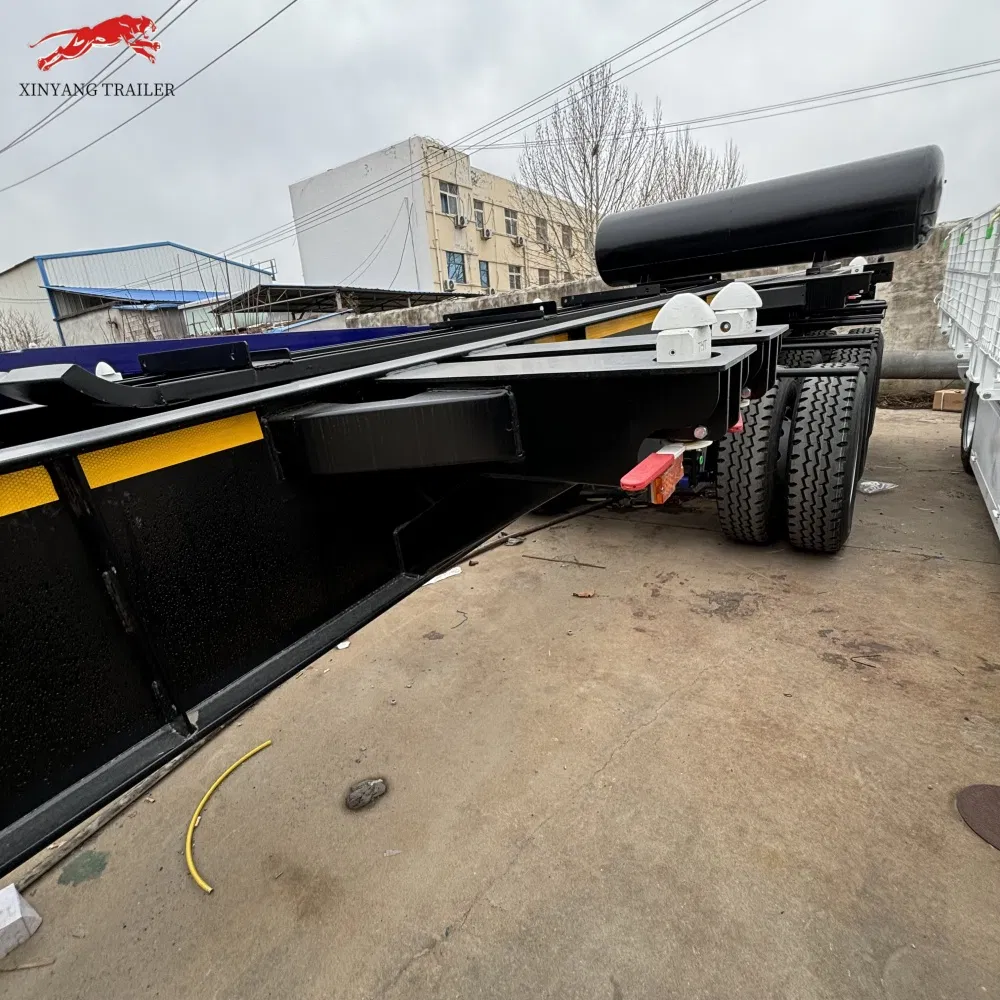

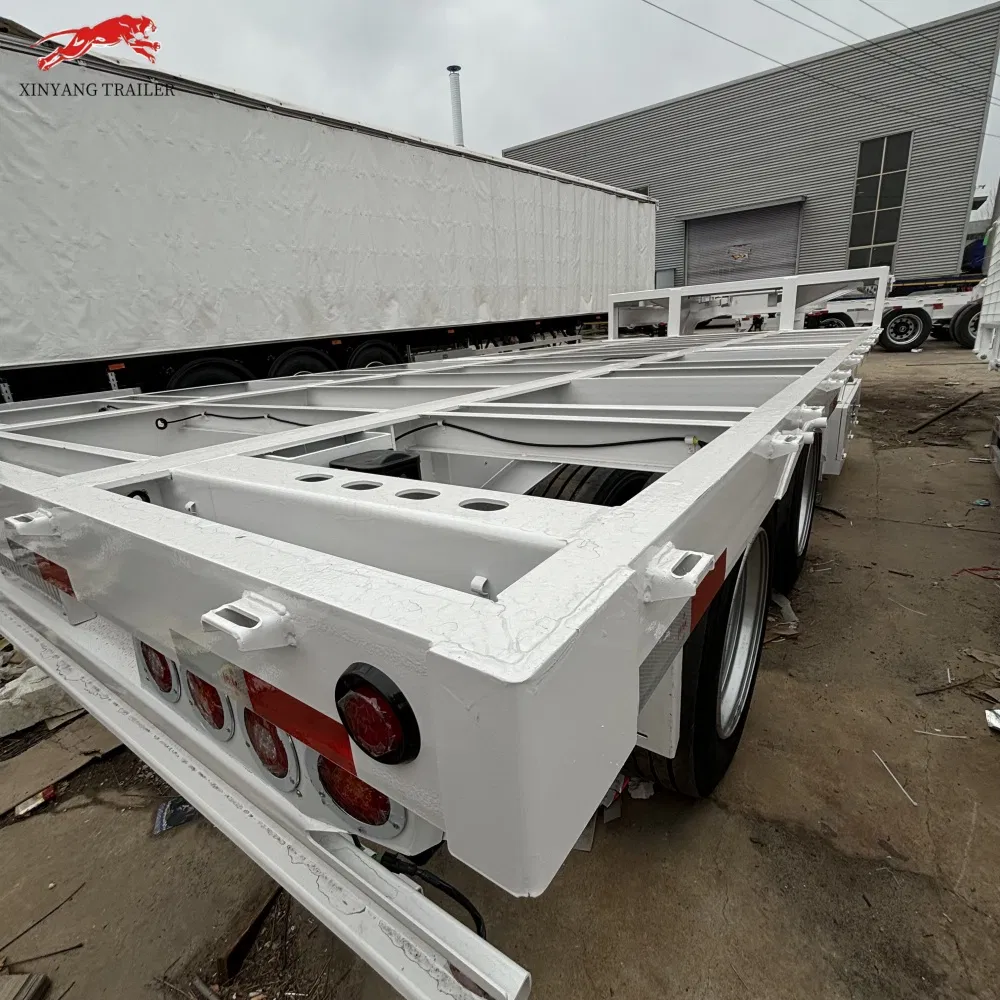

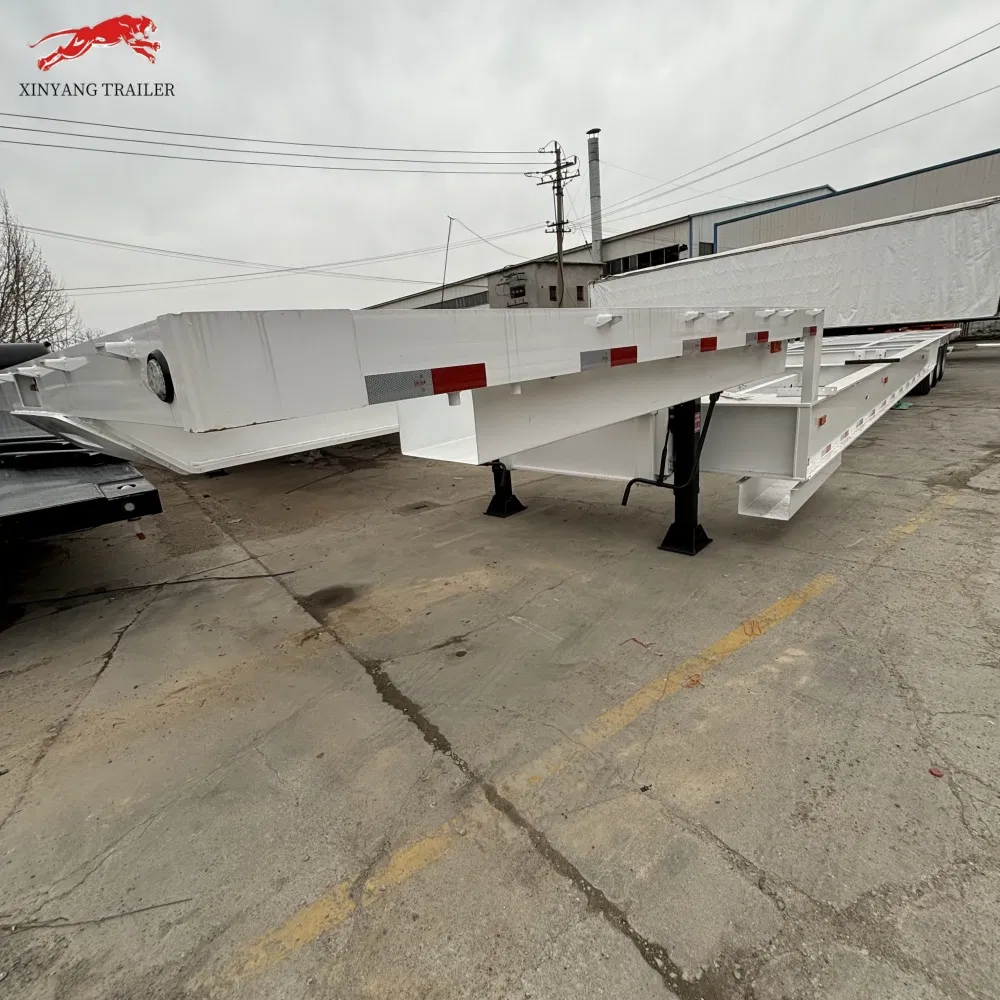

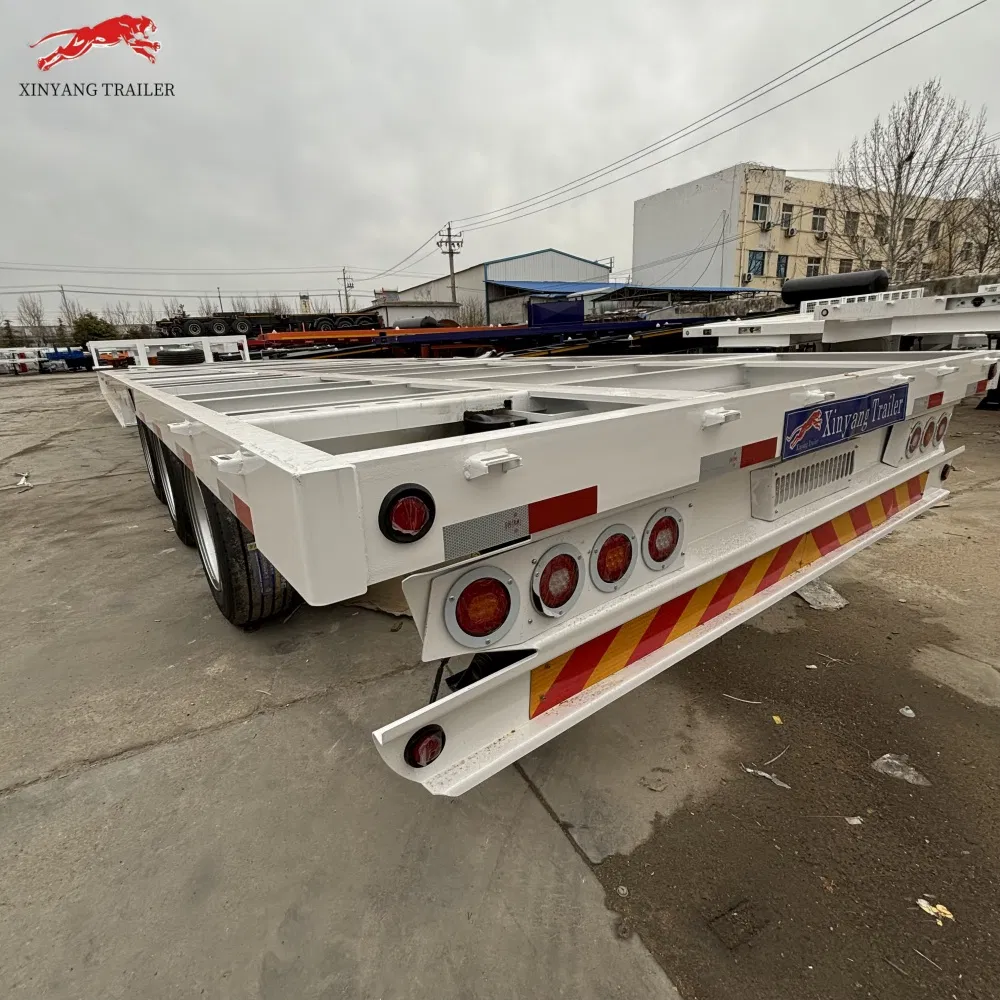

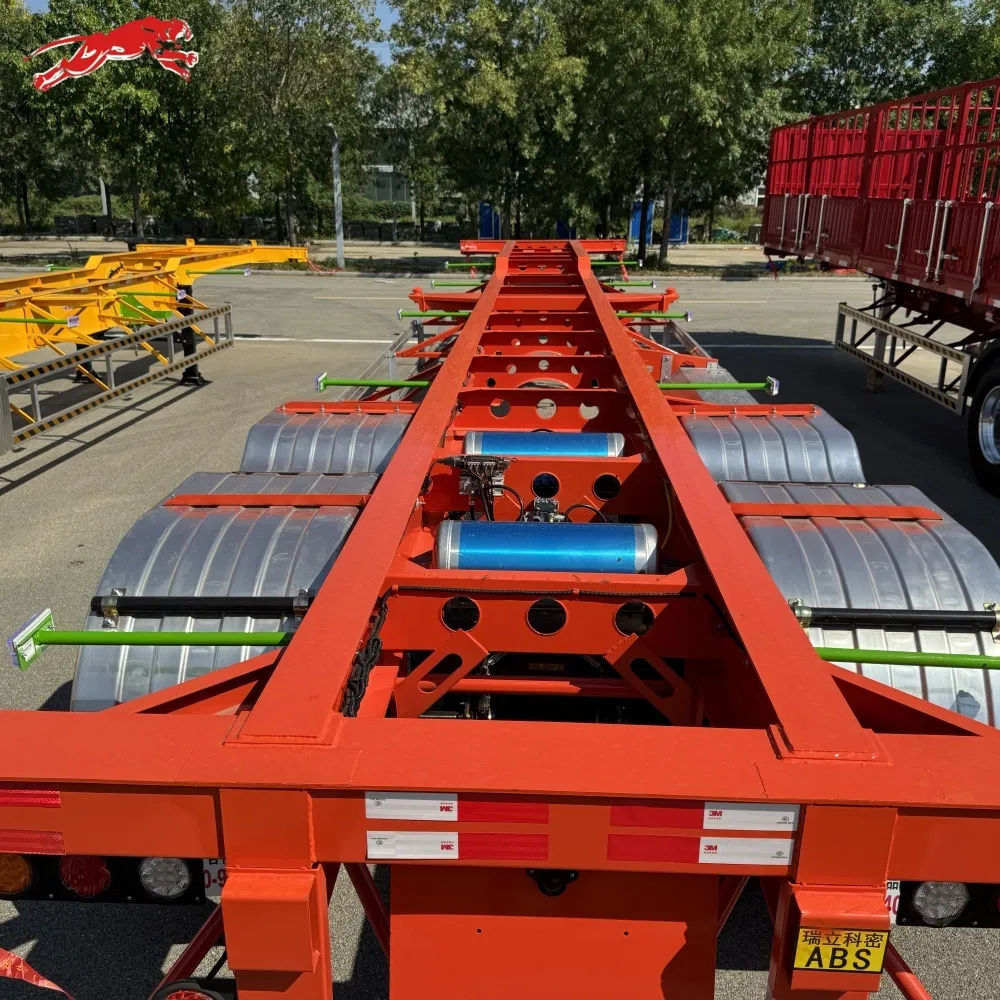

Skeleton semi-trailers are generally composed of two longitudinal beams and several cross-beams, and adopt a through-beam structure. There are two types of longitudinal beams: flat type and gooseneck type. After the cross-beams penetrate the longitudinal beams, they are welded as a whole, which has high strength and stiffness. It has excellent loading capacity, a relatively light self-weight, and high safety, and is commonly used in fields such as port logistics, road transportation, and railway transshipment.
| Size | 12500mm*2500mm*1500mm (Size optional) |
| Payload | 30ton 40ton 50ton 60ton 80ton |
| Main beam | Top flange 10/12/14/16mm; Middle Flange 6/8/10/12mm; bottom flange 12/1416/18mm |

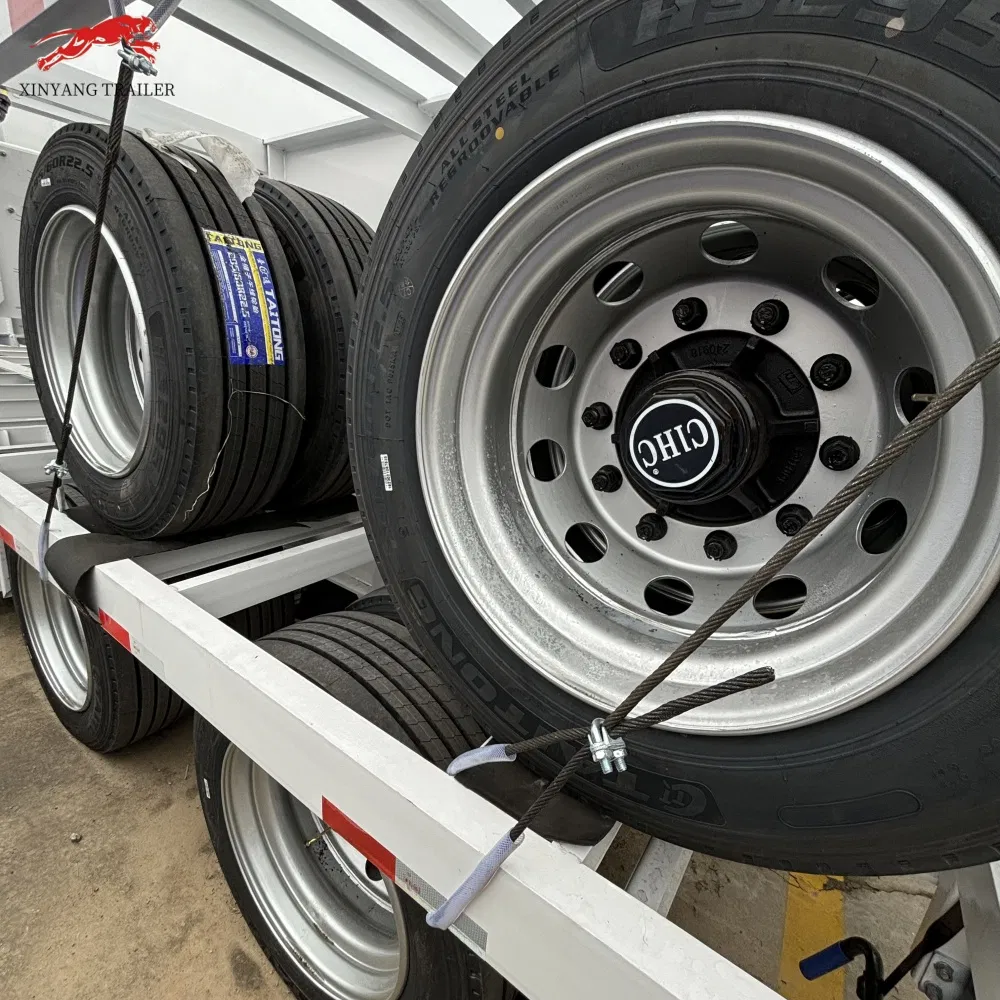

| Axle | 3 axle FUWA/BPW or local brand 13T |
| Tire | 385/60R22.5 7pcs brand and model optional |
| Kingpin | Jost brand 2/3.5" bolt-in king pin |
| Braking system | WABCO RE6 relay valve; T30/30 spring brake chamber; 40L air tanks |

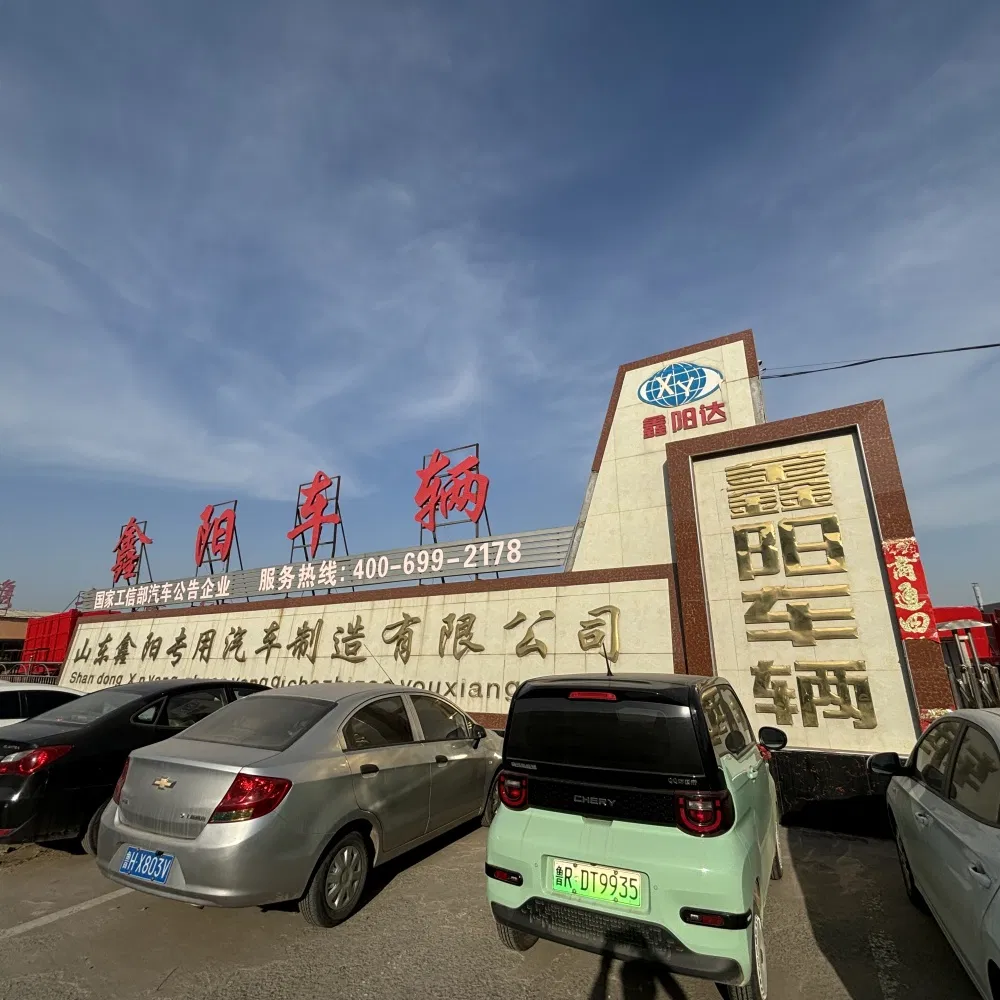

The company primarily engages in the manufacturing, production, and sales of trailer parts. Trailer manufacturing source factory, all models can be customized!
Tailored to the unique specifications of the semi-trailer, we offer sophisticated packaging solutions: bare packaging, bundling, protective material wrapping, or smart container loading.
