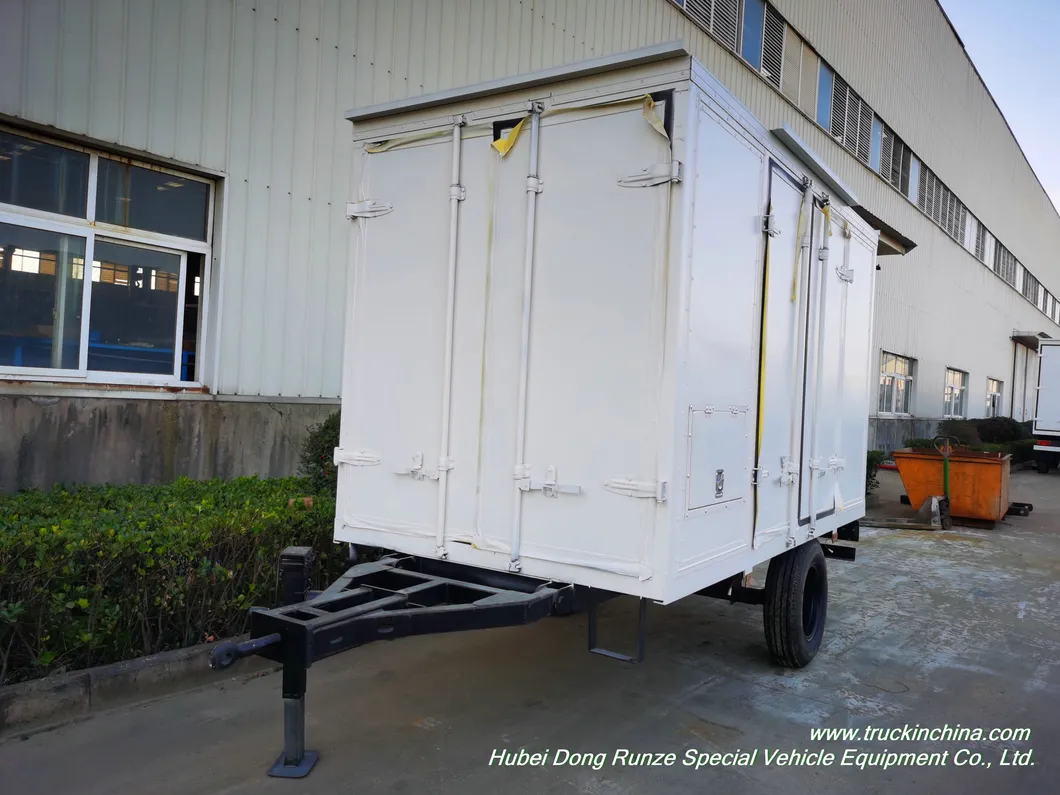

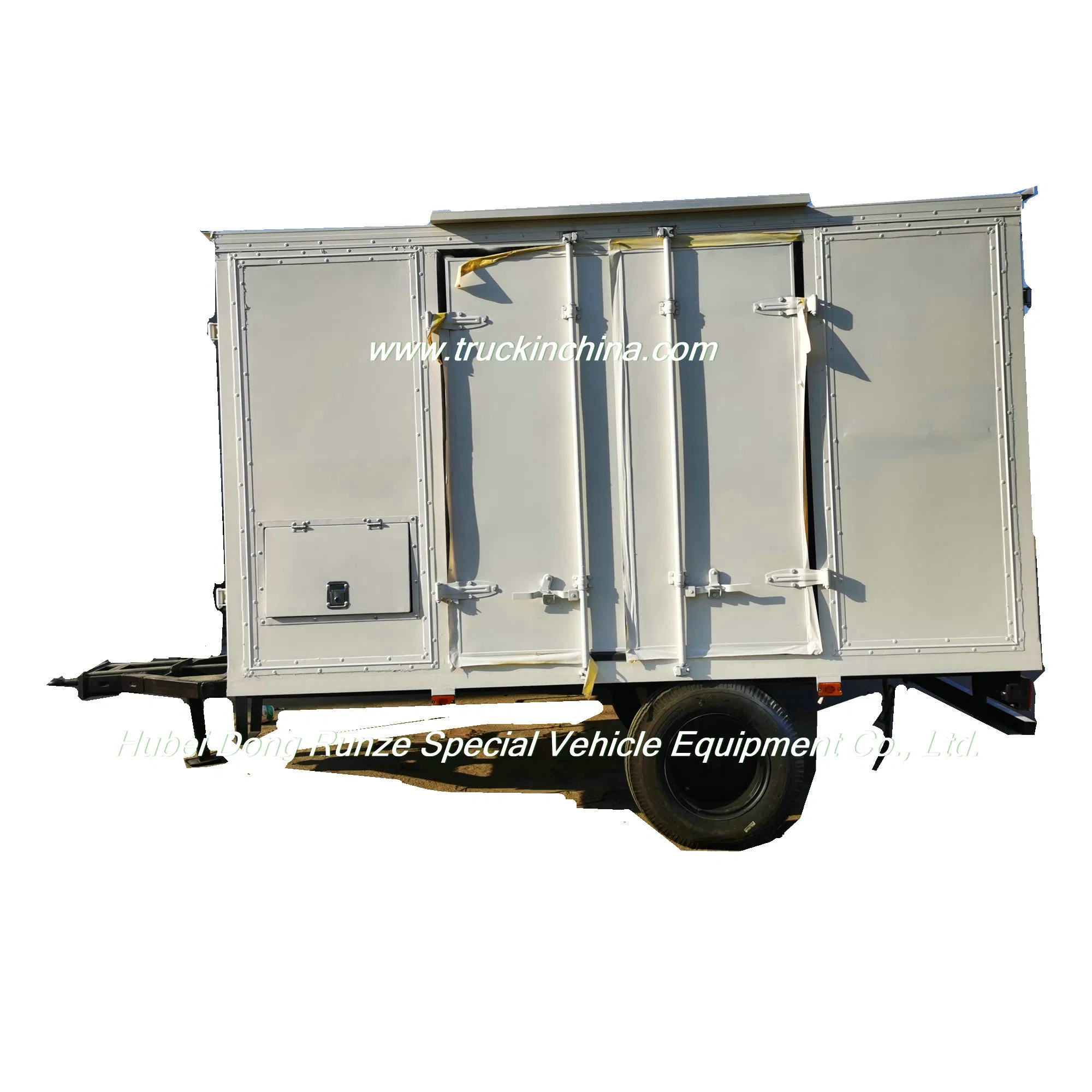

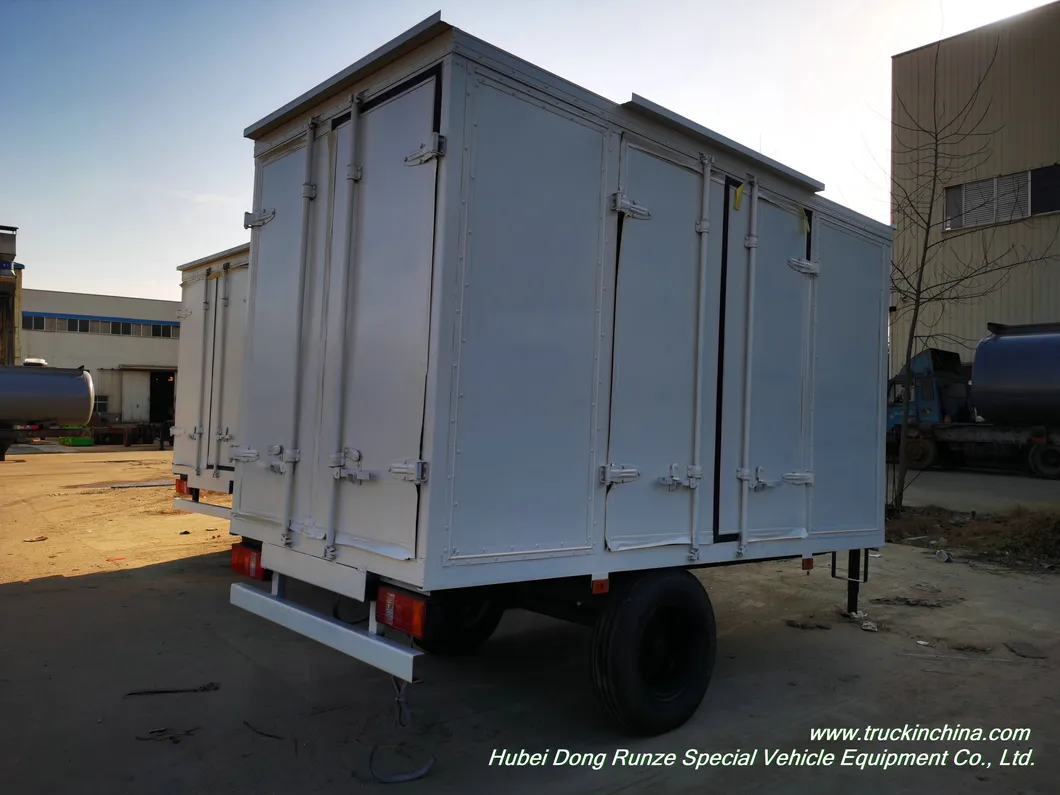

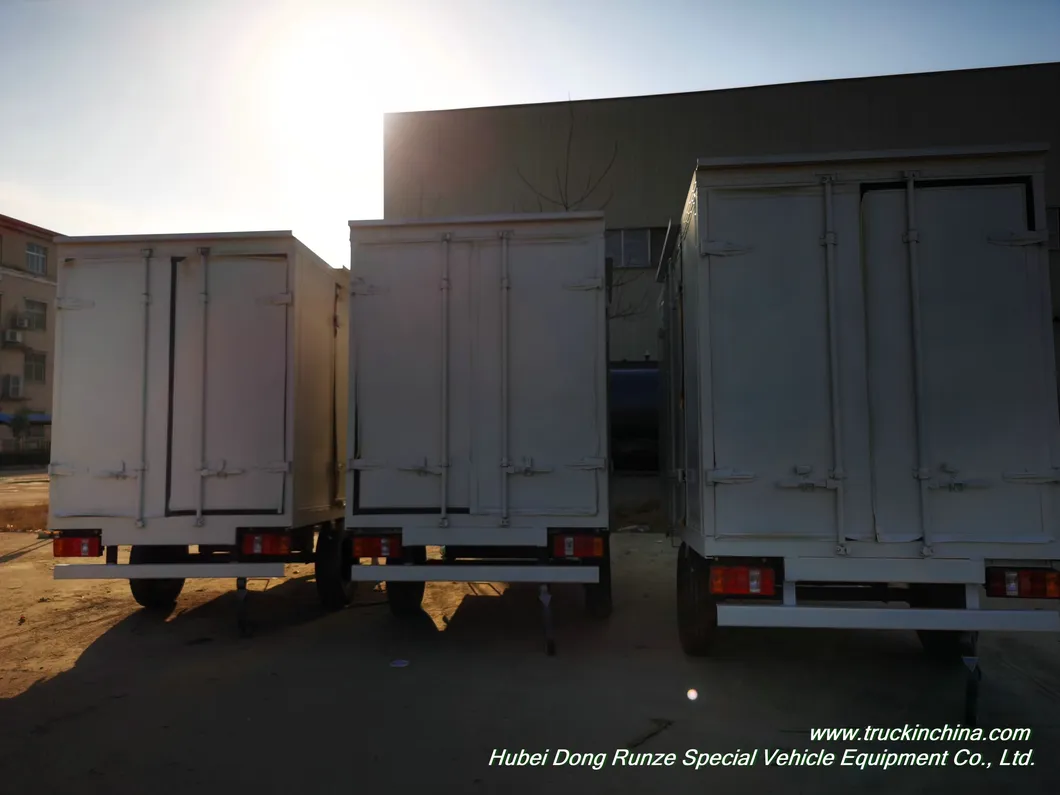

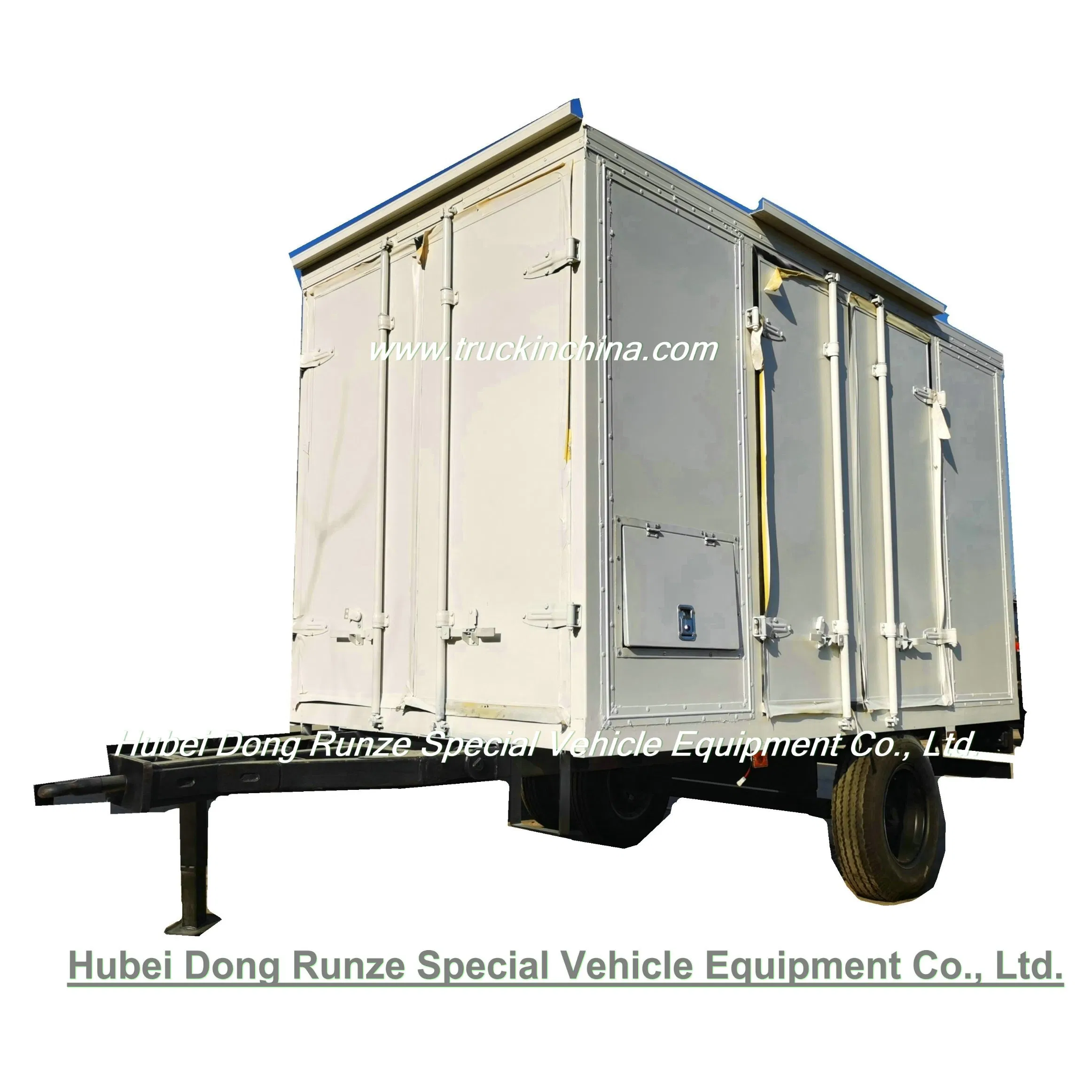

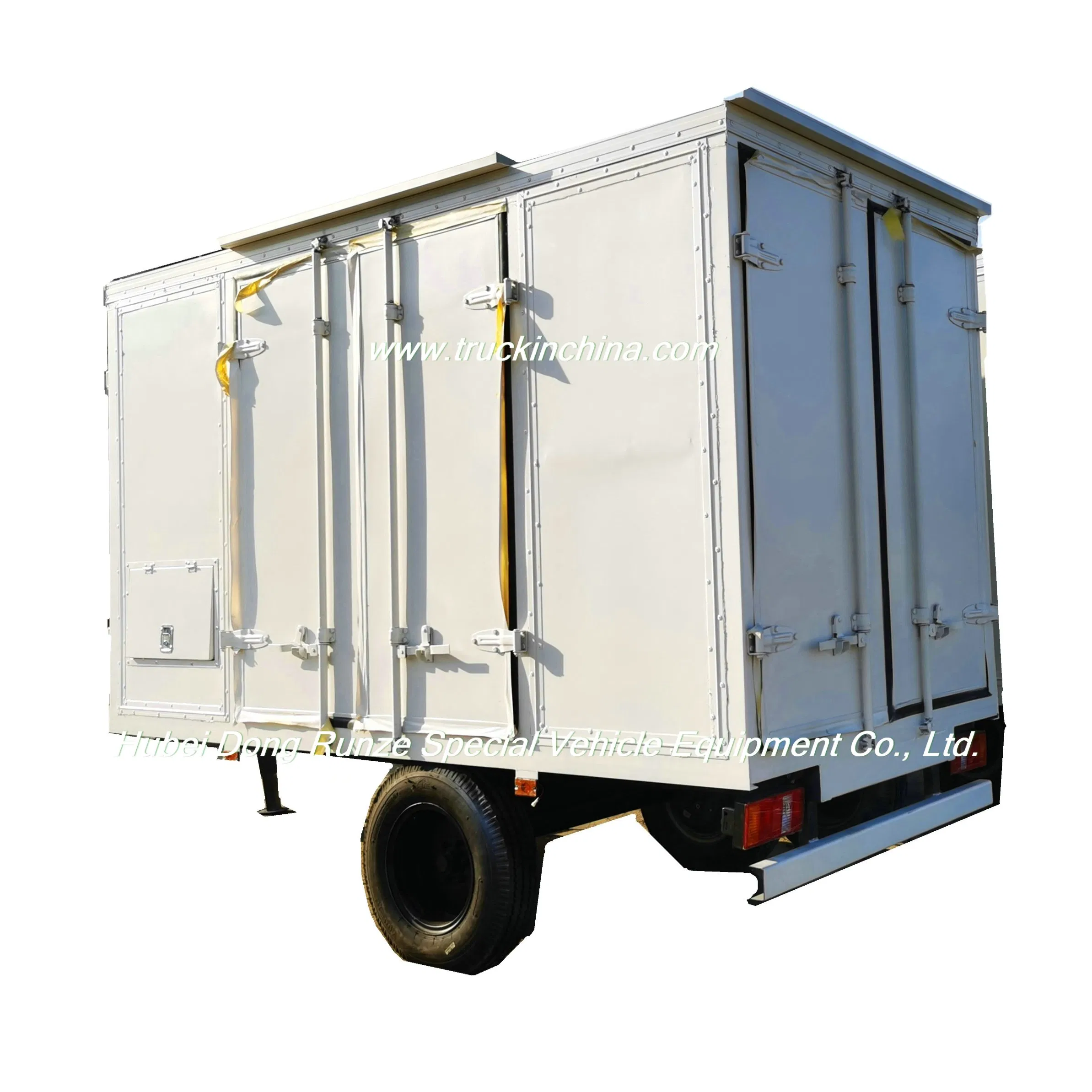

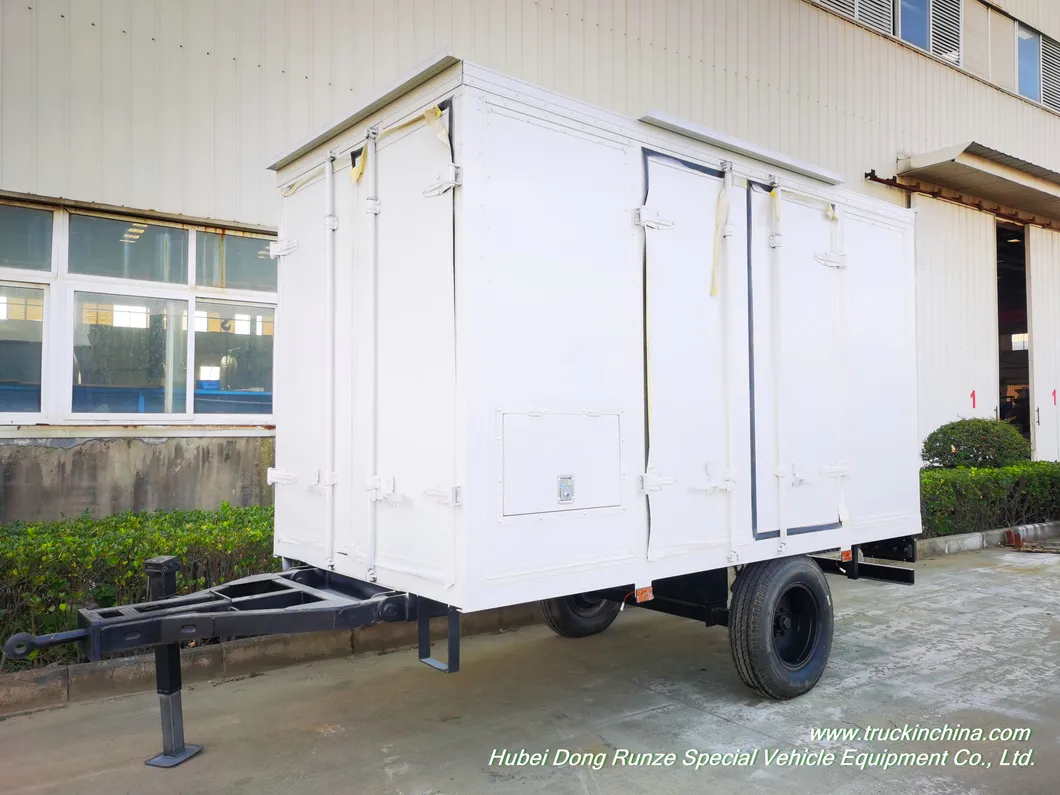

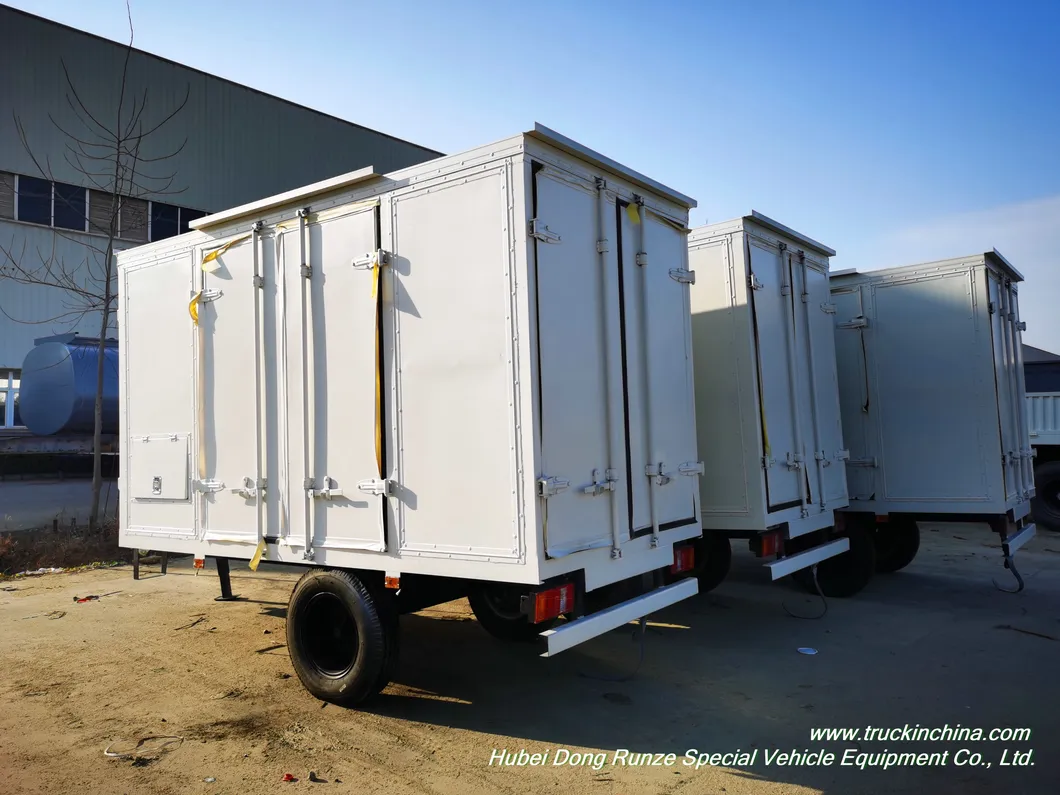

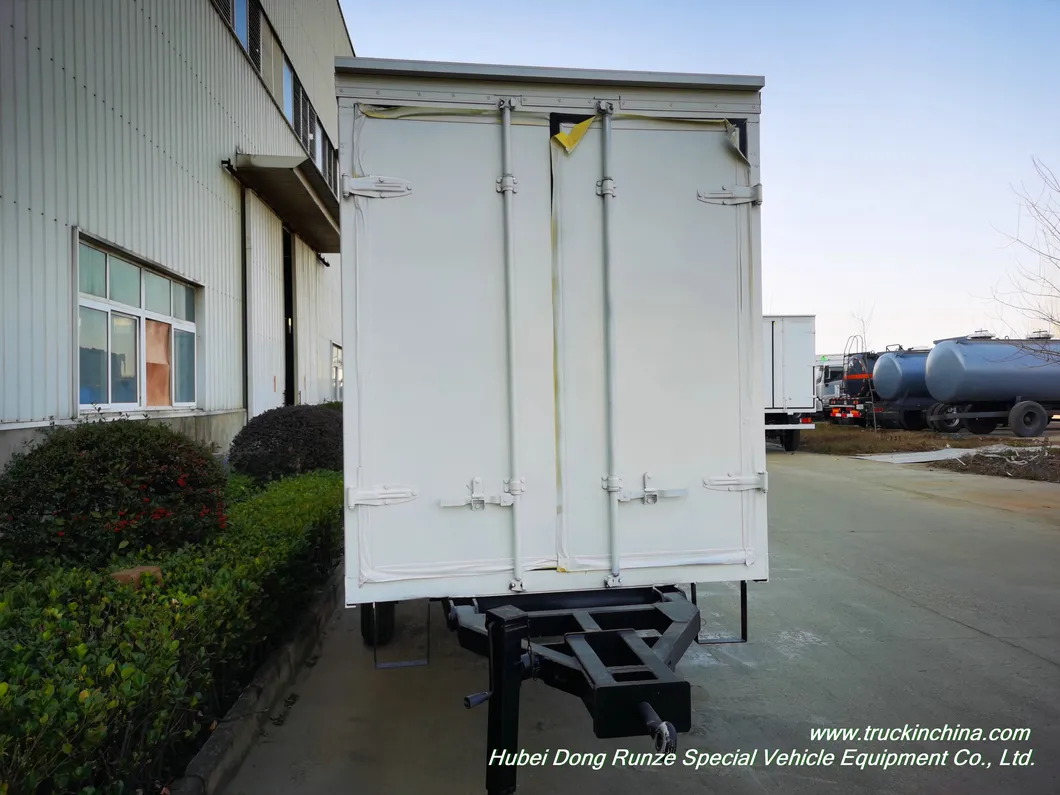

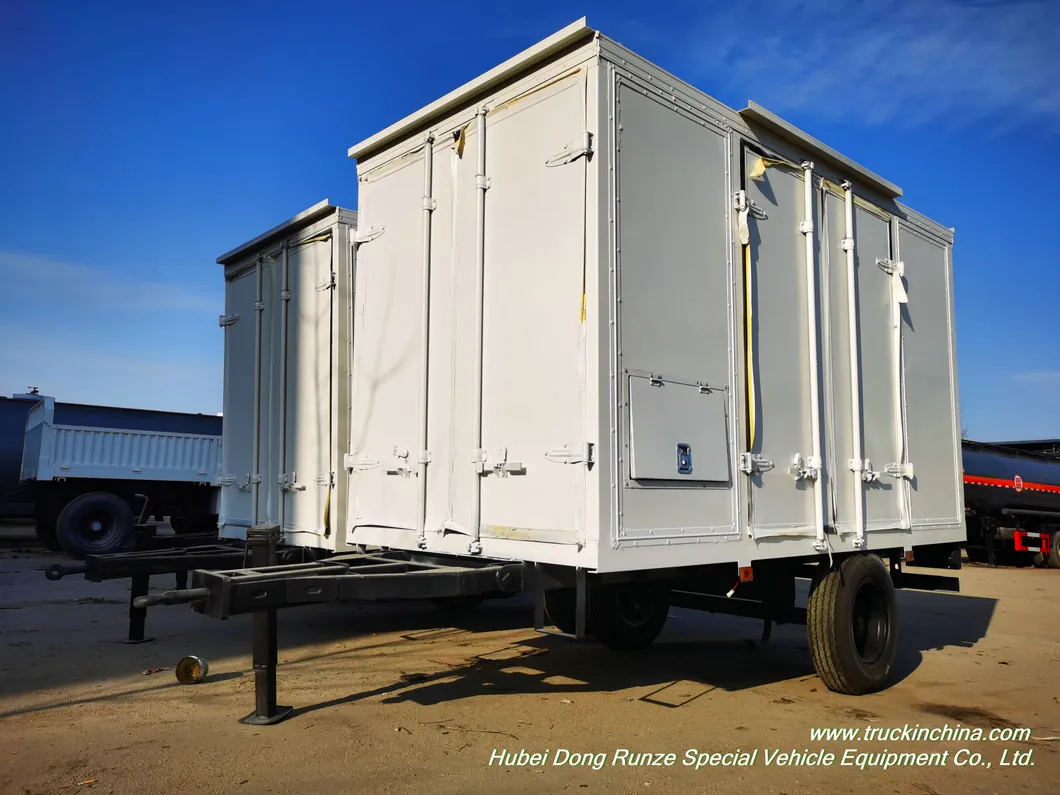

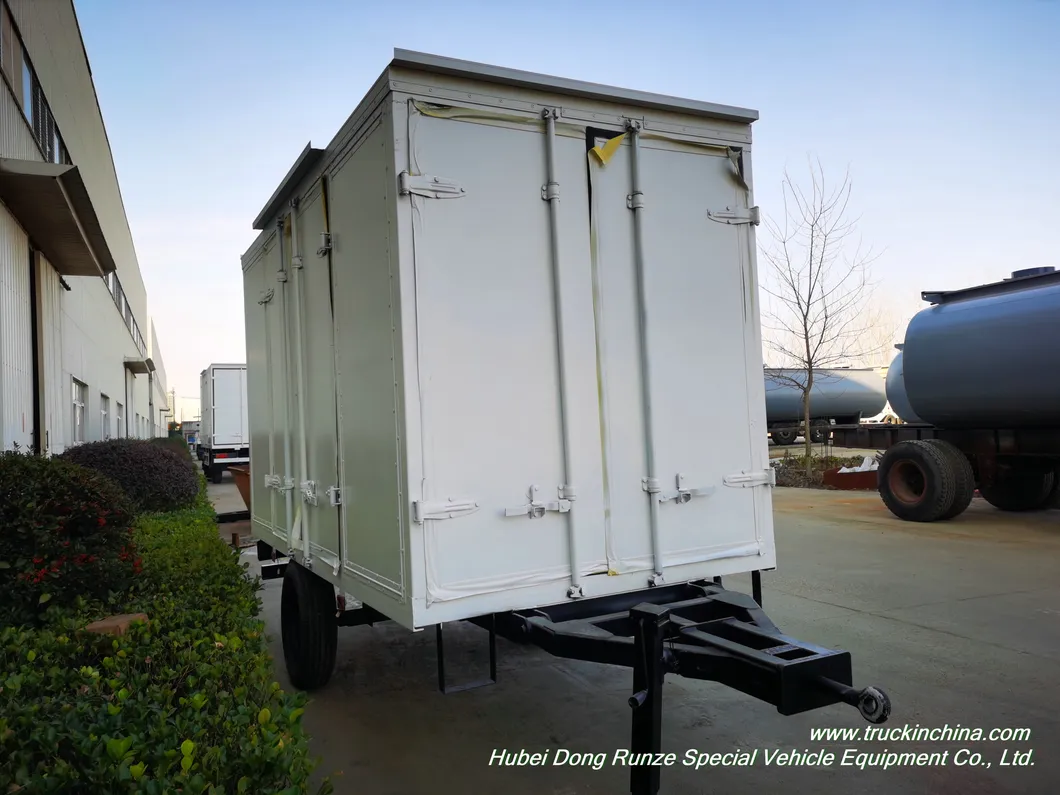

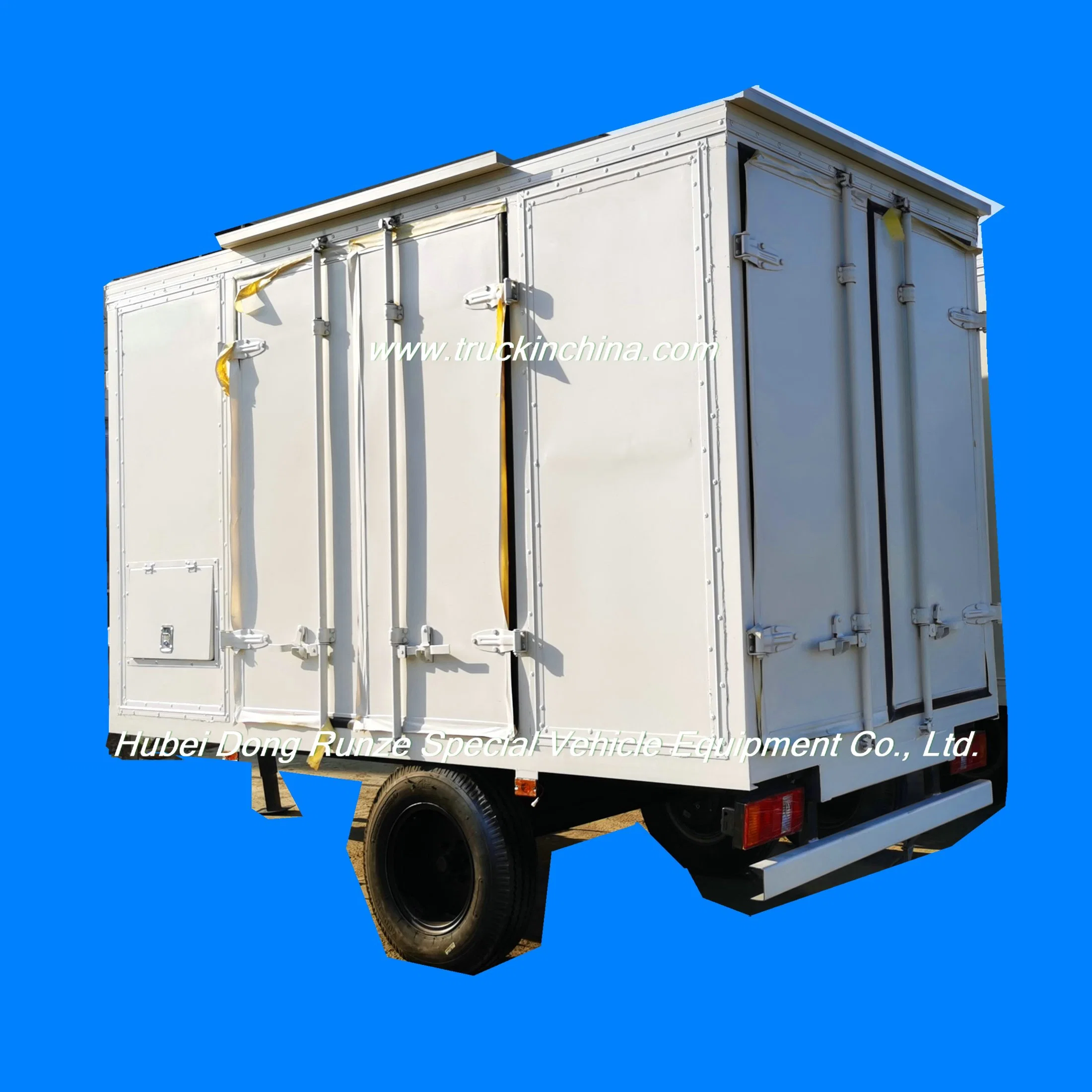

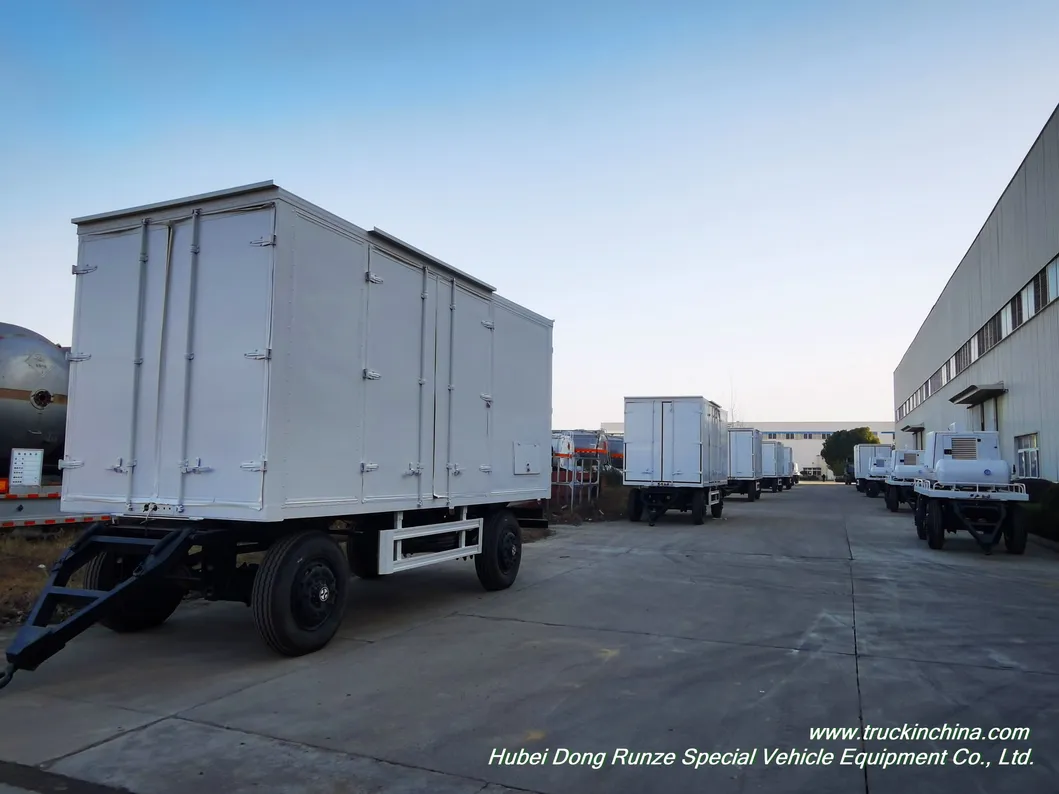

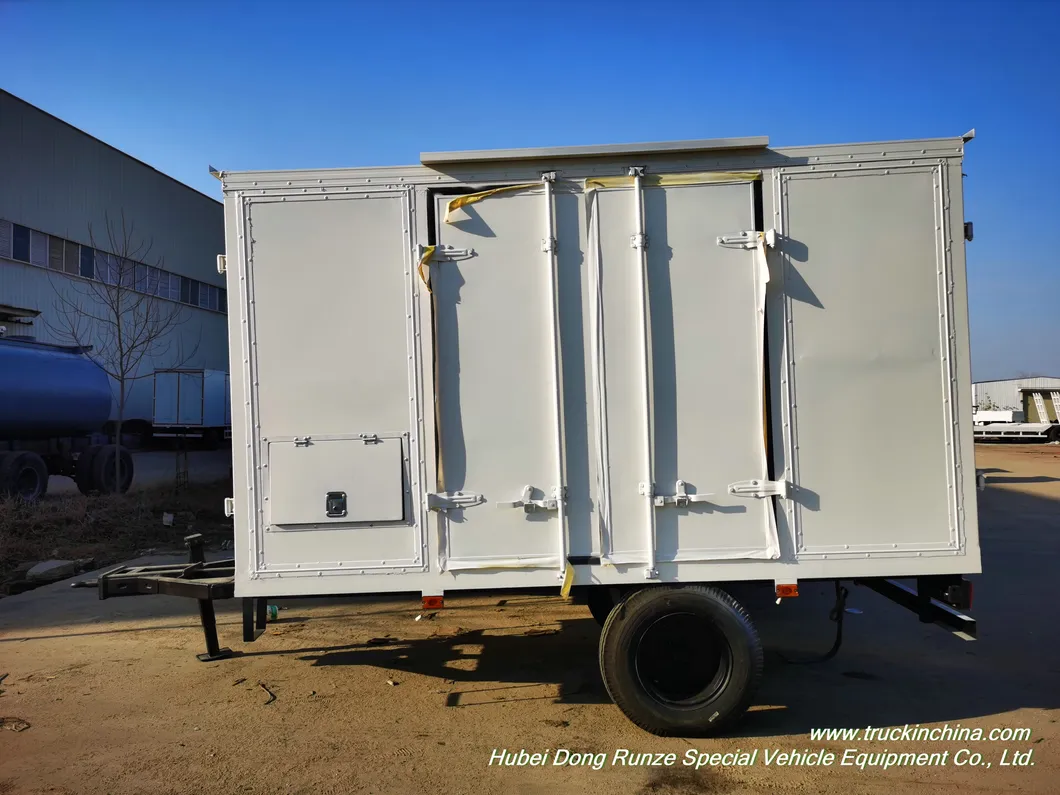

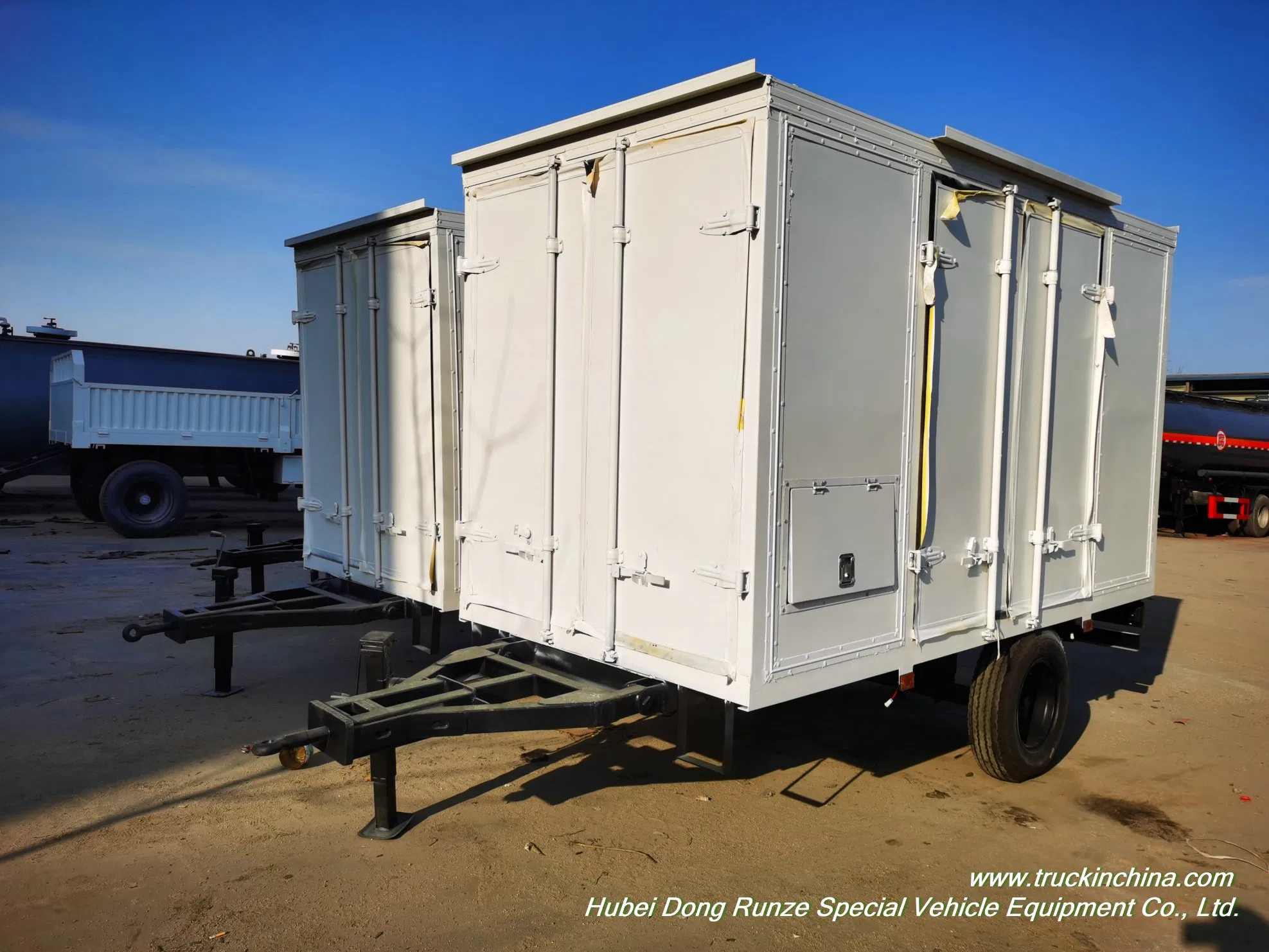

Customized Heat Insulation Box Draw Bar Trailer (3T - 8Ton Van Refrigerated vehicle Trailer Or Truck Semi-Trailer)
Customization, Cost and Control Built How You Want it, at a Price You Can Afford.
| Specification | Details |
|---|---|
| Overall Dimension | 7000*2500*1500mm or Customized |
| Curb Weight | 3.5T |
| Loading Capacity | 30T |
| Main Beam Spec. | T700/Q345 Steel, Height:500mm, Plate Thickness:8-16mm |
| Suspension | Mechanical Suspension, Air Suspension or Optional |
| Leaf Spring | 10-layers leaf spring (90mm*13mm*10pcs) |
| Axle Spec. | 13T/16T/20T BPW or FUWA brand |
| King Pin | 2"(50mm) or 3.5"(90mm) JOST Brand |
| Tire | 11.00R20 / 12.00R20 / 12R22.5 |
| Brake Chamber | 2 sets |
| Painting | Sand blasting, prime coating, surface painting, color optional, wax polishing |
| Tare Weight | 4500kg |
| Payload | 15000 - 35000 kg |
| Axle | FUWA / BPW / L1 / Dongfeng DANA axles |
| Main Frame | High tensile steel Q345B, welded by automatic Submerged-Arc processes |
| Pneumatic Braking | 30/30 spring brake chamber (S Cam); 40L air tank |
| Electrical System | 24V 7-pin socket; Standard cable and LED lights |
| Tare weight | 5500kg |
| Payload | 14000kg |
| Dimension | 6500×2500×1470(mm) |
| Features | Safe, simple and durable; improves efficiency of goods transfer and reduces manpower cost. |
| Platform | 3mm diamond steel plate |
| Turntable | Equipped |
