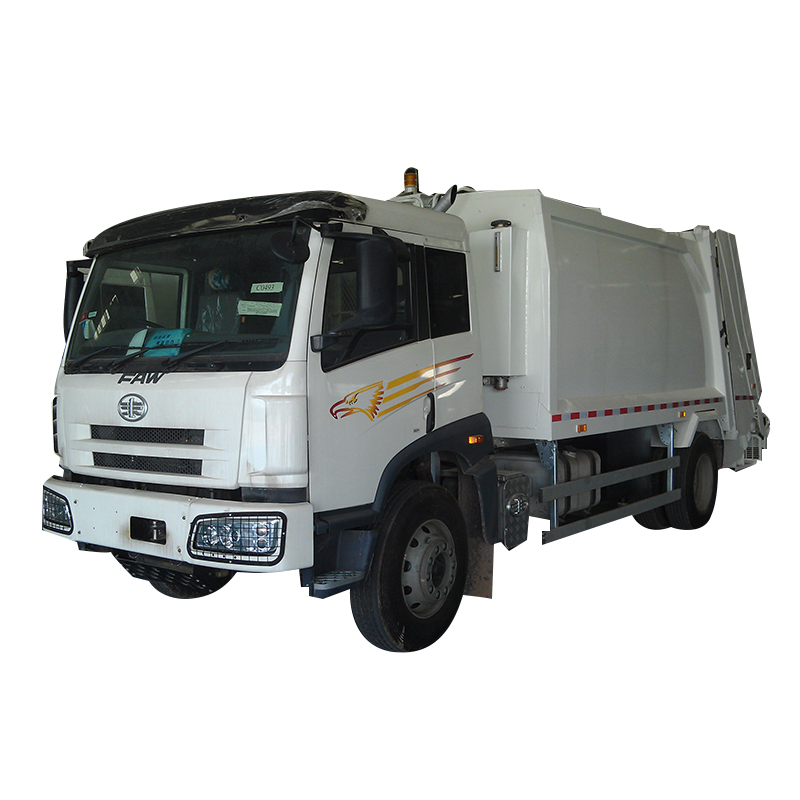

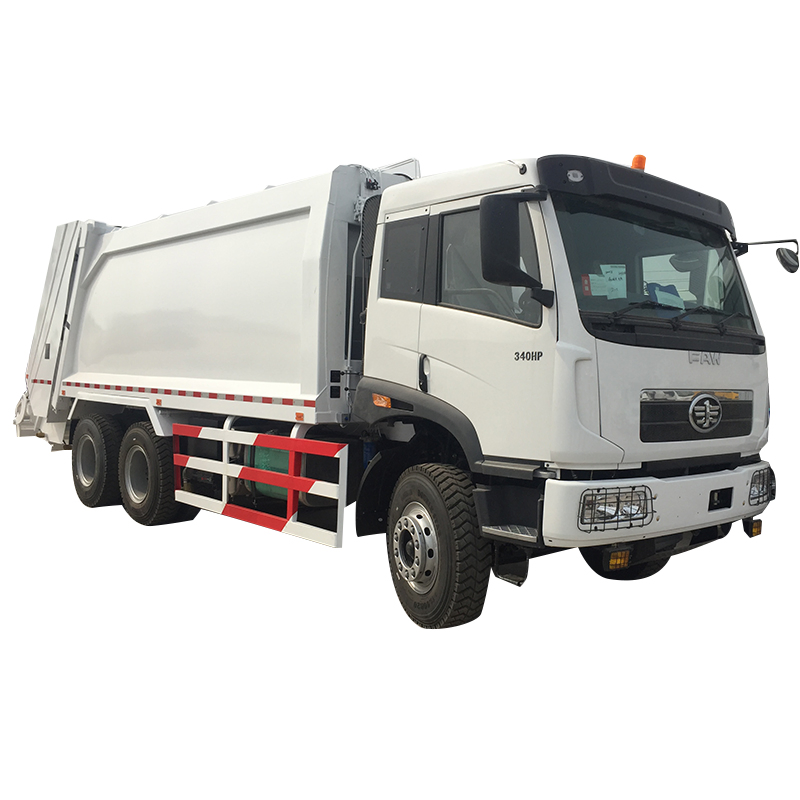

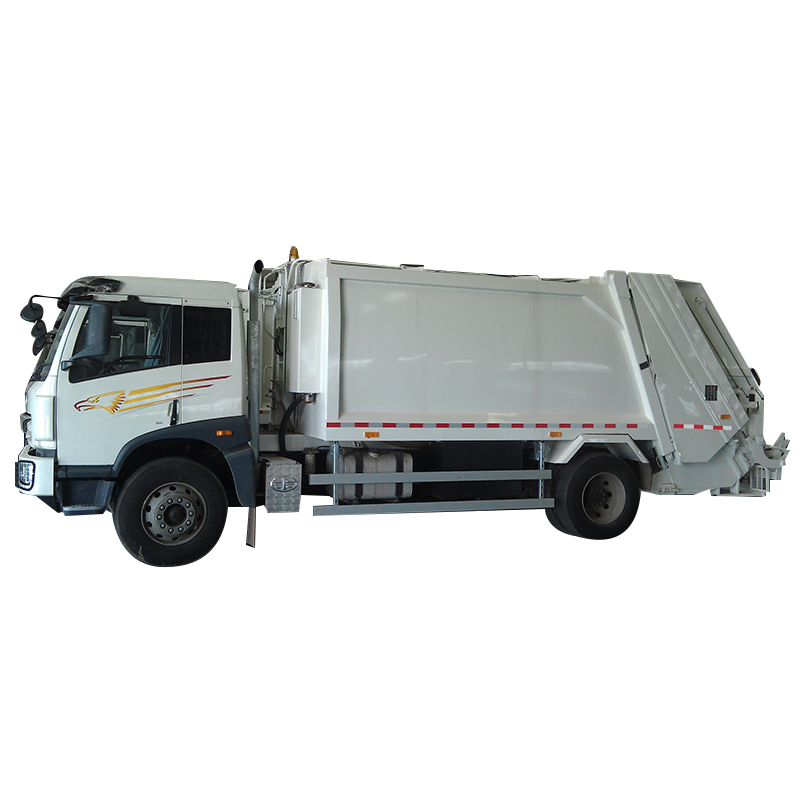

Special purpose customized FAW 18 cubic meter garbage truck

1 / 5

Special purpose customized FAW 18 cubic meter garbage truck

Customization:	Available
After-sales Service:	1 year
Warranty:	1 year

Send Inquiry

Product Description

📋 Basic Information

Model NO.

CA3256

Type

Compactor

Certification

ISO9000, CCC

Volume

＞15000L

Emission Standard

Euro 2

Transmission Type

Manual

Payload

20T

Fuel

Diesel

Drive Wheel

6×4

Brand

Jiefang

Condition

New

Capacity

18-20m3

🚚 Product Description

18m3 FAW garbage truck/ refuse compactor truck/ garbage compactor truck FAW 18 cubic meter garbage truck

📊 Technical Parameters

CHASSIS MODEL	CA3250
OVERALL DIMENSIONS (mm)	9695X2500X3190
HYDRAULIC SYSTEM PRESSURE	30 MPa
KERB MASS	11,500 kg
LOAD WEIGHT	20,500 kg
MAX SPEED	75 km/h
ENGINE OUTPUT	273 KW / 1900 rpm
VOLUME OF BODY	19-20 m³
COMPRESSION DENSITY	>800 kg/m³
LOADING CYCLE	≤25 s
UNLOADING TIME	≤40 s
MANIPULATOR TYPES	300L Round / 240L Square trashcan

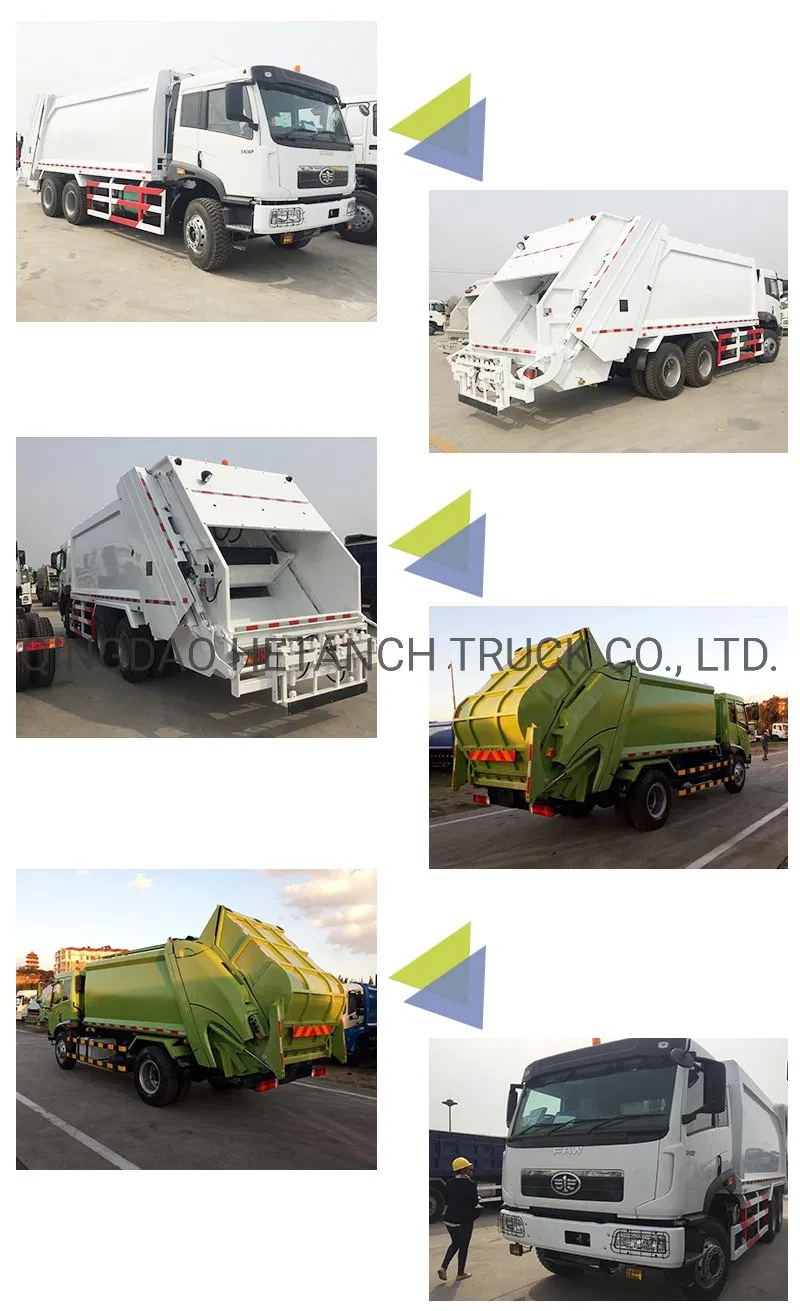

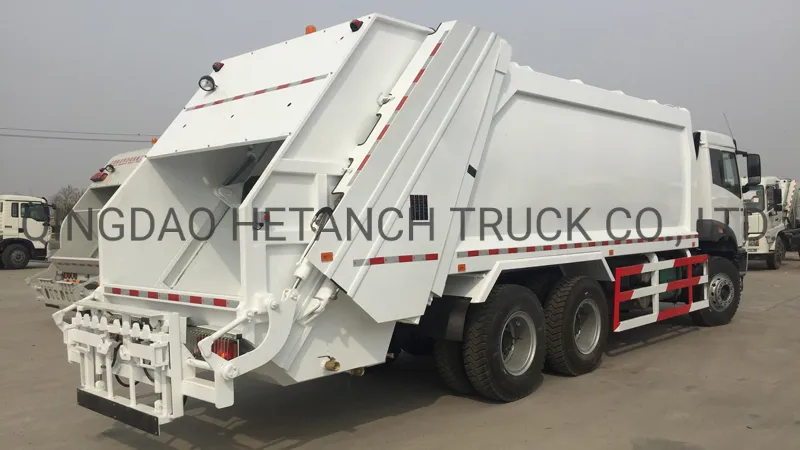

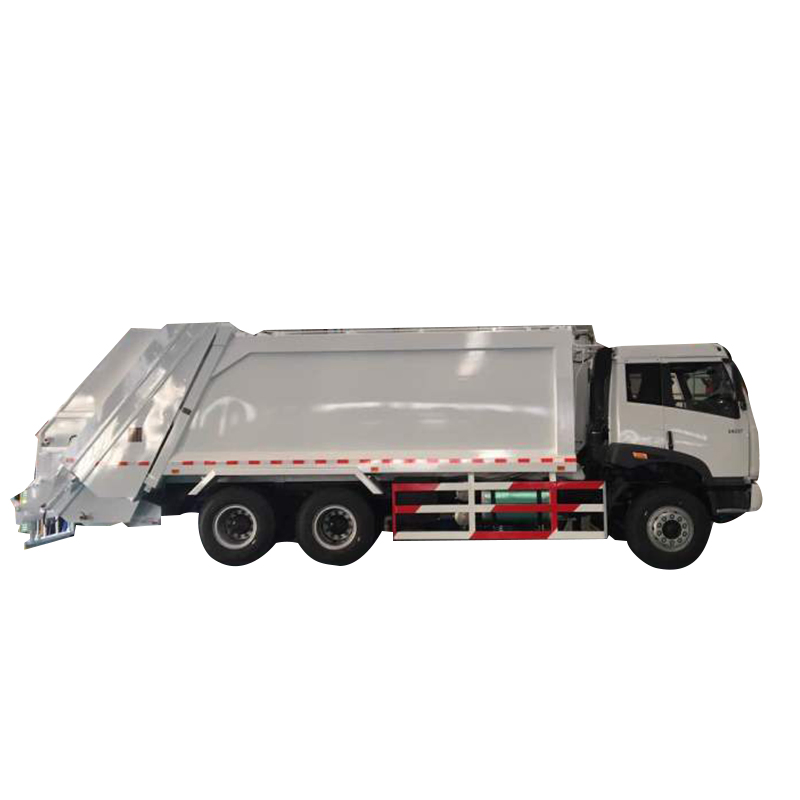

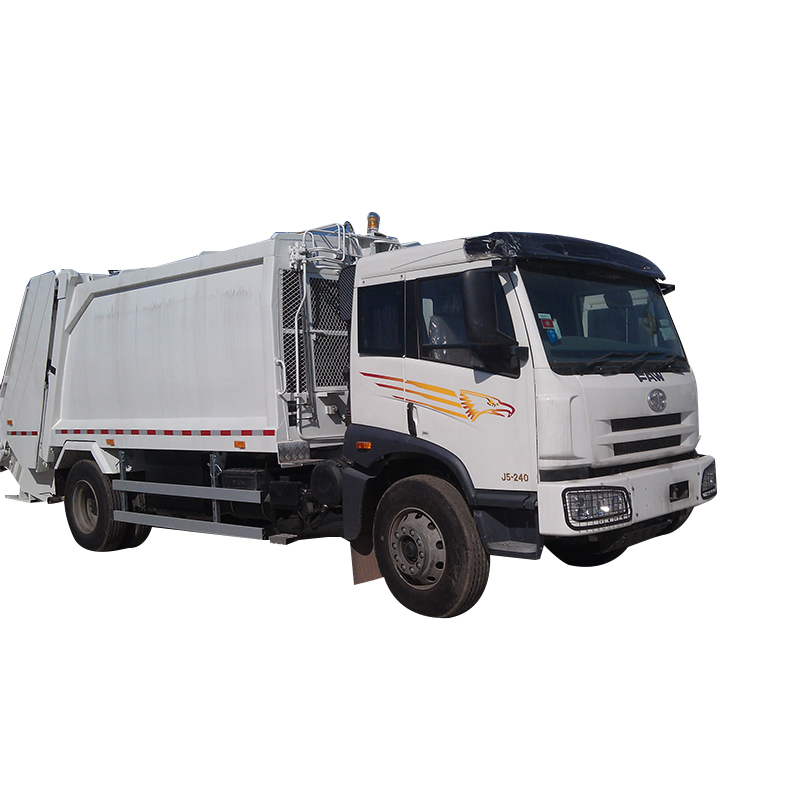

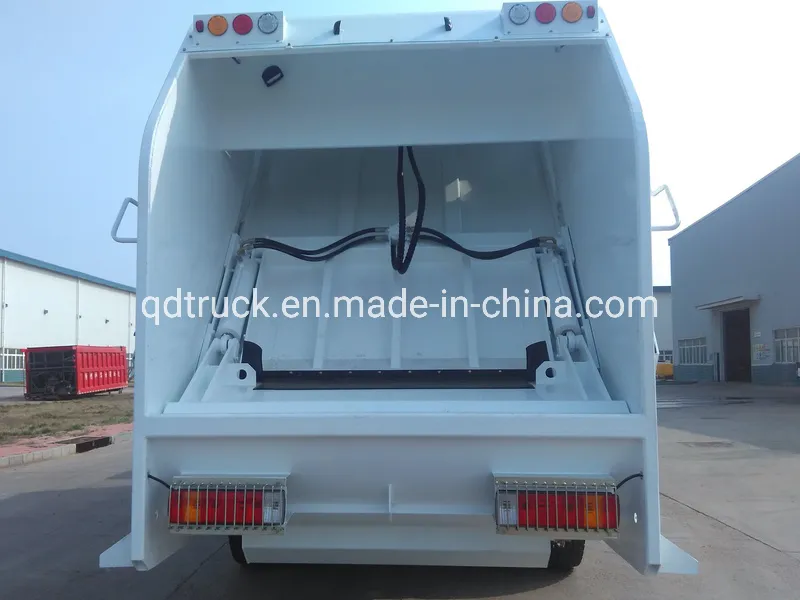

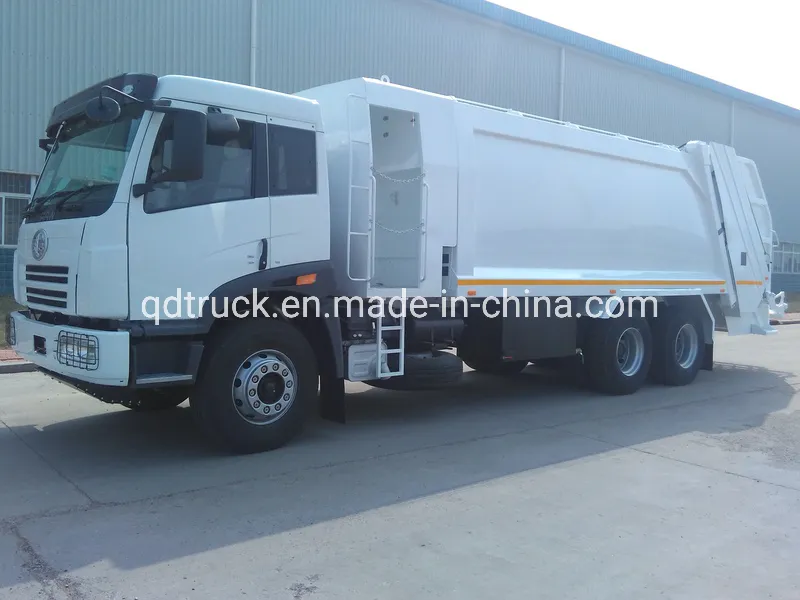

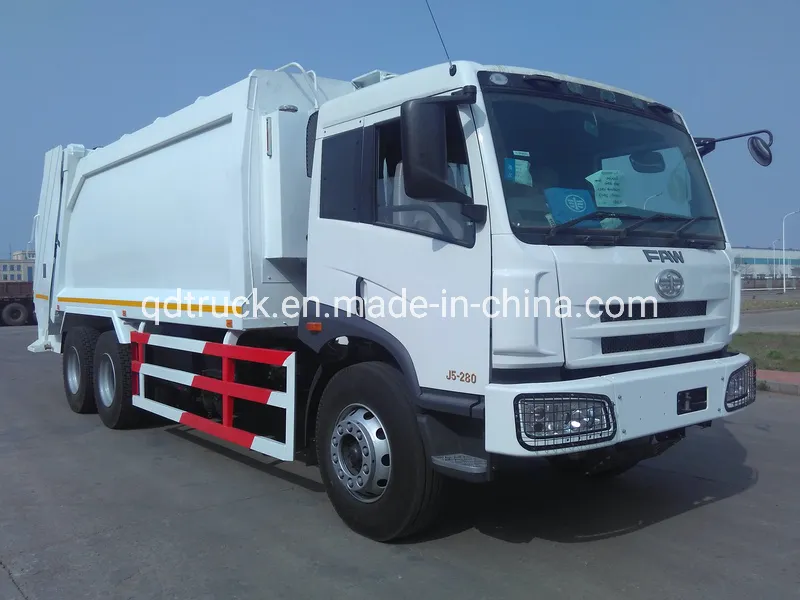

📷 Product Display

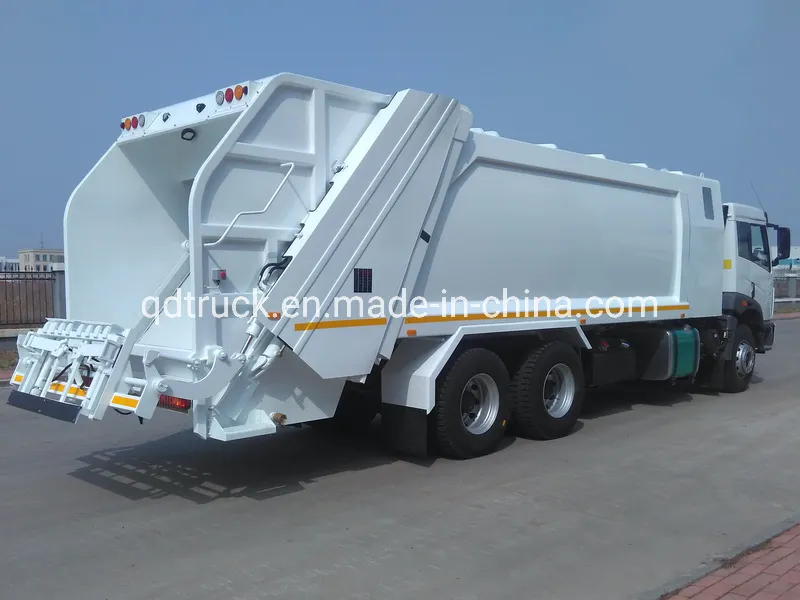

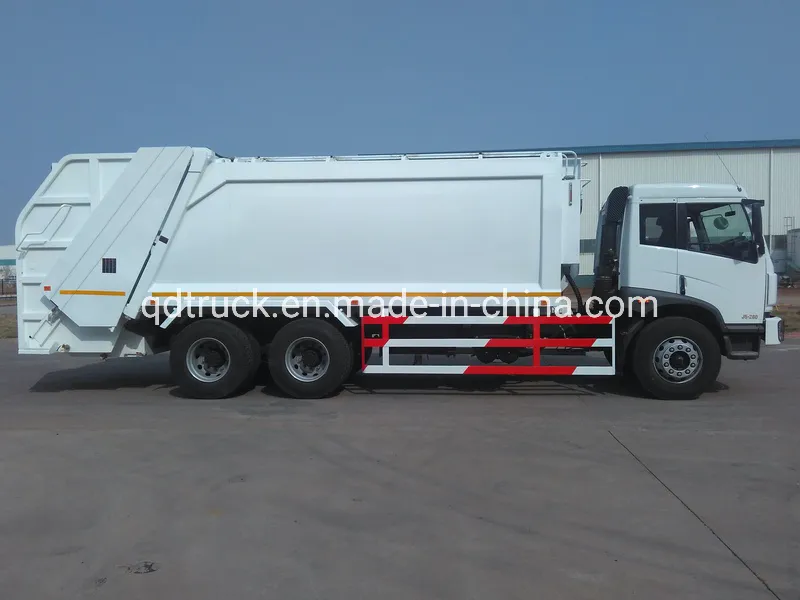

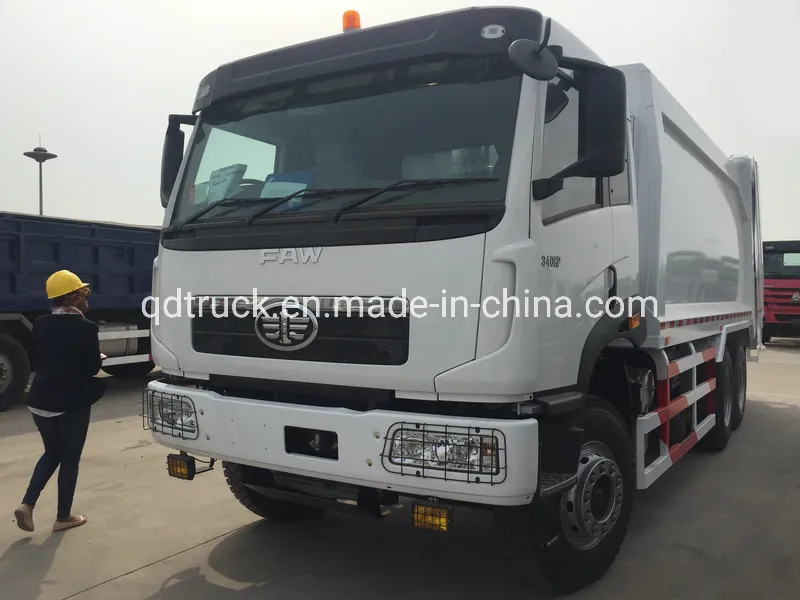

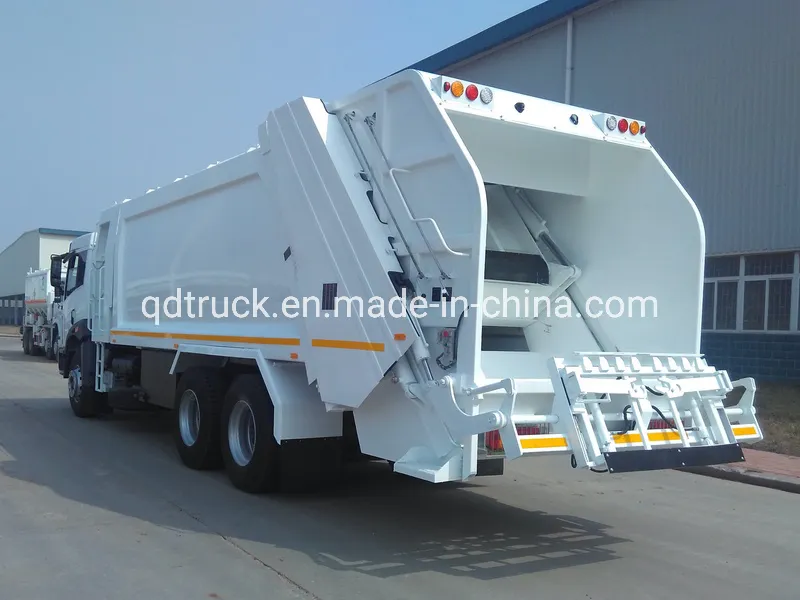

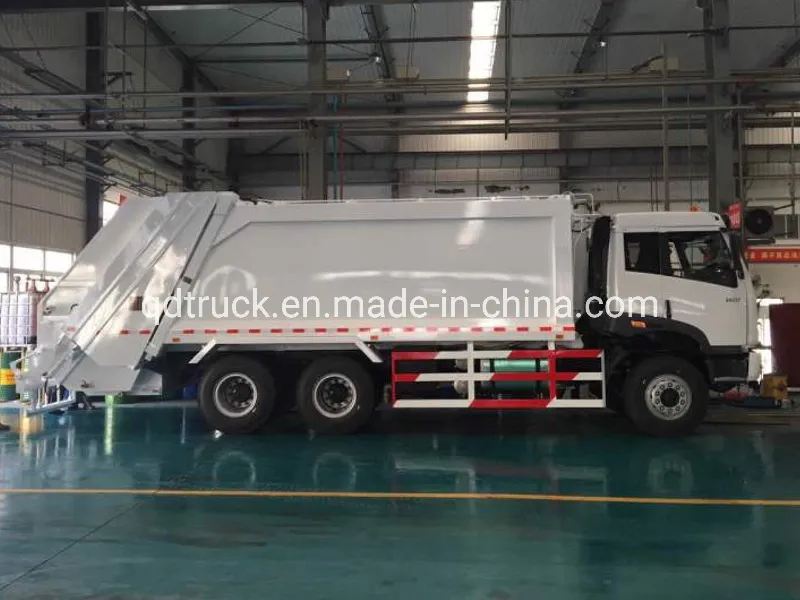

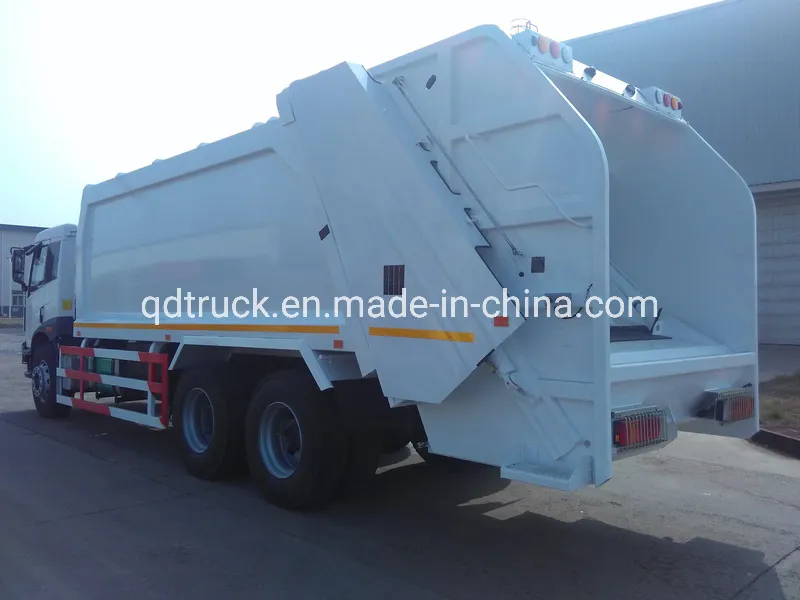

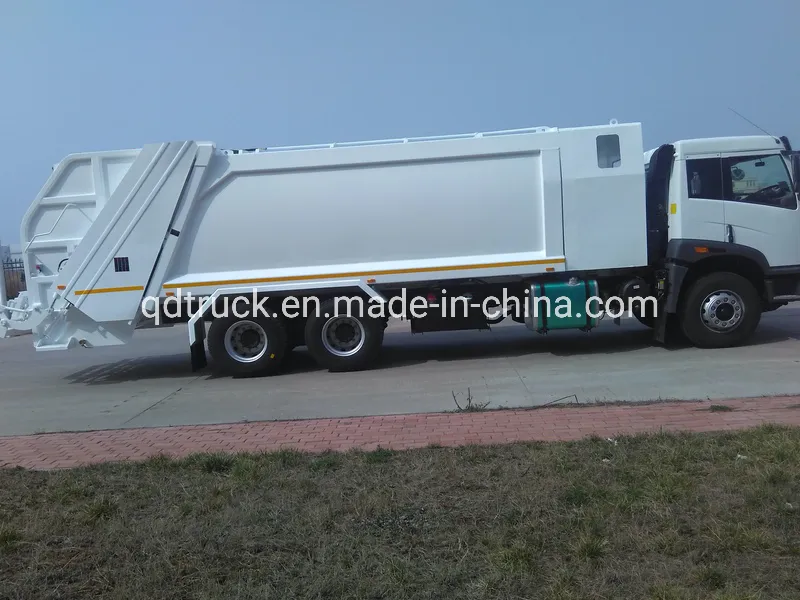

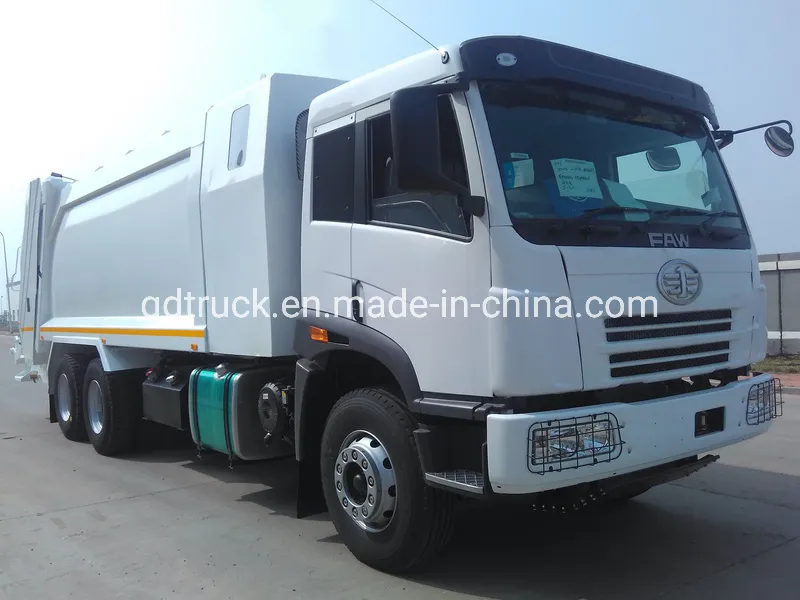

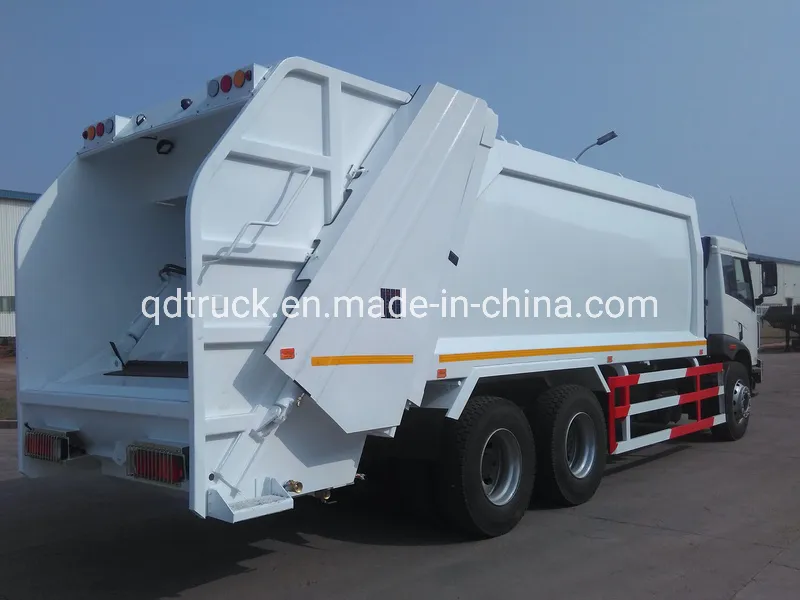

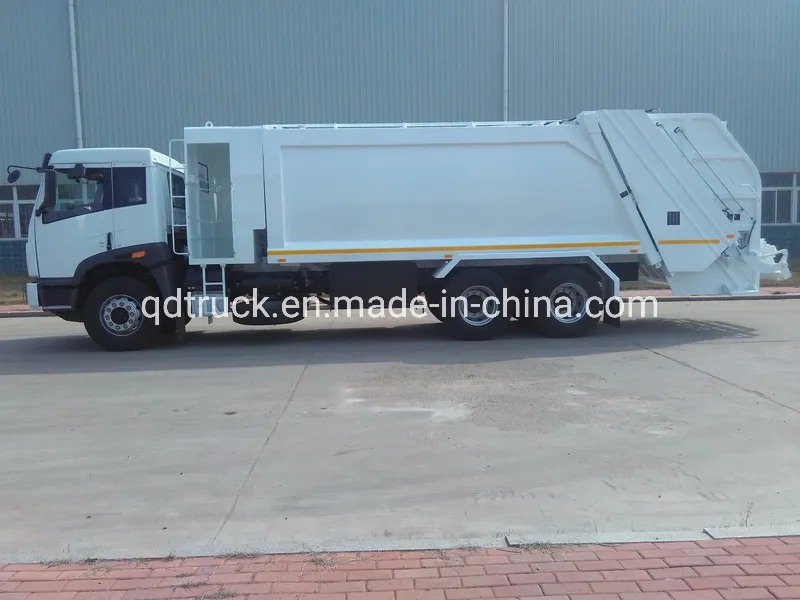

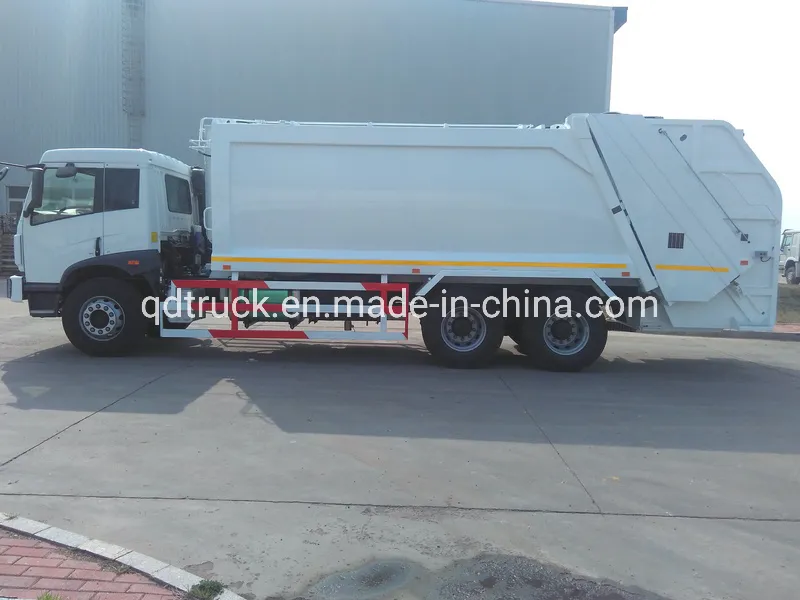

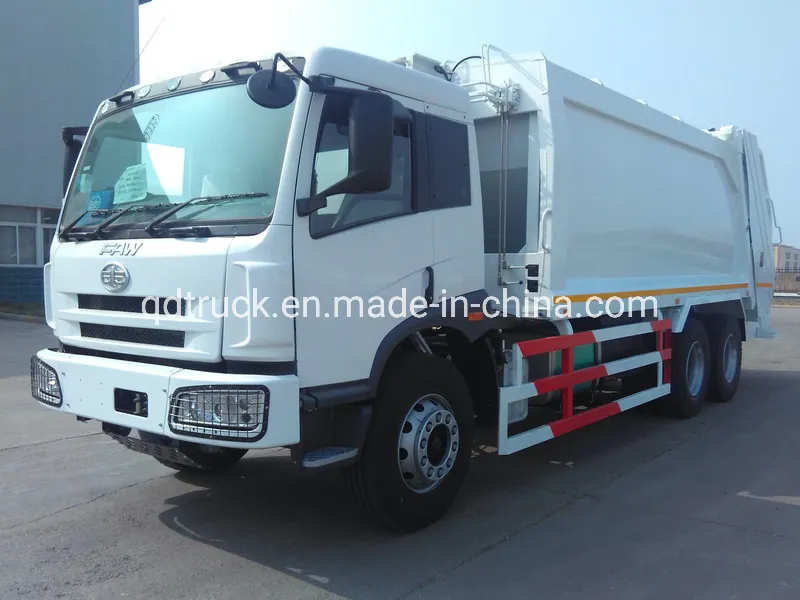

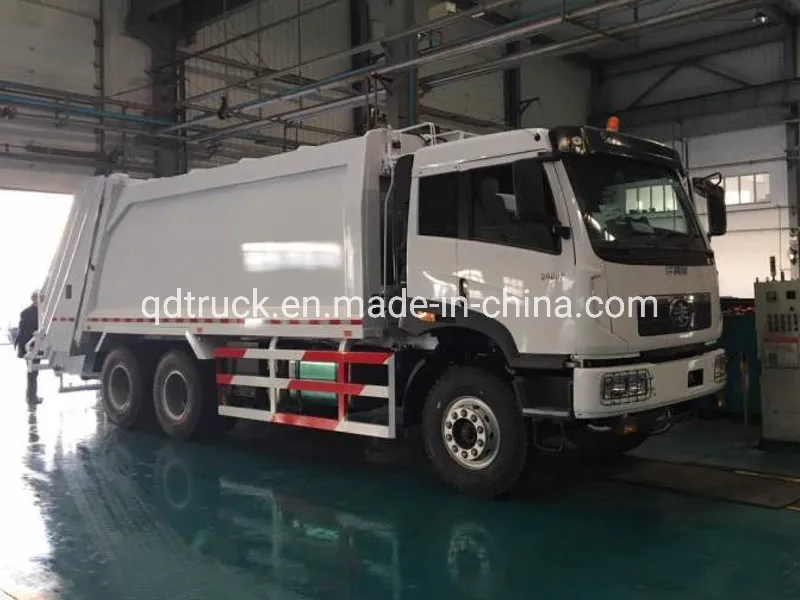

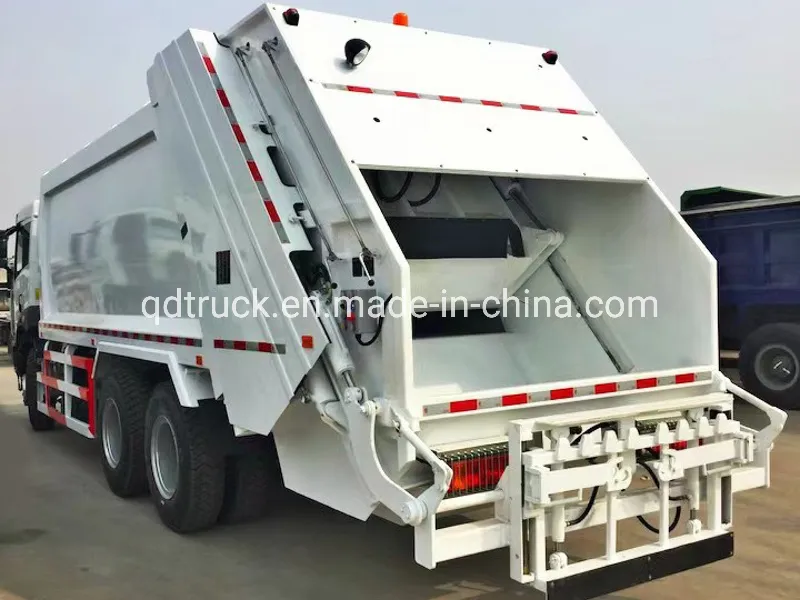

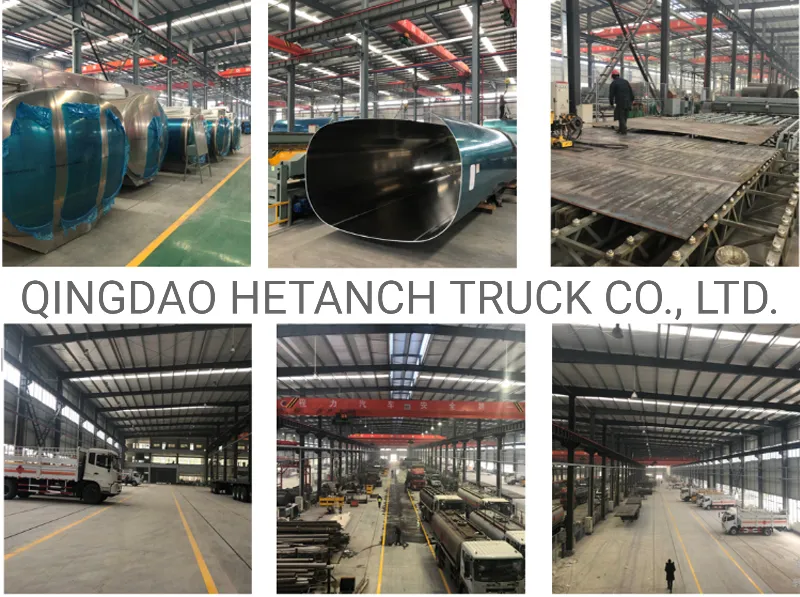

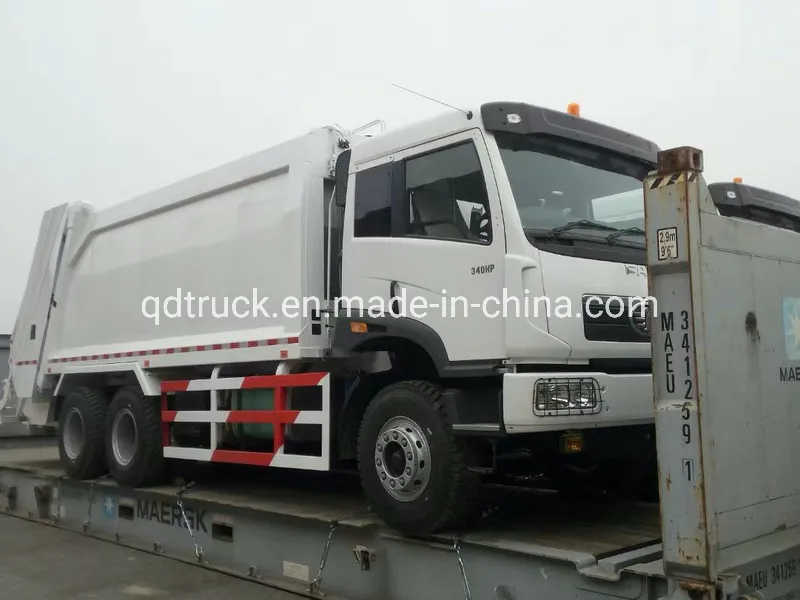

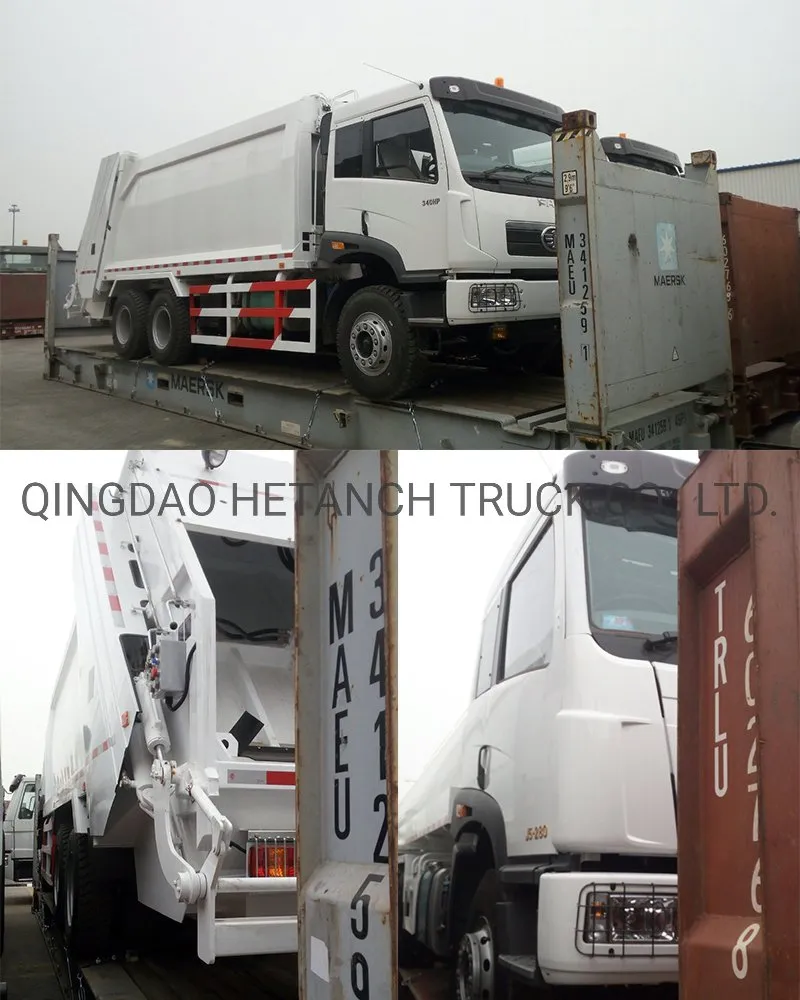

🍃 Factory & Shipping

❓ Frequently Asked Questions

1. What is the effective capacity of this garbage compactor truck? The body volume is approximately 18-20 cubic meters, suitable for large-scale waste collection and transport.

2. What engine power does the FAW chassis provide? It is equipped with a WP10.340E32 engine providing 340HP (273 KW) to ensure strong performance under full load.

3. How efficient is the waste loading cycle? The loading cycle is highly efficient, completed in 25 seconds or less, with an unloading time of under 40 seconds.

4. What types of trash cans are compatible with the manipulator? The manipulator supports both 300L round trashcans and 240L square trashcans.

5. Is the truck equipped with a sewage management system? Yes, it includes a sewage tank with a capacity of over 400 liters to prevent secondary pollution during transport.

6. What is the maximum compression density achieved? The truck achieves a garbage compression density of over 800kg/m³, significantly increasing transport efficiency.
