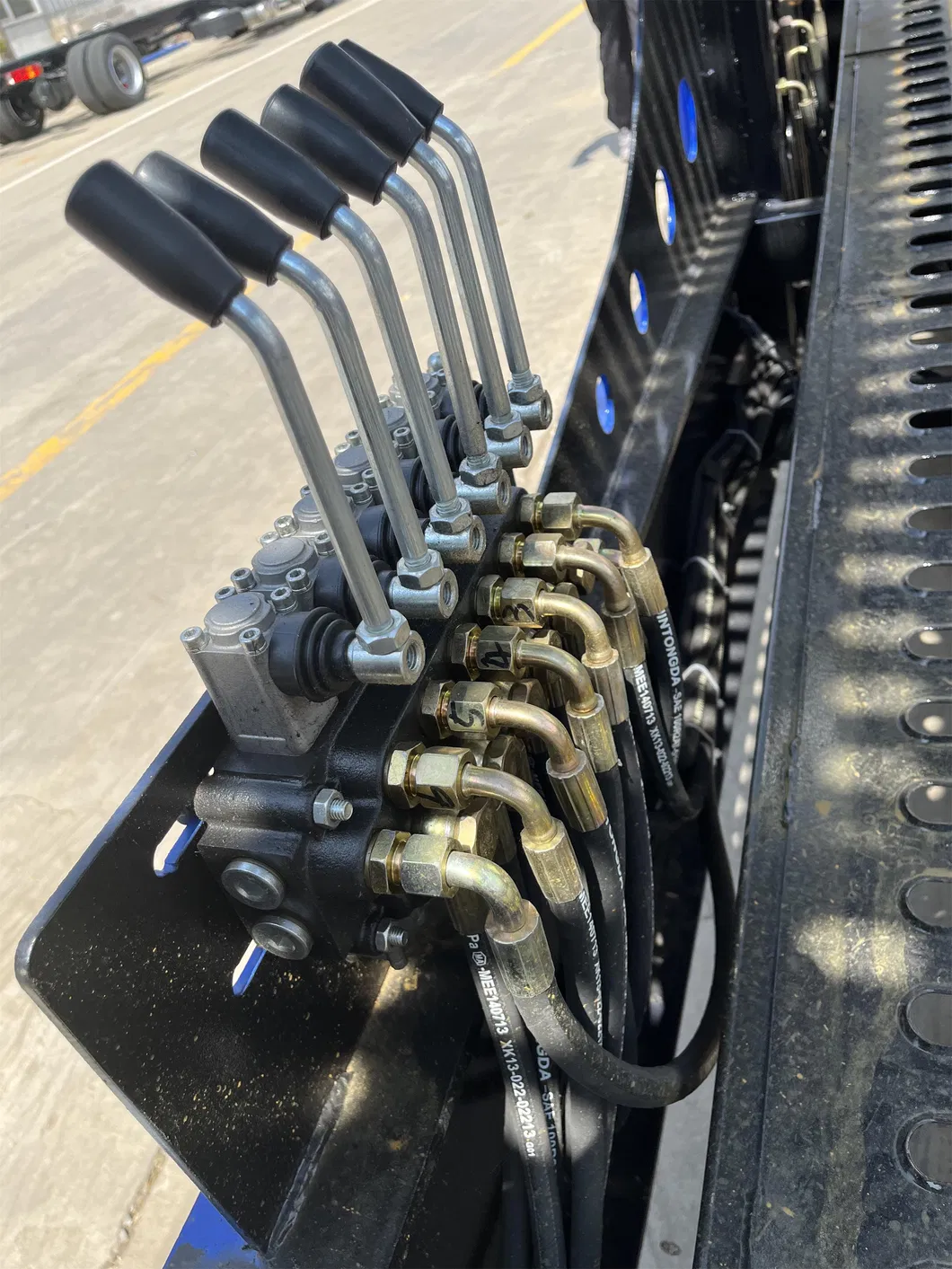

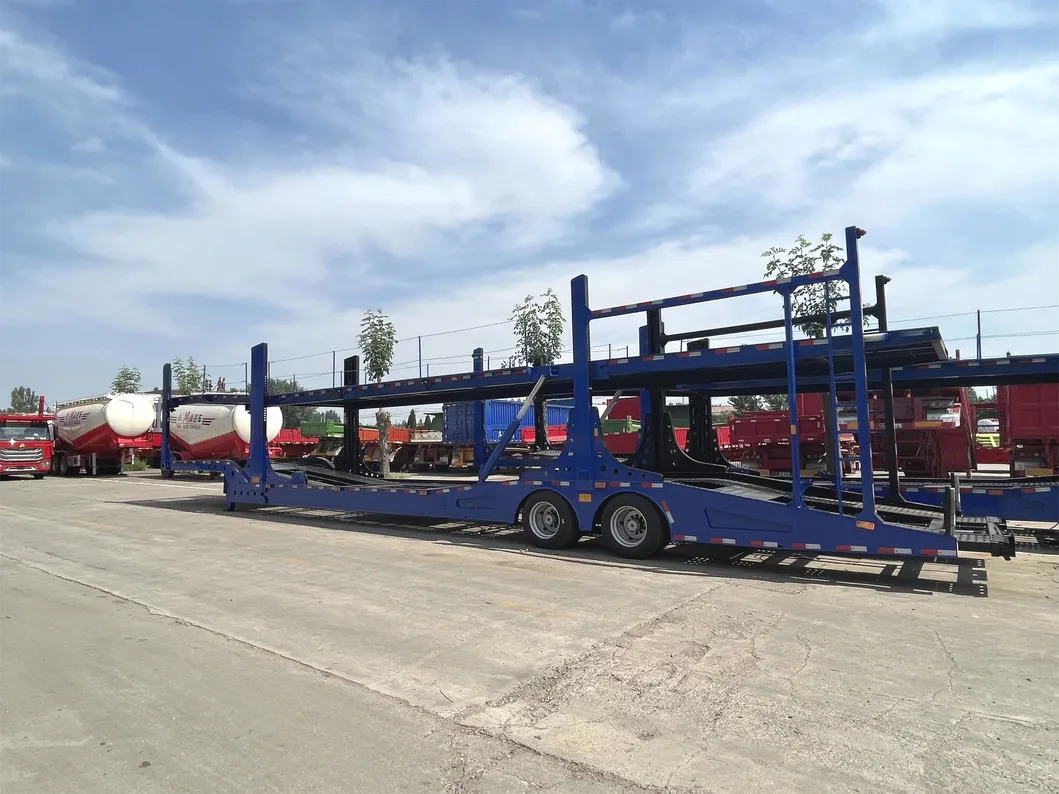

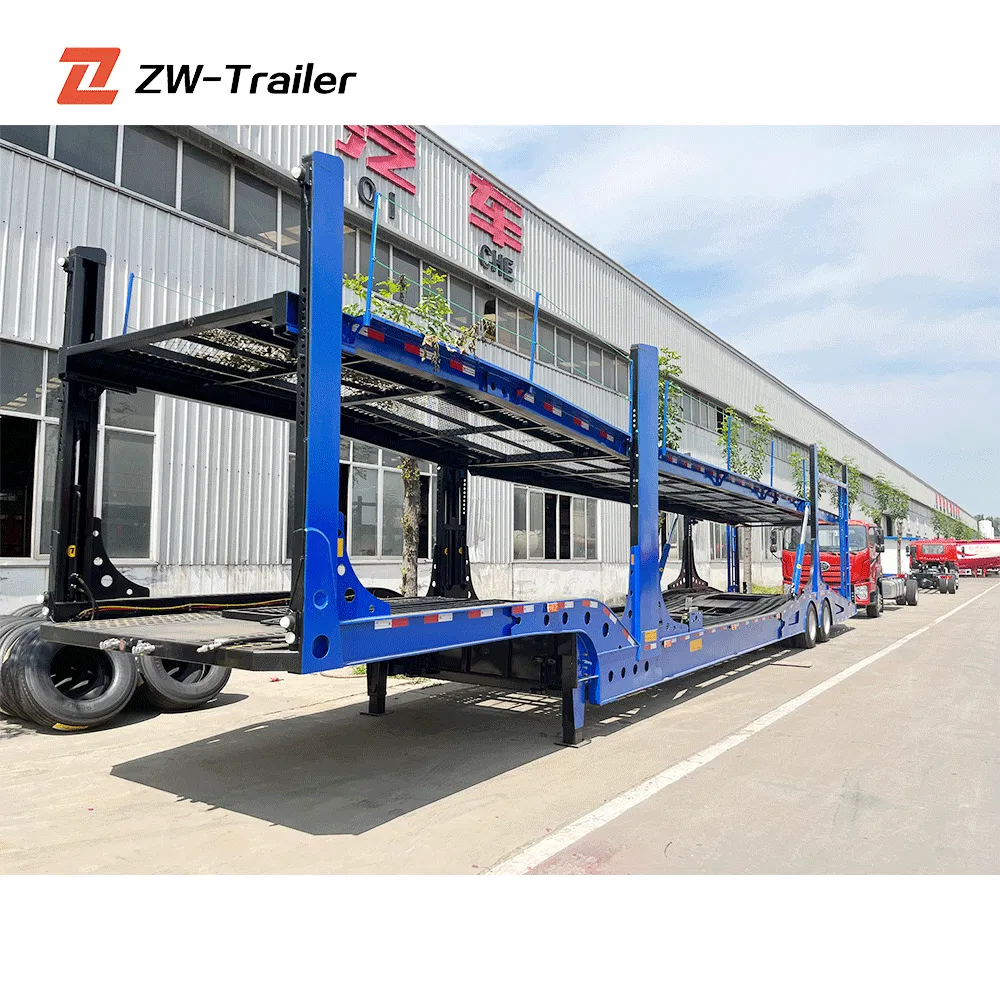

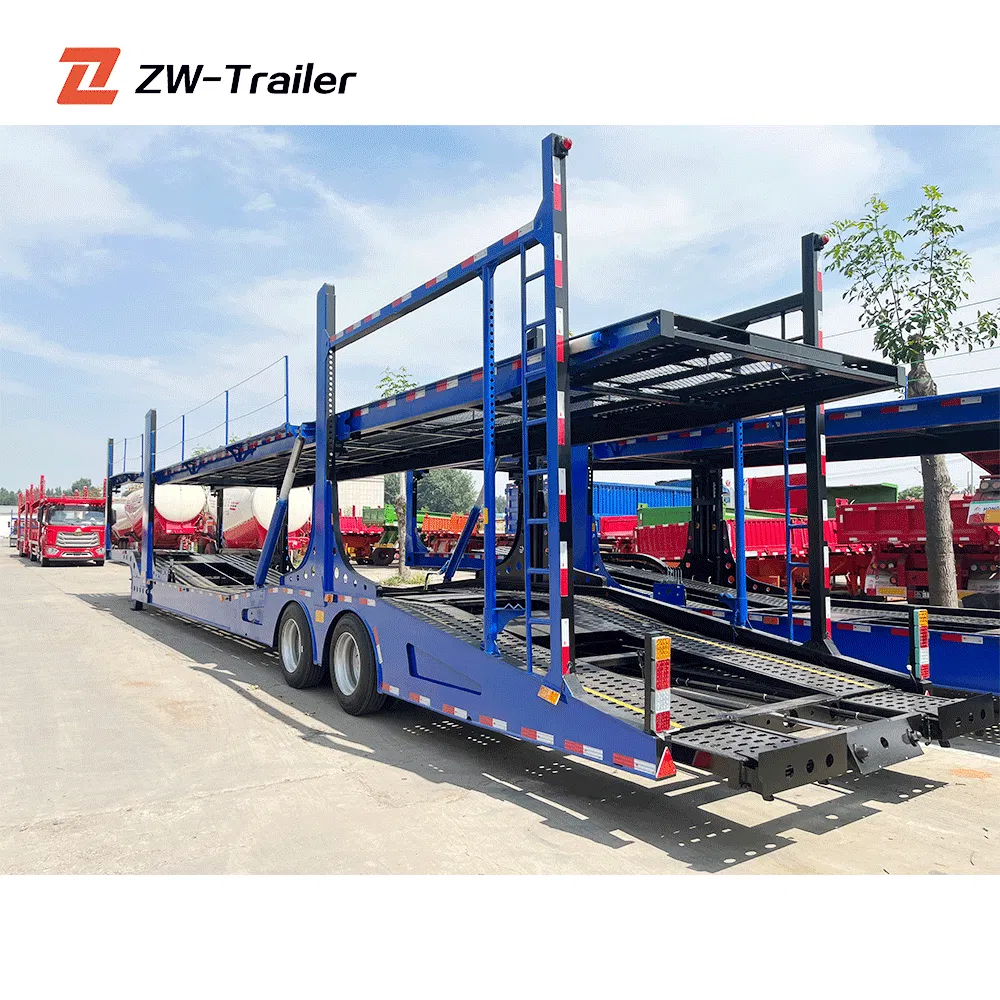

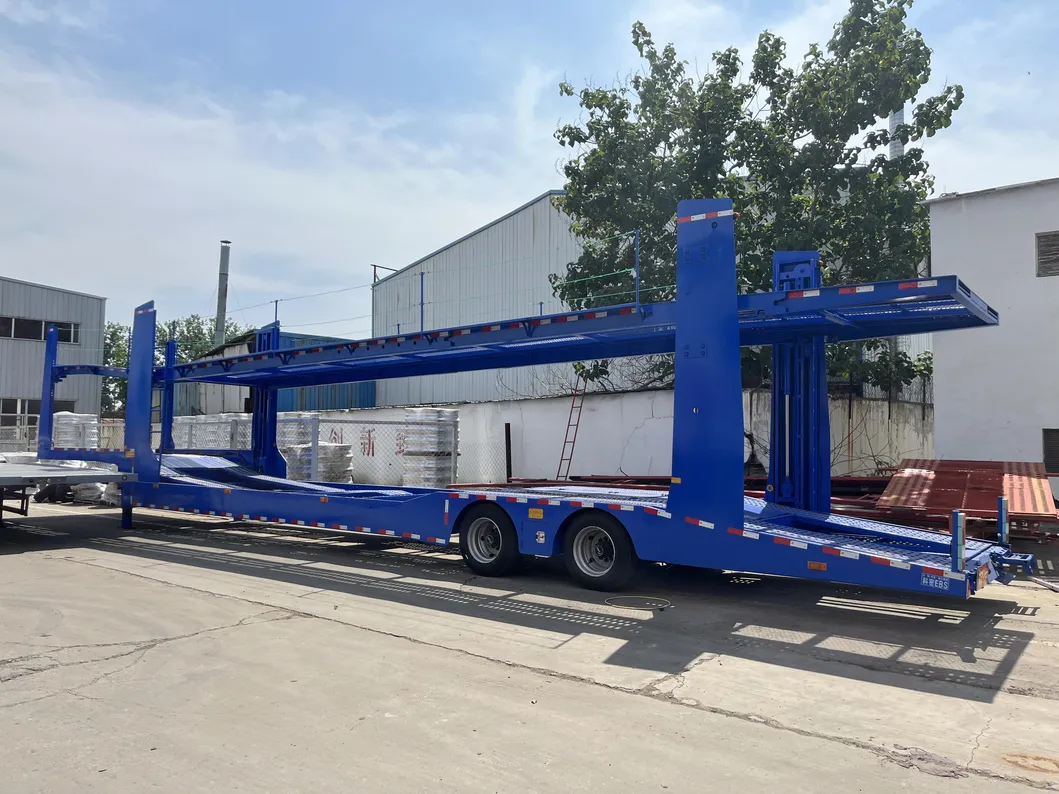

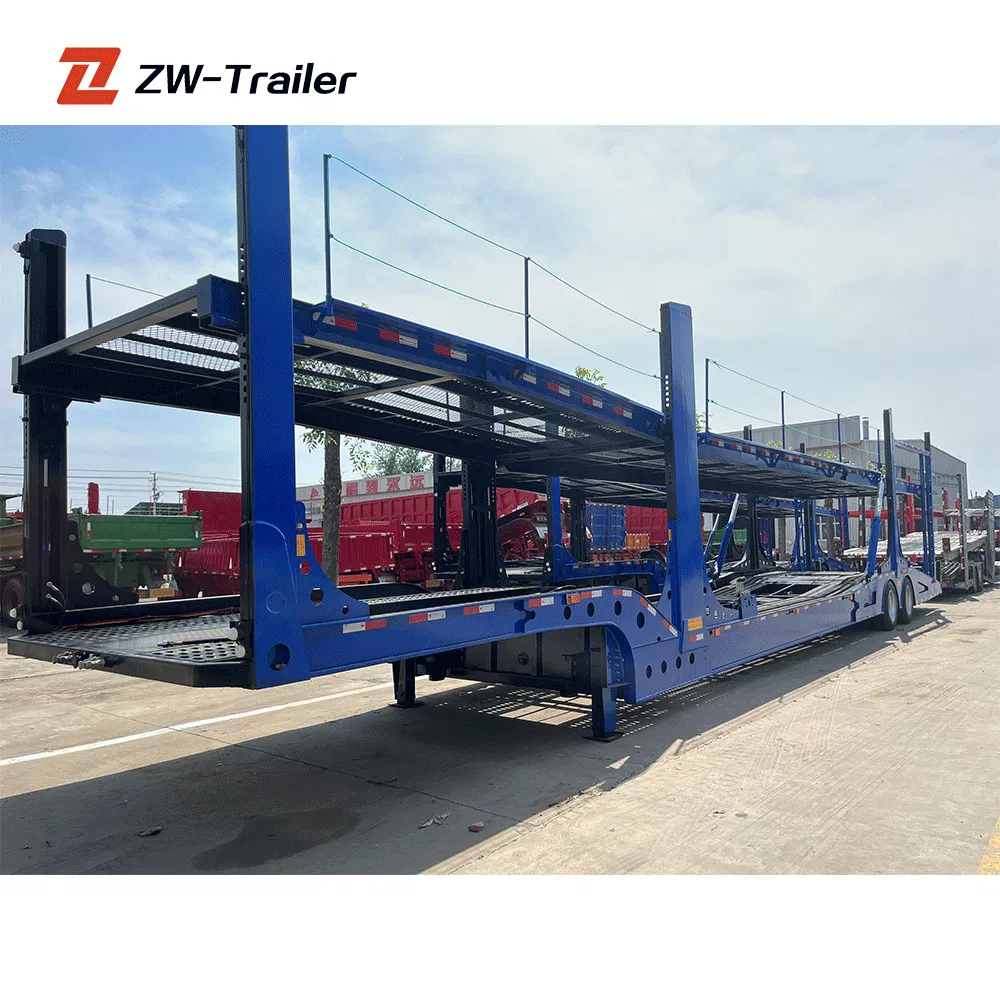

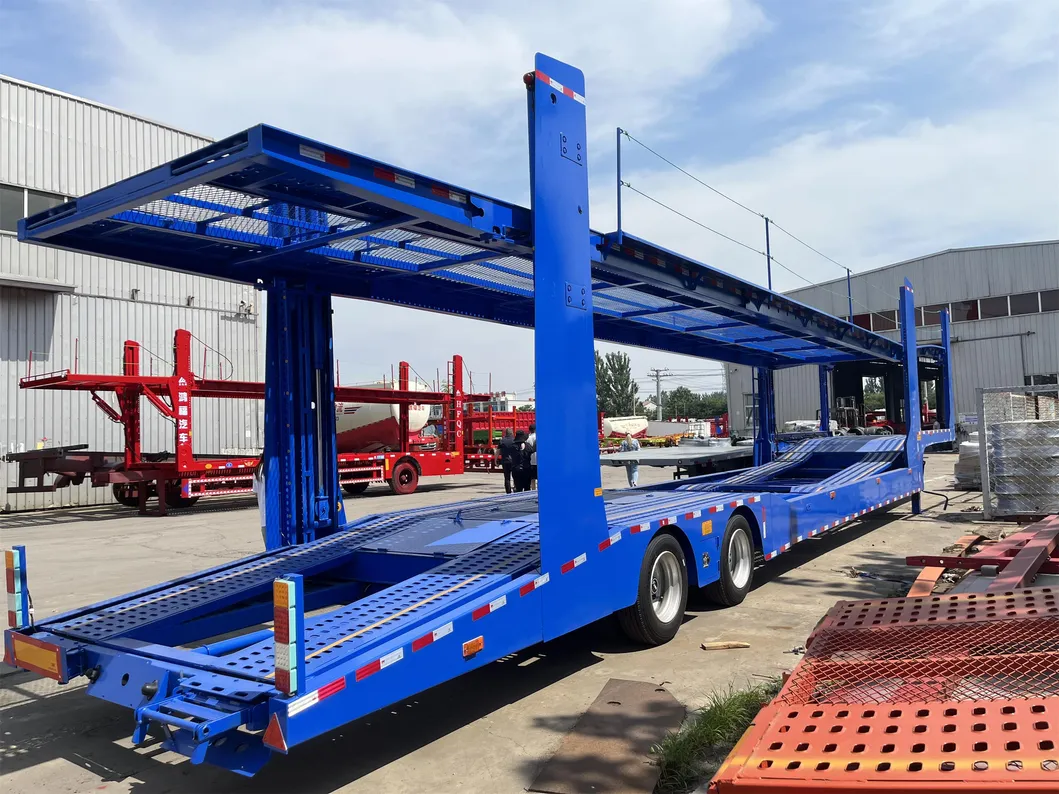

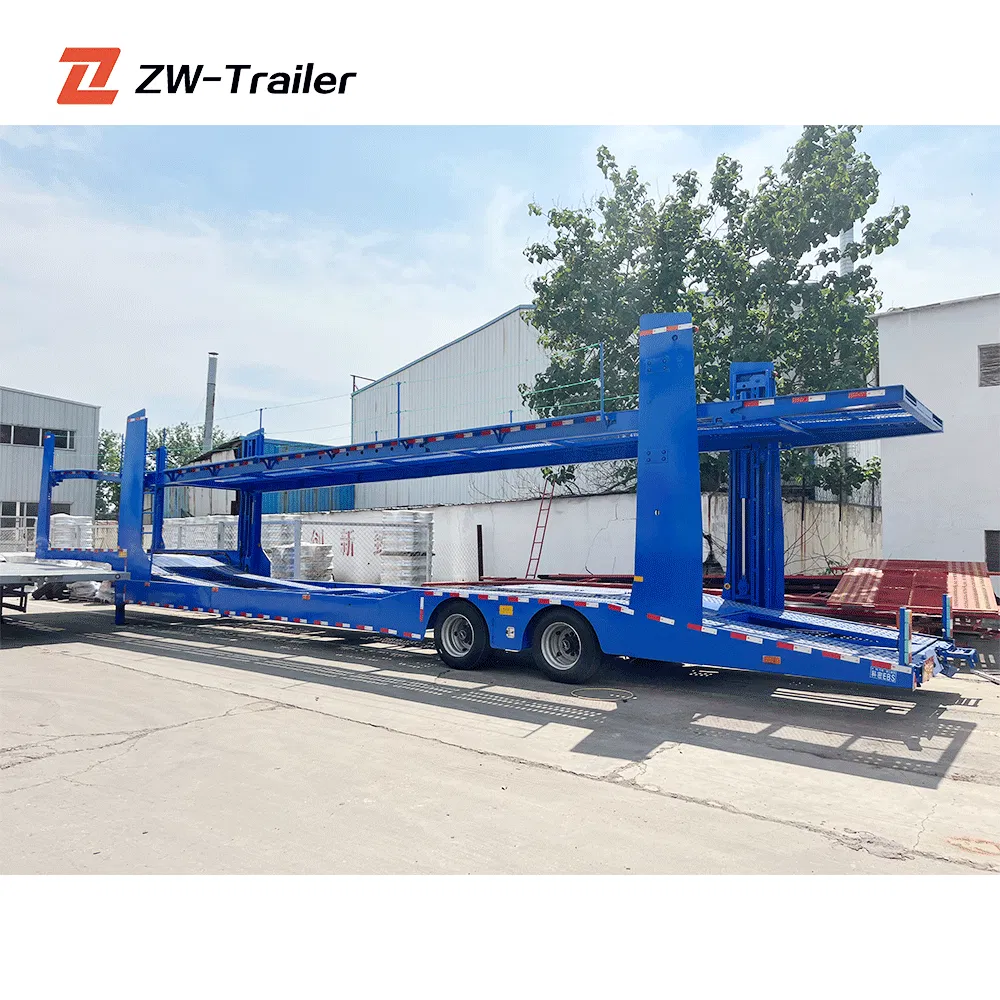

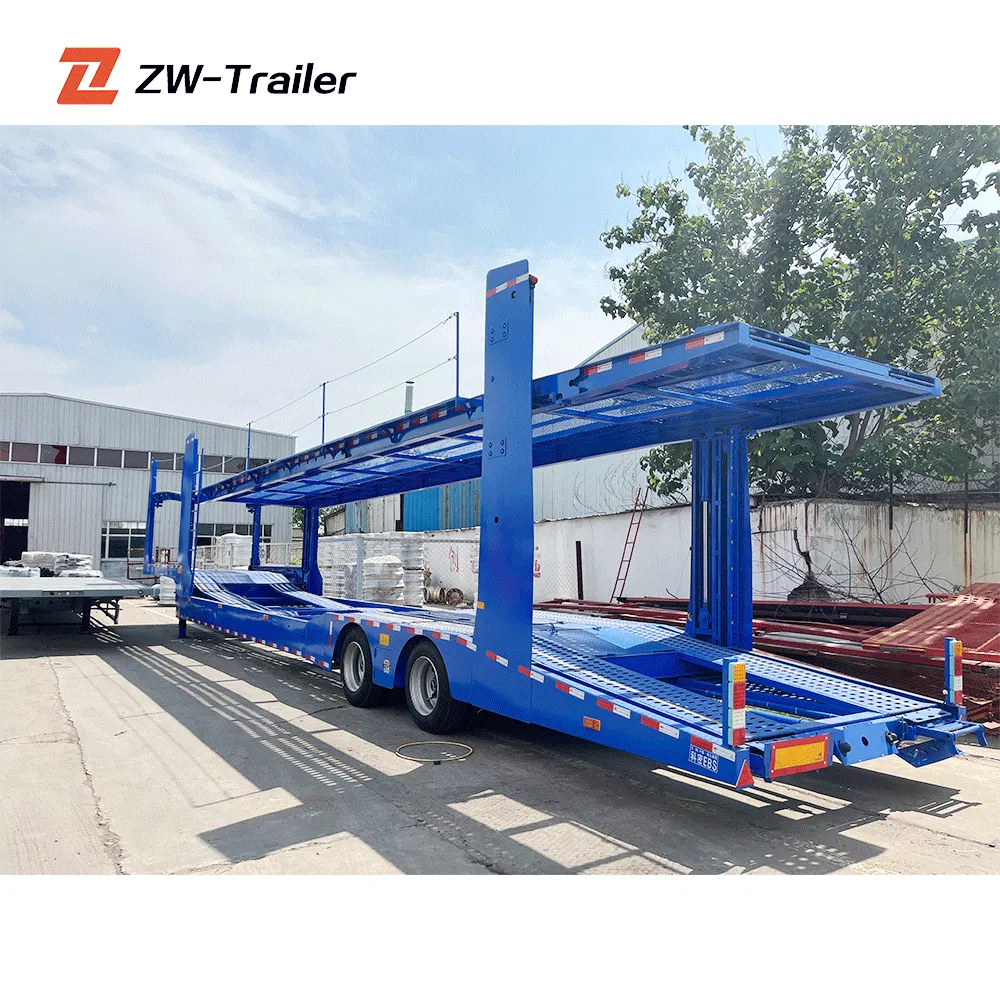

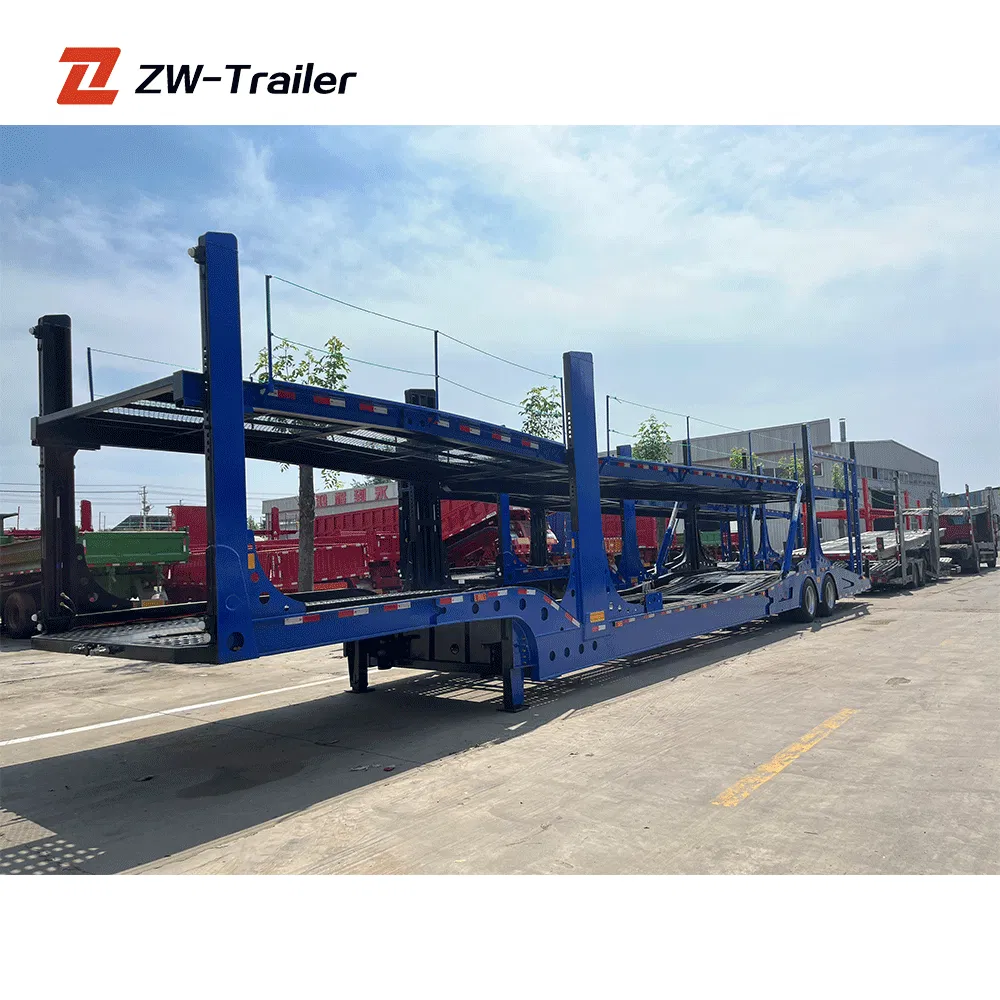

The model of car carrier semi trailer is a leading product developed for efficient vehicle logistics. It adopts a unique hydraulic lifting system. The key parts of the car transport trailer utilize high-quality brands recognized worldwide. It is safe and reliable, featuring strong loading capacity while maintaining a light weight. It can load 5-10 cars of different sizes and is specifically optimized for professional car transport operations.

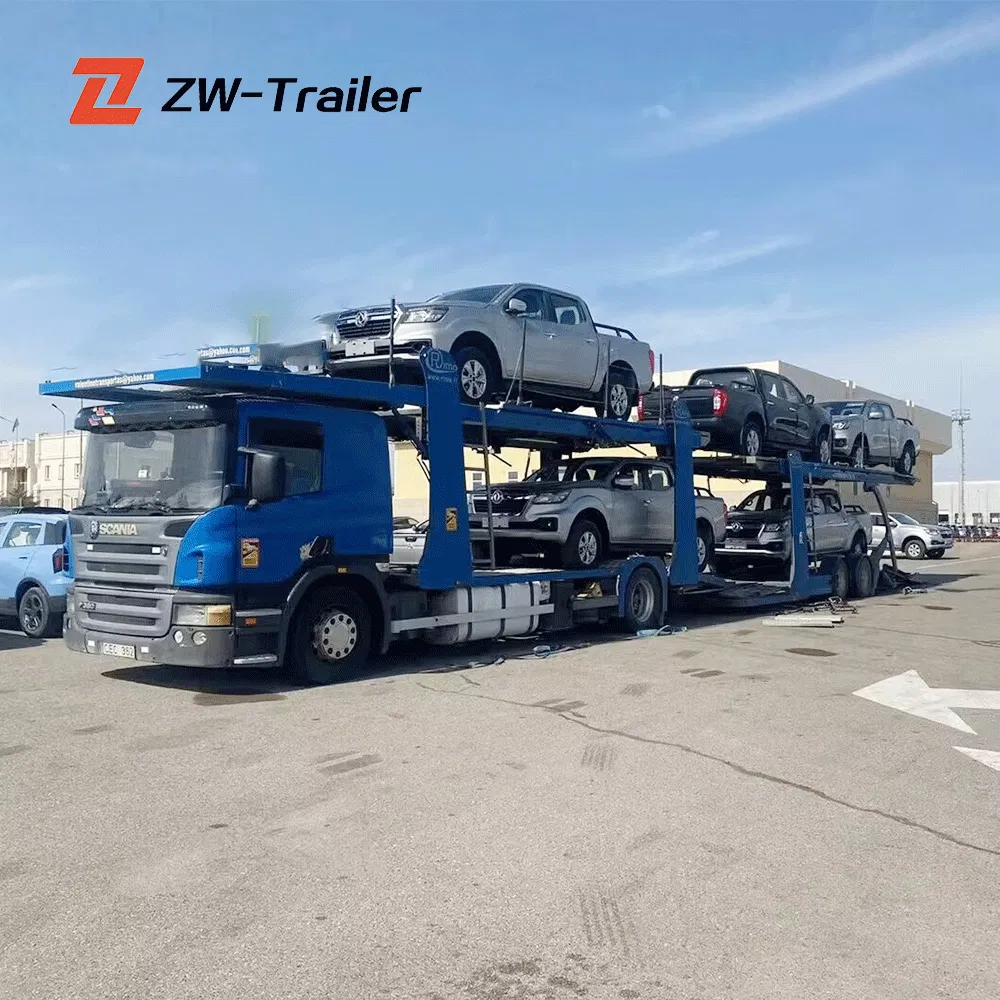

A car-carrying trailer, known variously as a car carrier trailer, car hauler, or auto transport trailer, is designed to efficiently transport passenger vehicles via truck. Modern car-carrying trailers can be open or enclosed. Most commercial trailers have built-in ramps for loading and off-loading cars, as well as power hydraulics to raise and lower ramps for stand-alone accessibility.
| Overall Dimension | 15000mm*260mm*3000mm |
|---|---|
| Pay Load | For 7-10 cars |
| Function | For car/vehicle transportation |
| Main Frame | 350mm height I beam, Top Flange 10mm |
| Floor | 3mm thickness |
| Axle | FUWA, BPW axle or optional upon choice |
| Traction Pin | JOST 3.5"(90mm) |
| Landing Gear | JOST 25T |

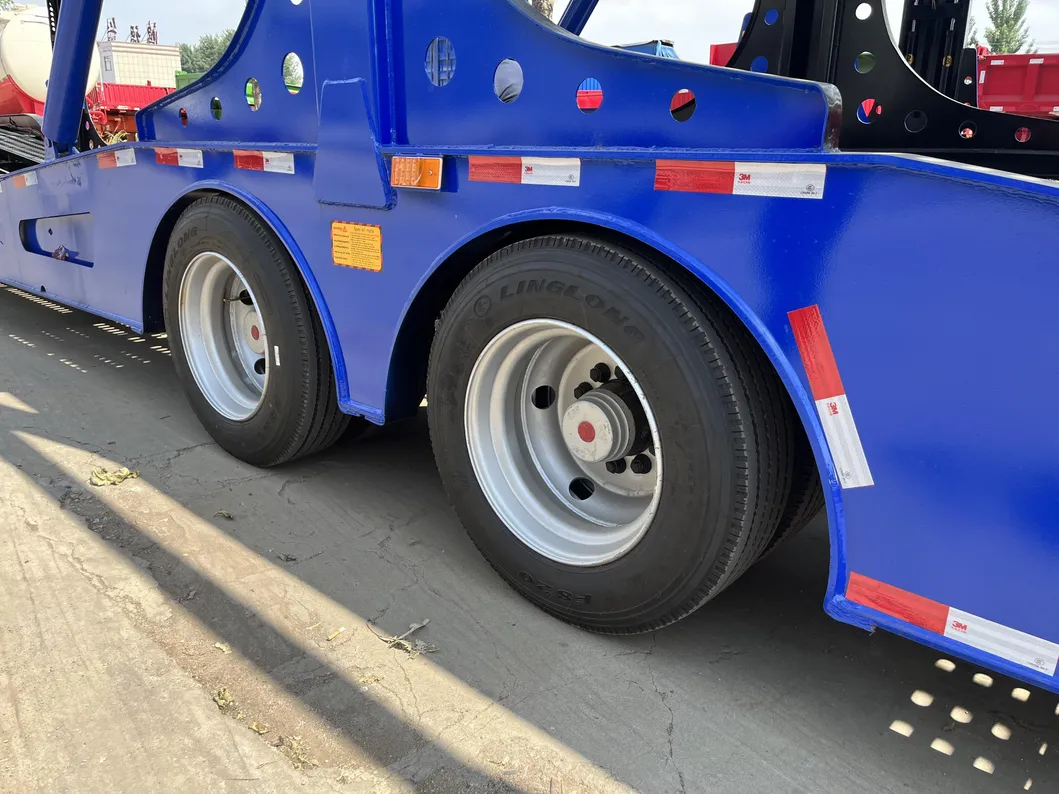

| Tire | 11.0R22.5 |
| Braking System | Dual line-air brake; four units of T30/30 spring brake chamber; four lifting hydro-cylinders. |
| Electrical System | 24V 7-pin ISO1185 standard socket; Standard Tail lamp with turn signal, brake light & reflector. |
| Painting | Sand blasting on rustproof protection; one coat of anticorrosive primer, two coats of finish urethane paint. |

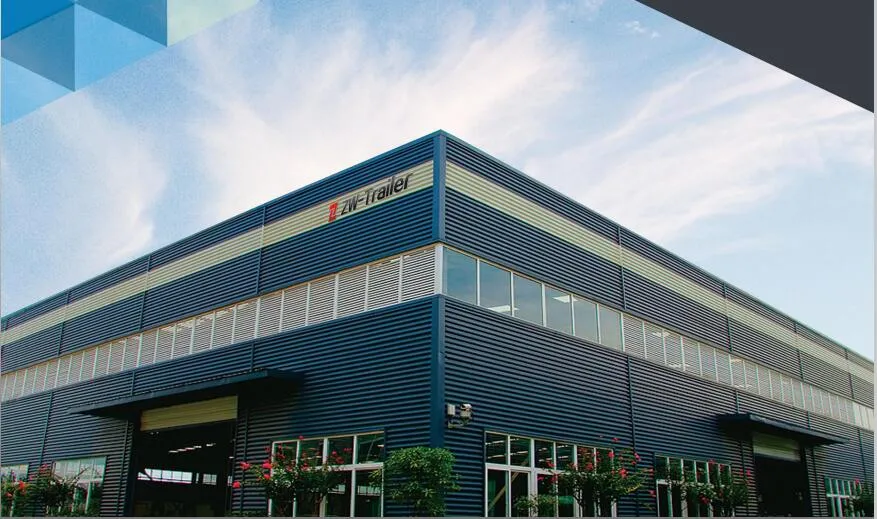

Specialized in manufacturing various trailers since 2000, including container trailers, construction equipment transporting trailers, and tractors. The facility utilizes advanced automatic equipment and maintains rigorous quality control. With recognized ISO, CCC, and CE certificates, the production plant employs 500 professionals and supports a substantial annual sales volume across South Asia, the Middle East, Africa, and South America.
