| Certification | ECE, ISO9001, CCC, ISO/TS16949, Ottc |
| Wheel Base | 8000-9000mm |
| Tread | 2240mm |
| Grade | Heavy Duty |
| Suspension Systems | Air Suspension/Leaf Spring Suspension |
| Shape | Low Flatbed Semi-Trailer |
| Axle Number | 3/4/5 |
| Tire Number | 12/16/20 |
| Self-dumping | Not Self-dumping |
| ABS | Anti-lock Braking System |
| Material | Steel |
| Condition | New |
| Production Capacity | 5000 piece/Year |

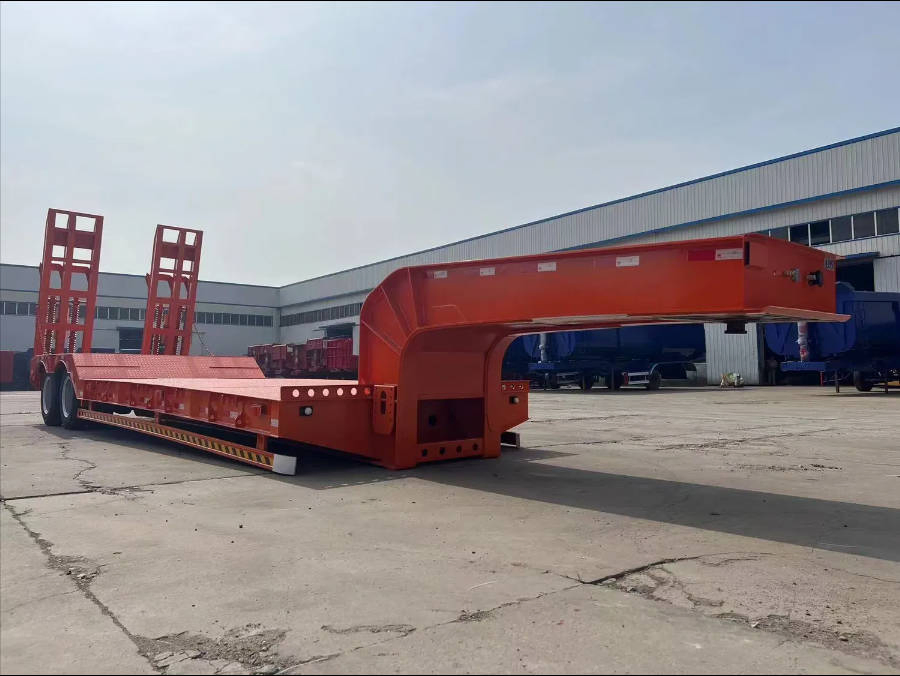

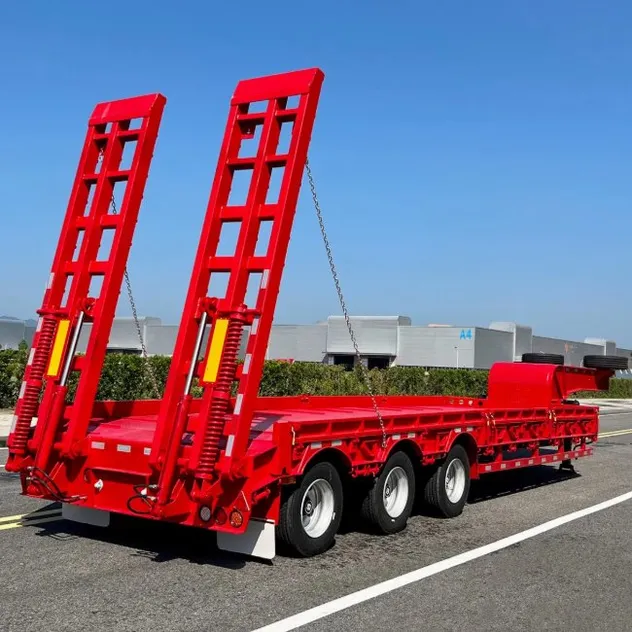

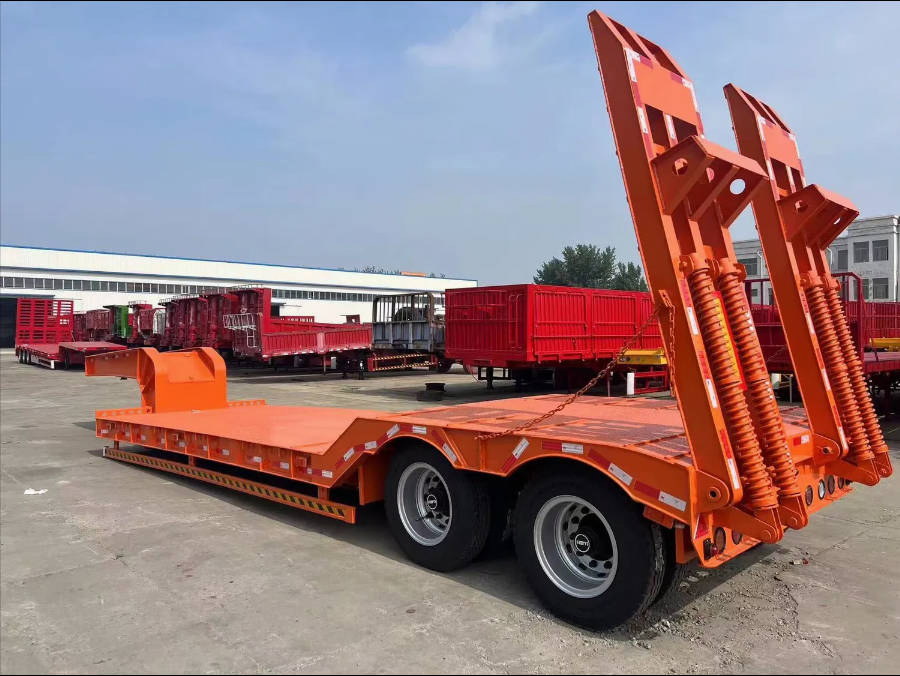

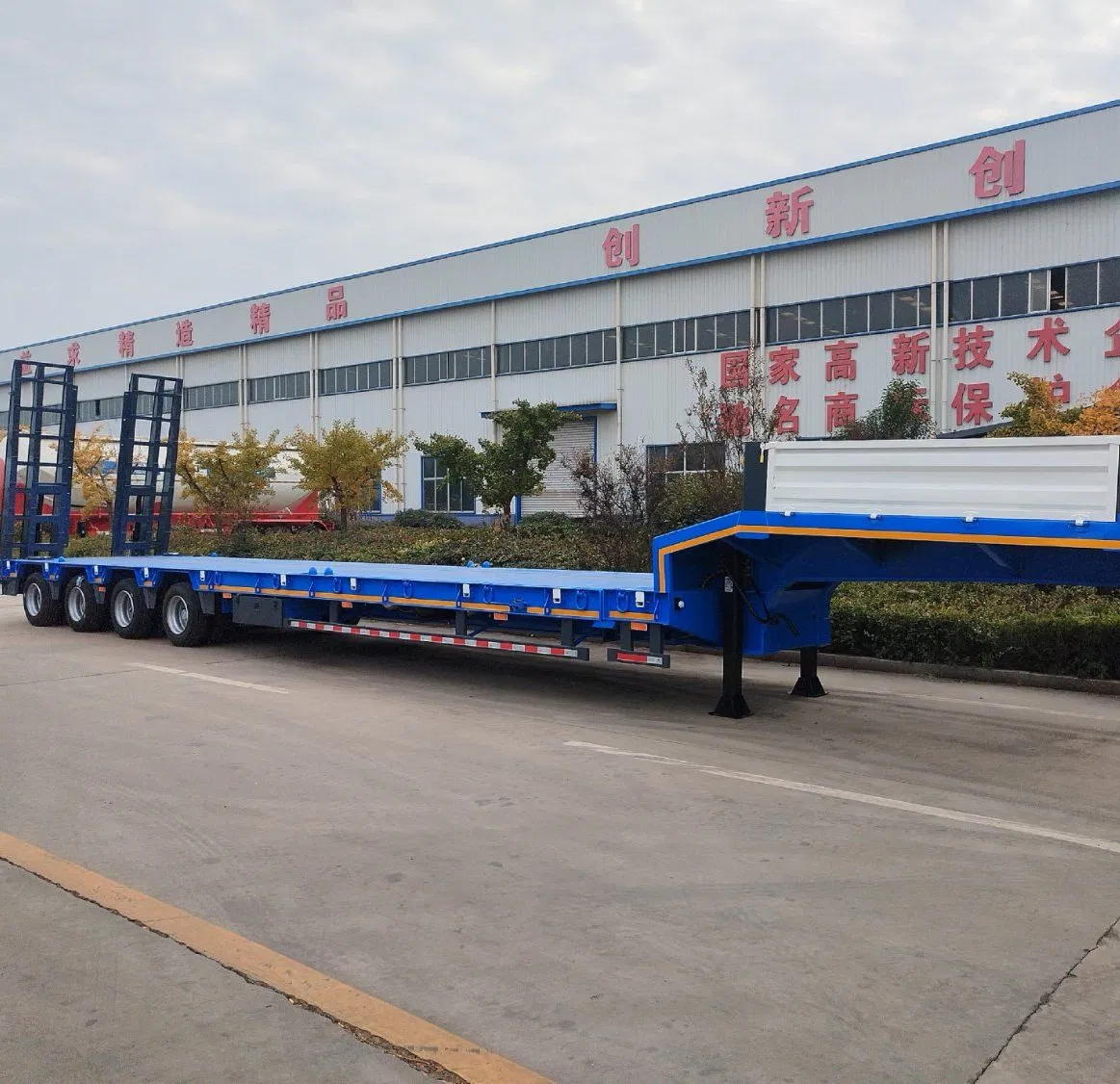

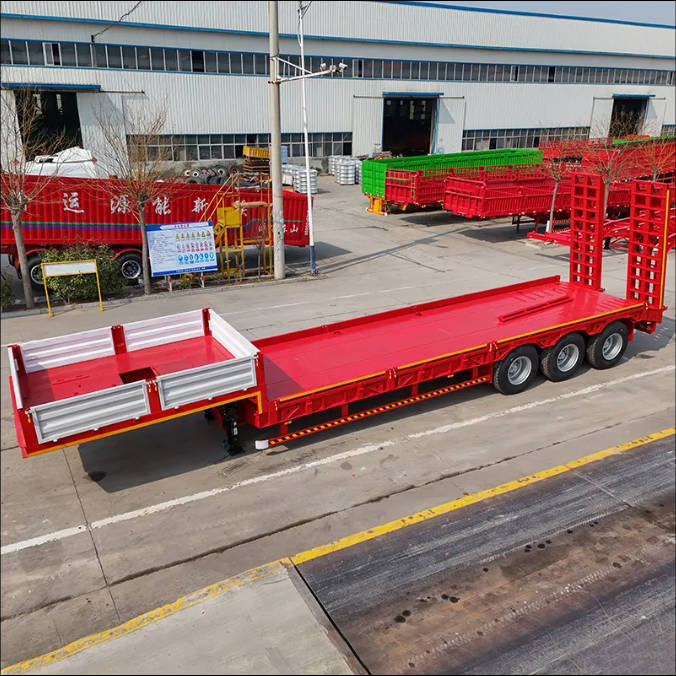

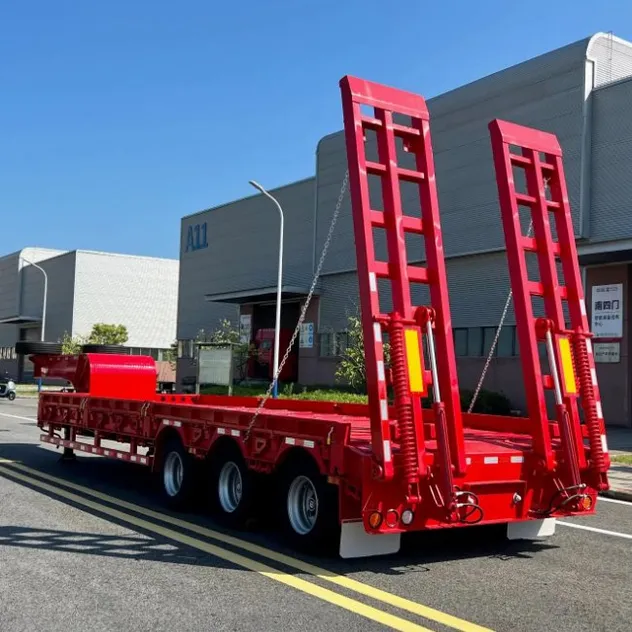

Low bed semi-trailers are engineered for transporting heavy vehicles such as tractors, buses, mining machinery, and construction equipment (excavators, bulldozers, loaders). The design focuses on a low center of gravity to ensure maximum stability and safety when hauling super-high loads through overhead obstacles.

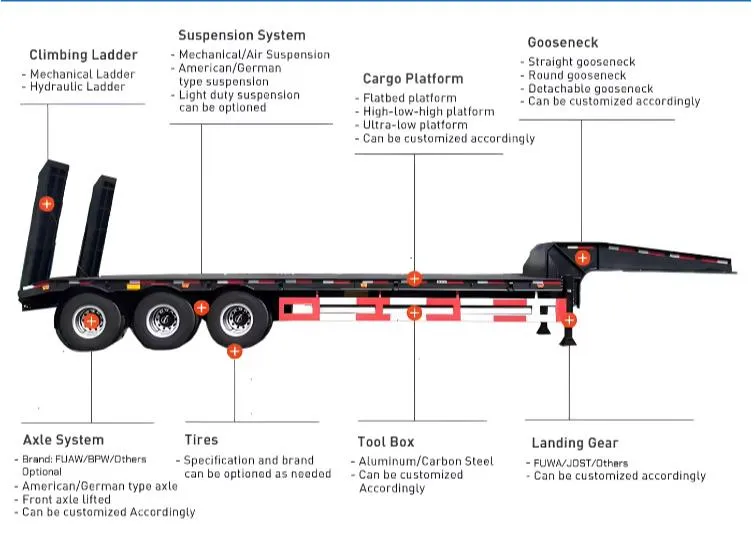

| Feature | 2 Axles | 3 Axles | 4 Axles |
|---|---|---|---|
| Size (mm) | 12500*3000*1100 | 13000*3000*1100 | 14000*3000*1100 |
| Payload | 40,000 KG | 60,000 KG | 80,000 KG |
| Main Beam | Height: 500mm; Q345B Steel; Upper 16mm, Middle 8mm, Down 18mm | ||
| Tire | 12R22.5 / 11.00R20 (8-12 pcs) | ||
| Suspension | Mechanical suspension (Air suspension optional) | ||

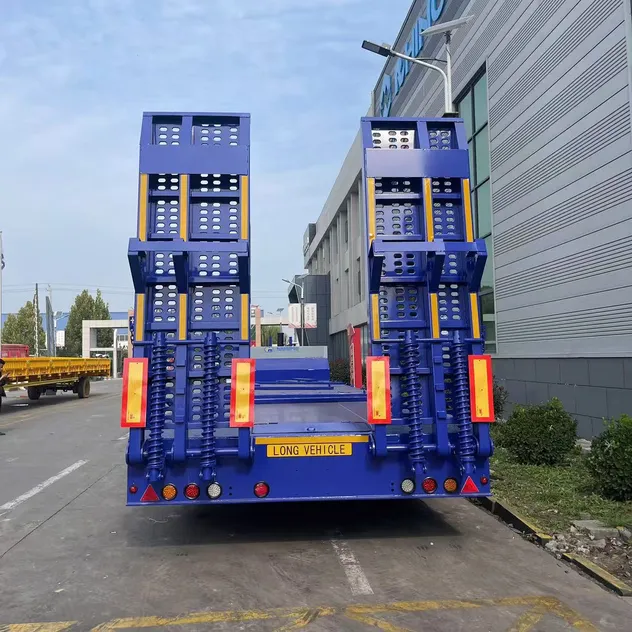

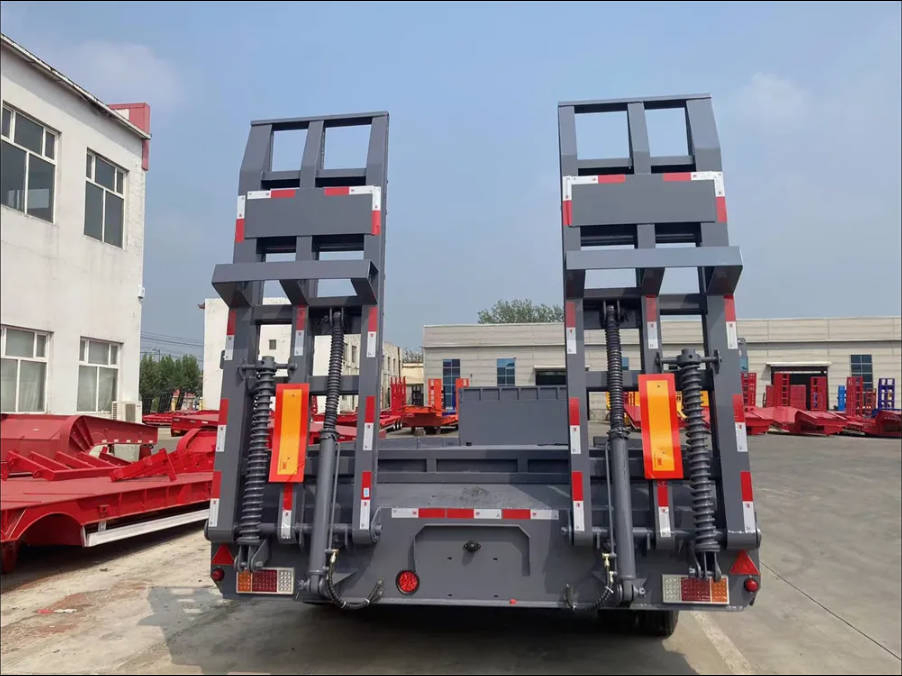

| Ladder | Hydraulic or Mechanical spring ladder | ||
