Custom-Made 4X4/6X6 Truck Chassis-Cabin with All Wheel Drive Type for Special Purpose Vehicle

Still deciding? Get samples of $ !
Order Sample

Product Description

📊 Basic Specifications

Model NO.
2100
Type
Flatbed Style
Transmission Type
Manual
Emission Standard
Euro 3
Load Capacity
1-10t
Power
Diesel
Drive Wheel
4×4
Horsepower
150-250hp
Engine Capacity
4-6L
Condition
New
Product Name
6X6 Truck
Drive Type
6X6
Engine
Cummins
Tire Size
12.00r20
Wheelbase
3475+1250mm

📦 Packaging & Delivery

Package Size
738.50cm * 225.00cm * 298.00cm
Gross Weight
5910.000kg

🚚 Product Description

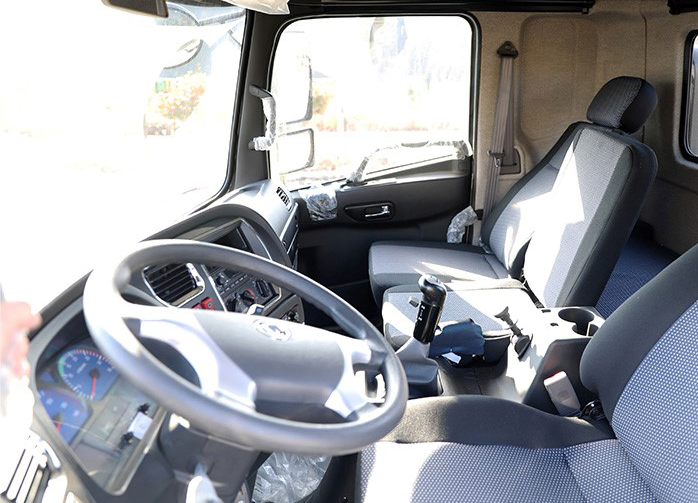

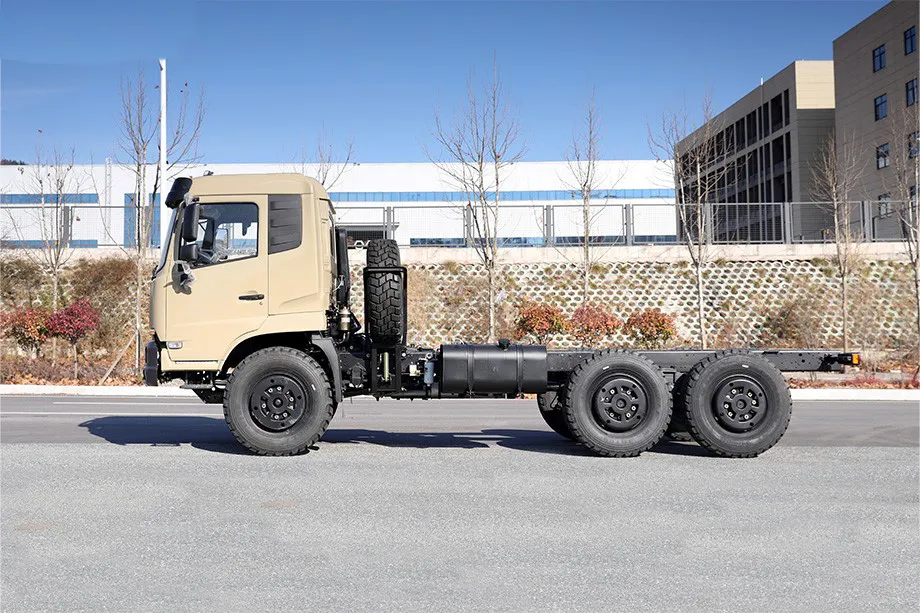

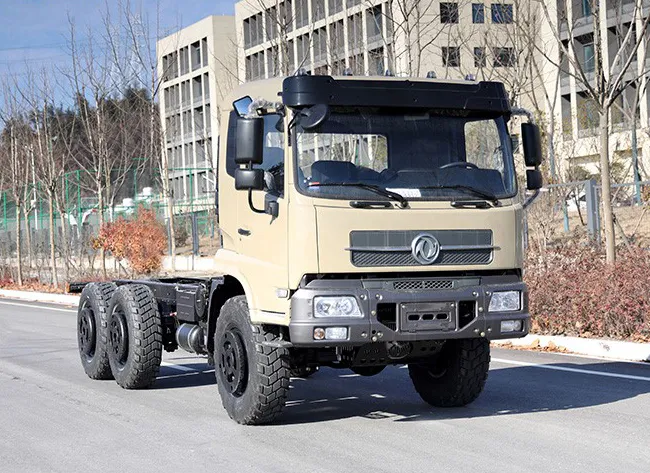

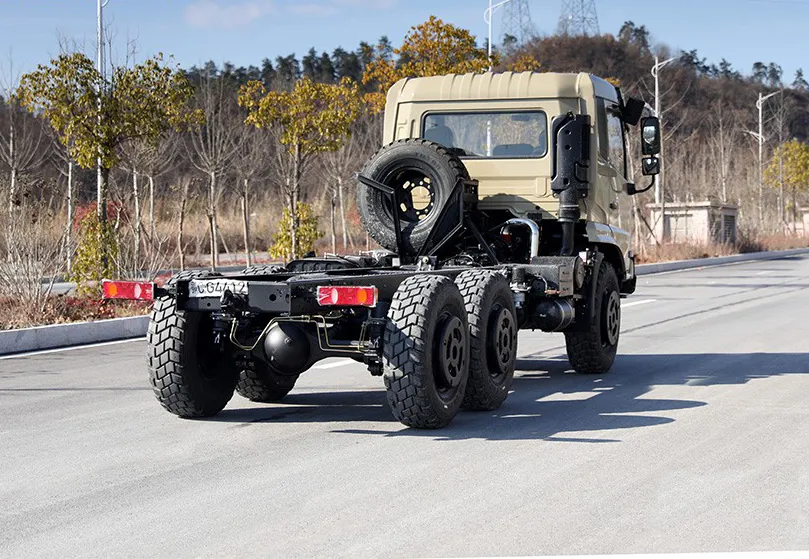

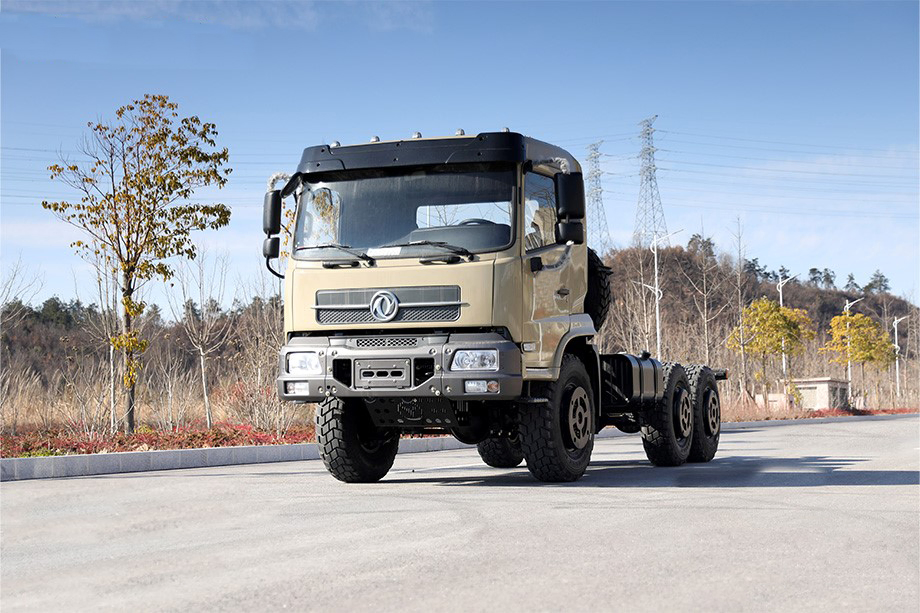

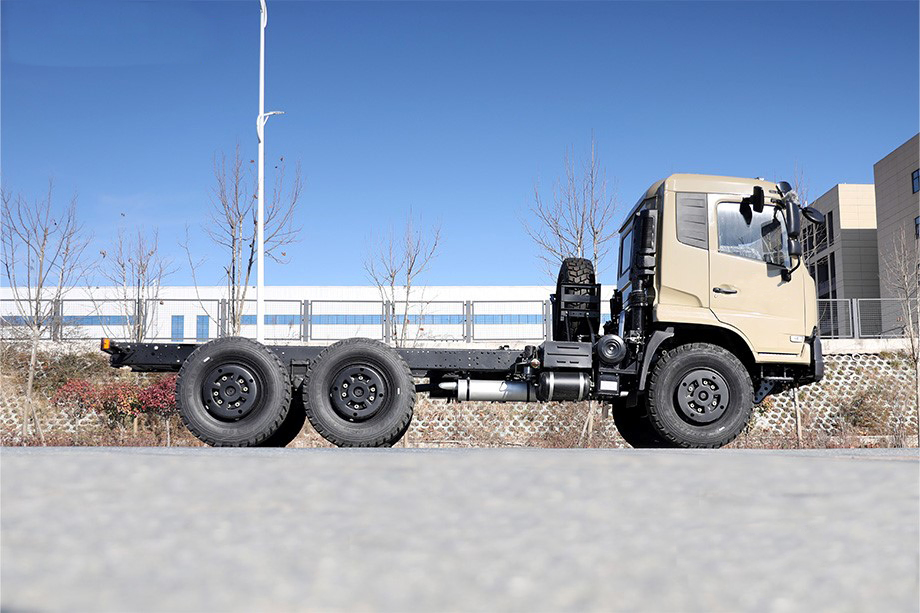

The desert off-road vehicle features a novel design, a comfortable cab with a wide field of vision, excellent sealing, and complete functional integration. With a perfectly matched engine and high-passability chassis, it offers exceptional reliability and flexibility in complex environments.
Equipped with large-diameter, wide-section tubeless tires, this vehicle moves unimpeded through deserts and floating soil areas. By utilizing low-pressure radial integrated pattern tires, it excels in roadless transportation, rugged terrains, swamps, and muddy areas.
A central inflation and deflation system (optional) allows the driver to adjust tire pressure directly from the cab. The multi-tube cyclone three-stage air intake system effectively protects the engine from fine dust in harsh environments. The cooling and electrical systems are engineered for extreme performance, covering temperatures from +55ºC to -45ºC.

⚙️ Technical Parameters

Overall Dimension7385x2500x2980 (mm)
Drive Type6x6
Steering WheelLHD/RHD
Gross Vehicle Weight10435 (kg)
Curb Weight5500 (kg)
Wheelbase3475+1250 (mm)
Transmission8 Speed, Manual
Tire Size12.5R20
Engine Power154(kw) / 210(hp)
Displacement5900 (ml)

🌟 Our Core Advantages

1 Wide Range of Vehicles

We provide a comprehensive selection of vehicles including mini-trucks, light trucks, heavy-duty trucks, microbuses, pickups, and large-sized buses from various manufacturers.

2 Customized Solutions

Vehicles can be customized according to specific market demands, including technical modifications and equipment upgrades to meet end-user requirements.

❓ Frequently Asked Questions

1. Are you a manufacturer of these vehicles?
Yes, we are a notable factory located in a major automotive industrial hub in China.
2. What types of payment do you accept?
Generally, we accept T/T (Telegraphic Transfer), L/C (Letter of Credit), and Western Union.
3. What is the standard delivery time?
Preparation typically takes about 30 working days or less, depending on the specific model requirements.
4. Can the vehicles be modified for extreme weather?
Yes, our cooling and electrical systems are designed to operate normally in extreme temperatures ranging from +55ºC to -45ºC.
5. What is the Minimum Order Quantity (MOQ)?
The Minimum Order Quantity is 1 unit.
6. Do you offer customization for specific terrains?
Yes, we can equip vehicles with specialized tires, winches, and inflation systems for desert, swamp, or off-road exploration needs.
