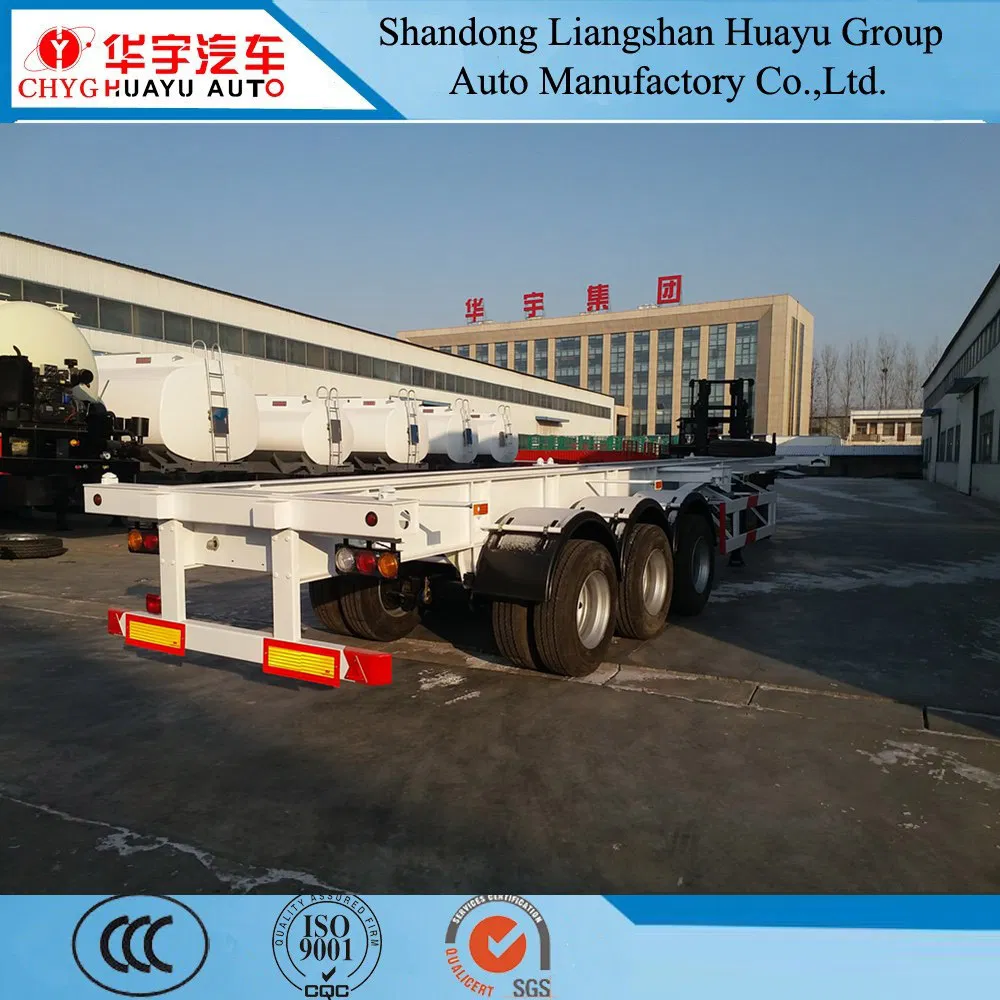

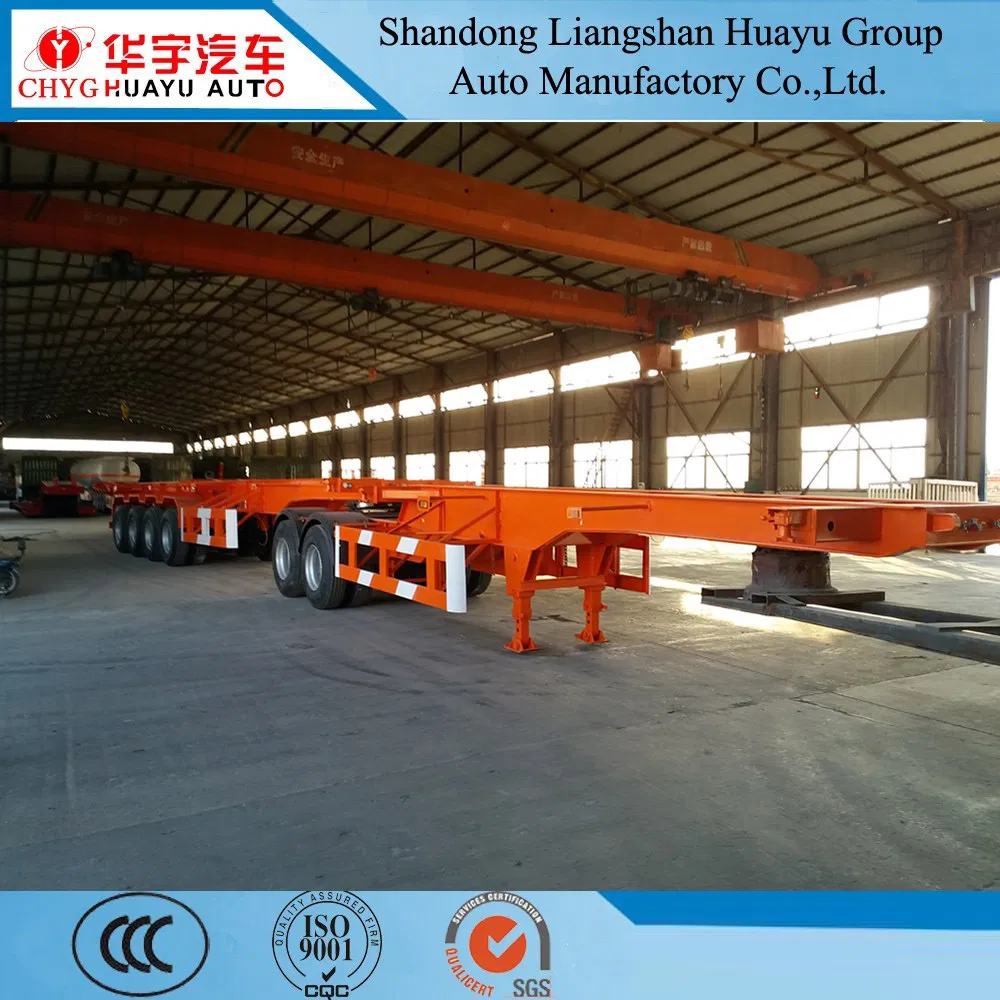

2axle/3axle/4axle 10FT/20FT/40FT/45FT Container Transport Skeleton/Skeletal Chassis Semi Trailer

1 / 5

2axle/3axle/4axle 10FT/20FT/40FT/45FT Container Transport Skeleton/Skeletal Chassis Semi Trailer

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Certification

ISO9001, CCC

Wheel Base

1310mm

Tread

1820mm

Grade

Heavy Duty

Suspension

Machinery

Shape

Skeleton Container Chassis

Axle Number

3 Axles

Tire Number

12 PCS

Material

Steel

Condition

New

Kingpin

Jost 2" or 3.5"

Axle Brand

13t/16t Fuwa/BPW

Support Legs

Jost Brand C200t

Main Dimension

12500*2500*1590mm

HS Code

87164000

Origin

China

Product Description

Container Skeleton semi trailer is designed for efficiently loading containers, bag cement, rebar, and other heavy cargo.

Since 2000, our container flatbed semi trailers have been deployed globally. We design customized solutions to meet different national road safety regulations, road conditions, and specific loading capacity requirements.

We offer various popular configurations for 20FT and 40FT container transport as detailed in the technical specifications below.

Gross Weight	About 6.8tons ~ 4.5tons
Outer Dimension (mm)	12450 × 2490 × 1557 (40FT) / 7160 × 2490 × 1557 (20FT)
Loading Capacity	≤ 45 T (40FT) / ≤ 30T (20FT)
Axles	13 T / PER, FUWA, BPW, or Huajing Brand
Tire	12.00R22.5 or 315/80R22.5 China Brand
Suspension	Mechanical (Germany/America Type) or Air Suspension
King Pin	JOST brand 2.0 or 3.5 inch (Bolts or Welding type)
Main Beam	Height 500mm, Q345B Steel (Upper 14mm, Middle 8mm, Down 16mm)
Brake System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber
Twist Locks	4, 8, or 12 pieces (Lifting or Twist Screw Type)
Painting	Sand blasting, 1 coat anticorrosive prime, 2 coats final paint

Product Gallery

Frequently Asked Questions

What types of containers can this skeleton chassis carry?

The chassis is designed to transport 20FT and 40FT standard containers. Options for 45FT containers are also available through customized design.

What brands of axles and landing gear do you use?

We primarily use world-renowned brands such as JOST for kingpins and landing legs, and FUWA or BPW for axles to ensure durability and ease of maintenance.

Can the loading capacity be customized?

Yes, we can adjust the main beam thickness and axle configuration to meet loading requirements up to 45 tons for 40FT models and 30 tons for 20FT models.

How is the trailer protected against rust?

The entire chassis undergoes professional sandblasting to remove rust, followed by one coat of anticorrosive primer and two coats of high-quality final paint.

What are the shipping options available?

Trailers can be shipped via Bulk Cargo carriers, RORO (Roll-on/Roll-off) vessels, or packed into 45FT high-cube containers depending on the destination and cost efficiency.

Is the ABS braking system included?

The ABS Anti-lock Braking System is optional and can be installed based on the specific road regulations of the target country.
