| Model NO. | Oreno skeleton semi trailer |

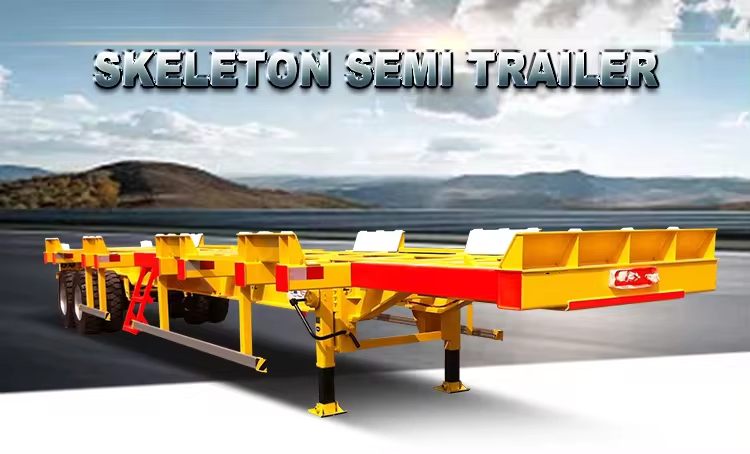

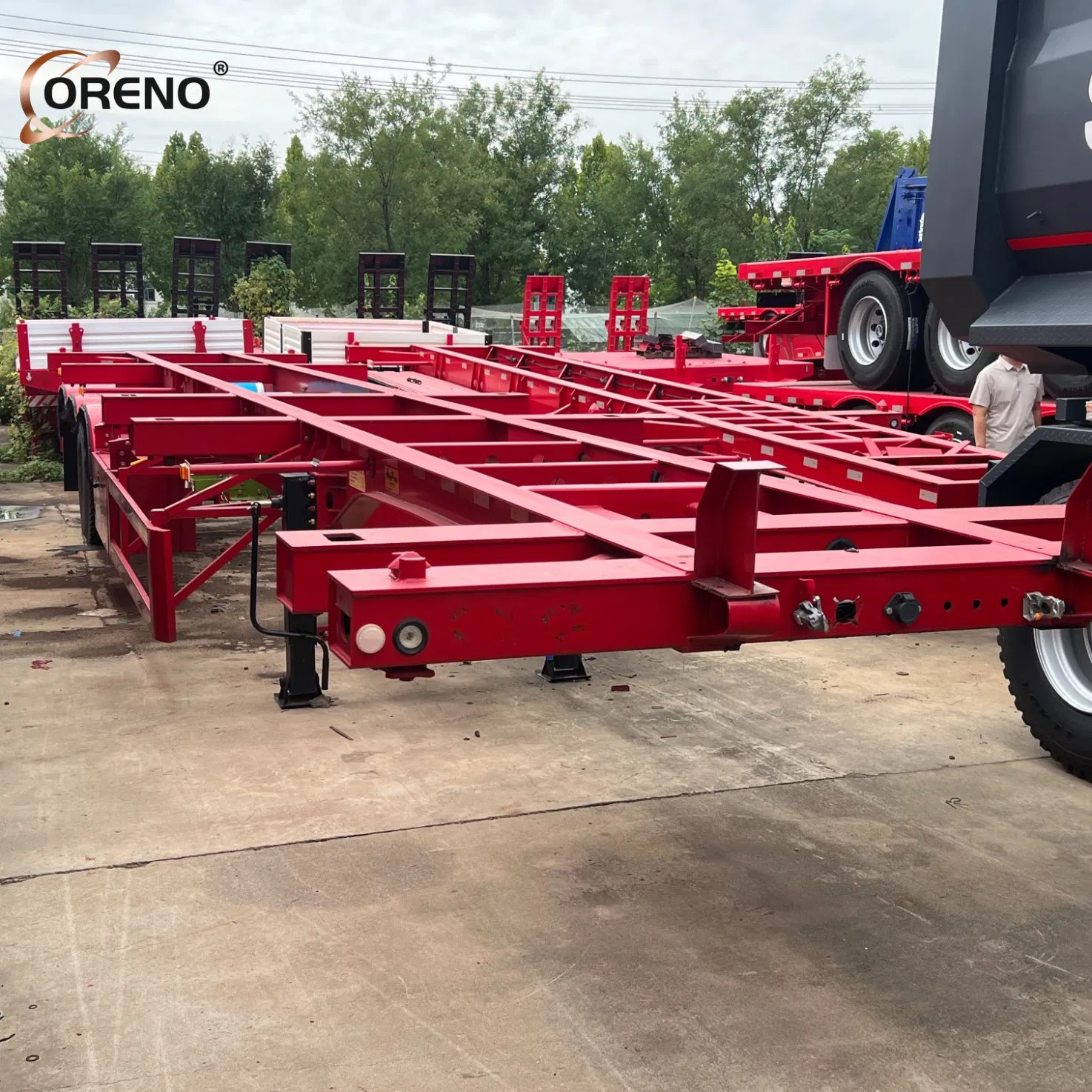

| Product Name | Skeleton Truck Semi Trailer |
| Use | Truck Trailer |
| Size | Customers Optional |
| Color | Customer's Request |
| Condition | New |
| Transport Package | Shipping |
| Specification | custom made |
| Trademark | ORENO |
| Origin | Shandong, China |
| Production Capacity | 1000 Units/Year |
High load capacity: Based on the existing ram material, the frame structure is optimized by advanced design concepts, which further improves the load capacity while reducing the self-weight.
Application: It is widely used in container logistics, port cargo transfer stations, railway container loading and unloading stations, warehouses, logistics, customs and other container distribution centers.
OEM Service: Size, color and logo OEM available.
| Loading weight | 50 tons |

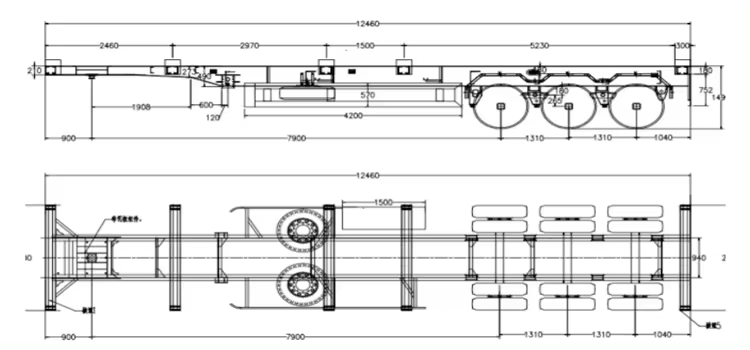

| Size | 12500*2500*1500 mm |
| Axle | 3 axle |
| Tare weight | 7.5 tons |
| Axle brand | 3* 13 tons axle |
| Tyre brand | 12 units 12.00R22.5 tires, Triangle brand |
| Rims | 6pcs* 11.75-22.5 |

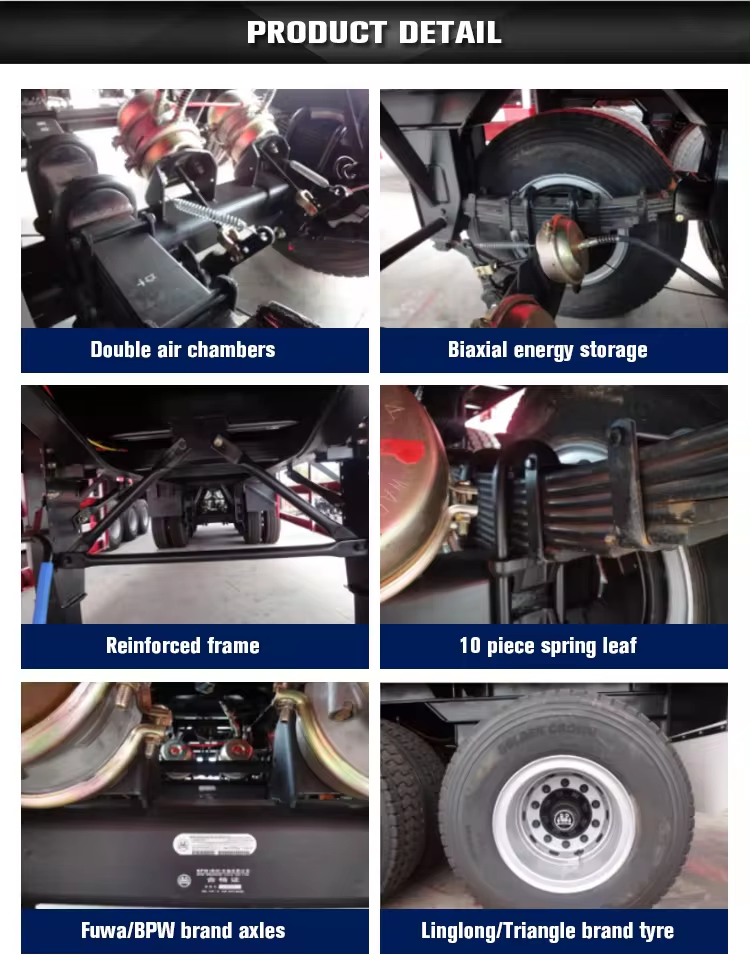

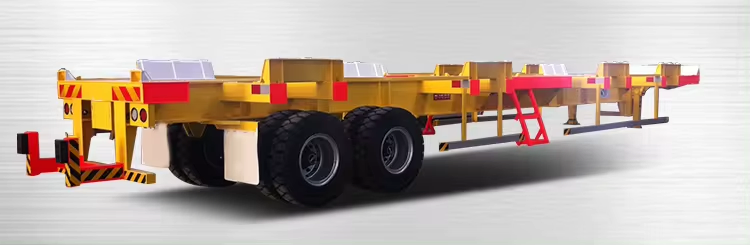

| Suspension System | 3 axle with spring suspension |
| Brake System | Dual line pneumatic brake system, T30/30 air chamber; WABCO relay valve |

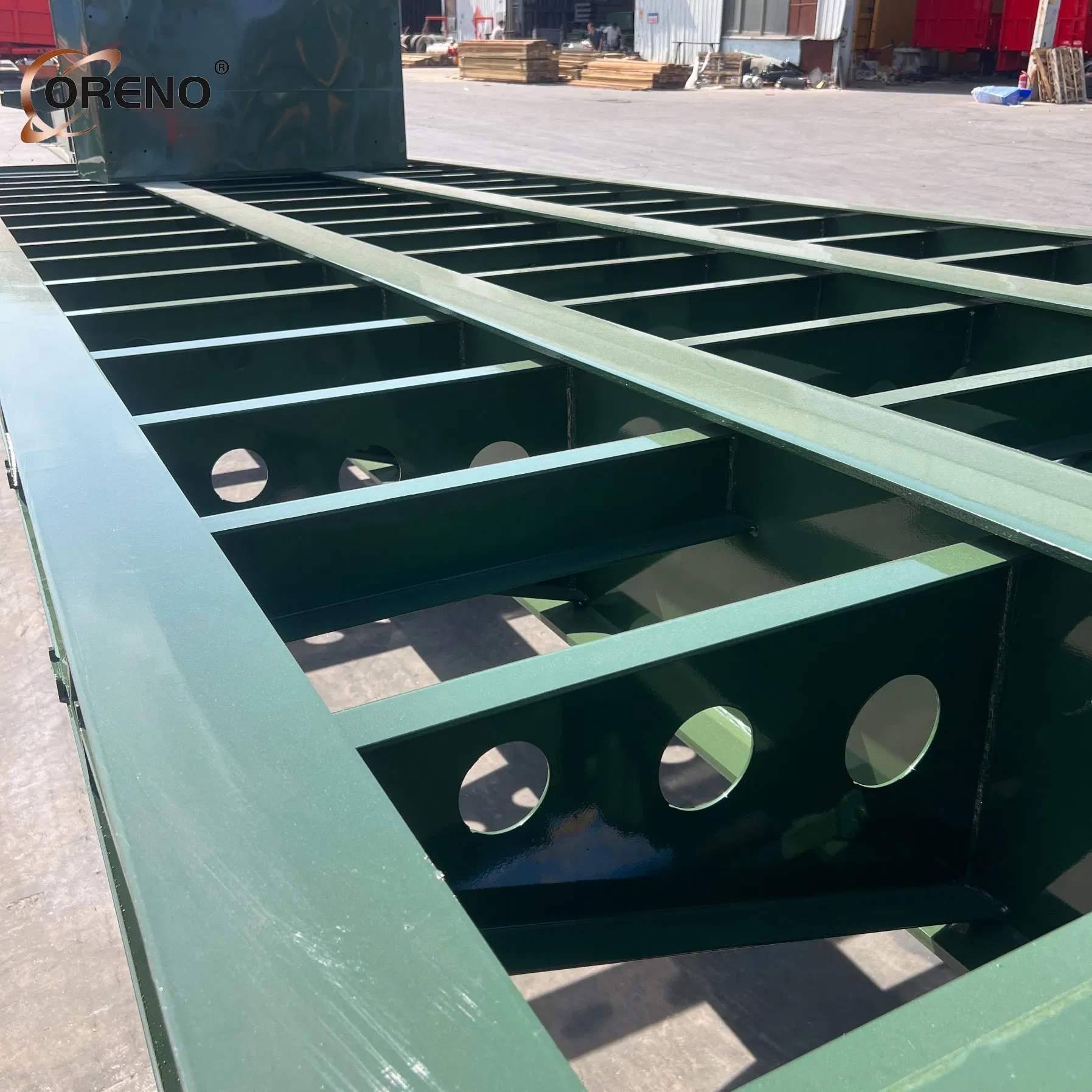

| Under Frame | Main Beam height 500mm; Q345B steel; 14/16/8mm |
| Side beam | 16# U-steel |
| Kingpin | 2' or 3.5(90mm) interchangeable |
| Landing Gear | 28tons heavy duty; 2 pieces |
| Platform | 3mm thick checkered plate |

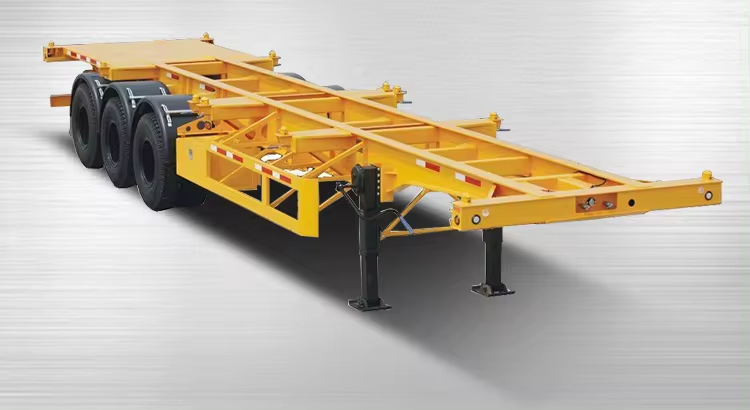

| Twist locks | 8 pieces for 1x40ft or 2x20ft containers |
| Electrical System | 24v; 7 ways receptacle; German standard |

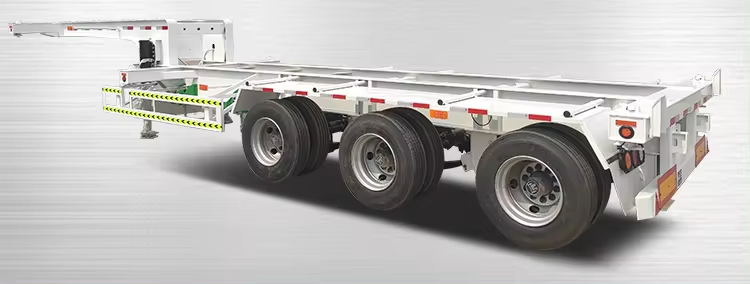

1. Highly robust structure steel with tensile and high load capacity.
3. Length and width of skeleton available custom made.
2. Heavy duty mechanical spring suspension for bad road conditions.
4. Air suspension and bogie suspension option. 8 units twist lock.
| Product | ORENO Semi Trailer and Trailer parts |
| Manufacture Trailers | Flatbed/Tipper/Skeletal/Lowbed/Curtain/Side wall/Fence Cargo Semi Trailers |
| Manufacture Trailer Parts | Trailer Chassis Beams, Axles, Suspensions, leaf springs, landing gear, etc. |
| Advantage | Rich manufacturing experience, various production lines, factory price |
| Established since | 2003 |
