As a top manufacturer with 32 years of expertise, we are China's No.1 self-loading mixer brand, supplying 5 Fortune 500 firms. We're now expanding globally and seeking passionate agents for our core products: self-loading mixer trucks, rough terrain forklifts, wheel loaders. Partner with us, and get end-to-end support to dominate your local market – no risks, just stable profits!
Product ID: [3.5m³ C-Series] | MOQ: 1 Unit | Lead Time: 7-10 Days | Net Weight: 8.3T

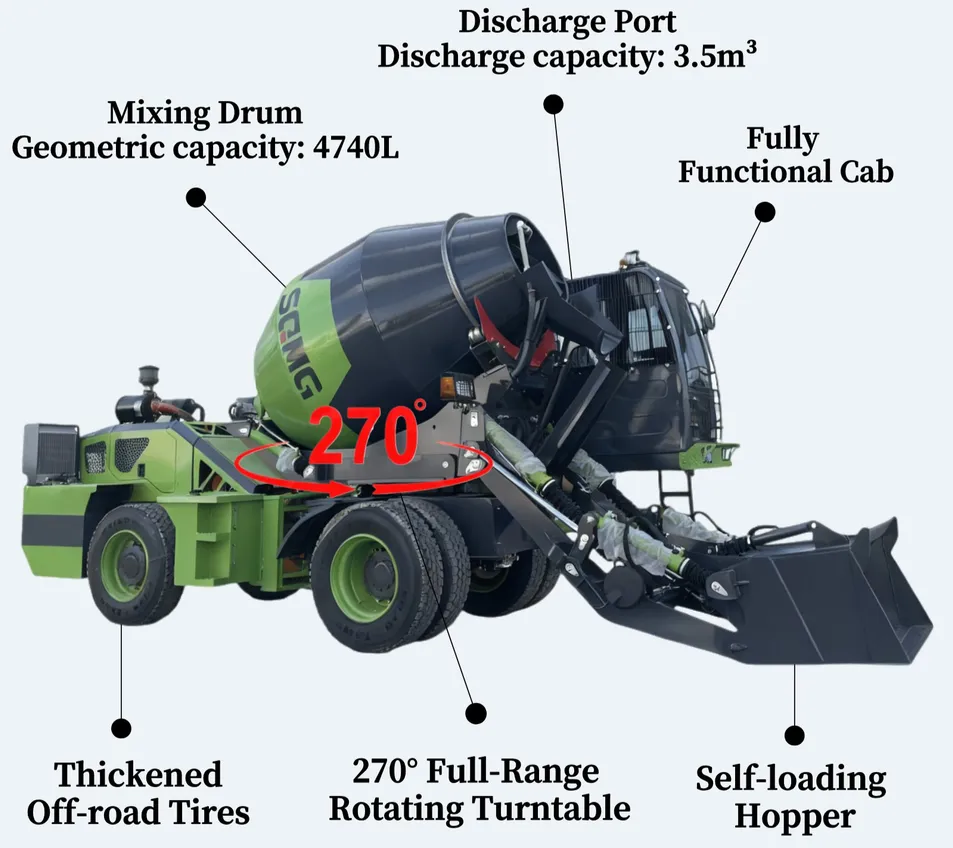

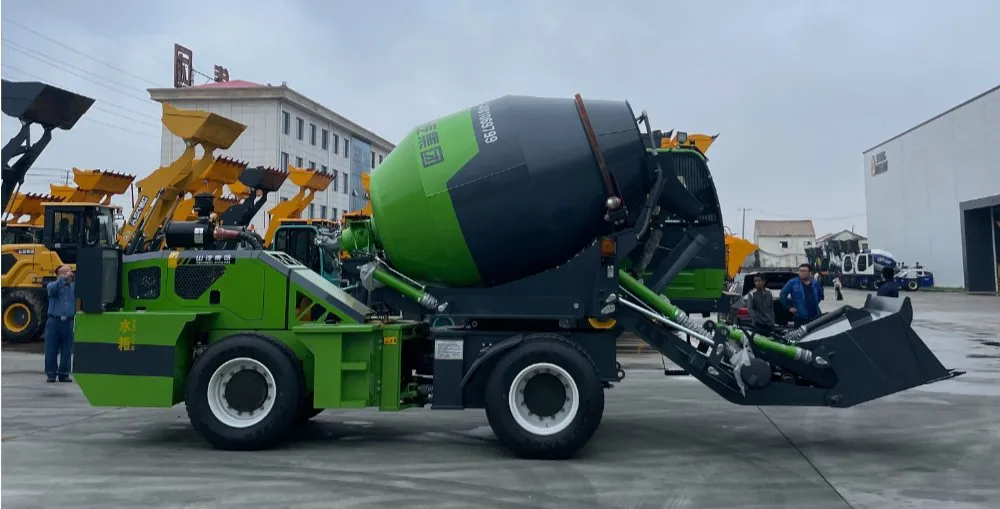

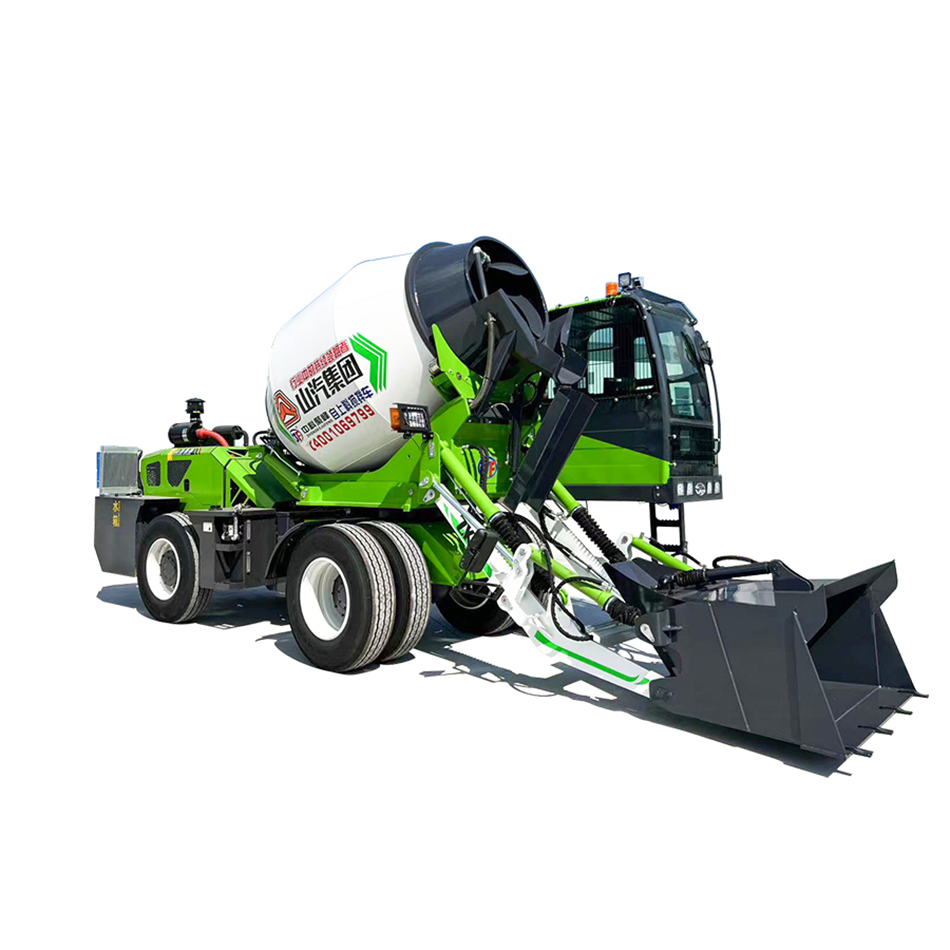

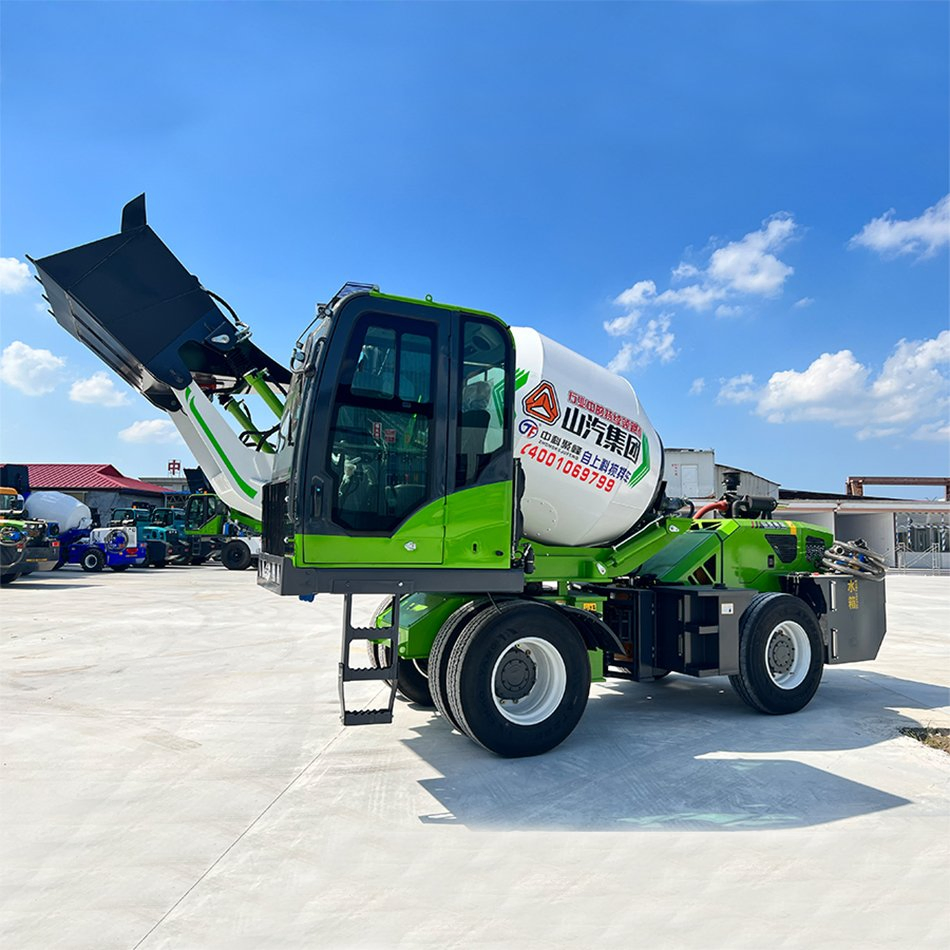

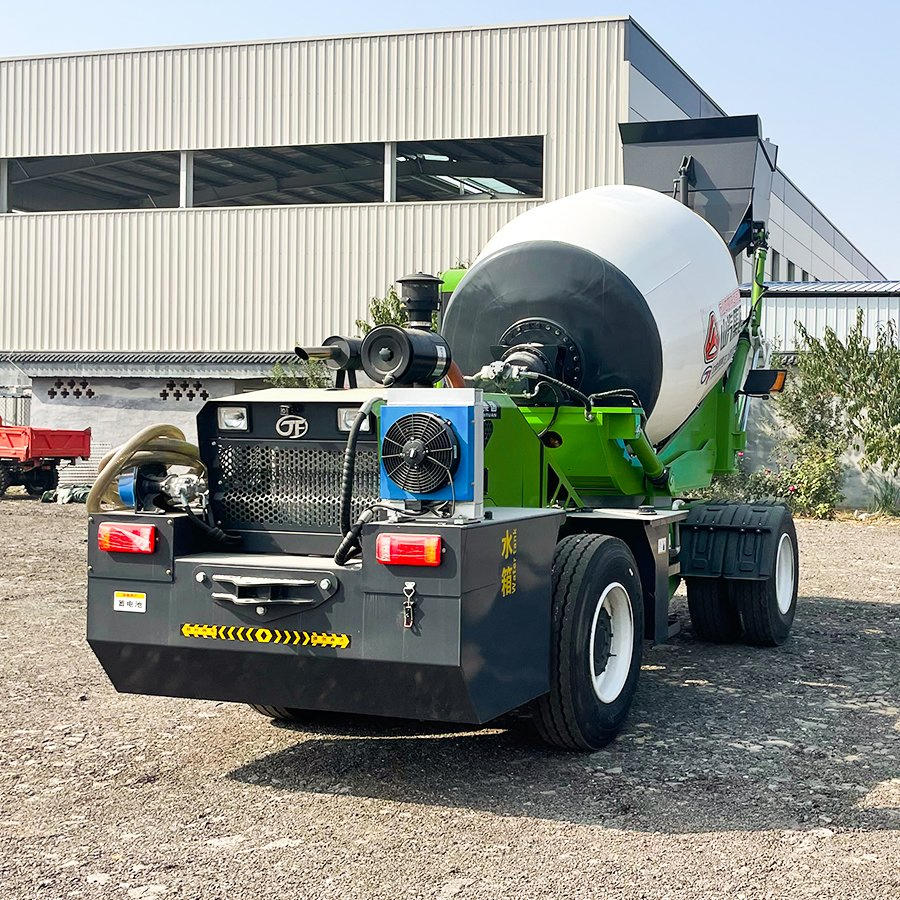

For large-scale construction projects demanding maximum yield, unmatched flexibility, and rugged reliability, the 3.5m³ self-loading concrete mixer is the ultimate solution. As a 3-in-1 integration of concrete mixer, transit mixer, and wheel loader, it delivers a game-changing 3.5m³ per batch—significantly boosting productivity vs. smaller models.

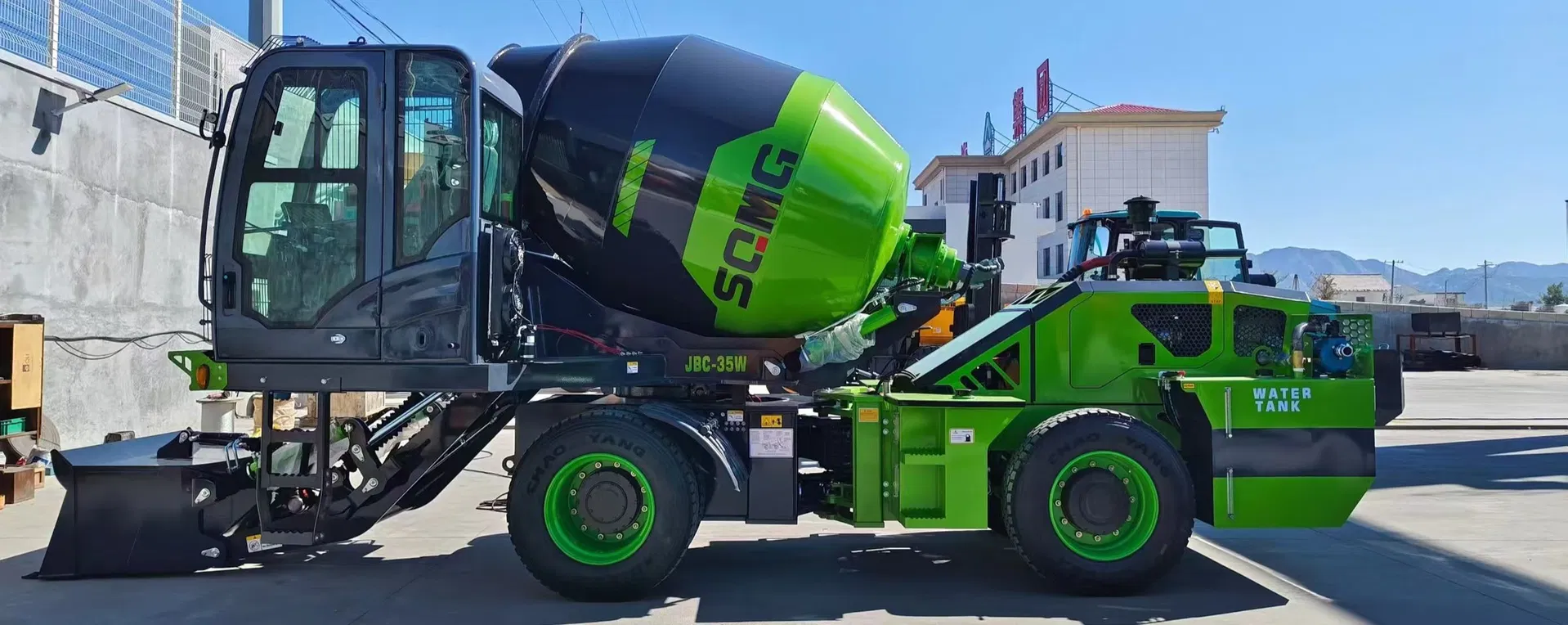

Powered by an 85kW turbocharged engine, it combines two core advantages: 270° synchronized drum & cab rotation for pinpoint concrete placement and bi-directional driving for effortless maneuvering in tight spaces.
| Vehicle Parameters | |
| Overall Dimensions (L*W*H) | 7600*2800*4180 mm |
| Curb Weight | 8300 kg |
| Max Speed | 30 km/h |
| Max Gradeability | 30° |
| Engine & Gearbox | |
| Engine Model | 4105 Turbo-charged |
| Rated Power | 85 kw |
| Gearshift | 4 Forward 4 Back |
| Mixing System | |
| Drum Geometrical Capacity | 4740L |
| Concrete Yield | 3.5m³/Batch |
| Water Tank Volume | 920L |

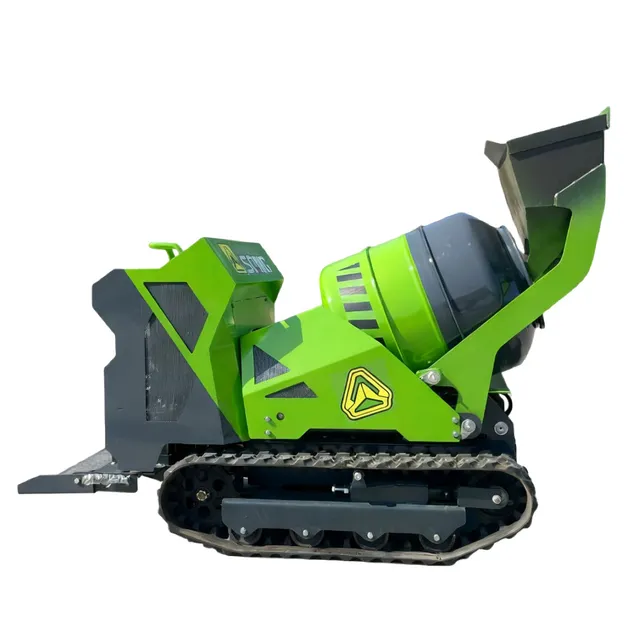

200L Crawler Mixer Trucks

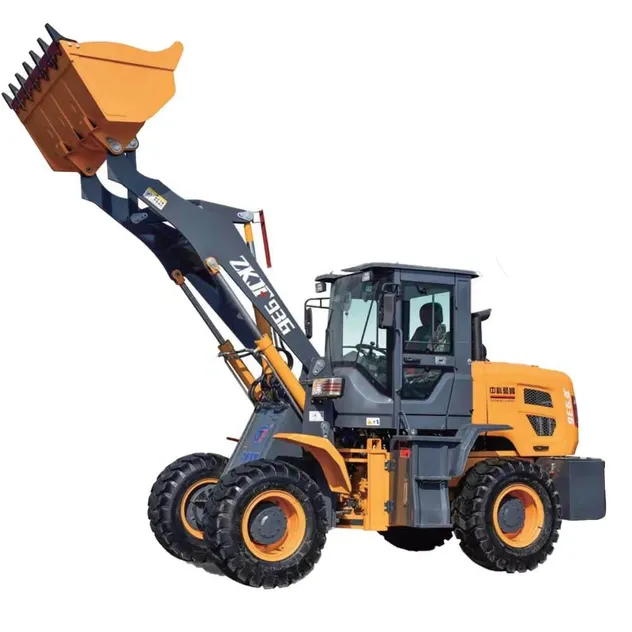

1.5-3 Ton Mini Loader

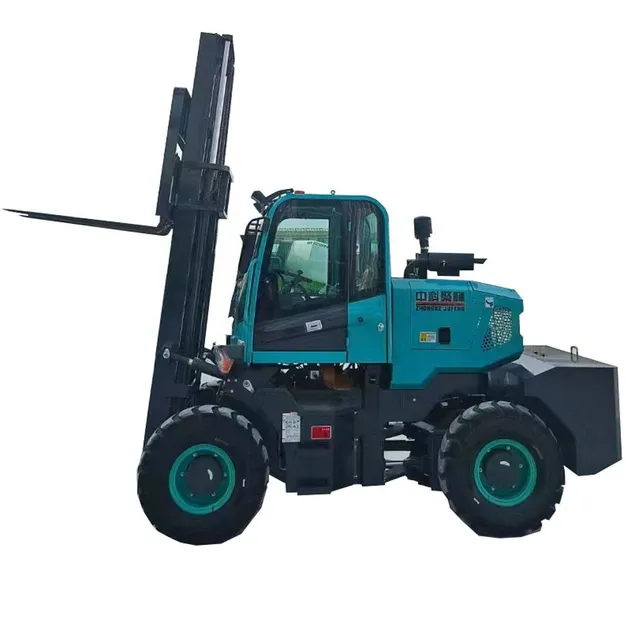

3.5-6 Ton Off Road Forklift
With 3,000+ satisfied clients across 40+ countries, our cross-border expertise is proven. We participate in major global trade shows to provide hands-on demos and custom solutions.
