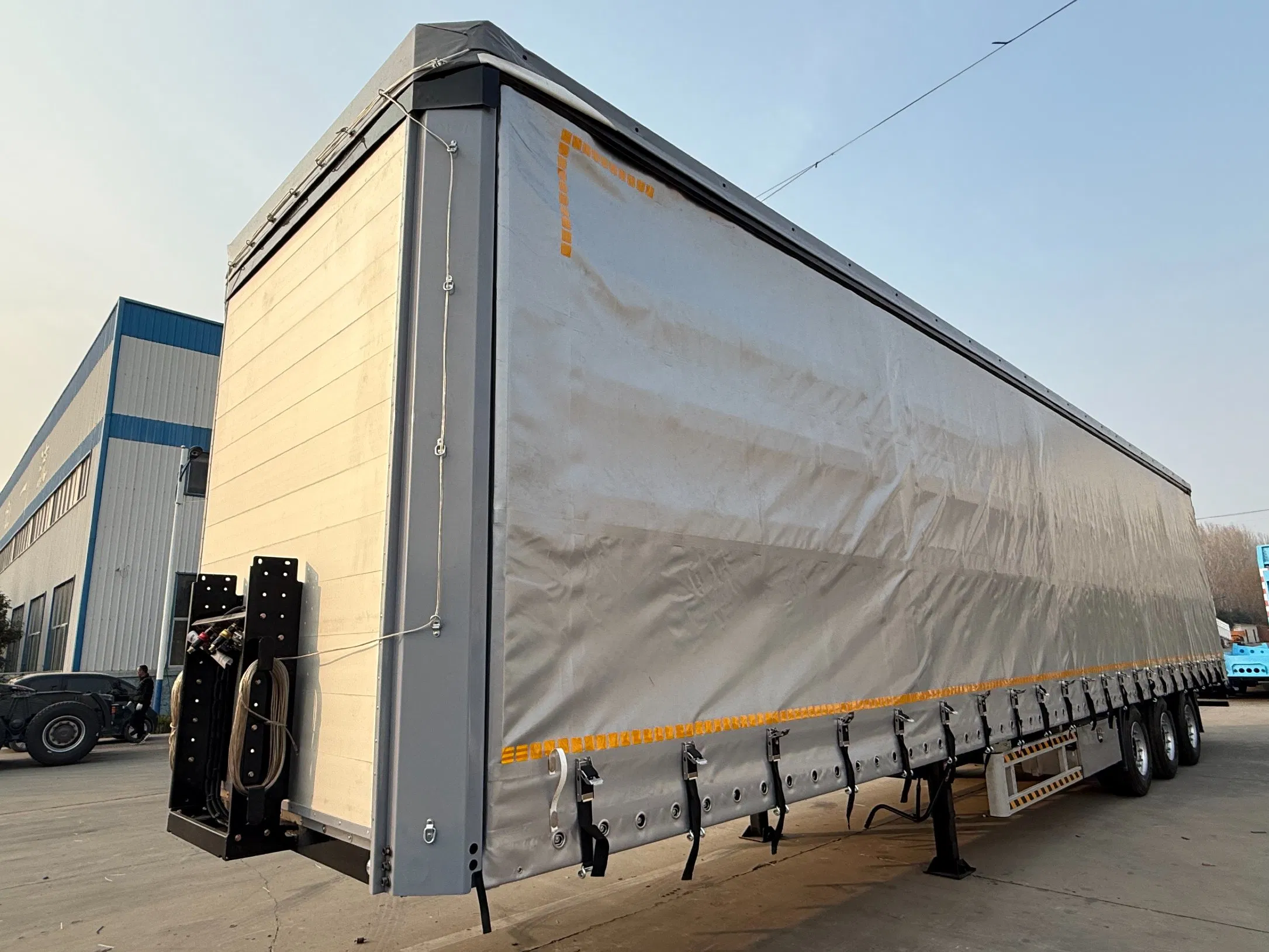

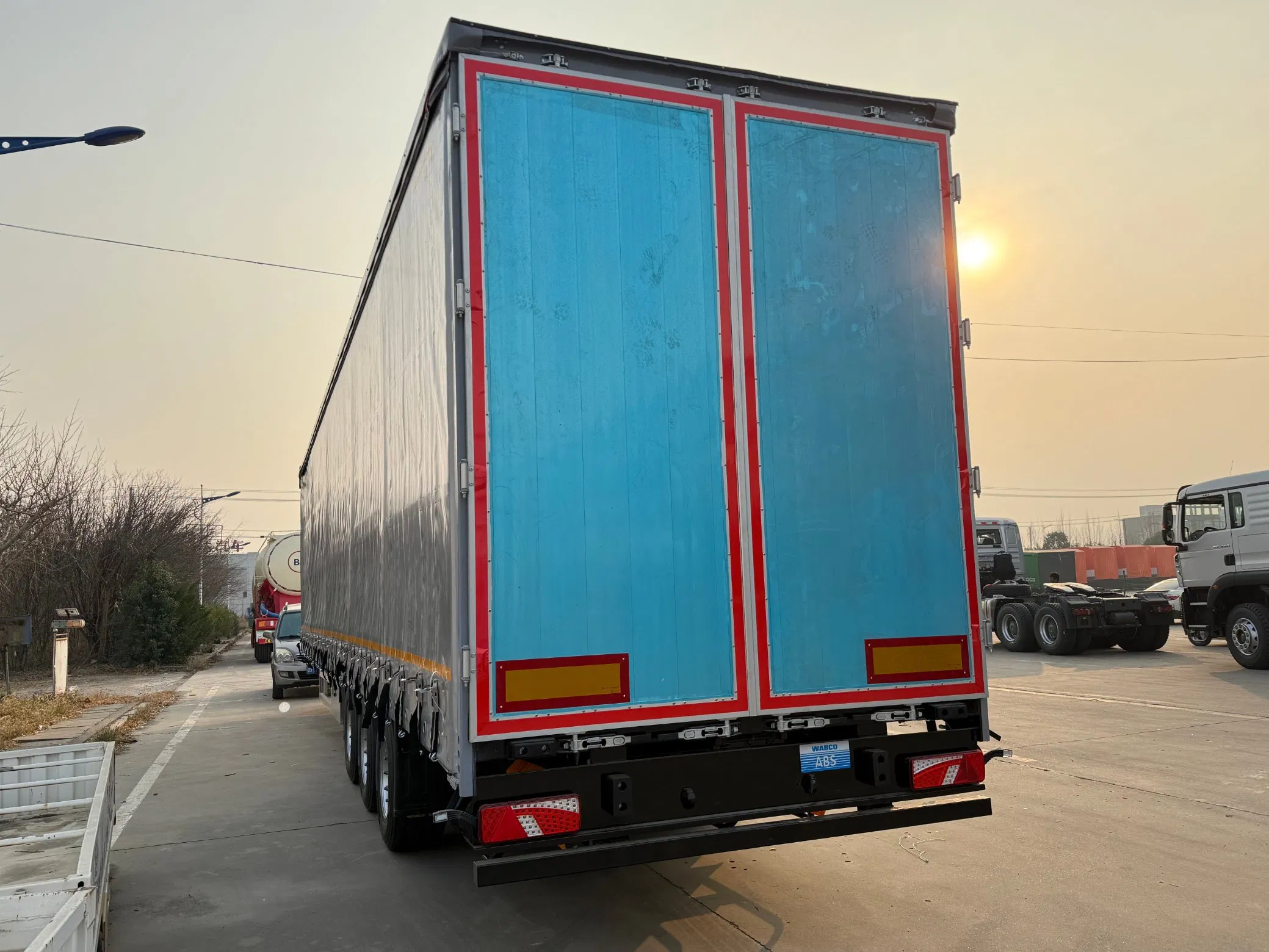

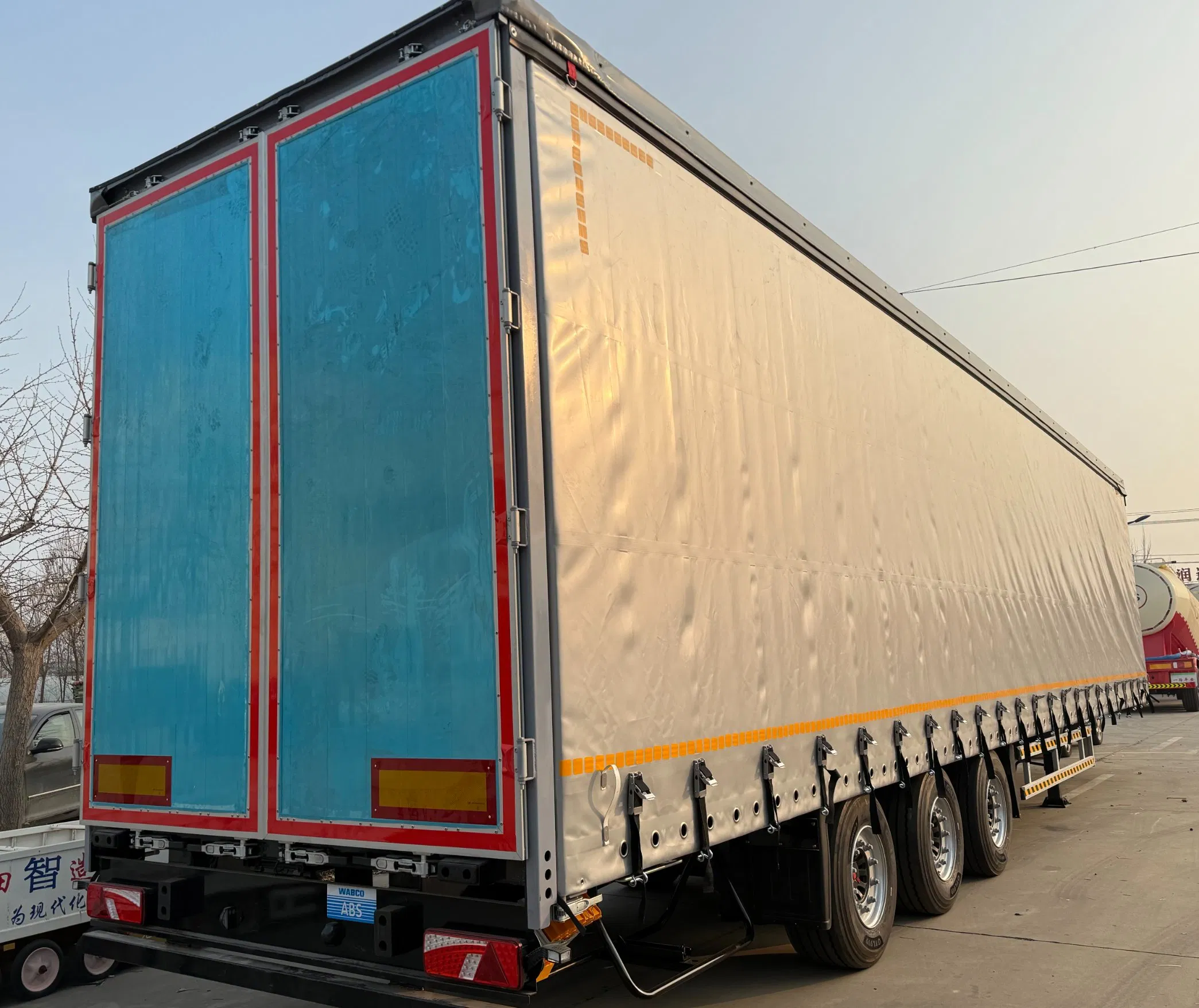

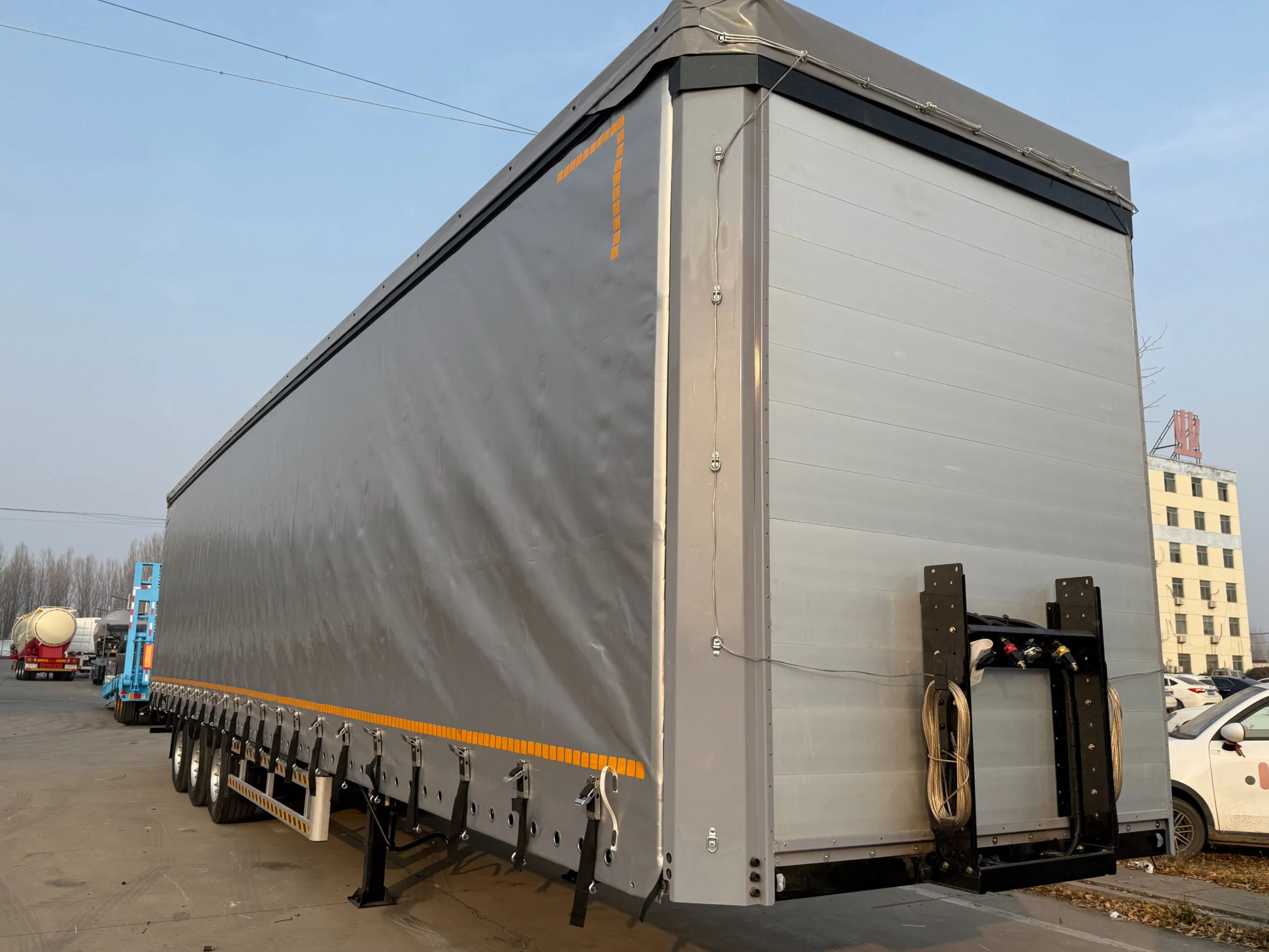

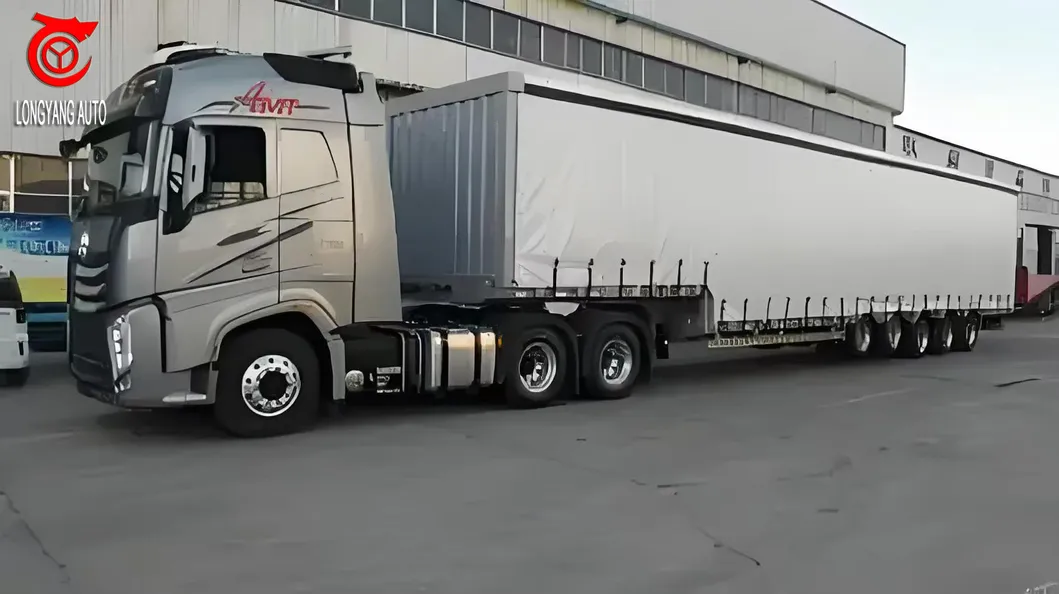

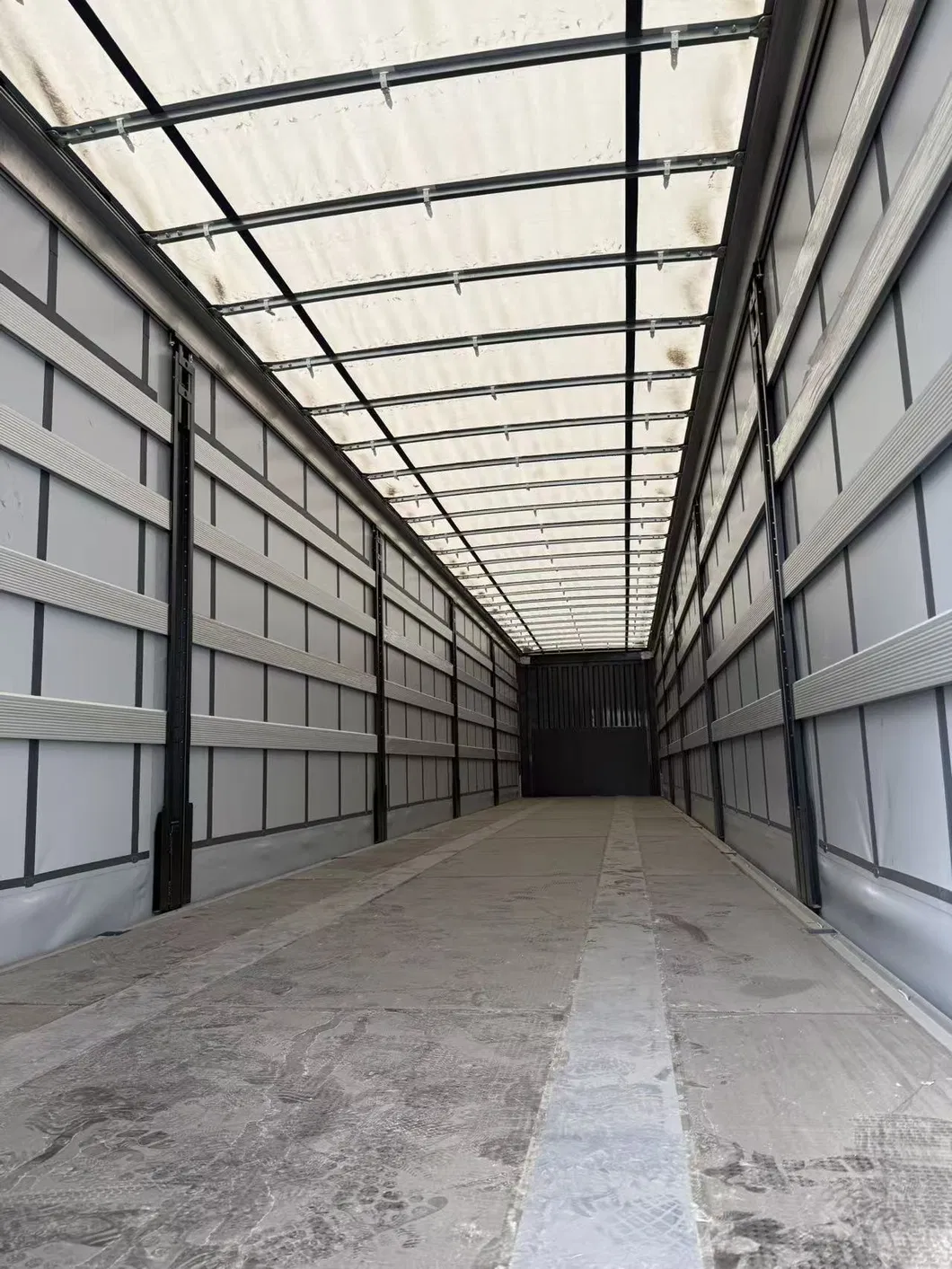

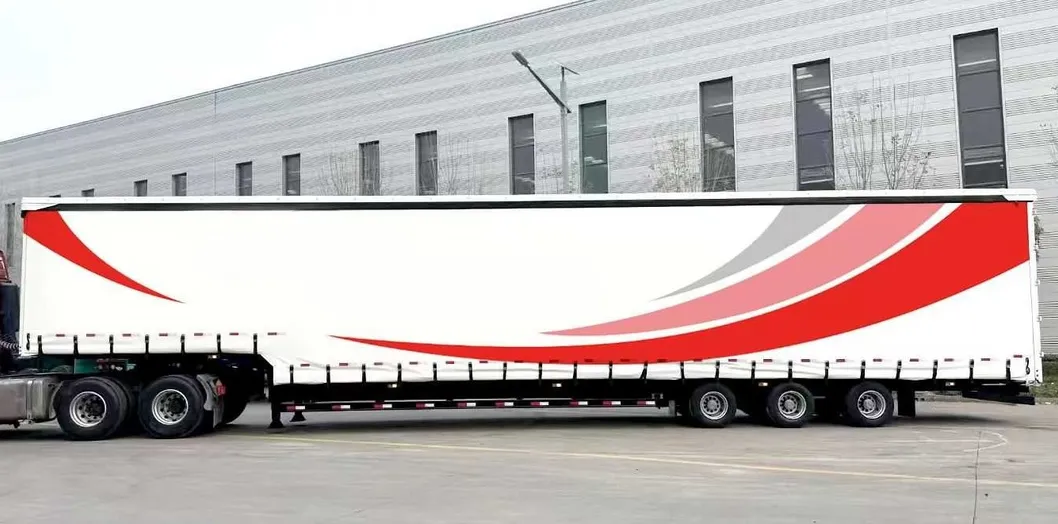

A transportation tool with unique design and functions, mainly used for logistics transportation. The most notable characteristic of curtain-sided semi-trailers is the curtain design on both sides of the vehicle body. This design replaces traditional metal or hard panels, making loading and unloading of goods more convenient. At the same time, it reduces the weight of the vehicle body and improves fuel efficiency.

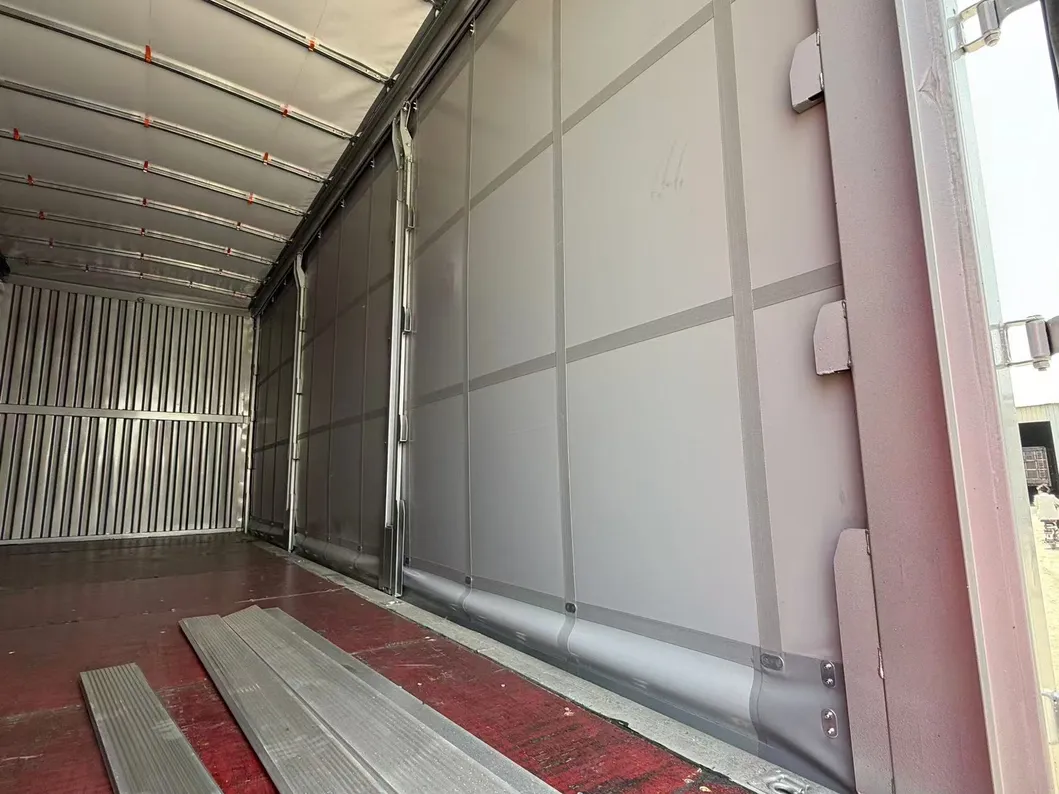

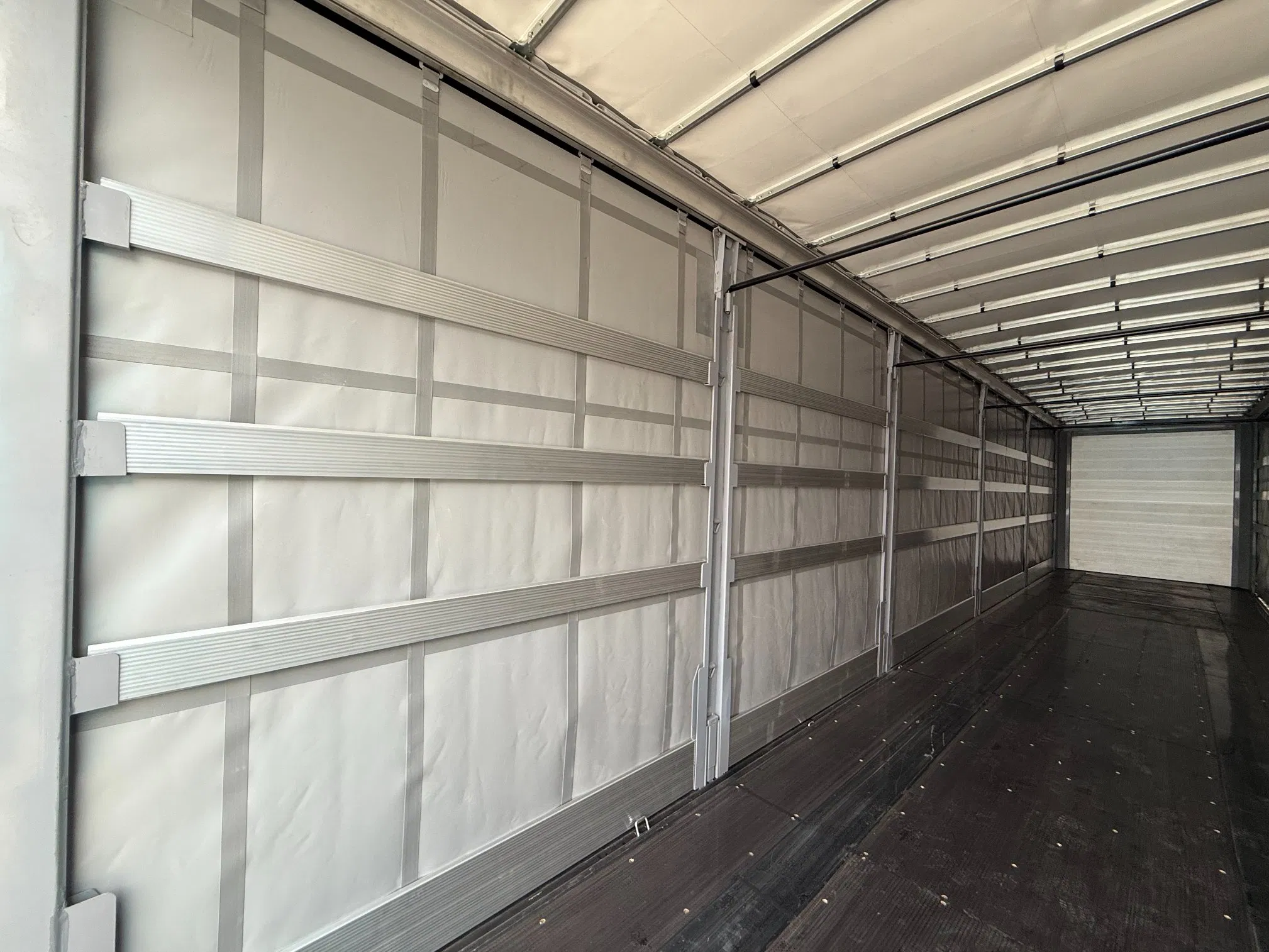

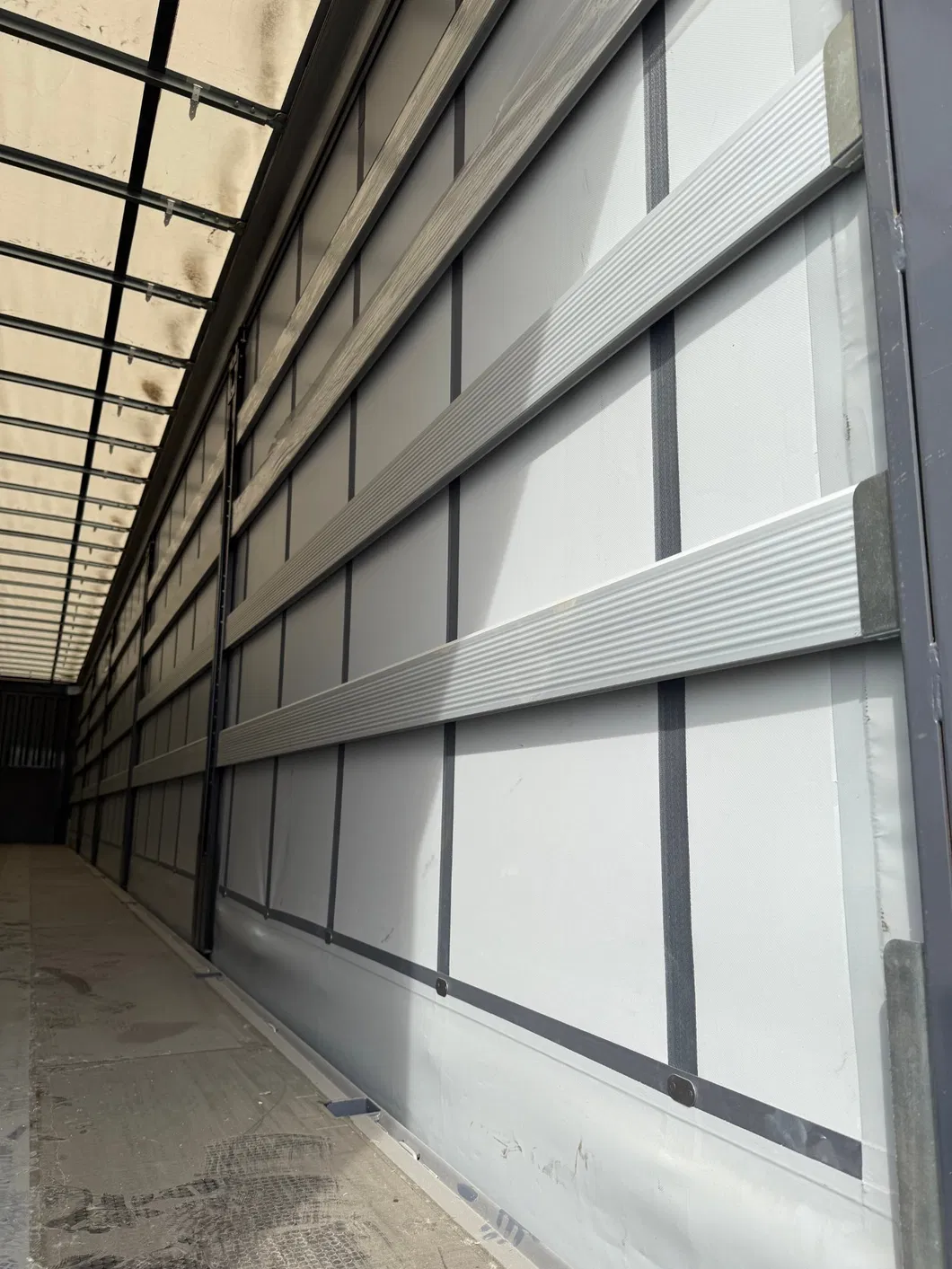

Premium Material: The material of the side curtain is mostly high-strength synthetic fiber, such as polyester fiber or nylon. These materials are lightweight and durable, with good waterproof, sun-proof, and tear-resistant properties, ensuring the safe transportation of goods under various harsh weather conditions.
| Technical Specifications | |
|---|---|
| Working Size | Customized 9000-20000x2500x1300mm |
| Loading Capacity | 30-60 Tons |
| Main Beam | Q345B manganese plates, height:500mm, "I" beam type |
| Axles | 2/3/4/5 axles (Customized) |
| Suspension | Mechanical suspension / Air suspension |

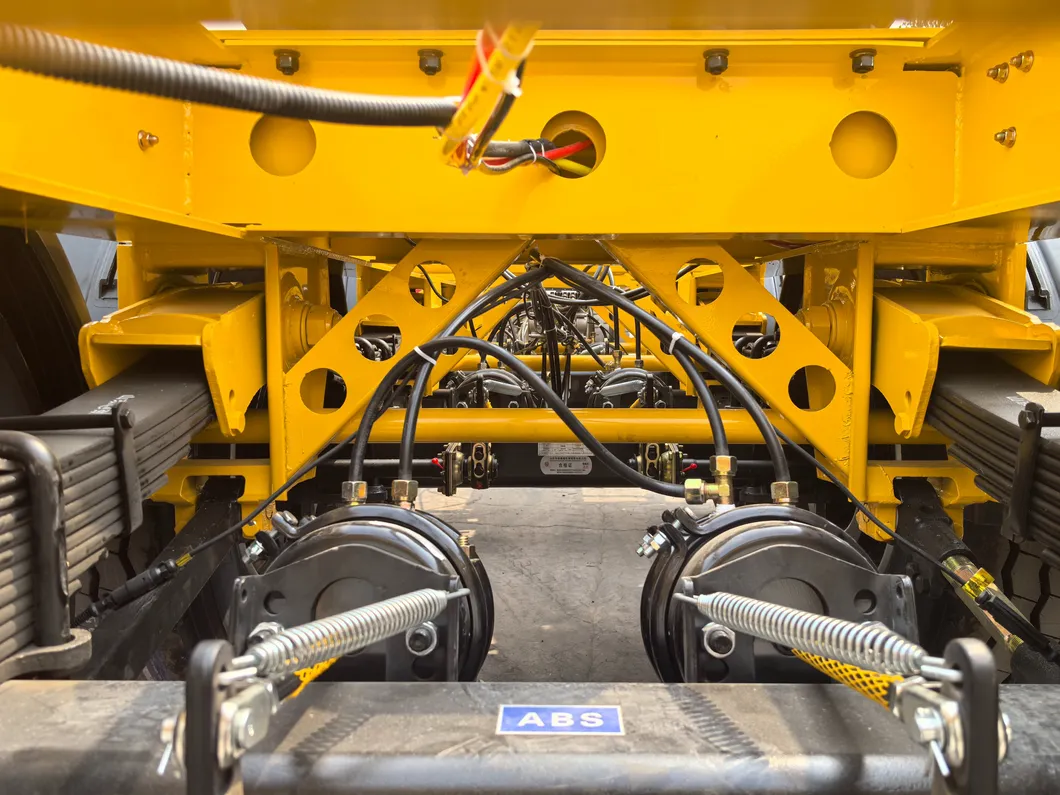

| Brake System | T30/30 Spring chamber, WABCO valve, ABS/EBS optional |
| Landing Gear | JOST A300C 28tons, two speed |
| Electrical | 24V, 7core socket, High-grade LED lights |

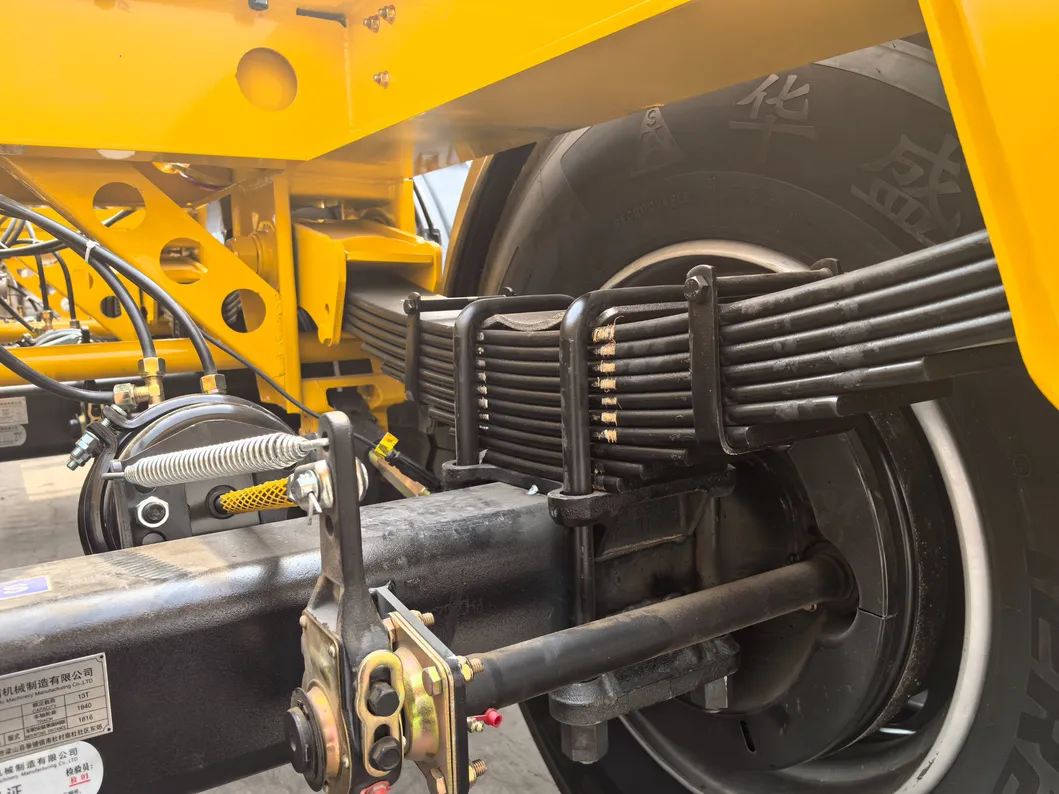

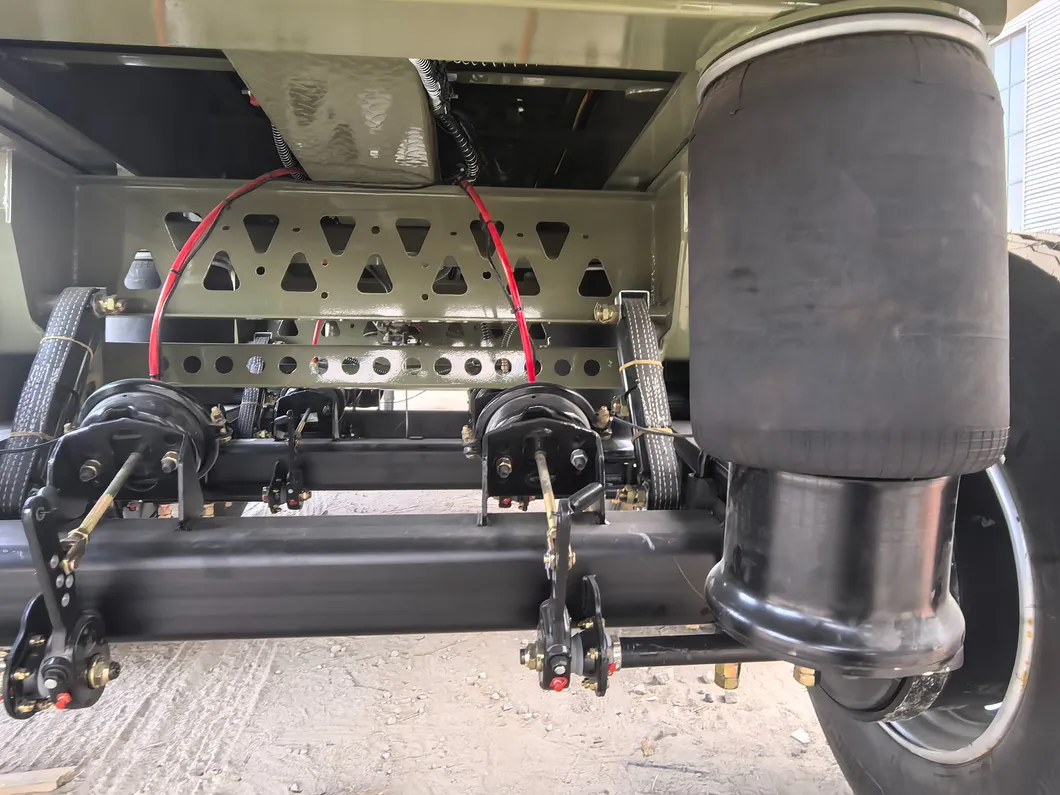

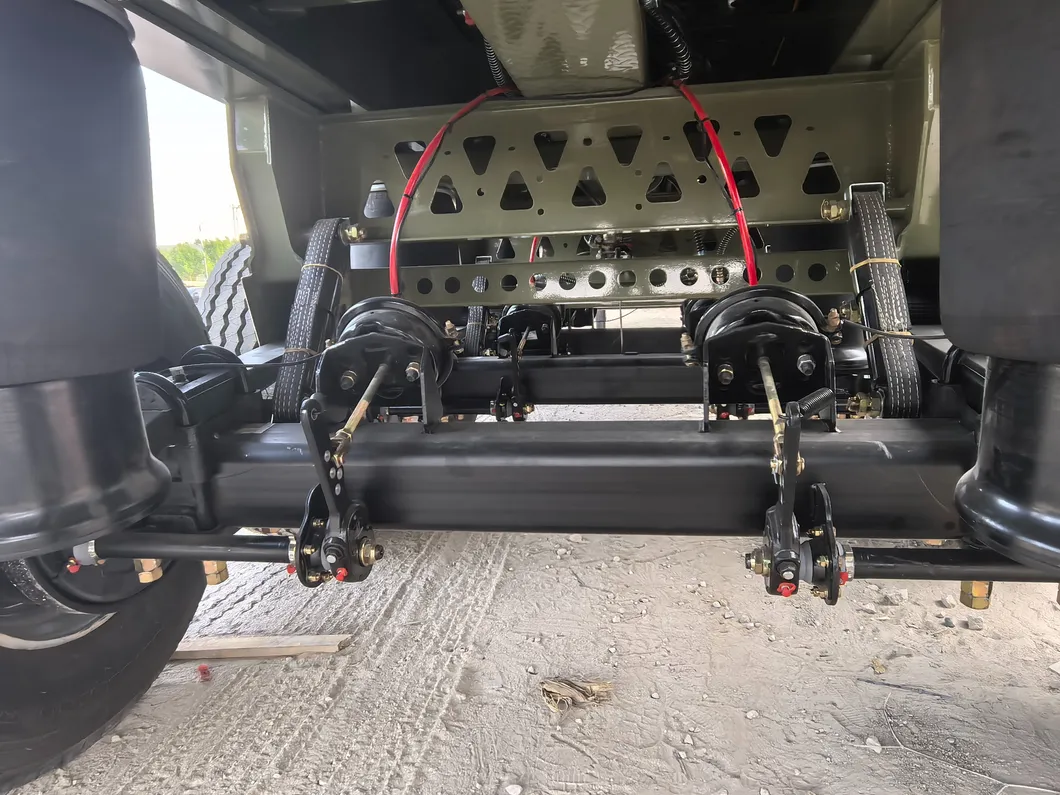

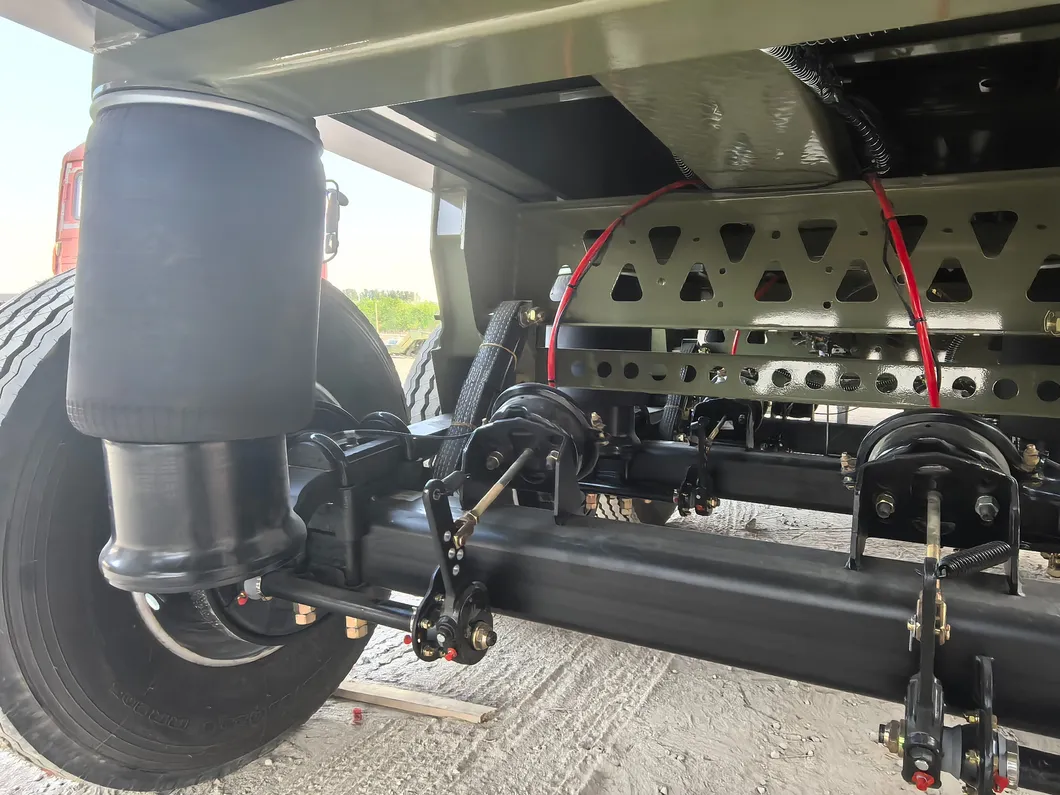

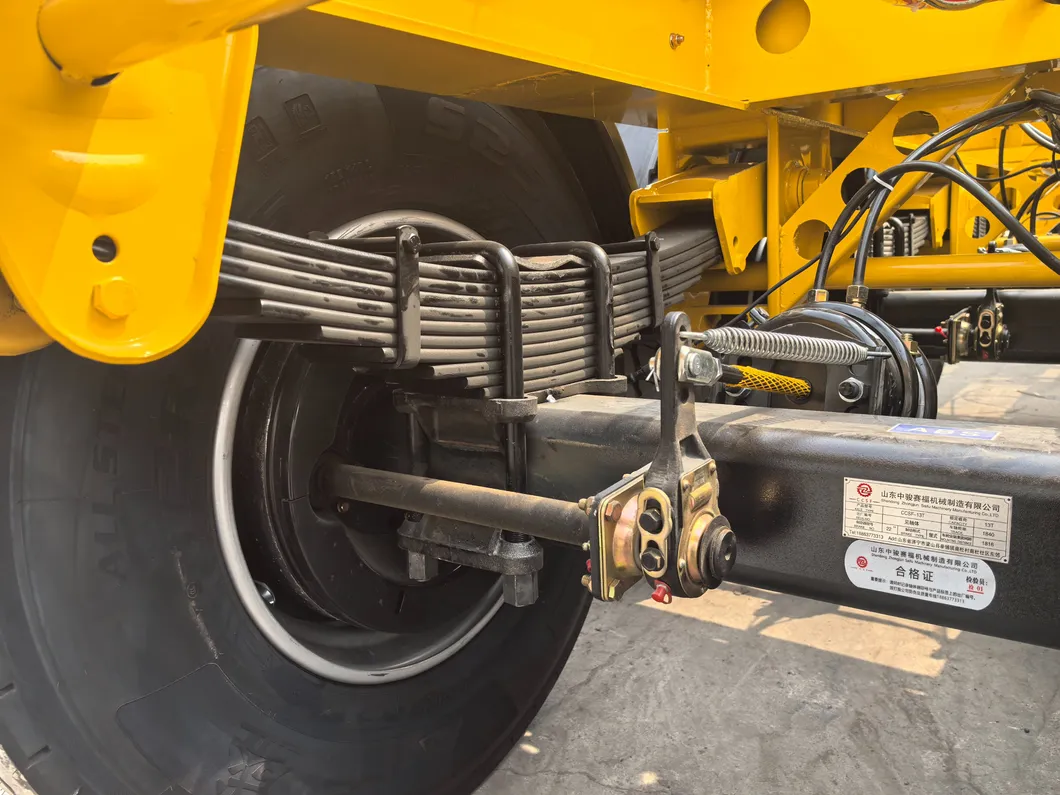

Suspension System: Multiple thickened high-strength steel leaf springs. Germany Type or American Type Mechanical and Air bag suspension can be chosen.

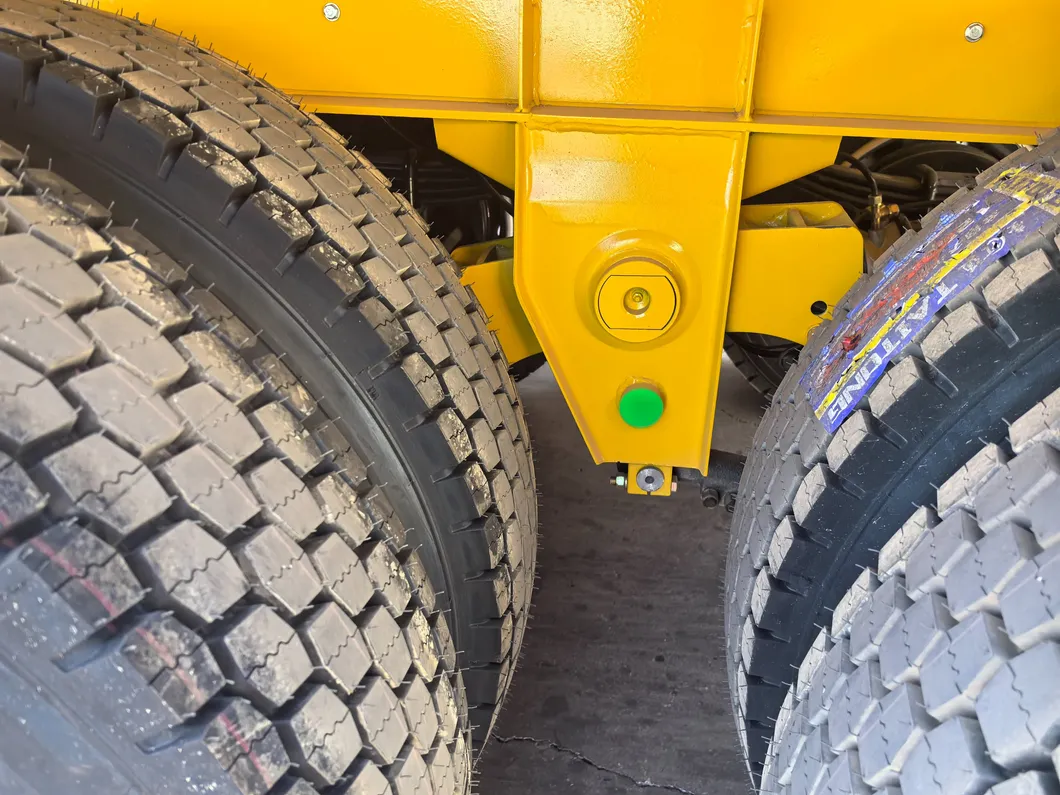

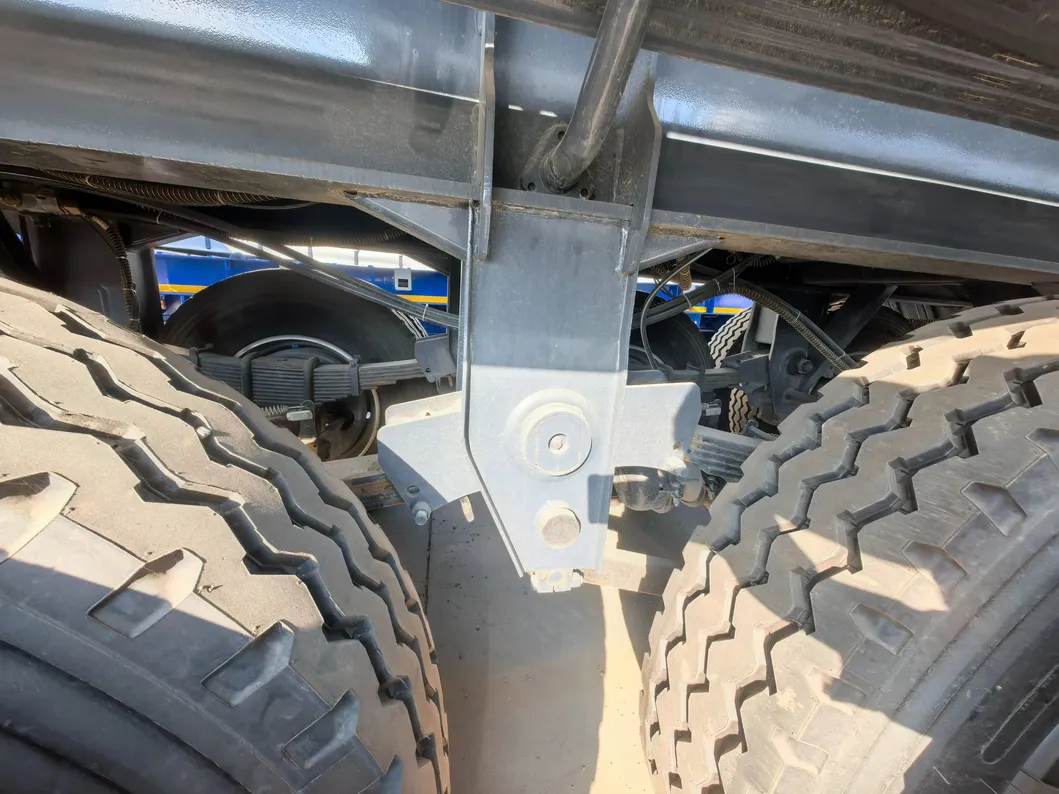

Anti-Tire Abrasion: Specially designed suspension system prevent tire deflection after loading and avoids tires worn out to the maximum extent.
Alloy Steel Legs: Rated load 28 tons, static load 40 tons, optional hydraulic legs for greater lifting capacity.
