🚛 Product Description

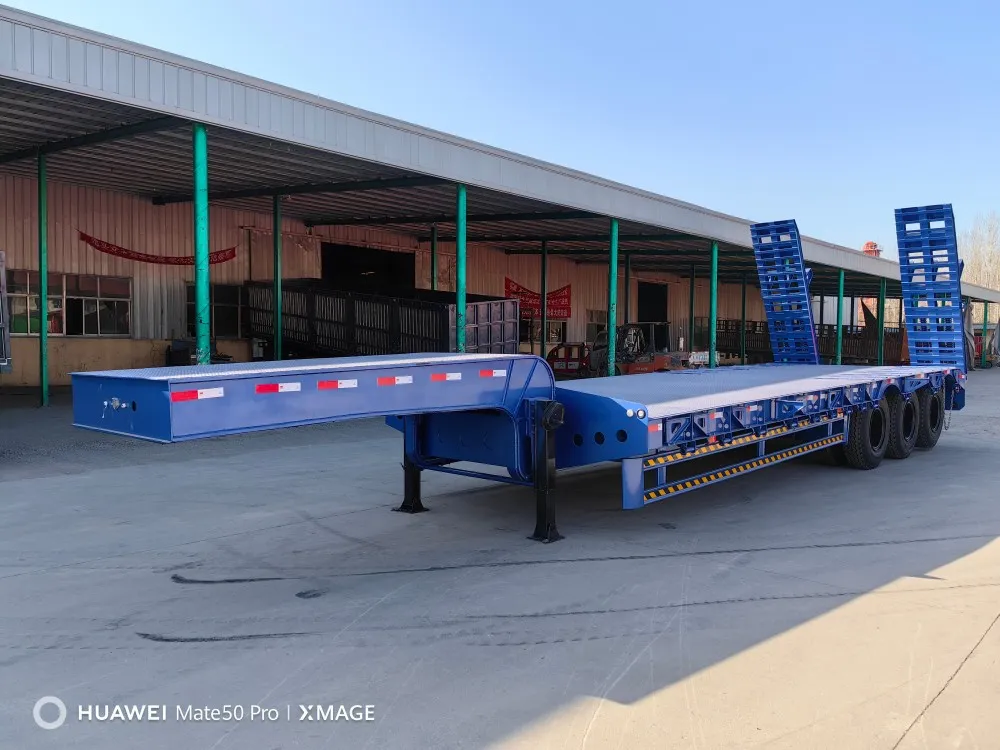

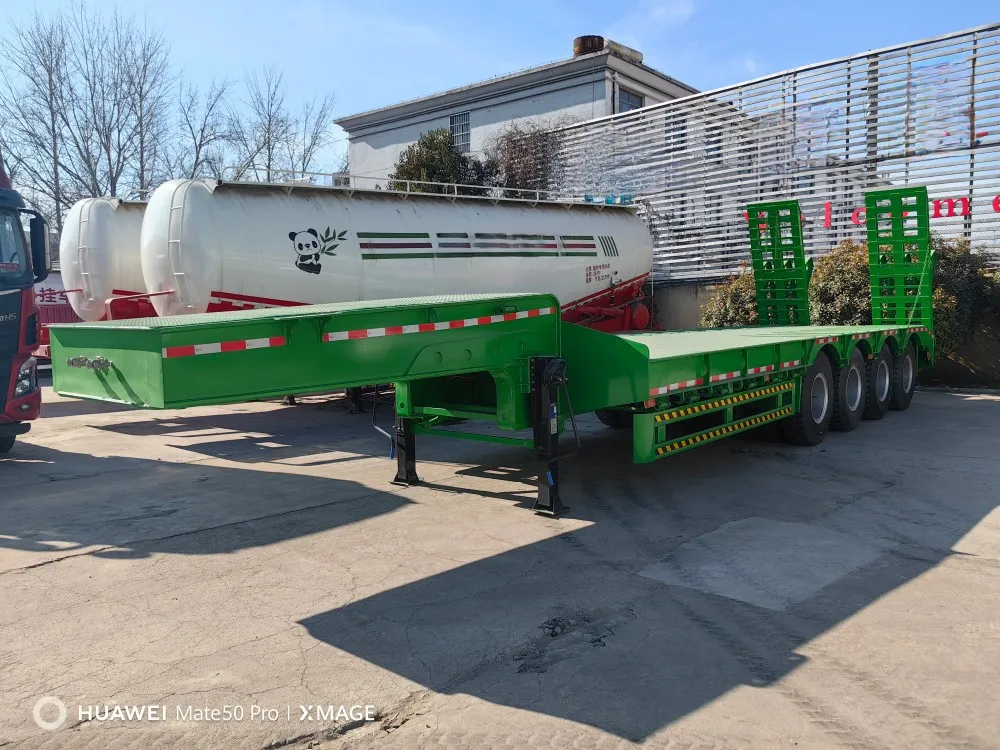

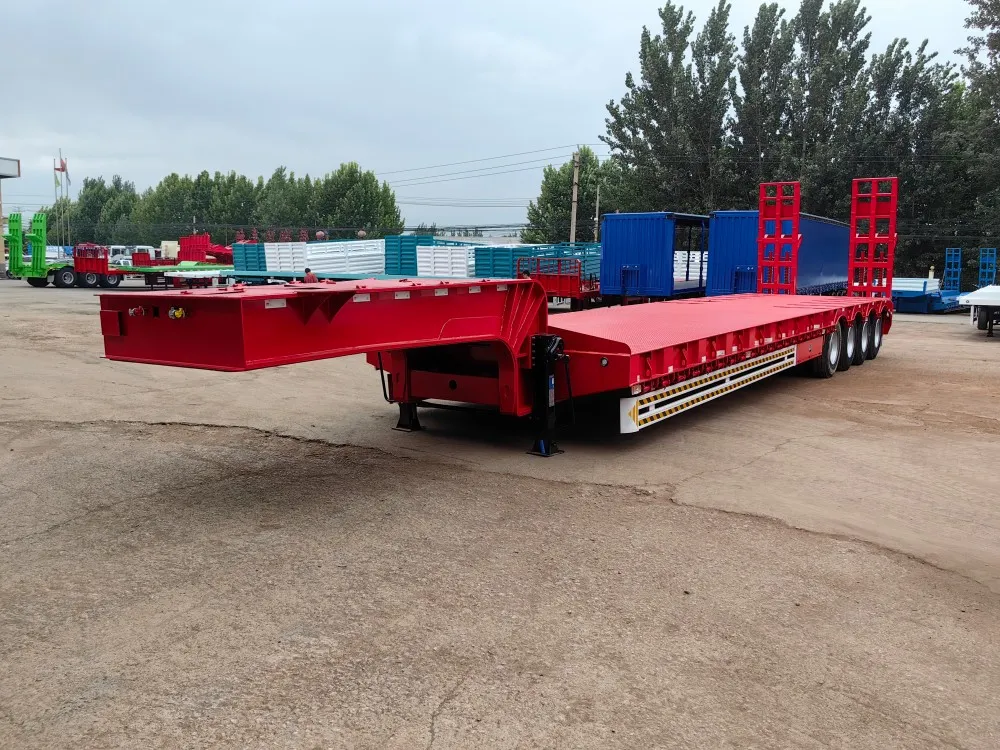

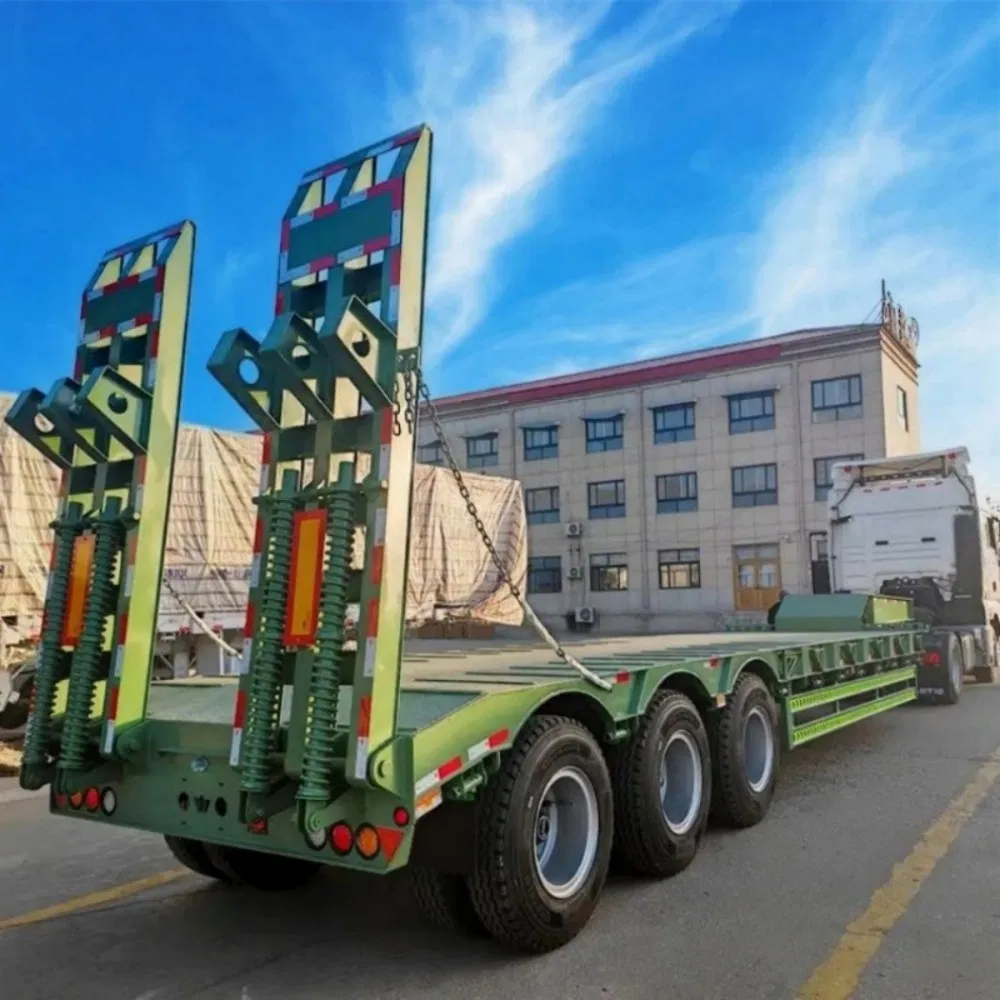

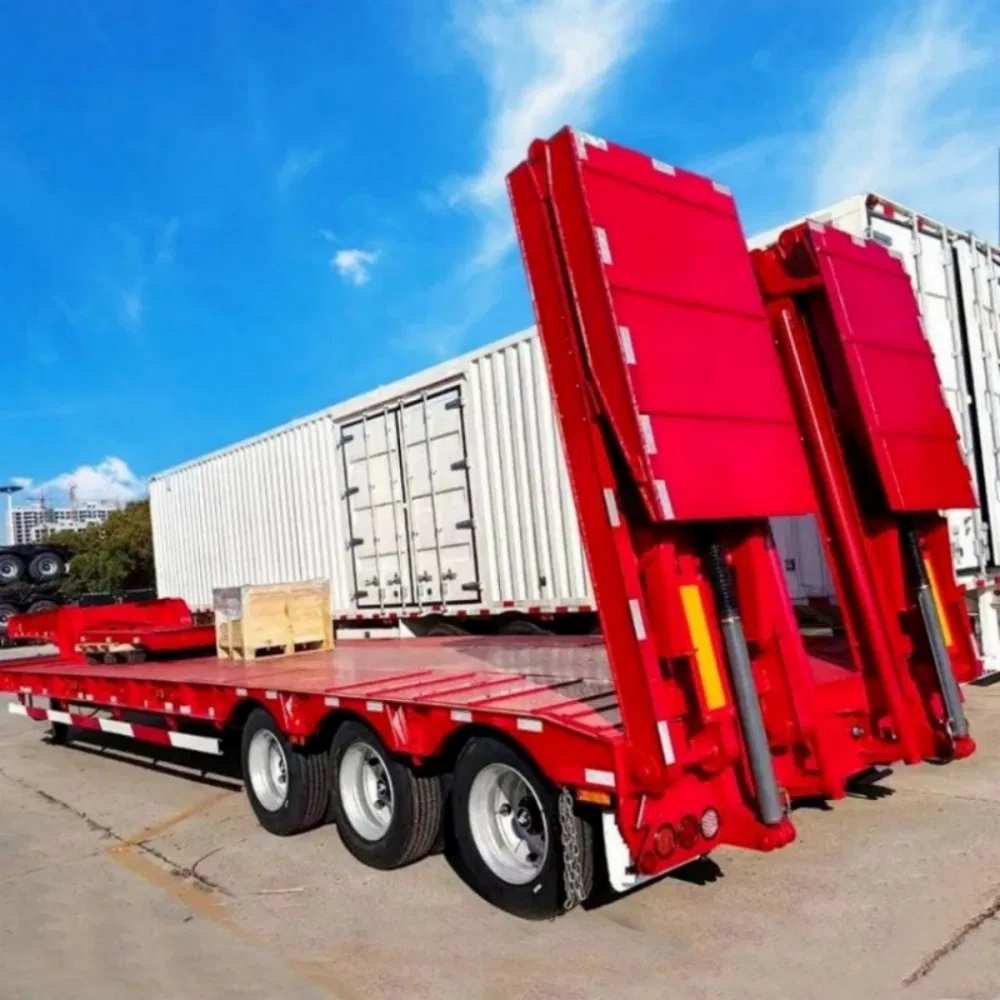

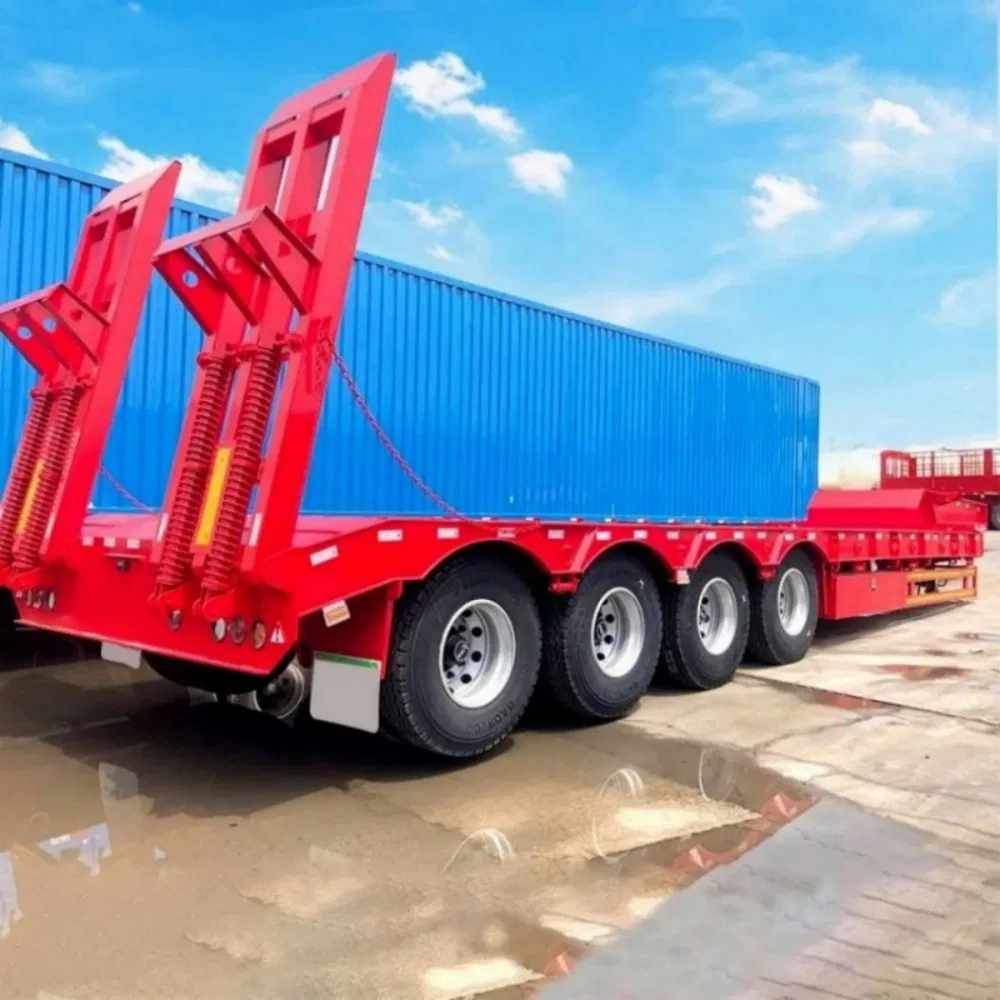

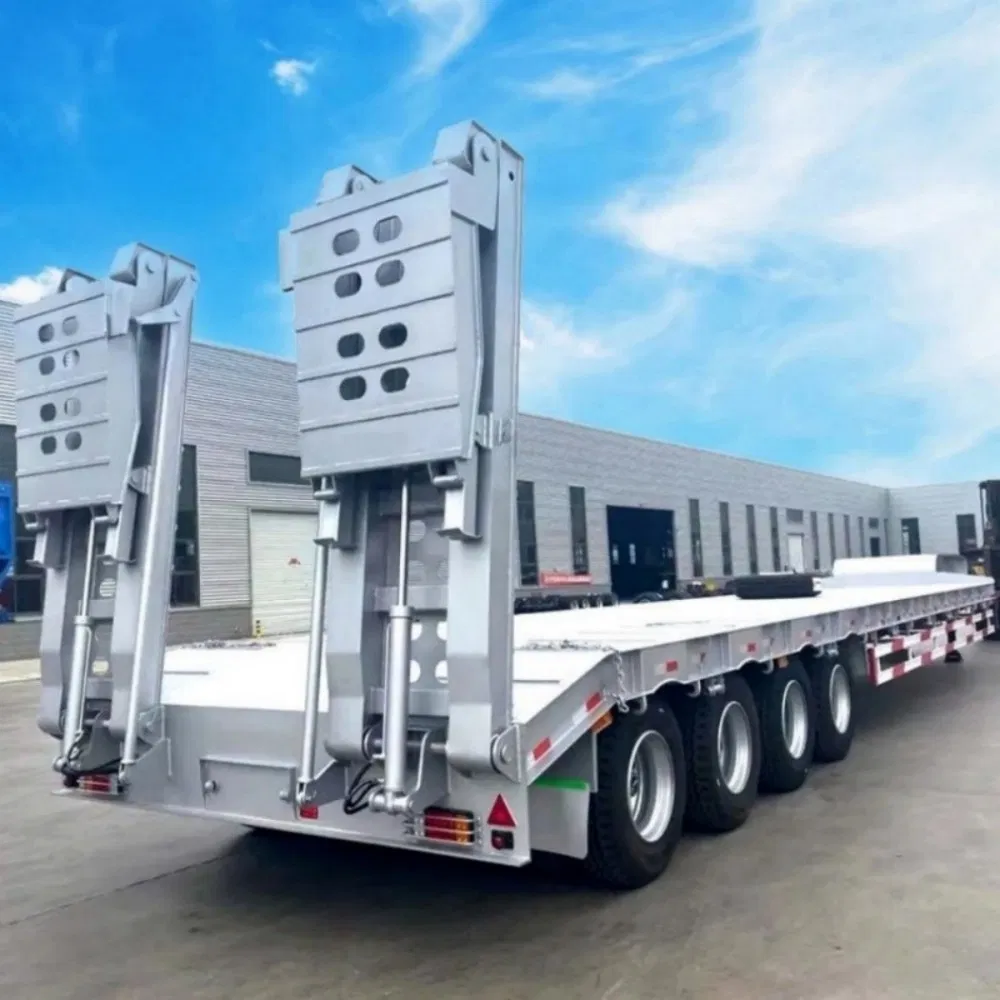

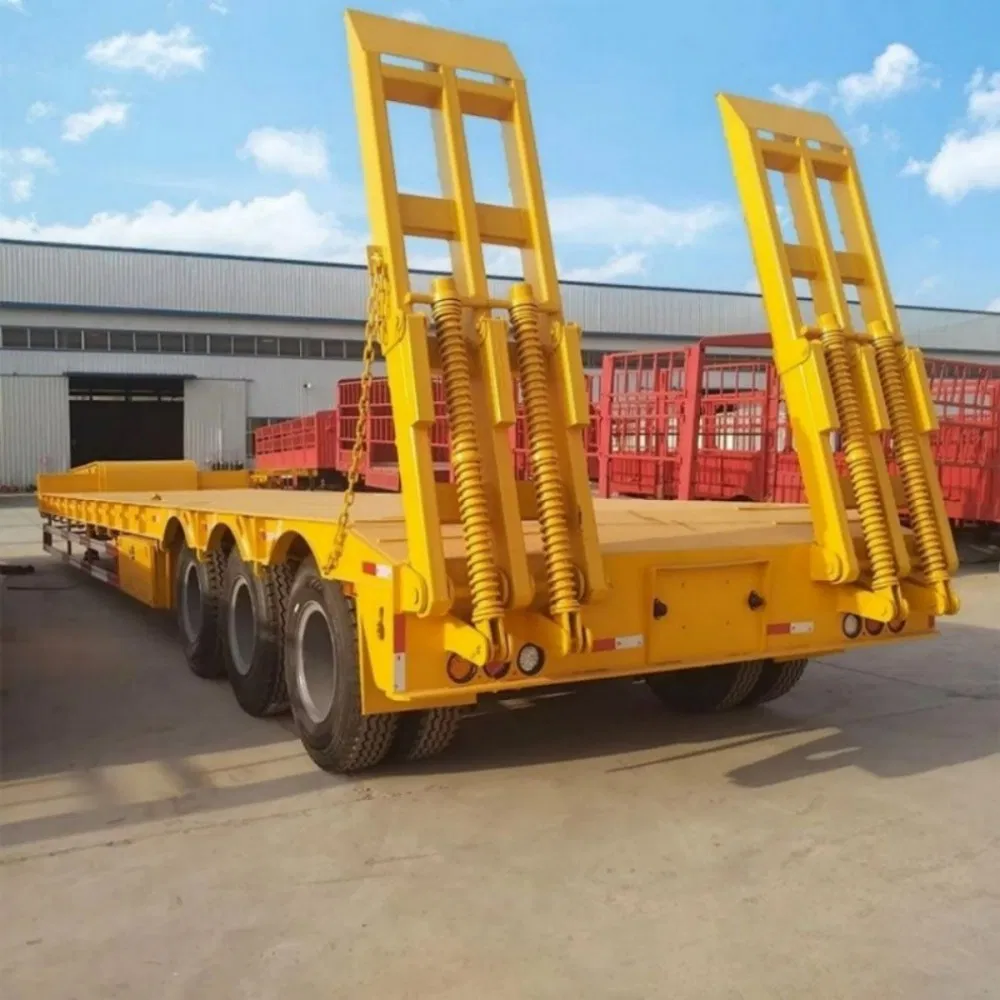

Low bed semi-trailers are specialized vehicles designed to transport heavy loads such as containers, heavy vehicles, rail vehicles, mining machinery, forestry machinery, and construction machinery. A lower center of gravity ensures enhanced stability and safety, making it ideal for transporting super-high loads while passing overhead obstacles efficiently.
Depending on the axle configuration and tire specifications, the load capacity typically ranges between 20 to 150 tons. These trailers feature plate types, concave beam types, and exposed tire structures. The frame uses a ladder-style design with an I-shape longitudinal beam section, ensuring high stiffness and strength.
| Product Name |
2 axles lowbed |
3 axles lowbed |
4 axles lowbed |

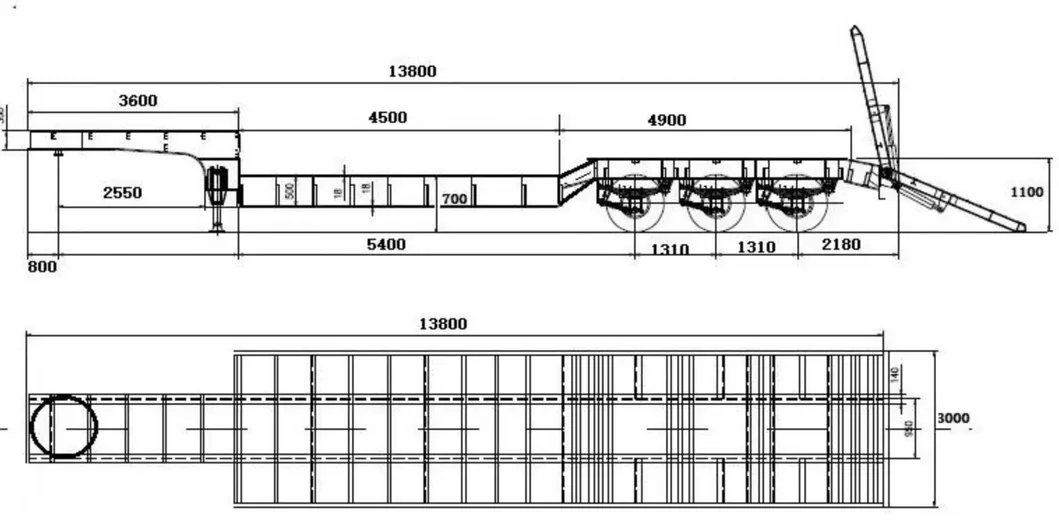

| Size (mm) |
12500*3000*1100 |
13000*3000*1100 |
14000*3000*1100 |
| Payload |
40,000 KG |
60,000 KG |
80,000 KG |
| Main Beam |
Height: 500mm, Material: Q345B Steel. Upper: 16mm, Middle: 8mm, Down: 18mm |
| Suspension |
Mechanical suspension (Air suspension optional) |
| Tires/Rims |
12R22.5 / 11.00R20 (8-12 pieces based on configuration) |
| Braking System |
Double air chamber, brake valve, 45L air tanks; ABS optional |
❓ Frequently Asked Questions
1 Are you a factory or trade company?
We are a comprehensive industrial and trade enterprise integrating product design, scientific research, development, production, and sales.
2 Can you accommodate special designs and specifications?
Yes. Our professional engineers design trailers according to regional traffic regulations and specific customer requirements, including special sizes, controls, and OEM/ODM services.
3 How is the product quality controlled?
We have established a rigorous inspection process covering raw materials, production phases, and finished products. Advanced equipment and standard protocols ensure high quality.
4 What delivery terms do you accept?
We accept various delivery terms including EXW, FOB, CFR, and CIF to meet different logistics needs.
5 Which logistics methods are used for shipment?
90% of shipments are sent by sea via container or RoRo/Bulk shipment to major continents. For neighboring countries, road or railway transport is available. Urgent spare parts can be shipped via international couriers like DHL, TNT, UPS, or Fedex.
6 Are you looking for international agents?
Yes, we are actively looking for agents worldwide. Please contact us for further discussion on partnership opportunities.
