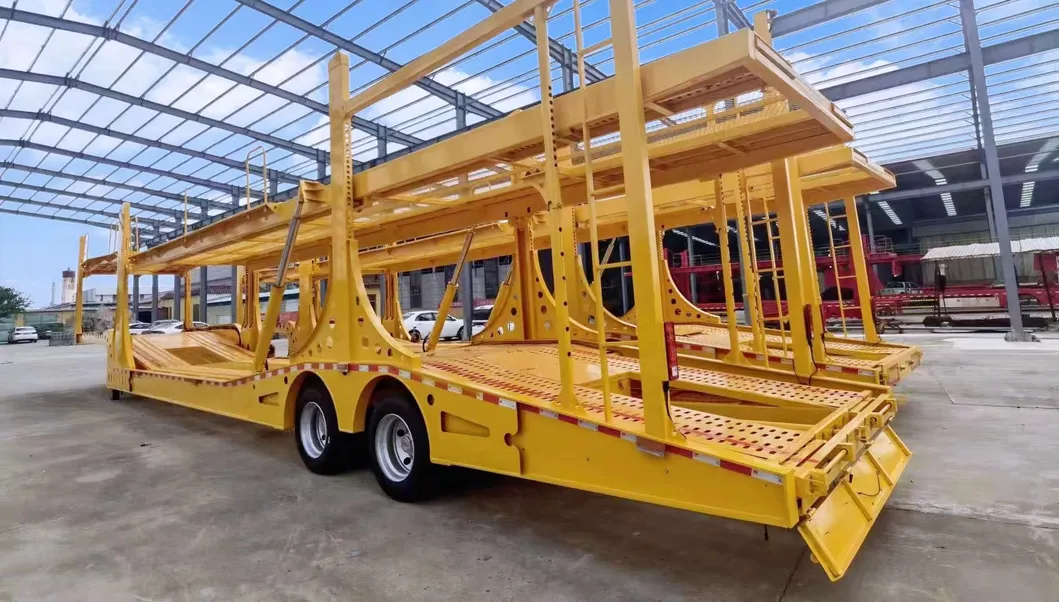

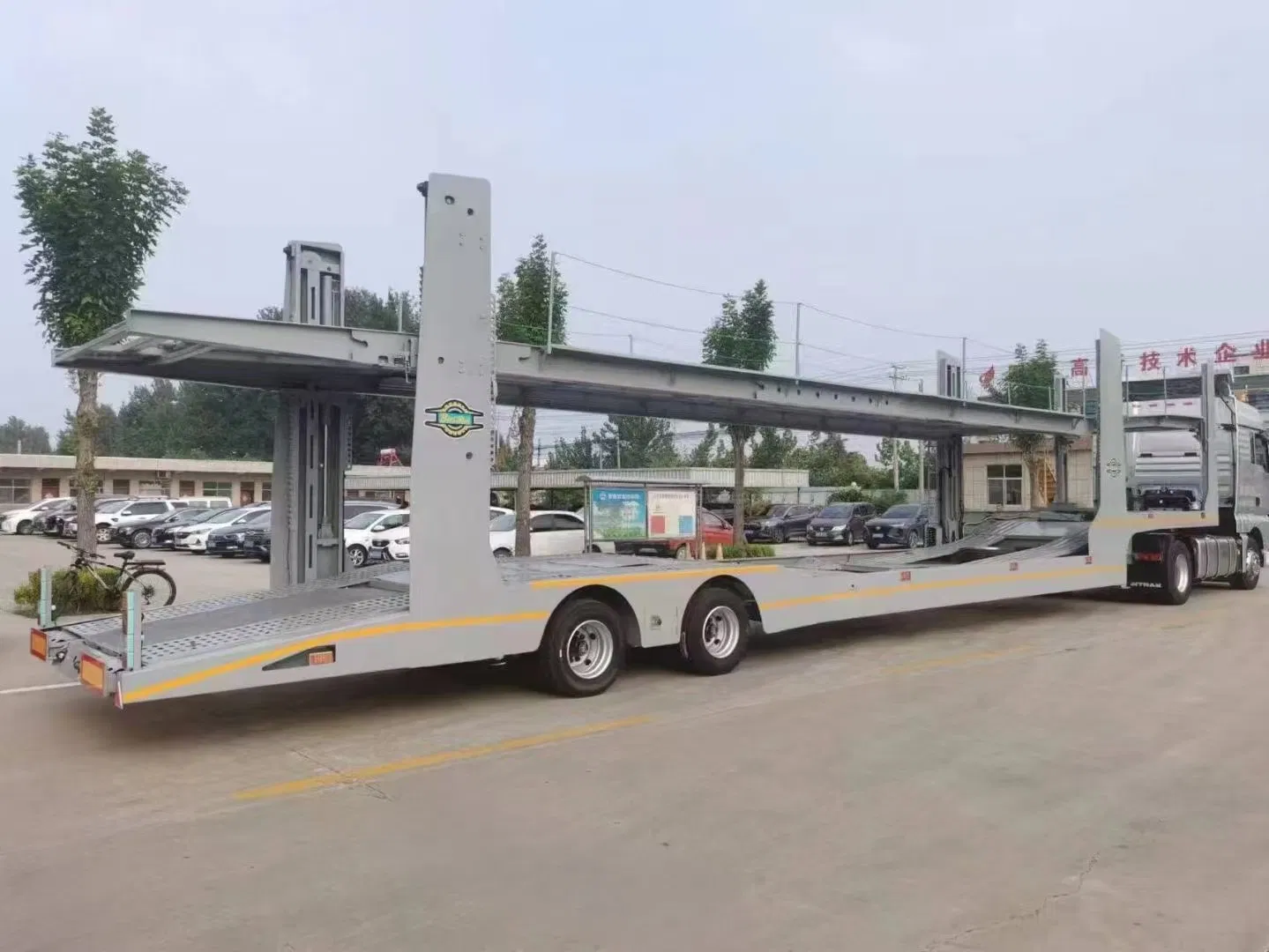

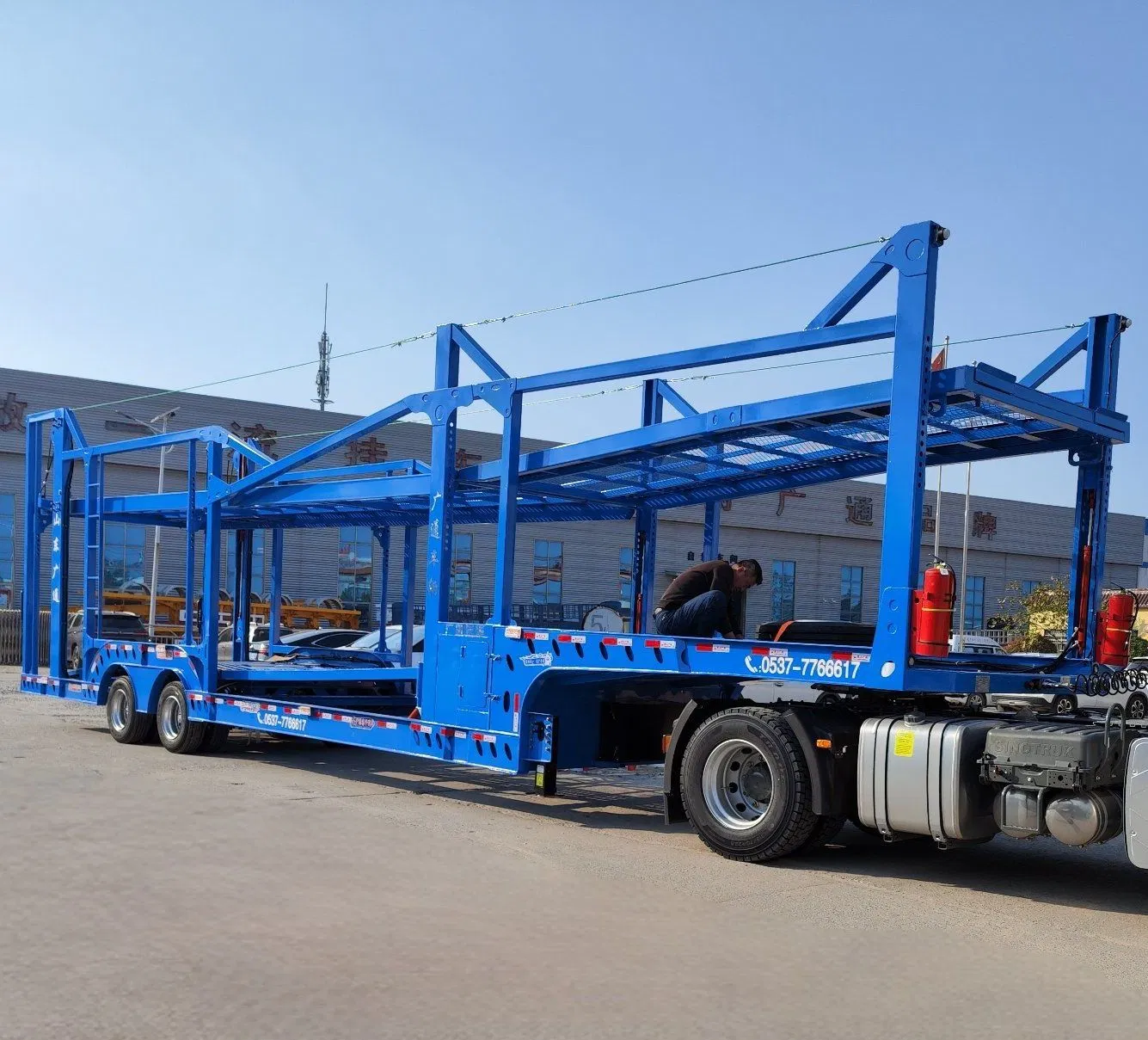

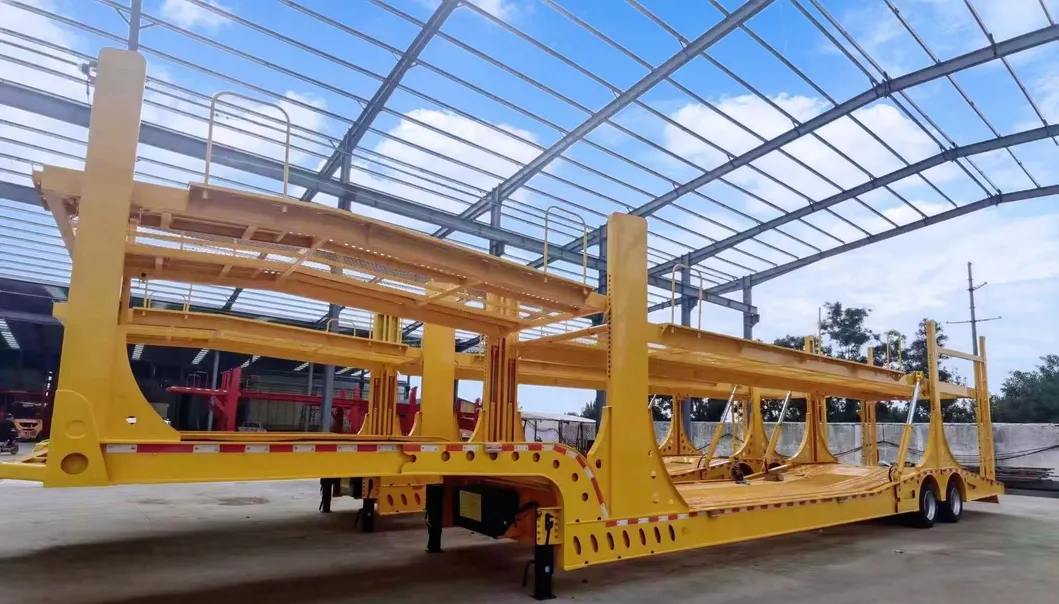

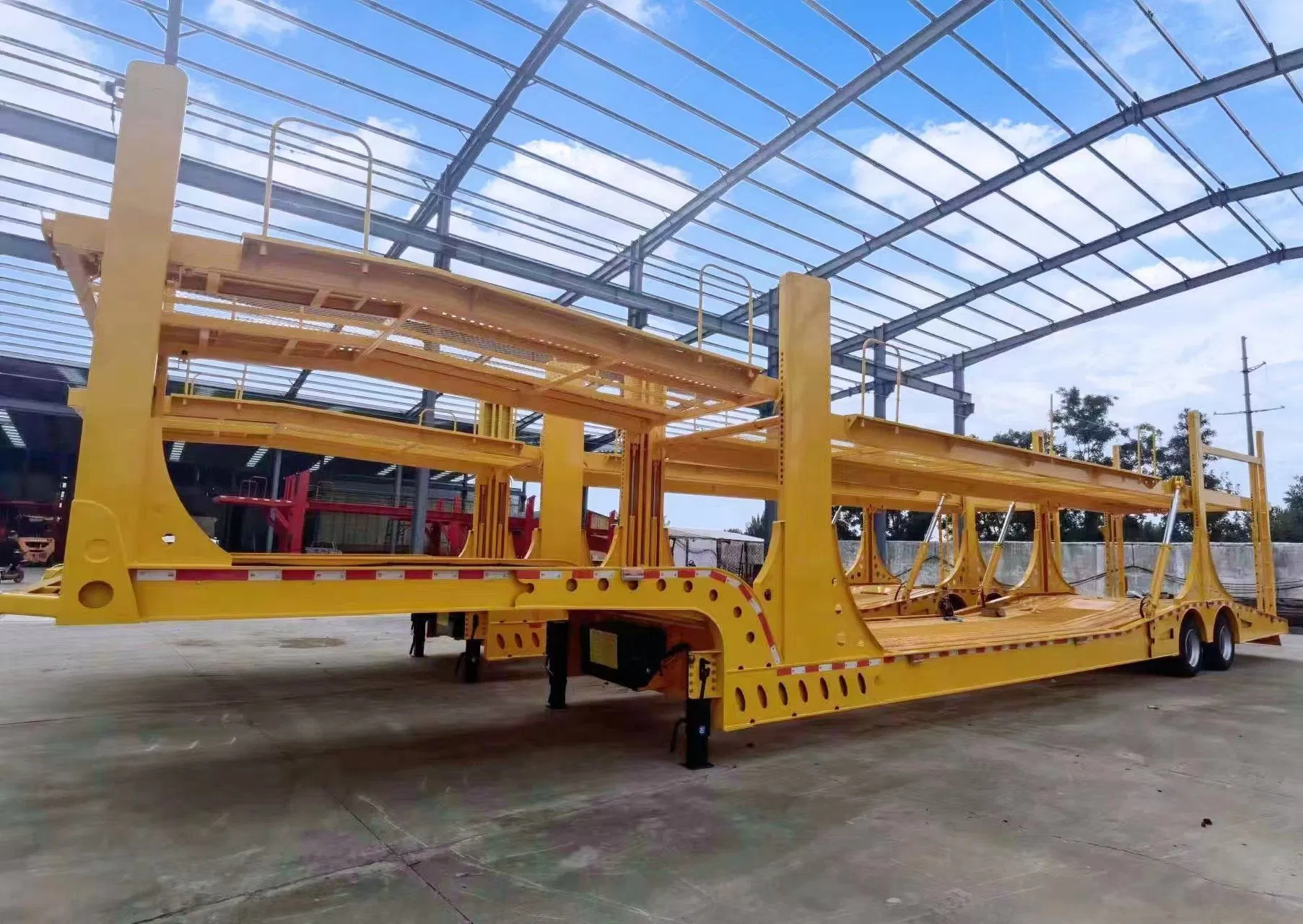

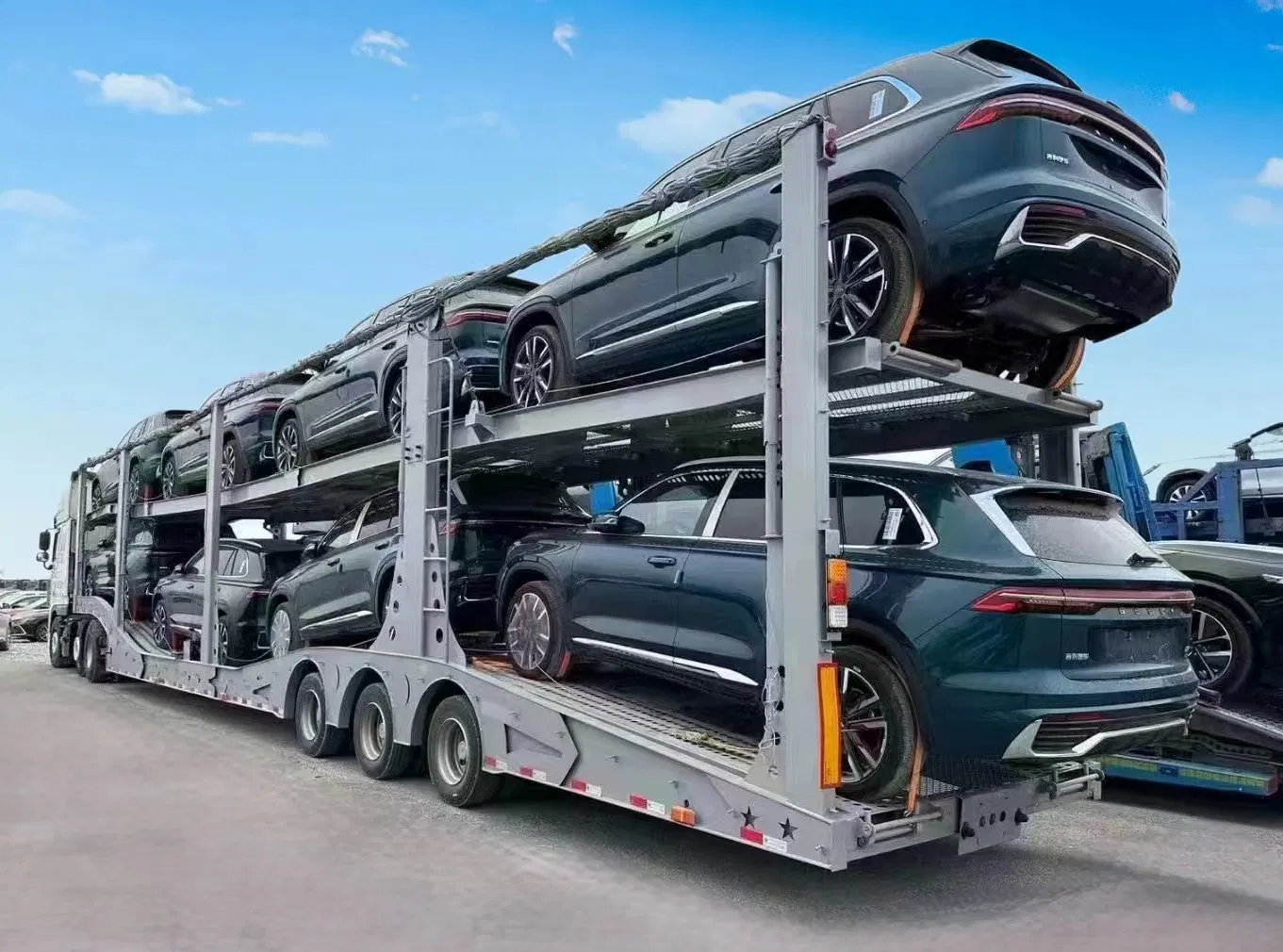

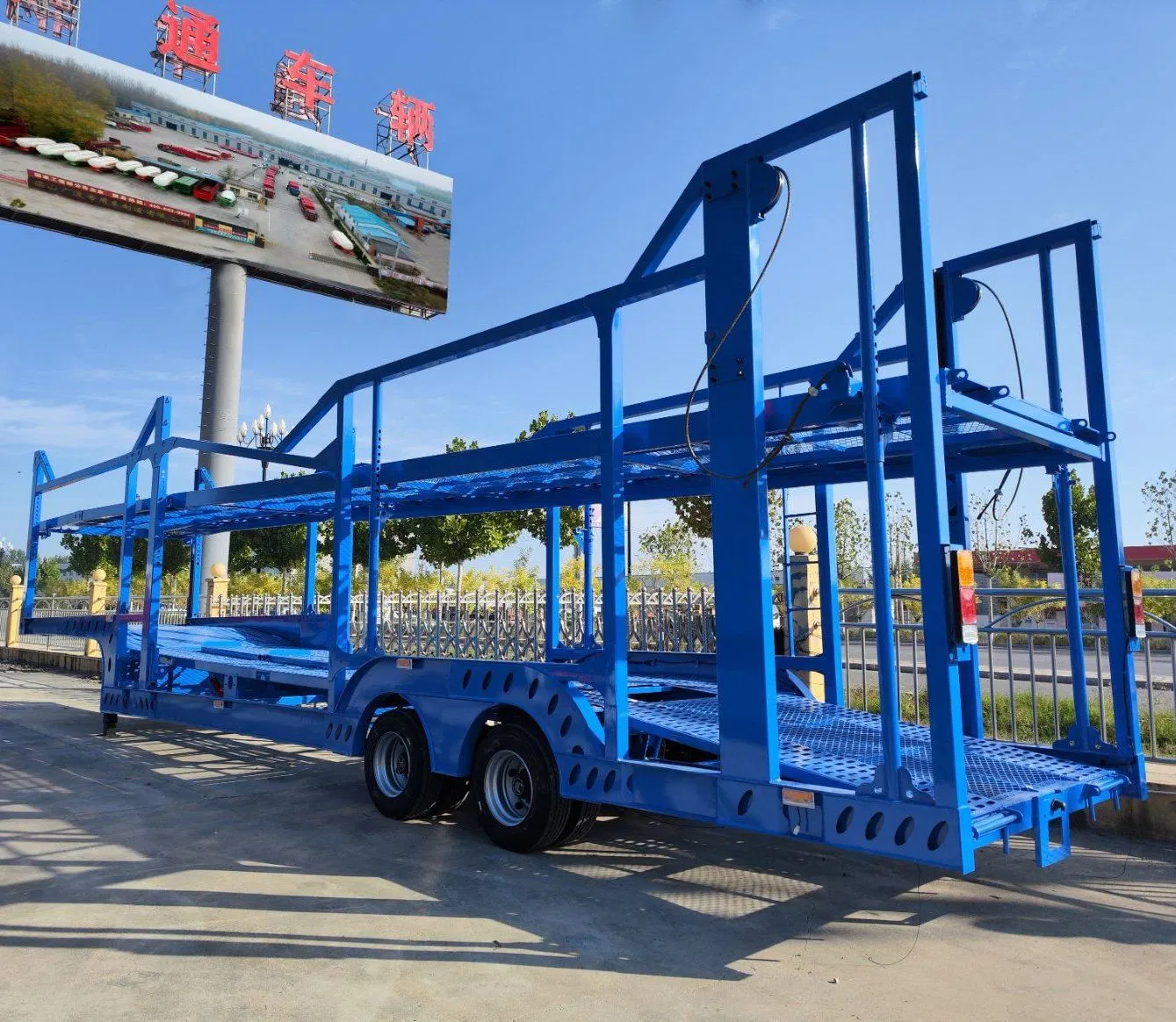

We have highly experienced designers who can customize vehicle models and materials based on road conditions, cargo types, and load requirements to achieve the best cost performance.
| Size | 18000mm * 2550mm * 3700mm |
| Gross Weight | 8000kg |
| Main Beam | Mild Alloy (16Mn) by Automatic submerged arc welding. Height 500mm, Upper 14mm, Down 16mm, Middle 8mm. |
| Axle | 3 axle, 13 Ton axles |
| Wheel Rim | 9.0-22.5 (12pcs) |
| Tire | 235/75R17.5 * 12 pcs |
| Landing Gear | Two-speed, manual operating, heavy duty 28T |
| King Pin | 2.00 inch bolt-in king pin |
| Suspension | Mechanical suspension reinforced type |
| Braking System | Dual line pneumatic brake system, T30 air chamber, 40L air tanks |
| Hydraulic | 5 units of hydraulic cylinders installed to lift the second floor |
| Painting | Sand blasting to clean rust, 1 coat anticorrosive prime, 2 coats final paint |
Operation Philosophy: Quality first, customer first. Win the market with high-quality products and sincere service.
Certifications: National mandatory "CCC" certification, ISO9001:2000 quality management system, and environmental health management system.
Enterprise Status: Rated as a national high-tech enterprise with 20 authorized intellectual property rights, including 3 invention patents.
